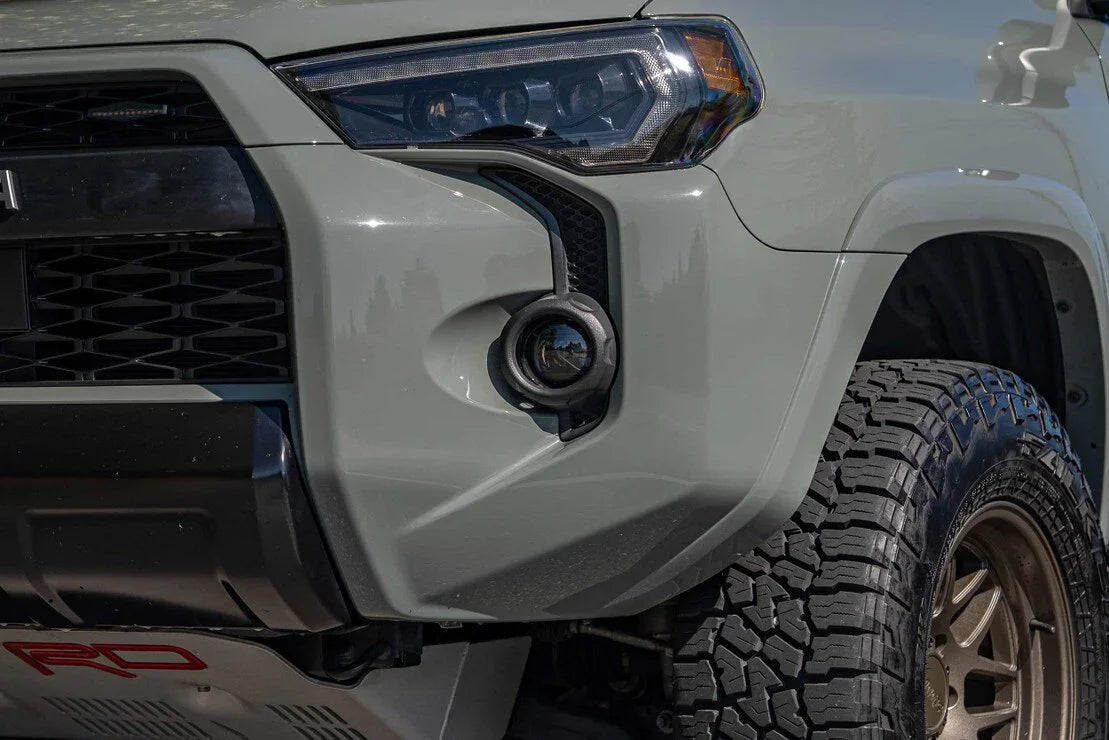

Morimoto Toyota 4Runner (10-24) XB Evo LED Fog Lights
Morimoto XB Evo LED Fog Lights — Toyota 4Runner (2010–2024)
The XB Evo is Morimoto's fog light for drivers who want real beam engineering rather than a bright bulb. Osram Oslon-PL chips sit behind optics designed by Yoshi Ishida, producing 8,500 Cd and a 102-degree horizontal spread that fills the road edge to edge.
It is fully compliant with SAE J583 F3 and ECE R19, matched to OE specifications for the 2010–2024 4Runner, and backed by a 10 year warranty. This is the dedicated white-output version; the XB Evo+ adds switchable yellow.
| Spec | Detail |
|---|---|
| Light source | Osram Oslon Compact PL KW CWLPM3.T1 |
| Peak luminosity (raw) | 1,500 lm |
| Intensity | 8,500 Cd |
| Power | 20.5W (each) |
| Optic | Ishida SAE Wide Fog |
| Horizontal beam spread | H 51L to 51R (102 degrees) |
| Vertical beam spread | 1D to 7.3D (6.3 degrees) |
| Compliance | SAE J583 F3 / ECE R19 |
| Input | H11 / H9 / H8 male |
| Materials | Die-cast aluminum housing, UV-resistant polycarbonate lens |
| Lens coating | Proprietary hardened anti-UV protection |
| Interior colour | Gloss black with contrasting textures |
| Warranty | 10 years |
| Fitment | Toyota 4Runner 2010–2024. Output and power figures are per light. |
Will these fit my 4Runner?
They are built for the 2010–2024 Toyota 4Runner and crafted to match OE specifications, so they drop into the factory fog light locations. The input is an H11 / H9 / H8 male connector.
Are they street legal?
Yes. The XB Evo meets the latest SAE J583 F3 and ECE R19 regulations for on-road use in both North America and the EU.
What is the difference between XB Evo and XB Evo+?
The XB Evo is a dedicated white-output fog light. The XB Evo+ can be switched between white and yellow on the fly, with no compromise in how light is distributed within the beam regardless of which colour is selected.
Is there a warranty?
Morimoto covers these fog lights with a 10 year warranty. They are designed, engineered and tested in Atlanta, Georgia.
