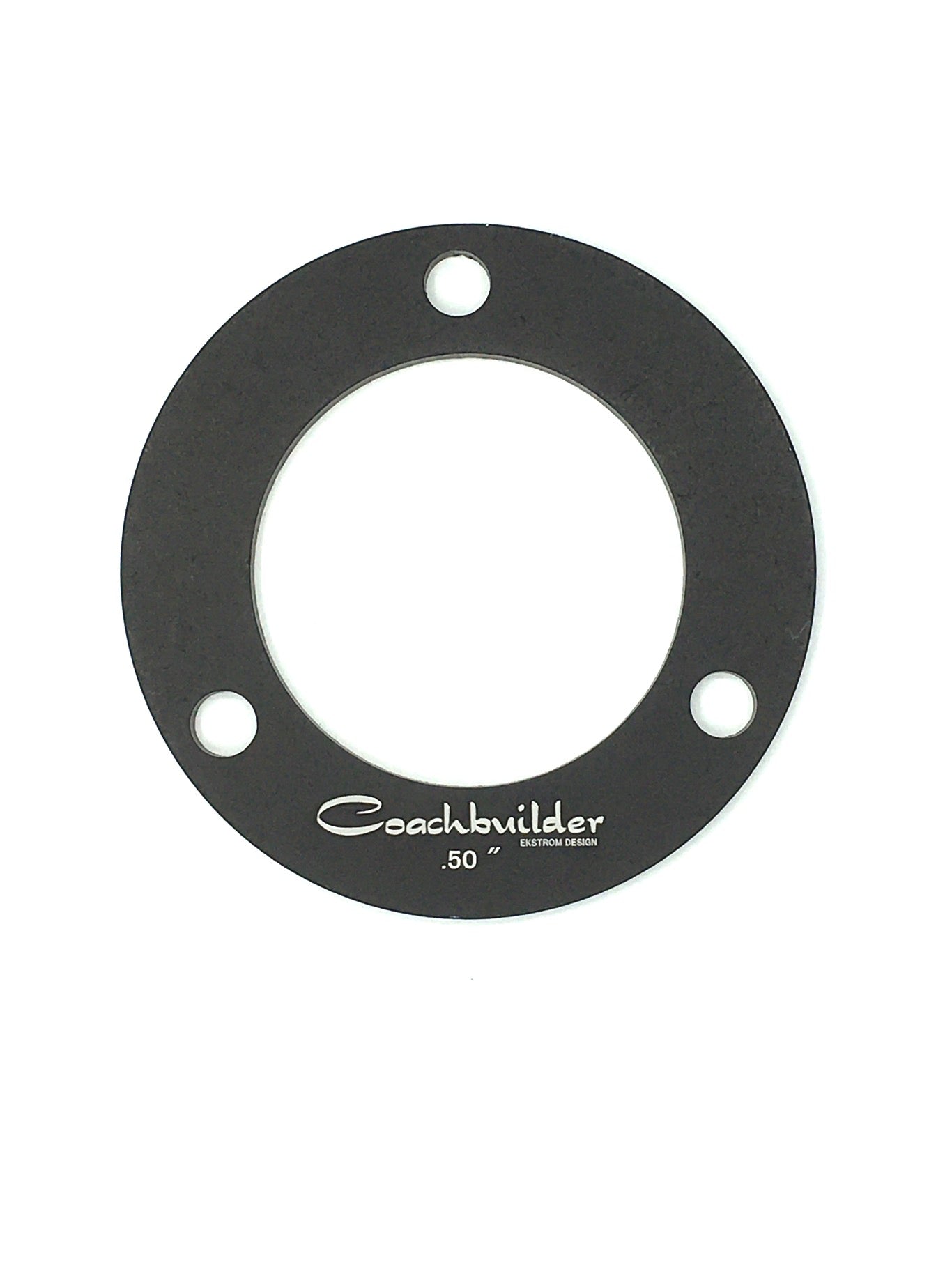

A half inch is the working number for a lot of 2005–2023 Toyota Tacoma, 4Runner, and FJ Cruiser builds — enough to level the front end or claw back the height a heavy bumper took away. This Coachbuilder strut/coilover shim provides .50" of front lift per corner, TRD Pro models included, and it does it without adding preload to the coilover. The 1:2 ratio means the shim itself measures just .250" thick, machined from T6 6061 billet aluminum and hard black anodized. Need more? Up to two shims can be stacked per side for a full 1.00" of lift, with a bump stop extension kit recommended at that height. Every shim is made in the USA by Ekstrom Design & Fabrication.
Features
- Provides .50" of front lift — 1:2 ratio, .250" actual thickness
- Stackable up to two per side for 1.00" of lift (bump stop extension kit recommended)
- Eliminates the need to add preload to the coilover
- Corrects driver-side lean
- Compatible with TRD Pro suspension (hardware kit required)
- CNC machined from T6 6061 billet aluminum, hard black anodized
- Made in the USA by Ekstrom Design & Fabrication Corporation
- Includes one Coachbuilder shim
ADS, Fox 2.5 Series, Icon 2.5 Series, and King coilovers require the Coachbuilder Coilover Bolt Kit (SAE 3/8"), while Eibach and OME BP-51 coilovers take the Metric M10 bolt kit. TRD Pro models must use the Coachbuilder Hardware Kit (SKU CBSNK). For other heights and platforms, browse our coil spacers and shims.
Complete your Toyota 4Runner build
More parts that fit your Toyota 4Runner and pair well with this one — matched and ready to install.
$20.70
$82.80
$16.00
$9.90
$113.75
More for your Toyota 4Runner
Picked from the 1519 parts we carry for the Toyota 4Runner, matched to 2005–2023 model years. Check the years and trim in each title — or call us and we’ll confirm fit.
Specifications
Coachbuilder Strut/Coilover Shim | .50" Front Lift | Fits Toyota Tacoma, 4Runner & FJ Cruiser 2005–2023 Including TRD Pro | Ekstrom Design FAQs
Does this work on my Tacoma TRD Pro?
Yes — the shim fits the 2005-2023 Toyota Tacoma and 4Runner including TRD Pro models, plus the FJ Cruiser. TRD Pro suspension must be paired with the Coachbuilder Hardware Kit (SKU CBSNK), which is sold separately.
Can I stack shims for more lift?
Up to two shims can be used per side for 1.00" of total front lift, and Ekstrom Design recommends a bump stop extension kit at that height. Each listing includes one shim, so a stacked setup on both sides means ordering four.
Does this shim lift the rear too?
No — this is a front strut/coilover shim, engineered to fine-tune the front suspension of the 2005-2023 Tacoma, 4Runner, and FJ Cruiser. It mounts on top of the front coilover and provides .50" of lift per corner. Rear height is handled by separate products.
