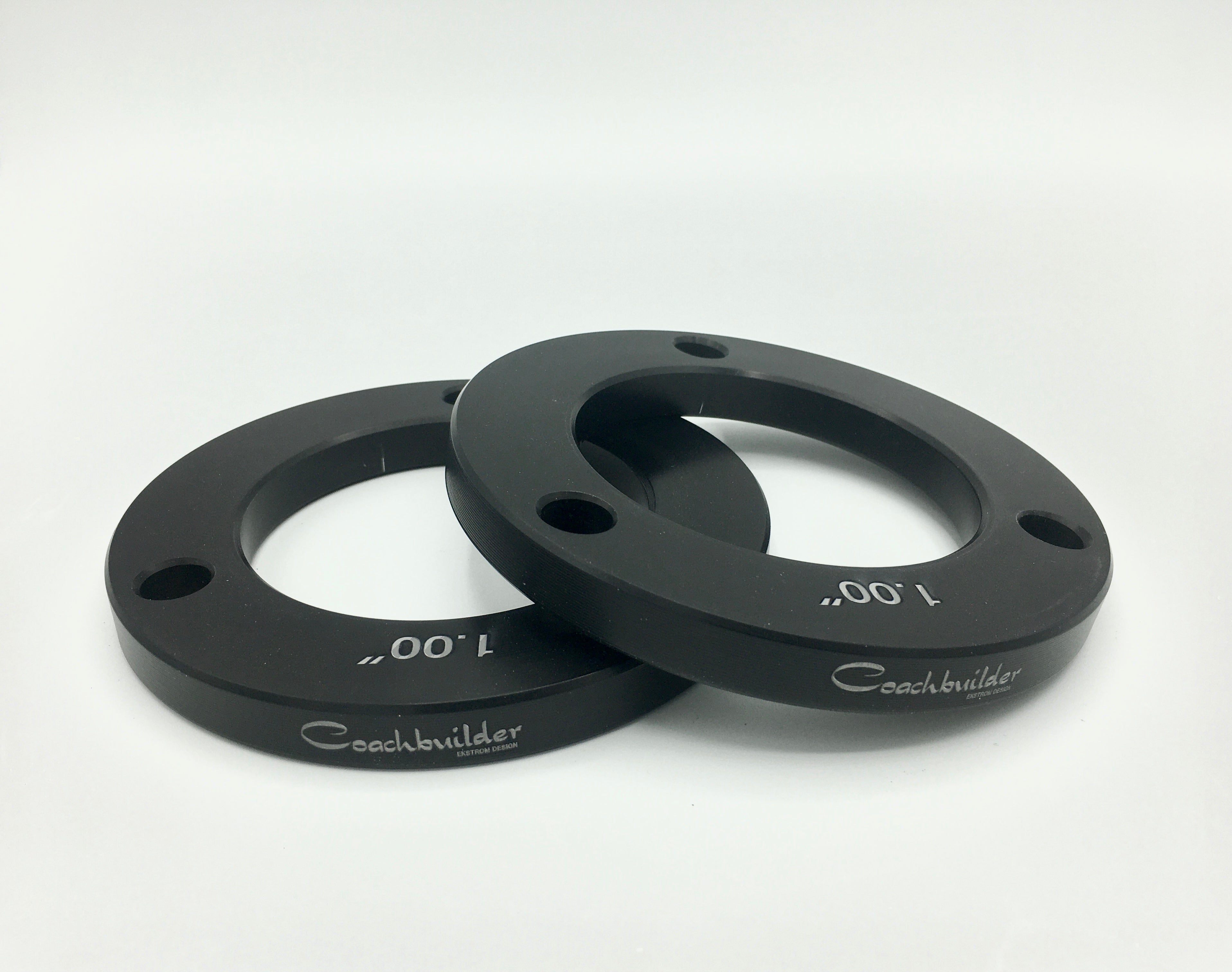

When a half inch here and there will not cut it, this Coachbuilder shim set raises the front of the 2005–2023 Toyota Tacoma, 4Runner, and FJ Cruiser a full 1.00", TRD Pro models included. The kit contains two shims — one per side — each CNC machined from T6 6061 billet aluminum and hard black anodized. Mounted on top of the coilover, they add height through a 1:2 ratio (each shim measures .50" in actual thickness) rather than through extra spring preload, so your coilovers keep working the way they were set up. It is a clean way to bring the nose up to meet a lifted rear or simply carry the front end higher, and Ekstrom Design machines every set in the USA.
Features
- Provides 1.00" of front lift — two shims included, one per side
- 1:2 ratio design; each shim measures .50" in actual thickness
- Eliminates the need to add preload to the coilover
- CNC machined from T6 6061 billet aluminum
- Hard black anodized finish
- Fits TRD Pro models (Coachbuilder Hardware Kit required)
- Coachbuilder Bump Stop Kit recommended at this lift height
- Made in the USA by Ekstrom Design & Fabrication Corporation
ADS, Fox 2.5 Series, Icon 2.5 Series, and King coilovers require the Coachbuilder Coilover Bolt Kit (SAE 3/8"), while Eibach and OME BP-51 coilovers use the Metric M10 bolt kit. At a full inch of lift, Ekstrom recommends adding the Coachbuilder Front Bump Stop Kit. Browse the rest of the Coachbuilder lineup for matching upgrades.
Complete your Toyota 4Runner build
More parts that fit your Toyota 4Runner and pair well with this one — matched and ready to install.
$82.80
$20.70
$16.00
$9.90
$113.75
More for your Toyota 4Runner
Picked from the 1519 parts we carry for the Toyota 4Runner, matched to 2005–2023 model years. Check the years and trim in each title — or call us and we’ll confirm fit.
Specifications
Coachbuilder Strut/Coilover Shims | 1.00" Front Lift | Fits Toyota Tacoma, 4Runner & FJ Cruiser 2005–2023 Including TRD Pro | Ekstrom Design FAQs
What exactly is included?
Two Coachbuilder shims — one for each side of the truck. Each shim measures .50" in actual thickness and the pair delivers 1.00" of front lift through the suspension's 1:2 ratio. They fit the 2005-2023 Toyota Tacoma, 4Runner, and FJ Cruiser, including TRD Pro models.
Do I need new bump stops with 1.00" of lift?
Ekstrom Design recommends the Coachbuilder Bump Stop Kit when running this full-inch shim set. It is the vendor's stated pairing for this lift height, and it is a straightforward add-on next to the shims themselves.
Which bolt kit goes with my coilovers?
ADS, Fox 2.5 Series, Icon 2.5 Series, and King coilovers require the SAE 3/8" Coachbuilder Coilover Bolt Kit, while Eibach and OME BP-51 coilovers take the Metric M10 version. TRD Pro models must use the Coachbuilder Hardware Kit.
