Aluminum Body Mount Spacer Kit for Jeep Wrangler TJ 1997-2006

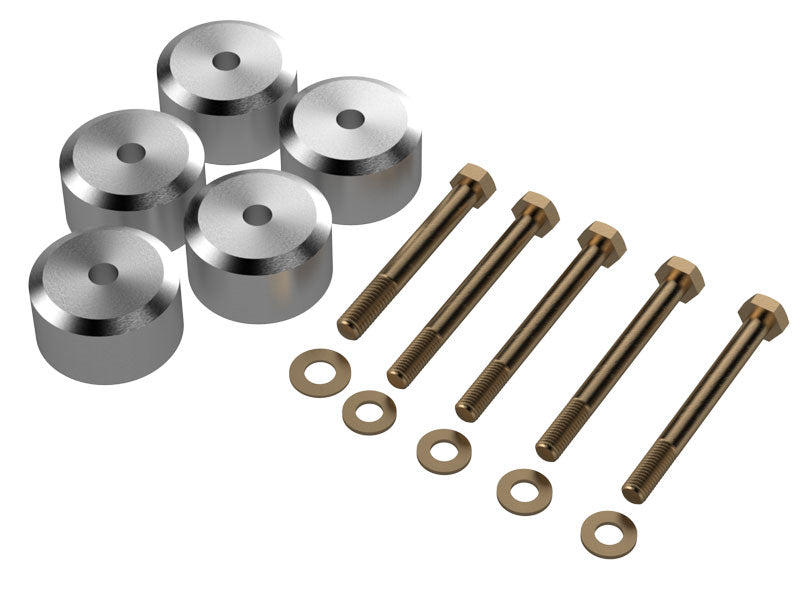

This Artec Aluminum Body Mount Spacer Kit raises the radiator mount and the four rearmost body mounts on a Jeep Wrangler TJ or LJ by 1.25", so the rest of the tub matches the height of Artec's 1.25"-lift Boatside Body Mounts. If you are welding on the lifted boatsides but do not already run a body lift, these CNC-machined 6061 aluminum spacers level the body without buying a complete body lift kit you mostly do not need. Grade 8 hardware is included, and the whole kit is made in the USA.
Features
- CNC machined from 6061 aluminum — strong, light, and corrosion-free

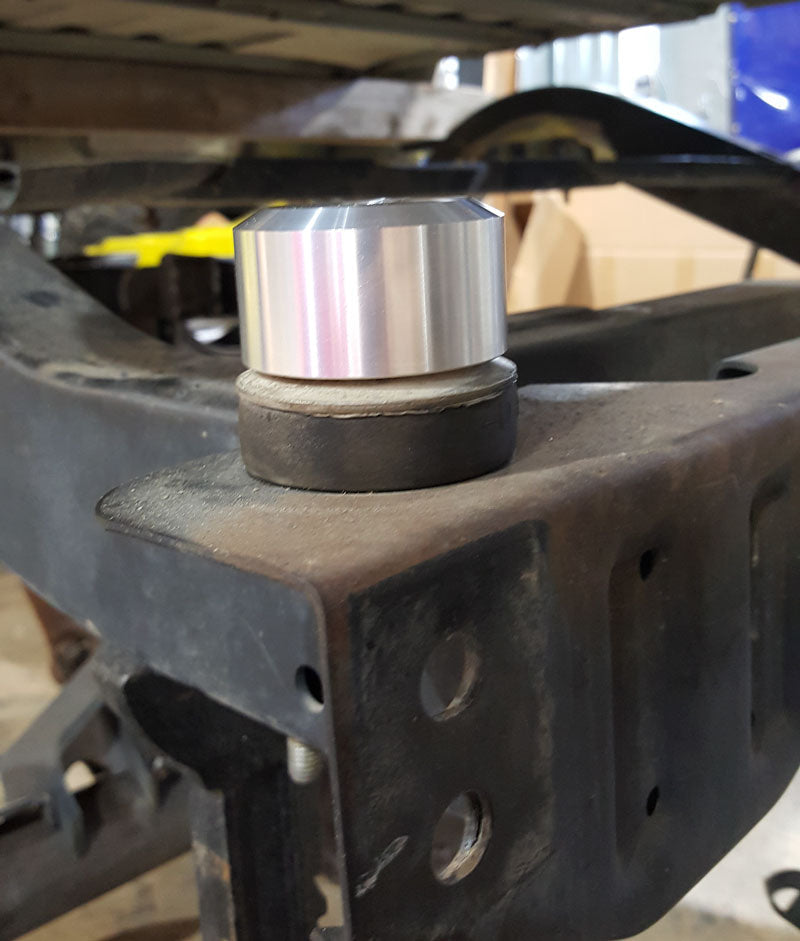

- Provides a 1.25" body lift at the radiator and four rear body mounts
- Matches the height of Artec's 1.25" TJ Boatside Body Mounts
- Grade 8 mounting hardware included
- Bolt-on installation, no welding at the spacer locations
- Made in the USA
Fits the Jeep Wrangler TJ (1997-2006) and LJ Unlimited (2004-2006); skip this kit if your Jeep already runs a 1.25" body lift, since the mounts would then sit level on their own. Pair it with the TJ Boatside Body Mounts with 1.25" lift, or go with the OEM-height Boatside Body Mounts and no spacers to keep the stock body position. See more options in body mounts.
Aluminum Body Mount Spacer Kit for Jeep Wrangler TJ 1997-2006 FAQs
What does this spacer kit actually do?
It raises the radiator mount and the four rearmost body mounts of a TJ or LJ by 1.25", so those points match the height of Artec's 1.25"-lift Boatside Body Mounts. Without the spacers, the middle of the tub would sit higher than the front and rear mounting points.
Do I need it if I already have a body lift?
No. The kit exists for Jeeps without a body lift — if you already run a 1.25" body lift, your radiator and rear mounts are already raised and the lifted boatside mounts will line up on their own. It fits the Wrangler TJ (1997-2006) and LJ Unlimited (2004-2006).
Is any welding involved?
Not for the spacers — they bolt in with the included Grade 8 hardware using basic hand tools. The boatside body mounts they are designed to accompany are weld-on parts, so plan the welding for that side of the project separately.
