Rail T-Nuts

Charvonia Design Rail T-Nuts for Toyota Tacoma and Toyota Tundra Bed Rails

Make rail tie-down installation easier with Charvonia Design Rail T-Nuts, a smart mounting solution designed for Toyota Tacoma and Toyota Tundra OEM bed rails. If your truck already has a bed rack, tonneau cover, camper shell, or other rail-mounted accessories installed, these rail T-nuts let you add Charvonia Design Rail Tie Downs without having to remove existing components. :contentReference[oaicite:1]{index=1}

Unlike the standard full-width mounting plates that need to slide in from the rail ends, Charvonia Design Rail T-Nuts can be installed directly from the face of the rail. That makes them an ideal upgrade for truck owners who want a cleaner, easier way to add billet rail tie-downs to a Tacoma or Tundra with accessories already mounted to the bed rail system. :contentReference[oaicite:2]{index=2}

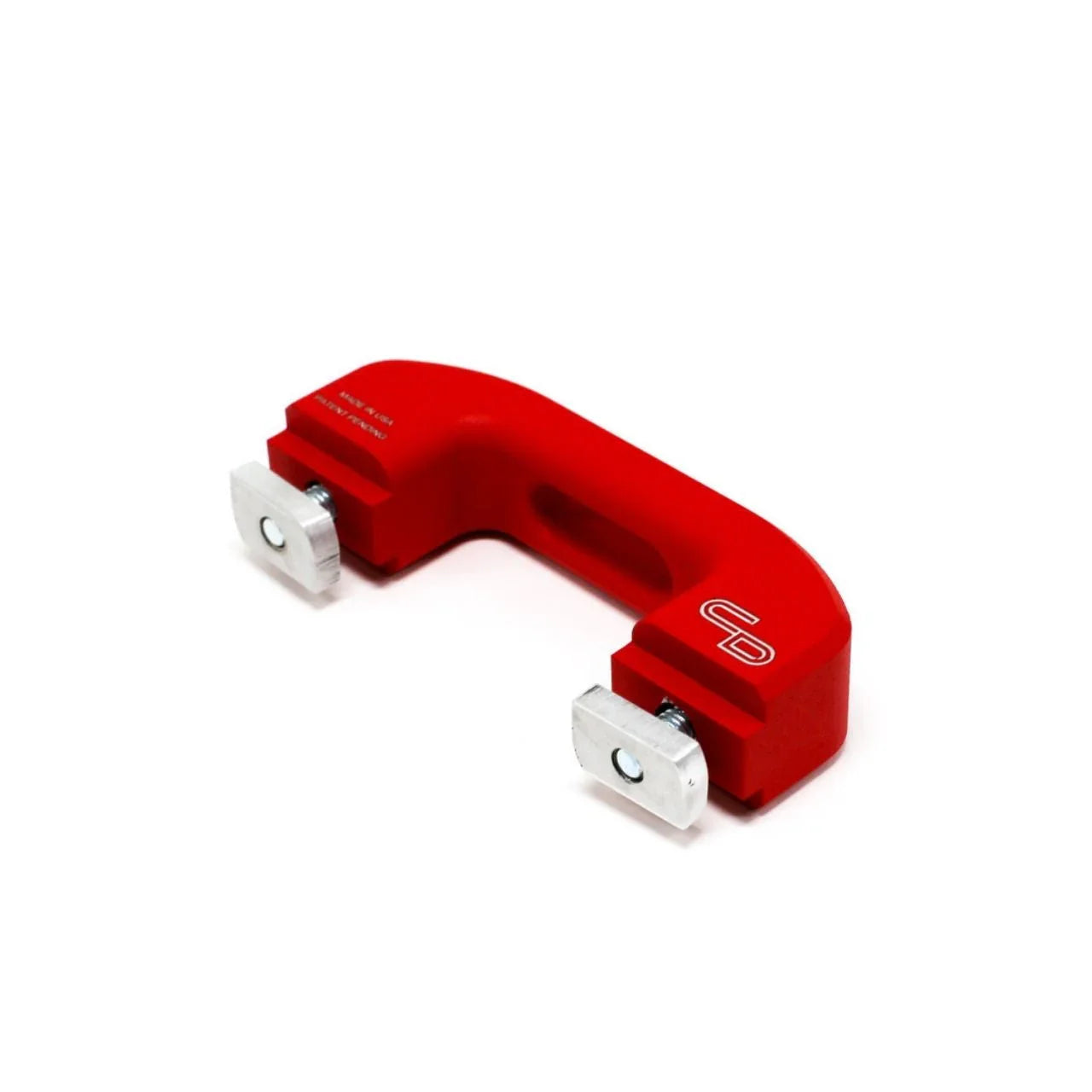

Designed for Charvonia Design Rail Tie Downs

These Charvonia Design Rail T-Nuts are specifically listed as compatible with Rail Tie Downs and are designed to work with the provided rail tie-down hardware. They use M8-1.25 threads and are sized to fit Toyota OEM bed rails. :contentReference[oaicite:3]{index=3}

Compatible Toyota Truck Applications

• 2005+ Toyota Tacoma with OEM bed rails
• 2007+ Toyota Tundra with OEM bed rails

These vehicle-specific applications make them a practical solution for Tacoma and Tundra owners who want to add tie-down points without disassembling their current rail-mounted setup. :contentReference[oaicite:4]{index=4}

Install Rail Tie Downs Without Removing Bed Rail Accessories

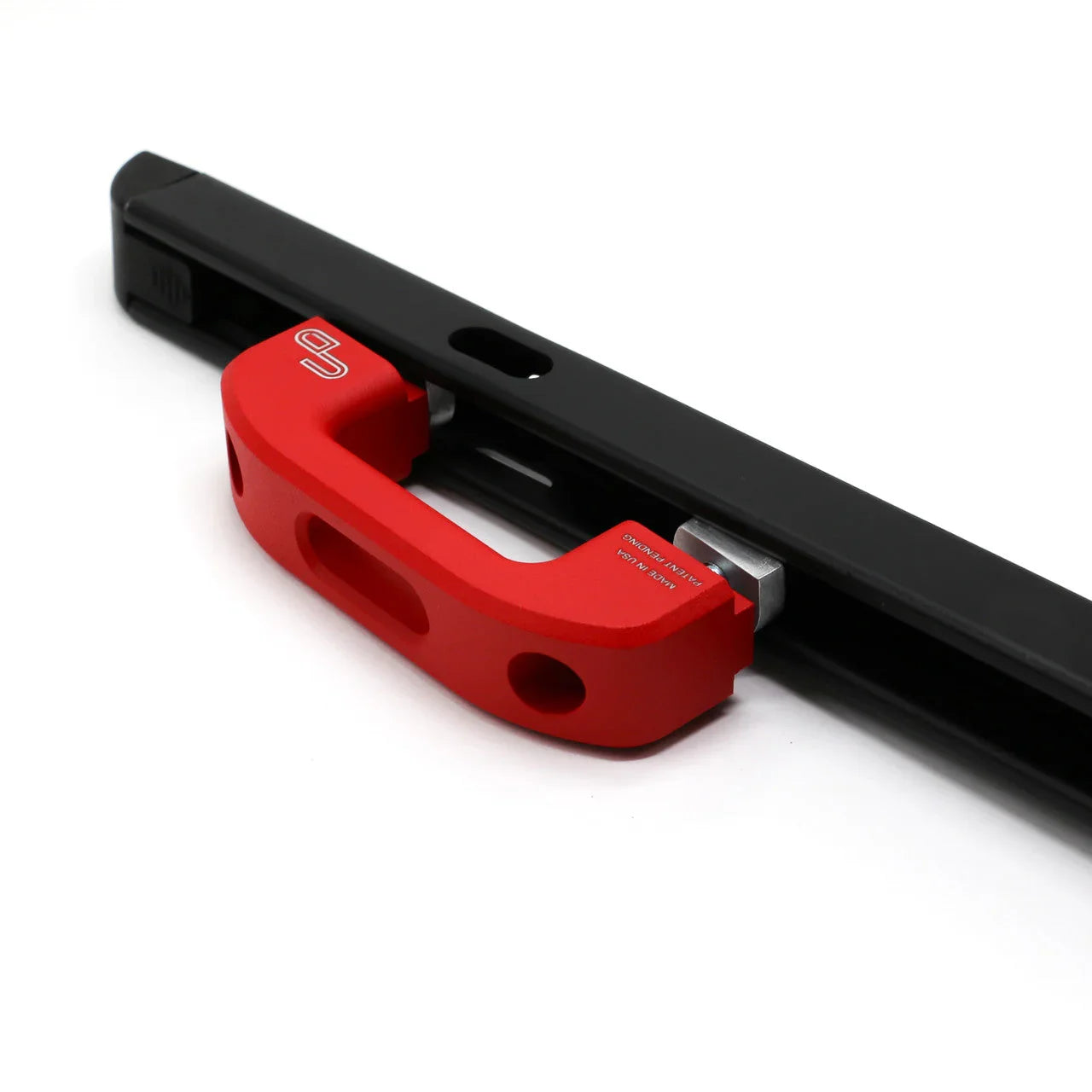

One of the biggest advantages of these Charvonia Design Toyota rail T-nuts is that they can be inserted directly into the slot of the rail and tightened into place. This allows you to install rail tie-down anchors even when your truck already has a bed rack, tonneau cover, camper shell, or other accessories mounted on the bed rails. :contentReference[oaicite:5]{index=5}

Simple Face-Load Installation

Installation is straightforward. The product page explains that you pre-thread the Rail T-Nut loosely onto the provided hardware, insert it into the rail slot with the rounded corners oriented to rotate into place, then tighten the hardware so the T-nut locks into position. :contentReference[oaicite:6]{index=6}

Machined from 1/4-Inch Thick 6061-T6 Aluminum

Charvonia Design Rail T-Nuts are machined from .250-inch thick 6061-T6 aluminum for excellent strength, corrosion resistance, and long-term durability. The product page highlights their heavy-duty construction, exceptional craftsmanship, and corrosion-resistant performance, making them a dependable choice for real truck use. :contentReference[oaicite:7]{index=7}

Sized for OEM Toyota Bed Rails

• Dimensions: 5/8" x 1"
• Thread size: M8-1.25

These dimensions are specifically intended to fit OEM Toyota bed rails while working with Charvonia Design Rail Tie Down hardware. :contentReference[oaicite:8]{index=8}

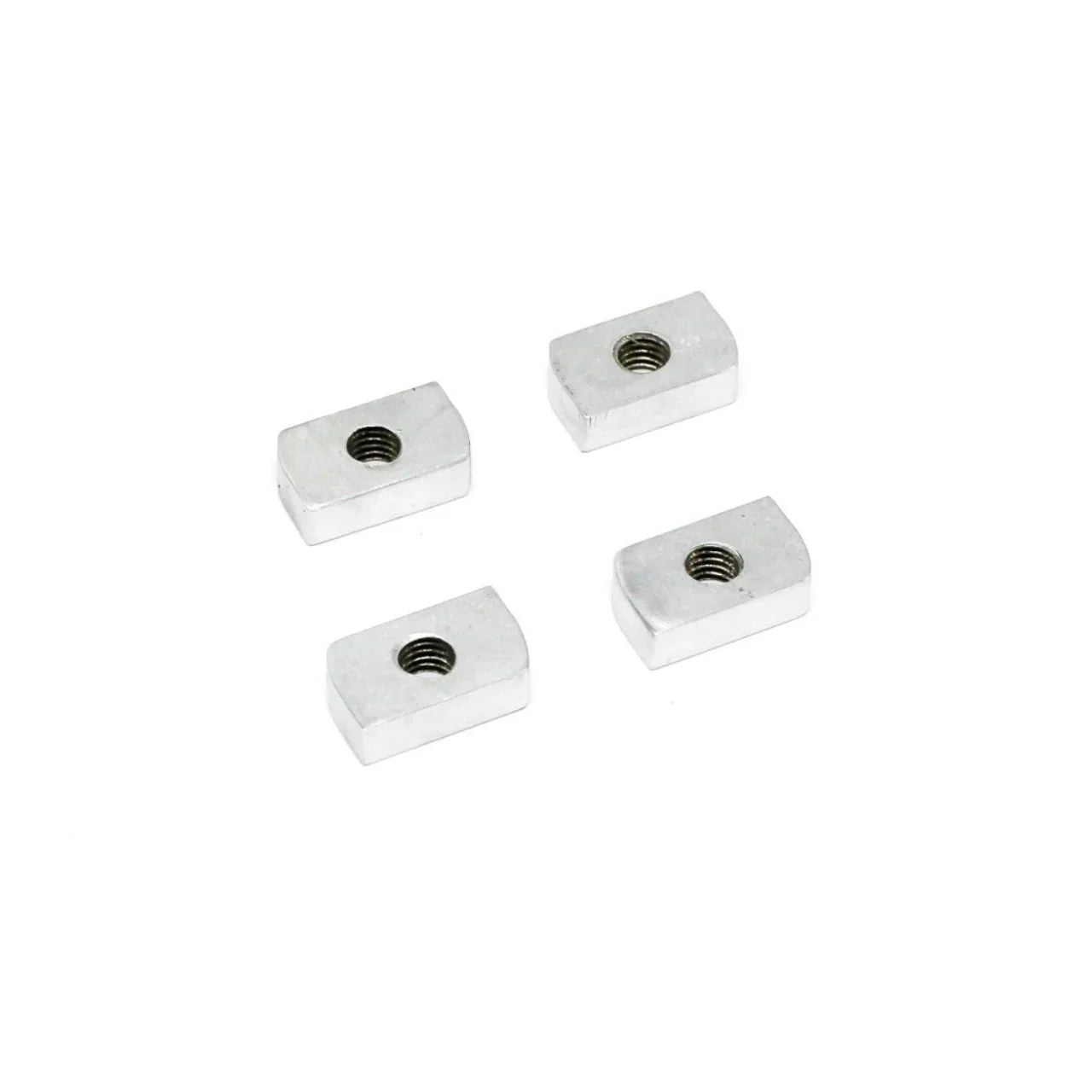

Includes Four T-Nuts for One Pair of Rail Tie Downs

Each set of Charvonia Design Rail T-Nuts includes four (4) T-nuts, which is enough hardware to install one pair of Rail Tie Downs. This gives you the proper quantity needed for a clean, complete rail tie-down installation. :contentReference[oaicite:9]{index=9}

Important Installation Note

The product page notes that the standard mounting plates included with Charvonia Design Rail Tie-Downs have a built-in locking feature, while these T-nuts do not. Because of that, proper installation and ongoing hardware tightness checks are the responsibility of the truck owner. :contentReference[oaicite:10]{index=10}

Designed and Manufactured in the USA

Charvonia Design Rail T-Nuts are proudly designed and manufactured in the USA, giving Toyota truck owners a premium American-made mounting solution for rail tie-down accessories. :contentReference[oaicite:11]{index=11}

Why Choose Charvonia Design Rail T-Nuts?

• Fits 2005+ Toyota Tacoma with OEM bed rails
• Fits 2007+ Toyota Tundra with OEM bed rails
• Designed for Charvonia Design Rail Tie Downs
• Lets you install tie-downs without removing bed racks or rail accessories
• Includes four T-nuts, enough for one pair of rail tie-downs
• Machined from 1/4" thick 6061-T6 aluminum
• Corrosion resistant and built for real truck use
• Designed and manufactured in the USA

Upgrade Your Tacoma or Tundra Rail Setup with Charvonia Design Rail T-Nuts

If you need a smarter way to install Charvonia Design Rail Tie Downs on a Tacoma or Tundra with existing bed rail accessories, Charvonia Design Rail T-Nuts are the solution. With face-load installation, OEM Toyota bed rail compatibility, and heavy-duty 6061-T6 aluminum construction, they make it easier to add secure tie-down points without tearing apart your current setup. :contentReference[oaicite:12]{index=12}
