Morimoto 2Banger LED Pods — NCS Combo Beam

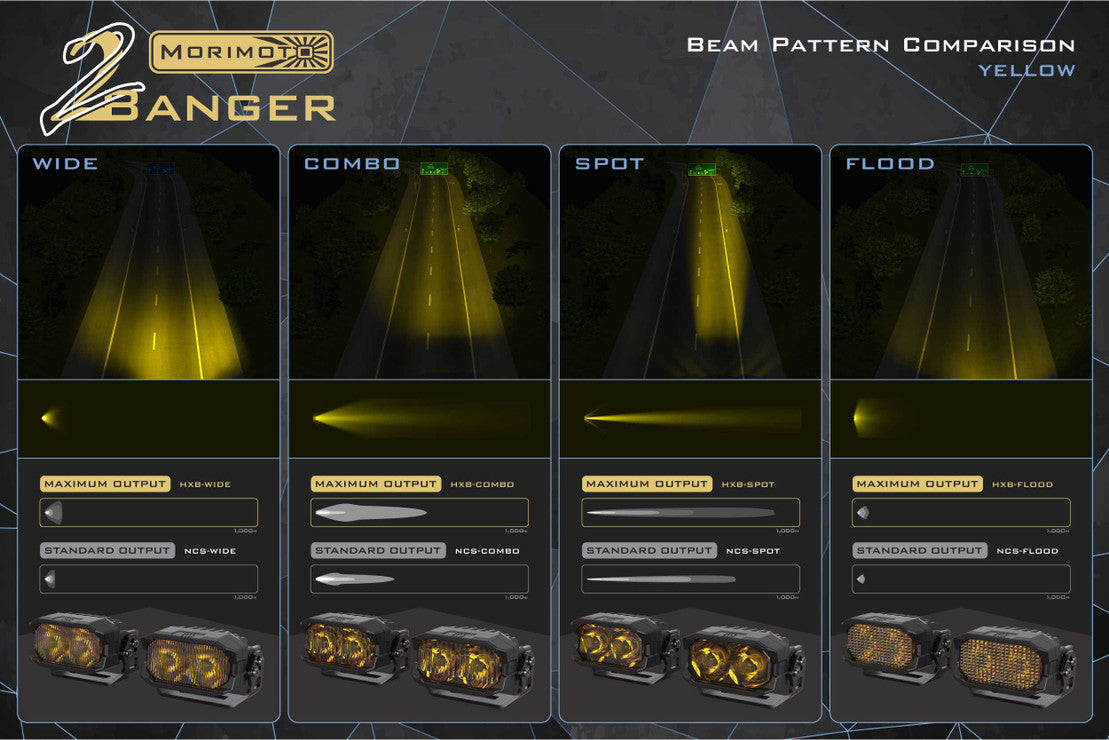

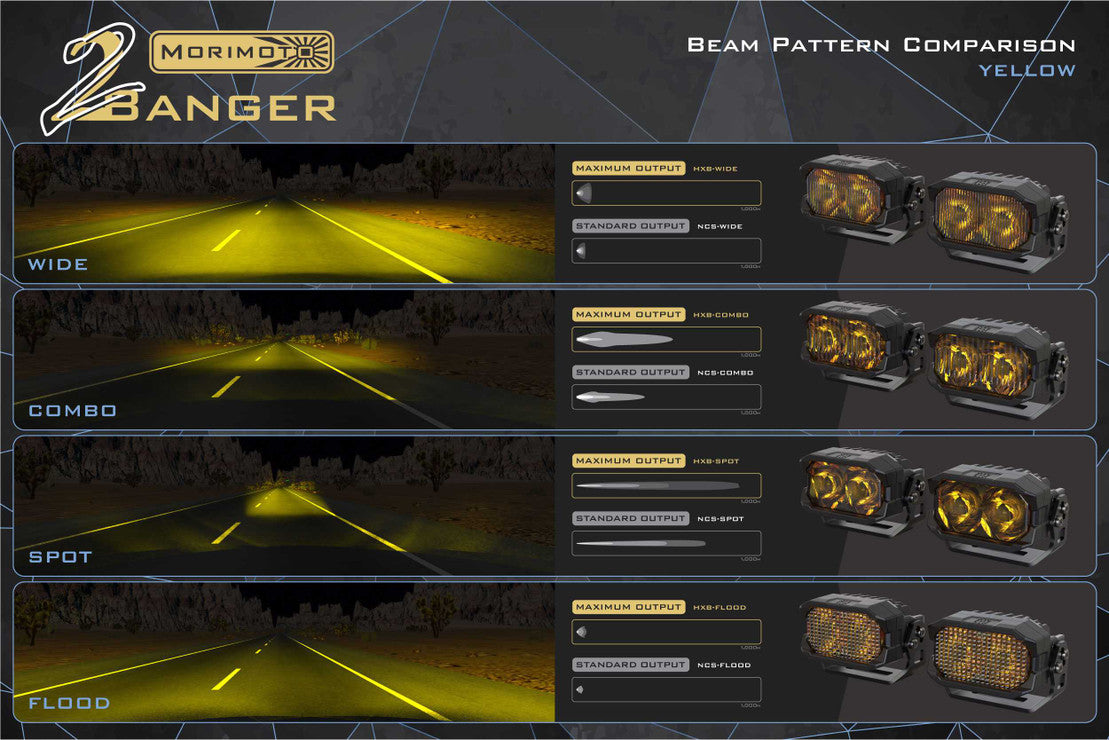

The 2Banger Combo blends width and distance in one optic, which is the pattern most people actually want for remote driving — enough reach to read the road, enough spread to see the edges.
Two Nichia NCS emitters produce 42,000 candela of white light at 13.5w, and the pods link together with BangerBar connectors when you want a bar instead of a pair.
| Spec | Detail |
|---|---|

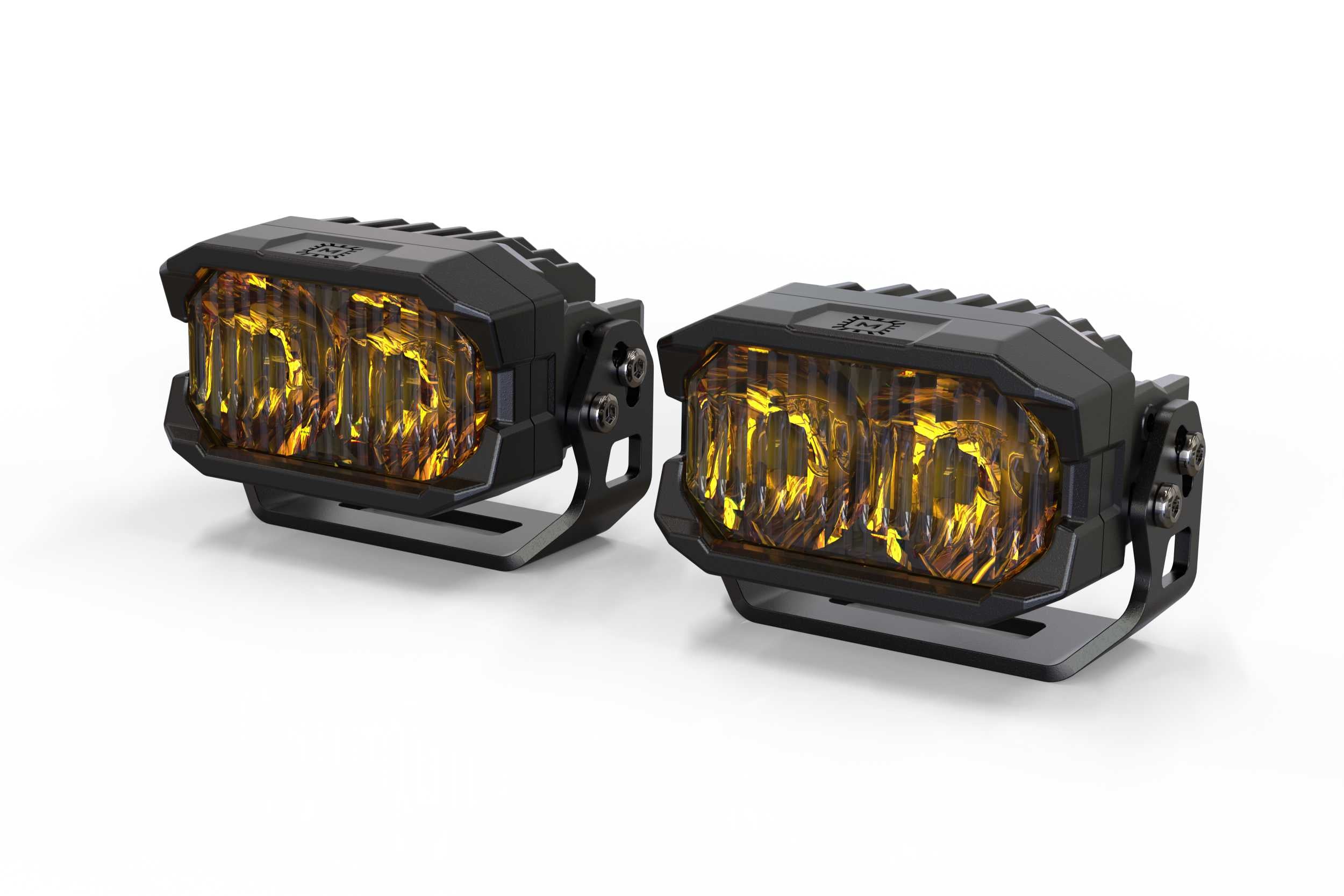

| Light source | 2x Nichia NCSW131F (white) or NCSY131F (yellow) |

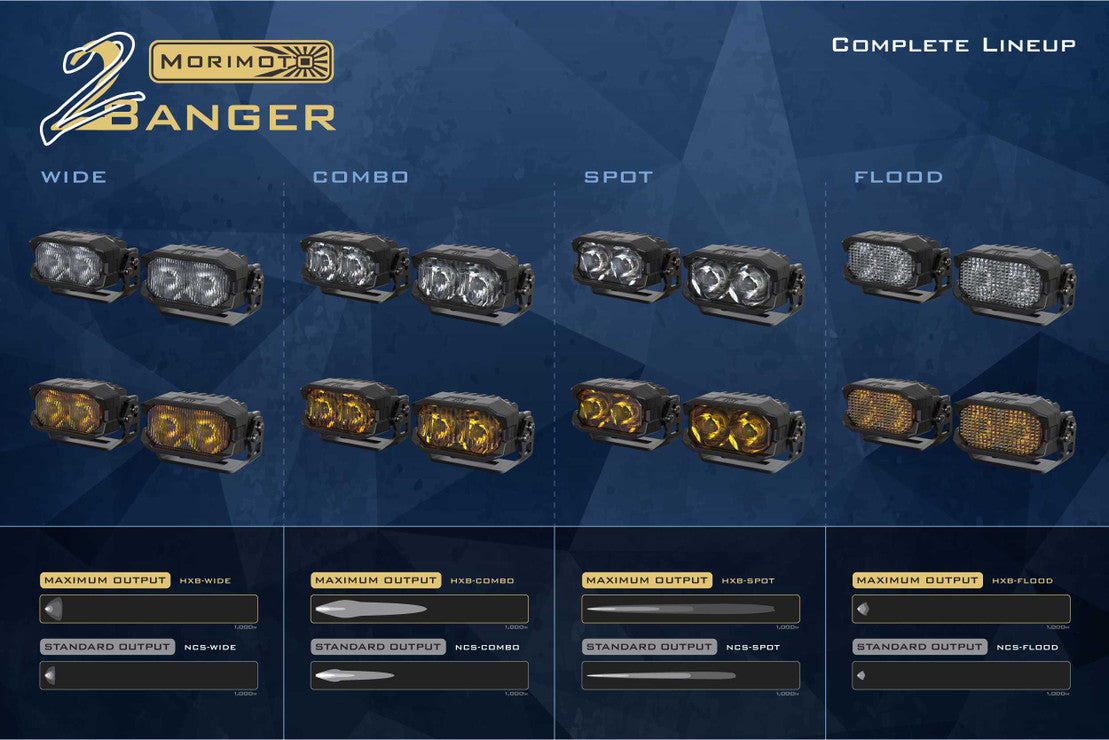

| Beam pattern | Combo — width and distance |
| Intensity (white) | 42,000 cd (420 lux @ 10m) |
| Intensity (yellow) | 21,000 cd (210 lux @ 10m) |
| Peak luminosity (raw) | 900 lm |
| Power (stabilized) | 13.5W |
| Current | 1.0A @ 13.5V DC |

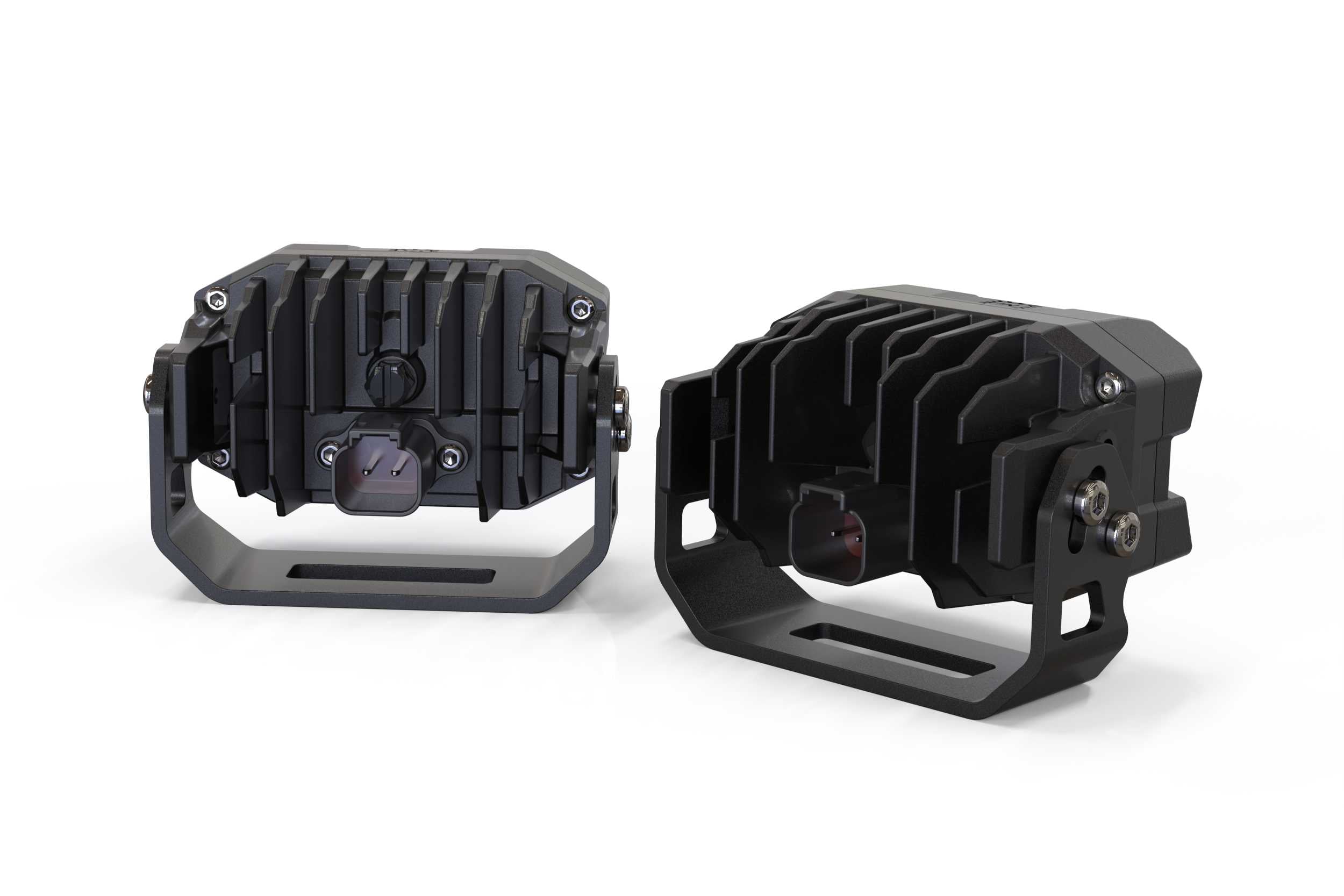

| Input | Integrated Deutsch DT 2-pin |
| Dimensions | 81.0mm W, 49.8mm H (63.5mm with bracket), 59.2mm D |
| Materials | Makrolon LED PC lens, powdercoated die-cast aluminum housing |
| Weather rating | IP69K |
| Mounting | Individually, or linked into a custom light bar with BangerBar links |
| Fitment | Universal. All specifications listed are per pod / each. |

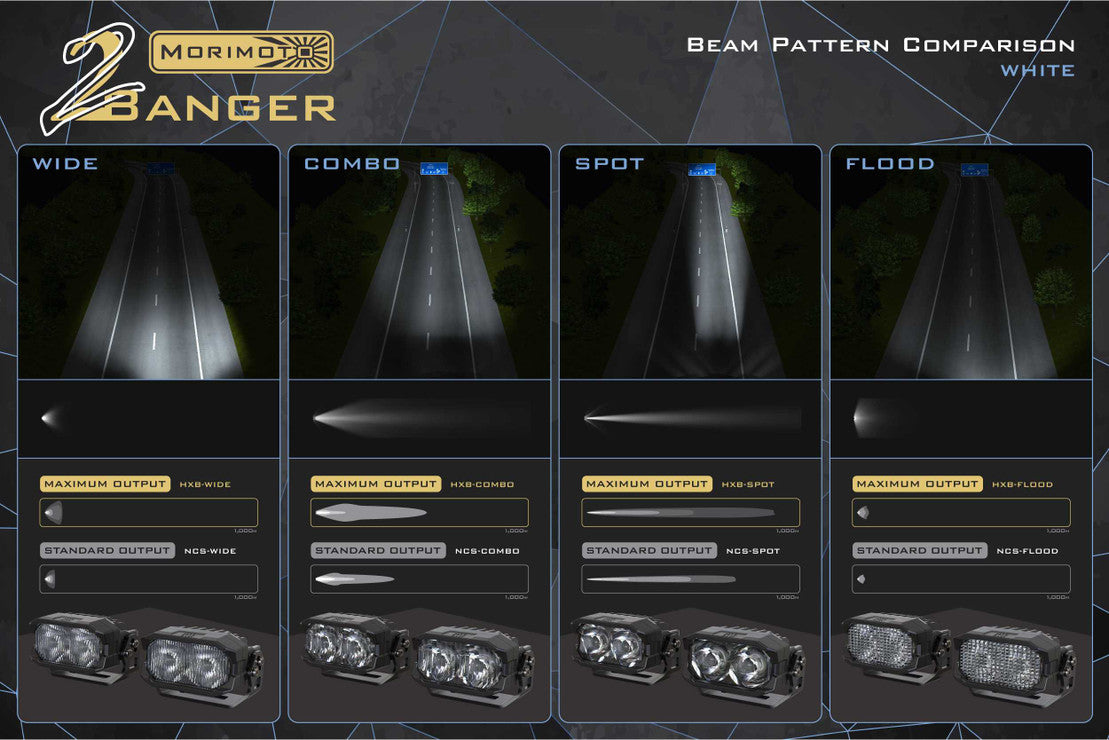

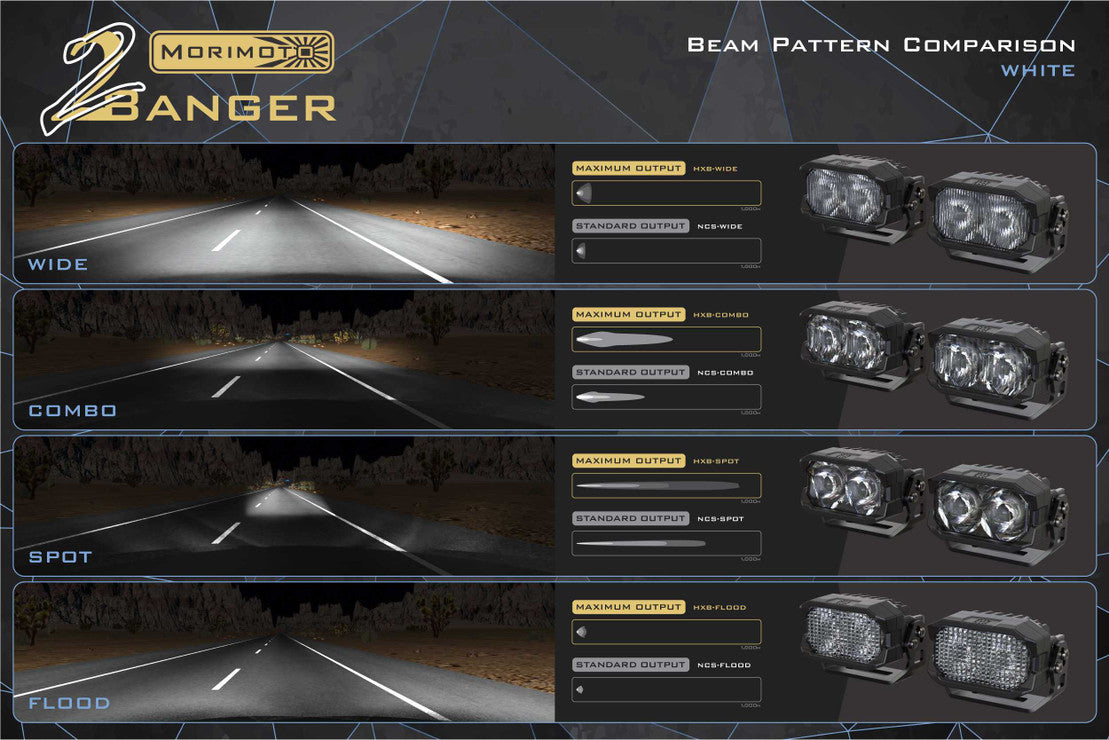

What does the combo beam do?
It blends width and distance into one pattern, which Morimoto positions as the ideal choice for comfortable remote driving.
Can I build a light bar with them?
Yes. You can switch from solo pods to a custom light bar using BangerBar links.
Are these figures for one pod or a pair?
Every figure in the spec table is per pod / each. Each pod draws 13.5W at 1.0A and produces 900 lm raw.
How well do they hold up?

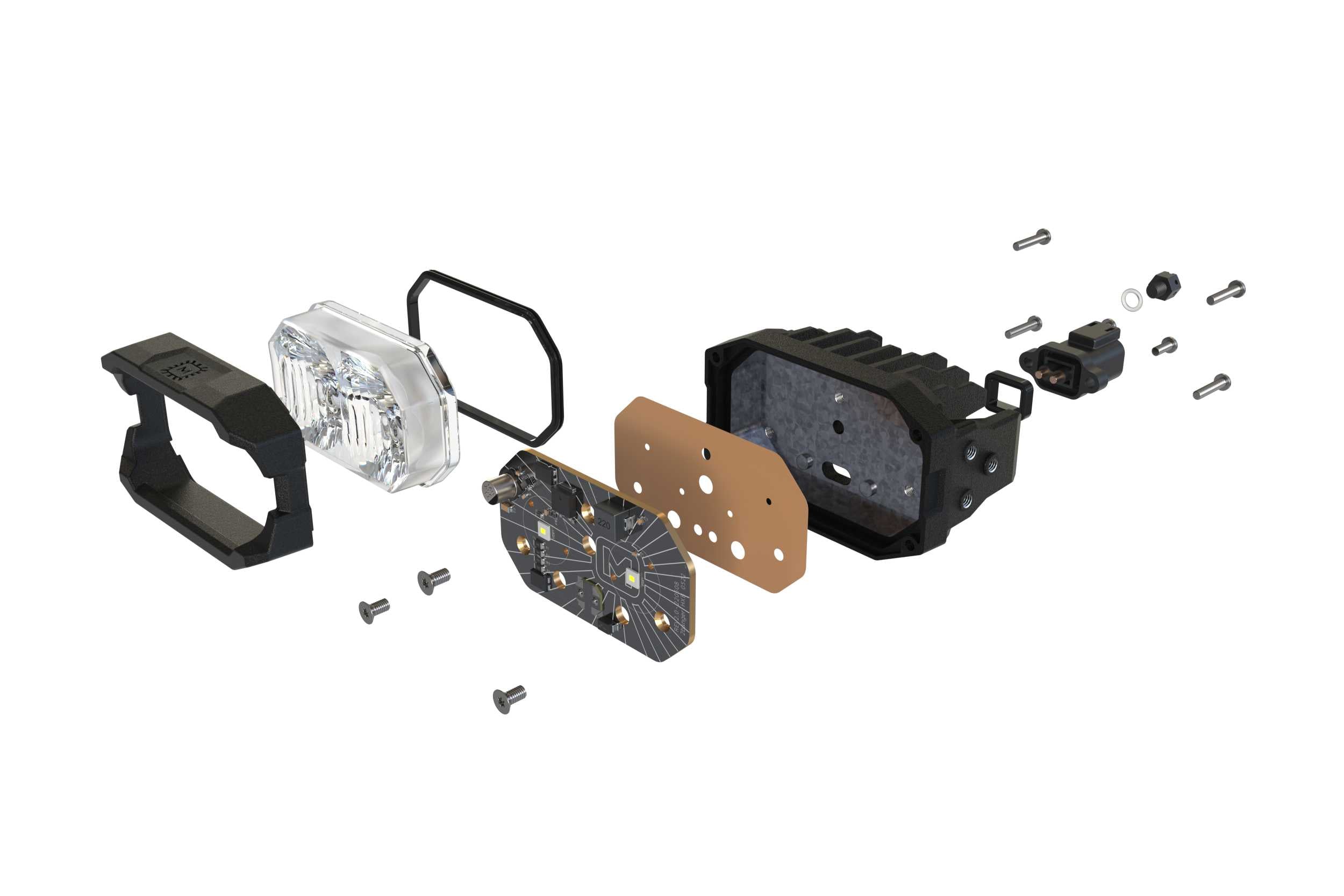

They use a copper DTP PCB, an aluminum shell and IP69K weather resistance, and are USA-designed and rigorously tested.
