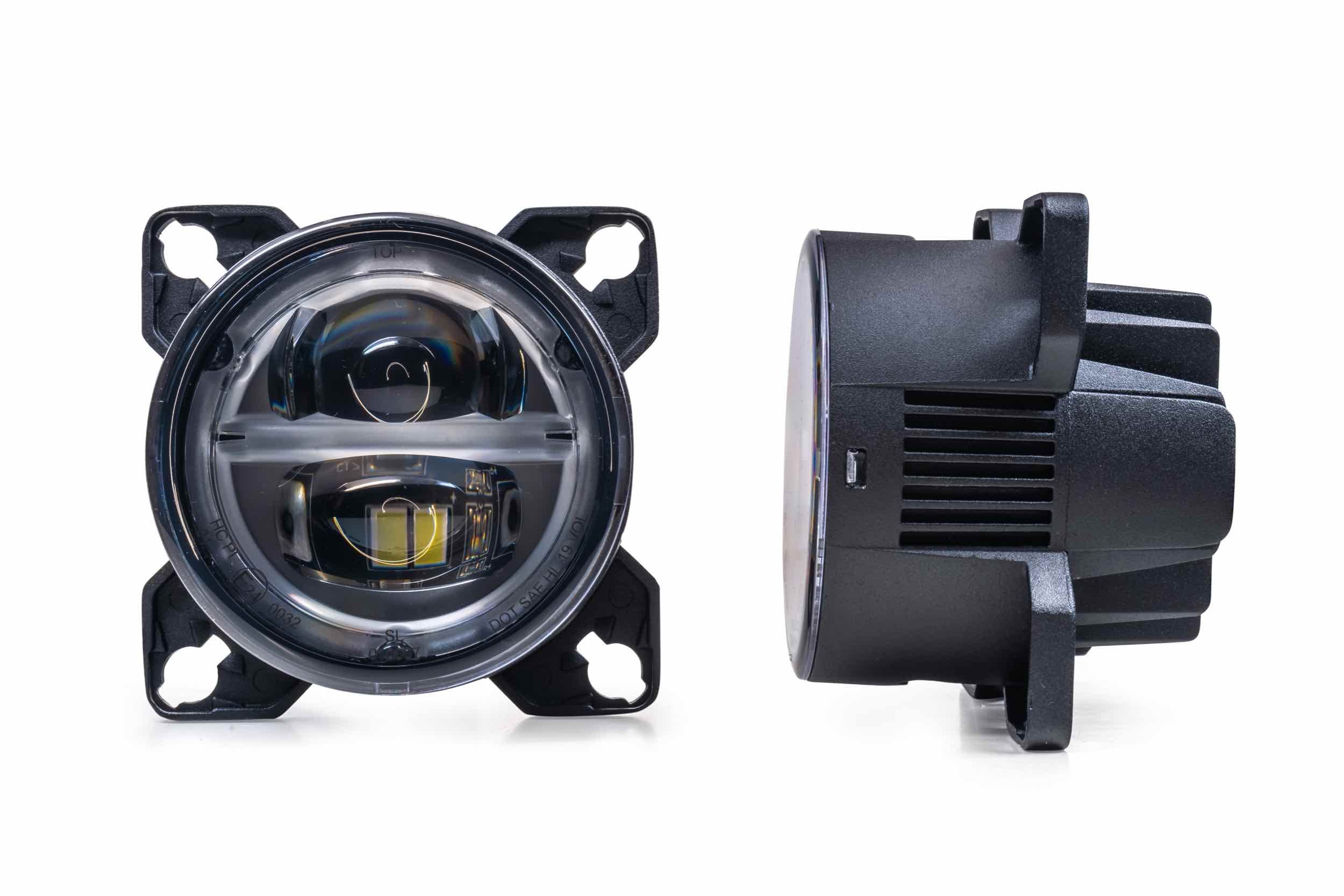

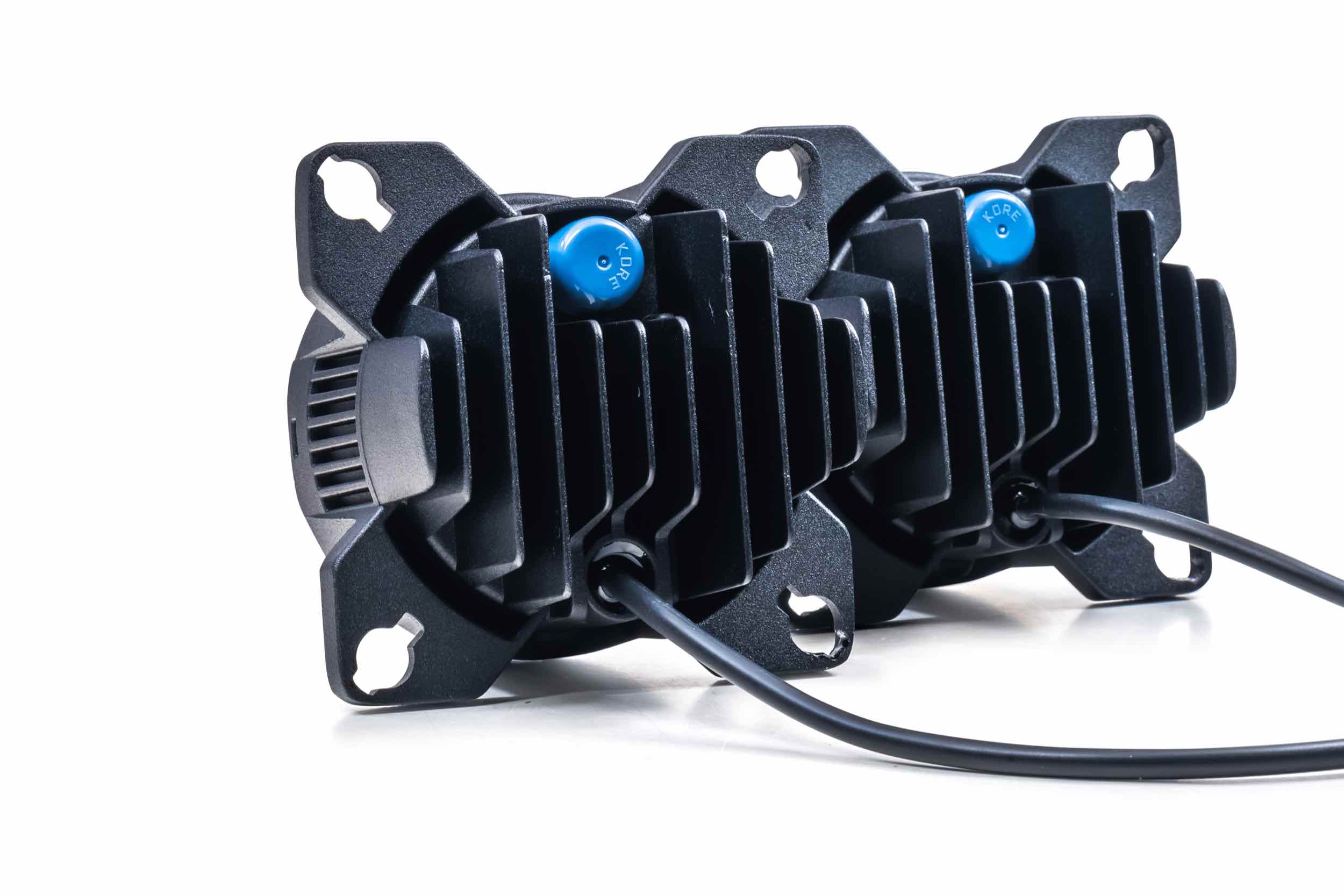

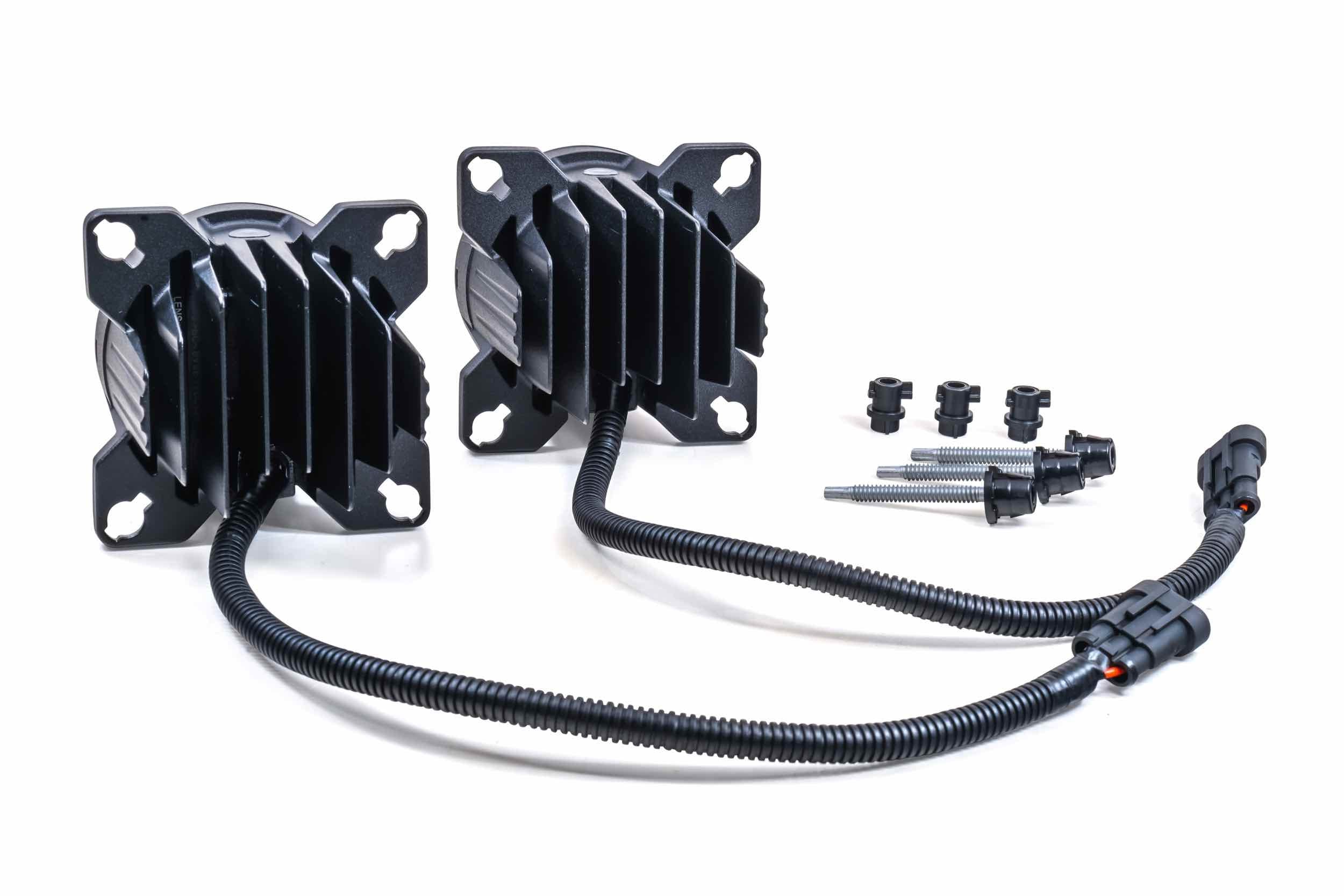

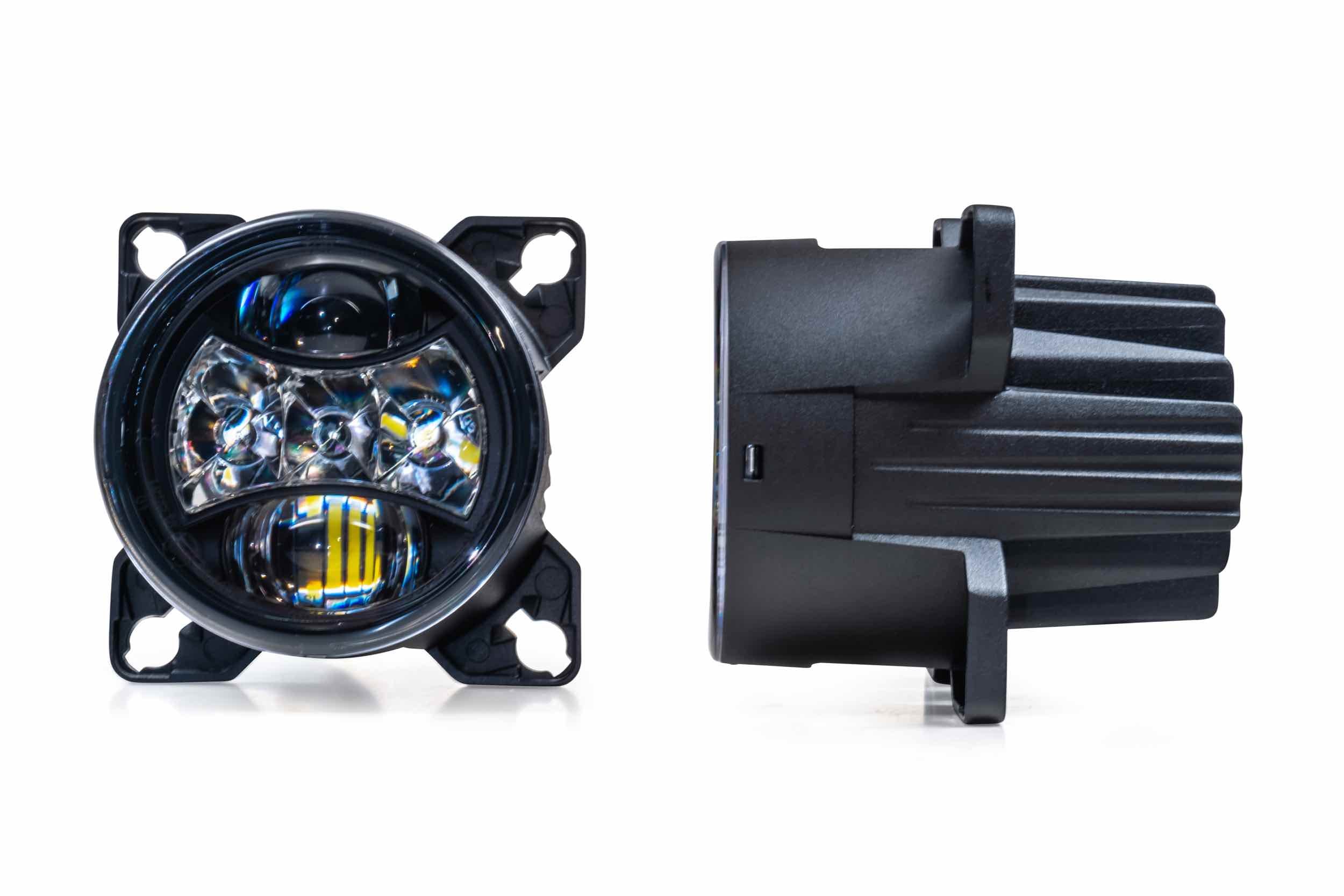

Morimoto Sealed3 90mm LED Headlights
Compact 90mm LED headlight modules that punch above their size. The Sealed3 exceeds industry output standards, offers your choice of LED low beam, high beam, or a combo, and adds threaded rods for precise aim. IP67-rated with an aluminum housing — ideal for buses, RVs, tractors, and custom kit cars.
| Spec | Detail |
|---|---|
| Size | 90mm round modules |
| Intensity | 1,890 lm (low) / 1,500 lm (high) |
| Power | 19W |
| Input | 12–24V DC |
| Rating | IP67 |
| LEDs | Nichia (low/high), Osram (combo low/high) |
| Housing / lens | Aluminum / polycarbonate |
| Best for | Buses, RVs, tractors, custom kit cars |
What vehicles are these for?
They're a wide-application 90mm module — ideal for buses, RVs, tractors, and custom kit cars that use 90mm round headlights.

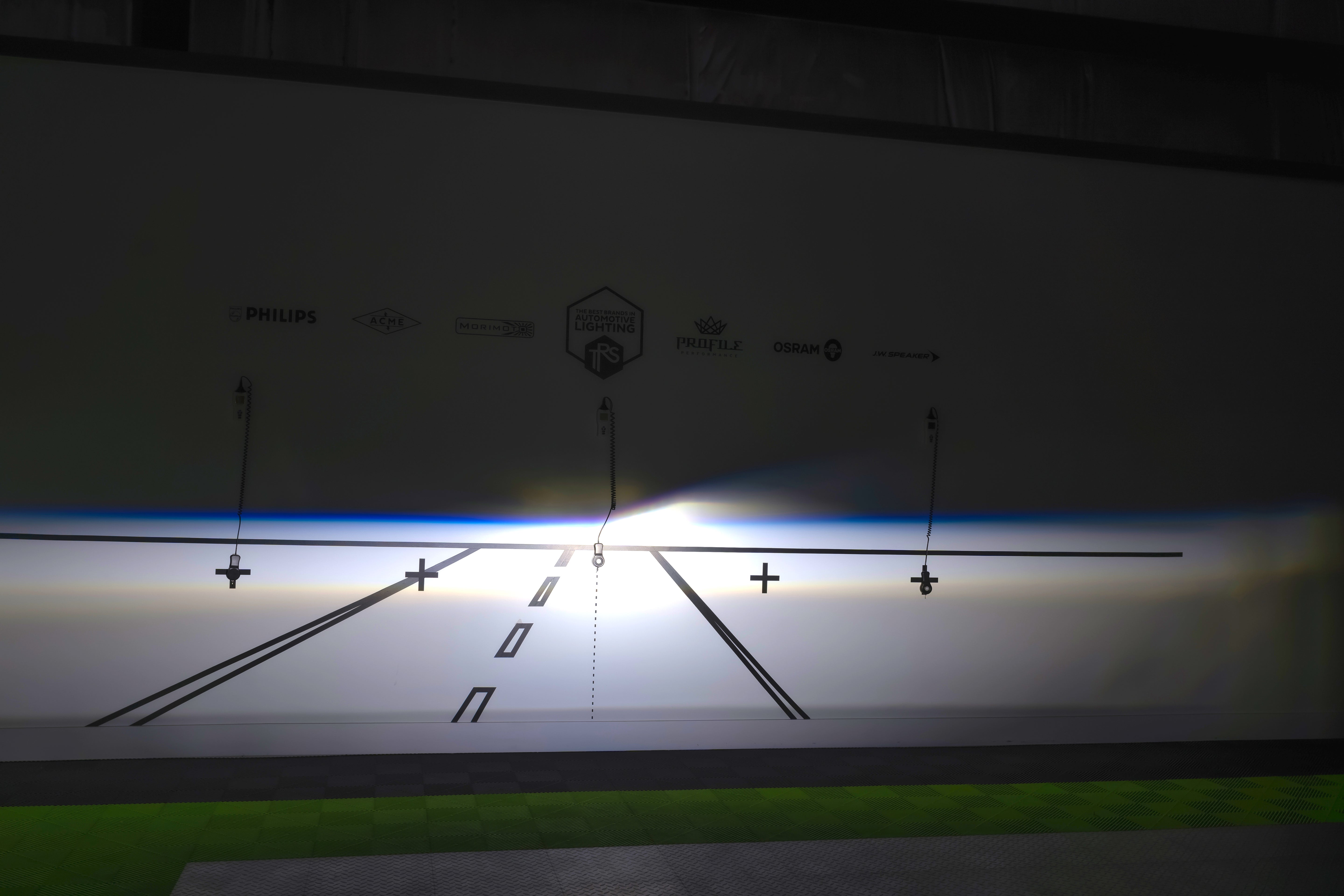

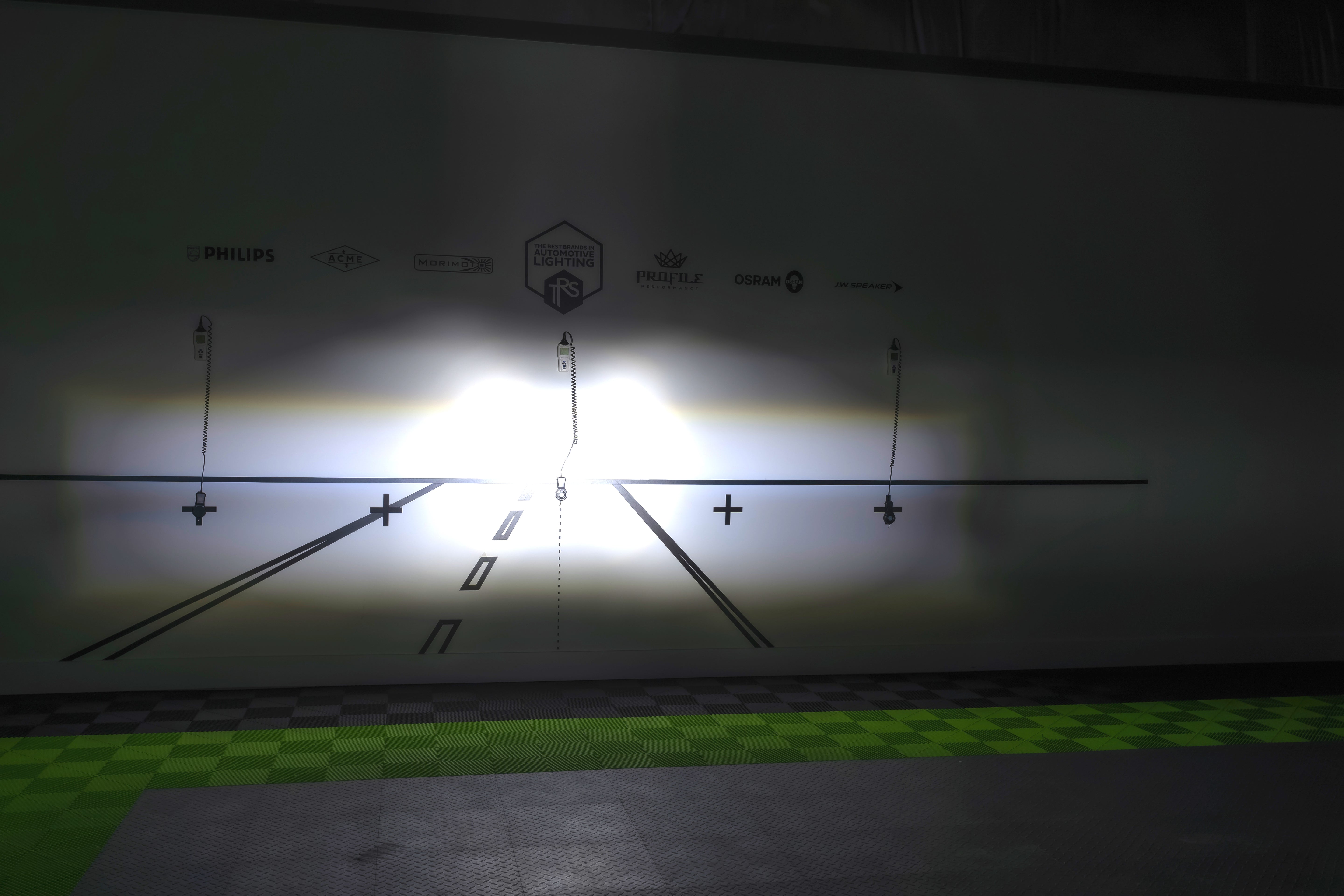

How bright are they?
1,890 lumens on low beam and 1,500 lumens on high, from a 19W module.
Can I choose the beam type?
Yes — LED low beam, high beam, or a combination module.
Are they weatherproof?
Yes — IP67-rated, with a polycarbonate lens and aluminum housing, running on 12-24V DC.
