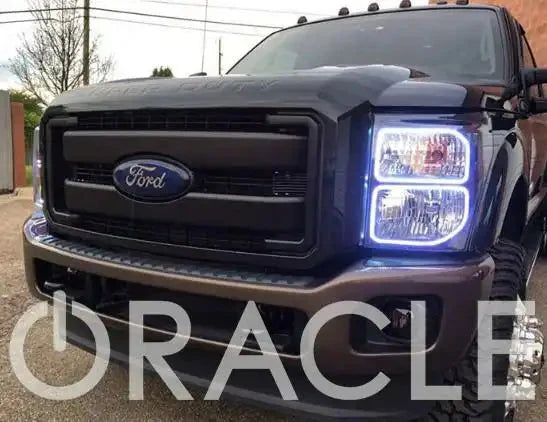

2011-2016 Ford F-250/F-350 Super Duty ORACLE ColorSHIFT Headlight Halo Kit (Square Ring Design)
The ORACLE ColorSHIFT Headlight Halo Kit for the 2011-2016 Ford F-250 and F-350 Super Duty uses ORACLE's square-ring design to match the Super Duty's headlight shape. Each ring packs over 400 high-output Bridgelux 5050 3-chip LEDs for an intensely bright, fluid color output that stays vivid even in direct sunlight, letting you personalize your truck with full RGB control.
Key Features
- Square-ring design CAD-engineered to fit the Super Duty headlight housing perfectly
- Over 400 high-output Bridgelux 5050 3-chip LEDs (made in the USA) per kit
- ColorSHIFT RGB output for full-spectrum color and color-changing effects
- Semi-rigid circuit board contours to the curved headlight surface
- External LED driver accepts 6V-30V input and protects LEDs from voltage spikes
- Bright enough to be seen vividly even in direct sunlight
- Backed by a 1-year ORACLE manufacturer warranty
Fitment & Compatibility
Fits the 2011-2016 Ford F-250 and F-350 Super Duty. Headlight disassembly is required to install the rings.
Specifications
| Specification | Detail |
|---|---|
| ORACLE Part # | 2383-334 / 2383-504 / 2383-330 / 2383-333 / 2383-335 |
| Ring Design | Square |
| Color | ColorSHIFT (RGB) |
| LEDs | 400+ Bridgelux 5050 3-chip LEDs (made in USA) |
| Driver | External LED driver, 6V-30V input |
| Controller Options | No Controller, Simple, RF, 2.0, BC2 |
| Warranty | 1 year |
What's in the Box

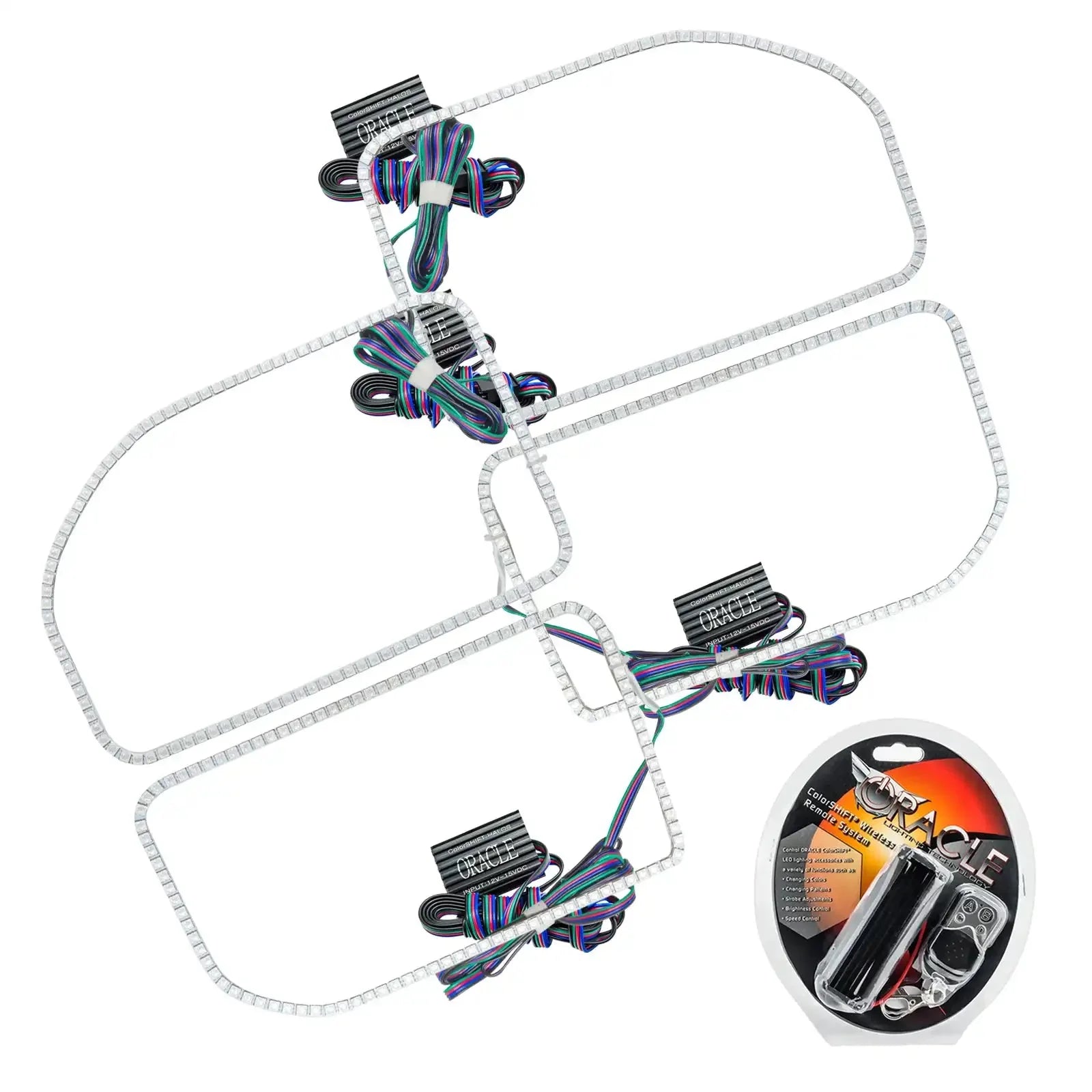

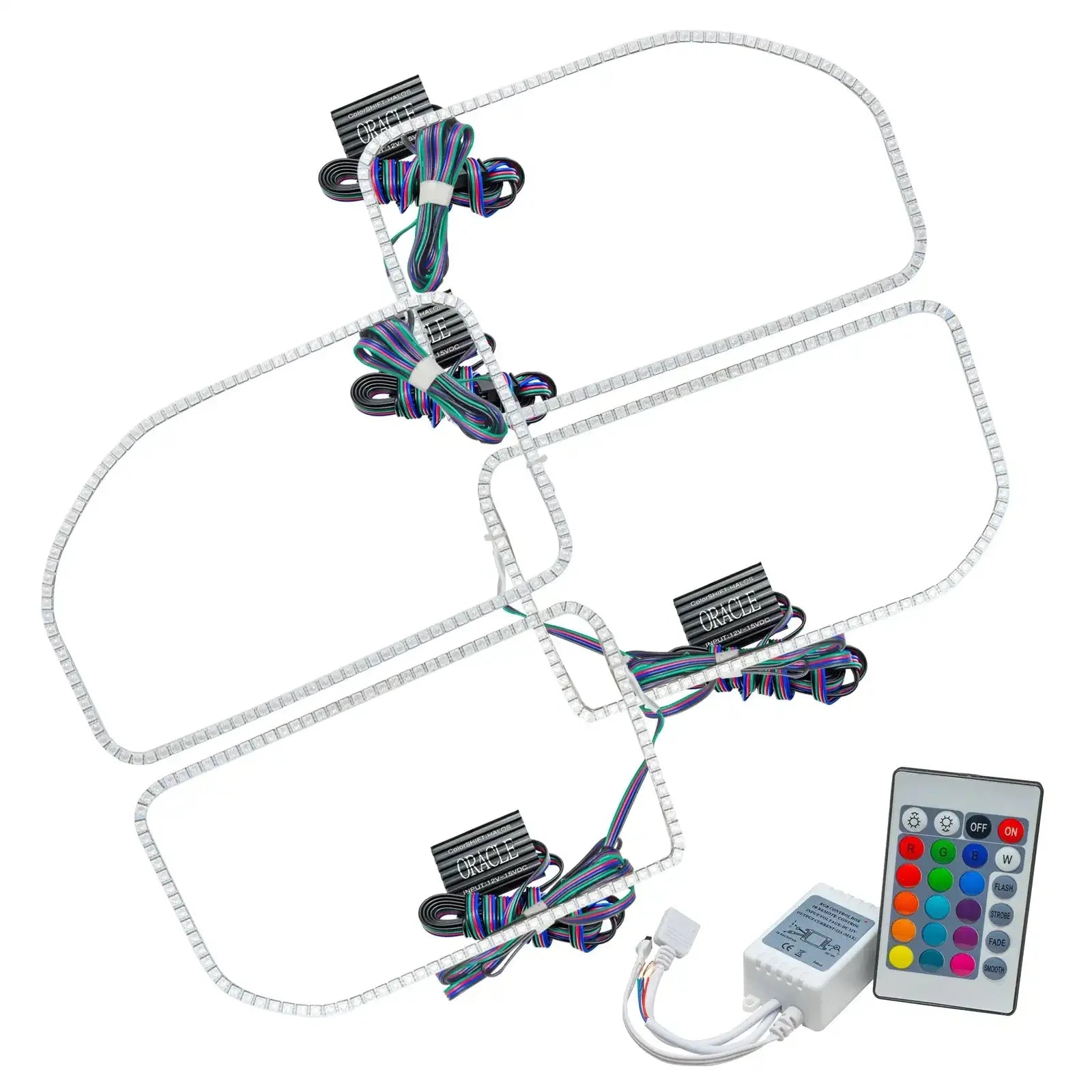

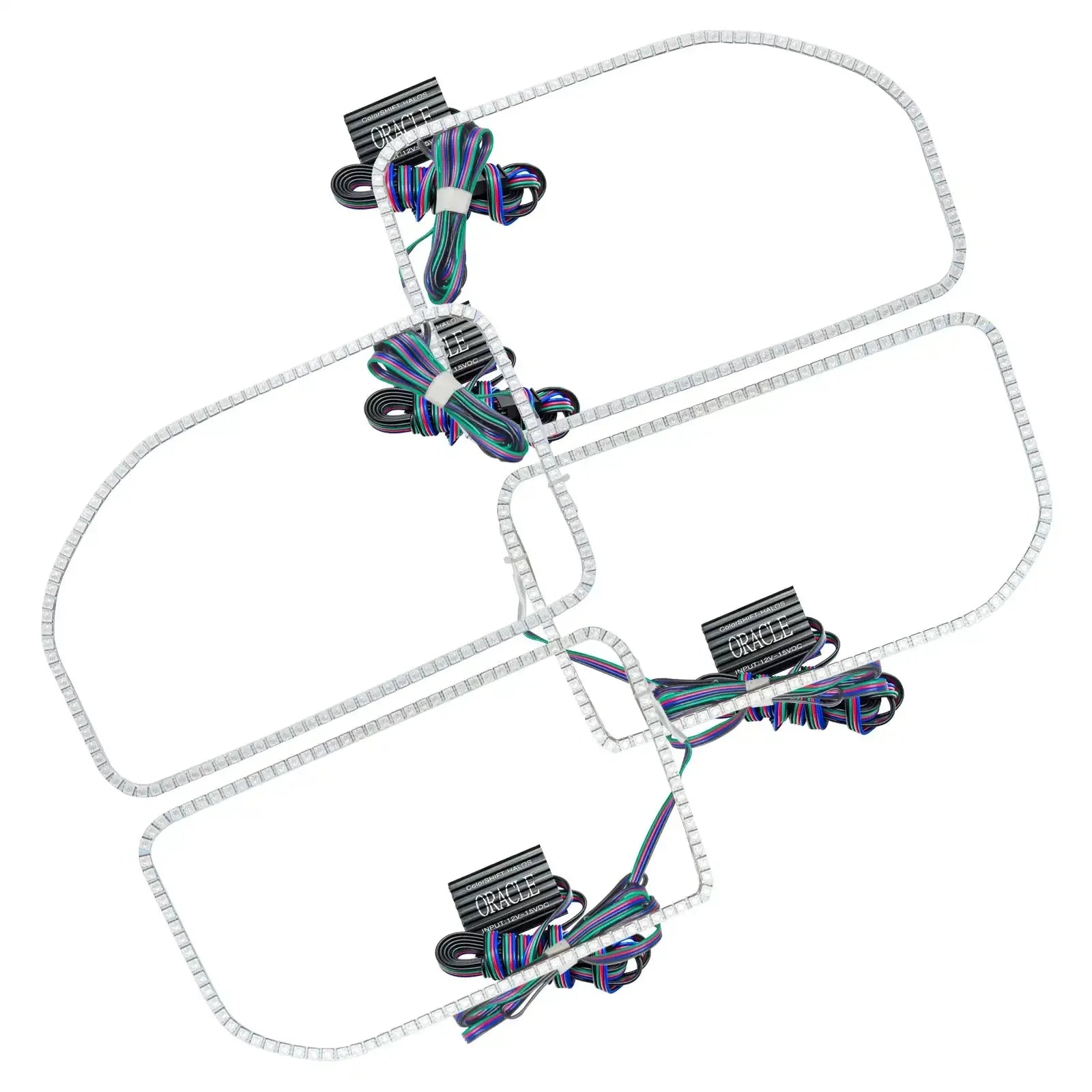

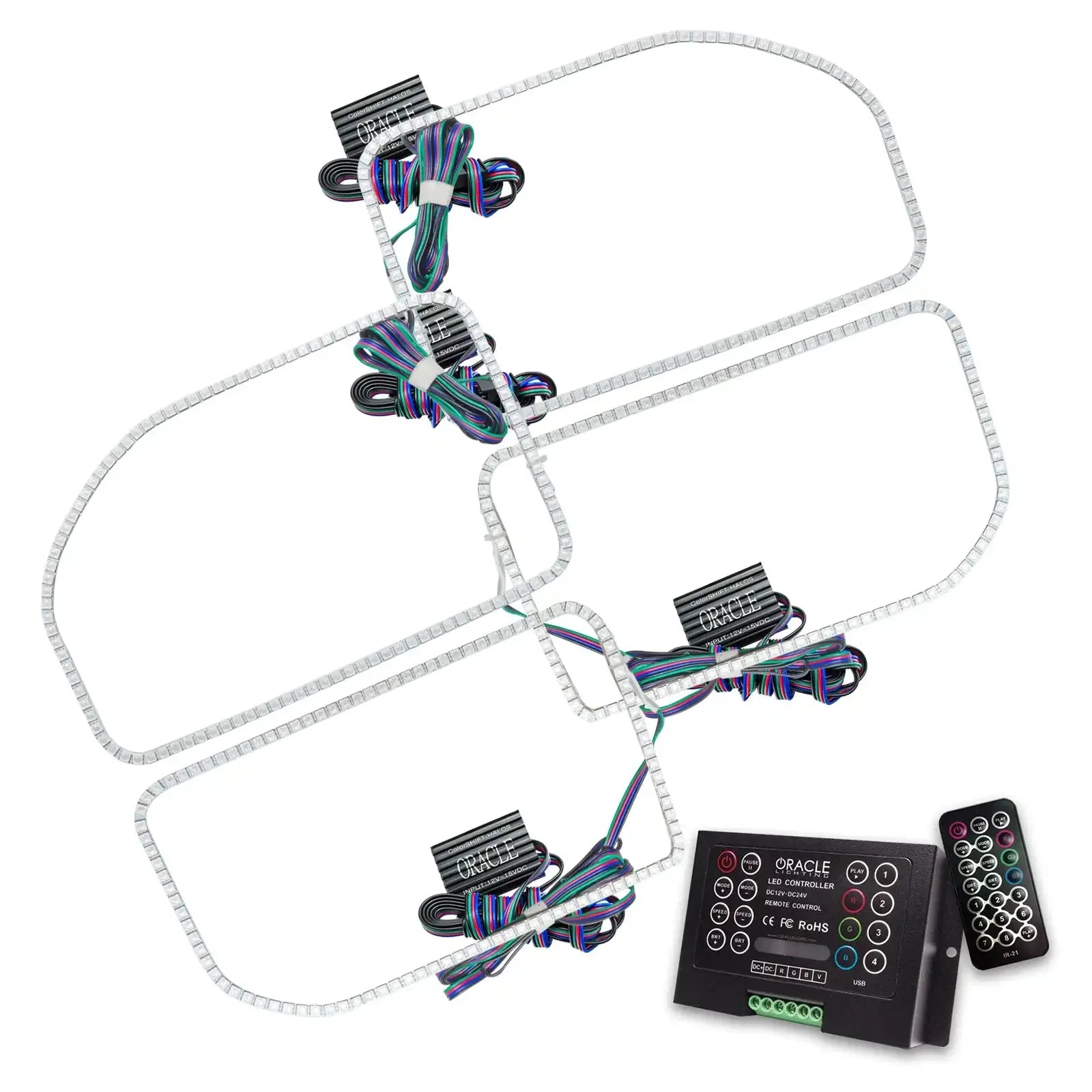

- (4) 2011-2016 Ford F-250/F-350 ORACLE ColorSHIFT LED halo rings
- (1) ORACLE ColorSHIFT controller module
- DIY installation instruction guide
Frequently Asked Questions
Will this fit my Super Duty?
Yes. It is designed for the 2011-2016 Ford F-250 and F-350 Super Duty headlight housings using the square-ring design.
How hard is it to install?
The rings mount inside the headlight, so headlight disassembly is required. Many owners have this done professionally, and a DIY instruction guide is included.
How do I control the colors?

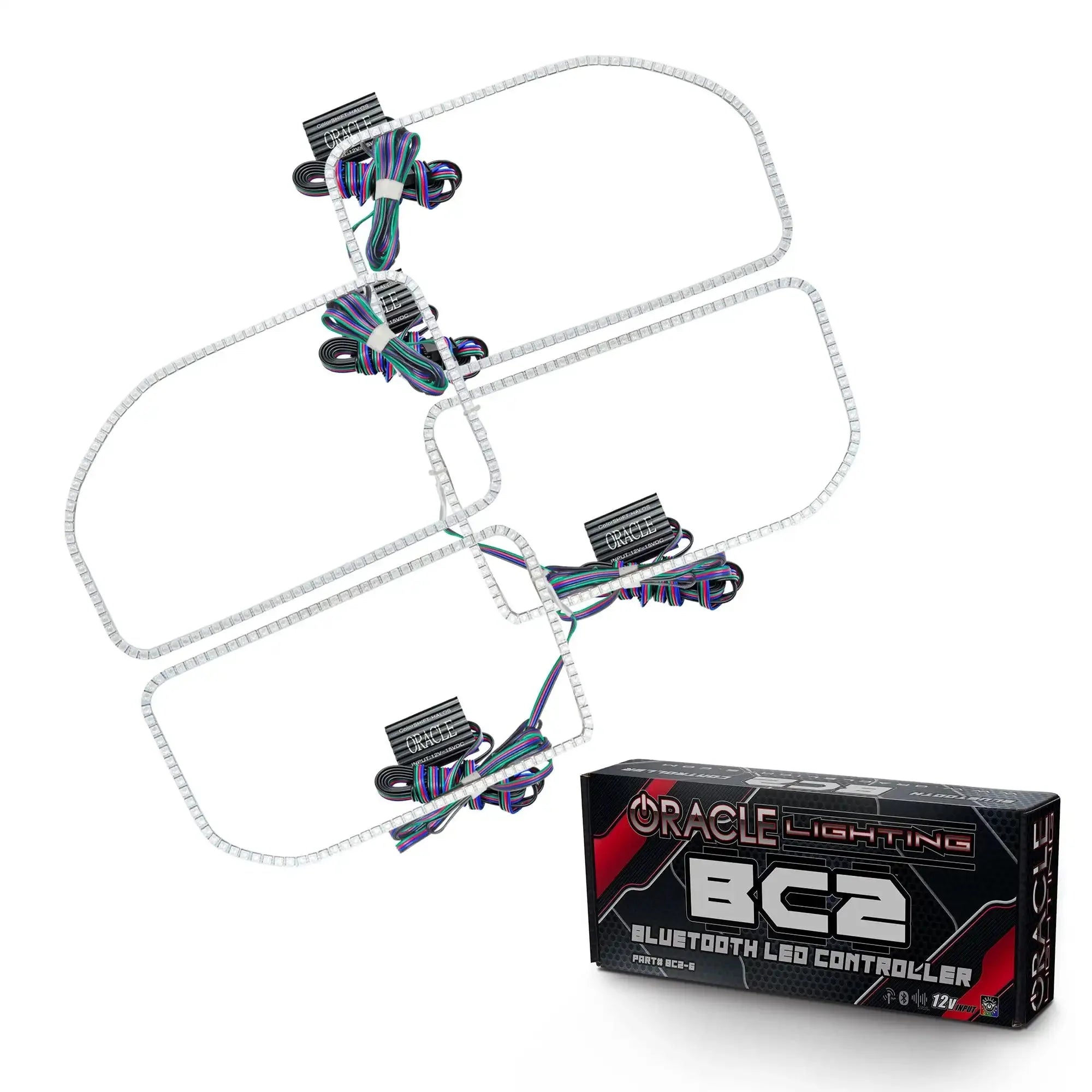

The kit includes a ColorSHIFT controller module, with upgrade options for Simple, RF remote, 2.0 smartphone app, and BC2 Bluetooth control.
Can the halos handle my truck's voltage?
Yes. The external LED driver accepts 6V-30V input and prevents voltage spikes from damaging the LEDs and resistors.
Are the halos bright enough to see during the day?
Yes. Each halo can be seen vividly even in direct sunlight.
