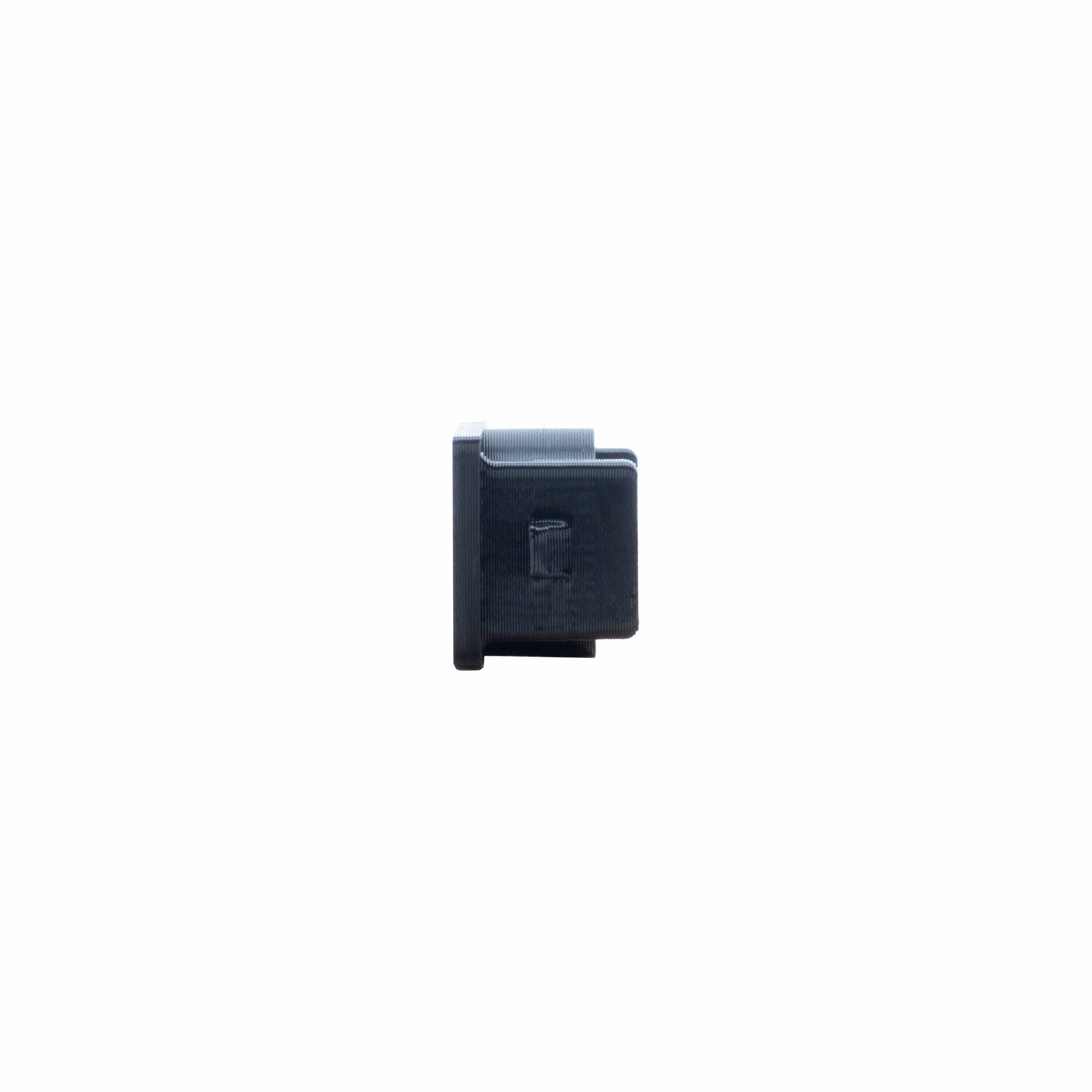

Installing an Alpine head unit in a Tacoma leaves one loose end, the microphone. This Trail Grid Pro mount puts an Alpine aftermarket mic into the headliner console in the original microphone location, so hands-free calls pick up your voice from where the factory system did, and nothing new shows up on the dash.

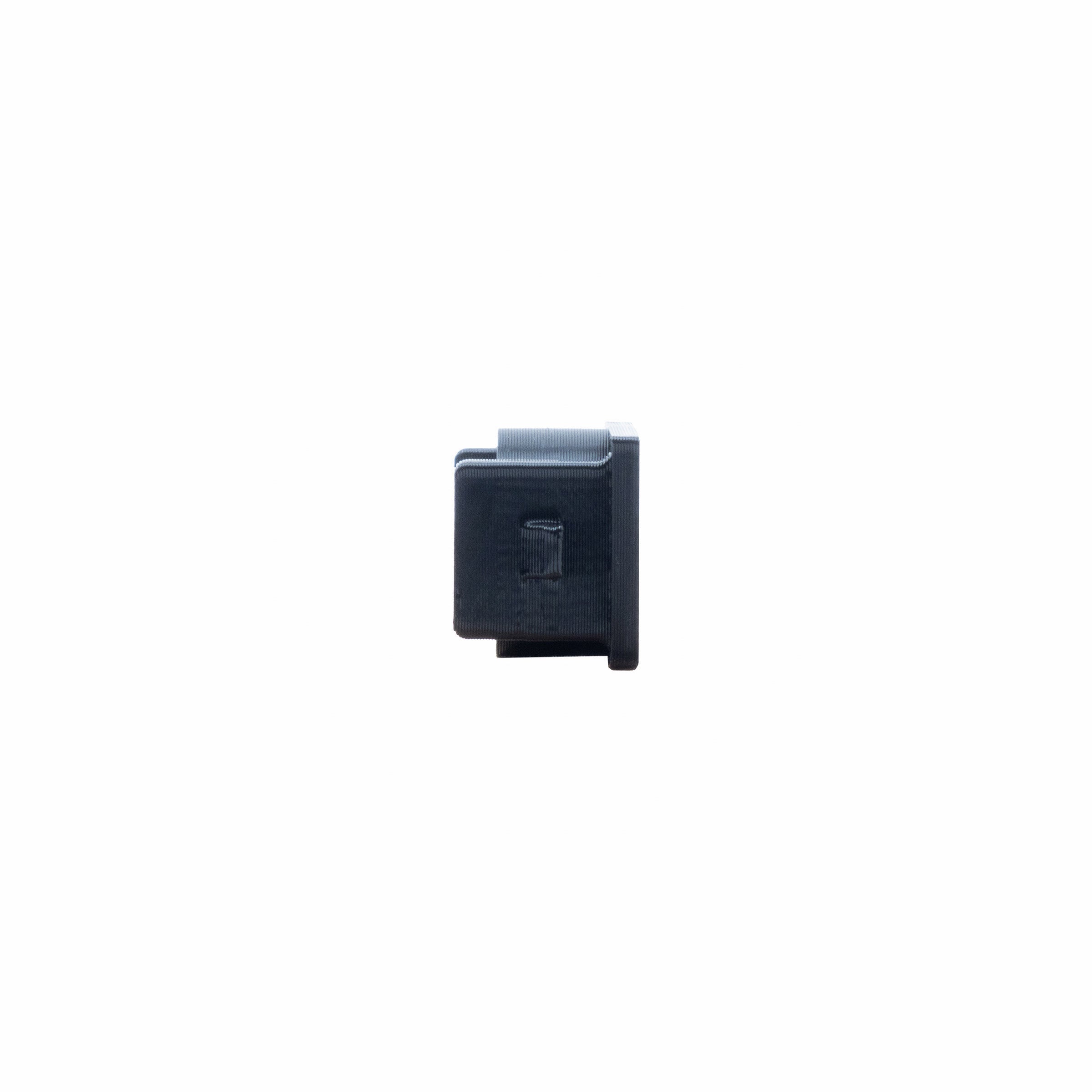

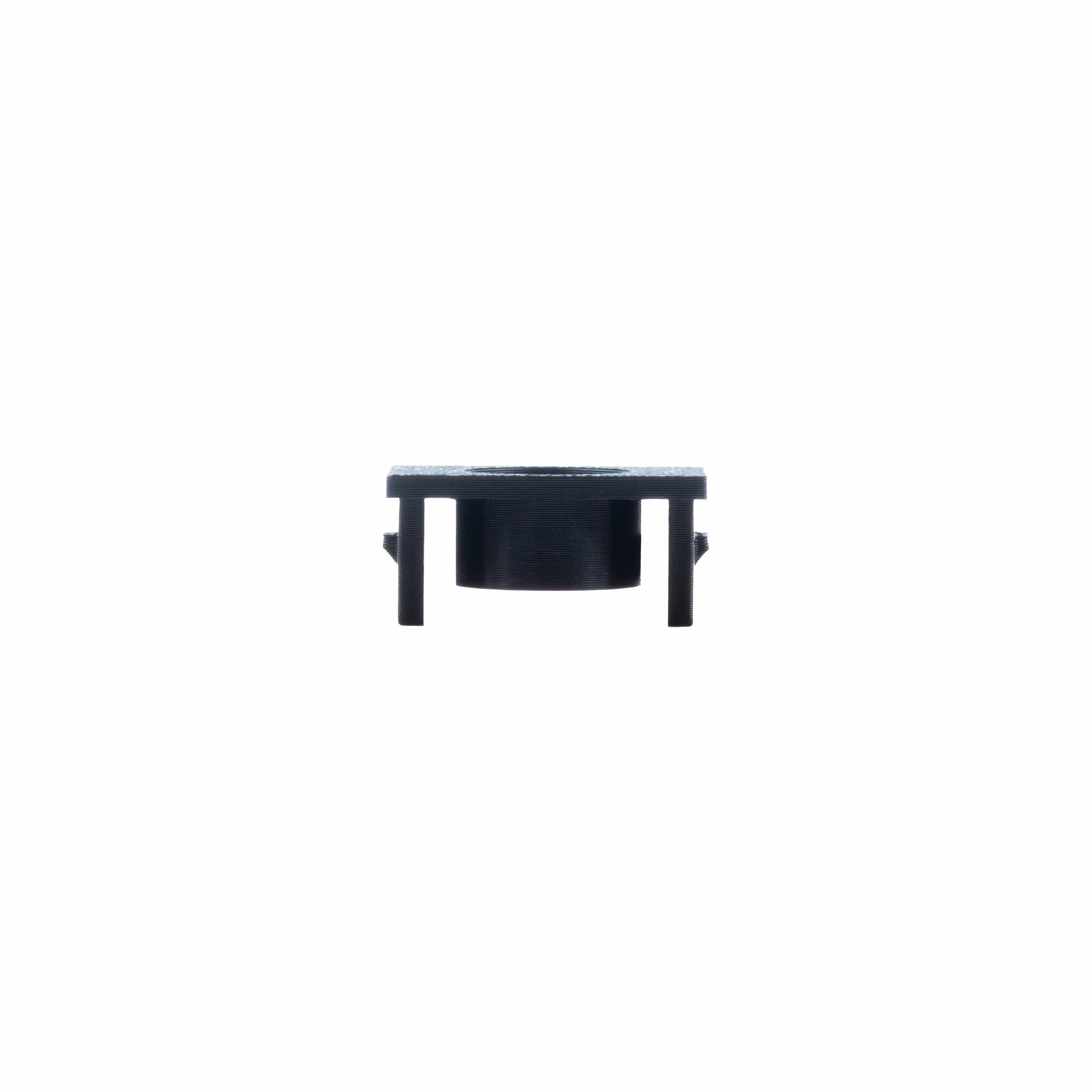

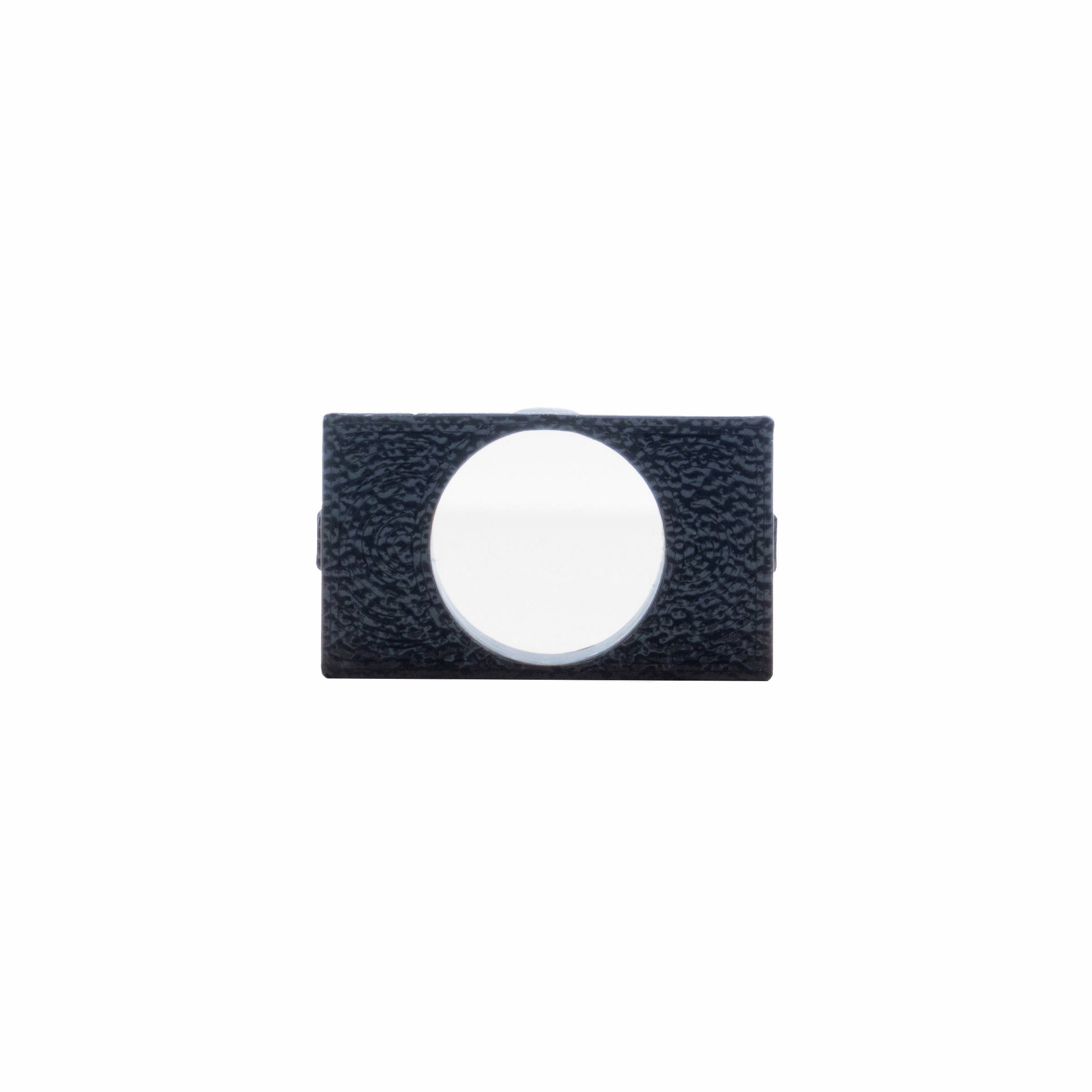

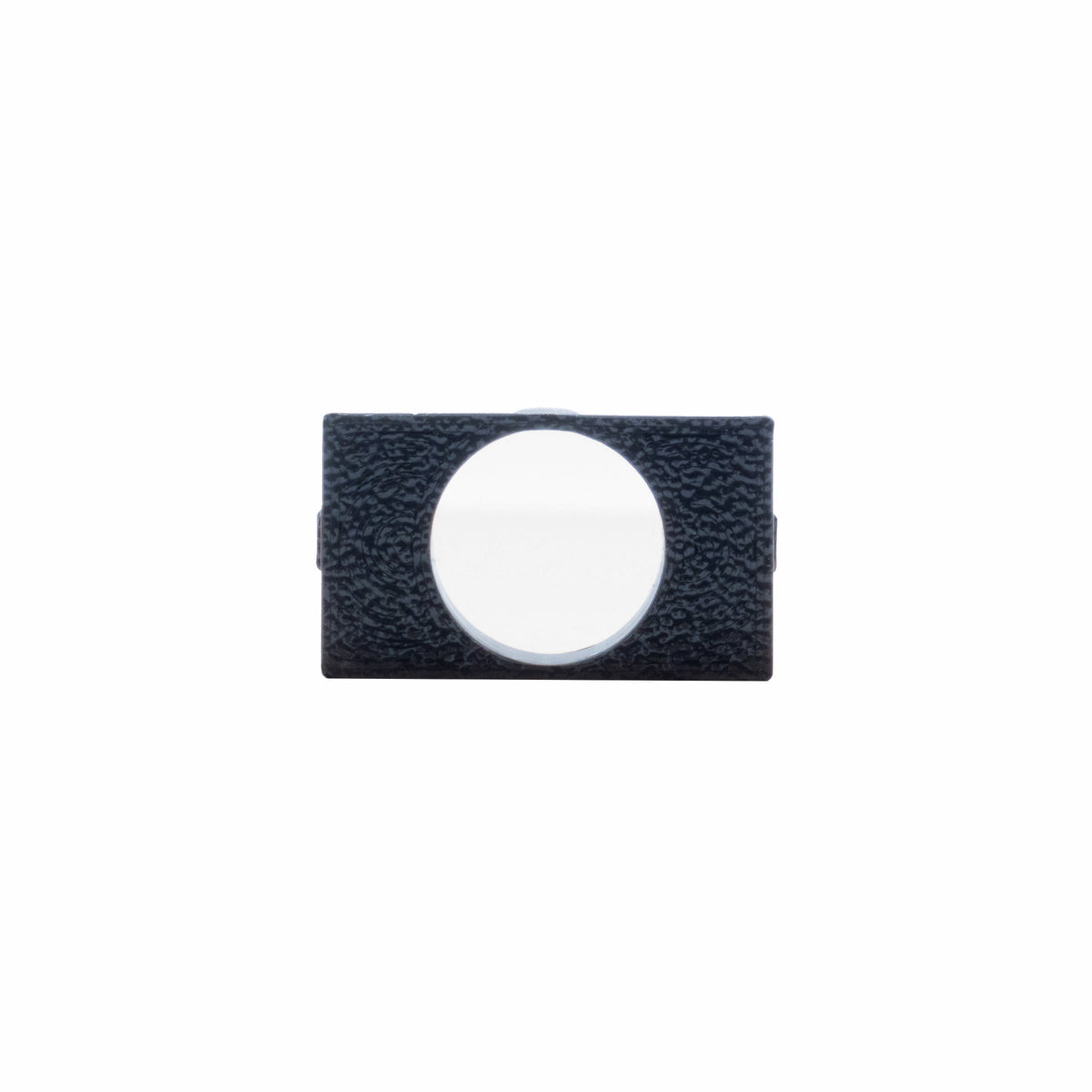

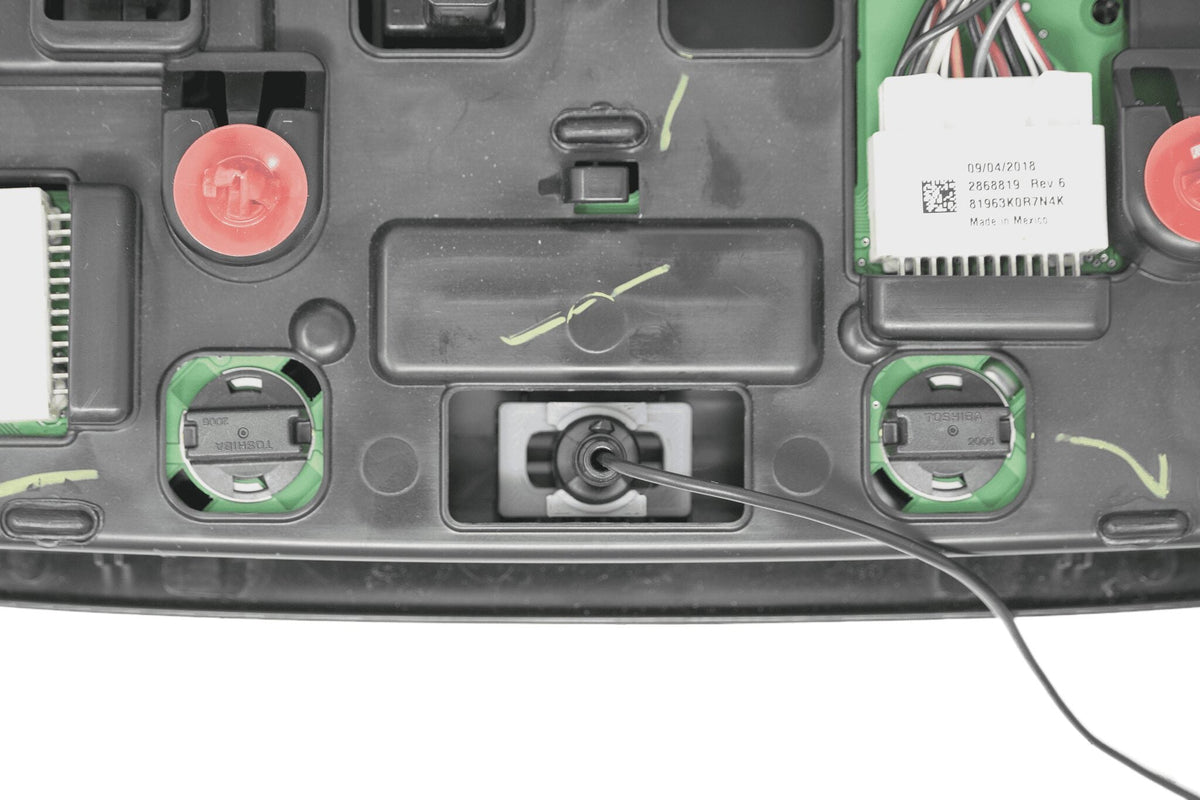

The mount slips into the console with the legs and the rounded end of the microphone facing down, then locks in with a clip. The wire is routed toward the rearview mirror, along the top of the windshield and down the driver-side A-pillar, so the finished job looks tidy.
Fitment
2016-2023 Toyota Tacoma.
Install notes

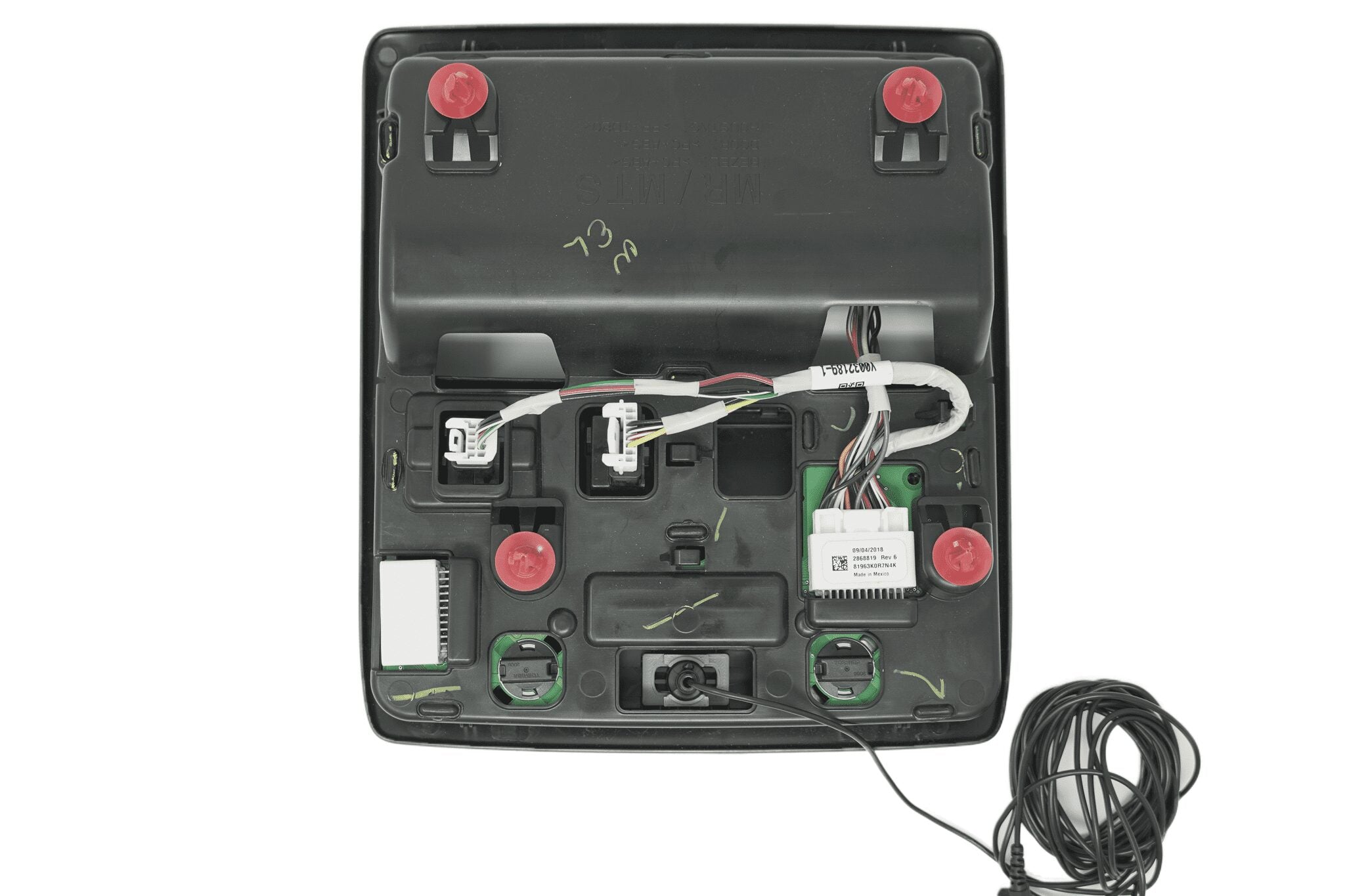

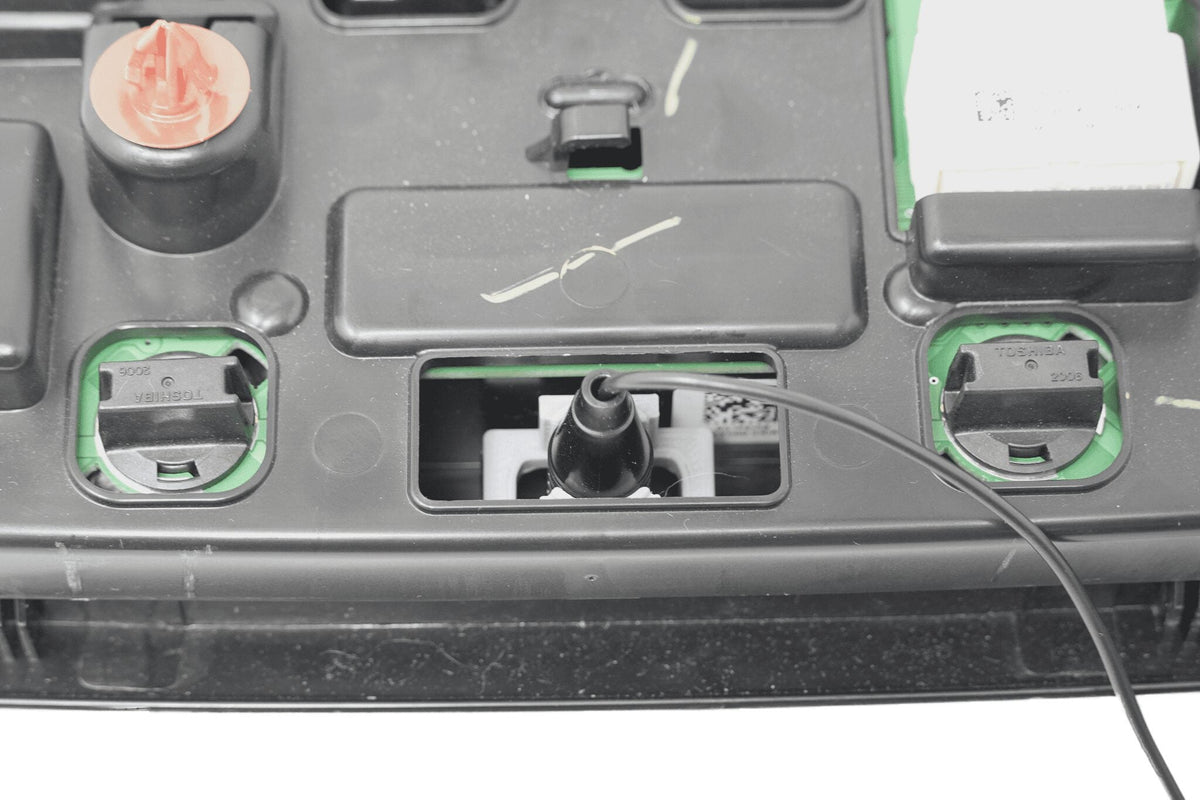

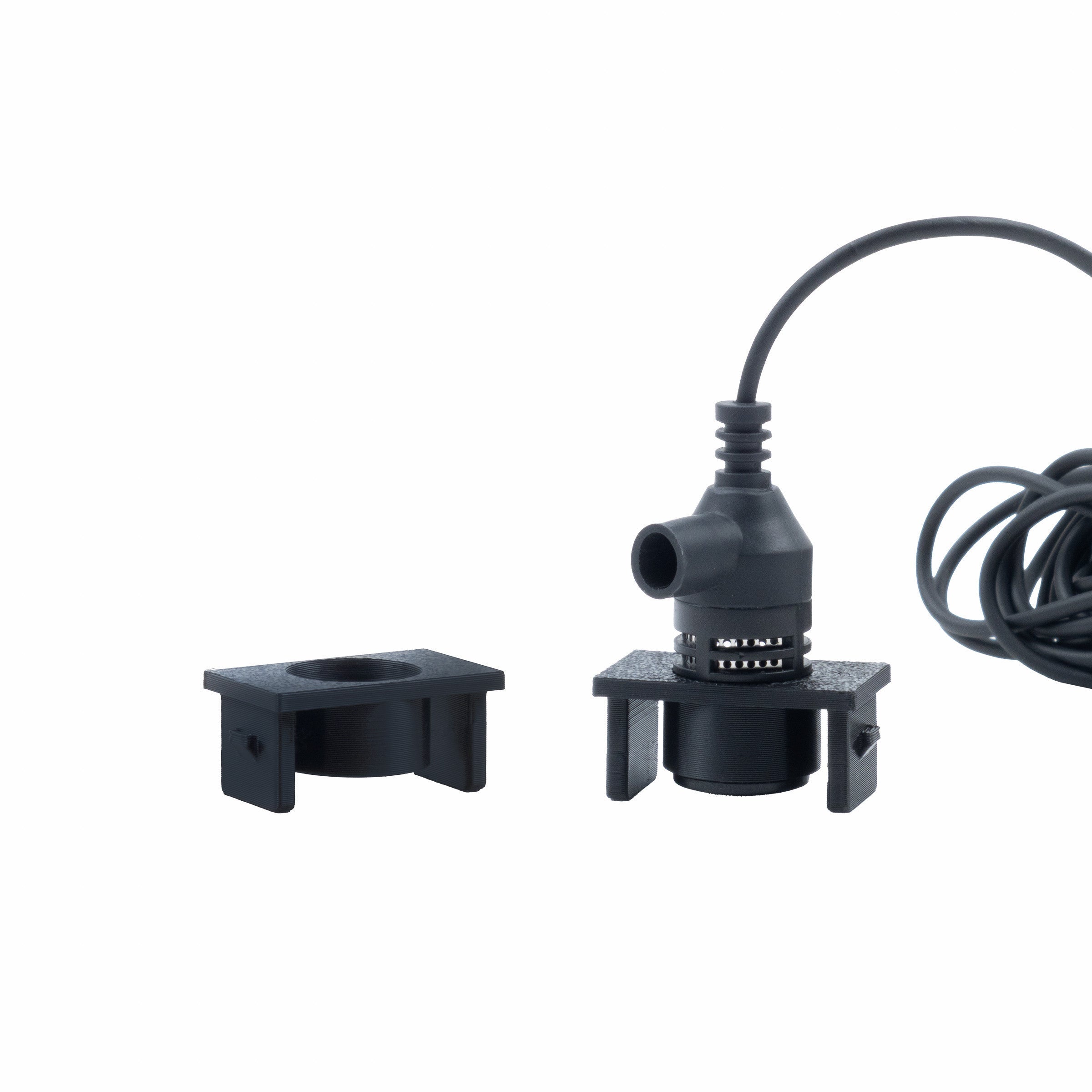

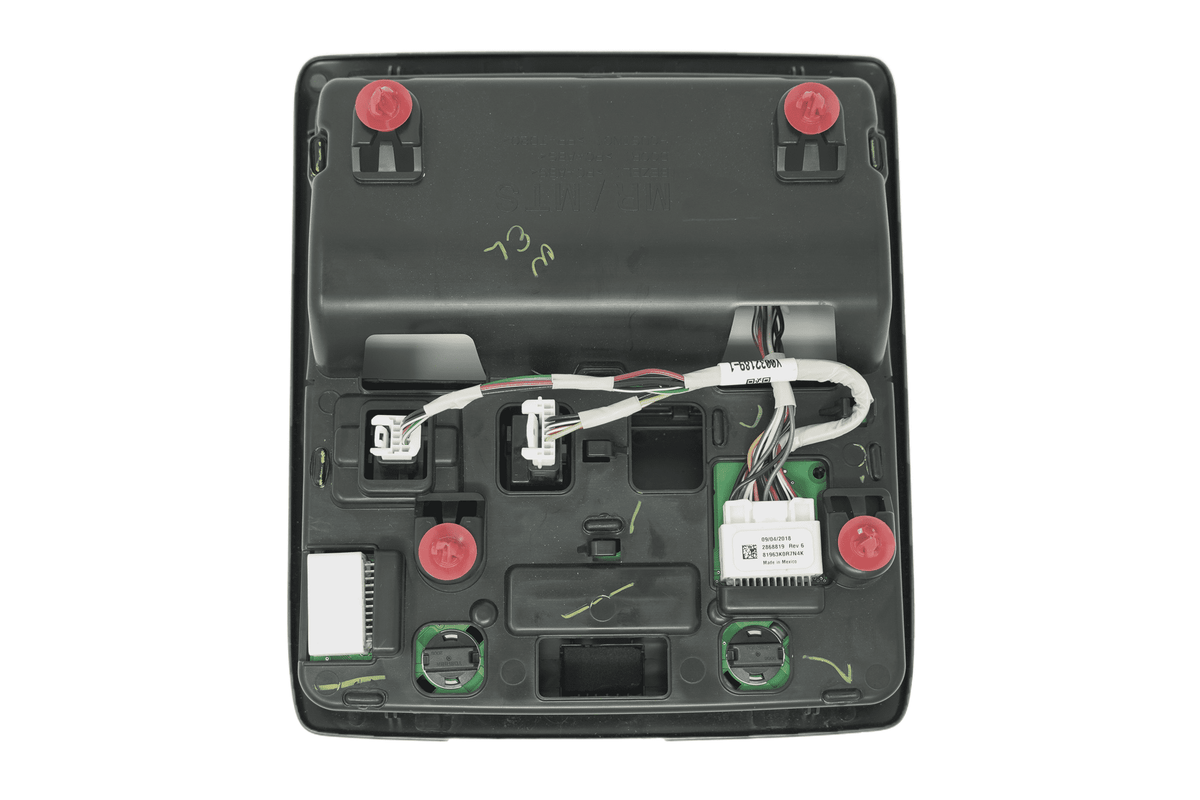

Pull down on the headliner console to release its pressure clips, using a plastic panel tool. Unplug the console harness and remove the foam insert from the factory microphone port. Push the rounded end of the microphone through the mount opening so it sits near the bottom of the center support, then press the assembly into the console until it clicks. Route the wire as described, run it under the dash, and plug the 3.5mm jack into the red microphone port on the back of your Alpine head unit. Power up and test the microphone.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Complete your Toyota Tacoma build
More parts that fit your Toyota Tacoma and pair well with this one — matched and ready to install.
$11.00
$49.99
$20.70
$95.00
$24.99
More for your Toyota Tacoma
Picked from the 1523 parts we carry for the Toyota Tacoma, matched to 2016–2023 model years. Check the years and trim in each title — or call us and we’ll confirm fit.
Specifications
Trail Grid Pro Alpine Microphone Mount FAQs
Does it include the microphone?
The listing describes the mount only. Plan on supplying the Alpine microphone.
What years does it fit?
2016-2023 Tacoma.
Where does the microphone plug in?
The 3.5mm jack goes into the red microphone port on the back of the Alpine head unit.
Is it hard to install?
The steps are console removal, routing one wire and clipping the mount in. No drilling is mentioned.
