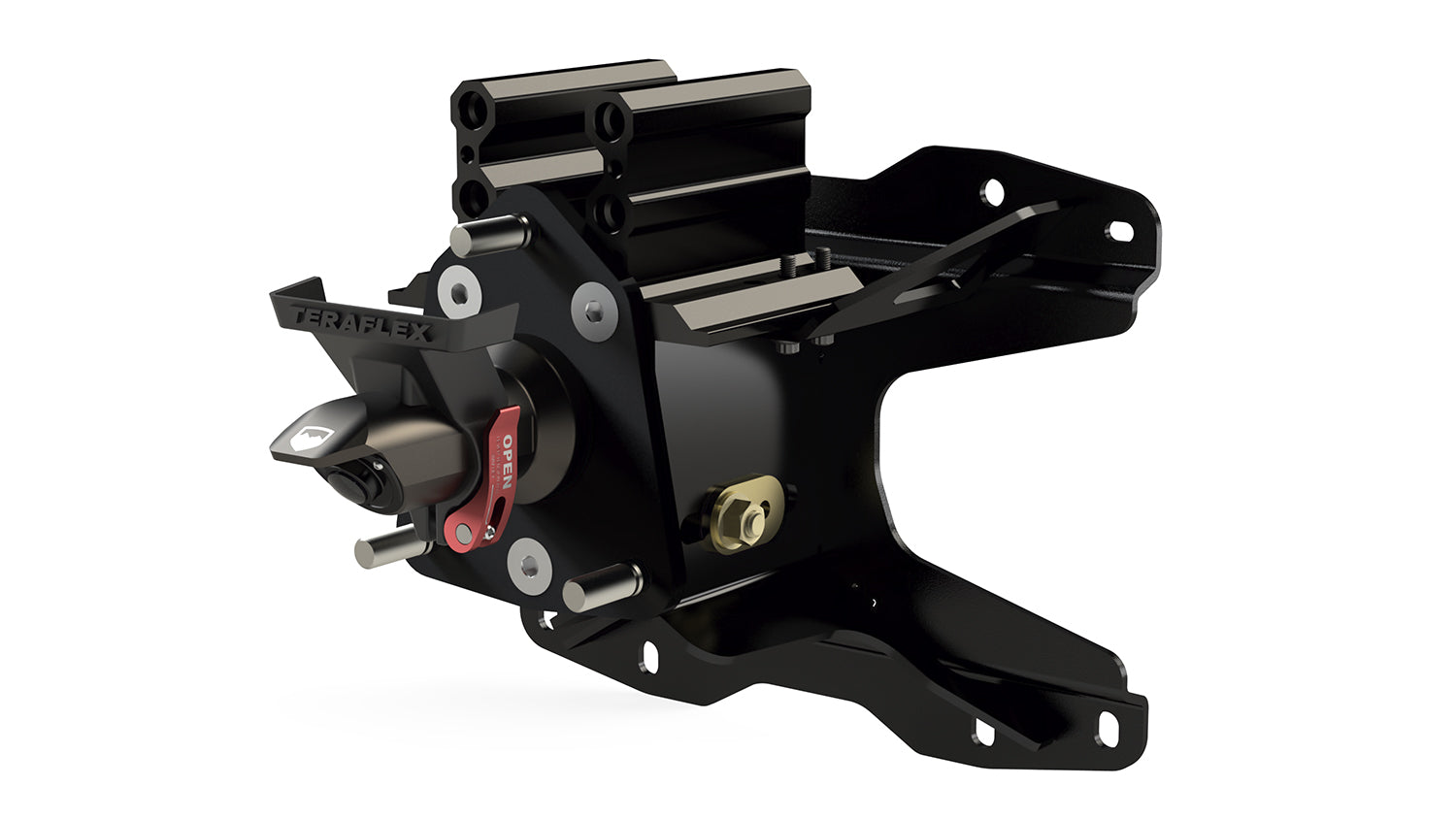

TeraFlex JL: Alpha HD Adjustable Spare Tire Mount Kit (8x6.5")

Designed to accommodate up to a 40" tire mounted on an 8-lug wheel, the TeraFlex JL: Alpha HD Hinged Spare Tire Carrier (NOT INCLUDED) and Alpha HD Adjustable Spare Tire Mount (INCLUDED) and Alpha HD 8-Lug Spare Tire Mount Adapter Kit (INCLUDED) will secure your full-size spare tire over the most extreme trails and rugged terrain. Mounts to the TeraFlex JL: Alpha HD Hinged Spare Tire Carrier or the factory tailgate. Although the Alpha HD Adjustable Spare Tire Mount can be used alone, it has been designed to be installed in conjunction with the Alpha HD Hinged Spare Tire Carrier. The Tire Mount can support the additional weight of a full-size spare tire by securely mounting the tire to the Tire Carrier and tailgate. Complete adjustability includes vertical as well as fore and aft adjustments. The Alpha HD Adjustable Spare Tire Mount Kit includes a quick-release 3rd Brake Light Mount and billet aluminum Rearview Camera Mount. The heavily gusseted Tire Mount is formed and welded from CNC laser cut steel for superior strength.

Also includes our Alpha HD 8-Lug Spare Tire Mount Adapter Kit to mount an 8x6.5" spare tire and wheel combo to the Tire Mount.

Features & Benefits

• Max Tire: 40" (w/ Alpha HD Hinged Spare Tire Carrier)
• Max Tire: 35"/ 100 lbs. (w/out tailgate reinforcement)
• Wheel Pattern: 5x5" converted to 8x6.5" (w/ Alpha HD 8-Lug Spare Tire Mount Adapter Kit)
• Innovative and unique design w/ easy adjustability
• Maintains single-handed entry to the rear cargo area
• Works w/ OEM and most aftermarket bumpers
• Simple installation using common hand tools
• No drilling required – uses factory mounting locations
• Dedicated CAD-designed tooling and CAE design
• FEA validation, ASTM, and SAE testing procedures - 1,000-hour extreme salt spray testing
• OEM Quality UV resistant powder coat finish w/ 3,000-hour accelerated weather testing Alpha HD Adjustable Spare Tire Mount Kit (5x5") (# 4838910)
• Easy fore/aft and height adjustments
• Relocates 3rd brake light from behind tailgate to behind spare tire
• Includes new quick-release 3rd Brake Light Mount
• Includes new hard-anodized billet aluminum Rearview Camera Mount
• Spare Tire Mount is formed and welded from CNC laser cut steel for superior strength
• Adjuster made from strong and lightweight 6061-T6 extruded aluminum Alpha HD 8-Lug Spare Tire Mount Adapter Kit (5x5" to 8x6.5") (# 4838930):
• Converts Alpha HD Adjustable Spare Tire Mount from 5x5" wheel pattern to 8x6.5" wheel pattern

Fitment

• JL Wrangler (2-door)
• JL Wrangler Unlimited (4-door)

Important Notes

• The factory tailgate can only support the weight of up to a 35" spare tire and wheel combo w/out reinforcement.
• Although the Alpha HD Adjustable Spare Tire Mount Kit (5x5": # 4838910) (8x6.5": # 4838940) will bolt to the factory tailgate, the Alpha HD Hinged Spare Tire Carrier Kit (# 4838900) DOES NOT work with the OEM spare tire mount.
• REQUIRES Alpha HD Hinged Spare Tire Carrier Kit and Alpha HD Adjustable Spare Tire Mount Kit to support up to a 40" spare tire and wheel combo.
• Tire size fitment and aftermarket bumper clearance varies by manufacturers; please confirm fitment before purchase.
• JL Wrangler Unlimited 4xe plug-in hybrid models REQUIRE Alpha Speaker Bracket Kit (# 4838290) to retain the rear speaker in the factory Pedestrian Warning System.
• REQUIRES Alpha HD 8-Lug Spare Tire Mount Adapter Kit (# 4838930 – INCLUDED) to convert from 5x5" to 8x6.5" for 8-lug wheels.
• Max tire size with factory steel bumper is 38" and 39" with factory plastic bumper

Estimated Labor Time: 1.5 Hours
