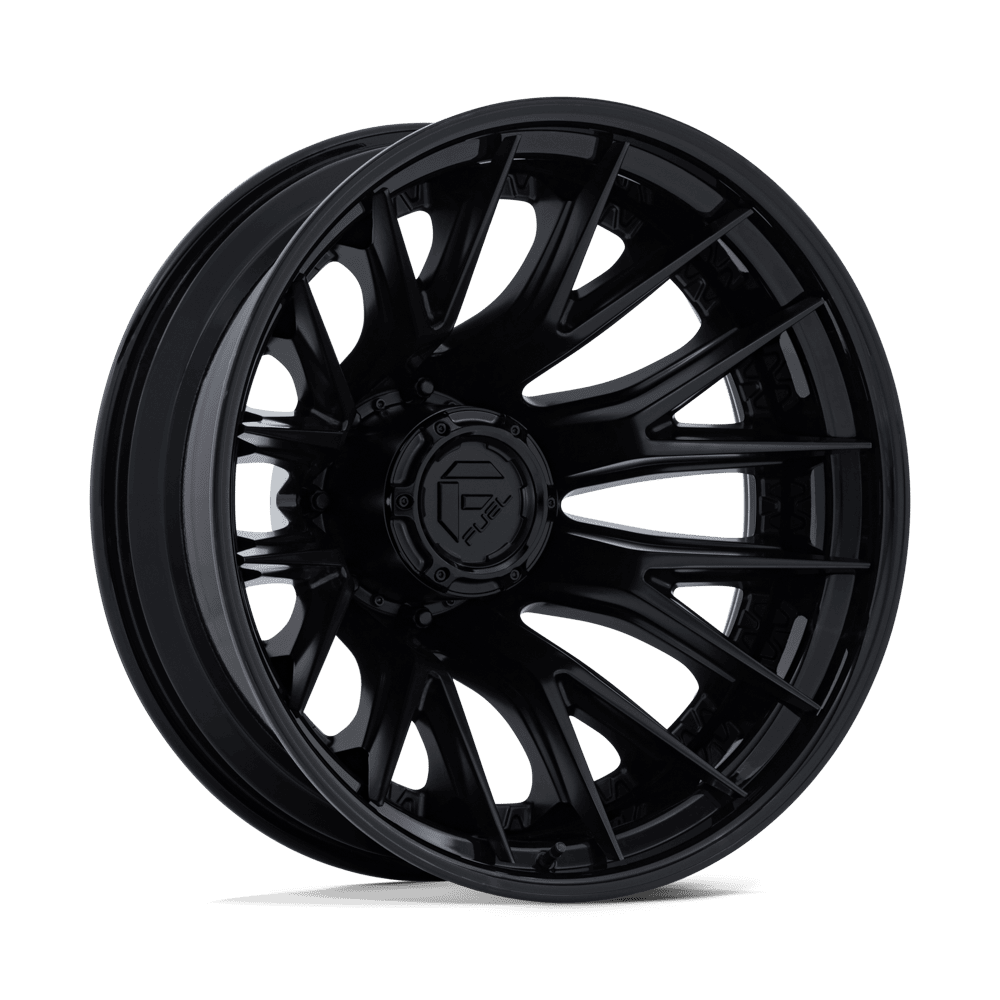

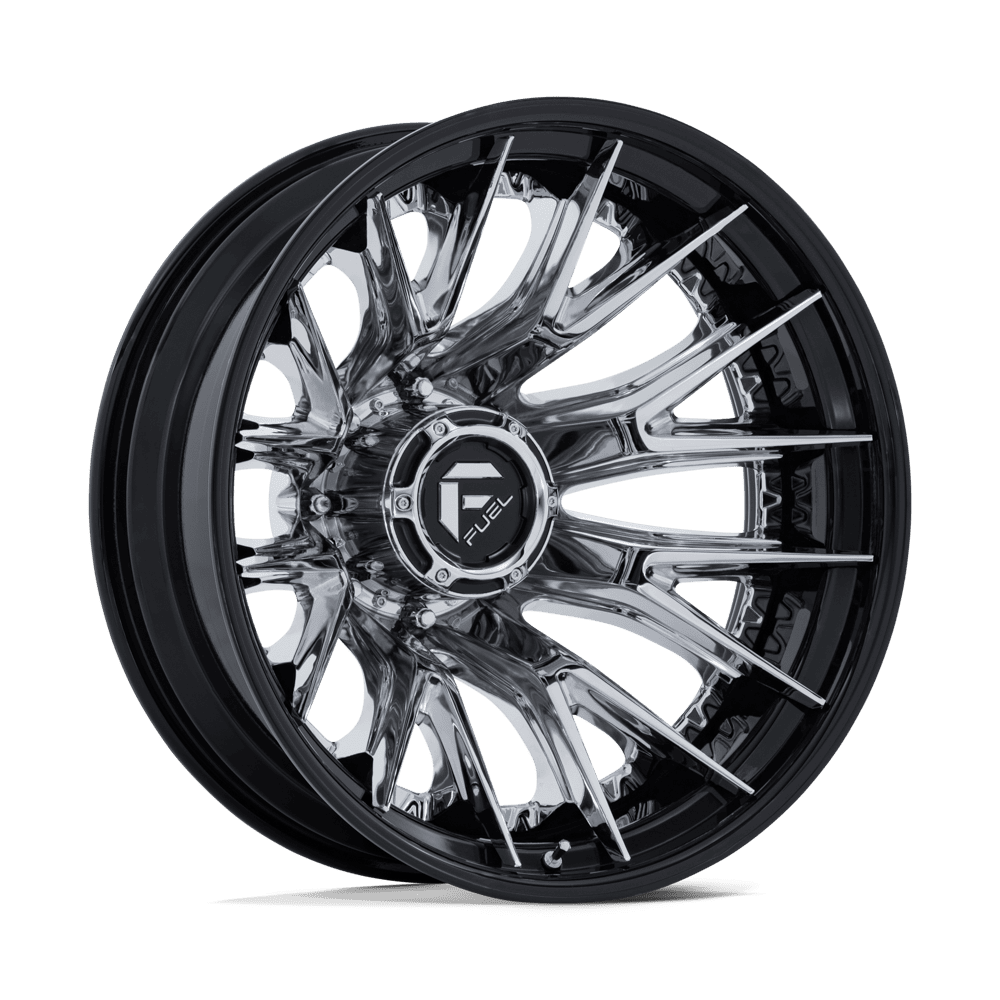

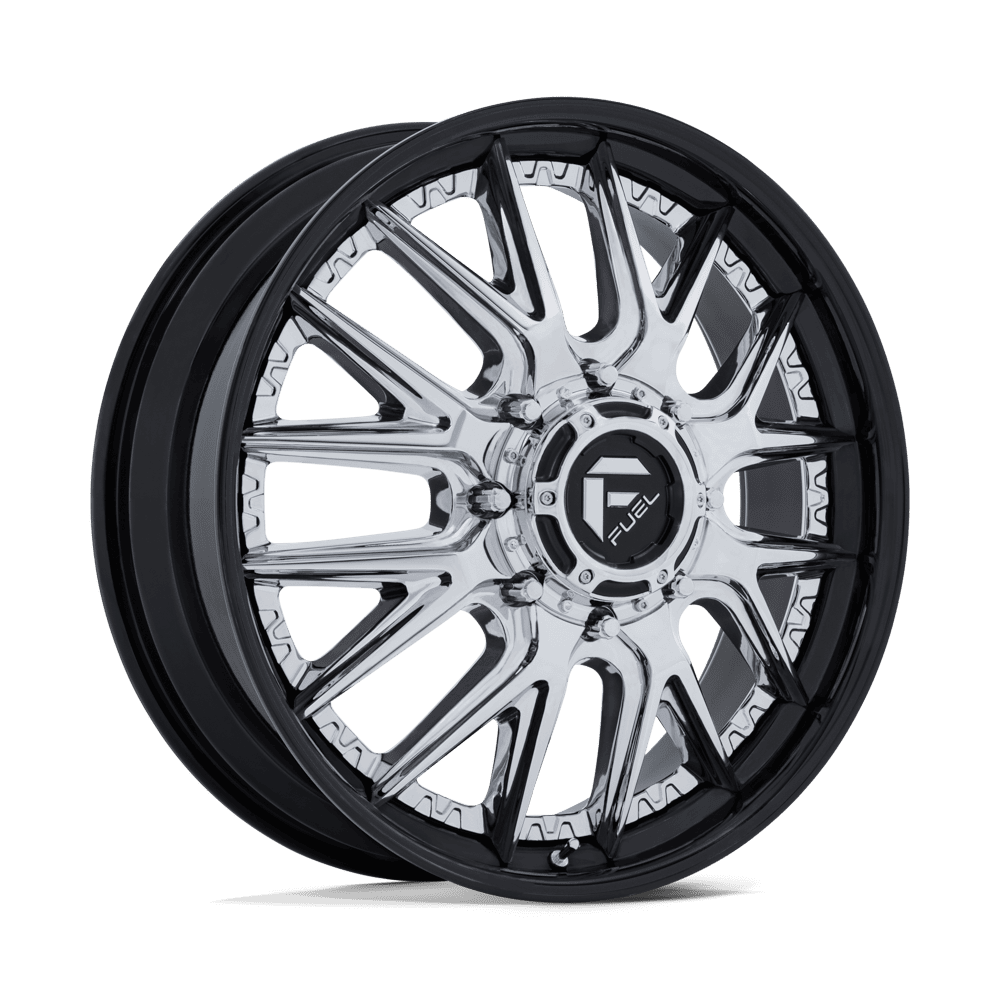

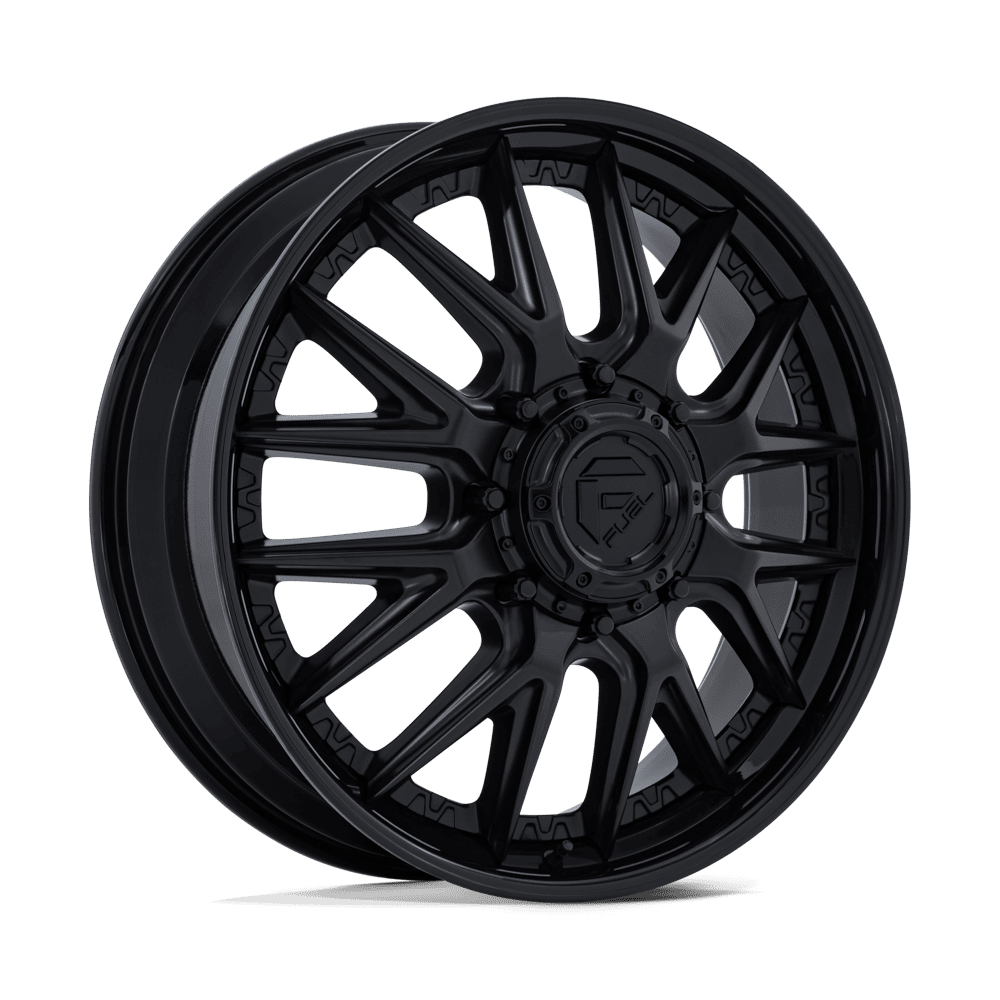

Fuel Catalyst Dually Wheel
The Fuel Catalyst Dually flips the script on traditional dually wheels with groundbreaking Fusion Forged construction that pushes design and performance to new levels. It features a bold split ten-spoke layout with ultra-deep, multi-dimensional surfacing, and yes, even the front wheel gets a proper lip. Sizes range from 20", 22", and 24", giving you plenty of options to dial in the right stance. Available in Matte/Gloss Black and Chrome/Gloss Black, it’s made to turn heads while hauling serious weight. Perfect for heavy-duty builds like the Ford Super Duty, Ram 3500, GMC Sierra HD, and Chevy Silverado 3500.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| D40720829235 | Chrome w/ Gloss Black Lip | 20x8.25 -202mm | 8x200 | -3.33" | 142.00mm | 3000 lbs | 52.14 lbs |
| D40620829235 | Matte Black w/ Gloss Black Lip | 20x8.25 -202mm | 8x200 | -3.33" | 142.00mm | 3000 lbs | 52.14 lbs |
| D40720829335 | Chrome w/ Gloss Black Lip | 20x8.25 -221mm | 8x210 | -4.08" | 154.30mm | 3000 lbs | 53.90 lbs |
| D40620829335 | Matte Black w/ Gloss Black Lip | 20x8.25 -221mm | 8x210 | -4.08" | 154.30mm | 3000 lbs | 53.90 lbs |
| D407208292 | Chrome w/ Gloss Black Lip | 20x8.25 105mm | 8x200 | 8.76" | 142.00mm | 3000 lbs | 37.40 lbs |
| D407208293 | Chrome w/ Gloss Black Lip | 20x8.25 105mm | 8x210 | 8.76" | 154.30mm | 3000 lbs | 36.70 lbs |
| D406208292 | Matte Black w/ Gloss Black Lip | 20x8.25 105mm | 8x200 | 8.76" | 142.00mm | 3000 lbs | 37.40 lbs |
| D406208293 | Matte Black w/ Gloss Black Lip | 20x8.25 105mm | 8x210 | 8.76" | 154.30mm | 3000 lbs | 36.70 lbs |
| D40722829235 | Chrome w/ Gloss Black Lip | 22x8.25 -202mm | 8x200 | -3.33" | 142.00mm | 3000 lbs | 55.80 lbs |
| D40622829235 | Matte Black w/ Gloss Black Lip | 22x8.25 -202mm | 8x200 | -3.33" | 142.00mm | 3000 lbs | 55.80 lbs |
| D40722829335 | Chrome w/ Gloss Black Lip | 22x8.25 -221mm | 8x210 | -4.08" | 154.30mm | 3000 lbs | 57.64 lbs |
| D40622829335 | Matte Black w/ Gloss Black Lip | 22x8.25 -221mm | 8x210 | -4.08" | 154.30mm | 3000 lbs | 57.64 lbs |
| D407228293 | Chrome w/ Gloss Black Lip | 22x8.25 105mm | 8x210 | 8.76" | 154.30mm | 3000 lbs | 39.82 lbs |
| D407228292 | Chrome w/ Gloss Black Lip | 22x8.25 105mm | 8x200 | 8.76" | 142.00mm | 3000 lbs | 40.48 lbs |
| D406228293 | Matte Black w/ Gloss Black Lip | 22x8.25 105mm | 8x210 | 8.76" | 154.30mm | 3000 lbs | 39.82 lbs |
| D406228292 | Matte Black w/ Gloss Black Lip | 22x8.25 105mm | 8x200 | 8.76" | 142.00mm | 3000 lbs | 40.48 lbs |
| D40724829235 | Chrome w/ Gloss Black Lip | 24x8.25 -202mm | 8x200 | -3.33" | 142.00mm | 3000 lbs | 61.60 lbs |
| D40624829235 | Matte Black w/ Gloss Black Lip | 24x8.25 -202mm | 8x200 | -3.33" | 142.00mm | 3000 lbs | 61.60 lbs |
| D40724829335 | Chrome w/ Gloss Black Lip | 24x8.25 -221mm | 8x210 | -4.08" | 154.30mm | 3000 lbs | 63.14 lbs |
| D40624829335 | Matte Black w/ Gloss Black Lip | 24x8.25 -221mm | 8x210 | -4.08" | 154.30mm | 3000 lbs | 63.14 lbs |
| D407248292 | Chrome w/ Gloss Black Lip | 24x8.25 105mm | 8x200 | 8.76" | 142.00mm | 3000 lbs | 45.10 lbs |
| D407248293 | Chrome w/ Gloss Black Lip | 24x8.25 105mm | 8x210 | 8.76" | 154.30mm | 3000 lbs | 44.44 lbs |
| D406248293 | Matte Black w/ Gloss Black Lip | 24x8.25 105mm | 8x210 | 8.76" | 154.30mm | 3000 lbs | 44.44 lbs |
| D406248292 | Matte Black w/ Gloss Black Lip | 24x8.25 105mm | 8x200 | 8.76" | 142.00mm | 3000 lbs | 45.10 lbs |
