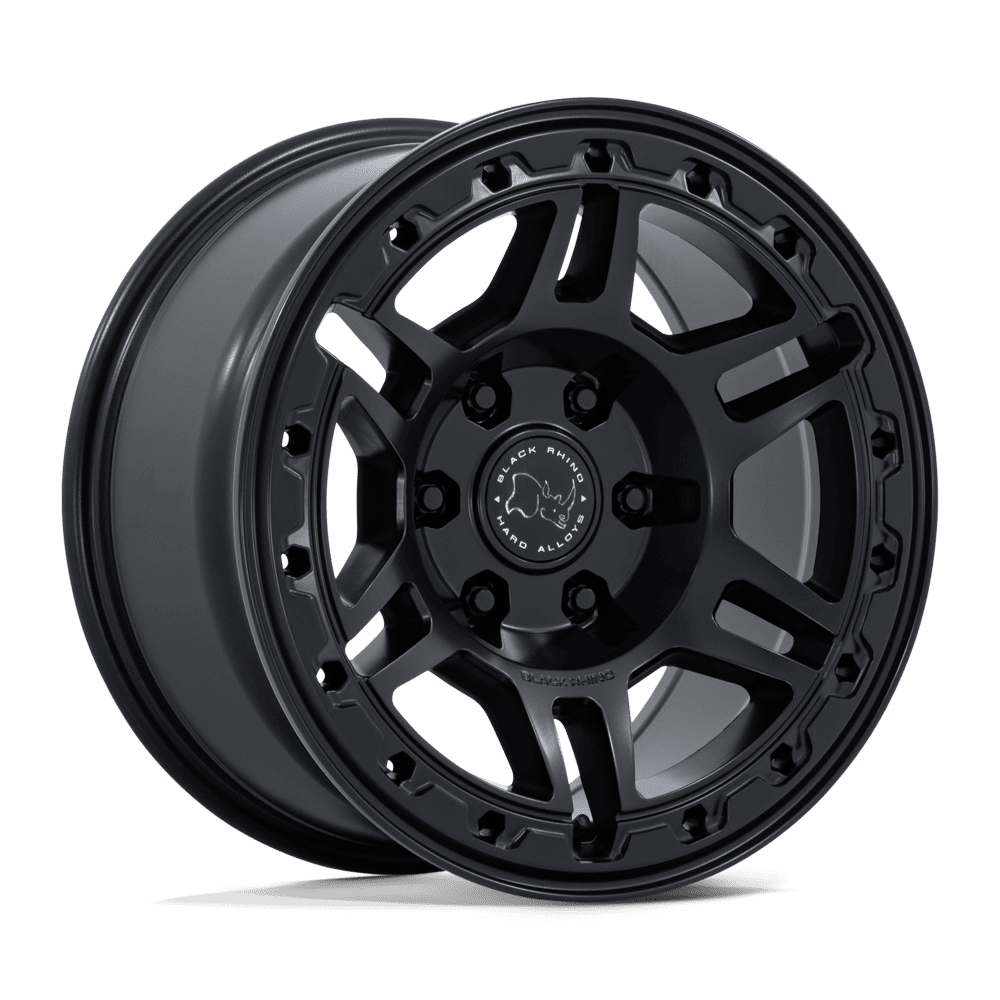

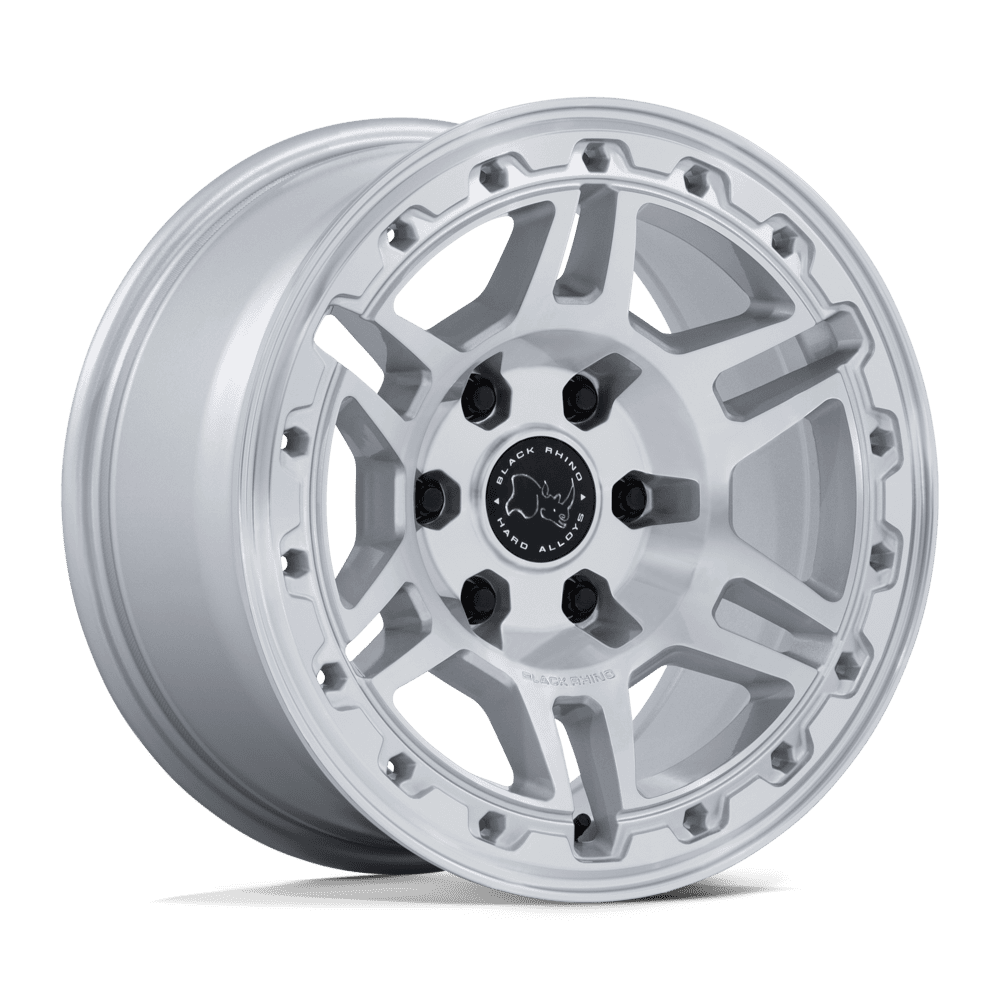

Black Rhino Vanguard Wheel
Big, bold, and undeniably Black Rhino, the BR039 Vanguard is ready to add some attitude to your favorite ride. Featuring a slotted 6-spoke design, concave profile, and robust cast construction, the Vanguard is built for trucks that don’t shy away from stealing the spotlight. Designed with fitment flexibility in mind, we developed the Vanguard with offsets ranging from 0mm to +32mm, a performance-minded 17” size, and a more stylish 20” size for rigs that see more street than dirt. If you’re looking for a wheel with distinct Black Rhino style cues and some grit for the daily commute or weekends at the campsite, the Vanguard has you covered.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| BR039SD17806432 | Gloss Silver w/ Machined Face | 17x8 32mm | 6x114.3 | 5.76" | 66.06mm | 3300 lbs | 33.66 lbs |
| BR039SD17806832 | Gloss Silver w/ Machined Face | 17x8 32mm | 6x139.7 | 5.76" | 106.10mm | 3300 lbs | 32.56 lbs |
| BR039MX17806832 | Matte Black | 17x8 32mm | 6x139.7 | 5.76" | 106.10mm | 3300 lbs | 32.56 lbs |
| BR039MX17806432 | Matte Black | 17x8 32mm | 6x114.3 | 5.76" | 66.06mm | 3300 lbs | 33.66 lbs |
| BR039MX17856800 | Matte Black | 17x8.5 0mm | 6x139.7 | 4.75" | 106.10mm | 3300 lbs | 33.00 lbs |
| BR039SD17856325 | Gloss Silver w/ Machined Face | 17x8.5 25mm | 6x135 | 5.73" | 87.10mm | 3300 lbs | 33.44 lbs |
| BR039SD17853825 | Gloss Silver w/ Machined Face | 17x8.5 25mm | 6x130 | 5.73" | 84.10mm | 3300 lbs | 33.44 lbs |
| BR039SD17856825 | Gloss Silver w/ Machined Face | 17x8.5 25mm | 6x139.7 | 5.73" | 106.10mm | 3300 lbs | 33.00 lbs |
| BR039MX17853825 | Matte Black | 17x8.5 25mm | 6x130 | 5.73" | 84.10mm | 3300 lbs | 33.44 lbs |
| BR039MX17856325 | Matte Black | 17x8.5 25mm | 6x135 | 5.73" | 87.10mm | 3300 lbs | 33.44 lbs |
| BR039MX17856825 | Matte Black | 17x8.5 25mm | 6x139.7 | 5.73" | 106.10mm | 3300 lbs | 33.00 lbs |
| BR039SD20906815 | Gloss Silver w/ Machined Face | 20x9 15mm | 6x139.7 | 5.59" | 106.10mm | 3300 lbs | 39.60 lbs |
| BR039SD20906415 | Gloss Silver w/ Machined Face | 20x9 15mm | 6x114.3 | 5.59" | 66.06mm | 3300 lbs | 40.70 lbs |
| BR039SD20903615 | Gloss Silver w/ Machined Face | 20x9 15mm | 5x130 | 5.59" | 84.10mm | 3300 lbs | 40.70 lbs |
| BR039MX20906815 | Matte Black | 20x9 15mm | 6x139.7 | 5.59" | 106.10mm | 3300 lbs | 39.60 lbs |
| BR039MX20906415 | Matte Black | 20x9 15mm | 6x114.3 | 5.59" | 66.06mm | 3300 lbs | 40.70 lbs |
| BR039MX20903815 | Matte Black | 20x9 15mm | 6x130 | 5.59" | 84.10mm | 3300 lbs | 40.26 lbs |
| BR039MX20903615 | Matte Black | 20x9 15mm | 5x130 | 5.59" | 84.10mm | 3300 lbs | 40.70 lbs |
