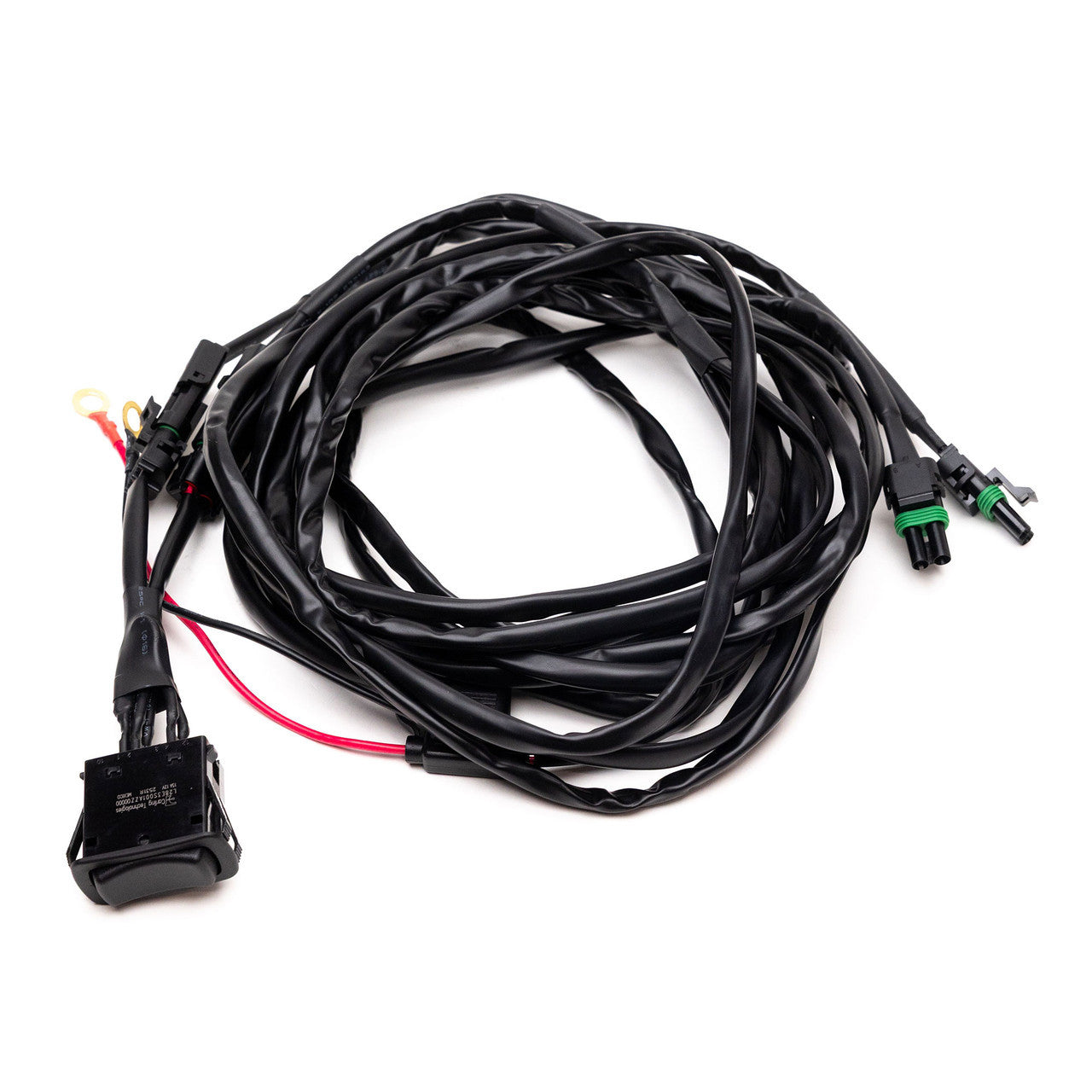

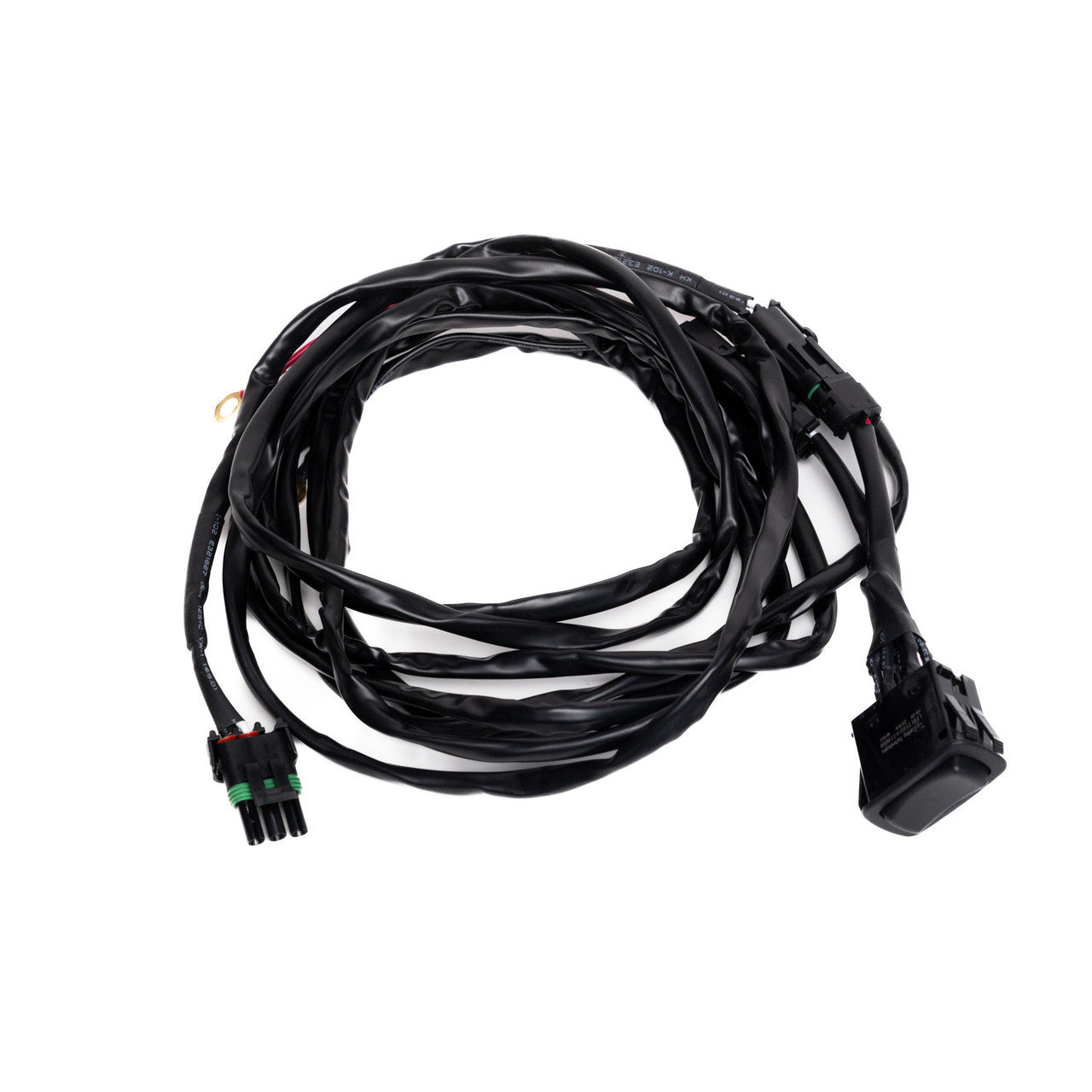

Baja Designs REFLEX™ Light Actuator Harness – Rocker Switch Universal Motor Actuator Adaptor Harness

SKU's: 64-6306/64-6307; The REFLEX™ Light Actuator rocker switch universal harness allows users the ability to control the up and down movement of the actuator at the touch of a button. Enthusiasts can select from a single harness or a harness pair that will power two actuators in sync. Harnesses are sold separately to provide flexibility for user’s existing lighting setups. NOTE: Actuator linking harnesses are power-only between individual light actuators. Lights will require separate harness for power.

Single/Pair Light Configuration

64-6307 - Pair harnesses are designed for use with single and pair lighting setups, including light bars and A-pillar kits. For 10” light bars using single actuator, extra lead can be tucked away.

3-8 Light Configuration

64-6306 - Need to control multiple actuators at once? This single lead 3-pin actuator rocker switch harness can be paired with any actuator linking harness to power multiple actuators at the same time. For example, to actuate a 4-light LP9 bumper setup with a momentary switch and one actuator per light: (1x - 64-6304) power management single lead actuator harness and (1x - 64-0194) 4 actuator linking Harness.

Actuator Linking Harnesses for use with 64-6306:
• 64-0193 – 3 Actuator Linking Harness
• 64-0194 – 4 Actuator Linking Harness
• 64-0195 – 5 Actuator Linking Harness
• 64-0190 – 6 Actuator Linking Harness
• 64-0191 – 7 Actuator Linking Harness
• 64-0192 – 8 Actuator Linking Harness

*Note: Actuators are not compatible with XL Linkable light bars.
