TRIGGER 6 SHOOTER Wireless Accessory Control System

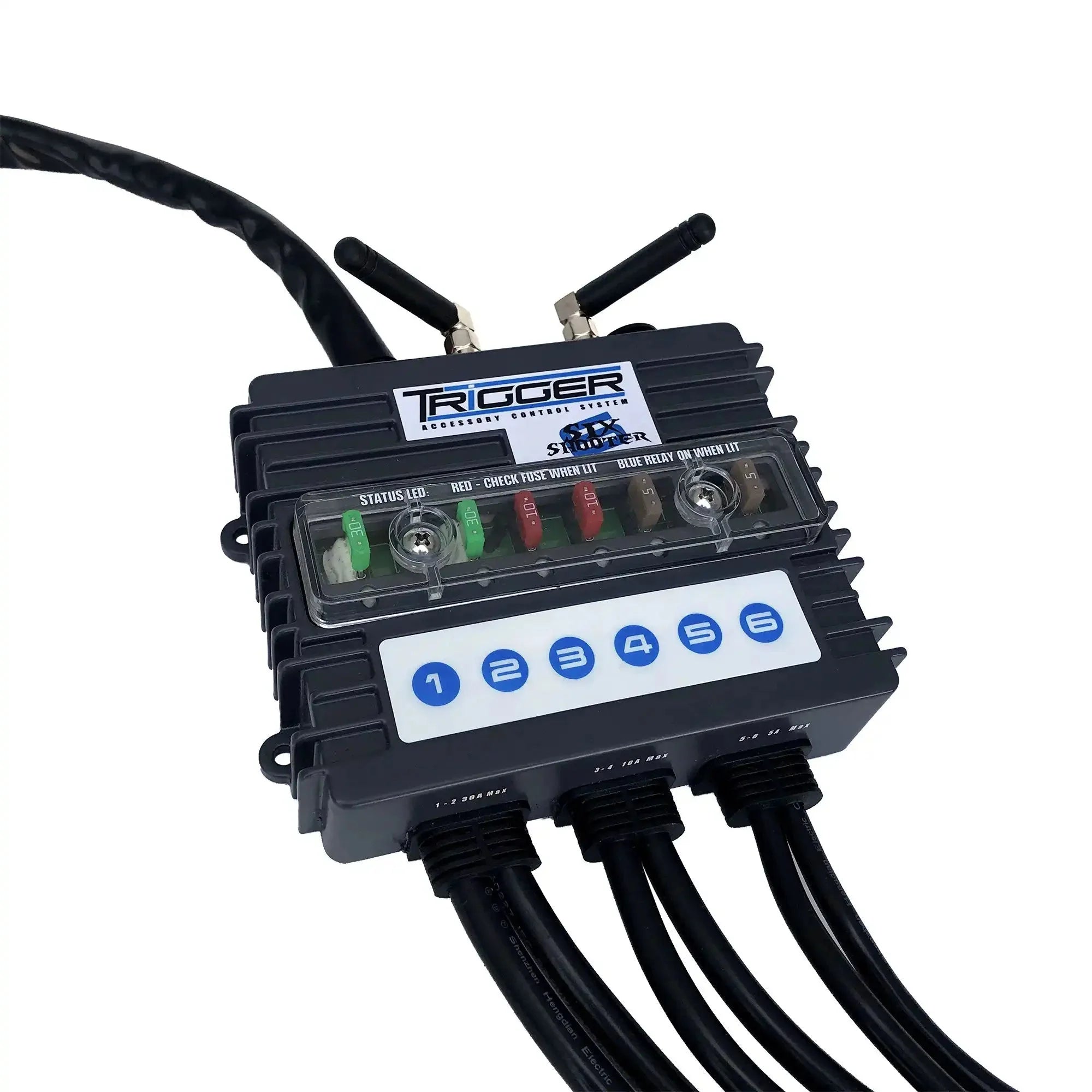

The ORACLE Lighting TRIGGER 6 SHOOTER Wireless Accessory Control System is the standalone controller at the heart of the TRIGGER lineup. It eliminates under-dash wiring runs and firewall penetrations, delivering six fused circuits, a wireless RF remote, Bluetooth app control, a built-in battery monitor, and waterproof construction. Combine multiple units to control up to 24 accessories.
Key Features

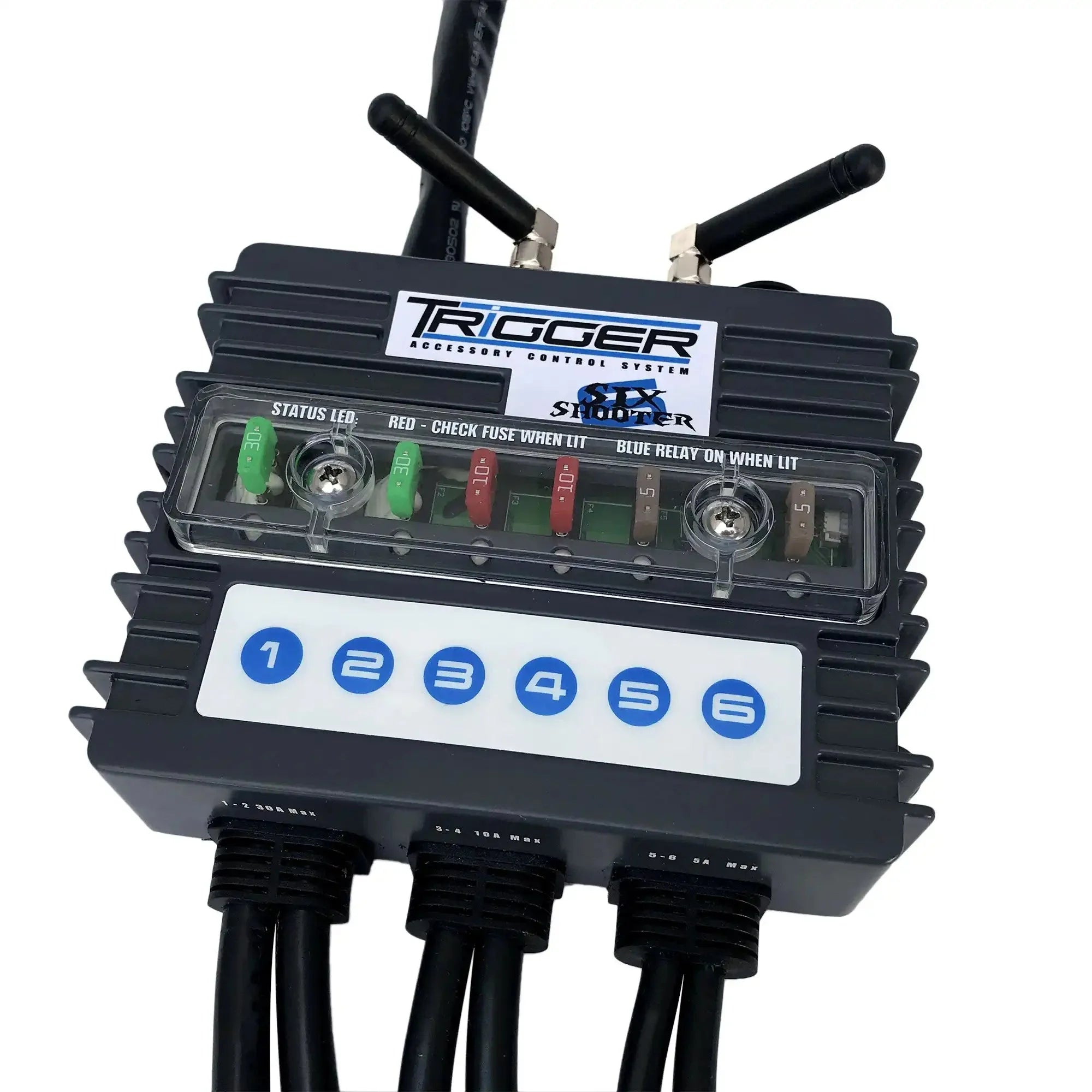

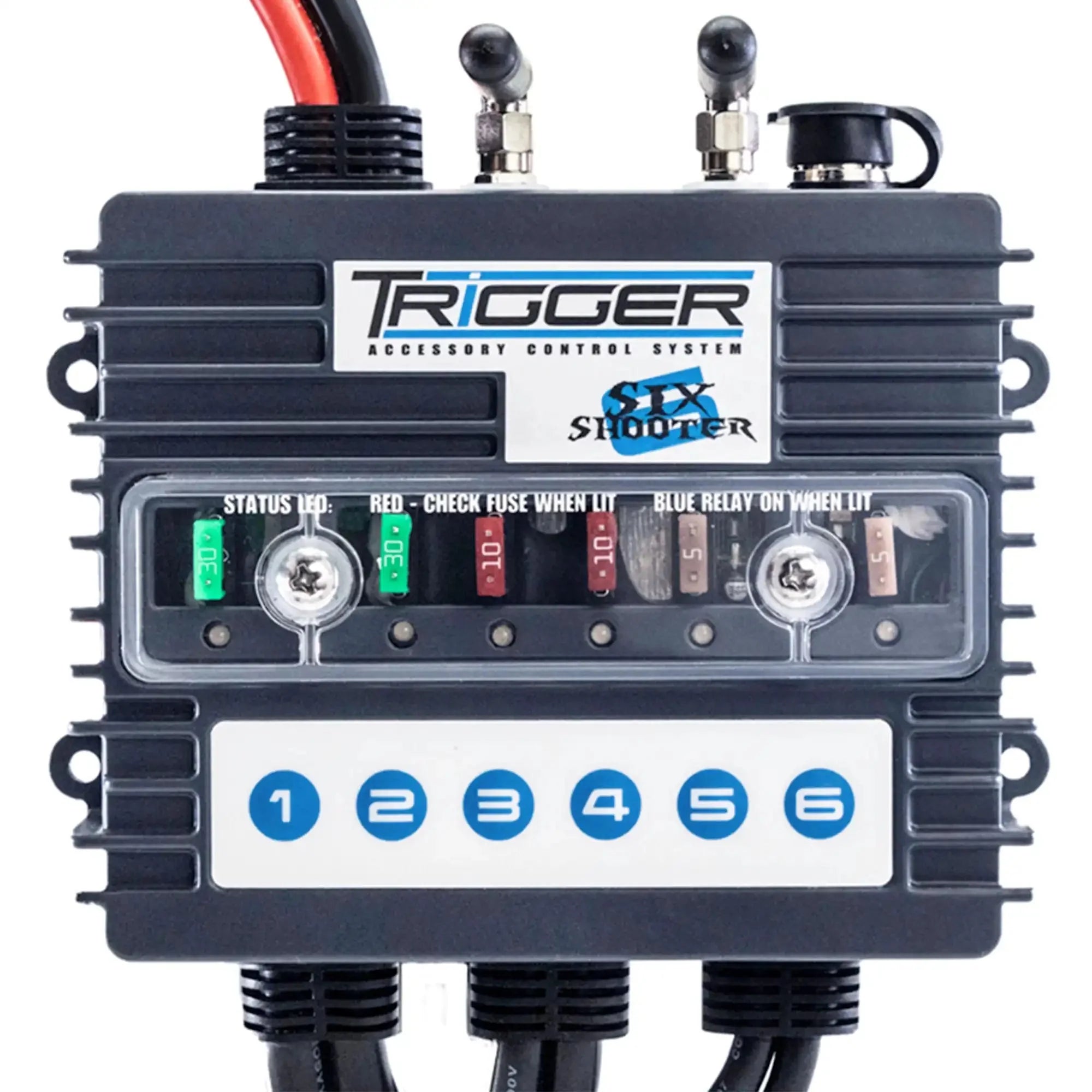

- Six fused output circuits: two 30A, two 10A, two 5A with an o-ring sealed cover

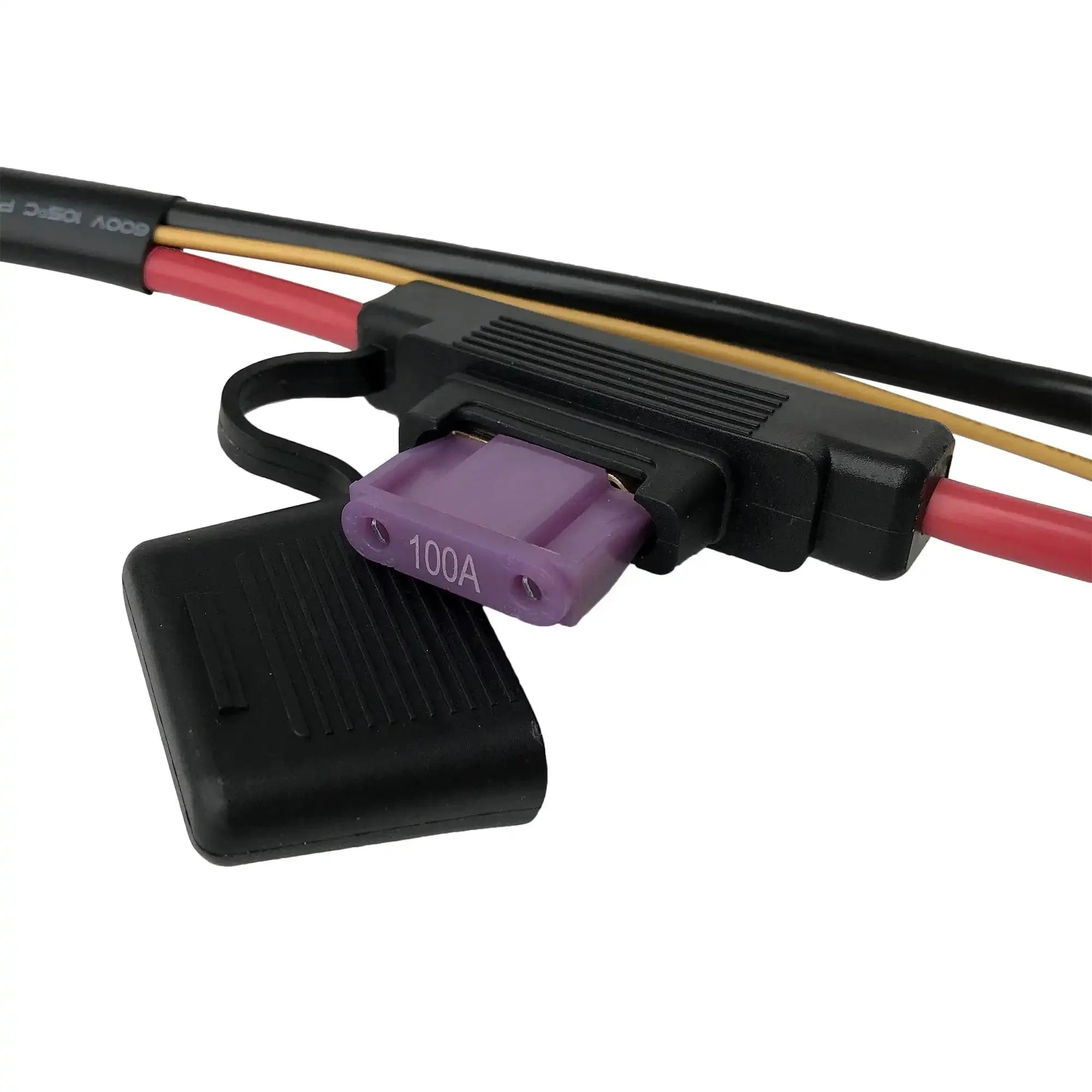

- 100A system fuse on the positive input for whole-system protection

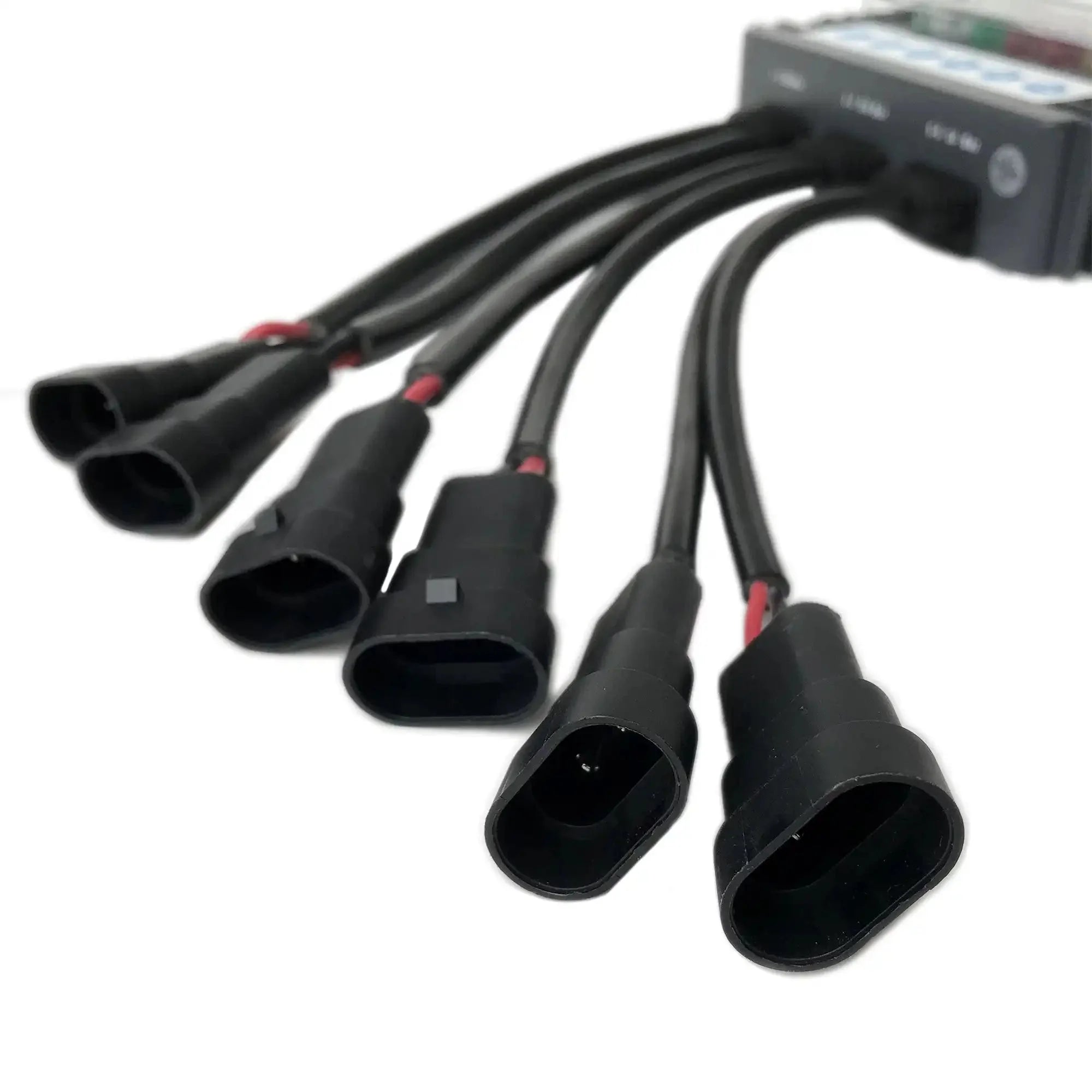

- Six 8-foot wire harnesses with pre-installed waterproof connectors

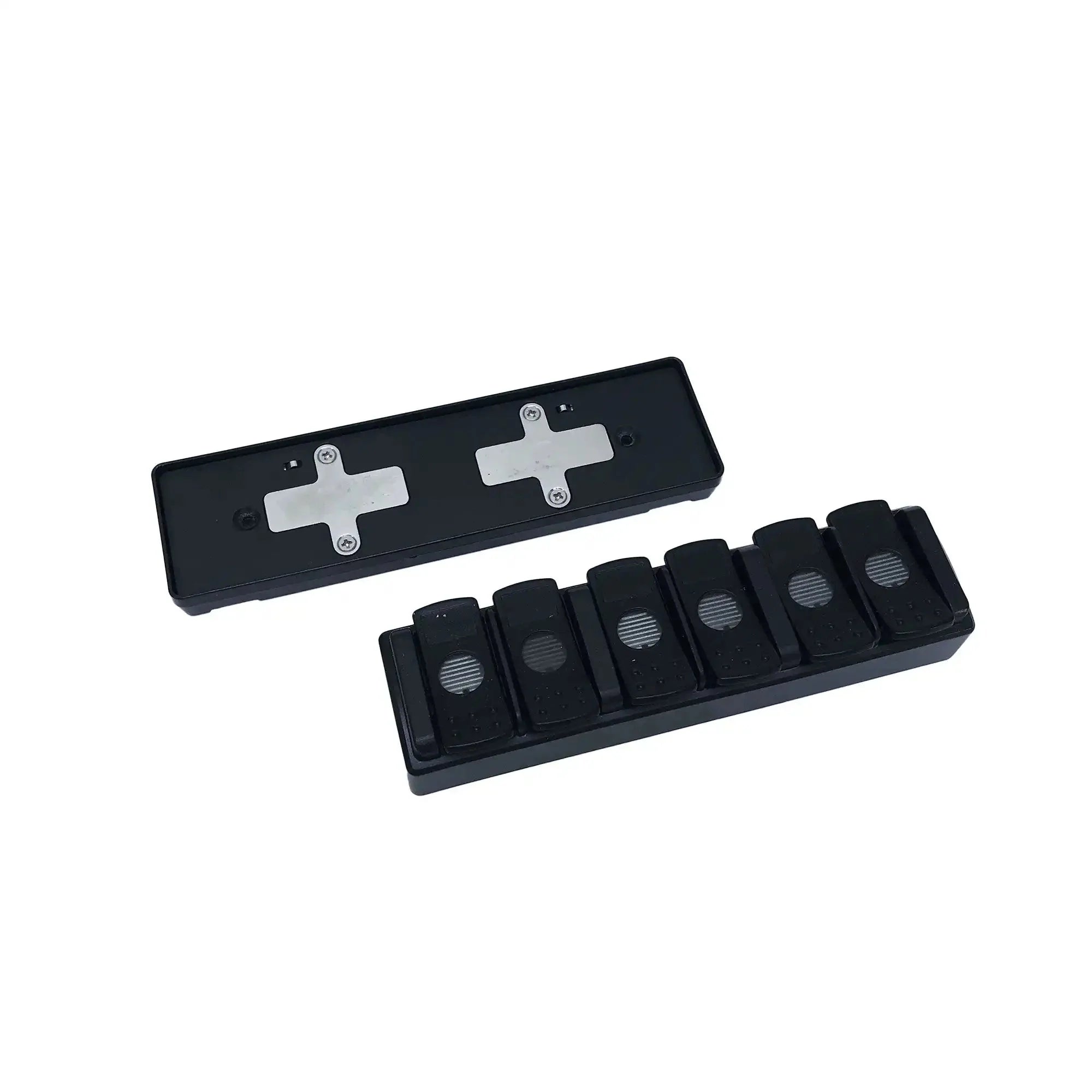

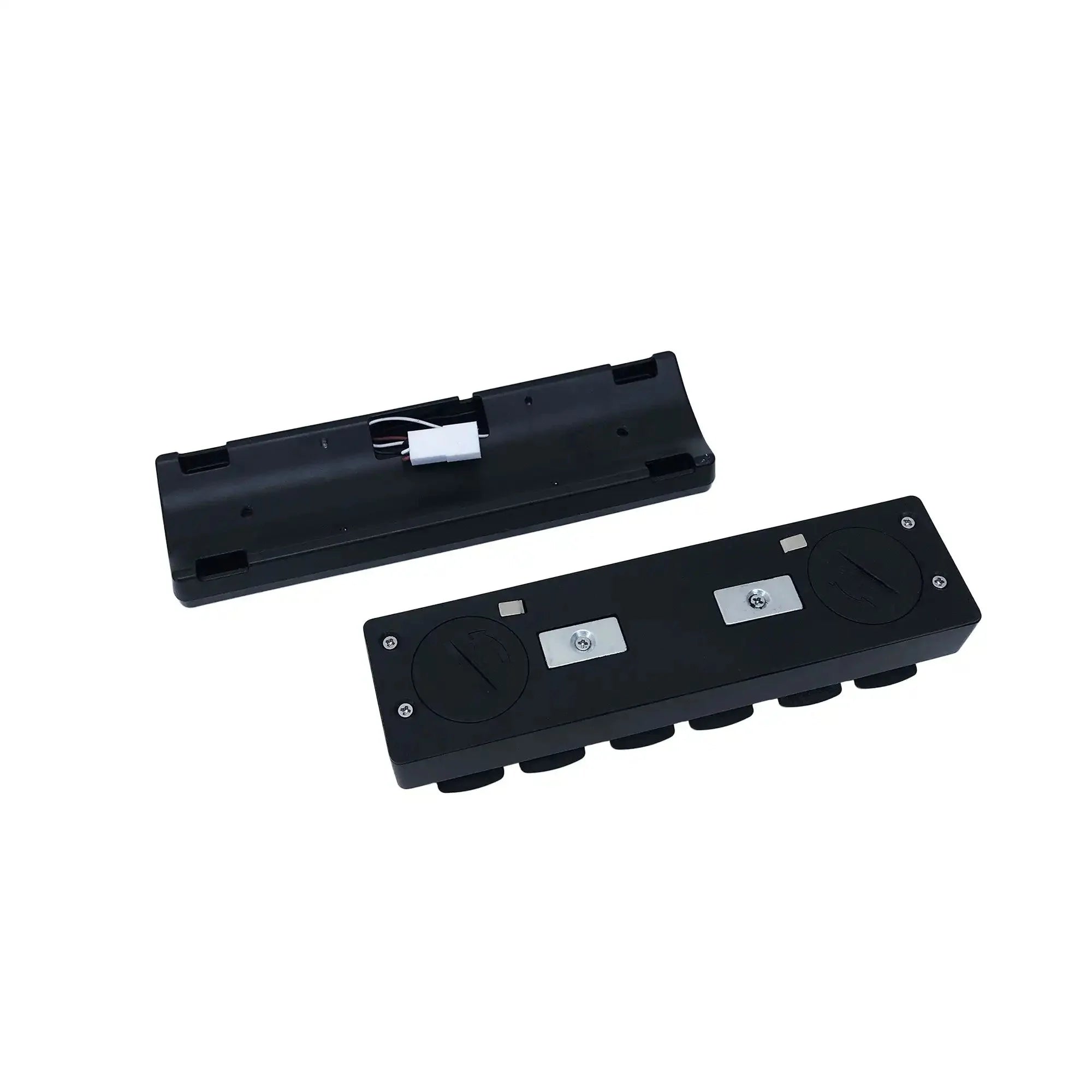

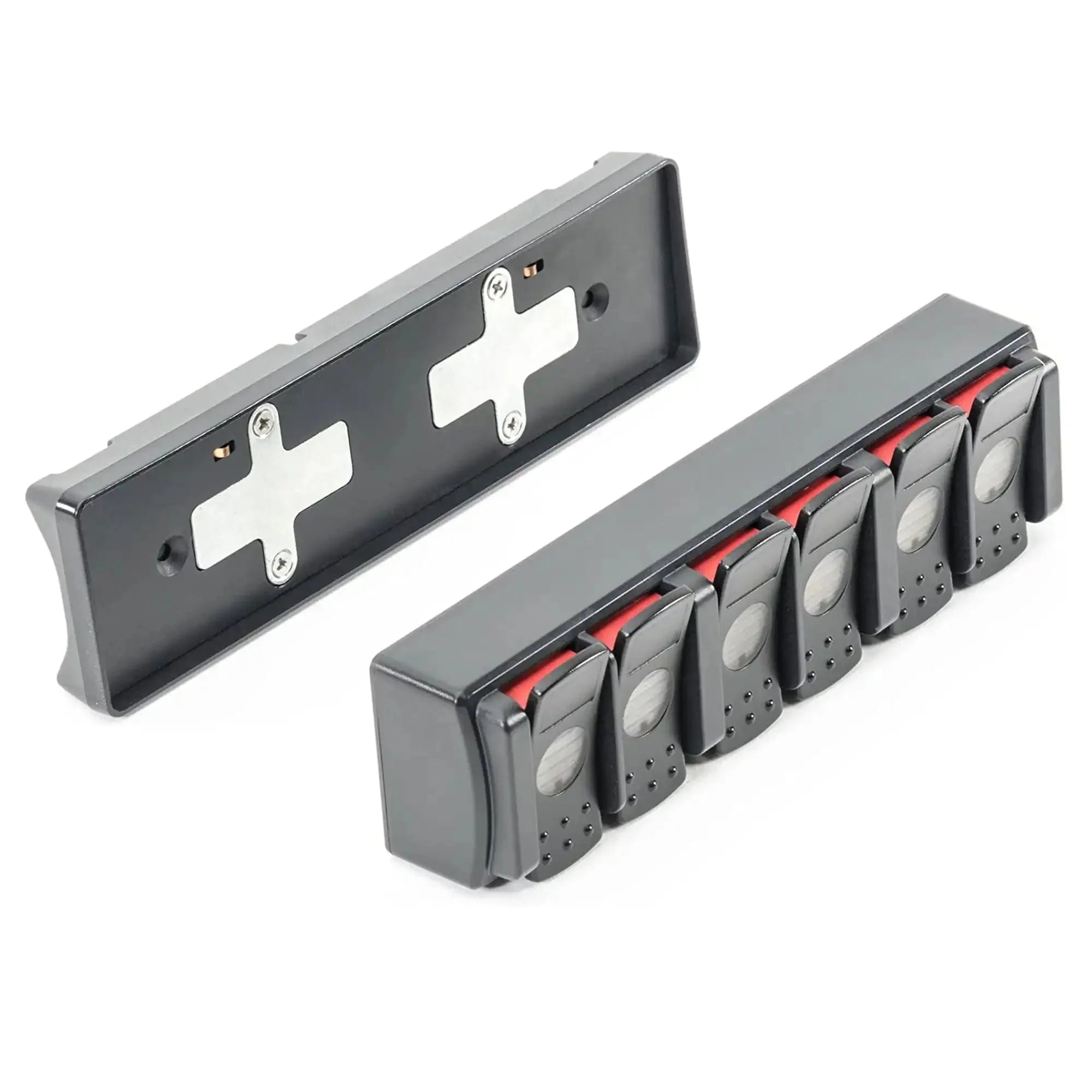

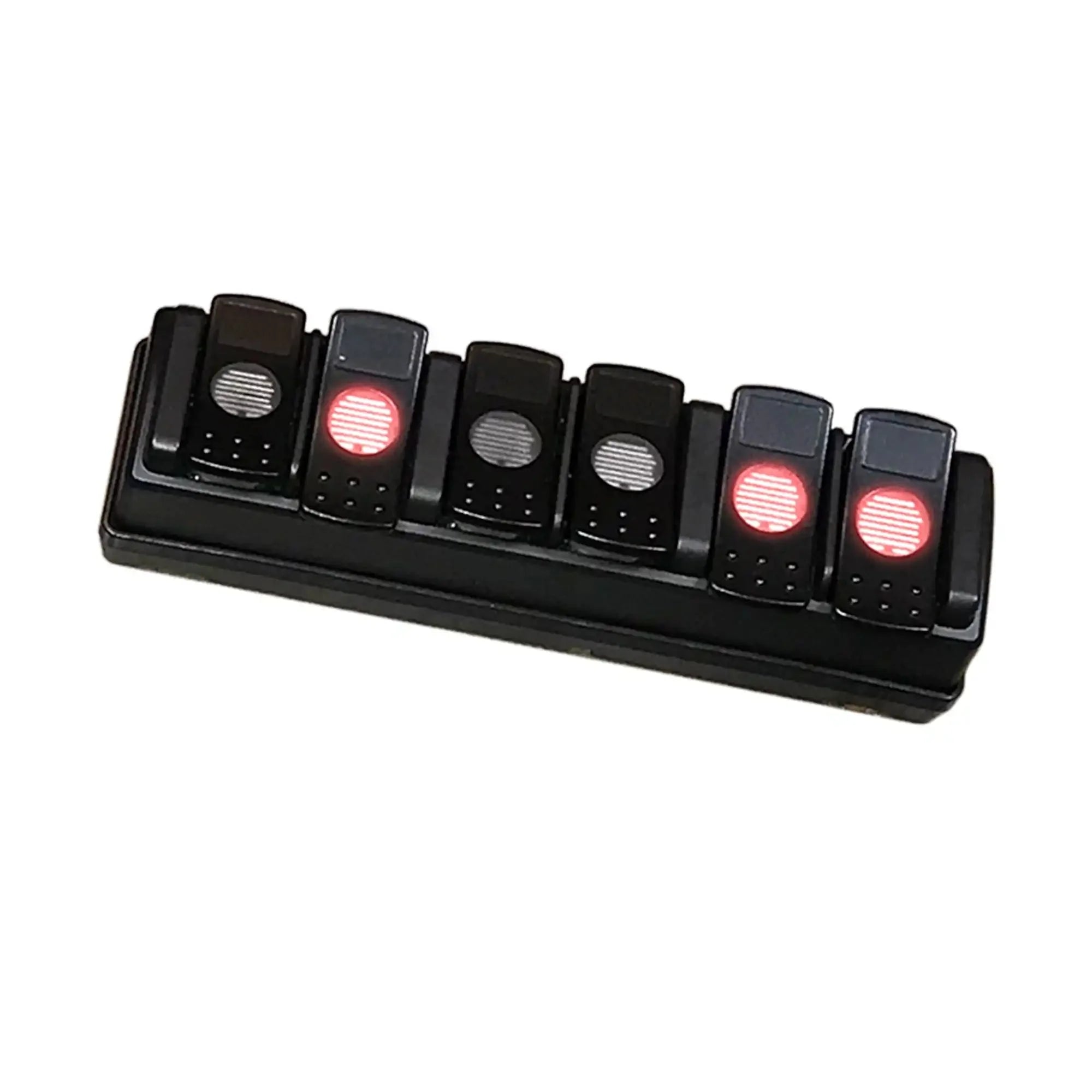

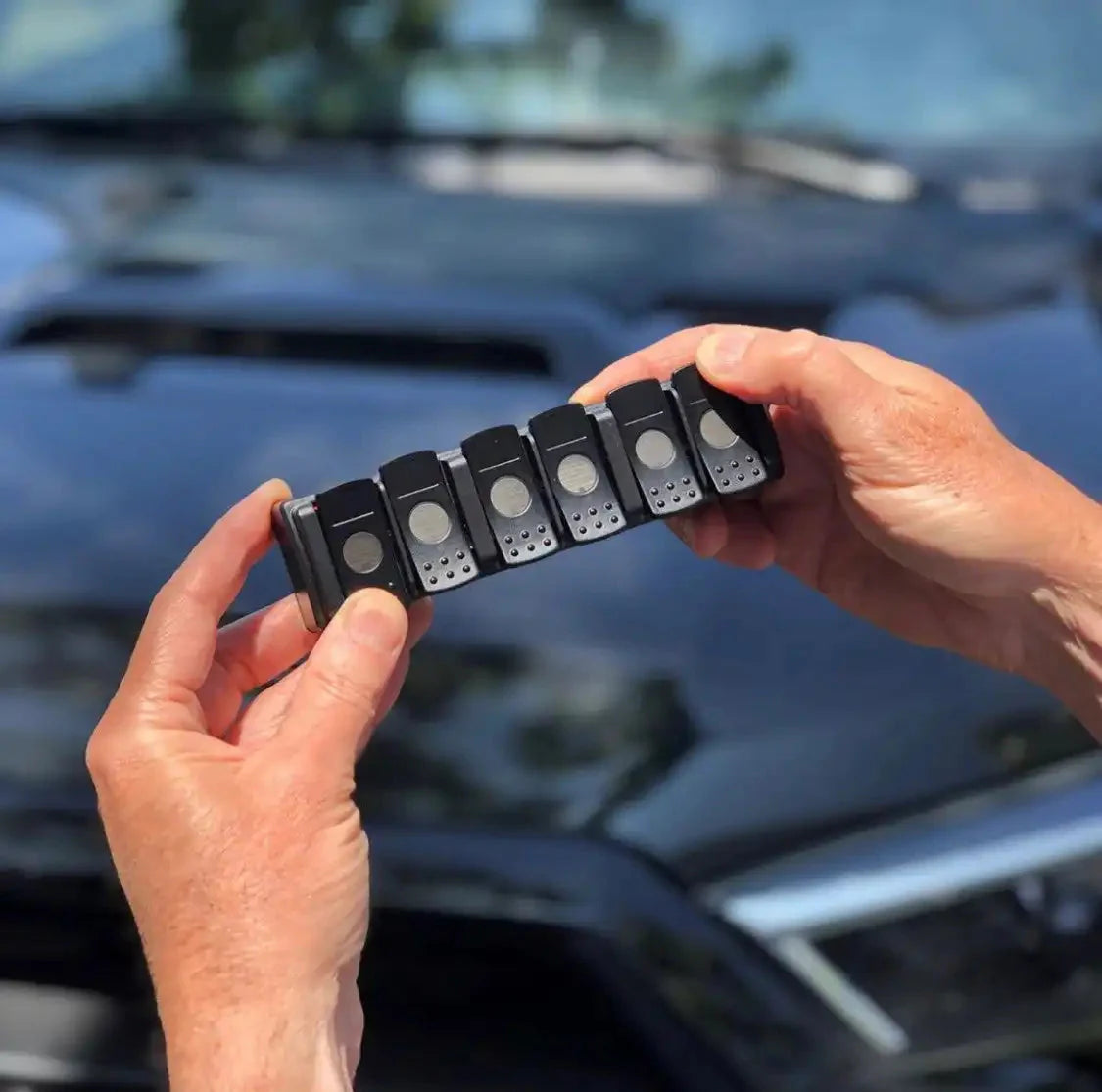

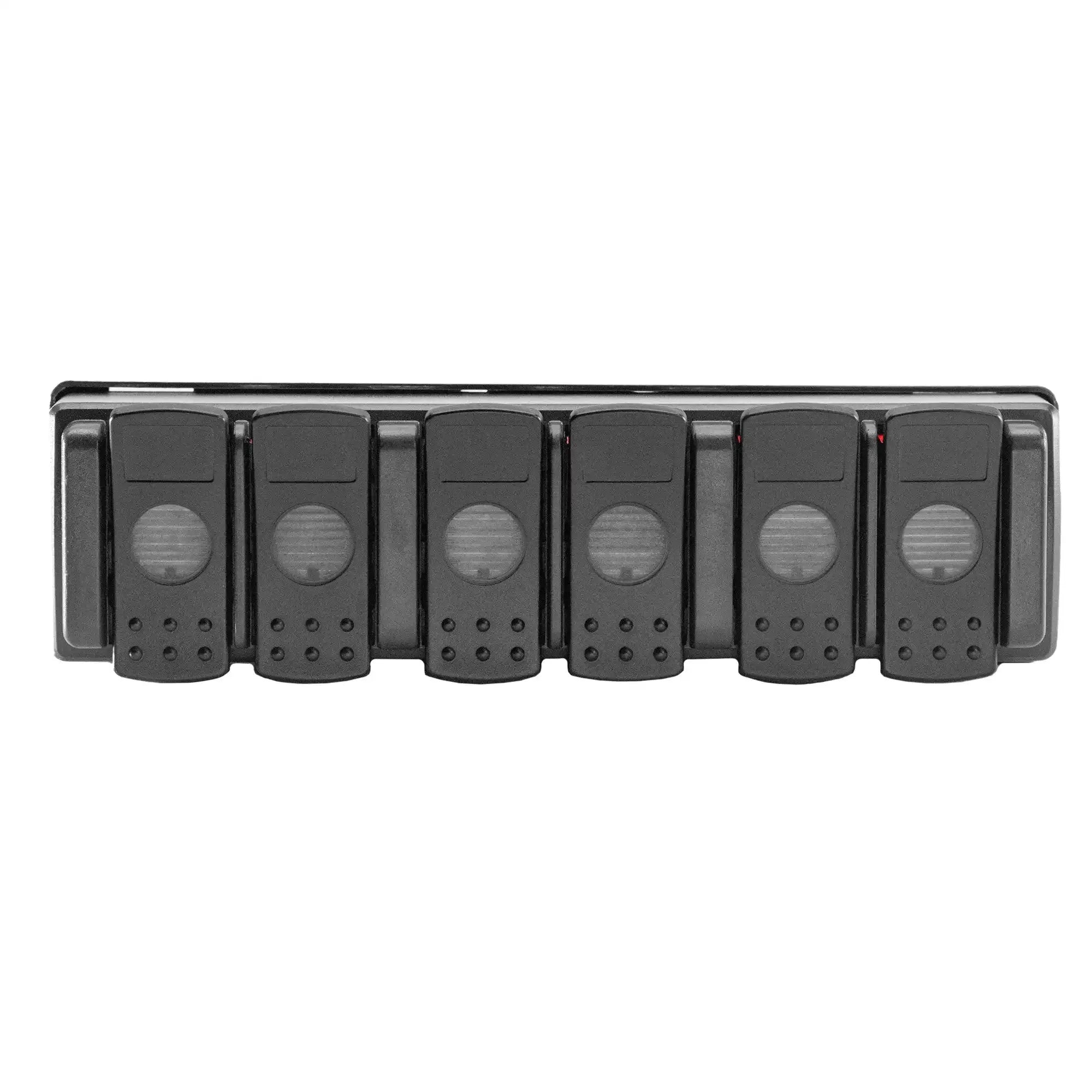

- Wireless backlit RF remote with custom backlight colors, usable inside or outside
- Built-in Bluetooth battery monitor shows real-time battery voltage in the app

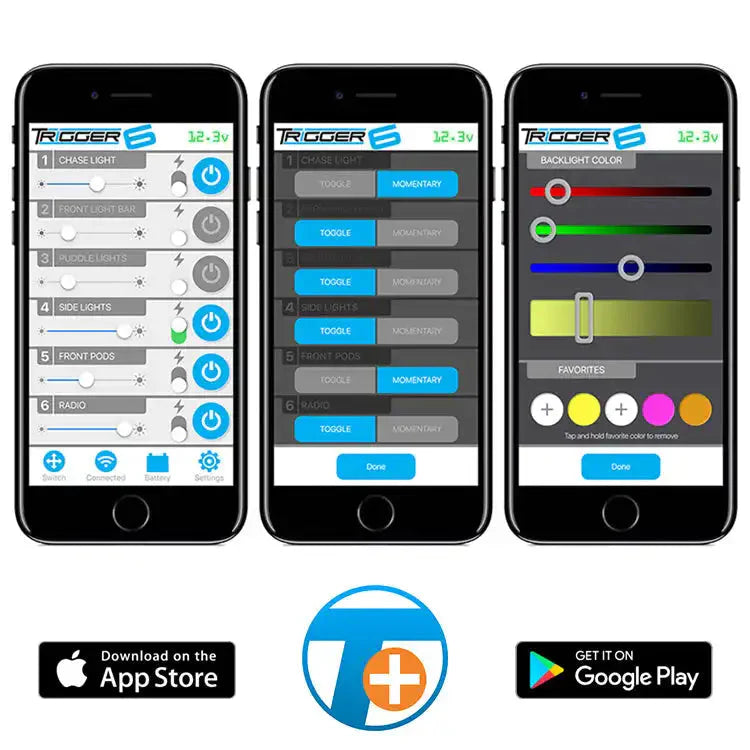

- Bluetooth app control via the free TRIGGER ACS PLUS app for iOS and Android for on/off, dimming, and flashing

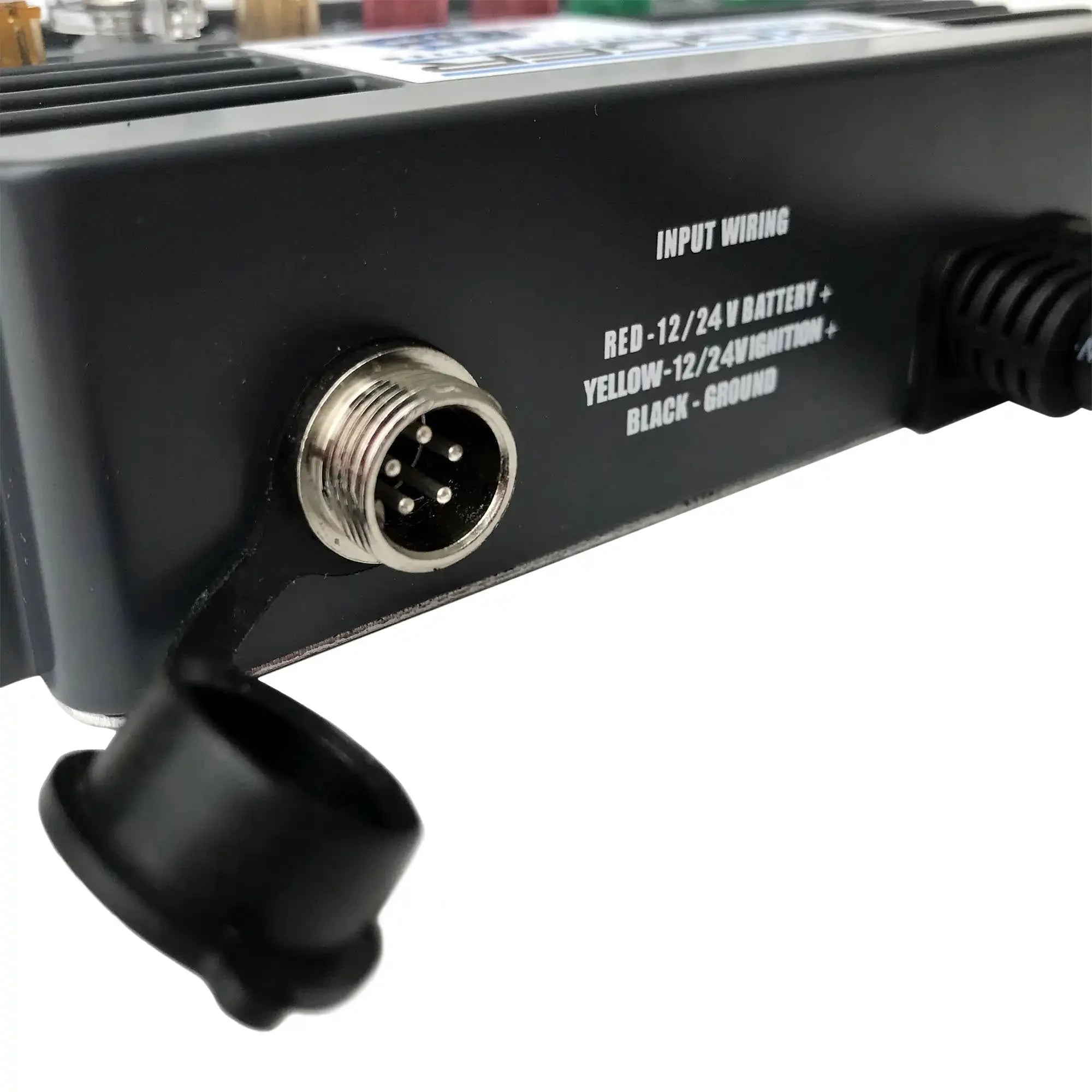

- Manual buttons on the box and a built-in DIN connector for toggle switches
- Low-voltage cut-off and LED indicators (blue for on, red for blown fuse)
- Waterproof case rated from below freezing to 250°F; 12-24V input
Fitment & Compatibility
Universal: works with any 12-24V vehicle via a 3-wire connection (ground, switched positive, and battery positive). Vehicle-specific mounting brackets are available separately for popular Jeep, Ford Bronco, and Toyota platforms.
Specifications
| Specification | Detail |
|---|---|
| ORACLE Part # | 3001 |
| Output Circuits | 6 (2x 30A, 2x 10A, 2x 5A) |
| System Fuse | 100A (positive input) |
| Input Voltage | 12-24V DC |
| Wire Harnesses | 6x 8-ft waterproof |
| Remote Type | Wireless RF rocker (backlit) |
| App Control | TRIGGER ACS PLUS (iOS/Android) |
| Battery Monitor | Built-in Bluetooth (real-time) |
| Low Voltage Cut-Off | Yes |
| DIN Connector | Built-in (toggle harness sold separately) |
| Waterproof | Yes, to 250°F |
| Max Accessories | Up to 24 (multi-unit) |
| Warranty | 3 years (manufacturing defects) |

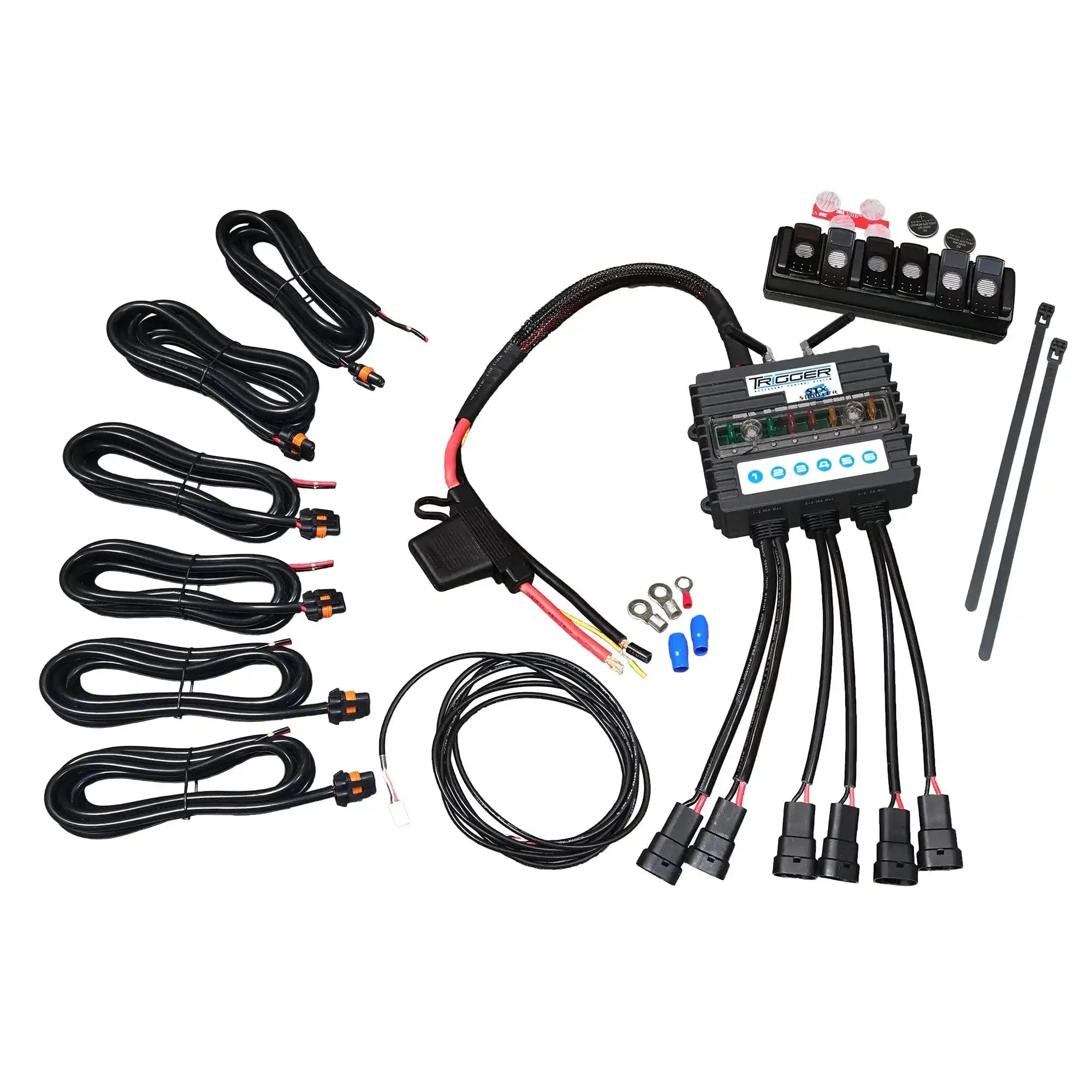

What's in the Box
- TRIGGER 6 SHOOTER control box
- Wireless backlit RF remote with universal mount
- Six 8-foot wire harnesses with waterproof connectors
- Switch labels
Frequently Asked Questions
What vehicles is it compatible with?
Any 12-24V vehicle. It uses a simple 3-wire connection, and vehicle-specific mounting brackets are available for many Jeep, Bronco, and Toyota platforms.
How do I control my accessories?
Use the wireless backlit RF remote, the manual buttons on the control box, or the free TRIGGER ACS PLUS app for iOS and Android for on/off, dimming, and flashing.
Can it protect my battery?
Yes. A built-in Bluetooth battery monitor shows real-time voltage in the app, and a low-voltage cut-off shuts the unit down if voltage drops too low.
How many accessories can it run?
Six fused circuits per controller, and multiple units can be combined to control up to 24 accessories.
Is it weatherproof?

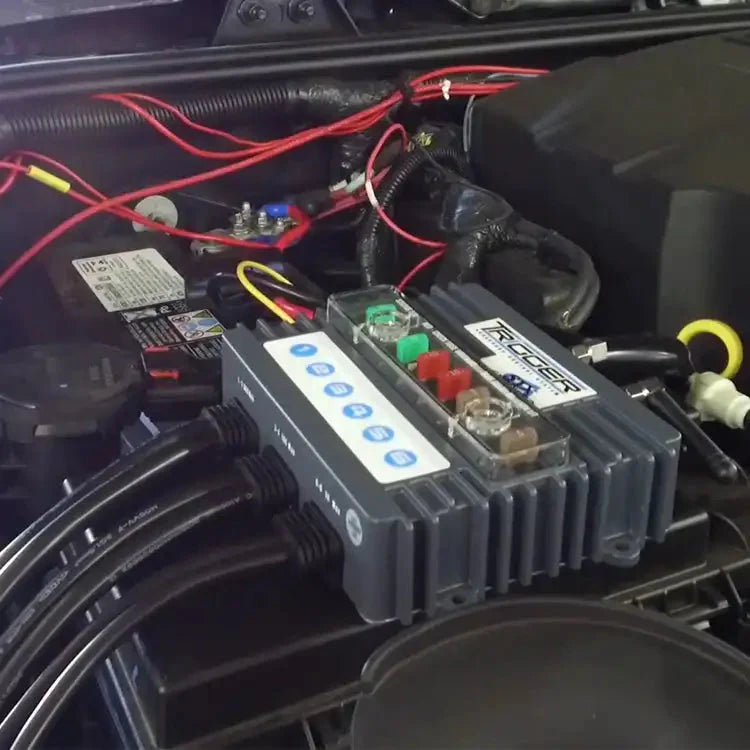

Yes. The waterproof case is rated from below freezing to 250°F, so it can be mounted underhood.
What warranty is included?
ORACLE covers it with a 3-year warranty against manufacturing defects.
