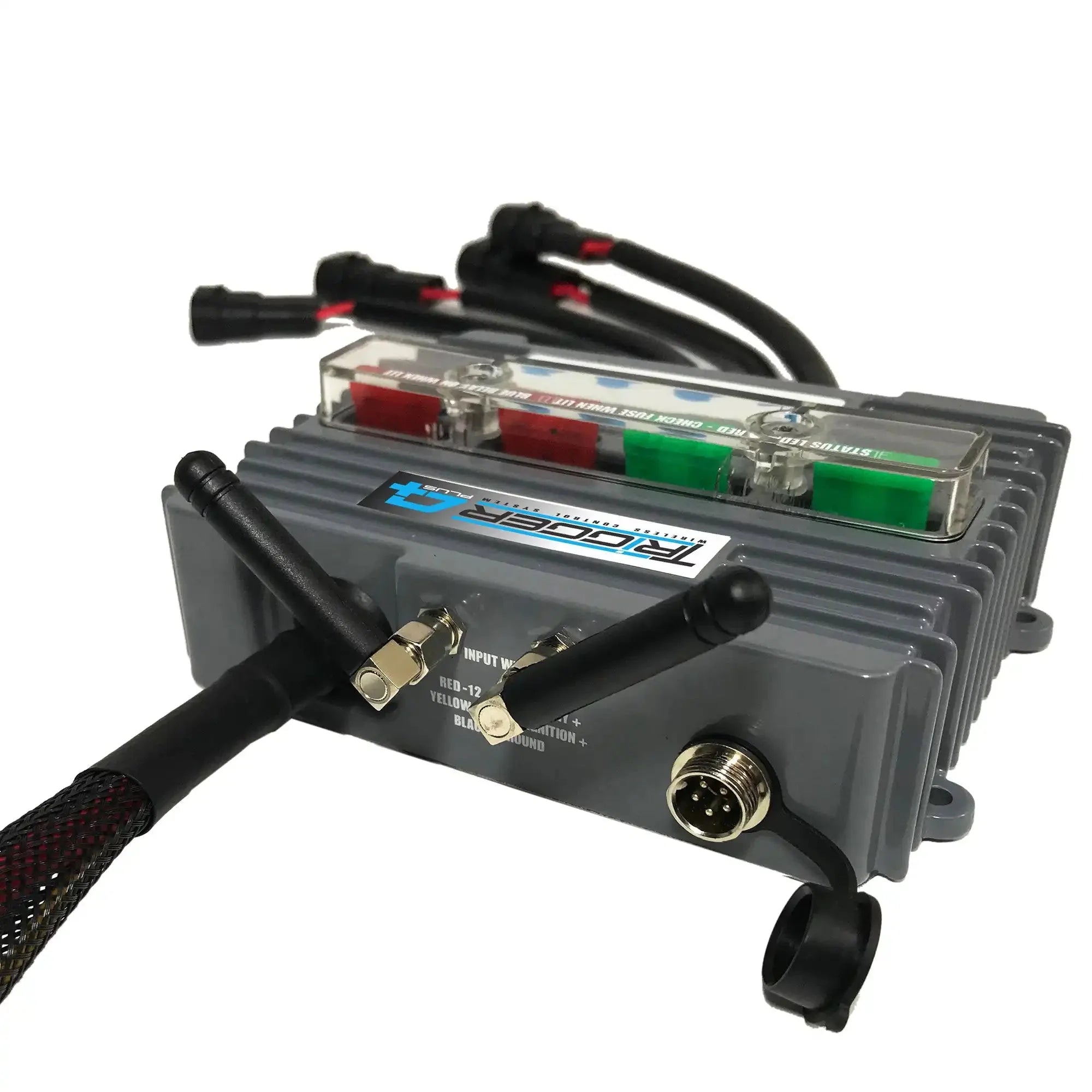

TRIGGER 4 PLUS Wireless Accessory Control System

The ORACLE TRIGGER 4 PLUS Wireless Accessory Control System eliminates under-dash wiring runs and firewall penetrations, dramatically cutting accessory install time. It provides four fused output circuits controlled by a wireless RF remote, Bluetooth app, or configurable switch modes, all housed in a waterproof case. Combine multiple units to control up to 24 accessories.

Key Features

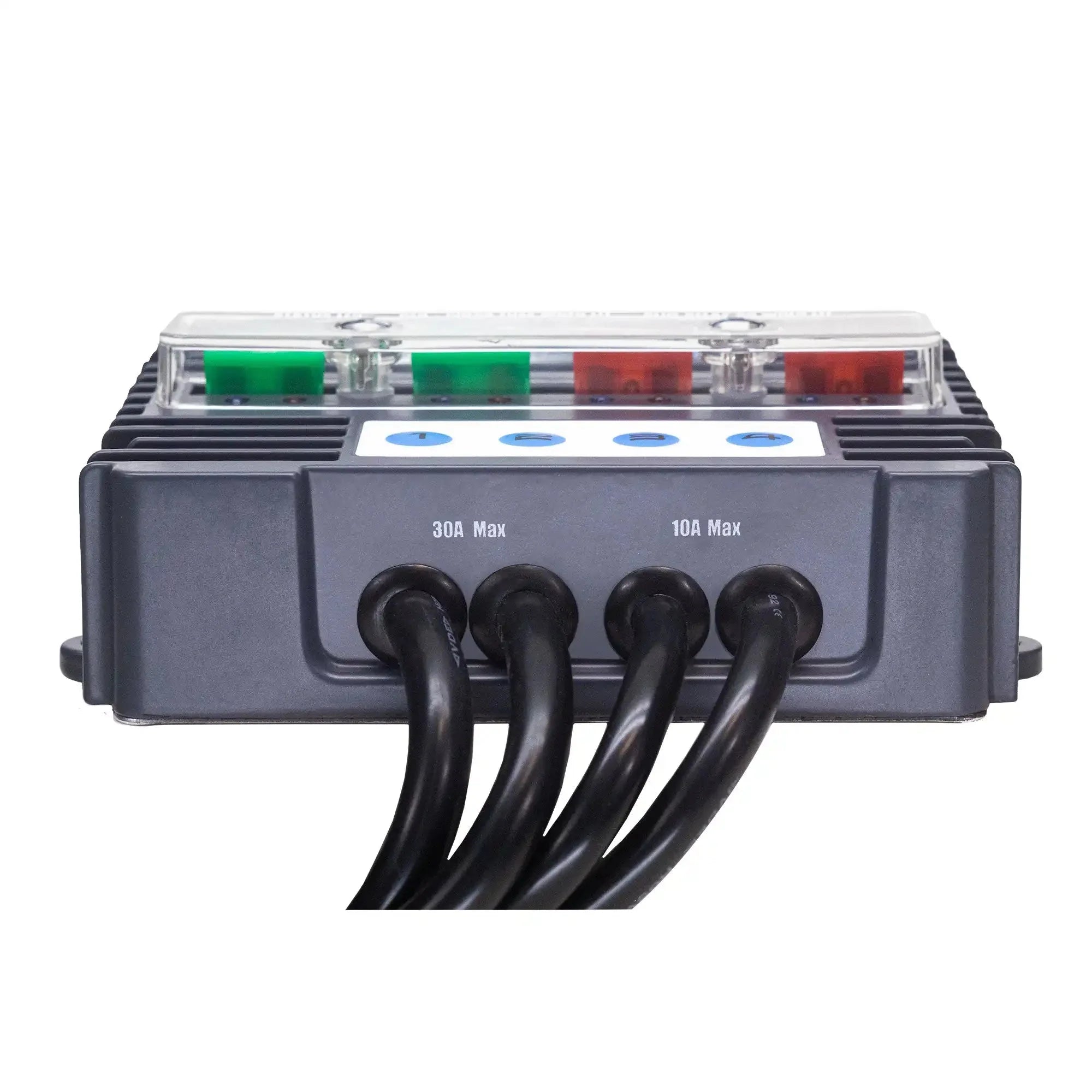

• 4 fused output circuits: two 30A and two 10A with an o-ring sealed cover
• Four waterproof-connector wire harnesses: two 10-gauge and two 12-gauge

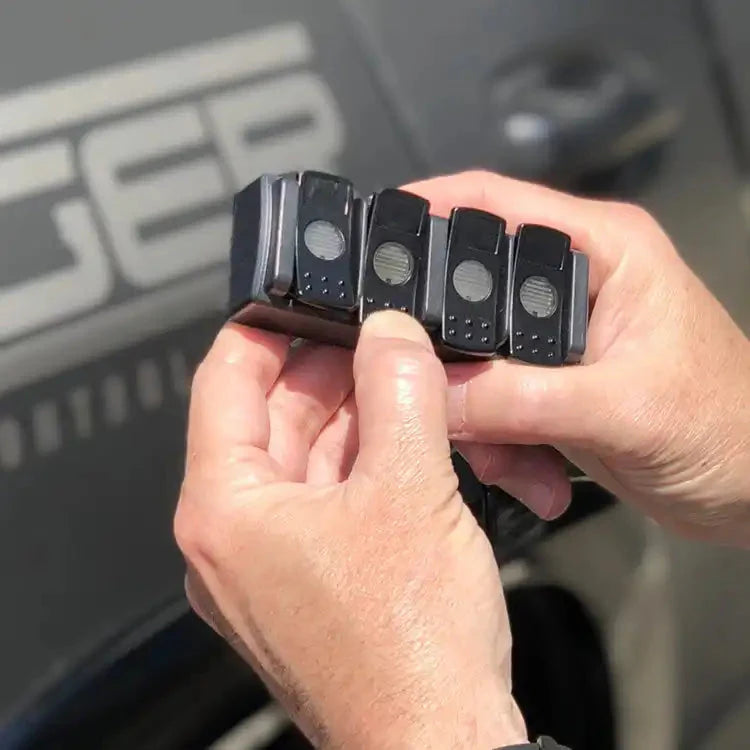

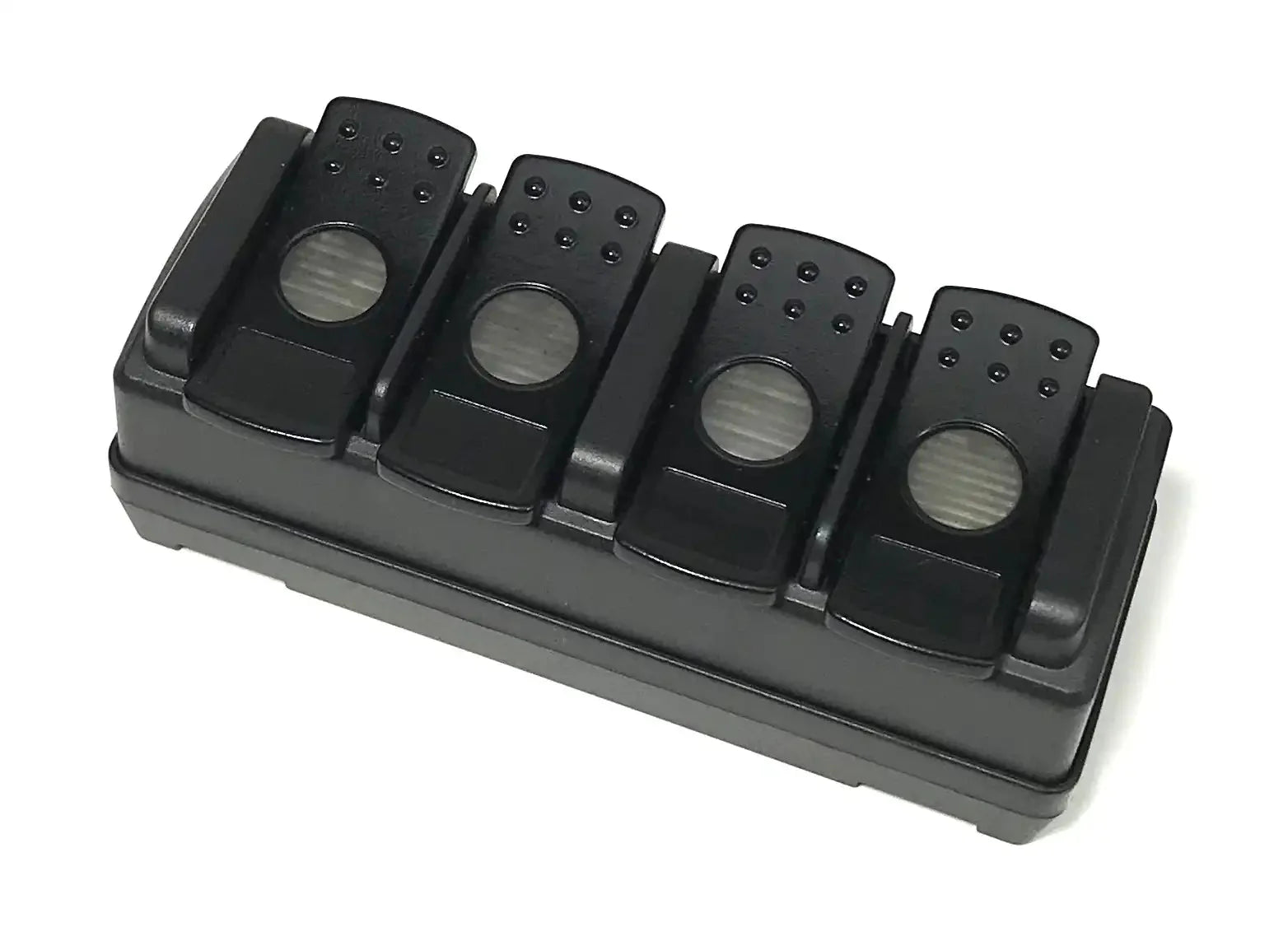

• Wireless RF remote with ambient backlight, usable inside or outside the vehicle

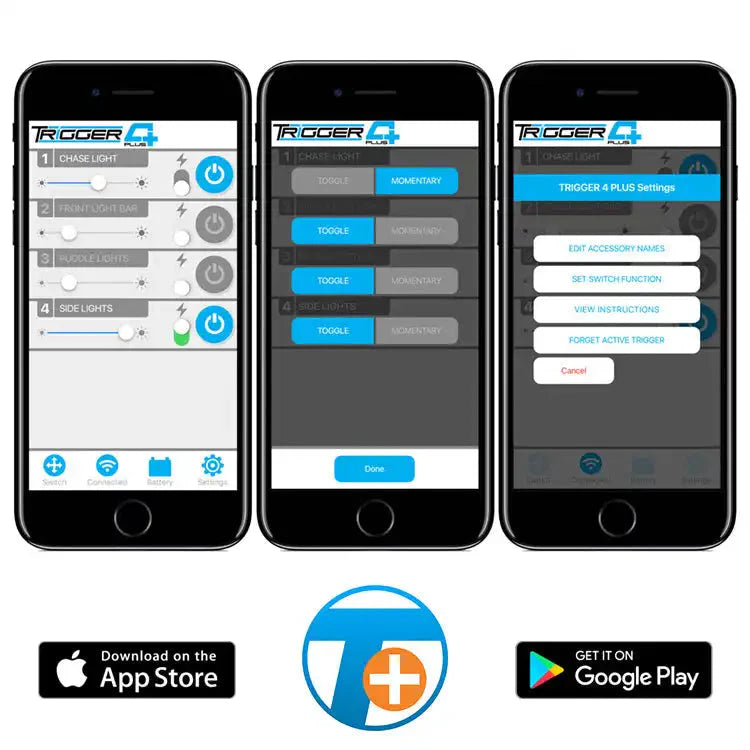

• Bluetooth control via the free TRIGGER ACS PLUS App (iOS/Android): on/off, dimming, flashing
• Configurable standard-rocker or momentary switch mode per circuit
• Editable custom accessory names per circuit in the app

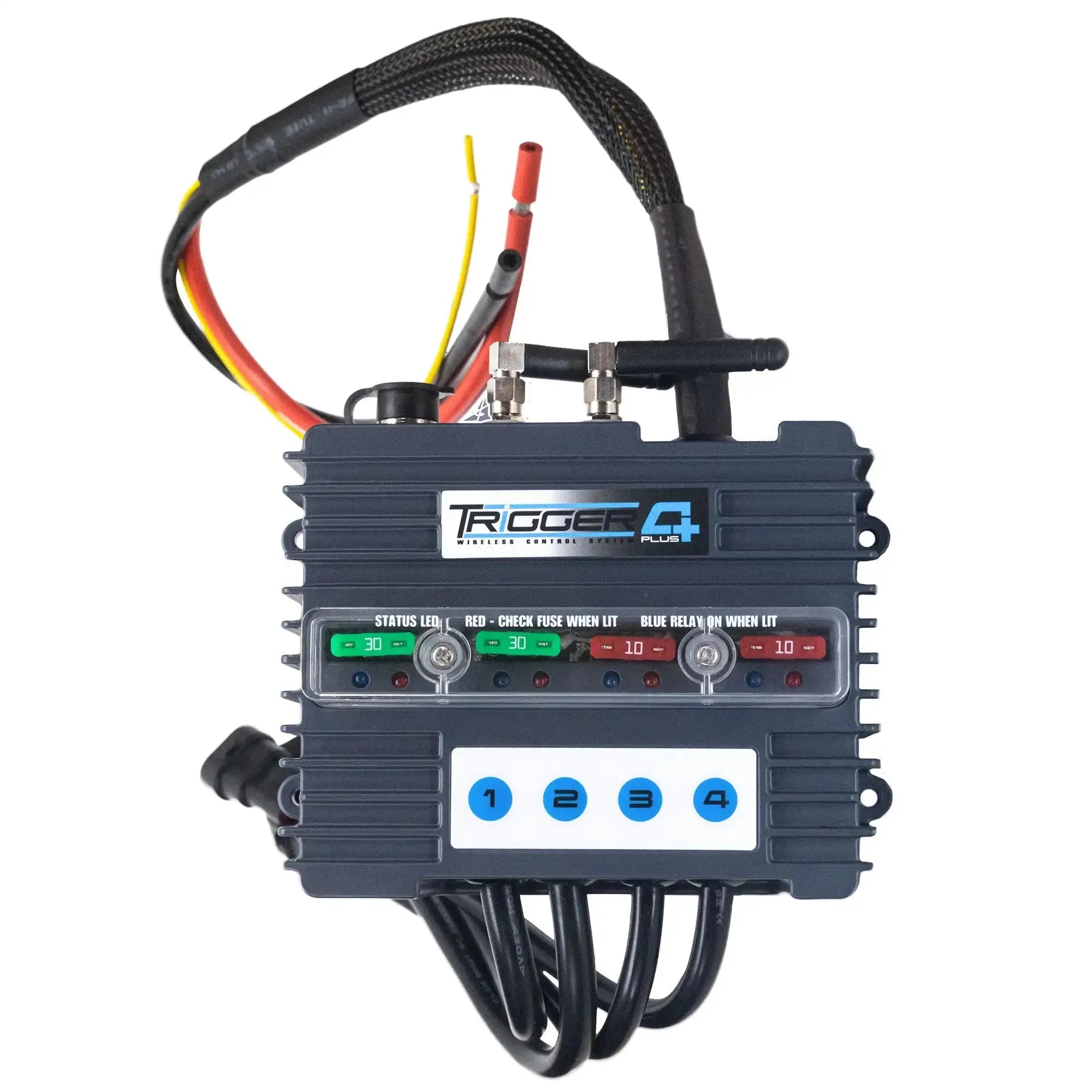

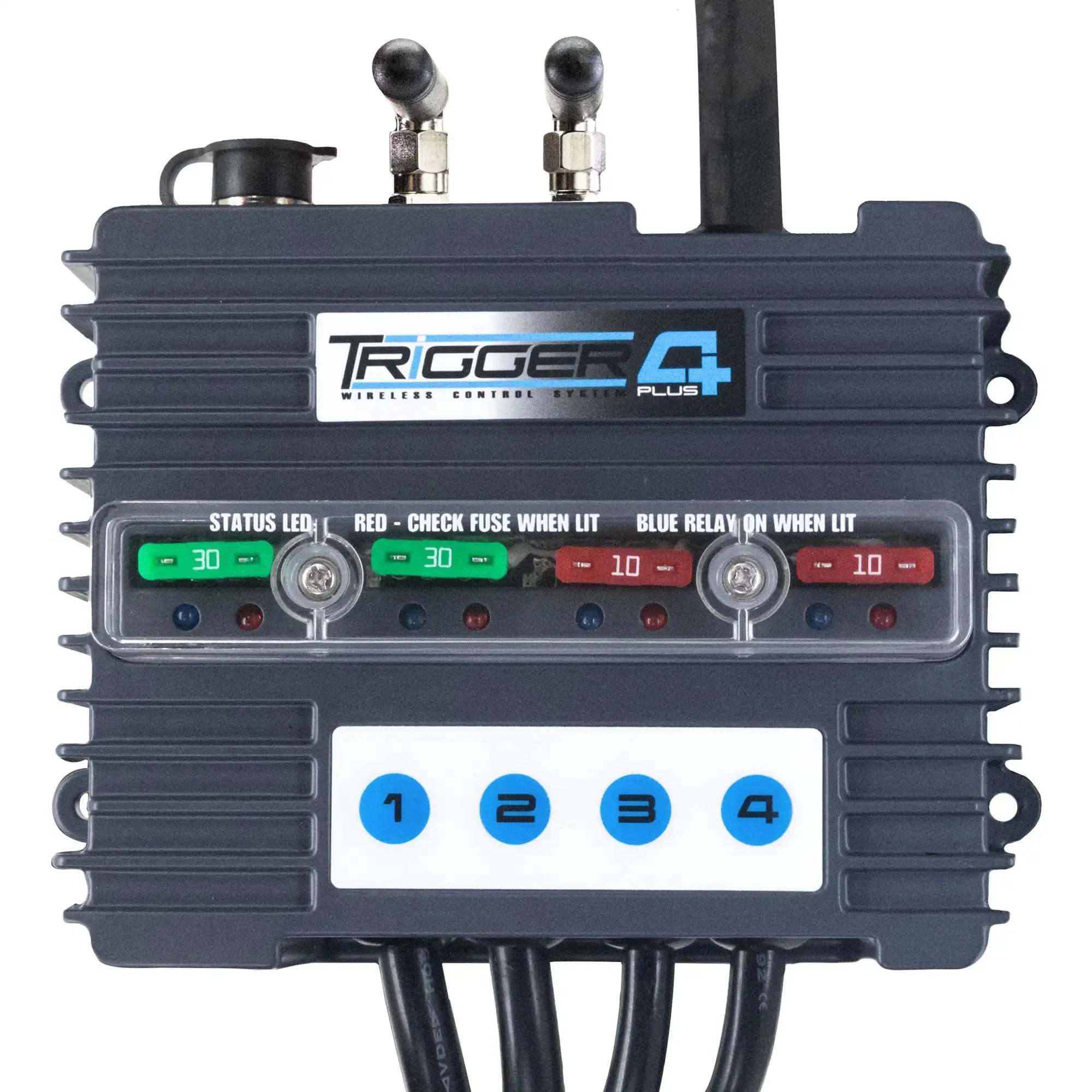

• High-intensity LED circuit indicators: blue for on, red for a blown fuse

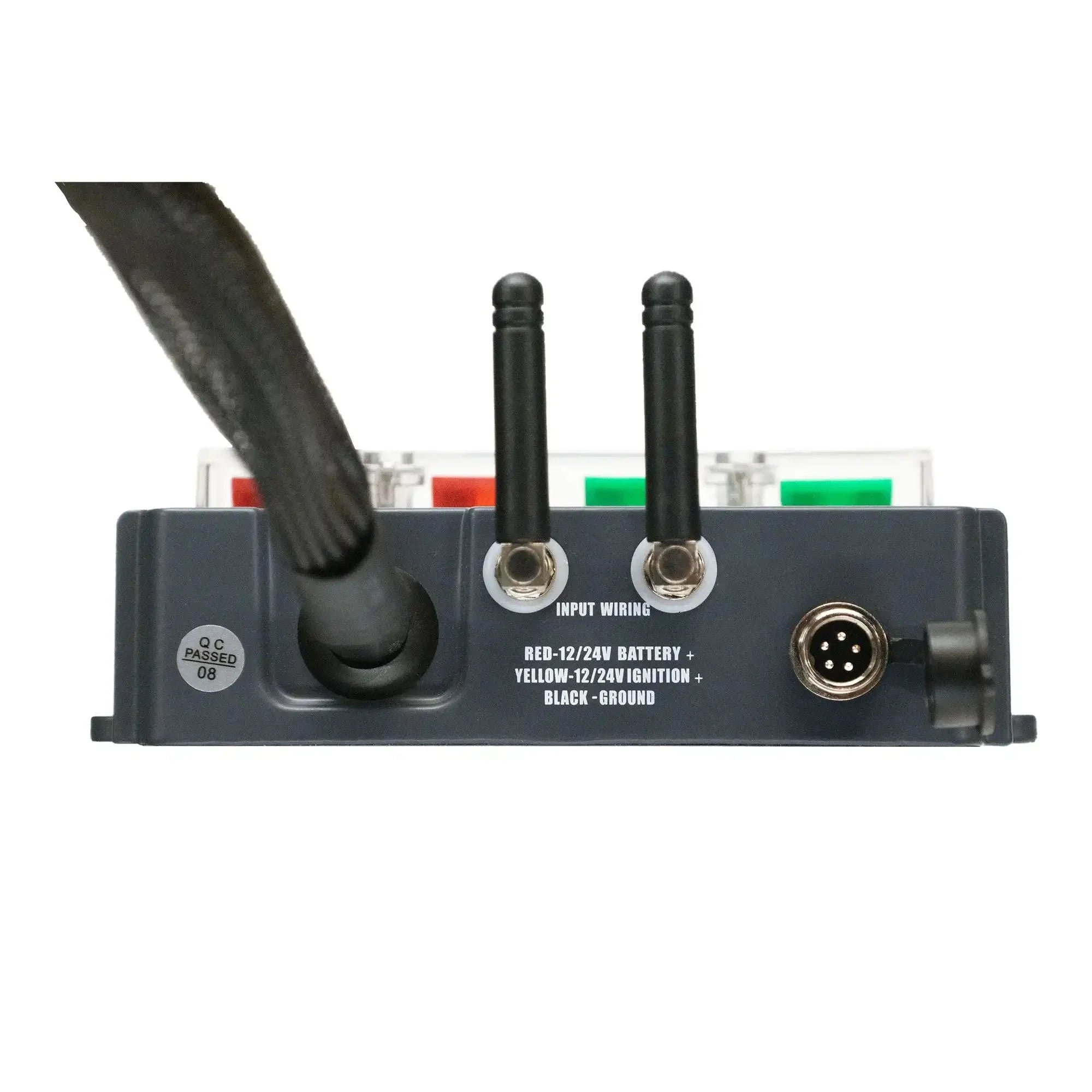

• Waterproof case rated to 250°F, 12-24V input, expandable to 24 accessories

Fitment & Compatibility

Universal fit for 12-24V vehicles and accessories. Multiple TRIGGER units can be combined to control up to 24 accessories. Important: do not swap higher-capacity fuses into lower-capacity circuits, as this will damage the unit and void the warranty.

Specifications

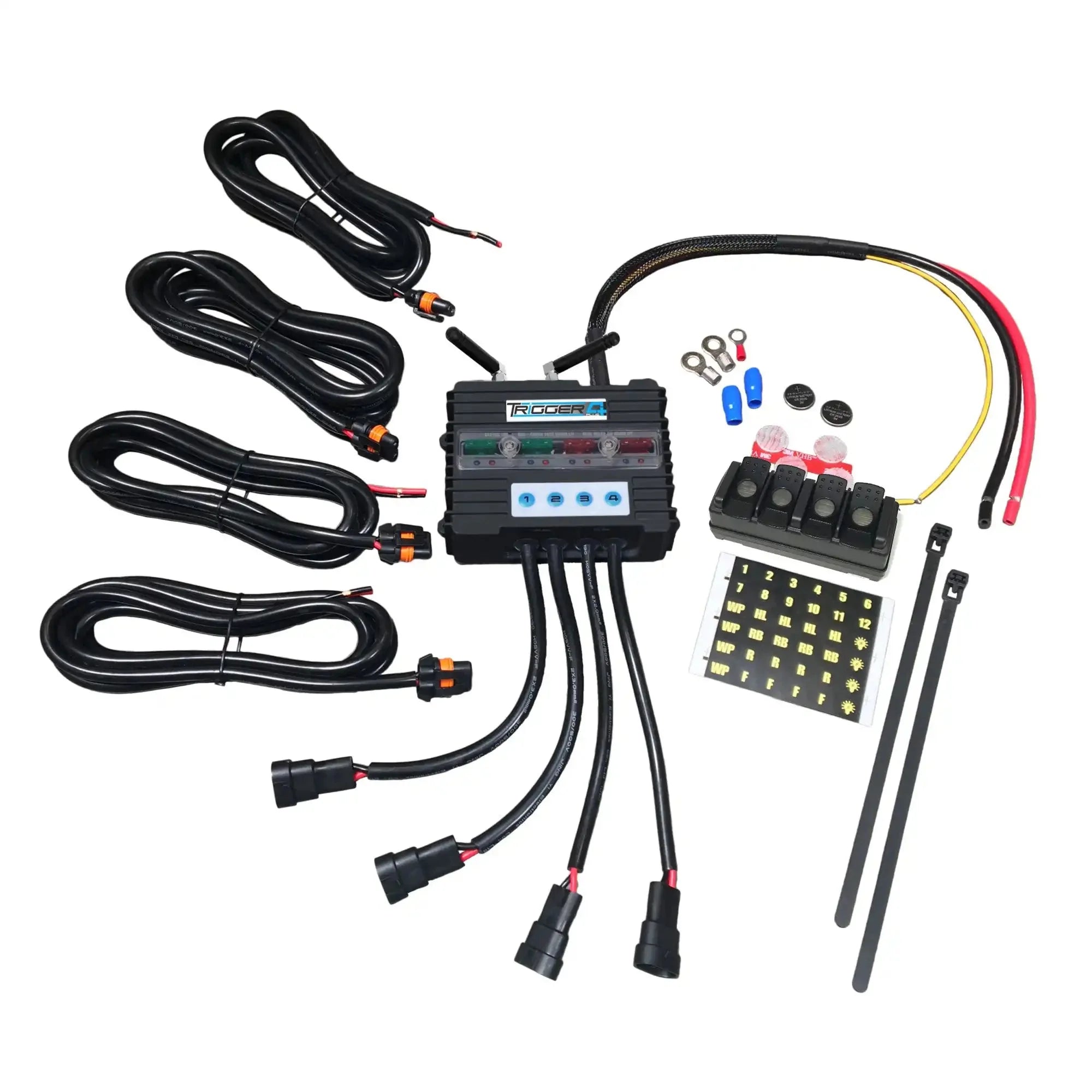

What's in the Box

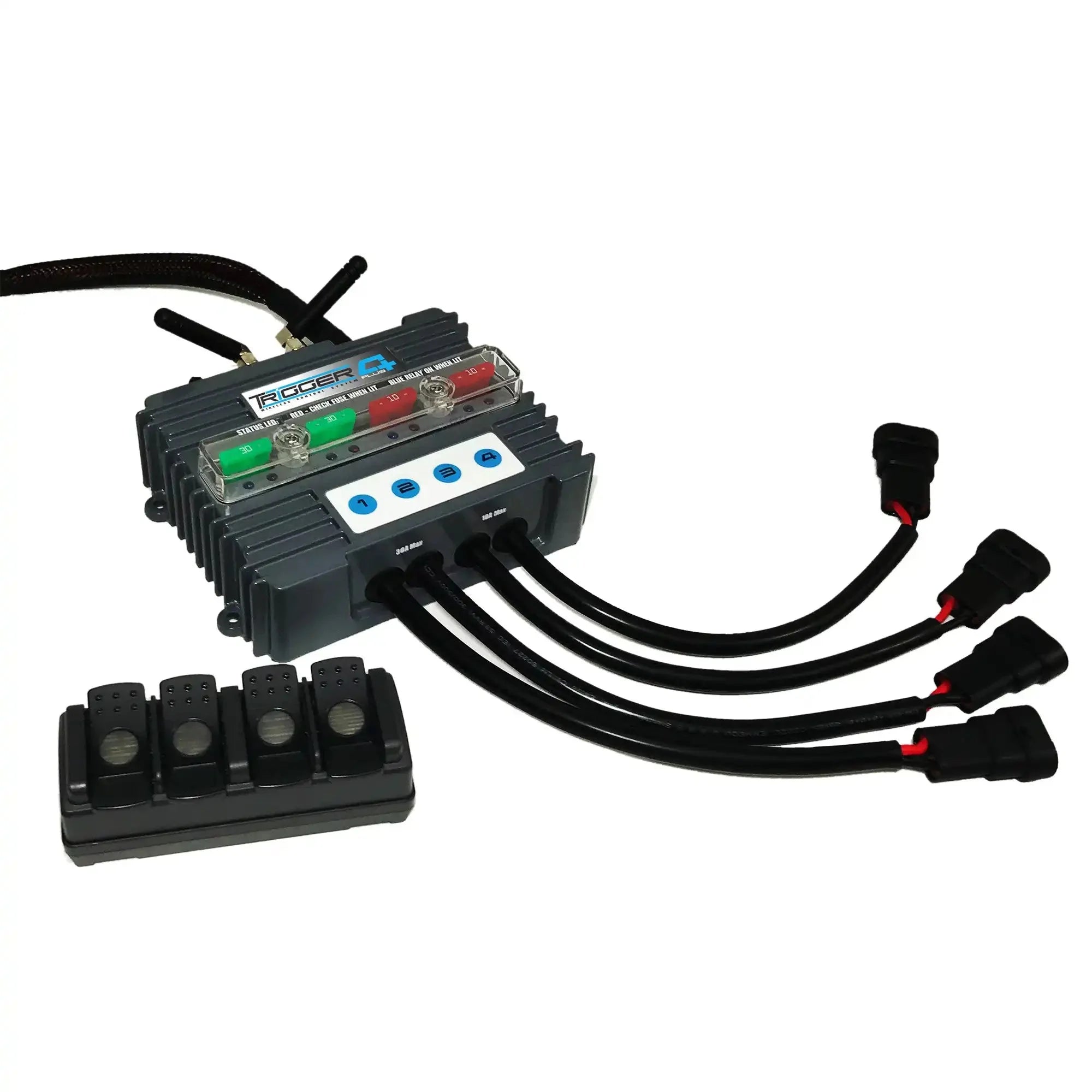

• TRIGGER 4 PLUS control box

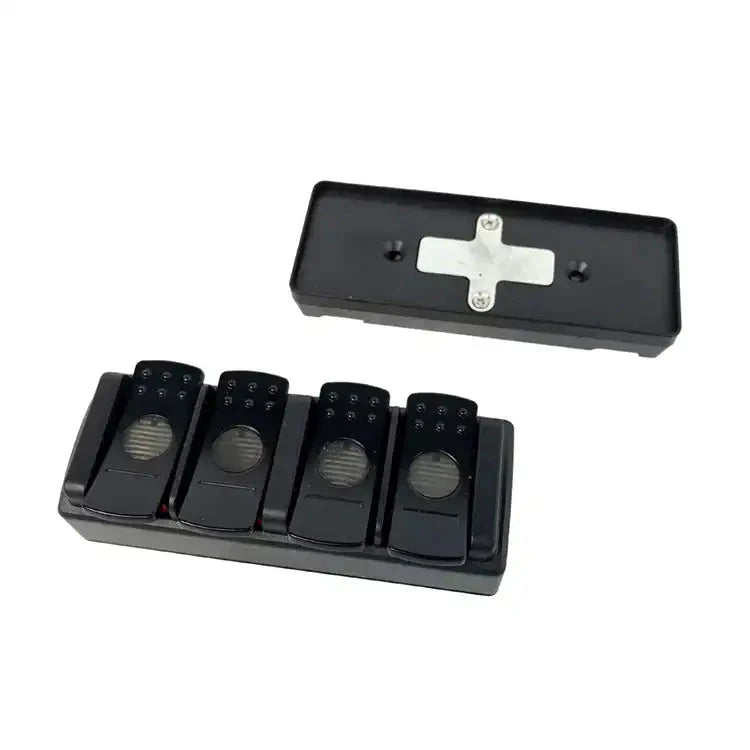

• Wireless RF remote with universal mount and ambient backlight
• 4 wire harnesses with waterproof connectors (two 10-gauge, two 12-gauge)
• Switch labels

Frequently Asked Questions

How many accessories can it control?
A single unit controls four fused circuits, and multiple TRIGGER units can be combined to control up to 24 accessories.

How do I control my accessories?
You can use the wireless RF remote, the free TRIGGER ACS PLUS app for iOS and Android, or configure each circuit as a standard rocker or momentary switch.

Is it waterproof?
Yes. The case uses a waterproof design that withstands temperatures from below freezing up to 250°F.

Can I use bigger fuses for more power?
No. Each circuit is engineered for its rated load. Installing higher-capacity fuses in lower-capacity circuits will damage the TRIGGER and void the warranty. Use the add-on relay for higher-draw accessories.

What warranty does it carry?
The TRIGGER 4 PLUS is backed by a 3-year warranty covering manufacturing defects.
