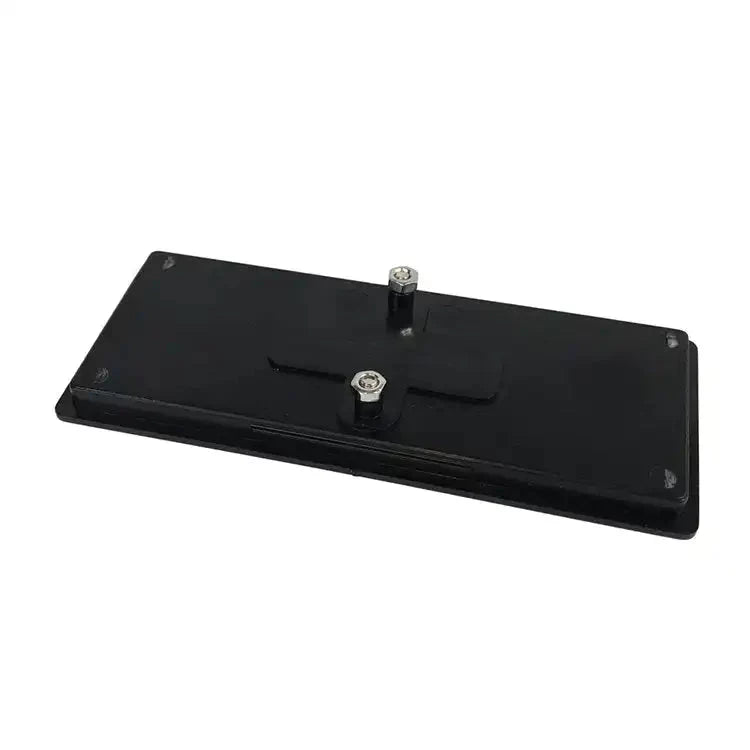

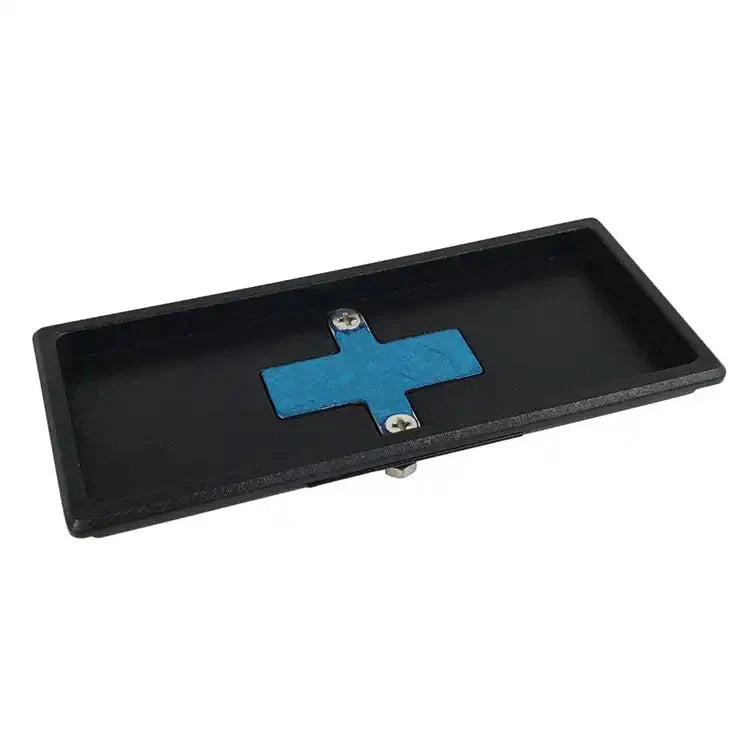

The ORACLE TRIGGER 4 PLUS RF Remote Flat Mount is for builders who want a flush, custom-look home for their remote. It lets you recess the TRIGGER 4 PLUS RF remote into a flat surface such as the center of an aftermarket overhead storage console, for a cleaner finish than the standard remote base. This is a cut-in installation that requires some fabrication skill.
Key Features
- Flush, flat-surface mounting for the TRIGGER 4 PLUS RF remote
- Ideal for aftermarket overhead consoles and custom panels
- Cleaner, more integrated look than the standard remote base
- Accommodates panel material up to 3/32 in. wall thickness
- Requires a cut rectangular opening (rotary/cutting tools)
Fitment & Compatibility
Universal flat-surface fit for the TRIGGER 4 PLUS RF remote. Requires cutting a precise rectangular hole, so plan for a rotary tool (such as a Dremel) and appropriate cutting, shaping, and finishing tools.
Specifications
| Specification | Detail |
|---|---|
| ORACLE Part # | 2014 |

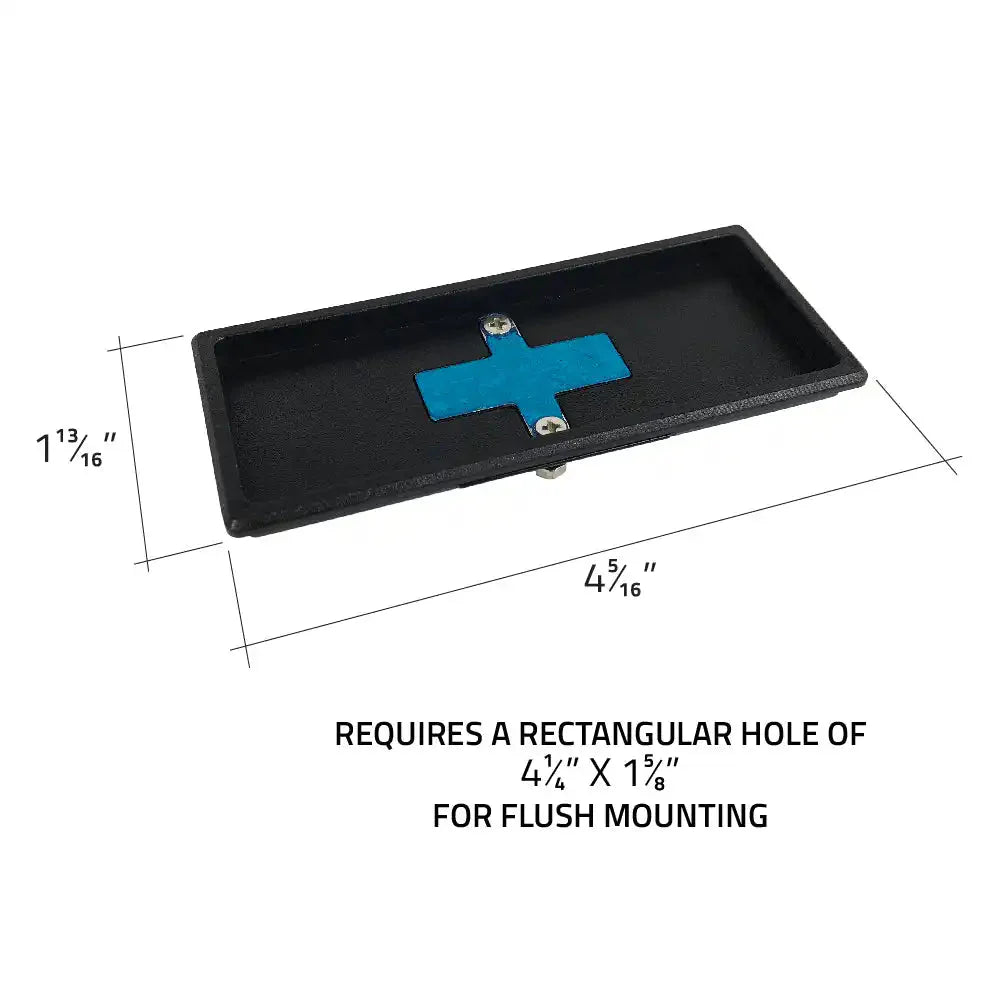

| Cutout Dimension | 4.125 in. x 1.5625 in. |
| Max Wall Thickness | 3/32 in. |
| Compatibility | TRIGGER 4 PLUS RF remote |
| Installation | Cut-in, flat surface |
What's in the Box
- (1) TRIGGER 4 PLUS RF remote flat mount
Frequently Asked Questions
What size hole do I need to cut?
The cutout is 4.125 in. by 1.5625 in., and the mount accommodates a panel wall thickness up to 3/32 in.
What tools are required?
You will need cutting tools such as a rotary tool (a Dremel works well) plus shaping and finishing tools to cut a precise rectangular opening.
Where would I use this mount?
It is ideal for a flat spot such as the center of an aftermarket overhead storage console, where a flush remote install looks cleaner than the standard base.
Does it work with any TRIGGER remote?
It is designed for the TRIGGER 4 PLUS RF remote.
