Jeep JL/JT Integrated Roof LED Light Bar | ORACLE 18,000 Lumens 240W

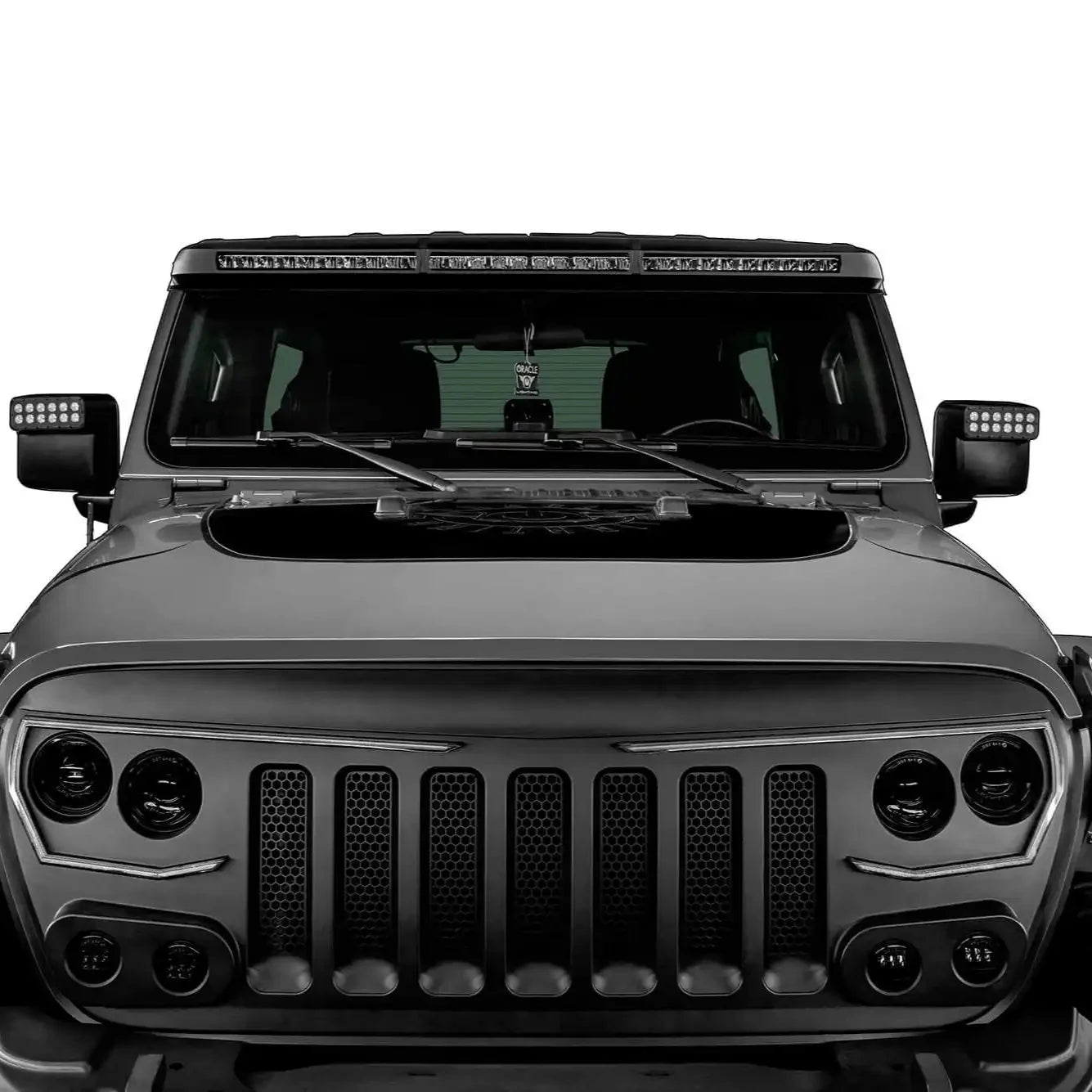

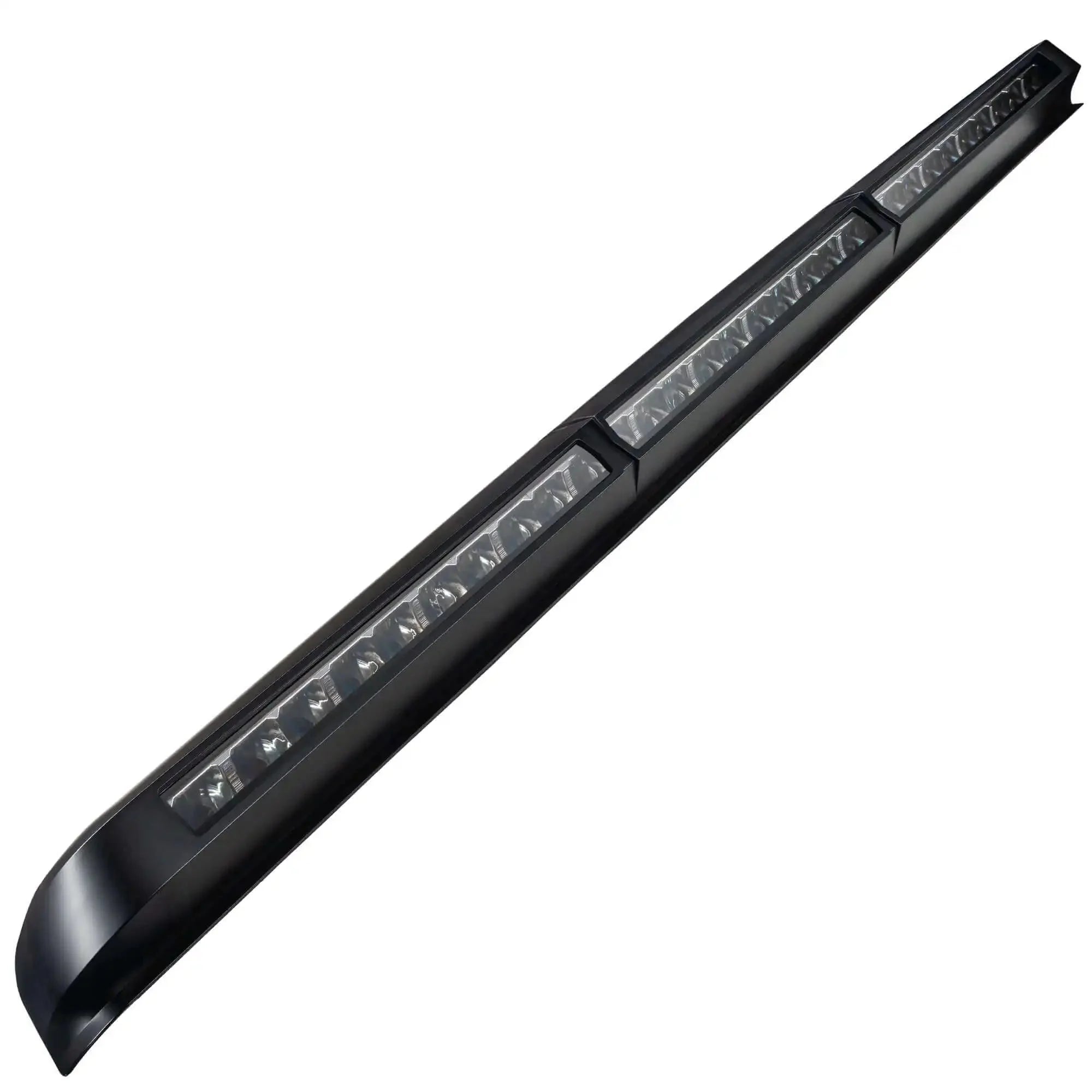

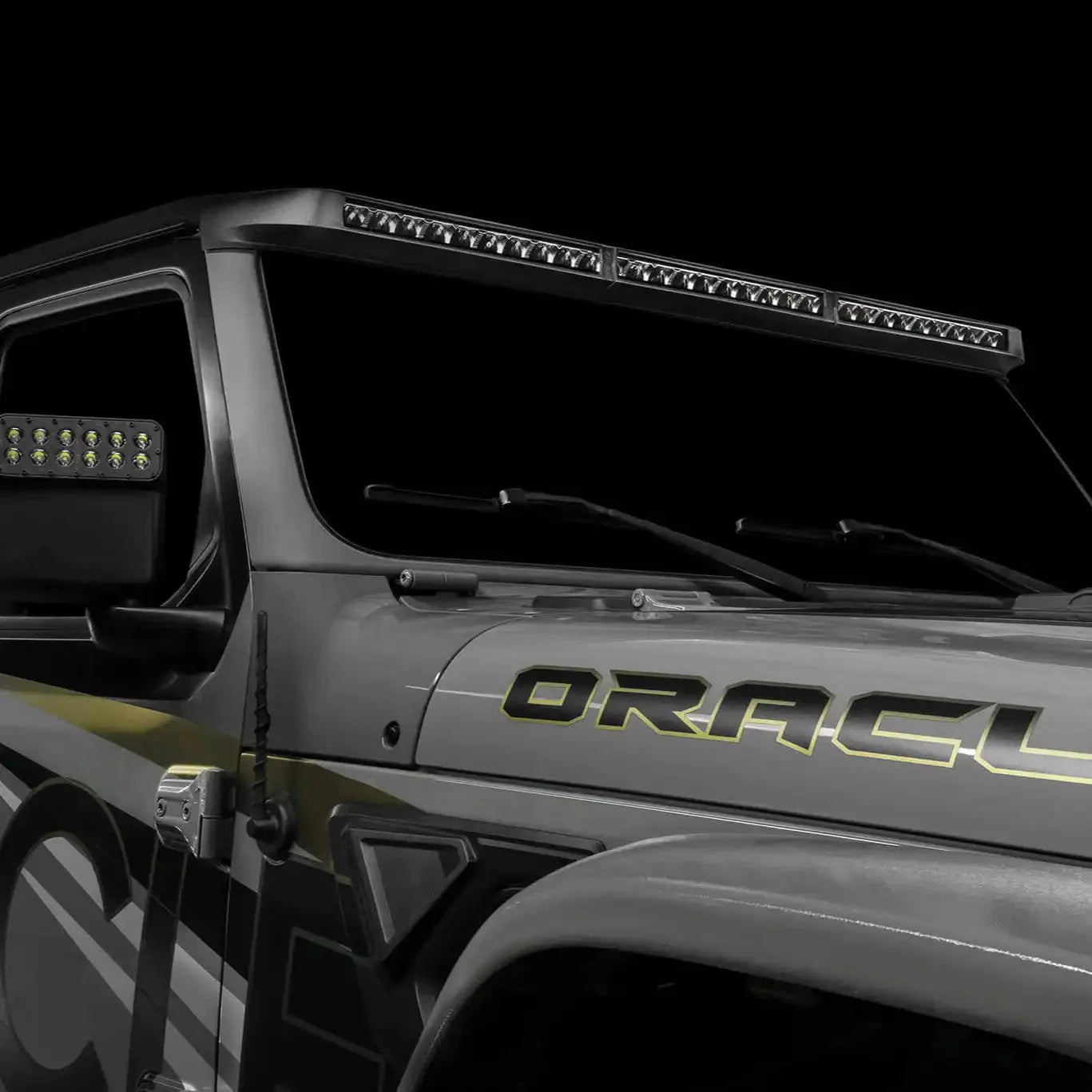

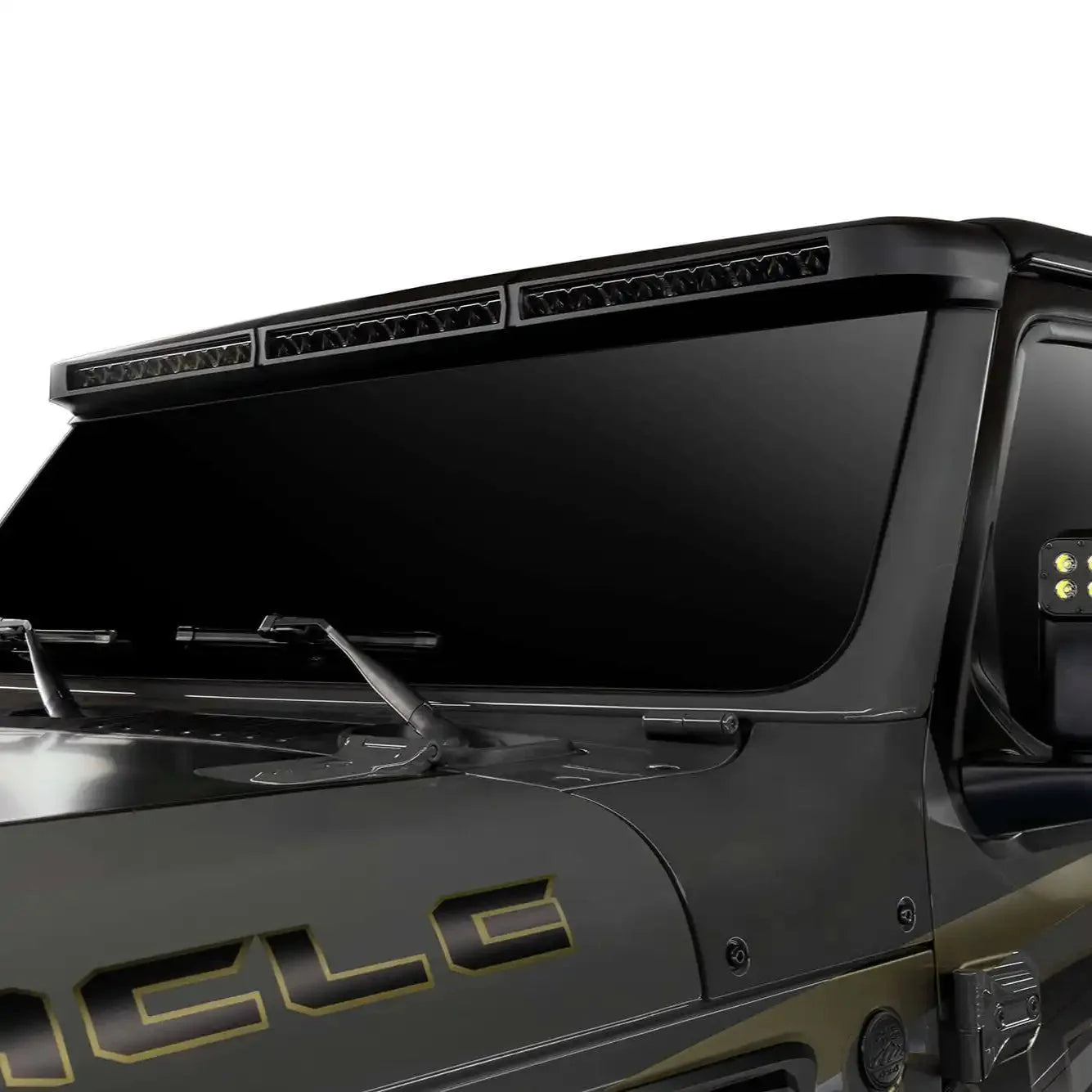

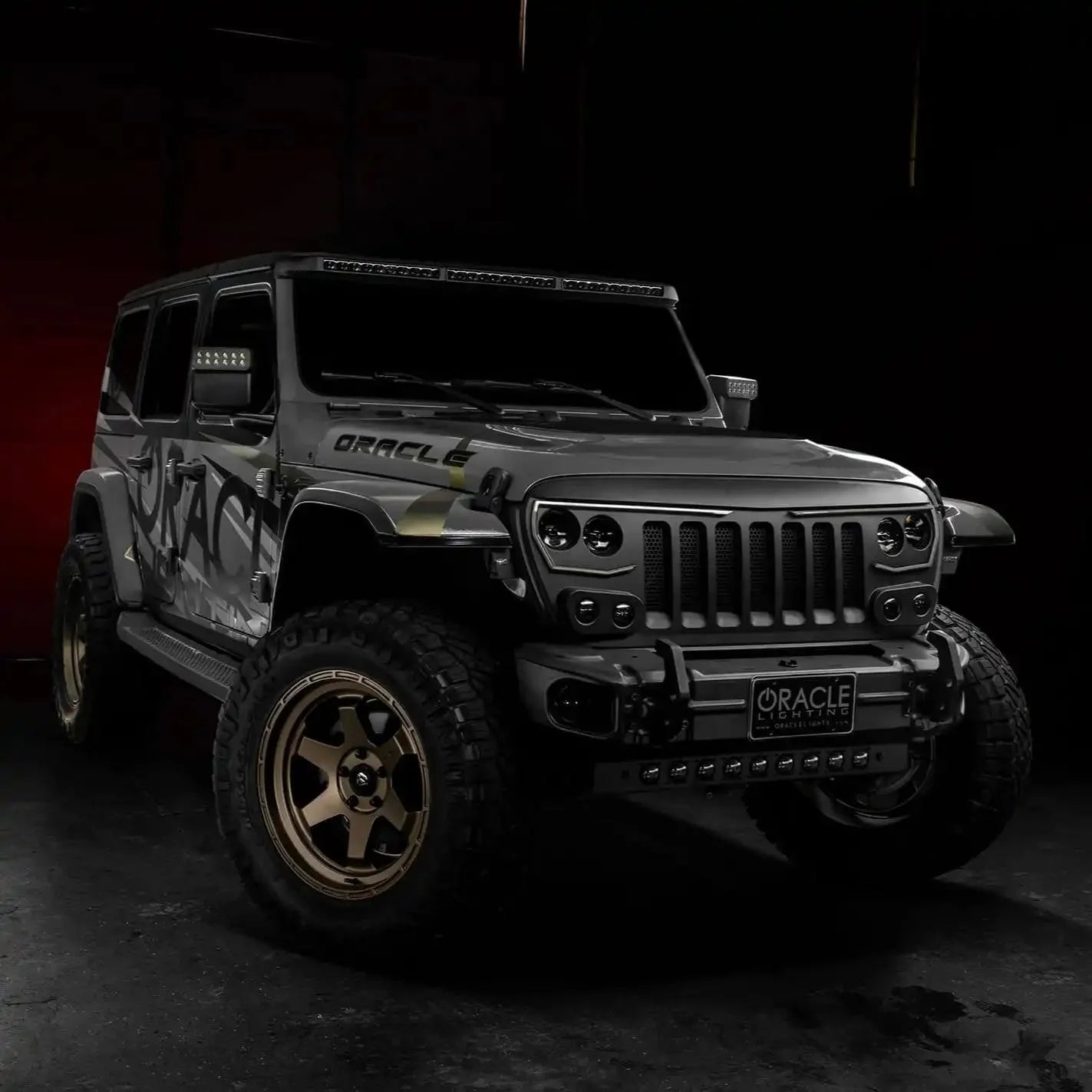

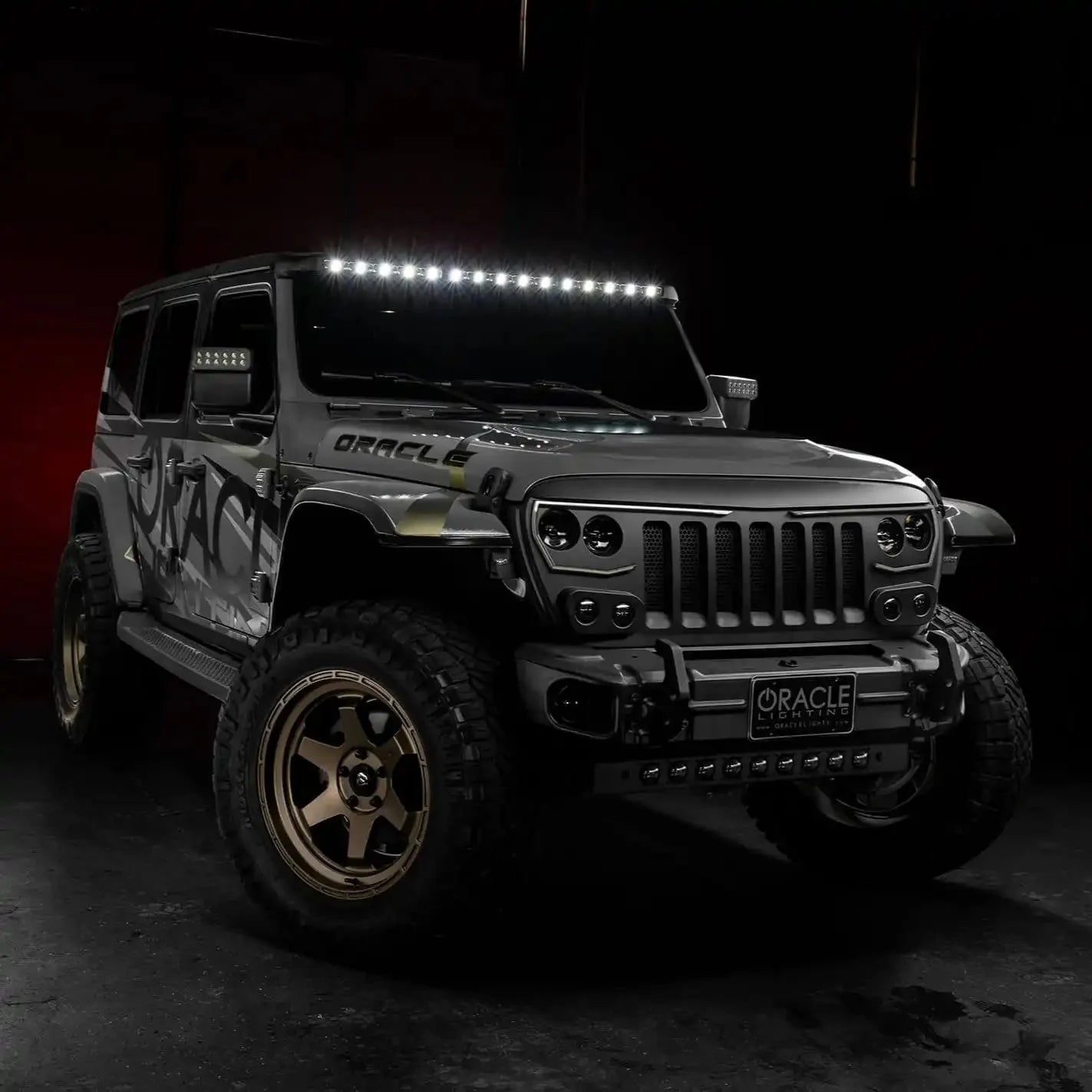

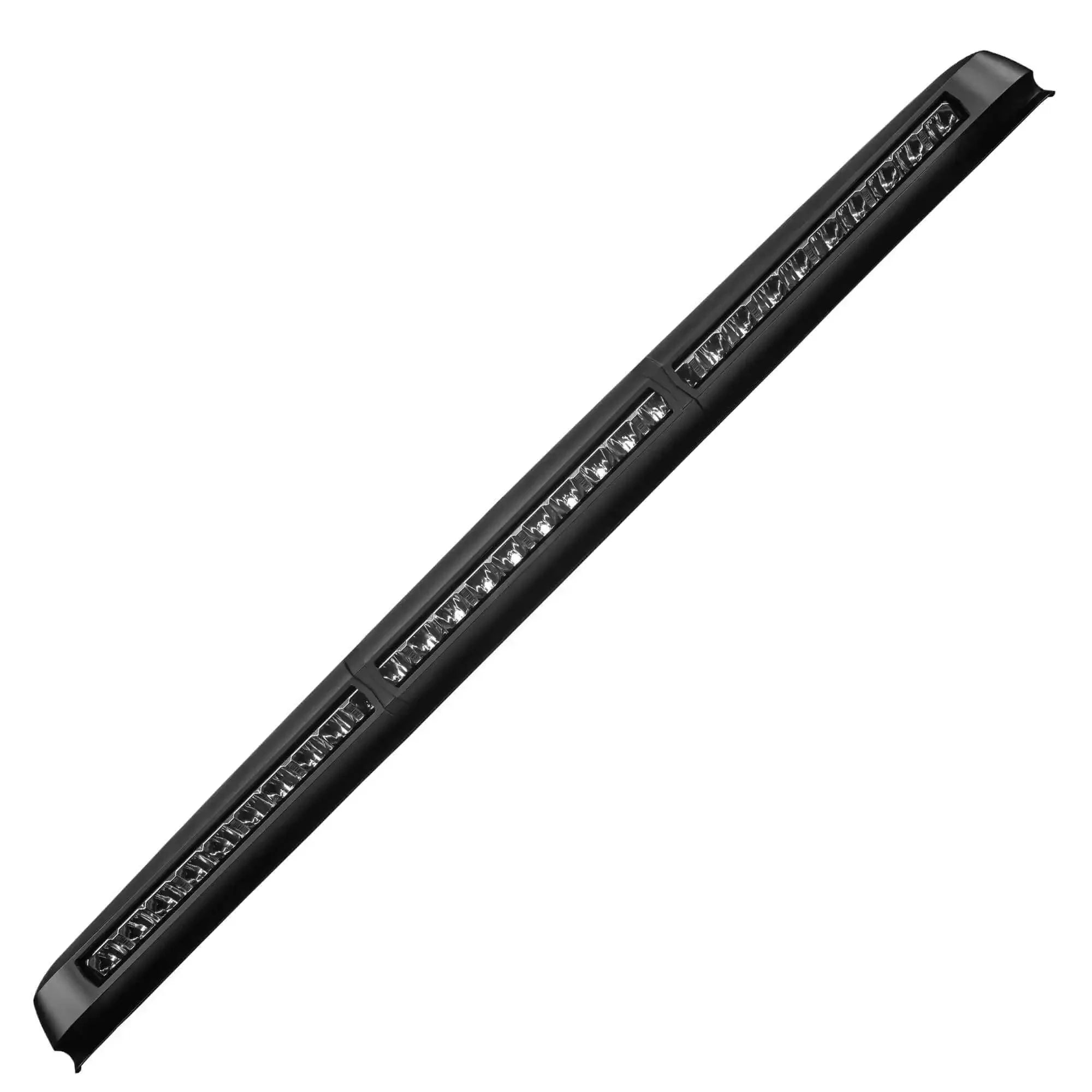

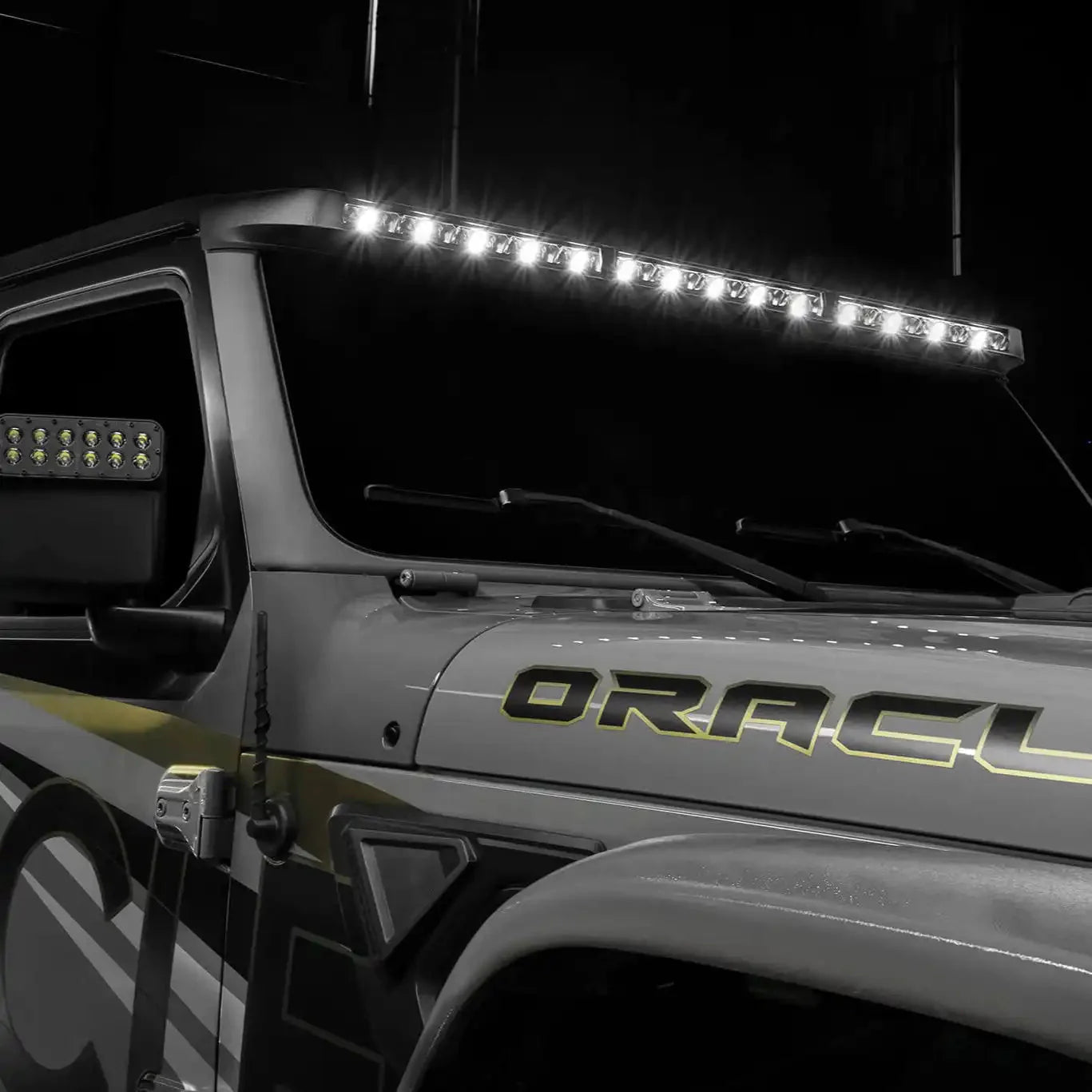

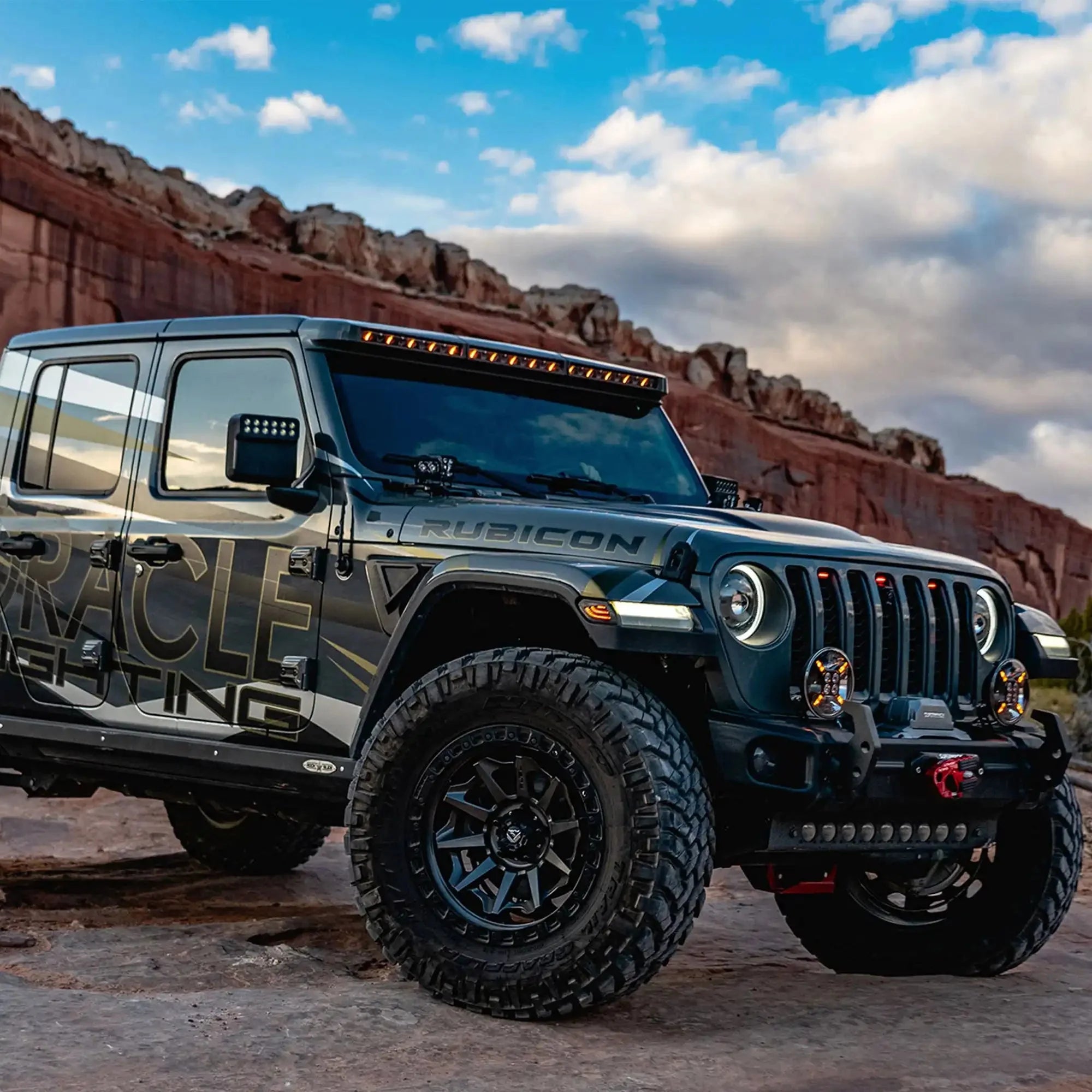

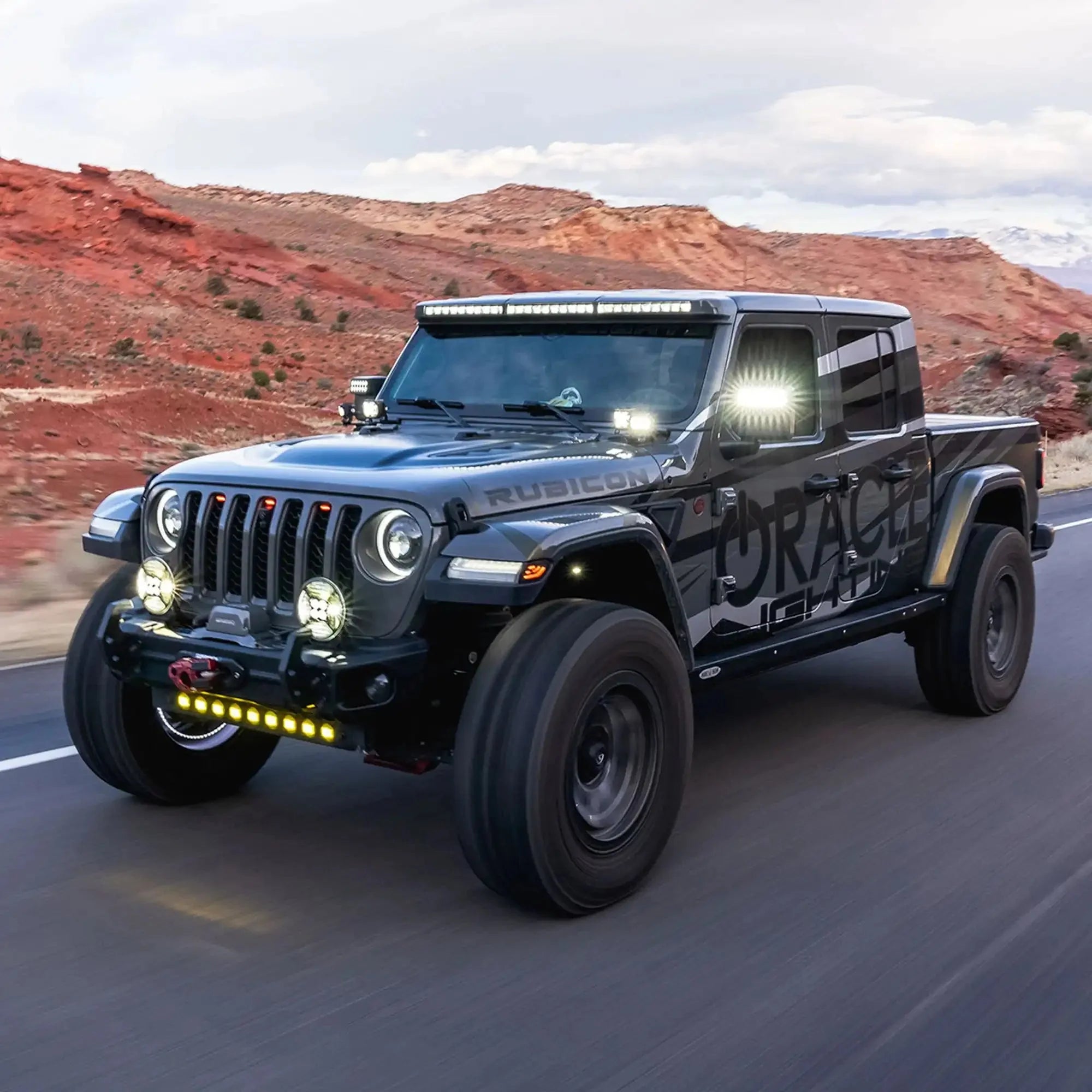

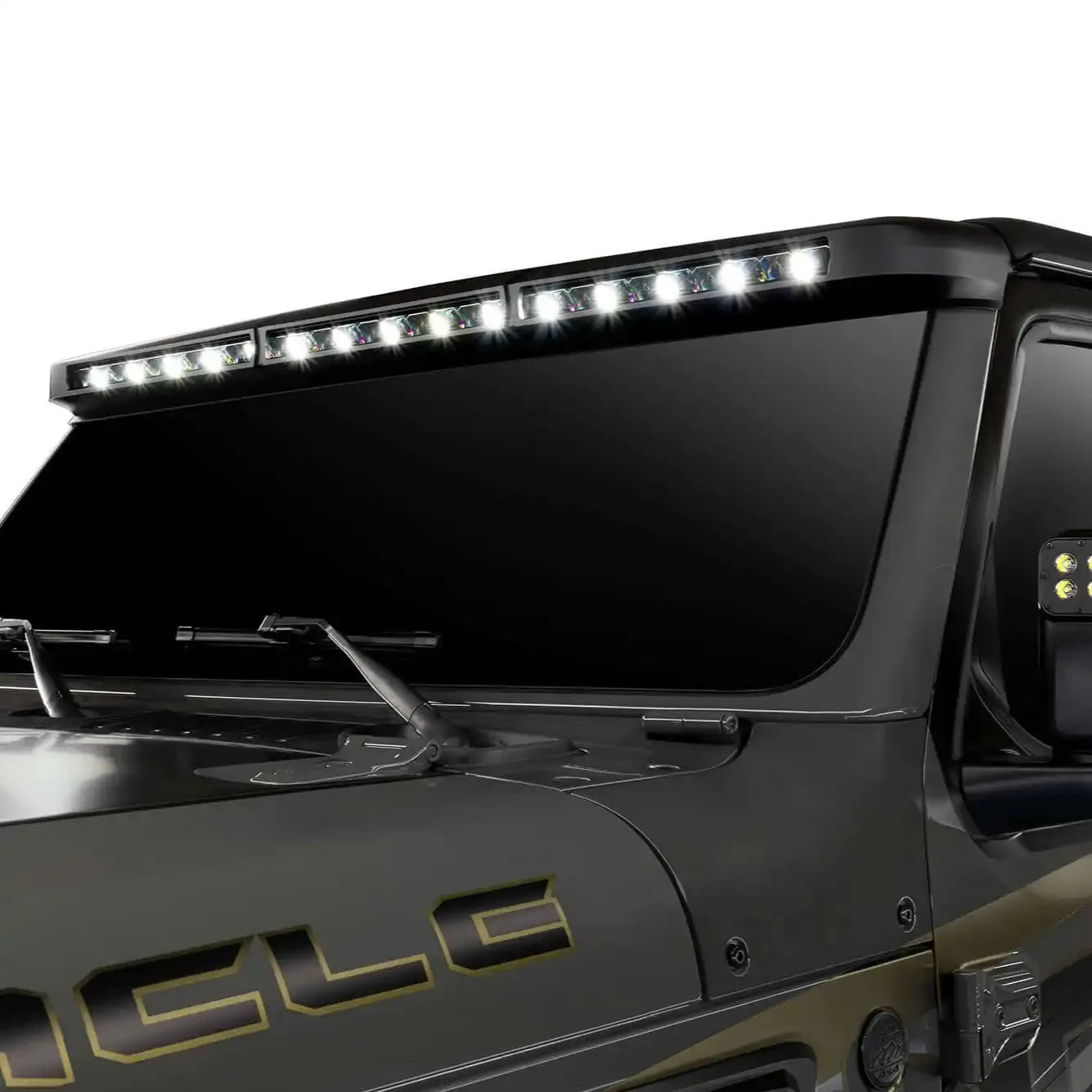

The ORACLE Jeep JL/JT Integrated Roof LED Light Bar (Part #5917-023) is a patented windshield roof light bar built exclusively for JL and JT hardtops. Its molded cowling blends into the factory roof line for a clean OEM-style look while delivering 18,000 raw lumens and 240 watts of forward lighting. The integrated design also helps cut wind noise and drag compared with traditional external light bars.
Key Features

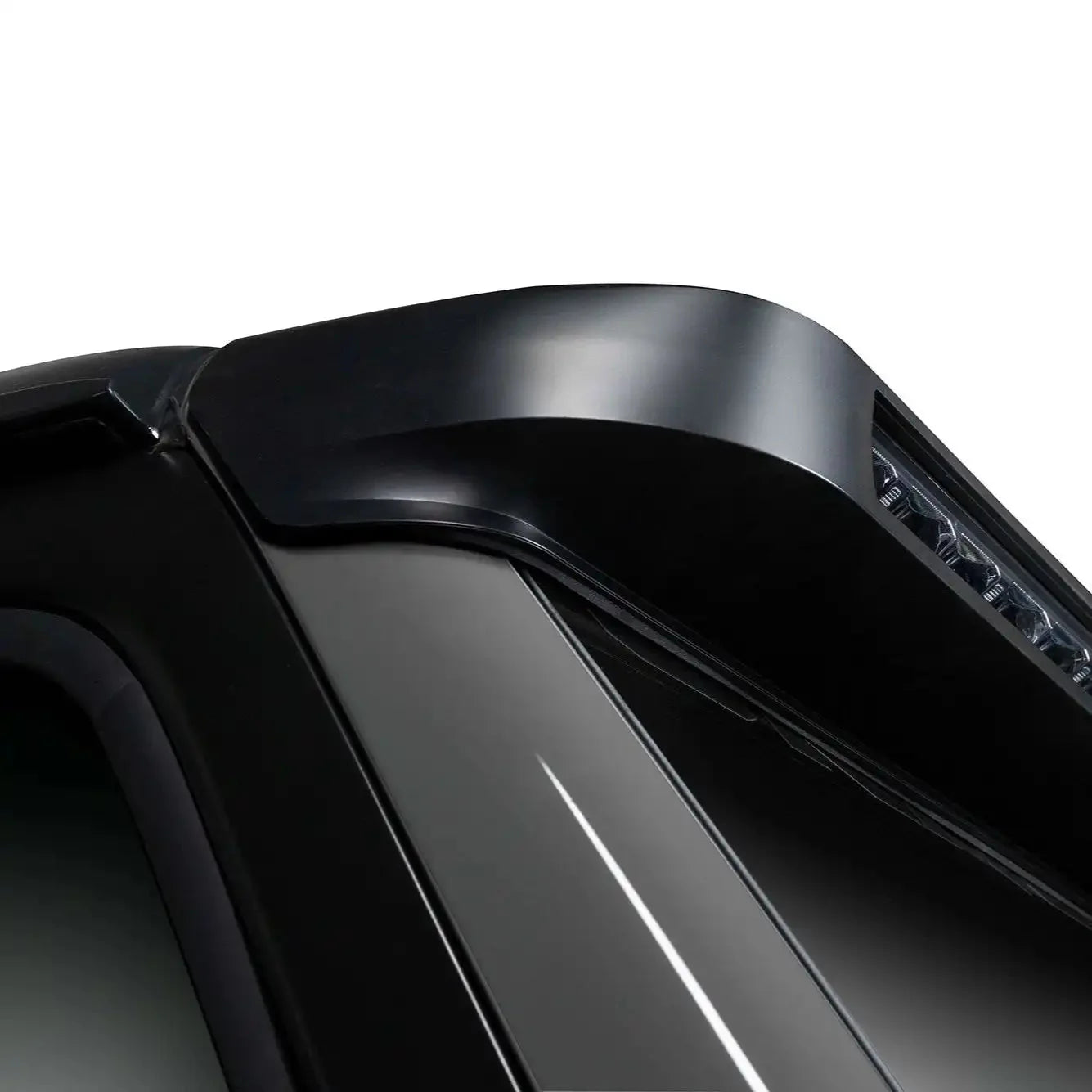

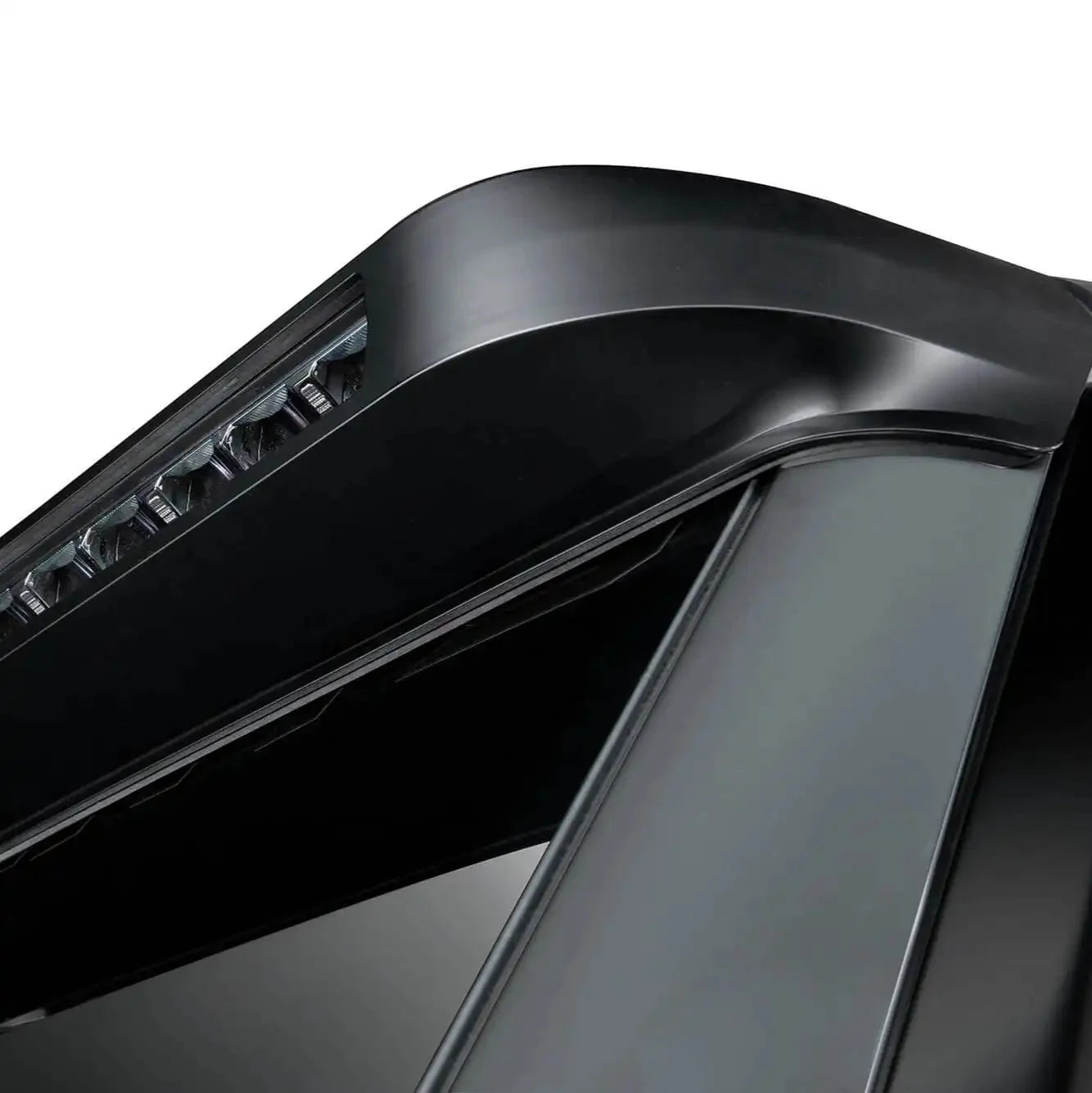

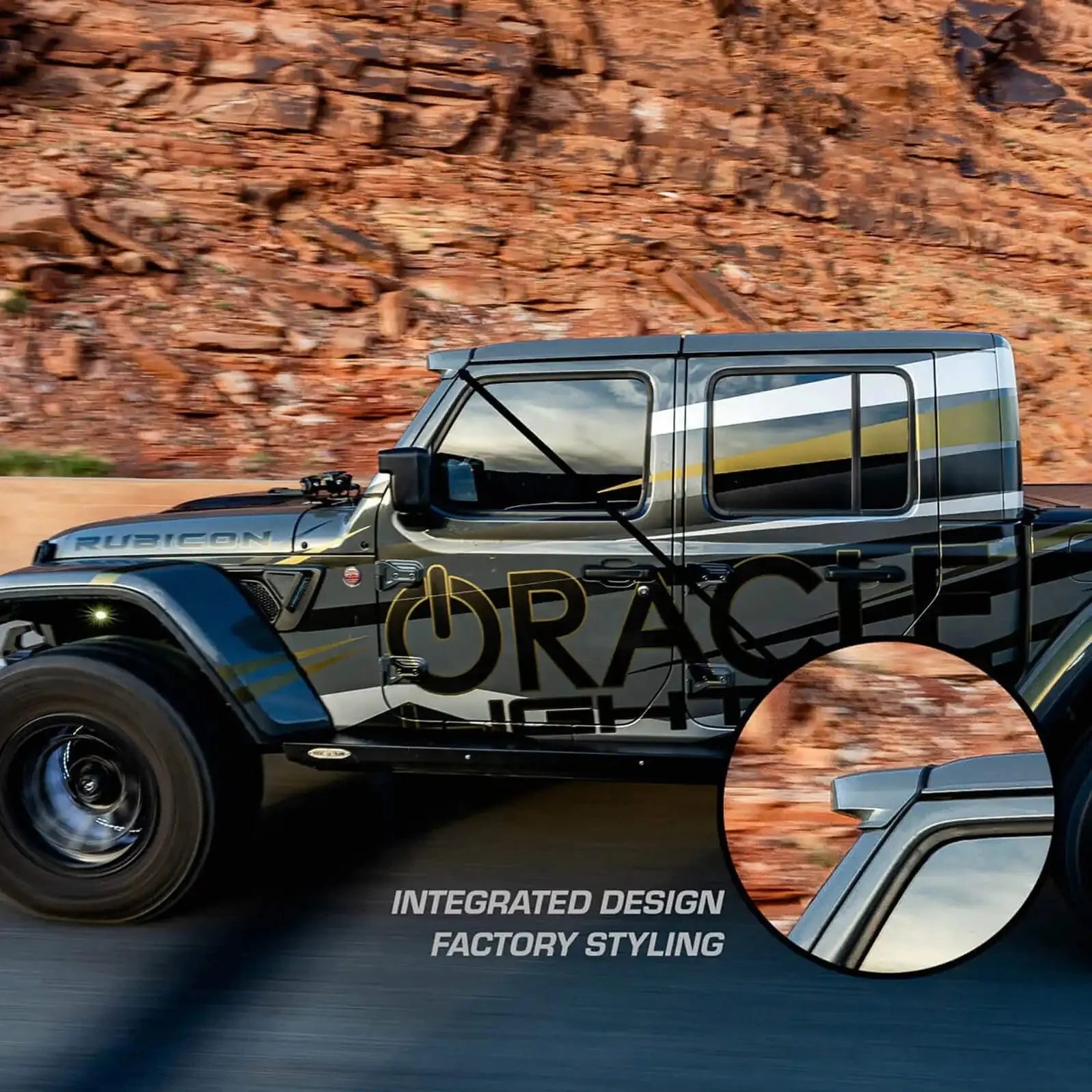

- Patented integrated design with a molded cowling that blends into the JL/JT hardtop roof line

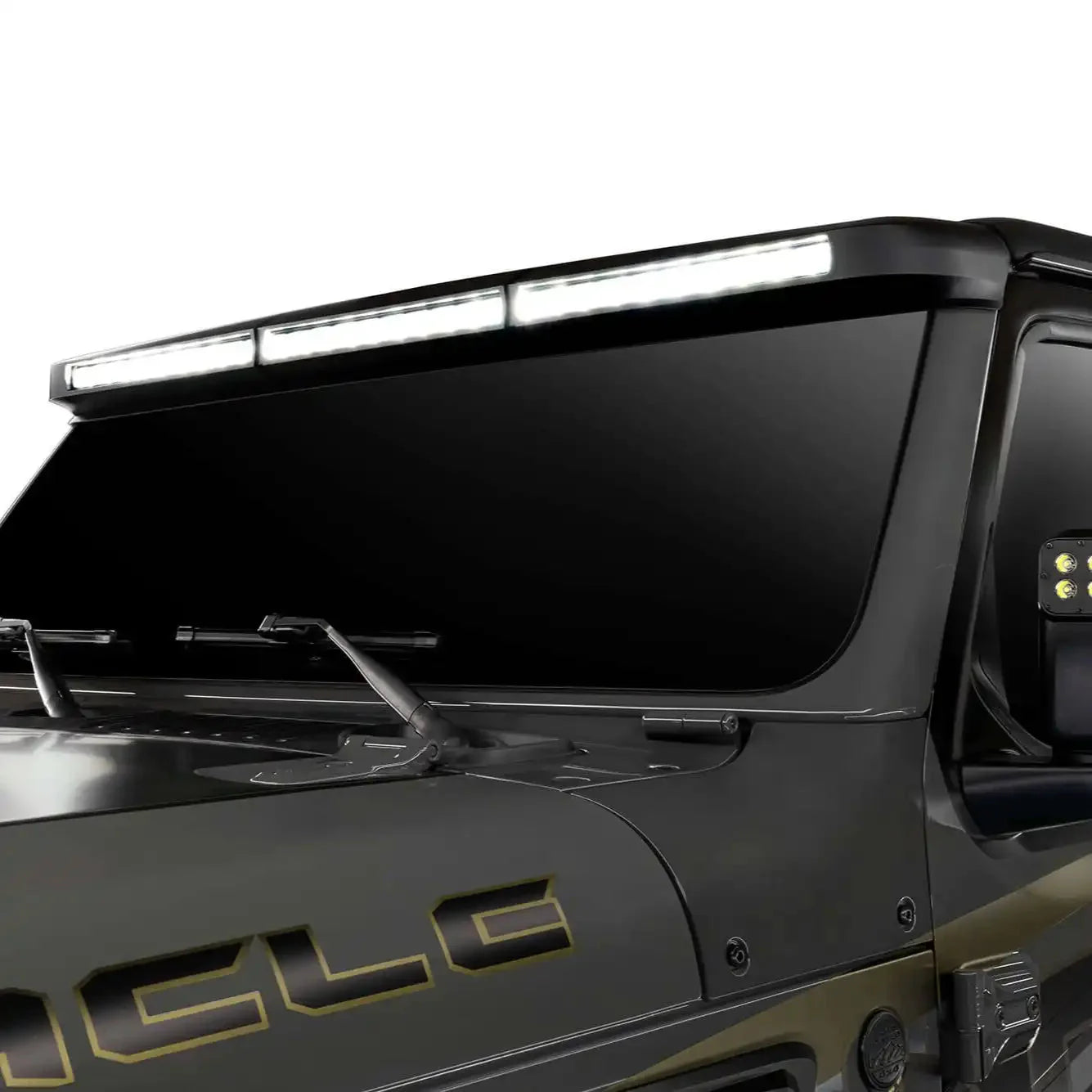

- 30 individual 8W high-power emitters with reflector-facing LED technology
- 18,000 raw lumens, 240W total power, and 1 lux projection at 648m (2,125 ft)

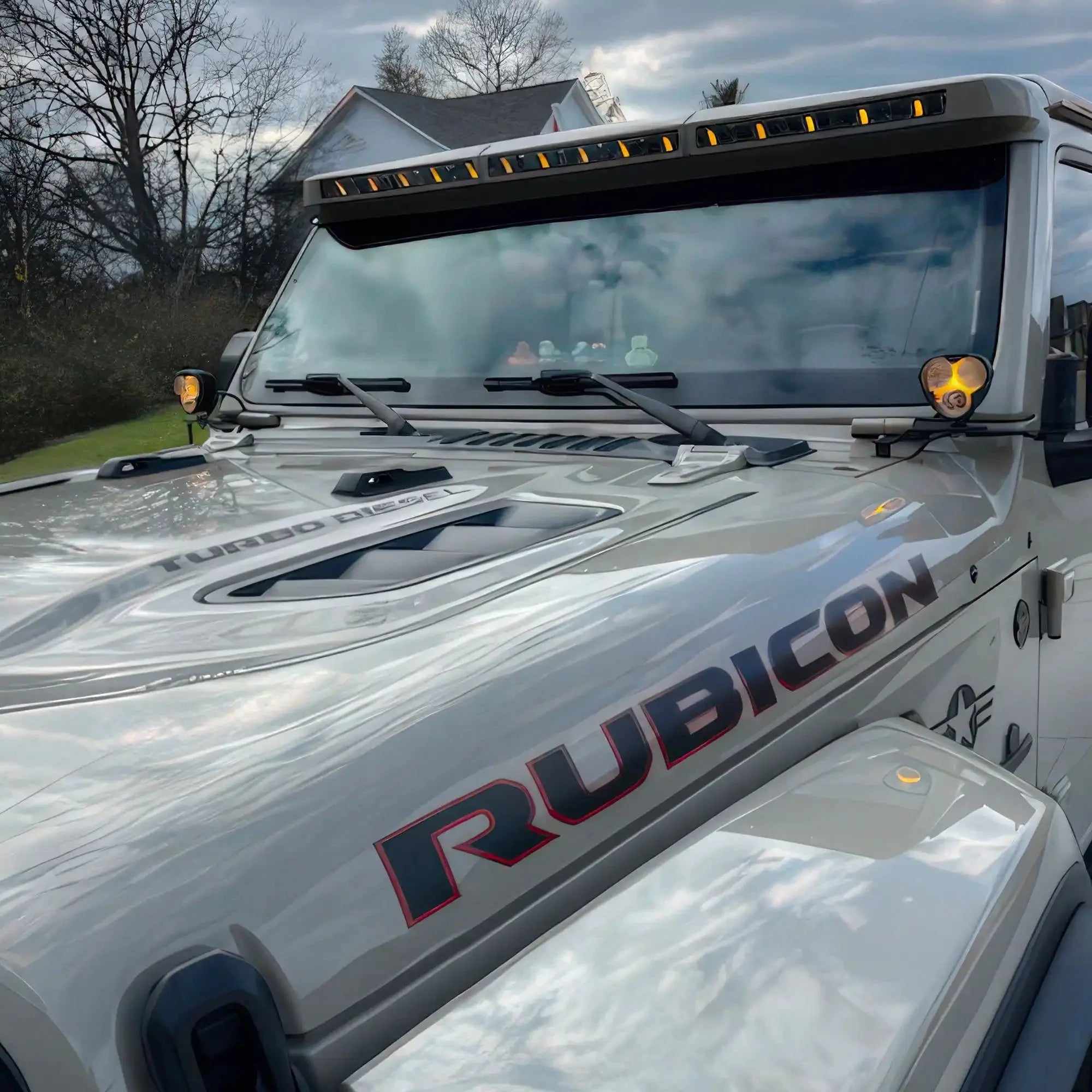

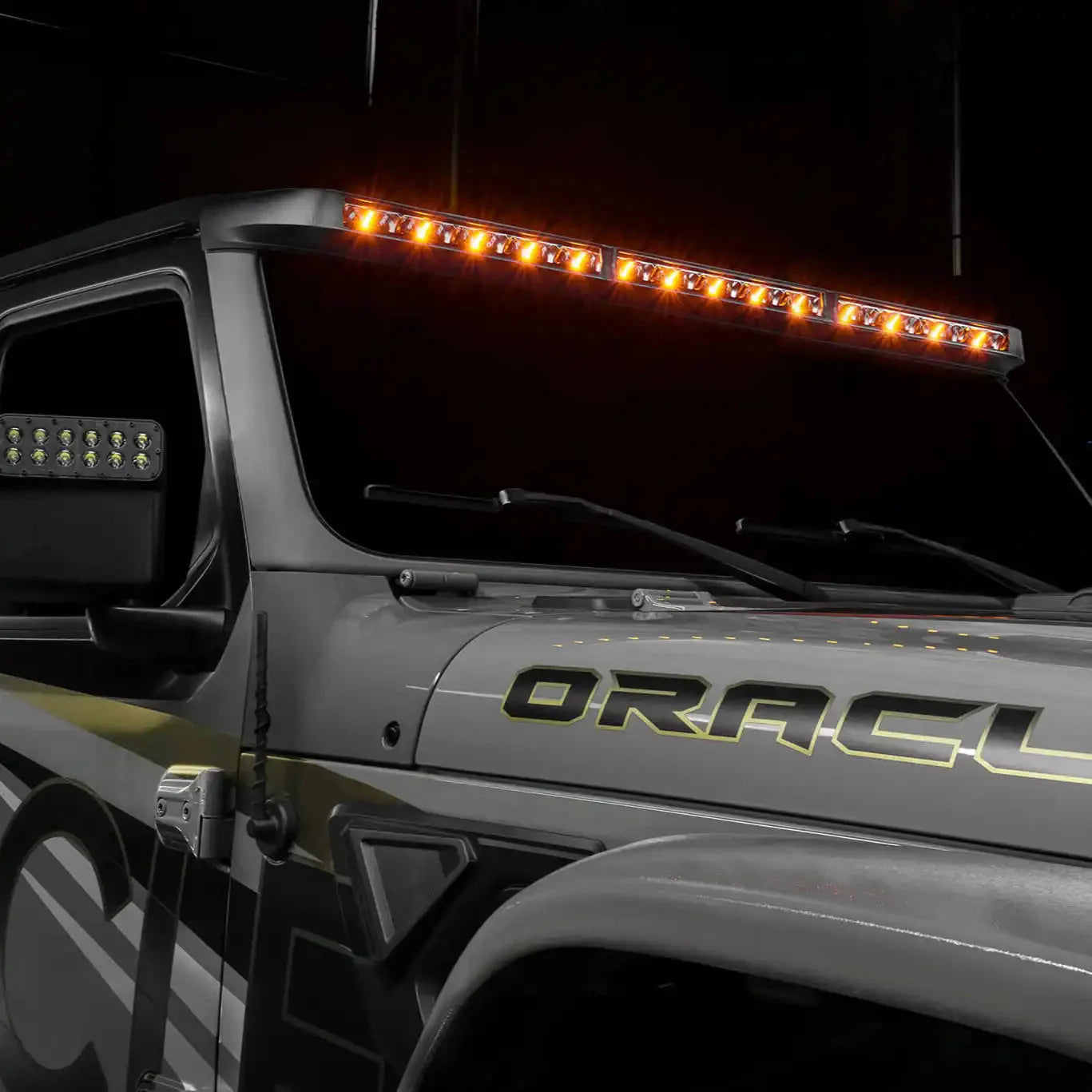

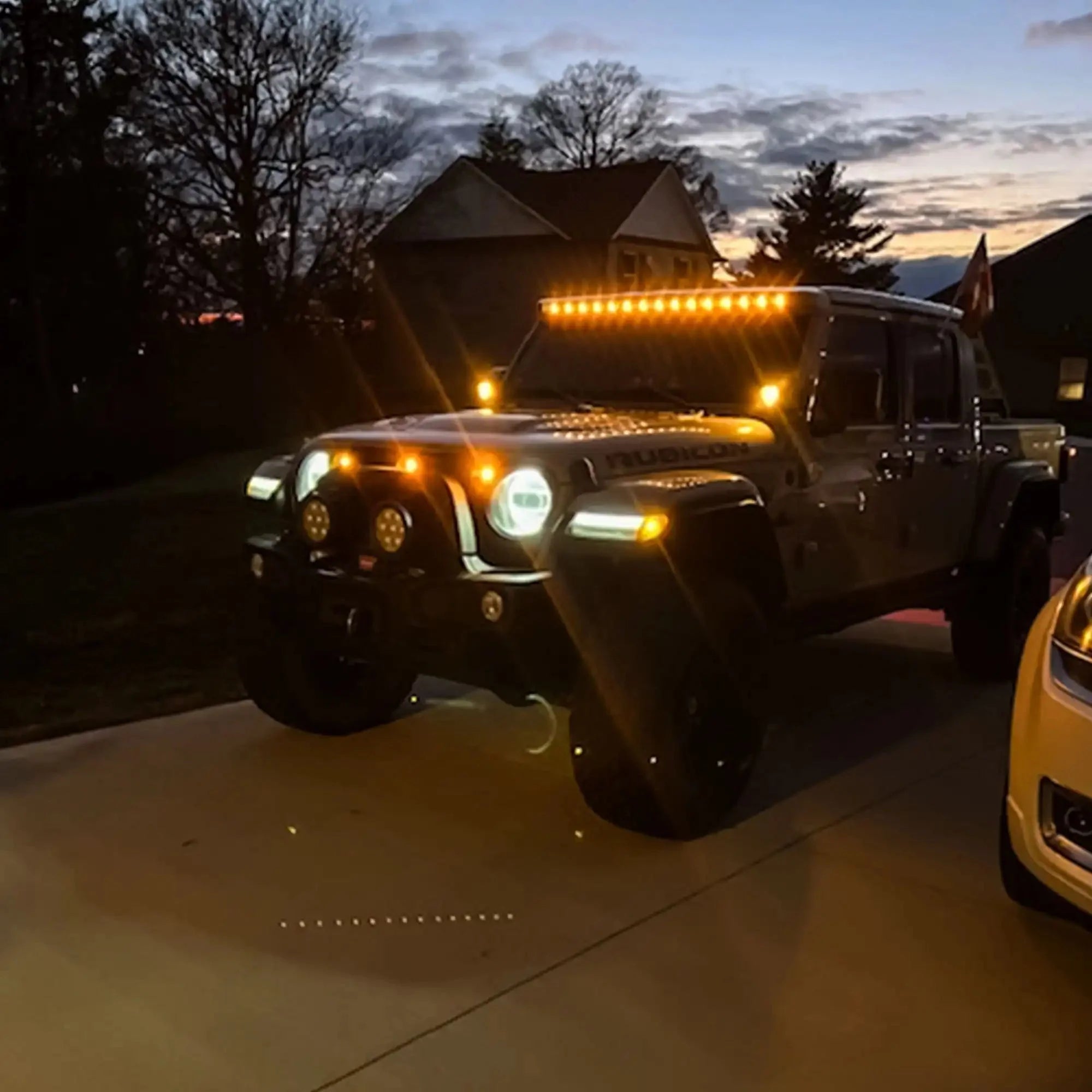

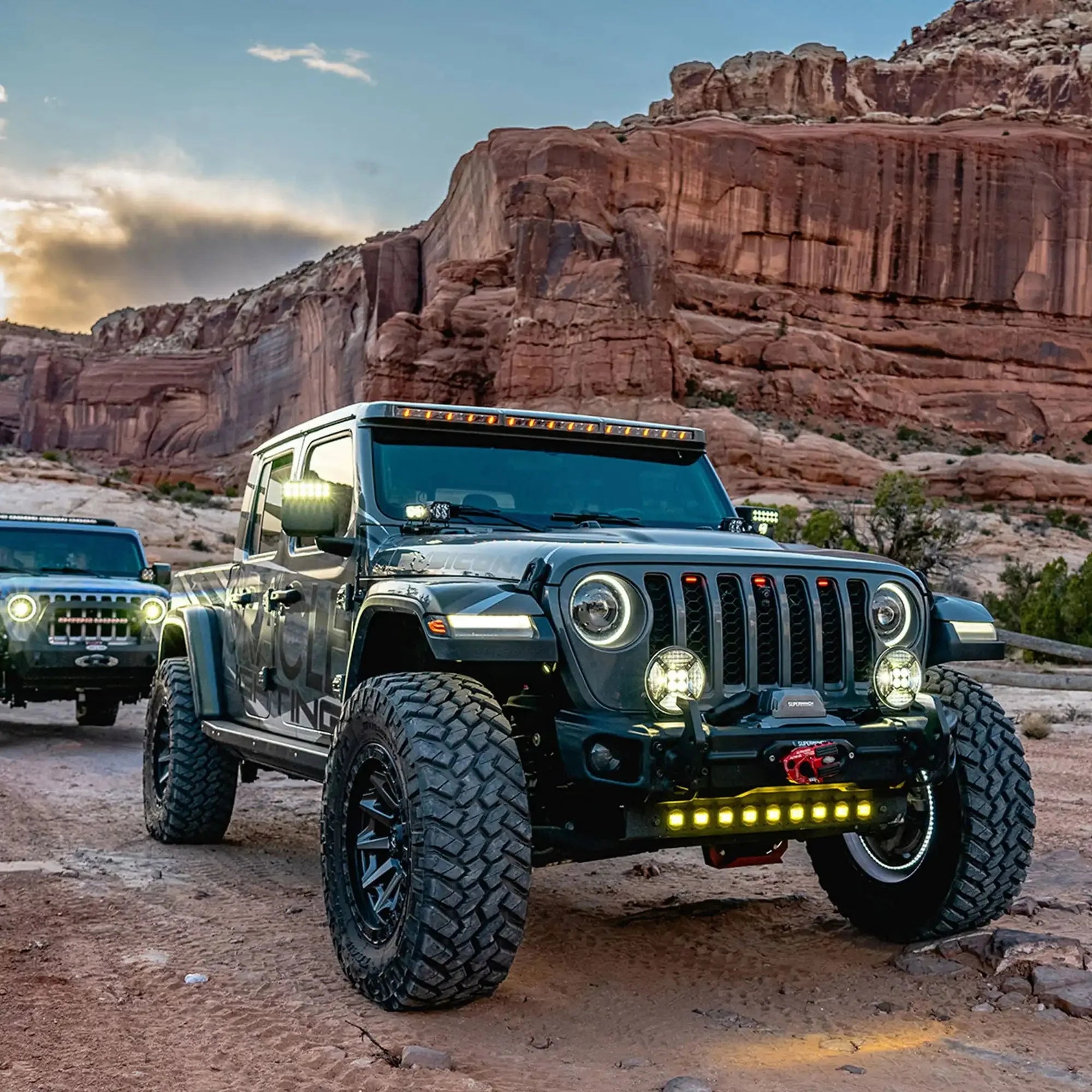

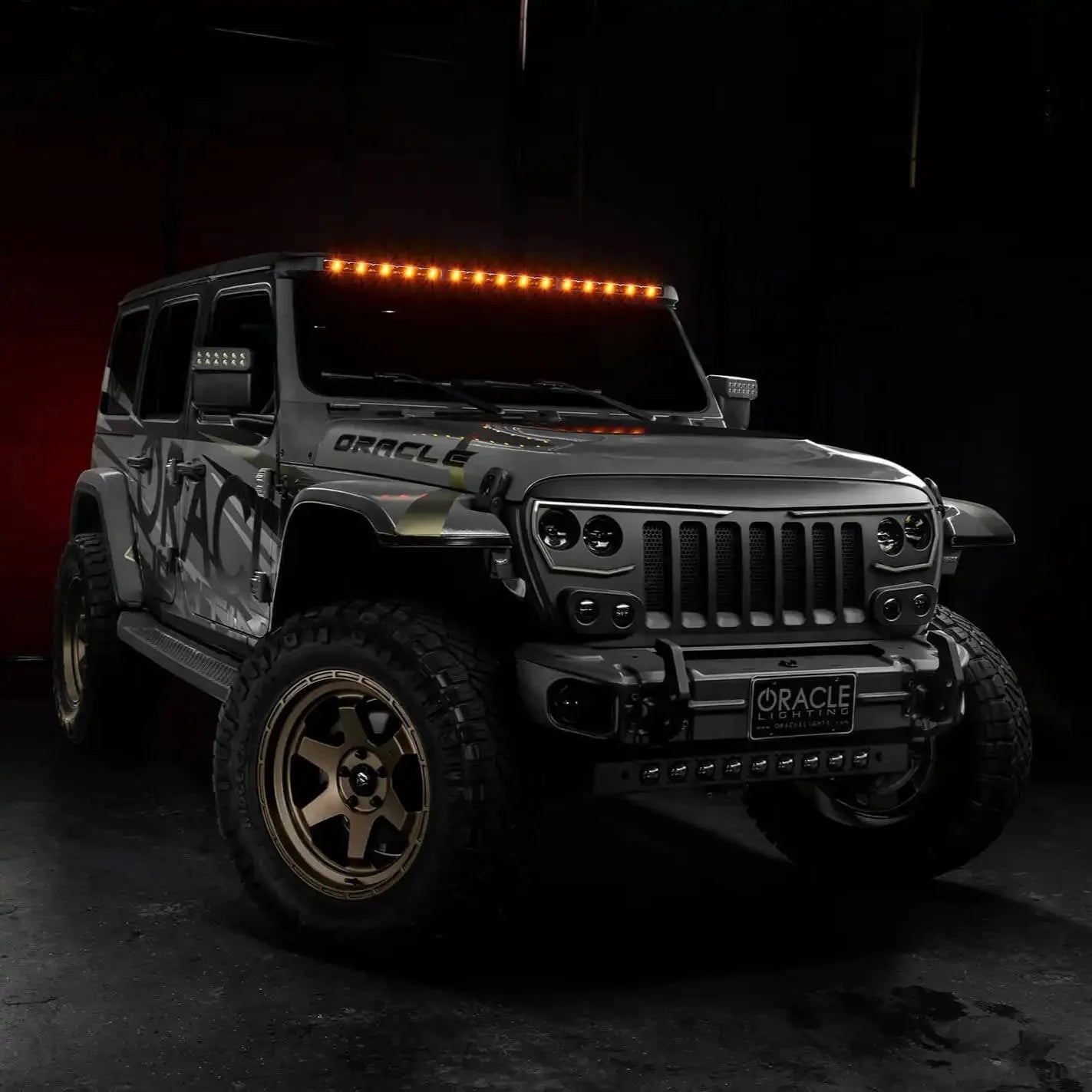

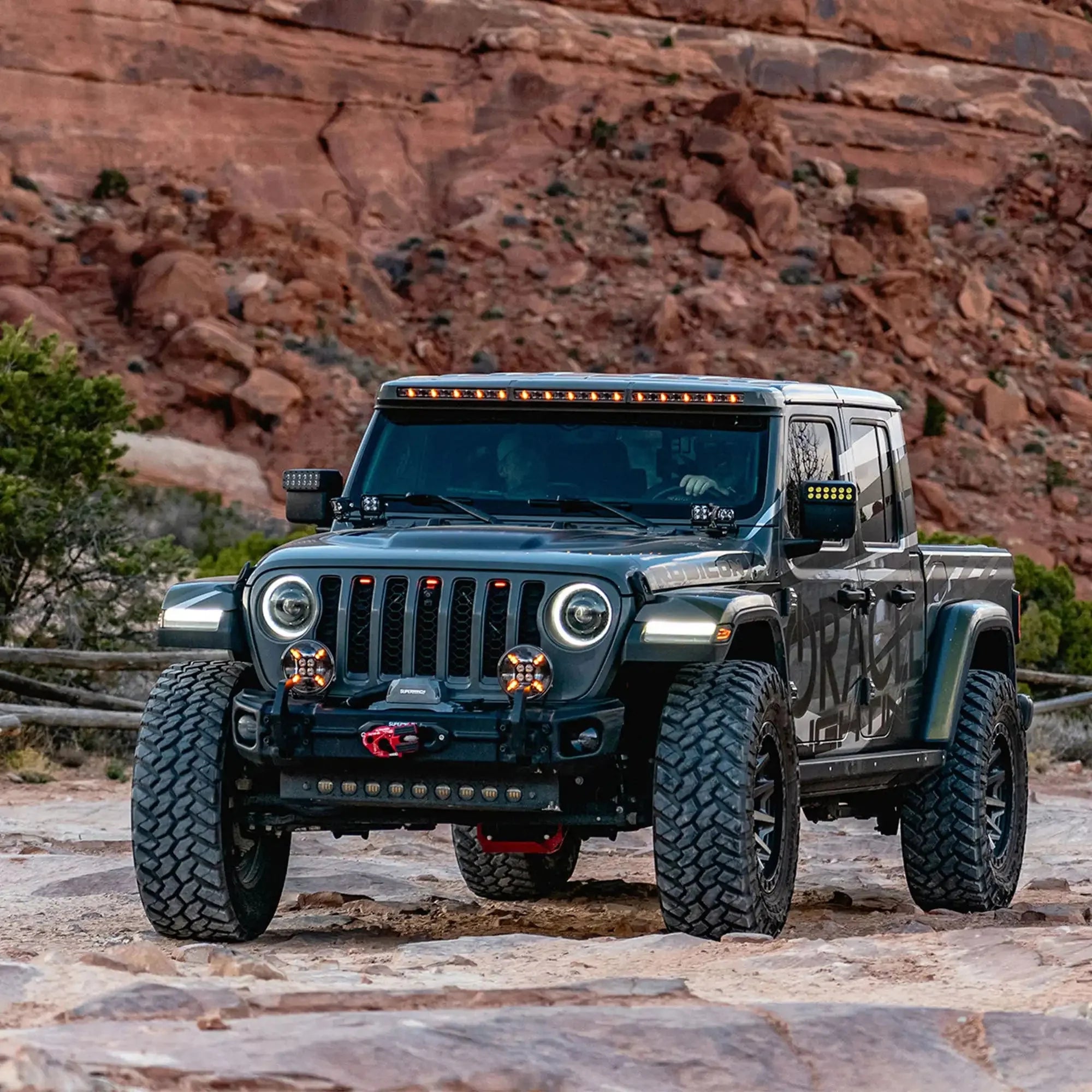

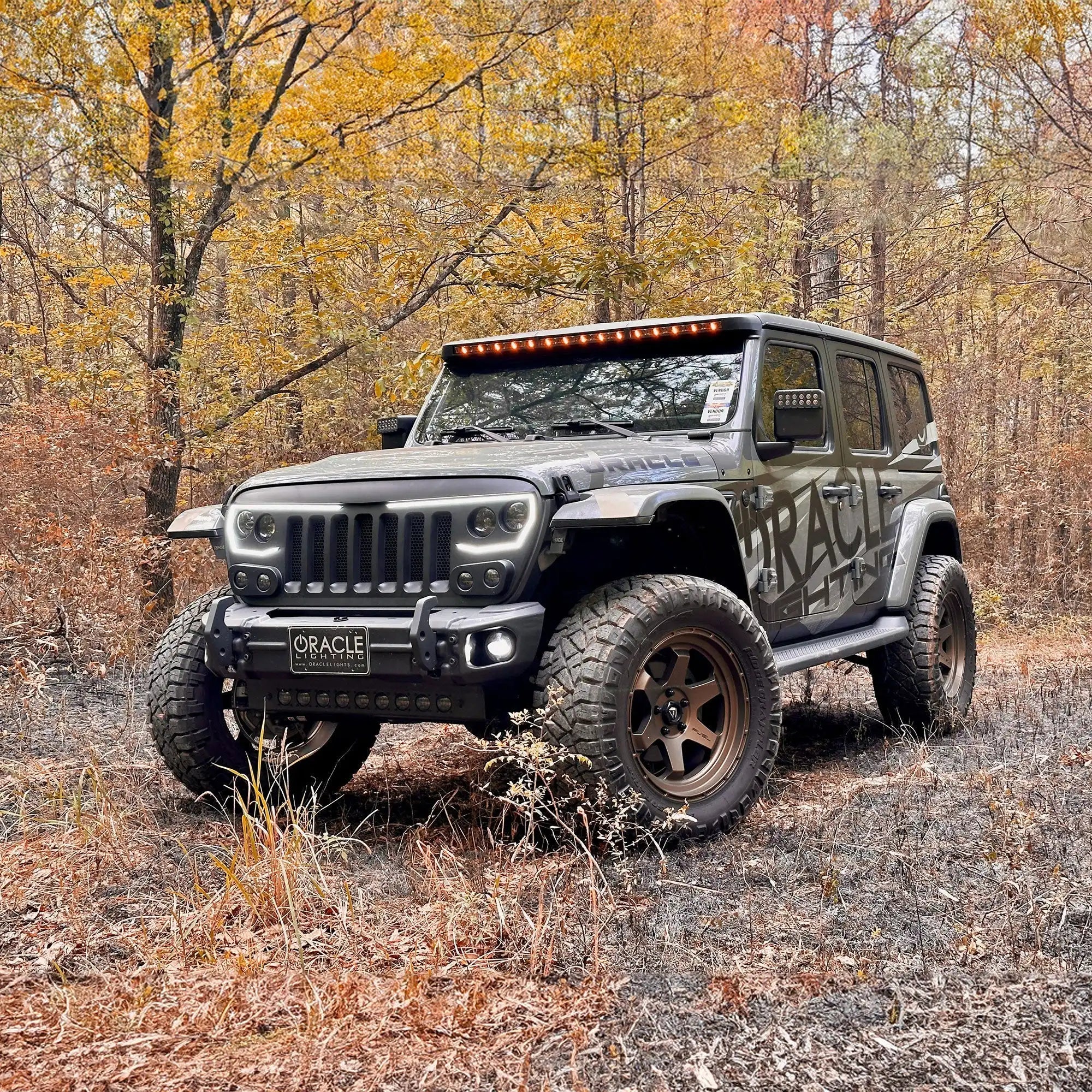

- Selectable amber or white built-in clearance lights, wireable to Aux switches, parking lights, or DRL

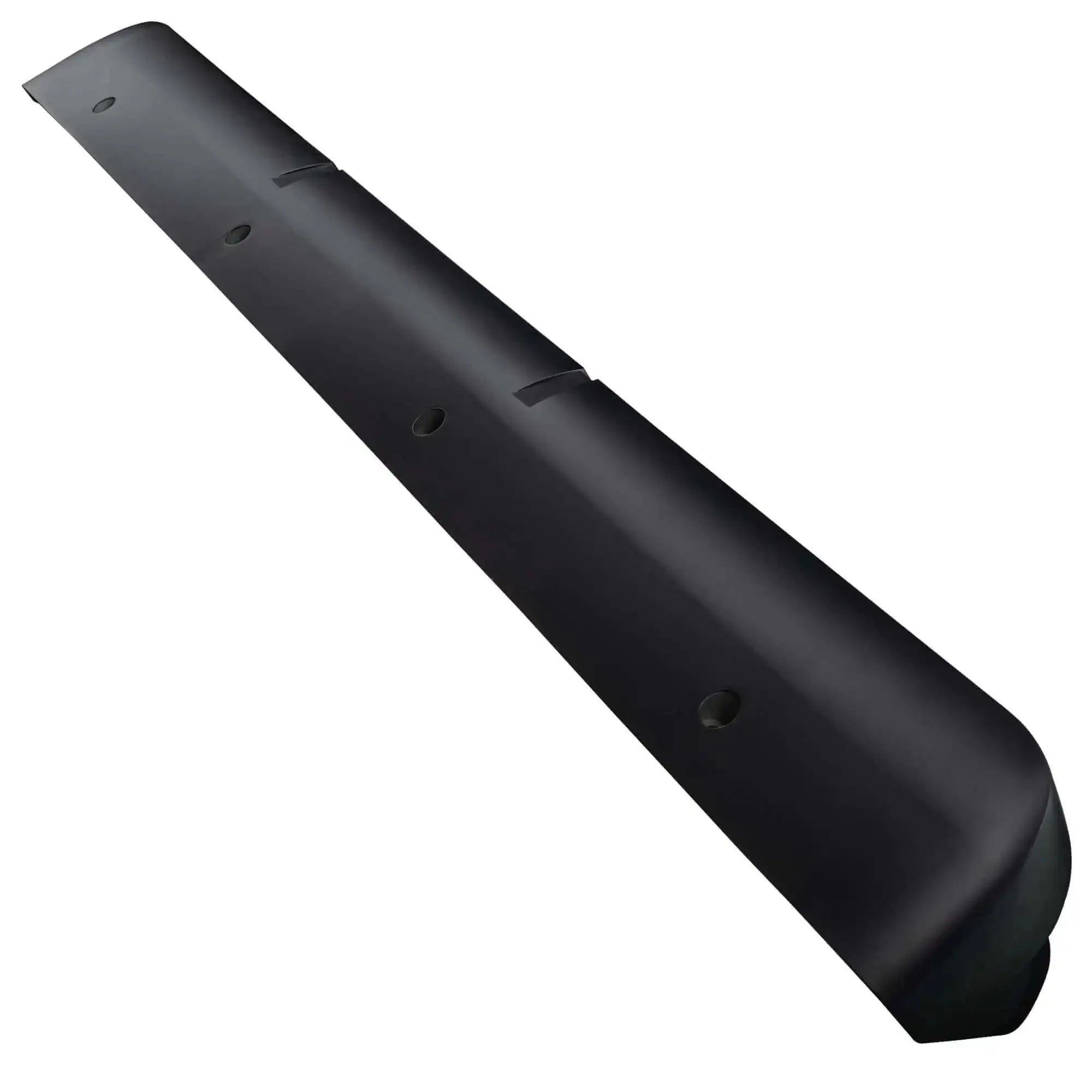

- Paint-ready polycarbonate housing ships matte black for a custom color match

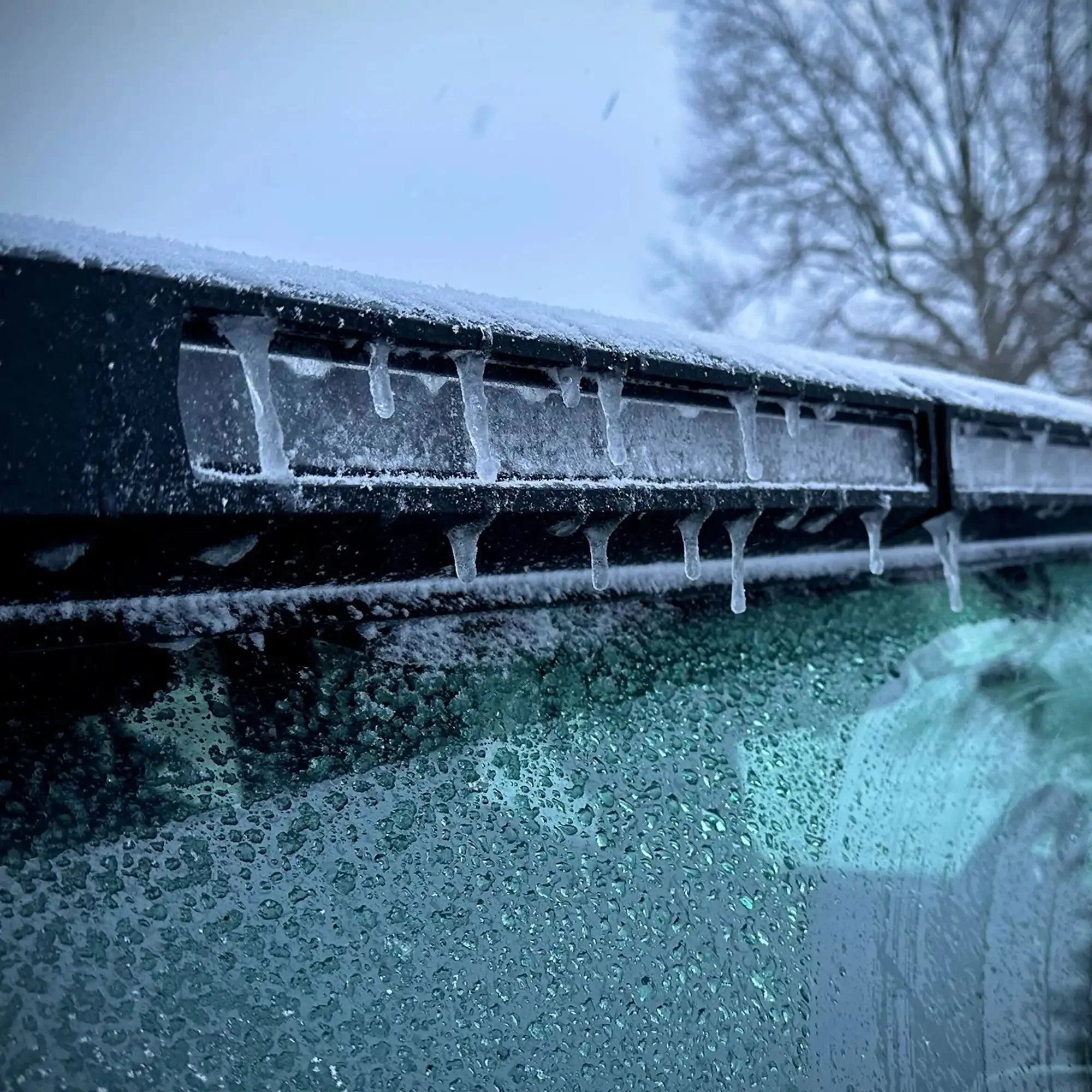

- IP68 waterproof rating with thermal management and voltage protection
- Aluminum housing and Lexan lens; designed and engineered in the USA
- 50,000+ hour LED lifespan, backed by a 1-year ORACLE warranty

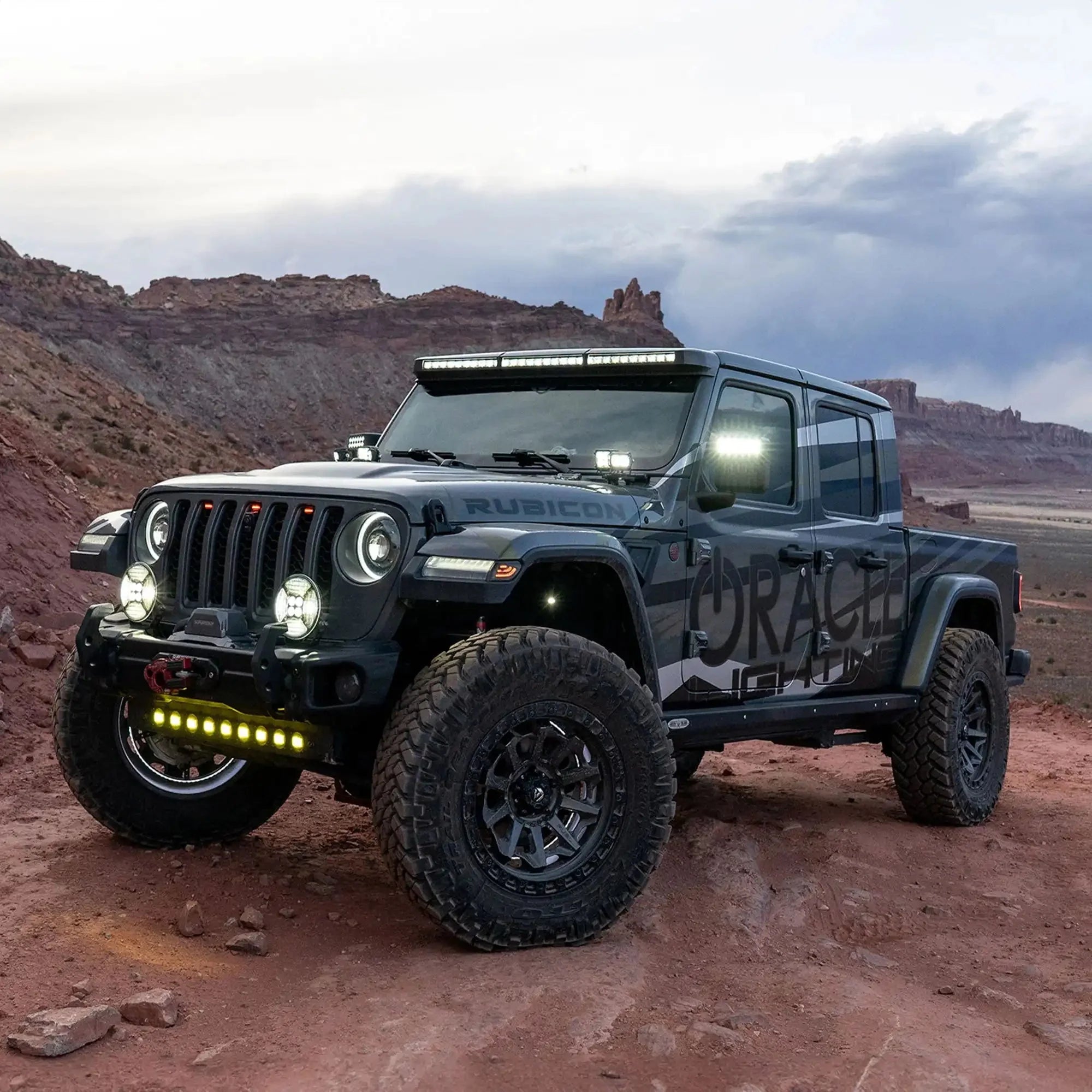

Fitment & Compatibility
Fits the Jeep Wrangler JL (2018-2025) and Jeep Gladiator JT (2020-2025), hard-top only. It is NOT compatible with Soft Top or One Touch Power Roof configurations. Avoid automatic car washes with overhead brushes.
Specifications
| Specification | Detail |
|---|---|
| ORACLE Part # | 5917-023 |
| Raw Lumens | 18,000 lm |
| Effective Lumens | 14,200 lm |
| Peak Intensity | 420,000 cd |
| Total Wattage | 240W |
| Amp Draw | 14A @ 12V DC |
| Beam Pattern | 40° driving beam |
| Max Projection | 1 lux @ 648m (2,125 ft) |
| Color Temperature | 5500K (bright white) |
| LED Emitters | 30 × 8W high-power LED |
| Operating Voltage | 9-32V DC |
| Waterproof Rating | IP68 |
| Lifespan | 50,000+ hours |
| Warranty | 1 year |

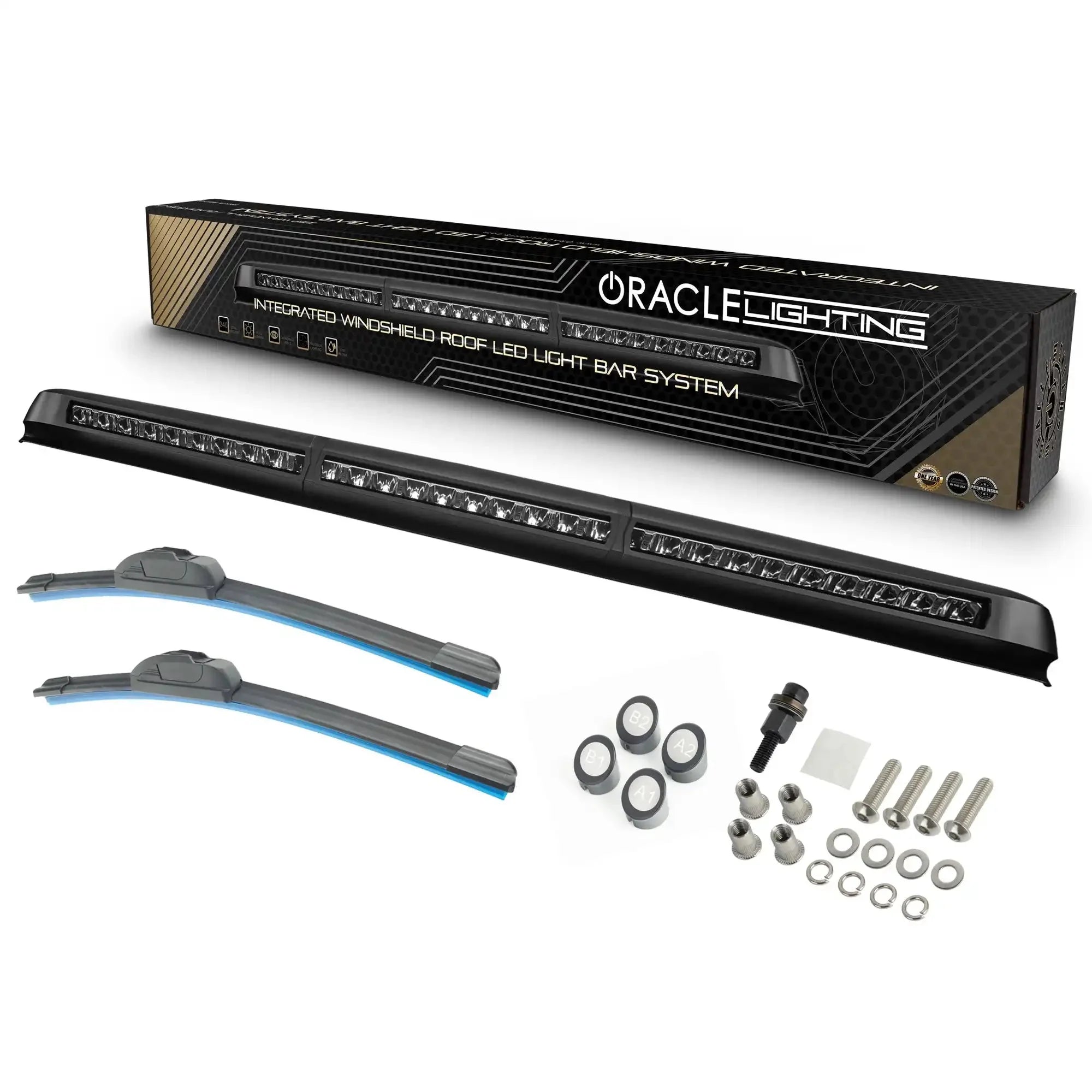

What's in the Box

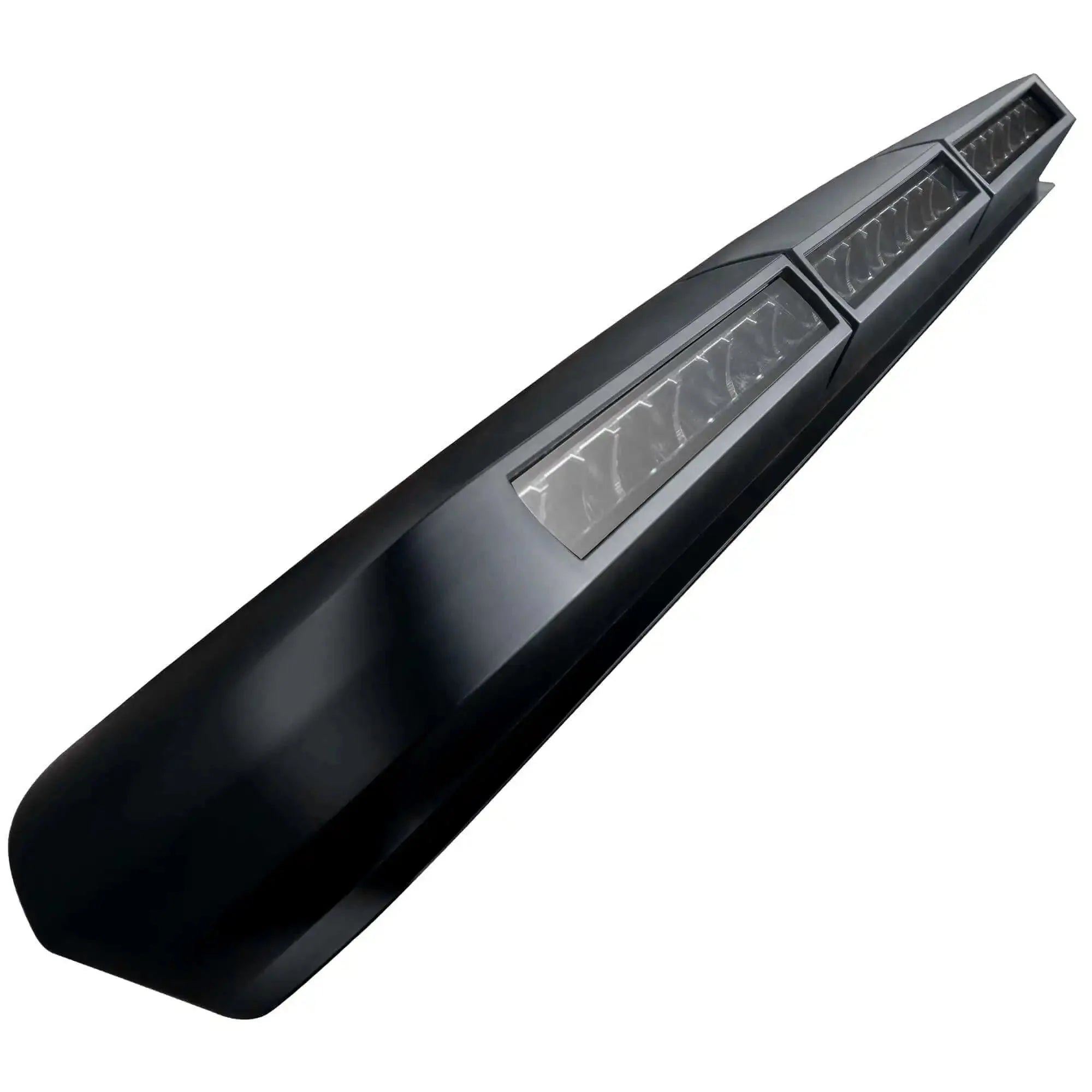

- Integrated LED light bar assembly with molded cowling
- Polycarbonate housing (matte black, paint-ready)
- Complete wiring harness with IP68 connectors
- Mounting hardware and threaded inserts
- Light bar-compatible windshield wipers
- Installation tool for threaded inserts
- Detailed installation instructions
- 1-year manufacturer warranty
Note: A wiring harness for Aux switches is sold separately. If you do not have Aux switches, add the Switched Wiring Harness; if you have factory Aux switches, use the Factory Aux Wiring Harness. Replacement Wiper Blade Replacements are also available.
Frequently Asked Questions
Will this fit my Jeep?
It fits hard-top Jeep Wrangler JL (2018-2025) and Gladiator JT (2020-2025) models. It is not compatible with soft tops or the One Touch Power Roof.
How hard is it to install?
Plan on about 2-3 hours using basic hand tools, a drill, and the included insert tool. A two-person install is recommended for easier handling, and painted-hardtop owners should have the housing professionally painted first.
Do I need extra wiring?
The Aux switch wiring harness is sold separately. Choose the Switched Wiring Harness if you do not have Aux switches, or the Factory Aux Wiring Harness if your Jeep already has them.
Can the housing be painted to match my Jeep?
Yes. It ships matte black and is paint-ready, so it can be professionally painted to match your hardtop color.

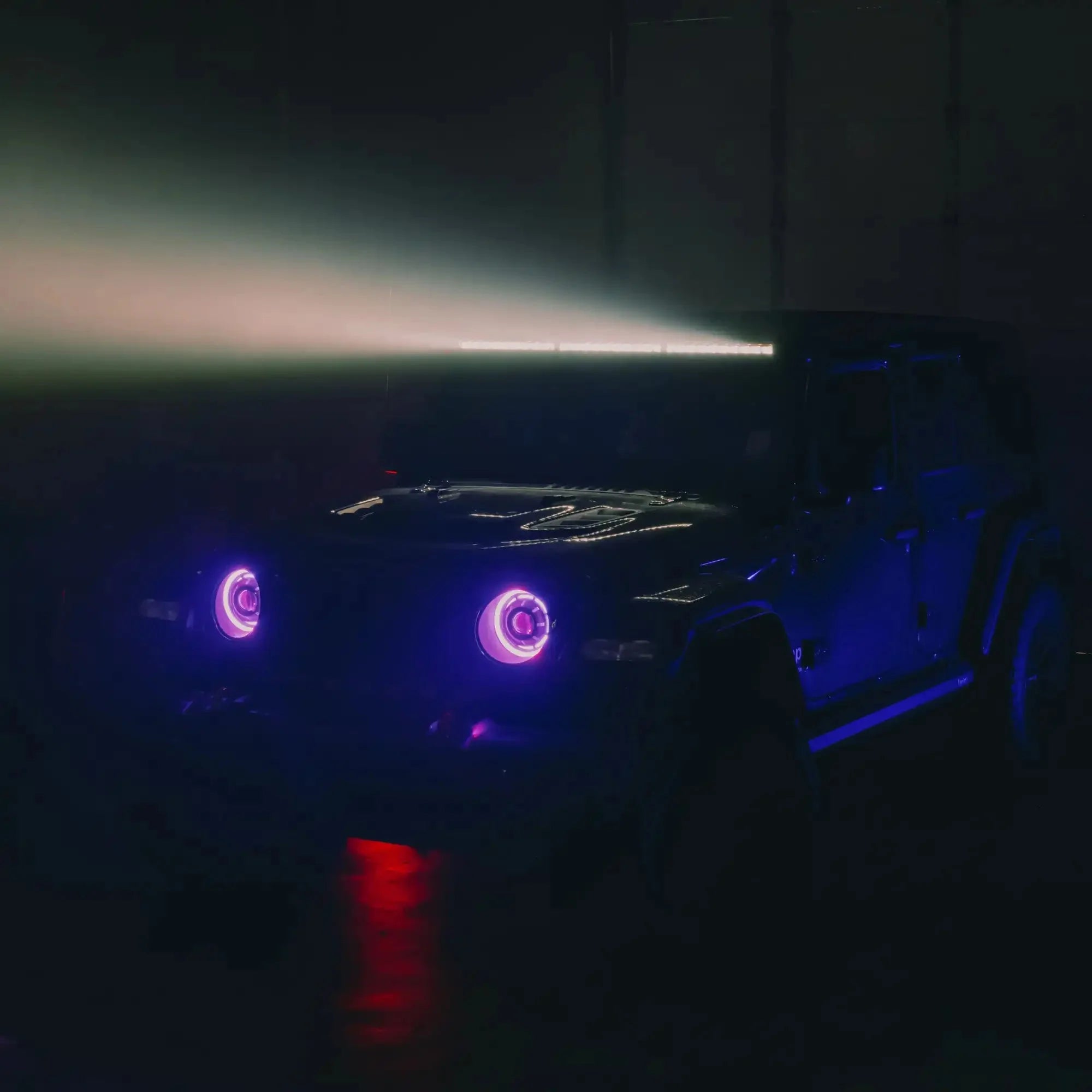

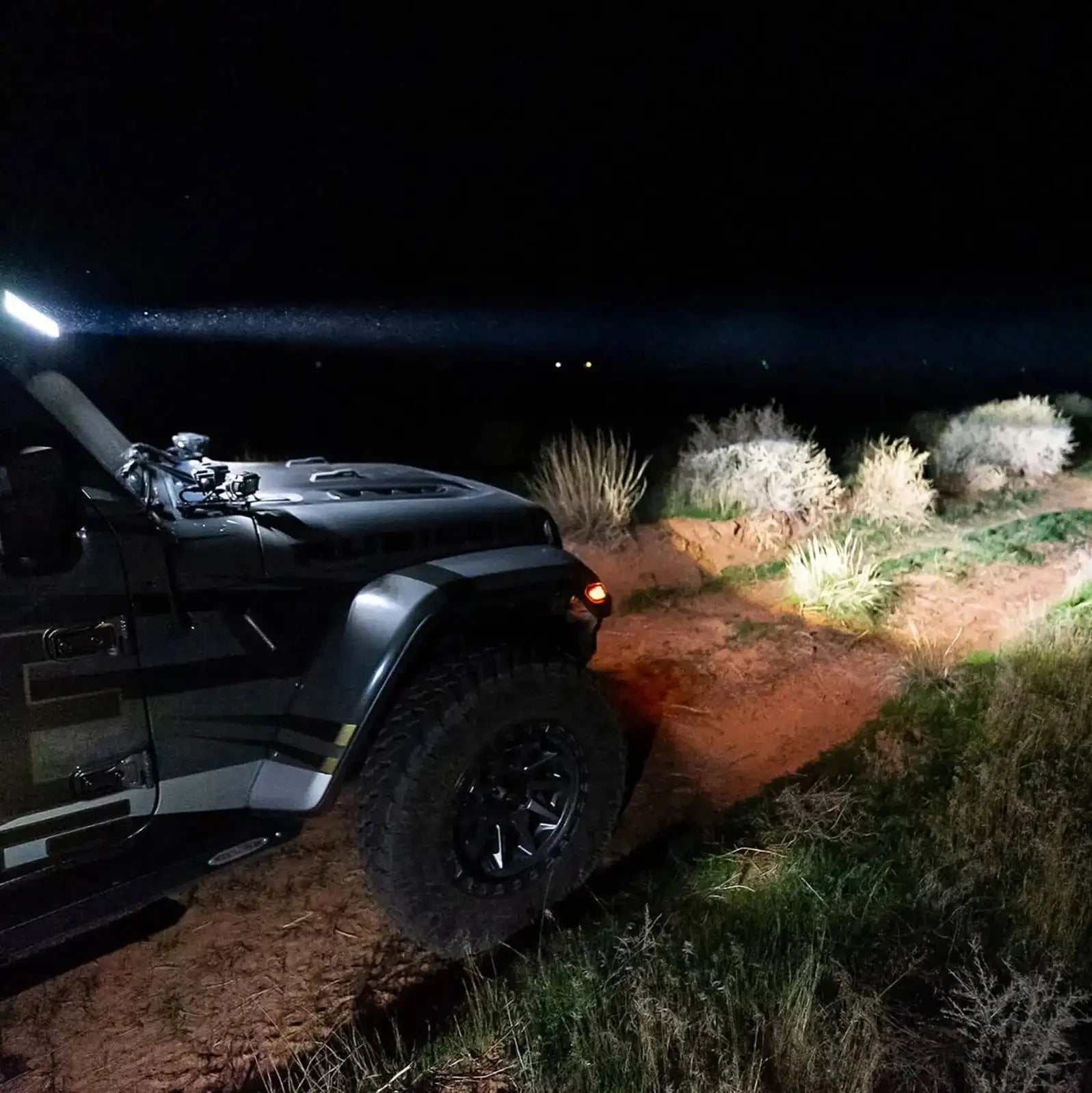

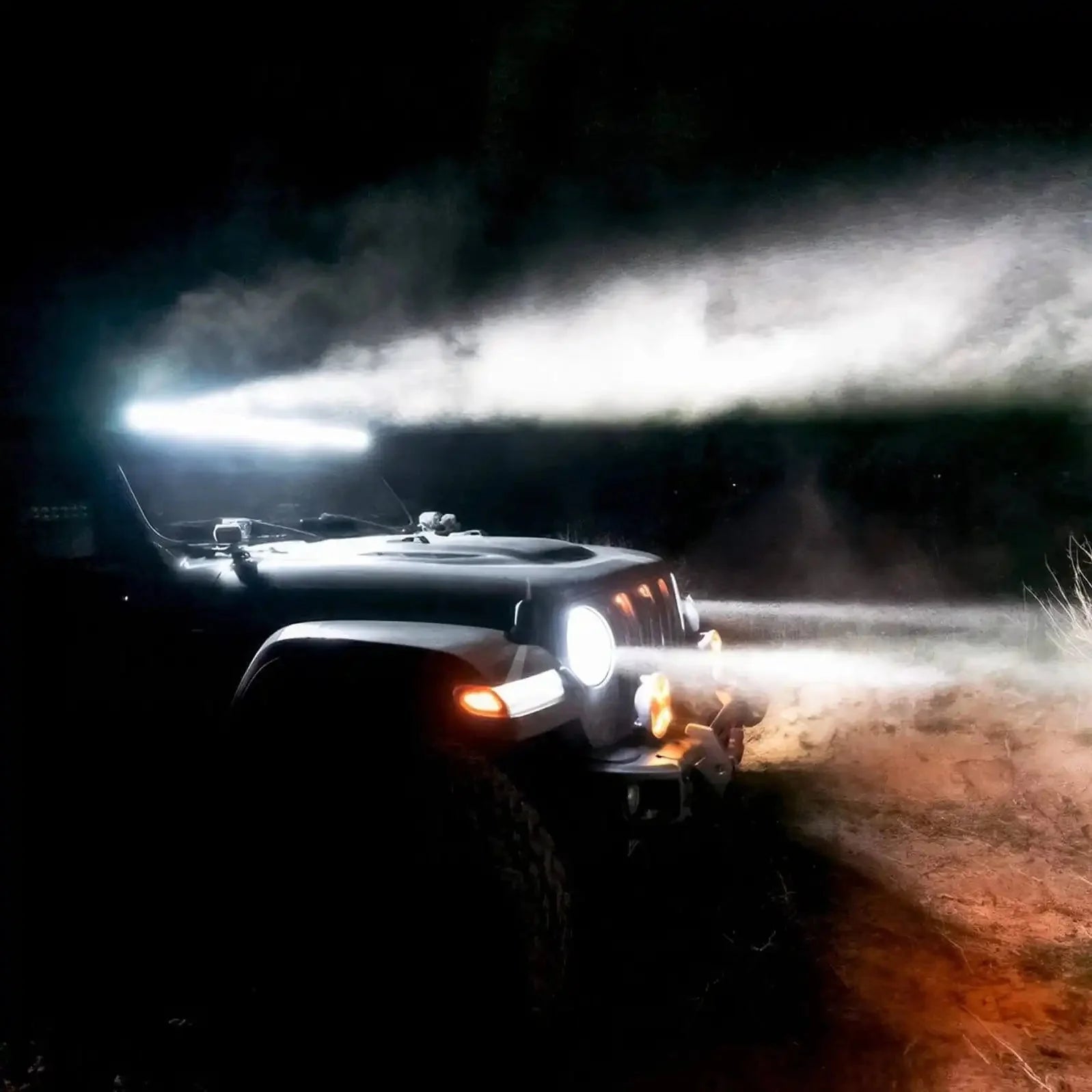

How bright is it and how far does it throw light?
It produces 18,000 raw lumens (14,200 effective) from thirty 8W emitters, with a 40-degree driving beam that projects 1 lux out to 648 meters, roughly 2,125 feet.
