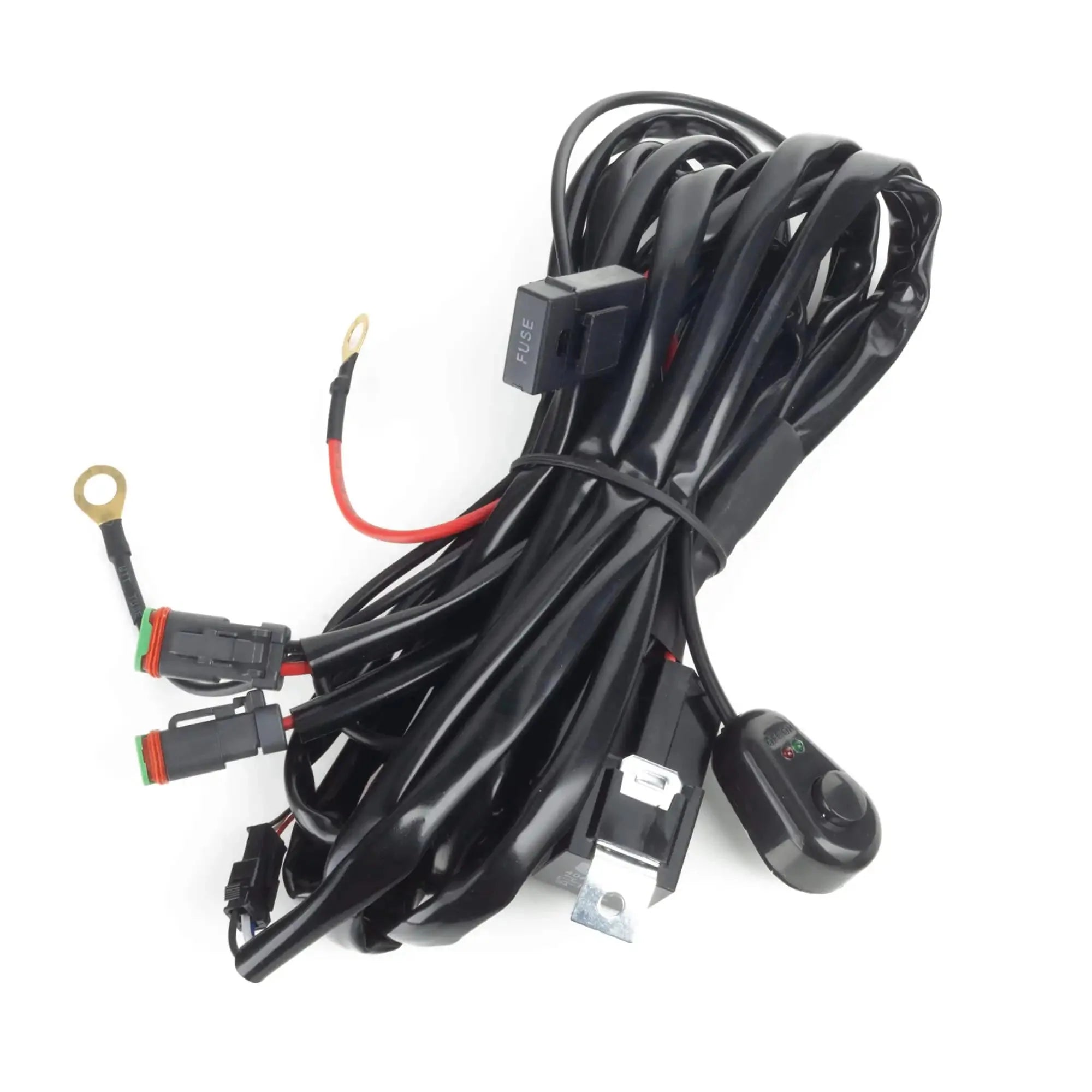

ORACLE Lighting Dual Deutsch DTM 40A Relay Wiring Harness with Illuminated Switch
The ORACLE Dual Deutsch DTM 40A Relay Wiring Harness makes adding auxiliary lighting simple, clean, and professional. This plug-and-play dual-output harness is pre-wired with a 40A relay, dual Deutsch DTM connectors, an illuminated on/off switch, and a 30A in-line fuse, ready to power LED cube lights, pod lights, work lights, and off-road light bars right out of the box.
Key Features
- Dual-output design connects two cube or pod lights simultaneously

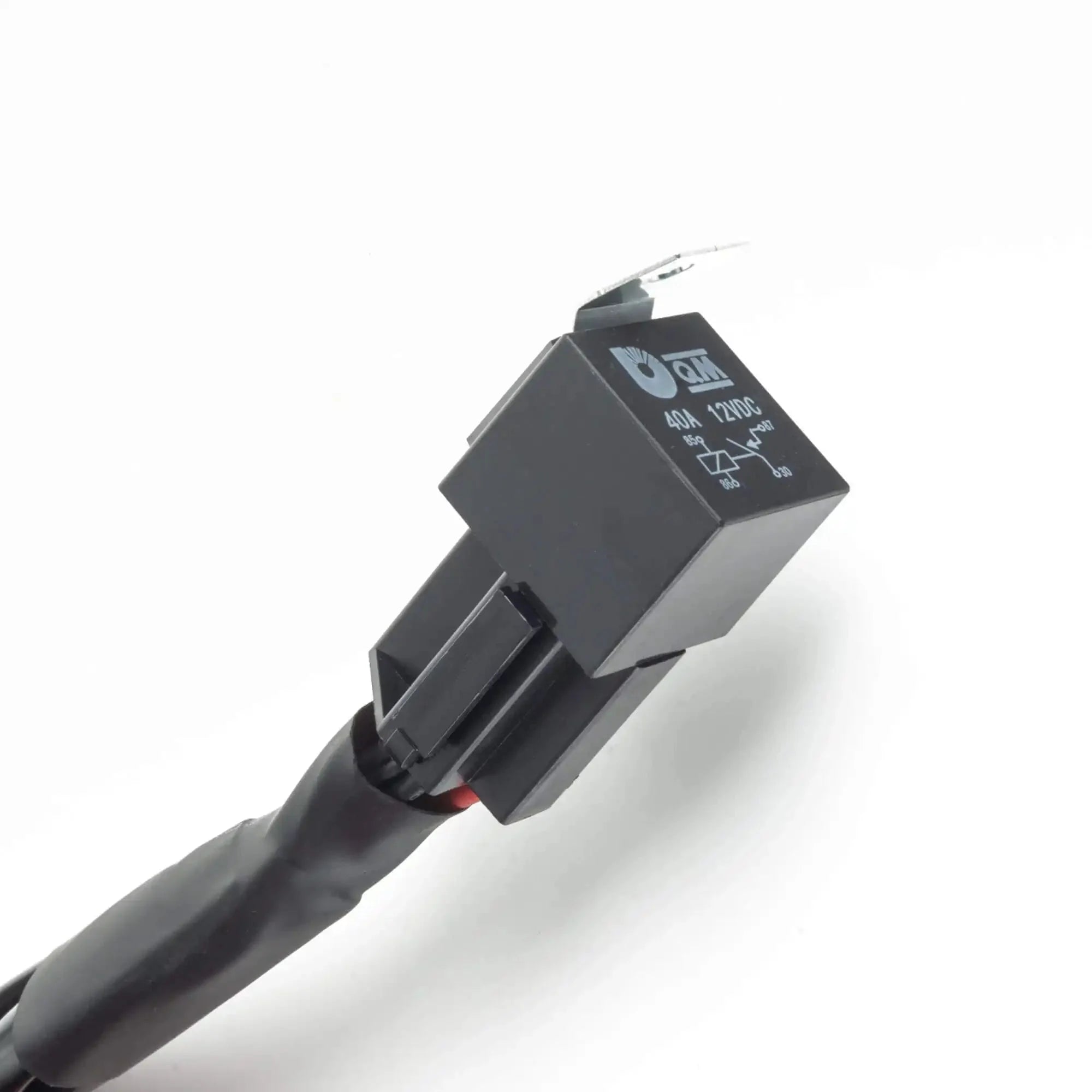

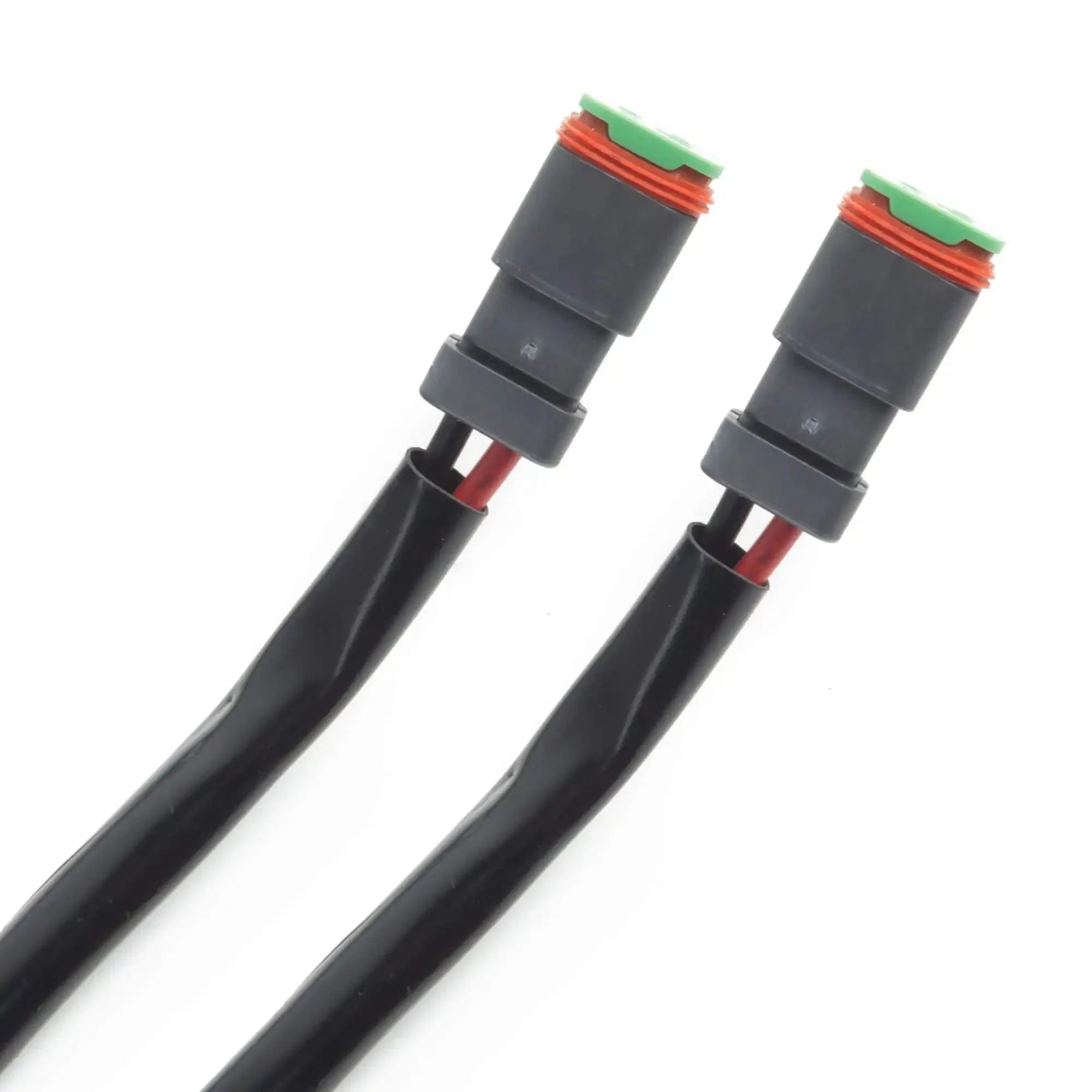

- 40A automotive relay with dual Deutsch DTM connectors for weatherproof connections
- 115W per channel (230W total), 8 amps max per channel

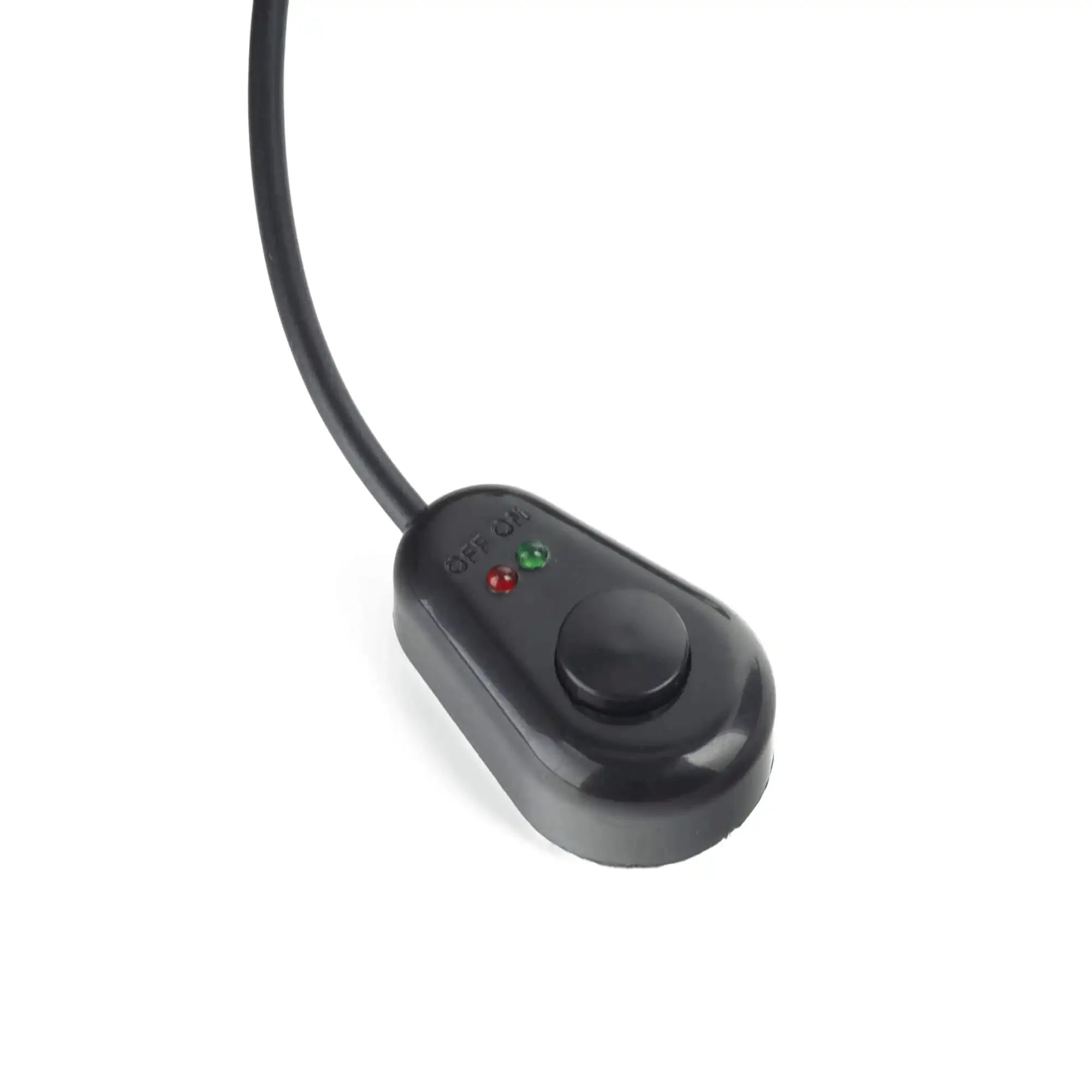

- Pre-wired illuminated on/off switch with LED indicator

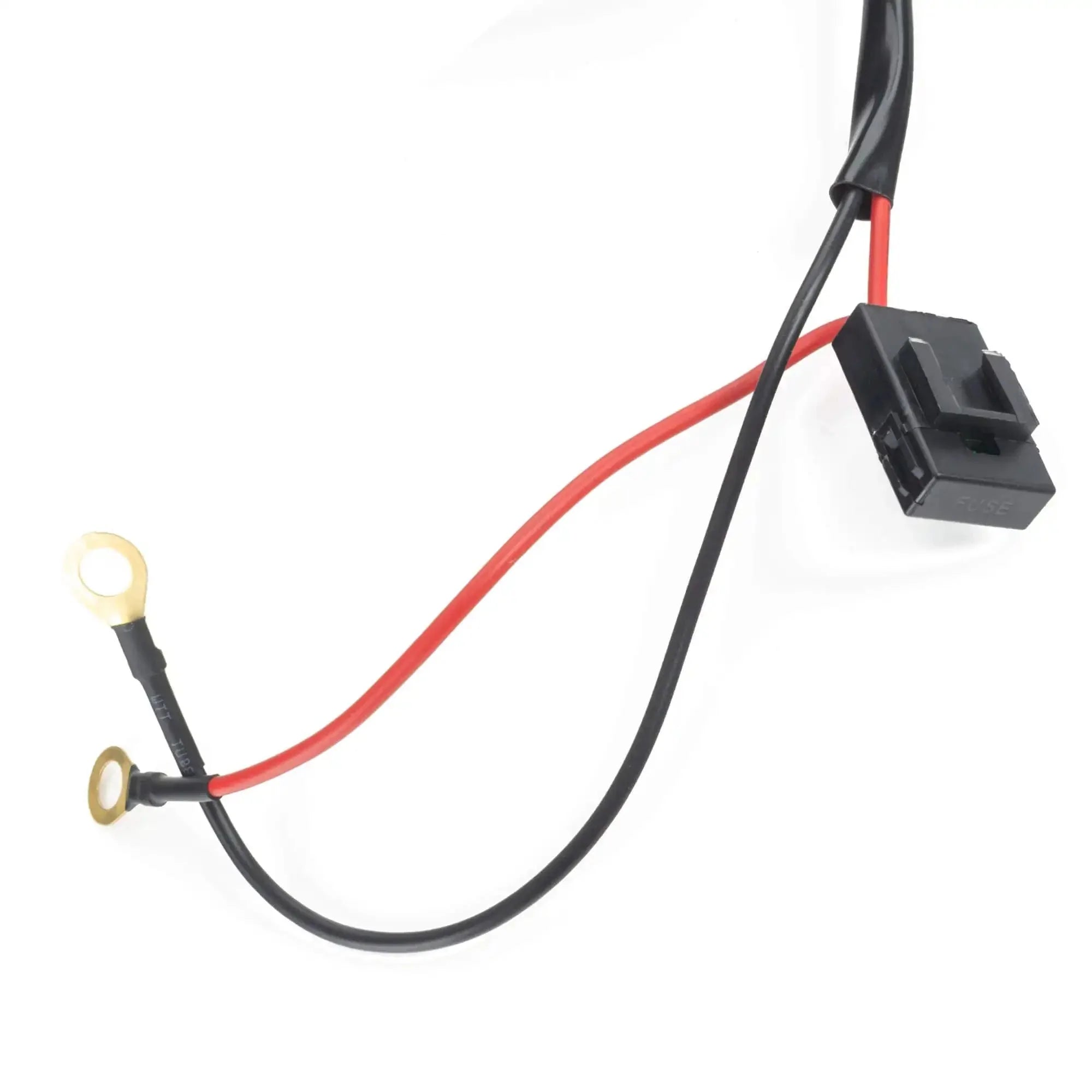

- 30A in-line fuse for circuit protection
- 120-inch, 16 AWG wiring cut for A-pillar and bumper applications
- All connections soldered and heat-shrunk; weather-packed connectors
- Compatible with most ORACLE Auxiliary lighting including the VEGA series
- ORACLE Part # 5890-LTH; 2-Year Warranty
Fitment & Compatibility
Universal 12V automotive harness for LED cube lights, pod lights, work lights, and off-road light bars. Uses the same Deutsch DTM connectors found on most ORACLE Auxiliary lighting (including the VEGA series) and many other premium brands. Optionally compatible with the Trigger ONE Bluetooth Relay for wireless smartphone control.
Specifications
| Specification | Detail |
|---|---|
| Part # | 5890-LTH |
| Relay Rating | 40 Amps |
| Fuse Rating | 30A in-line |
| Max Wattage | 115W per channel (230W total) |
| Max Amperage per Channel | 8 Amps |
| Wire Length | 120 inches |
| Wire Gauge | 16 AWG |
| Connector Type | Deutsch DTM (dual) |
| Switch | Illuminated on/off with LED indicator |
| Voltage | 12V automotive |
| Warranty | 2 Years |
What's in the Box
- (1) Dual Deutsch DTM 40A Relay Wiring Harness
- (1) Illuminated On/Off Switch with LED Indicator
Frequently Asked Questions
Is this harness plug-and-play?
Yes. Wire lengths are pre-cut for most standard A-pillar and bumper applications, so no cutting or splicing is required for typical setups.
How many lights can it run?
The dual outputs power two lights at once, supporting up to 115W per channel and 230W total.
Can I control the lights wirelessly?
Yes. Unplug the included relay and plug in the Trigger ONE Bluetooth Relay to add smartphone dimming, flashing, and wireless on/off via the free Trigger Plus app.
Will it work with my lights?
It uses Deutsch DTM connectors found on most ORACLE Auxiliary lighting, including the VEGA series, and many other premium brands.
