ORACLE BC2 Bluetooth ColorSHIFT RGB LED Controller - 6 Output Wireless App Control
The ORACLE BC2 Bluetooth ColorSHIFT RGB LED Controller (Part #BC2-6) brings wireless smartphone control to your ORACLE RGB ColorSHIFT lighting. With six waterproof outputs, an IP67 weatherproof housing, and the ColorSHIFT PRO app, it makes adding ORACLE's full line of RGB products to any 12V vehicle as simple as a power and ground connection.
Key Features
- Full wireless control through the ORACLE ColorSHIFT PRO smartphone app (iOS/Android)
- Six waterproof outputs to connect up to 6 ColorSHIFT LED products
- IP67 weatherproof housing rated for indoor or outdoor mounting
- 10A maximum total output for high-power LED installations
- App features include on/off, dozens of colors, patterns, brightness, speed, and sound-reactive mode
- Included RF wireless remote as a backup control option
- Pre-installed ring terminals and an inline fuse for a straightforward install
- Backed by a 2-year warranty
Fitment & Compatibility
Works with all ORACLE ColorSHIFT RGB LED products and any 12V DC vehicle electrical system - cars, trucks, SUVs, motorcycles, ATVs, UTVs, boats, and more. Operation is ground-switched RGB.
Specifications
| Specification | Detail |
|---|---|
| ORACLE Part # | BC2-6 |
| Input Voltage | 12V DC |
| Maximum Current Output | 10A total |
| Operation Type | Ground-switched RGB |
| Number of Outputs | 6 waterproof connections |
| Control Method | Bluetooth via ColorSHIFT PRO app |
| Weatherproof Rating | IP67 (dust-tight and waterproof) |
| Warranty | 2 years |

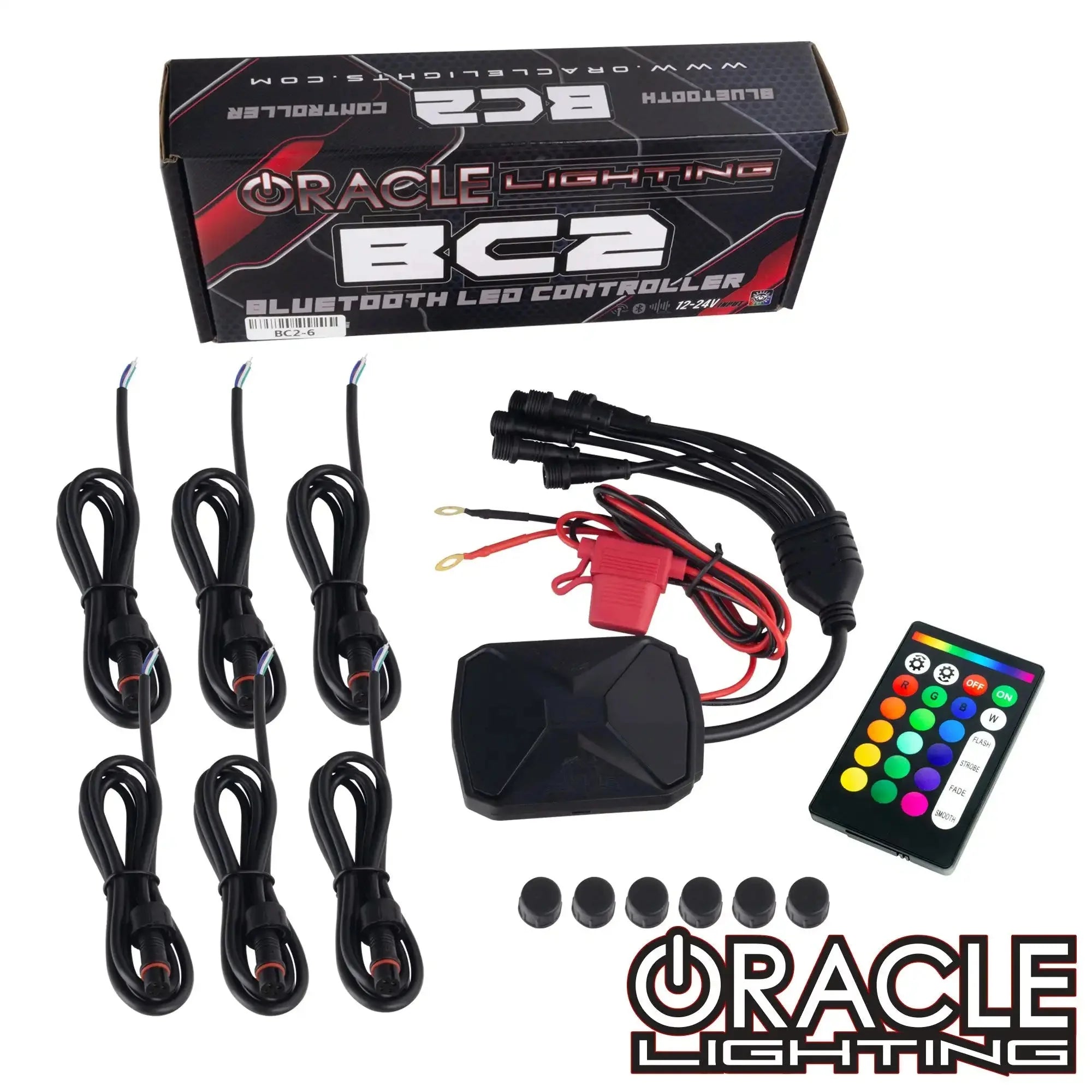

What's in the Box

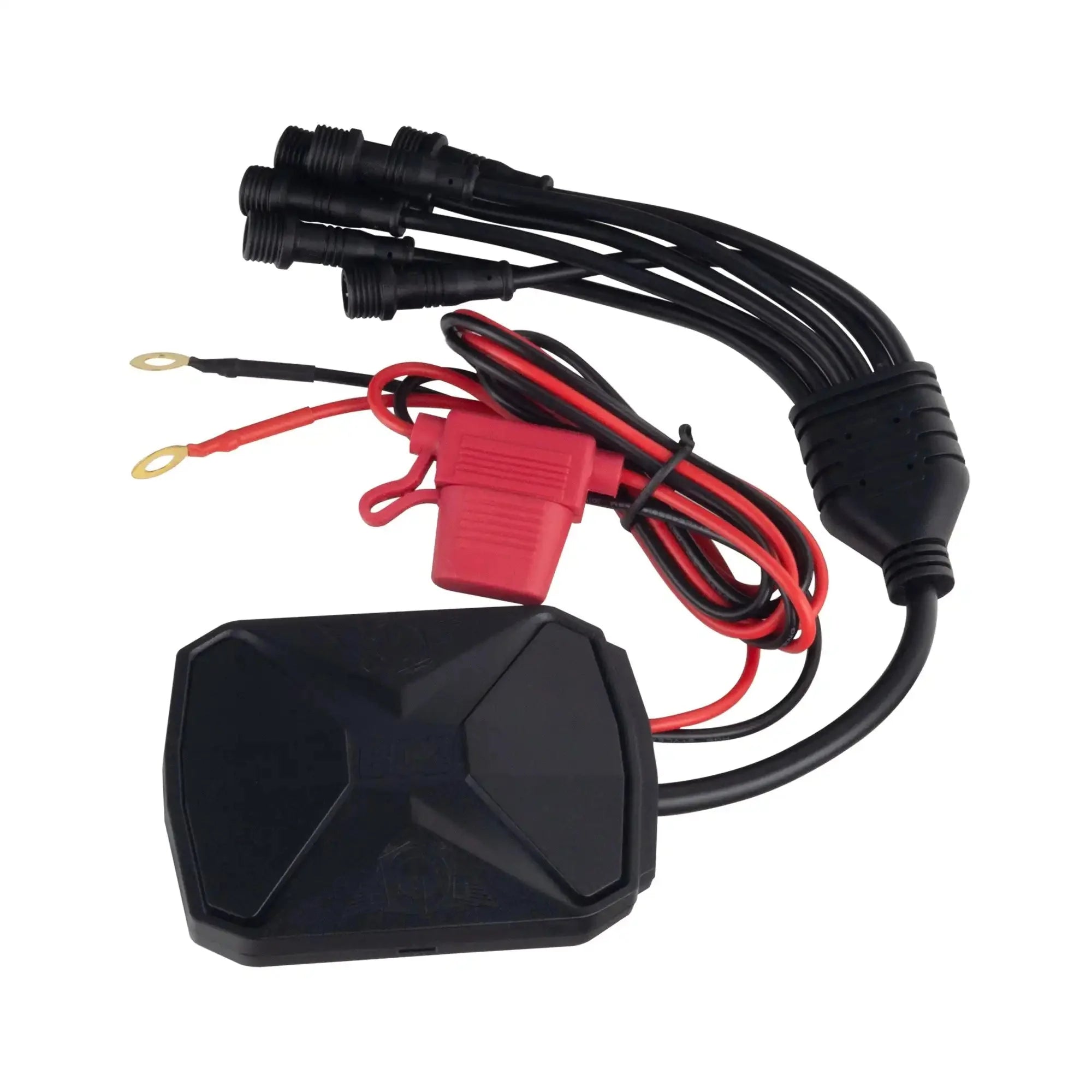

- (1) BC2 Bluetooth ColorSHIFT RGB LED controller with pre-installed power terminals

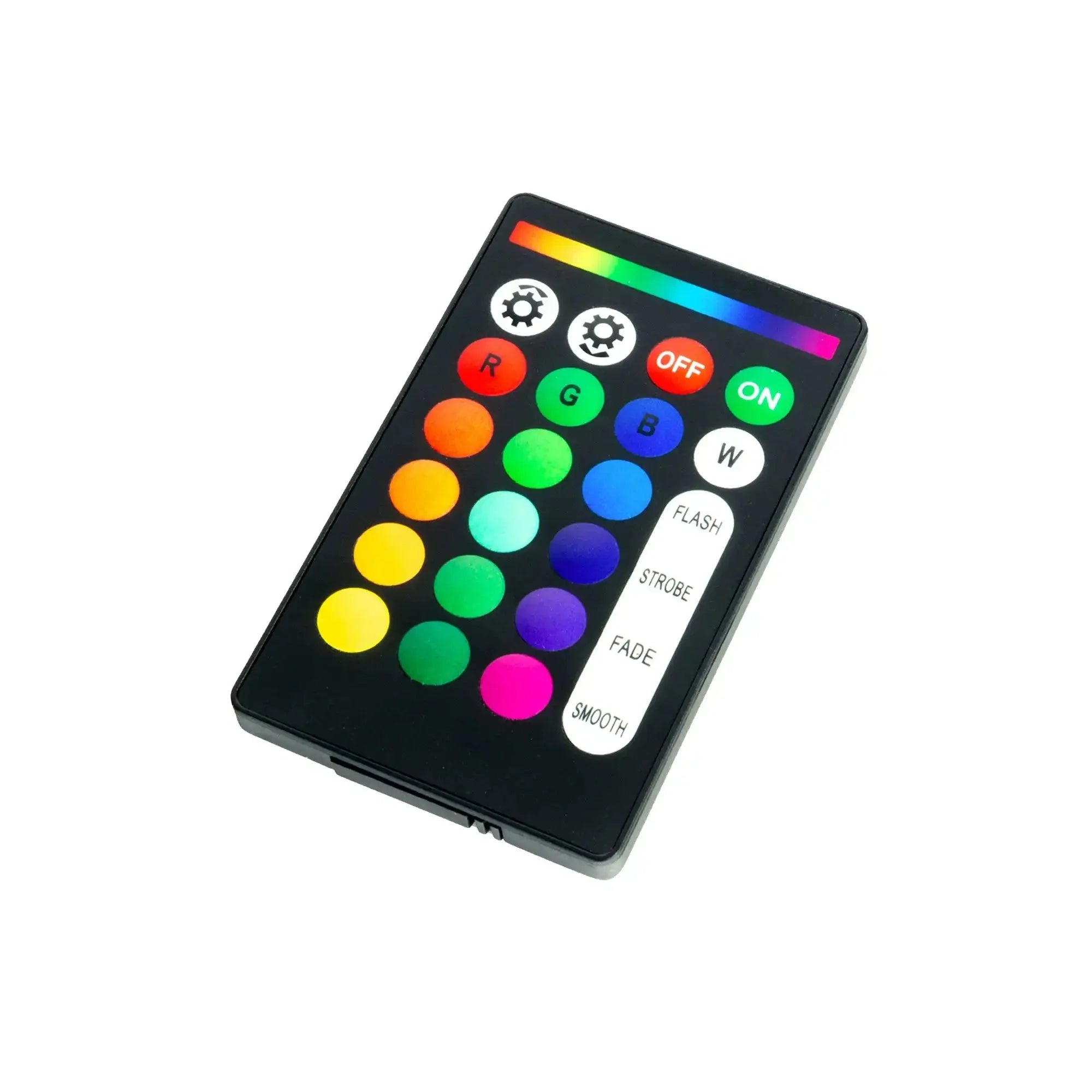

- (1) RF wireless remote controller (backup control option)

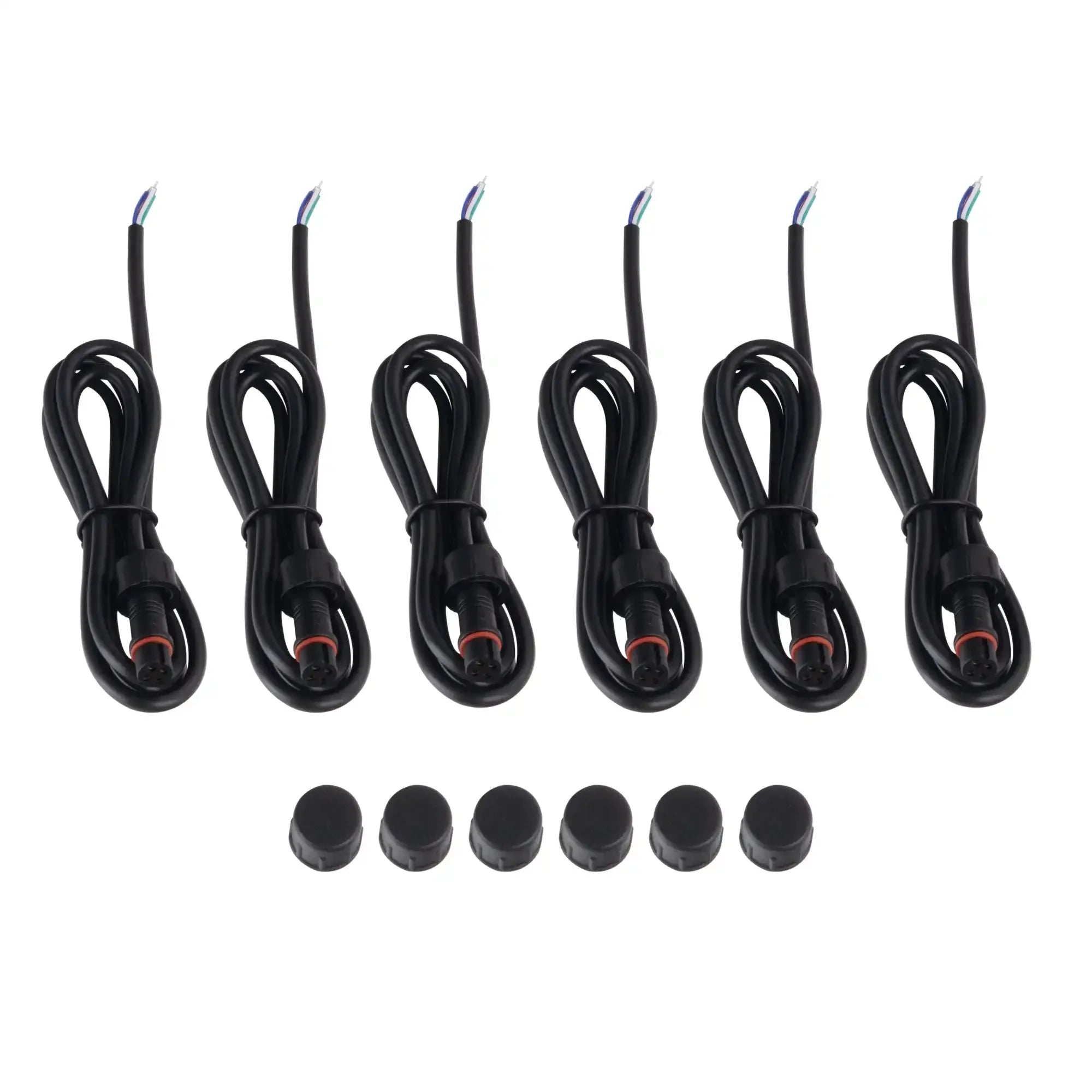

- (6) Accessory output plugs with waterproof connections
- (6) Waterproof end caps for unused output plugs
- (1) Inline fuse for circuit protection
Frequently Asked Questions
How do I control the lights?
Primarily through the free ColorSHIFT PRO smartphone app over Bluetooth, with control of colors, patterns, brightness, animation speed, and a sound-reactive mode. An RF wireless remote is also included as a backup.
How many lights can I connect?
Up to six ColorSHIFT LED products across its six waterproof outputs, with a 10A total current limit.
Can it be mounted outside the cabin?
Yes. Its IP67 weatherproof rating means it can be mounted inside or outside the vehicle.
Is it hard to install?
No. It uses pre-installed ring terminals for power and ground, connects to the battery, and includes an inline fuse for circuit protection.
What warranty does it carry?
The BC2 controller is backed by a 2-year warranty.
