The ORACLE GOBO LED Replacement is a single replacement LED for the ORACLE GOBO Door Projectors. It includes one LED with heat shrink and installs quickly into your existing GOBO housing to restore a bright, crisp projected image.
Key Features
- Direct replacement LED for ORACLE GOBO Door Projectors
- Includes (1) LED with heat shrink
- Simple screw-in replacement into the existing GOBO housing
- Wires to any 12V source (red positive, black negative)
- ORACLE Part # 3381-504
Fitment & Compatibility

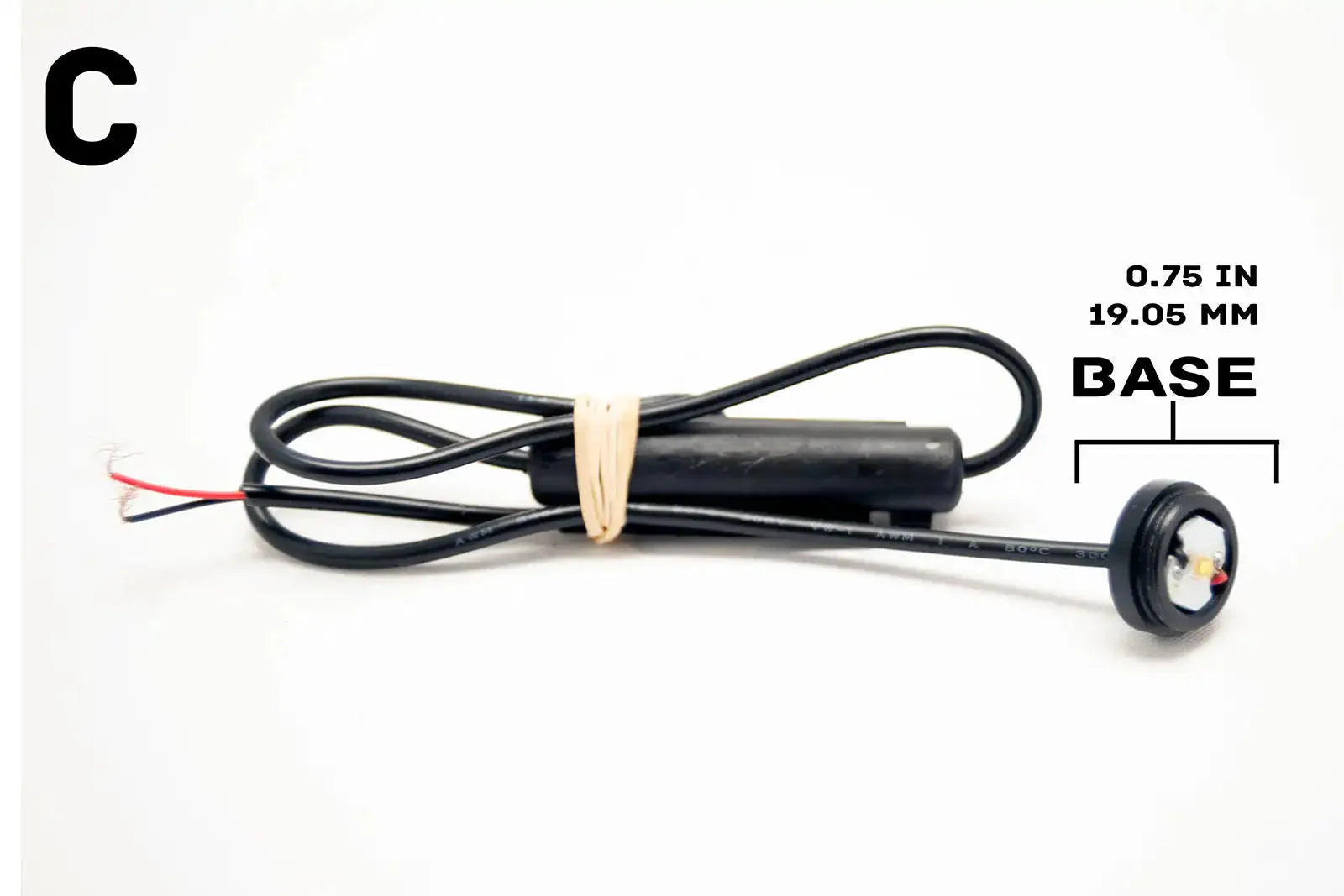

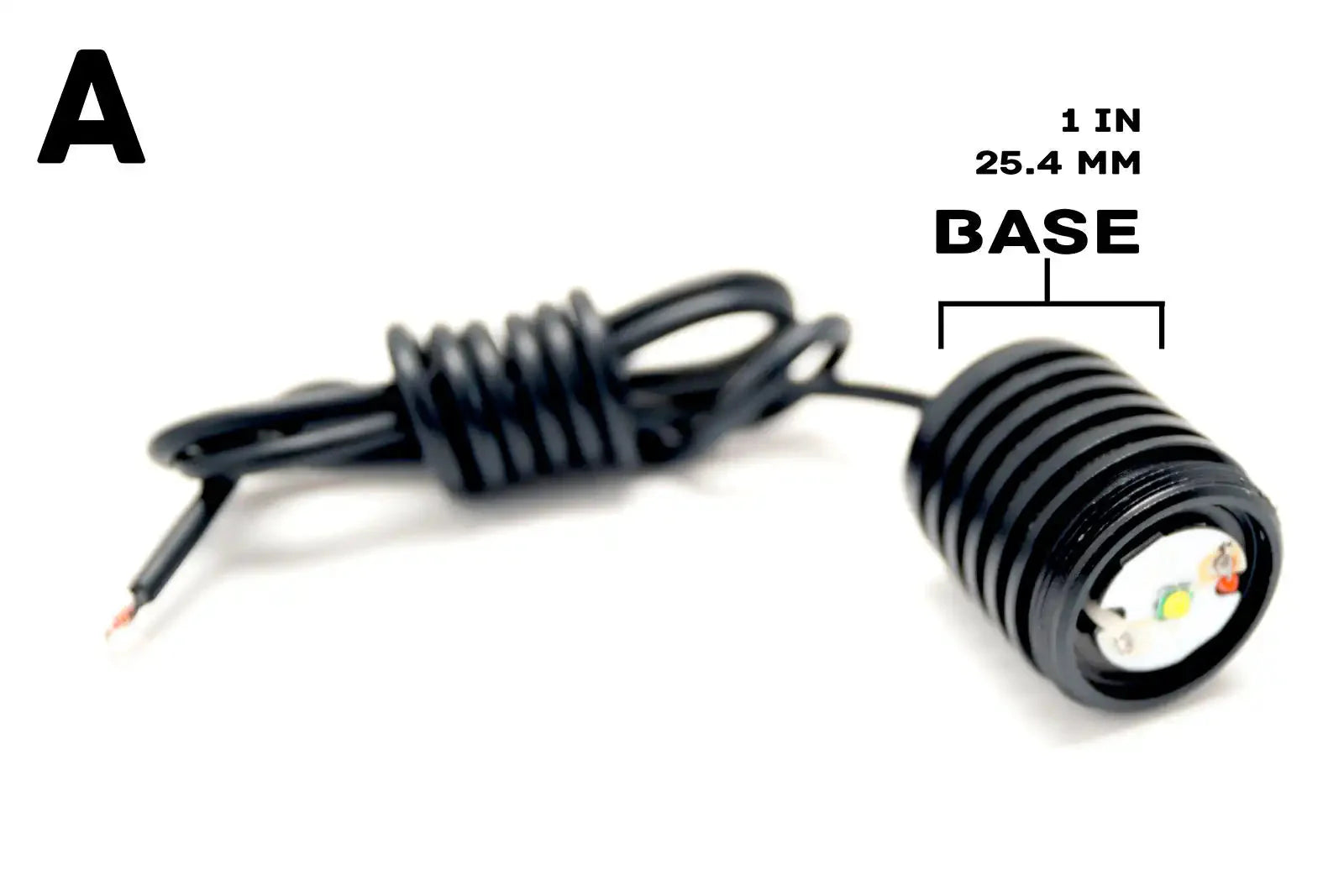

For use with ORACLE GOBO Door Projectors. Choose the GOBO lens size that matches the projector originally supplied to you: A (1 inch), B (0.825 inch), or C (0.75 inch). Inspect the photos and select the correct size for warranty purposes.
Specifications
| Specification | Detail |
|---|---|
| Part # | 3381-504 |
| Type | Replacement LED (single) with heat shrink |
| Size Options | A - 1 inch / B - 0.825 inch / C - 0.75 inch |
| Wiring | Red (+) and black (-) to any 12V source |
| Application | ORACLE GOBO Door Projectors |
What's in the Box
- (1) ORACLE GOBO Replacement LED with heat shrink
Frequently Asked Questions
Which size should I order?
Select the size that matches the GOBO originally supplied with your projector: A (1 inch), B (0.825 inch), or C (0.75 inch). Inspect the photos to confirm.
How do I install it?
Unscrew the bottom from the lens on your GOBO, carefully keeping all internal parts, then replace the bottom with the new projector LED. Align and tighten everything, then test by connecting the red wire to a 12V positive source and the black wire to negative.
How many LEDs are included?
This listing includes one LED with heat shrink.
Where does it power from?
It connects to any 12V source, with the red wire on positive and black on negative.
