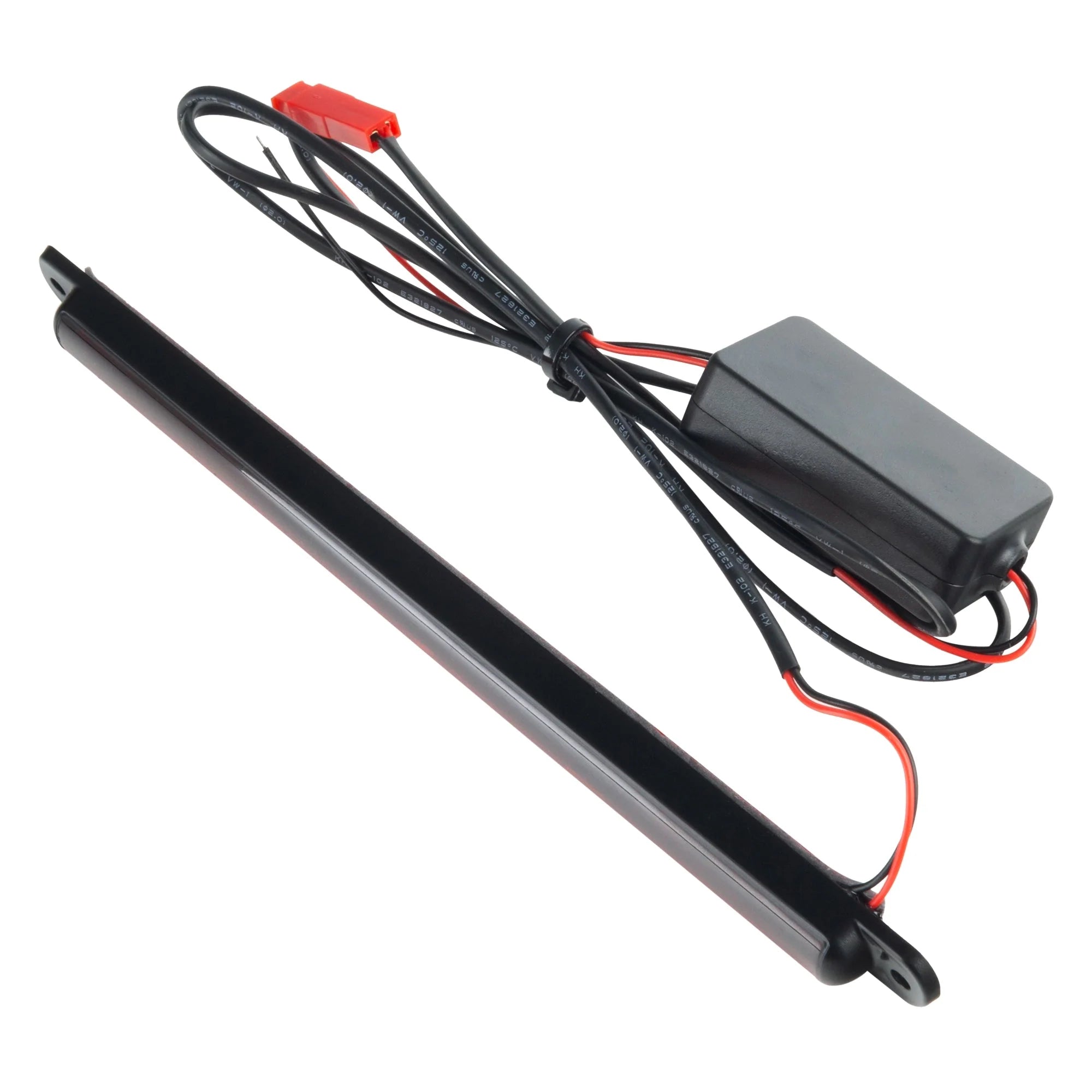

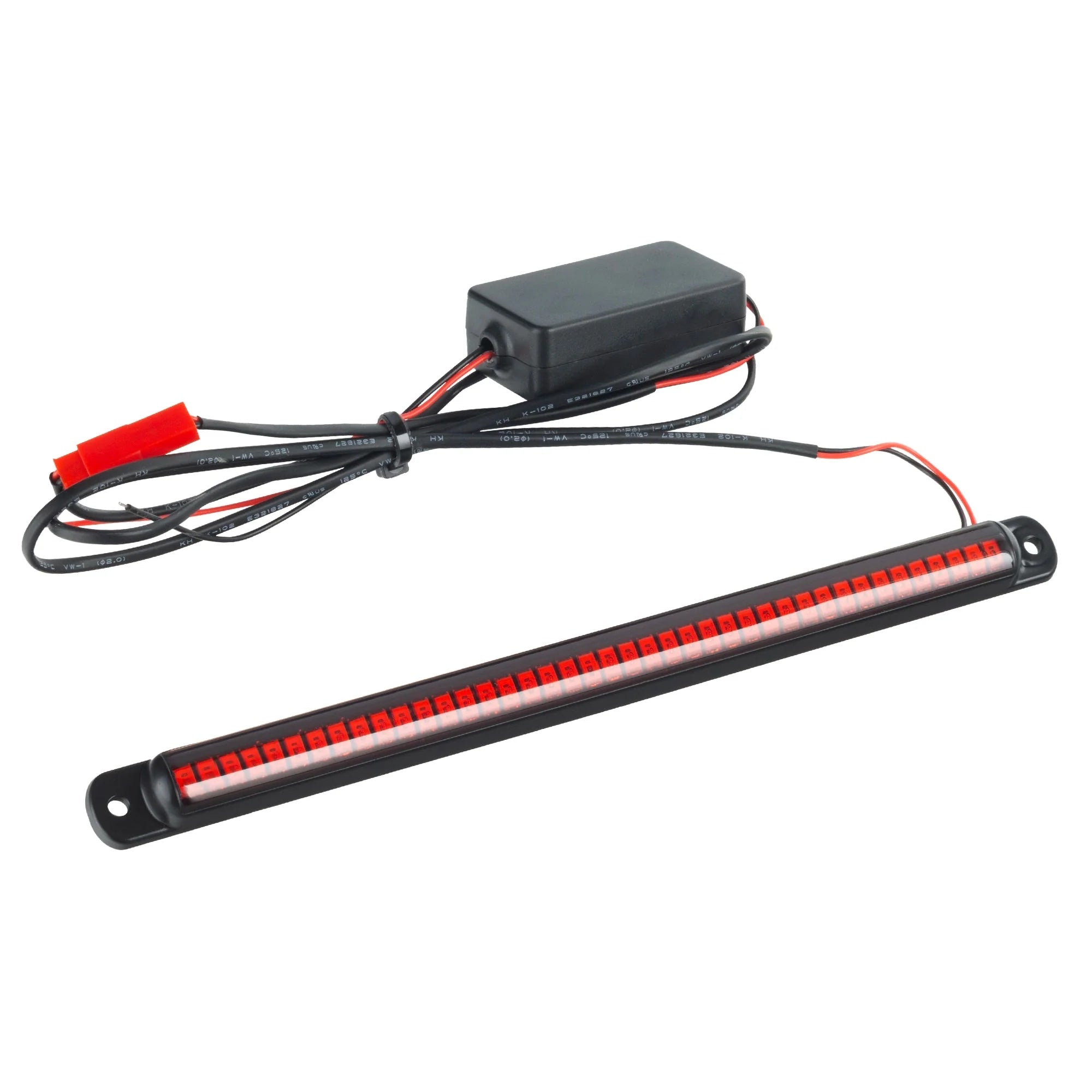

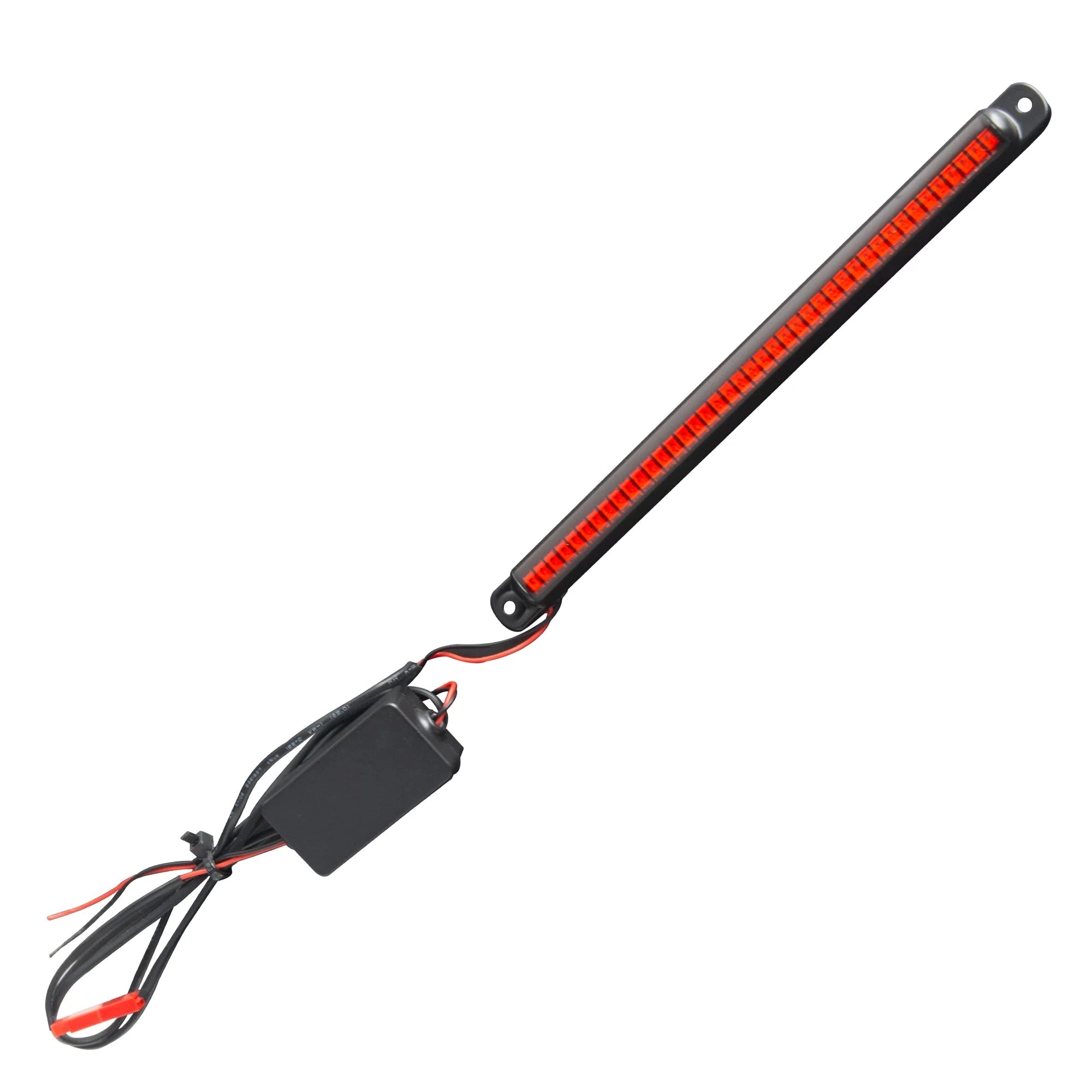

Linear Universal LED 3rd Brake Light (CHMSL) Module - Red

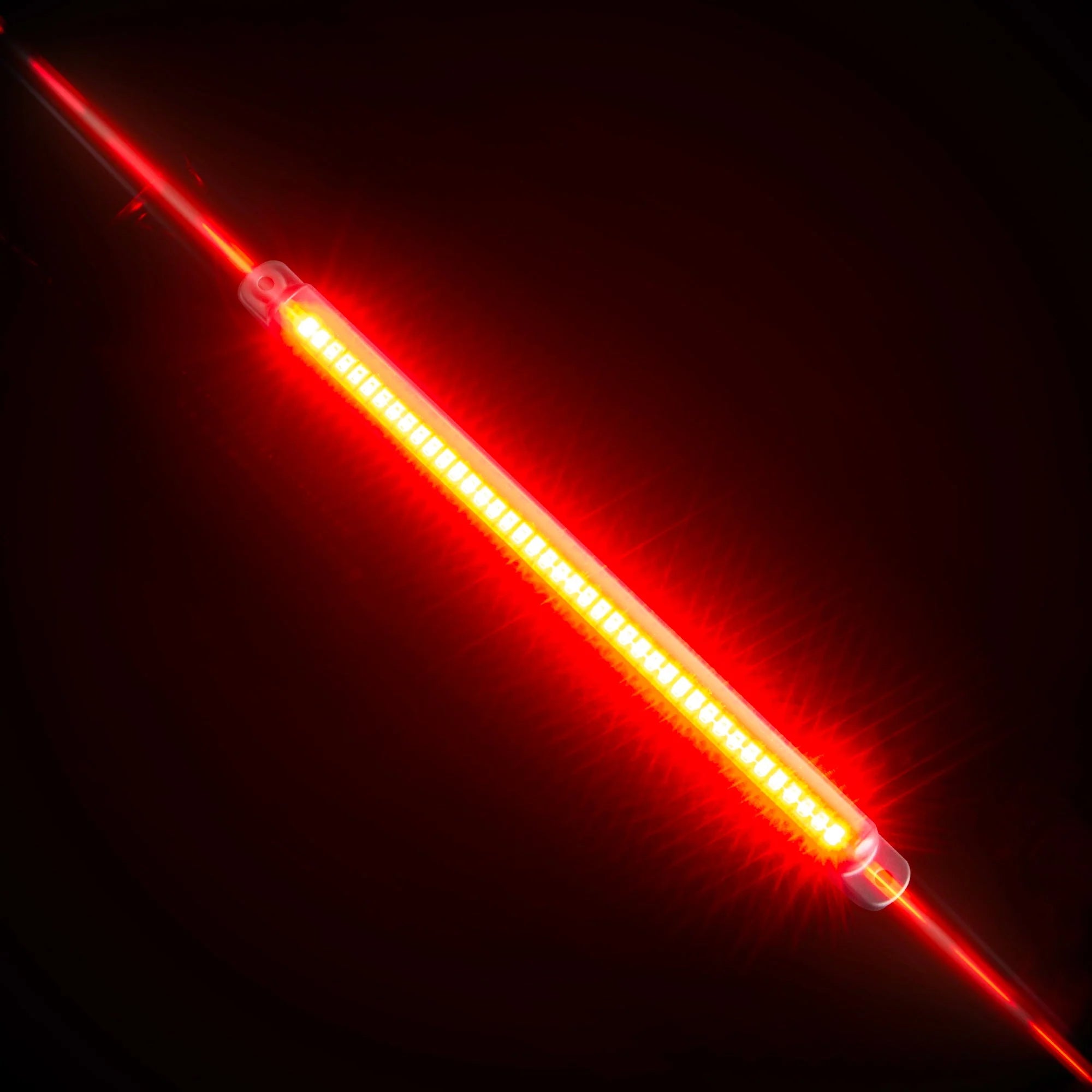

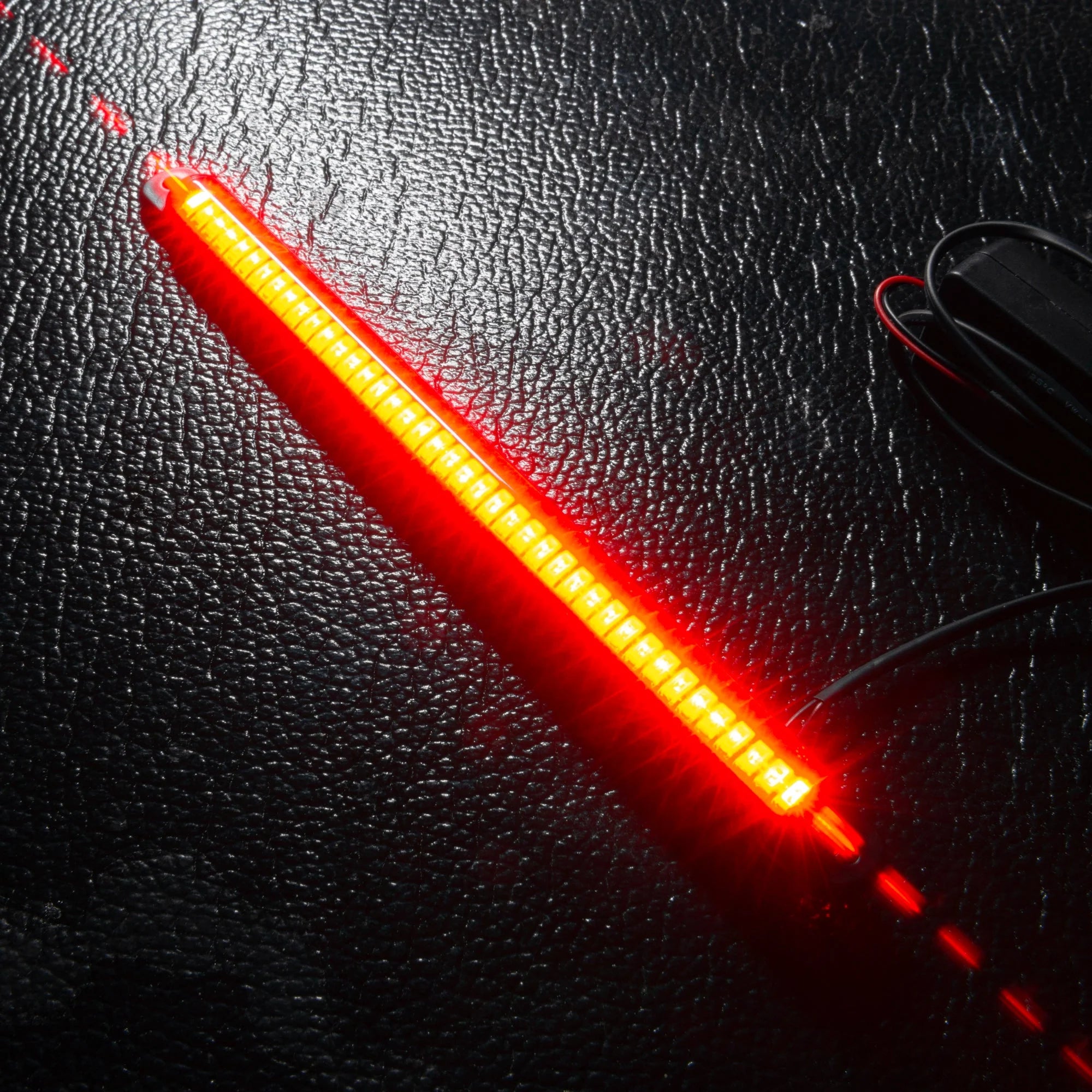

The ORACLE Linear Universal LED 3rd Brake Light (CHMSL) Module in Red is a compact, high-output LED light bar for third brake light, marker, clearance, and accent applications. Its slim 7-inch profile fits tight mounting locations, while an IP68-sealed housing and UV-stable red-tinted acrylic lens deliver vivid, consistent red output that stands up to harsh outdoor environments, including full submersion.
Key Features
- IP68-rated sealed housing, dustproof and fully waterproof
- UV-stable red-tinted acrylic lens for long-lasting color accuracy
- 12-24V compatible for automotive and commercial vehicle systems
- Dual mounting: screw tabs or included VHB adhesive tape
- Slim 7-inch linear profile fits tight mounting locations
- Vibration-resistant construction for trucks and trailers
- Low 0.15A current draw for minimal electrical load
Fitment & Compatibility

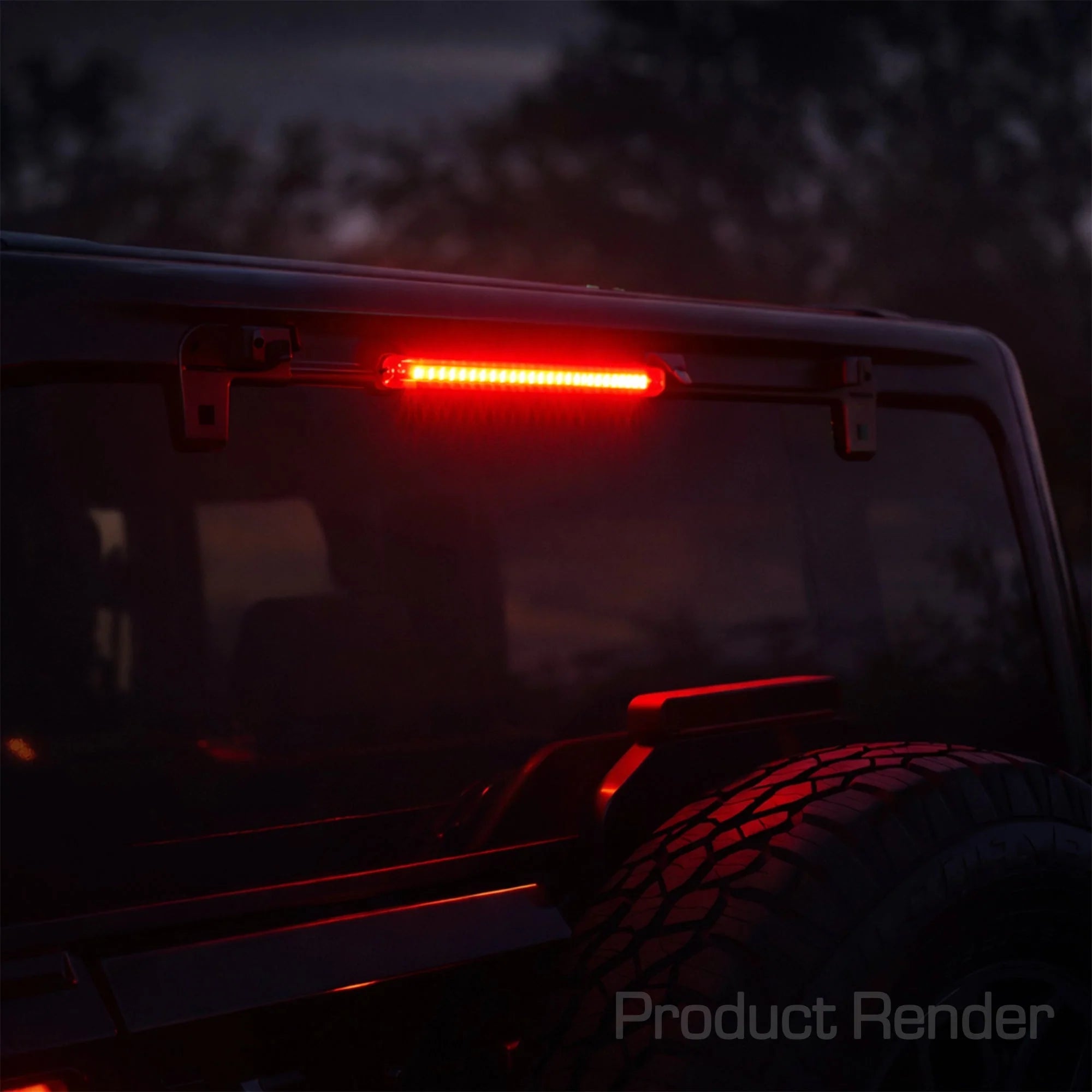

Universal fit with no vehicle-specific brackets or adapters required. Ideal for third brake light (CHMSL) replacement or supplement, marker and clearance lighting on trucks and commercial vehicles, trailer and utility trailer lighting, interior accent, and cargo area lighting. Dual mounting options accommodate most surfaces and configurations.
Specifications
| Specification | Detail |
|---|---|
| ORACLE Part # | 4514-003 |
| Color | Red |
| Length | 7 inches |
| Wattage | 6W |
| Current Draw | 0.15A |
| Voltage | 12-24V DC |
| IP Rating | IP68 (dustproof & waterproof) |
| Lens Material | UV-stable red-tinted acrylic |
| Mounting | Screw tabs or VHB tape |
| Warranty | 2 Years |
What's in the Box
- (1) ORACLE Linear Universal LED 3rd Brake Light (CHMSL) Module - Red
- Mounting hardware (screw tabs)

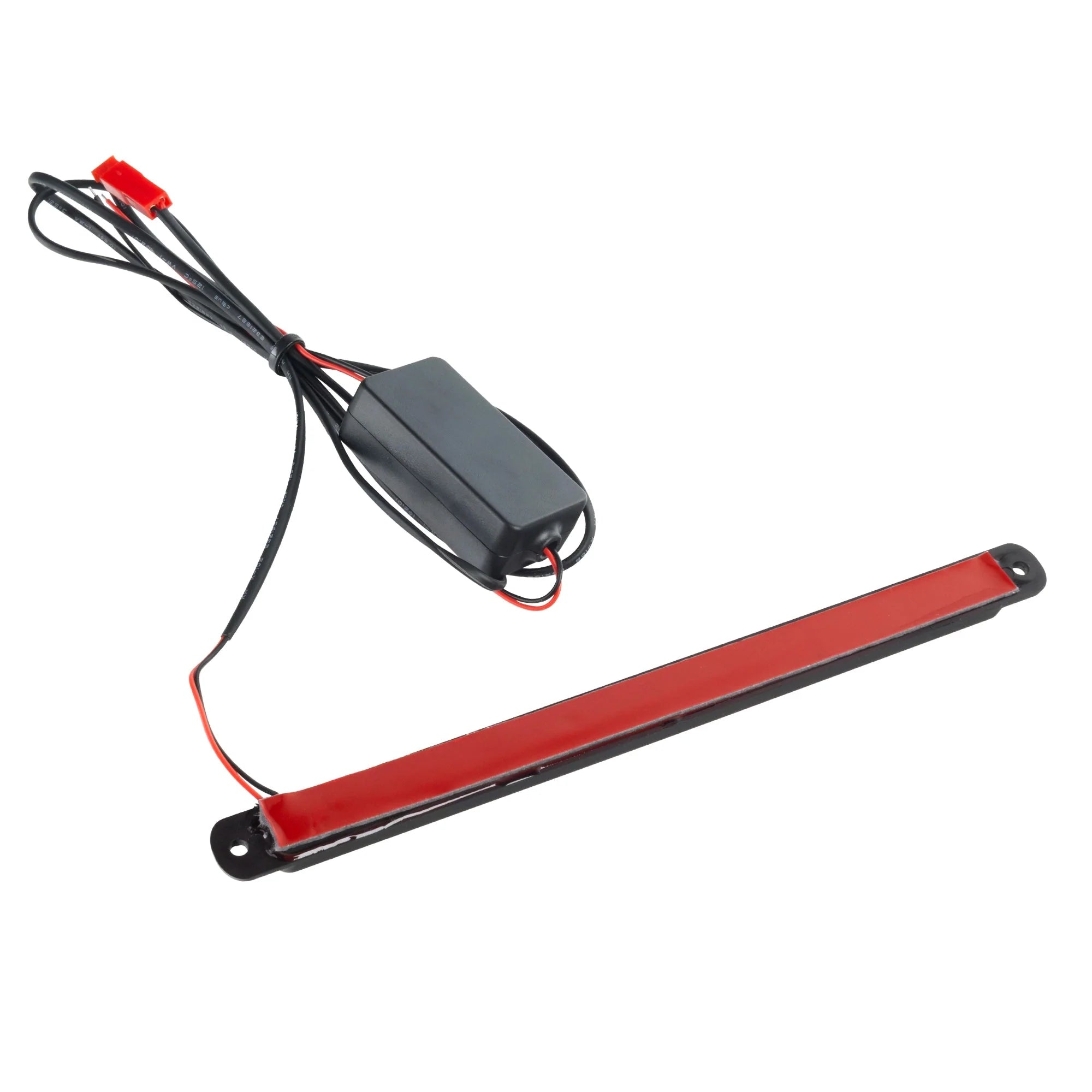

- VHB adhesive tape (pre-applied)
- Power connector
Frequently Asked Questions
What can I use this module for?
It works as a third brake light (CHMSL) replacement or supplement, plus marker, clearance, trailer, interior accent, and cargo lighting. Its universal design needs no vehicle-specific brackets.
How does it mount?
You can choose screw tabs for a permanent mount or the pre-applied VHB adhesive tape for a clean, no-drill install. Connect the power leads to a 12-24V brake light circuit and verify polarity before final connection.
Is it truly waterproof?
Yes. The IP68-rated sealed housing is dustproof and fully waterproof, rated to withstand full submersion and harsh outdoor conditions.
What warranty is included?
The module carries a 2-year limited warranty against defects in materials and workmanship.
