Form Lighting Toyota 4Runner (14-24) Sequential LED Projector Headlights
Warranty Information
Vendor warranty summary
Form Lighting Warranty
At a glance: 2-year limited warranty on every Form Lighting product against manufacturing defects and functional failure, plus free lifetime tech support
This is Form Lighting's policy, not an NVMOS policy. We've summarized Form Lighting's published warranty in plain English. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 15, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| All Form Lighting headlights, tail lights, fog lights and accessories: manufacturing defects or functional failure | 2 years from purchase |
| Product support and troubleshooting, including after the warranty runs out | Free, for life |
| Moisture beyond normal condensation (running droplets or puddling) | Covered at Form's determination |
| Consumable parts such as incandescent bulbs | Not covered |
What's covered
- Manufacturing defects and functional failures for 2 years: Form replaces the product, or a comparable one if it has been discontinued
- Single-component problems: Form may replace just the part needed to restore function
- Coating damage that shows up within the warranty and traces to a manufacturing defect
- Form pays to ship the replacement to US customers, and usually doesn't need the old part back
What's not covered
- Normal condensation on the lens, which clears as the lamp warms up
- Surface finishes worn out by normal use
- Installation labor or time spent swapping a warranty part
- Improper installation or use, abuse beyond normal wear, or any opening, rewiring or modification of the lamp
- Purchases from unauthorized sellers. The warranty is non-transferable
How to make a Form Lighting claim
- Contact Form Lighting before you take the lamp to a shop; they'll diagnose the problem with you first
- If Form confirms a defect, they issue an RMA number. Nothing goes back without one
- For moisture claims, include photos that show how much water is inside the lamp
- If Form does ask for a return, you pay the return shipping
Form Lighting contact: Phone: (636) 748-4444 · Email: contact@formlights.com · Monday to Friday, 10 AM to 5 PM Central · St. Charles, Missouri
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Form Lighting, and help it along either way.
Shop Form Lighting at NVMOS
Form Lighting Toyota Tundra (22-26) Sequential LED Projector Headlights
Form Lighting Ford Bronco (21-26) LED Tail Lights
Form Lighting Toyota Tundra (22-26) LED Tail Lights
See all Form Lighting products, lead times and FAQs →
Disclaimer: The information on this page describes Form Lighting's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Form Lighting warranty information. Last updated on nvmos.com: October 15, 2026. See our return policy for NVMOS's own terms.
About the brand
Form Lighting makes full-LED replacement headlights, tail lights and fog lights for popular trucks and SUVs, with modern touches like sequential turn signals, startup animations and multi-projector optics. NVMOS carries Form for the Toyota Tundra, Tacoma, 4Runner and Sequoia, Ford Bronco and Maverick, Jeep Wrangler JL and Gladiator, Ram, GMC Sierra and Chevy Silverado: plug-and-play, street legal, and priced below most premium housings.
Based in: St. Charles, Missouri · Founded: 2022 · Family: Shares HQ and warranty program with Diode Dynamics · Assembled: IATF 16949-certified facility · Lead time: In-stock lamps usually leave Form the same business day; ask us about any item
Shop all 66 Form LightingWarrantyAll brands
Warranty terms are set by Form Lighting, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.
Form Lighting Sequential LED Projector Headlights — Toyota 4Runner (2014–2024)

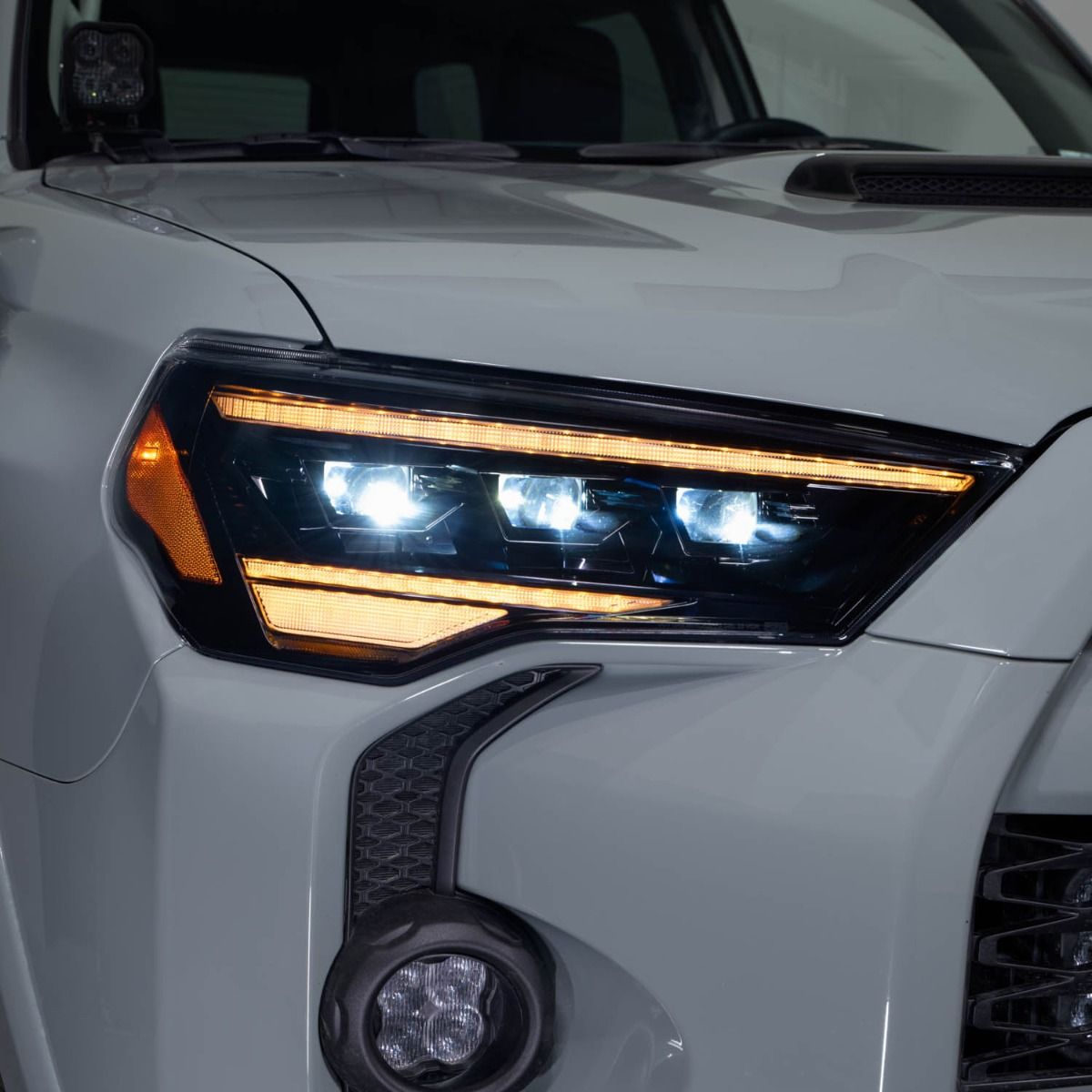

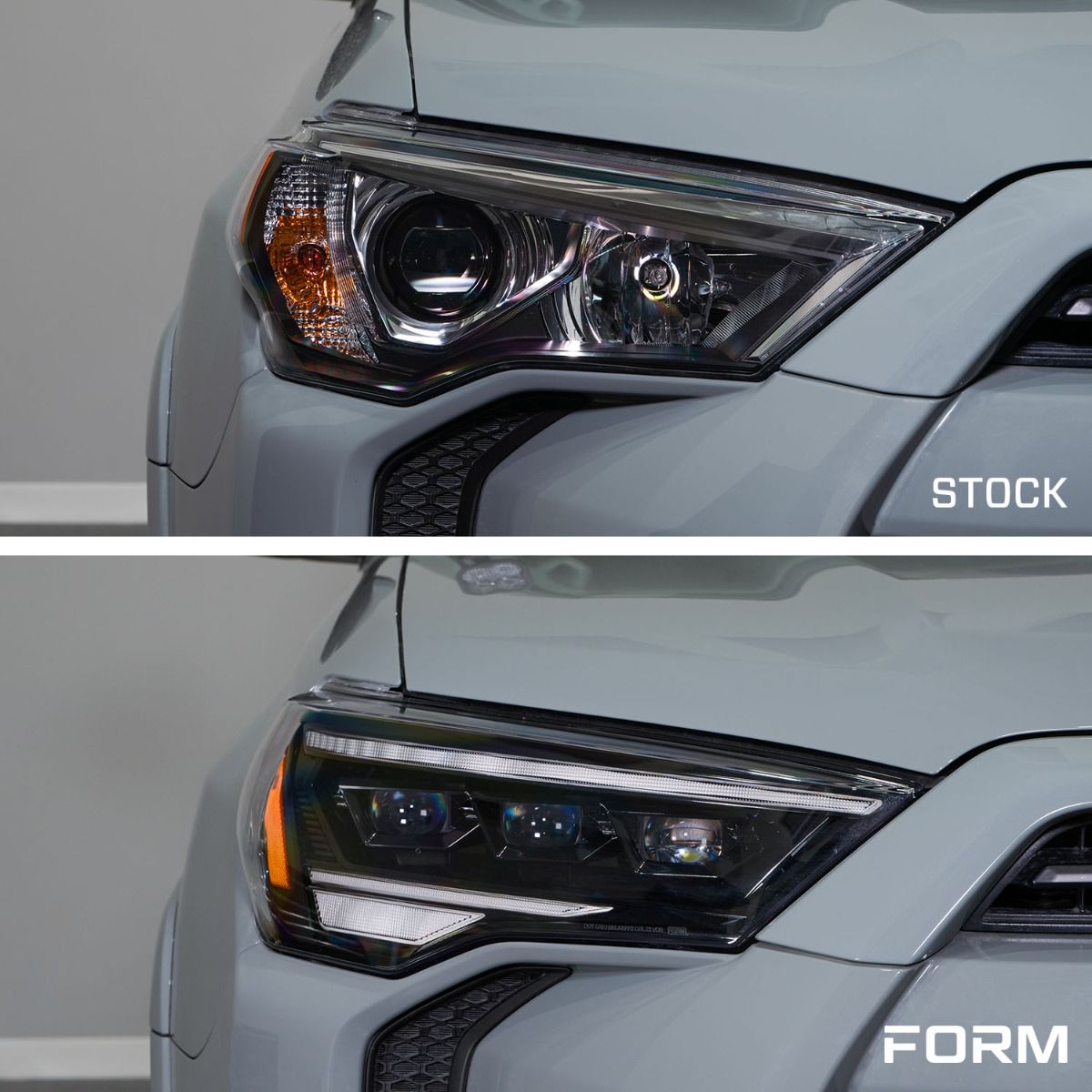

The stock 4Runner headlamp is a chrome reflector with a single projector. This replaces it with three: two bi-LED projectors for low and high beam, plus a third that adds light when the high beams are on. The housings are blacked out, the lenses are UV-coated polycarbonate, and the assembly is IP67 rated.

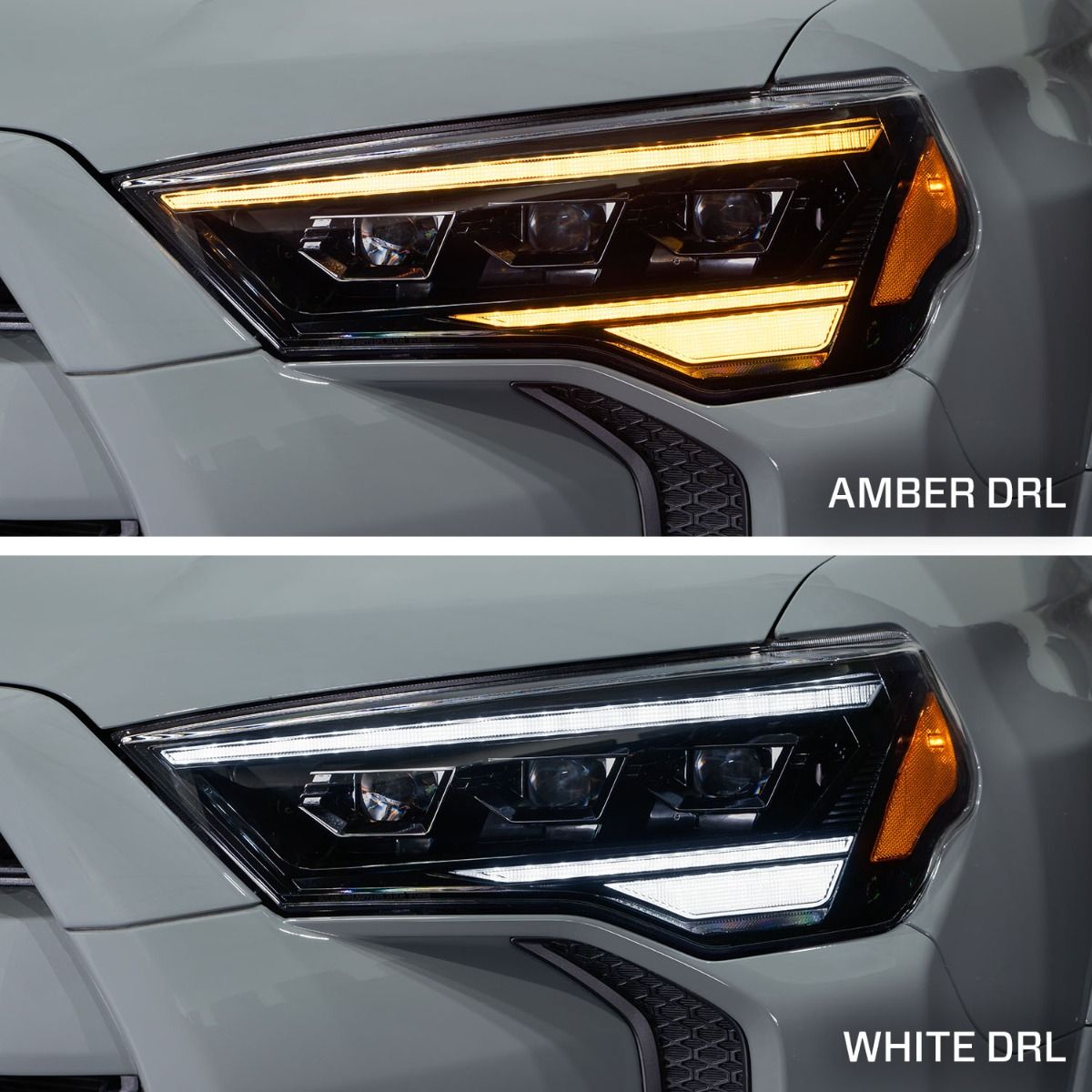

At startup the running lights play a two-stage chasing sequence, then hold in cool white or amber, your call. Turn signals chase from the inside of the lamp outward. Adapters are in the box for 4Runners without factory daytime running lights, and everything plugs into the factory connector.
| Spec | Detail |
|---|---|
| Optics | Three projectors per headlight: two bi-LED (low/high), one high-beam supplement |
| Functions | Low beam, high beam, DRL, sequential turn signal, startup sequence |
| DRL | Selectable cool white or amber |
| Turn signal | Sequential amber, inside to outside, returns to DRL |

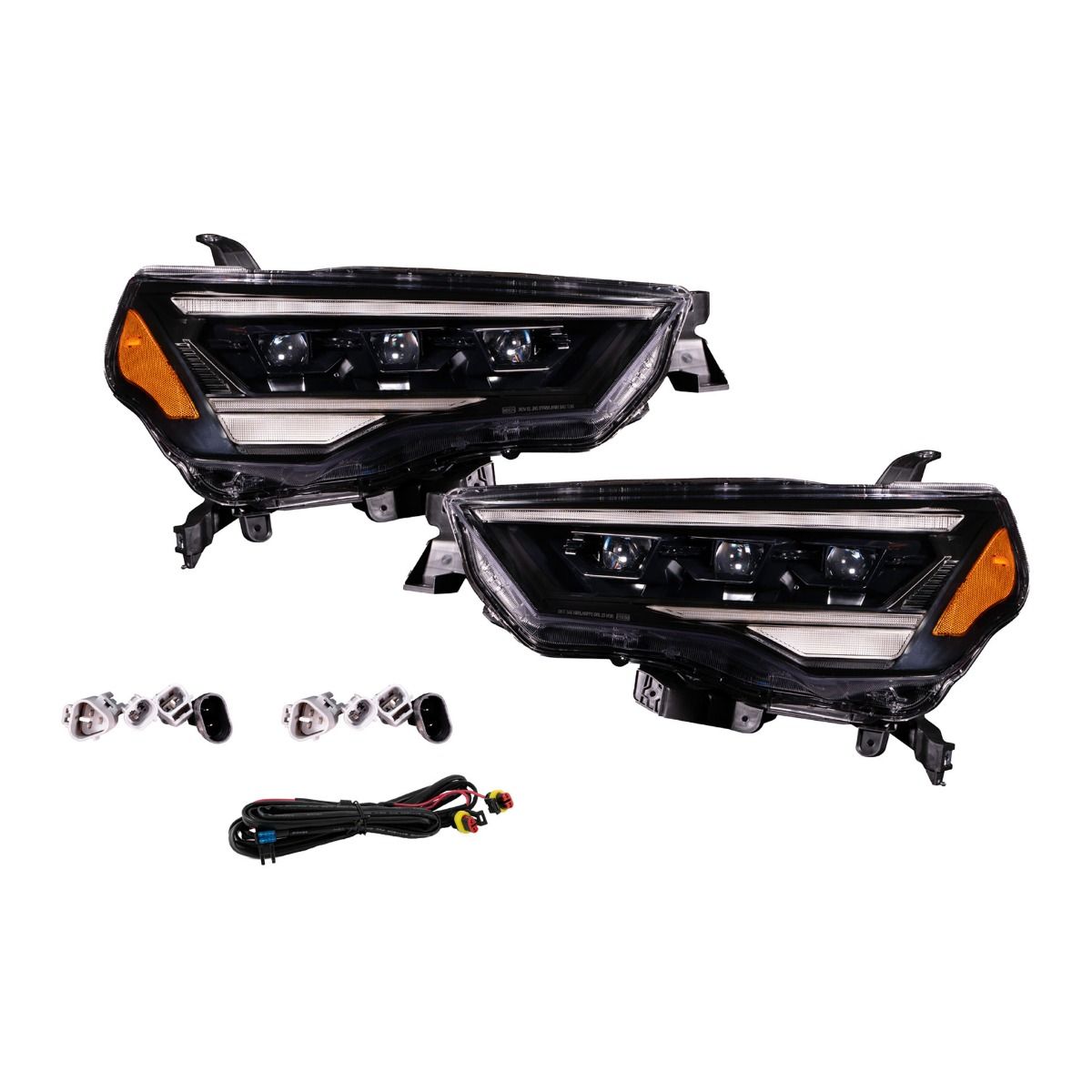

| Install | Plug-and-play into the factory connector; 1–2 hours, basic tools, no modification; non-DTRL adapters included |
| Compliance | Meets SAE, DOT, FMVSS and CMVSS standards for on-road use in the US and Canada when installed and aimed properly |
| Assembly | Assembled in an IATF 16949-certified facility |
| Warranty | 2 years, US-based support, replacement parts ship from a US warehouse |

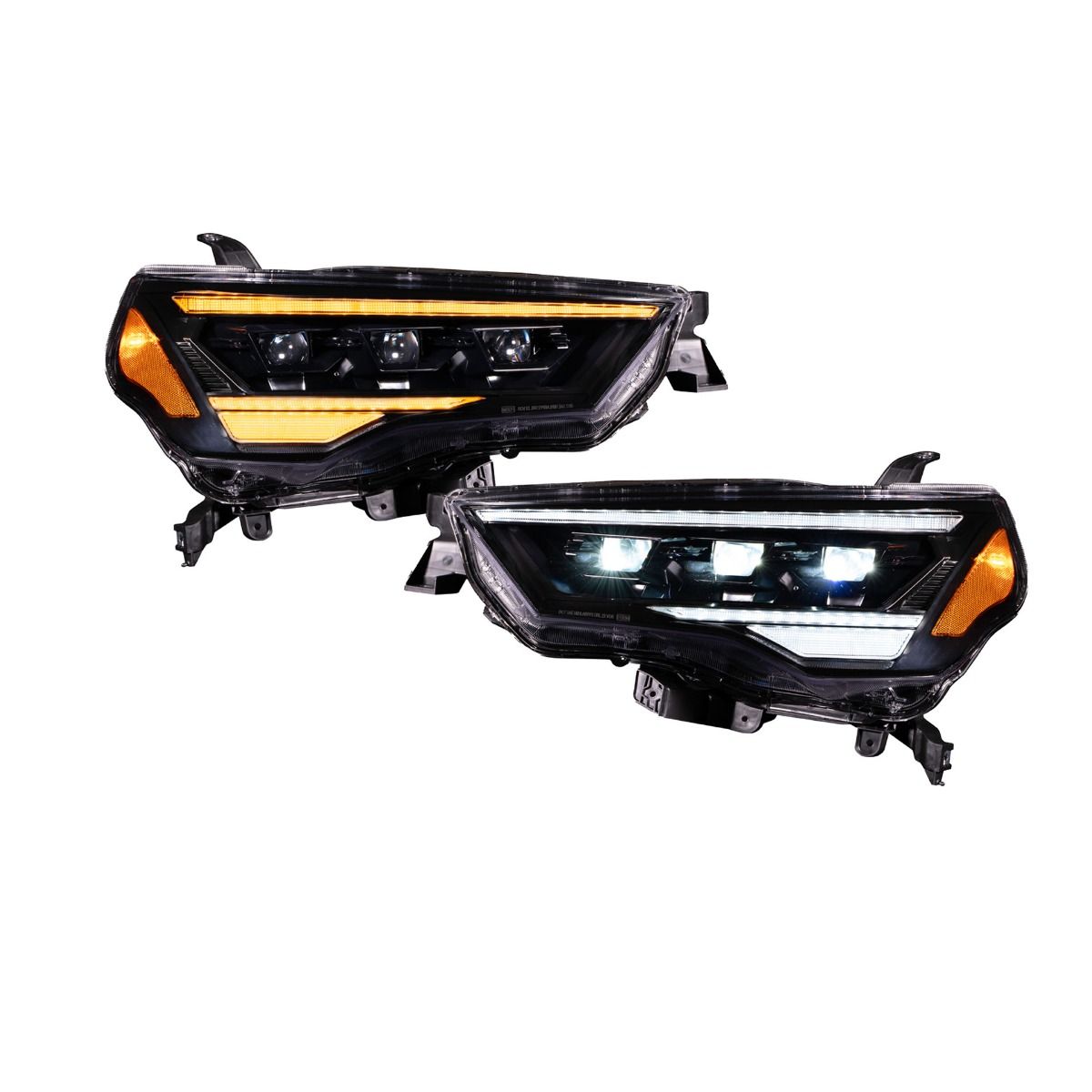

| Fitment | Toyota 4Runner 2014–2024; sold as a left/right pair |
| Part number | FL0017 |
Will these work if my 4Runner has no factory DRL?
Yes. Form includes adapters that power the running lights on trucks without factory daytime running lights.
What do they replace?
The factory chrome-reflector headlamp with its single projector. These swap in three projectors per side and a blacked-out housing.
Are these street legal?
Form Lighting states they meet SAE, DOT, FMVSS and CMVSS standards for on-road use in the US and Canada, as long as they are installed and aimed properly. Integrated screw-type adjusters handle the aiming.
How long does the install take?
Form puts it at 1–2 hours with a basic toolset and no modification. The lamps plug into the factory headlight connector.
What does the warranty cover?
Form Lighting backs them for two years, with US-based support and replacement parts shipped from a US warehouse. Form says a return is normally not required to process a claim.
Complete your Toyota 4Runner build
More parts that fit your Toyota 4Runner and pair well with this one — matched and ready to install.
$1,199.00
$1,649.00
$1,299.00
$169.00
$169.00
More for your Toyota 4Runner
Picked from the 1250 parts we carry for the Toyota 4Runner, matched to 2014–2024 model years. Check the years and trim in each title — or call us and we’ll confirm fit.
Specifications
Form Lighting Toyota 4Runner (14-24) Sequential LED Projector Headlights FAQs
Will these work if my 4Runner has no factory DRL?
Yes. Form includes adapters that power the running lights on trucks without factory daytime running lights.
What do they replace?
The factory chrome-reflector headlamp with its single projector. These swap in three projectors per side and a blacked-out housing.
Are these street legal?
Form Lighting states they meet SAE, DOT, FMVSS and CMVSS standards for on-road use in the US and Canada, as long as they are installed and aimed properly. Integrated screw-type adjusters handle the aiming.
How long does the install take?
Form puts it at 1–2 hours with a basic toolset and no modification. The lamps plug into the factory headlight connector.
What does the warranty cover?
Form Lighting backs them for two years, with US-based support and replacement parts shipped from a US warehouse. Form says a return is normally not required to process a claim.
