Coachbuilder Rear Driveline Spacer | .750" Thick for 10.5" Rear Axle | Fits Toyota Tundra 2007–2021 | Ekstrom Design
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
Coachbuilder by Ekstrom Design Warranty
At a glance: No-hassle limited lifetime warranty on Ekstrom-made parts; wear items excluded
This is Coachbuilder by Ekstrom Design's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Products made by Ekstrom Design (e.g., Coachbuilder shackle kits) | Limited lifetime |
| Wear items (leaf spring bushings, heim joints and boots, moving/pivoting parts) | Not covered |
| Third-party brands sold by Ekstrom (e.g., BORA wheel spacers) | Not covered by Ekstrom's warranty |
- Original purchaser only — coverage does not transfer if you sell it.
What's covered
- Defects in materials and workmanship on parts manufactured by Ekstrom Design and Fabrication Corporation
- Coverage lasts for the life of the product for the original buyer
What's not covered
- Leaf spring bushings
- Heim joints and heim joint boots
- Any moving or pivoting parts
- Products Ekstrom resells but does not make, such as BORA wheel spacers
How to make a Coachbuilder by Ekstrom Design warranty claim
- Contact Ekstrom Design by phone or email to describe the issue
- Follow their instructions for returning the part
Coachbuilder by Ekstrom Design contact: Phone: (801) 635-4872 · Email: ekstrom_design@yahoo.com · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Coachbuilder by Ekstrom Design, and help it along either way.
Shop Coachbuilder by Ekstrom Design at NVMOS
Coachbuilder Strut/Coilover Shim | .50" Front Lift | Fits Toyota Tacoma, 4Runner & FJ Cruiser 2005–2023 Including TRD Pro | Ekstrom Design
Coachbuilder Strut/Coilover Shim | .250" Front Lift | Fits Toyota Tacoma, 4Runner & FJ Cruiser 2005–2023 Including TRD Pro | Ekstrom Design
Coachbuilder Coilover Bolt Kit | Metric M10x1.50 for Eibach & Old Man Emu BP51 Coilovers | Fits Toyota Tacoma, 4Runner, FJ Cruiser 2005+ & Tundra 1999–2006 | Ekstrom Design
See all Coachbuilder by Ekstrom Design products, lead times and FAQs →
Disclaimer: The information on this page describes Coachbuilder by Ekstrom Design's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Coachbuilder by Ekstrom Design official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
Coachbuilder by Ekstrom Design
Coachbuilder is Ekstrom Design's Toyota-only line of billet aluminum suspension and driveline parts, built out of Salt Lake City, Utah. NVMOS carries Coachbuilder lift shackles, strut shims, steering kits, carrier bearing and diff drops, and bump stops for Tundra, Tacoma, 4Runner, FJ Cruiser and more. It's for Toyota owners fine-tuning a lift.
Based in: Salt Lake City, Utah · Founded: 1998 (Coachbuilder line since 2009) · Lead time: Brand ships in 1–2 business days
Shop all 43 Coachbuilder by Ekstrom DesignWarrantyAll brands
Warranty terms are set by Coachbuilder by Ekstrom Design, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

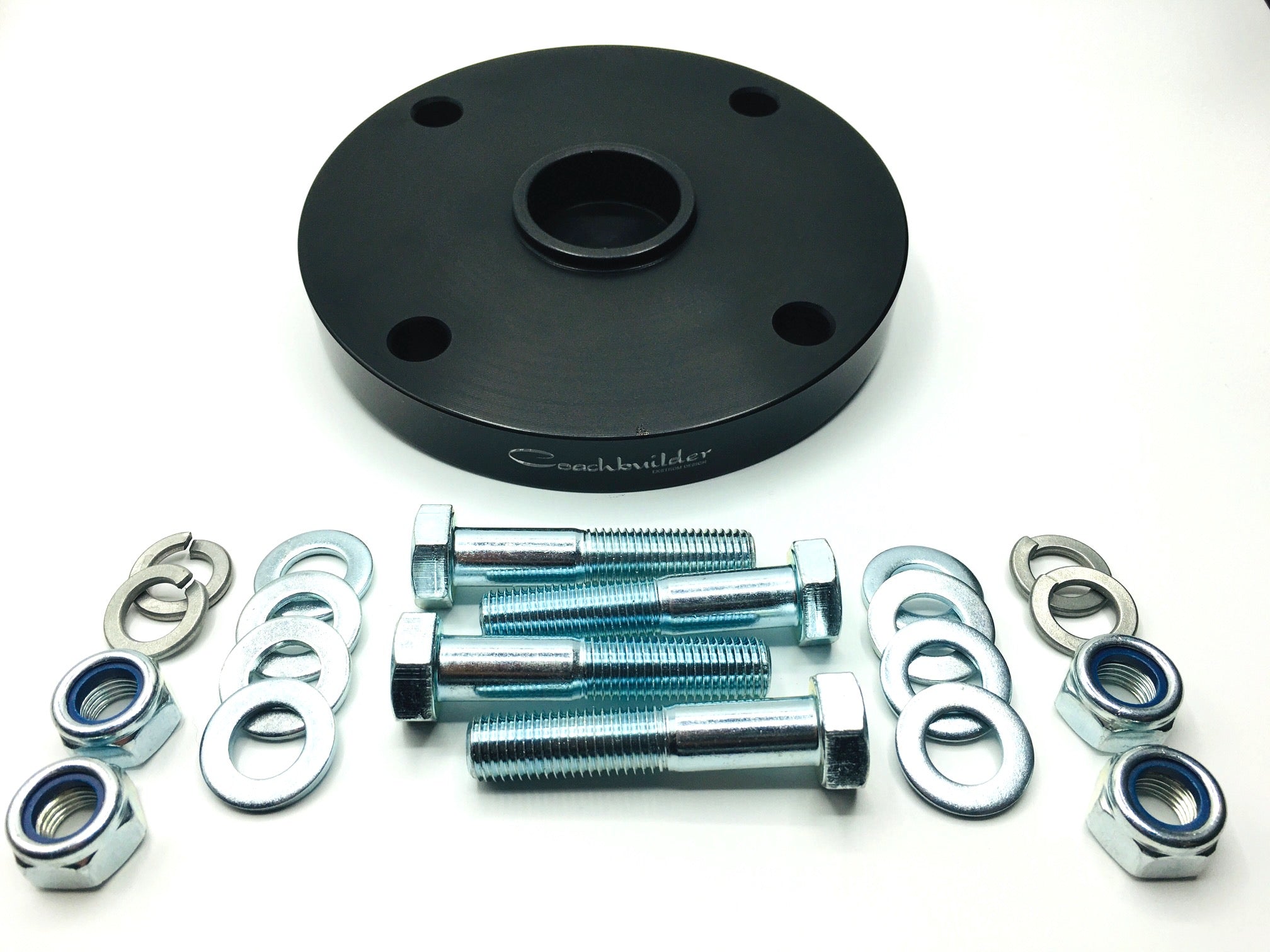

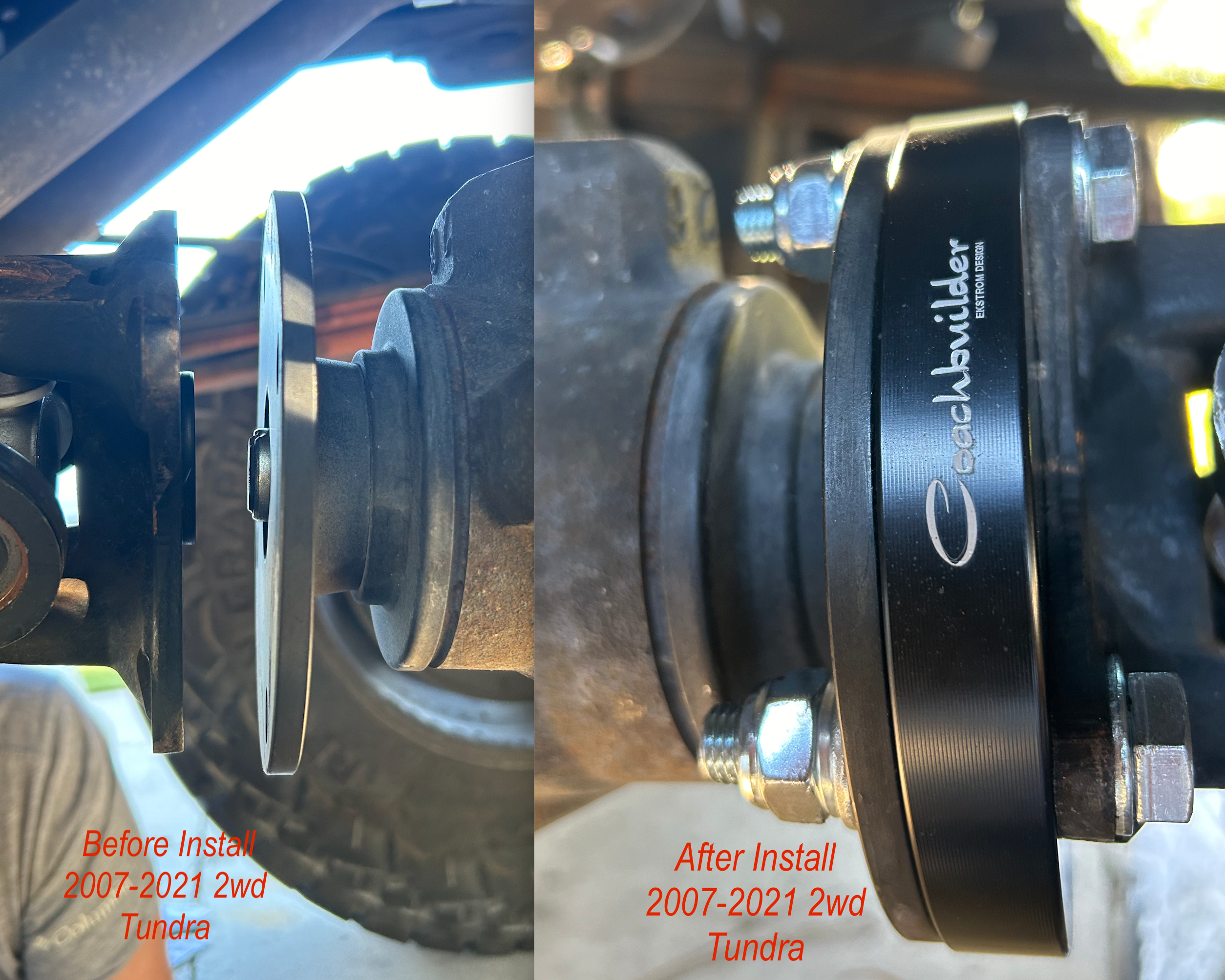

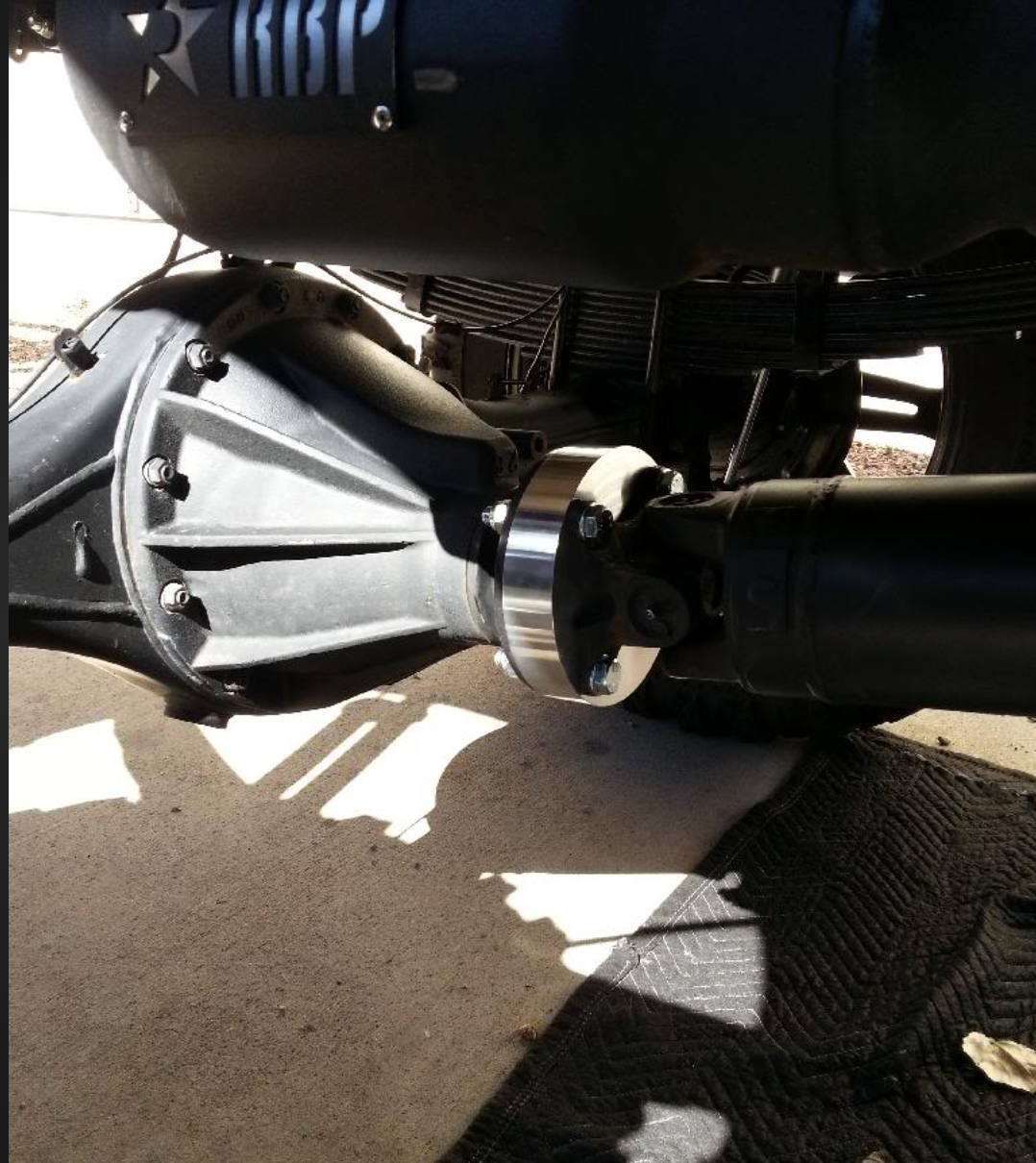

Rear lift stretches more than springs on a 2007–2021 Toyota Tundra. As the axle moves farther from the frame, the rear driveshaft draws outward in its slip yoke and spline engagement shrinks — a problem no carrier bearing kit can touch, because it's about length, not angle. This .750”-thick Coachbuilder Rear Driveline Spacer is the milder of the brand's two corrections: CNC machined from T6 6061 billet aluminum, it bolts between the 10.5” rear axle's flange and the driveline, pushing the driveshaft back into the spline and keeping it from pulling out of the slip yoke. Hardware comes in the box, and the hard black anodize finish is made for a life of mud and road salt.
Features
- .750” actual thickness — the moderate option in Coachbuilder's driveline spacer line

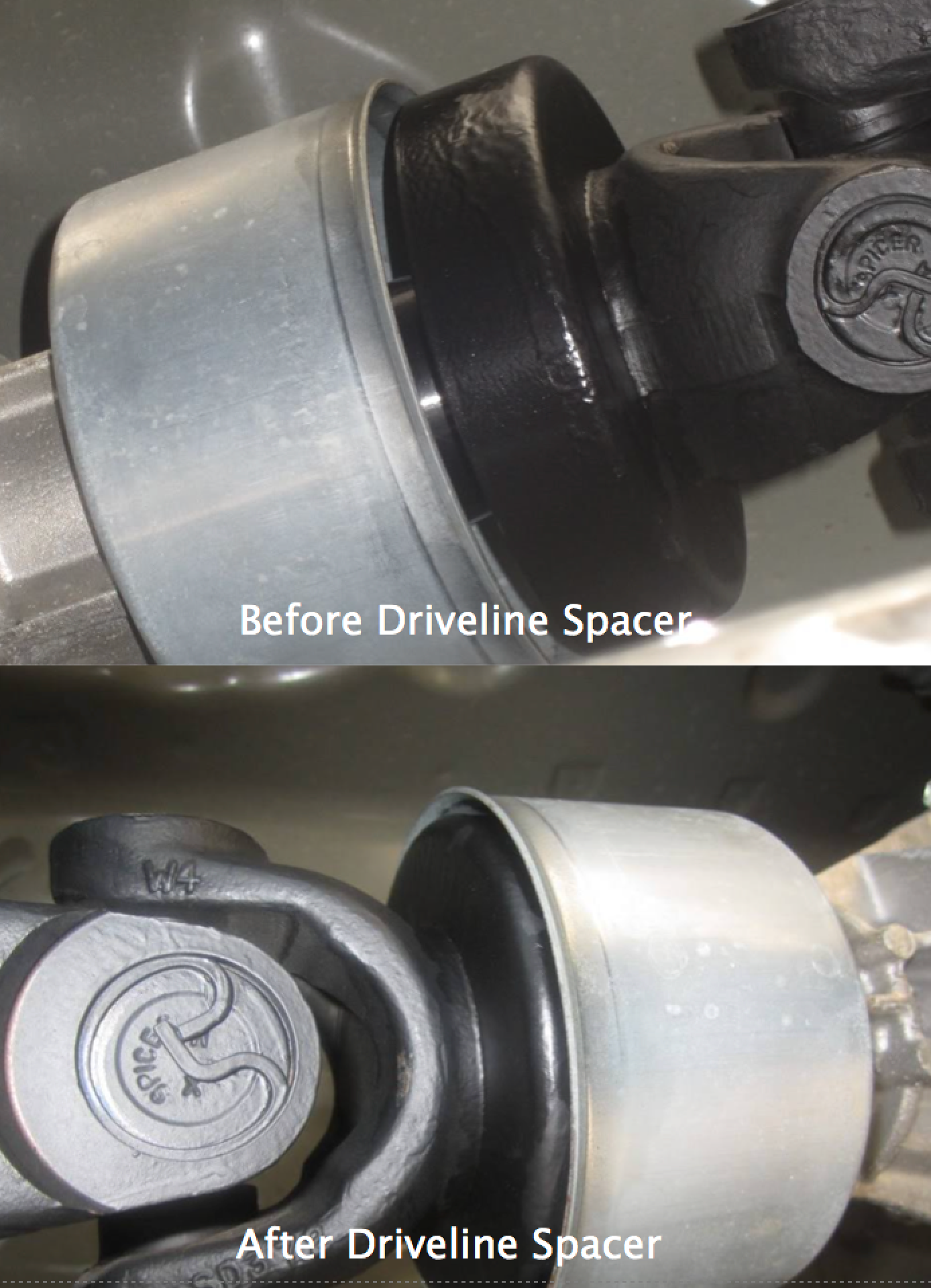

- Extends the rear driveline back into the slip yoke spline
- Eliminates the driveline pulling out of the slip yoke after lifting
- Engineered to fit perfectly between the axle flange and the driveline
- CNC machined from T6 6061 billet aluminum
- Hard black anodize finish; hardware included
- Fits the 10.5” rear axle on 2007–2021 Toyota Tundras — made in the USA
Handle the angle side of the same lift with a Carrier Bearing Drop Kit for 3”–4” rear lift, and if the lift itself came from shackles, see the +3” Shackle Kit. Need more length correction? The 1.25” Rear Driveline Spacer is the deeper version of this same part — both live in our driveline components collection.
Complete your Toyota Tundra build
More parts that fit your Toyota Tundra and pair well with this one — matched and ready to install.
$184.00
$416.90
$315.00
$184.00
$82.80
More for your Toyota Tundra
Picked from the 1493 parts we carry for the Toyota Tundra, matched to 2007–2021 model years. Check the years and trim in each title — or call us and we’ll confirm fit.
Specifications
Coachbuilder Rear Driveline Spacer | .750" Thick for 10.5" Rear Axle | Fits Toyota Tundra 2007–2021 | Ekstrom Design FAQs
What does a rear driveline spacer actually do?
It adds length back into the rear driveline. When you lift a 2007-2021 Tundra, the axle sits farther from the frame and the driveshaft draws outward in its slip yoke, reducing spline engagement. This .750" billet spacer bolts between the 10.5" axle flange and the driveline, extending the driveshaft back into the spline so it can't pull out of the slip yoke.
How is this different from the 1.25" version?
Thickness only — both spacers fit the 10.5" rear axle on 2007-2021 Tundras, mount between the axle flange and driveline, and include hardware. The .750" version restores a moderate amount of engagement, while the 1.25" version adds more length for taller setups. Check how far your slip yoke has drawn out before choosing, since Coachbuilder doesn't publish a lift-height chart.
Do I still need a carrier bearing drop kit if I run this spacer?
Often, yes — they solve different problems from the same lift. The spacer restores driveline length so the slip yoke stays engaged, while a carrier bearing drop kit lowers the center bearing to correct driveshaft angles and stop takeoff shudder. Match the carrier bearing kit to your rear lift height (0"-2", 3"-4", or 5"-6") and run both if your truck shows both symptoms.
