ReadyLIFT 3" SST Lift Kit - 2022-2026 Toyota Tundra Rear Air 2WD/4WD

The all-new 3" SST Lift for the 2022-2026 Tundra is exclusively for Tundra equipped with Load-Leveling Rear Height Control Air Suspension and Adaptive Variable Suspension (AVS). This new kit gives customers that level lift on all four corners of the air-equipped trucks. This new kit is the fast, reliable, and cost-effective way to bring the front of your vehicle level with the rear for that ideal lifted stance. Our front strut spacer eliminates the hassle, time, and concern of compressing springs while our rear airbag spacers allow the user to maintain the full range of use from the rear air system. Shock extensions, brake line spacers and brackets, and a slotted rear ride-height sensor bracket (for fine-tuning adjustments) are included in the kit.

3" SST Lift Kit Features and Benefits:

- 3" Lift allows for up to 35x12.50 tall tires when used on 18"x9" wide wheels with a +12mm offset

- Maintains full operation and range of OEM load-leveling system

- Retains factory turning radius

- Allows for use of stock 20" wheels

NOTE: Not for use on 2022+ Tundra TRD Pro w/ Bilstein coilover shocks, the TRD rear sway bar option. Kits only work with factory 20" wheels - will not work with factory 18" wheels. Most aftermarket wheels are compatible (confirm fitment prior to installation). ReadyLIFT's new Toyota Tundra High-Performance CV Axle (PN: 67-52420CV) kits are recommended on all lifted 22-UP Tundra's. Failure to use these axle shafts may lead to damage if used in 4WD not covered by the manufacturer. To make the TRD Pro skid plate work with this application, you will need the Skid Plate Drop Kit (PN: 67-52050).

Highlights

• 3" SST Lift Kit Features and Benefits:
• - 3" Lift allows for up to 35x12.50 tall tires when used on 18"x9" wide wheels with a +12mm offset
• - Maintains full operation and range of OEM load-leveling system
• - Retains factory turning radius
• - Allows for use of stock 20" wheels
• NOTE: Not for use on 2022+ Tundra TRD Pro w/ Bilstein coilover shocks, the TRD rear sway bar option. Only work with factory 20" wheels - will not work with factory 18" wheels. Most aftermarket wheels are compatible (confirm fitment prior to installation). ReadyLIFT's new Toyota Tundra High-Performance CV Axle (PN: 67-52420CV) kits are recommended on all lifted 22-UP Tundra's. Failure to use these axle shafts may lead to damage if used in 4WD not covered by the manufacturer. To make the TRD Pro skid plate work with this application, you will need the Skid Plate Drop Kit (PN: 67-52050).

Tire Fitment

35x12.50 tall tires when used on 18"x9" wide wheels with a +12mm offset

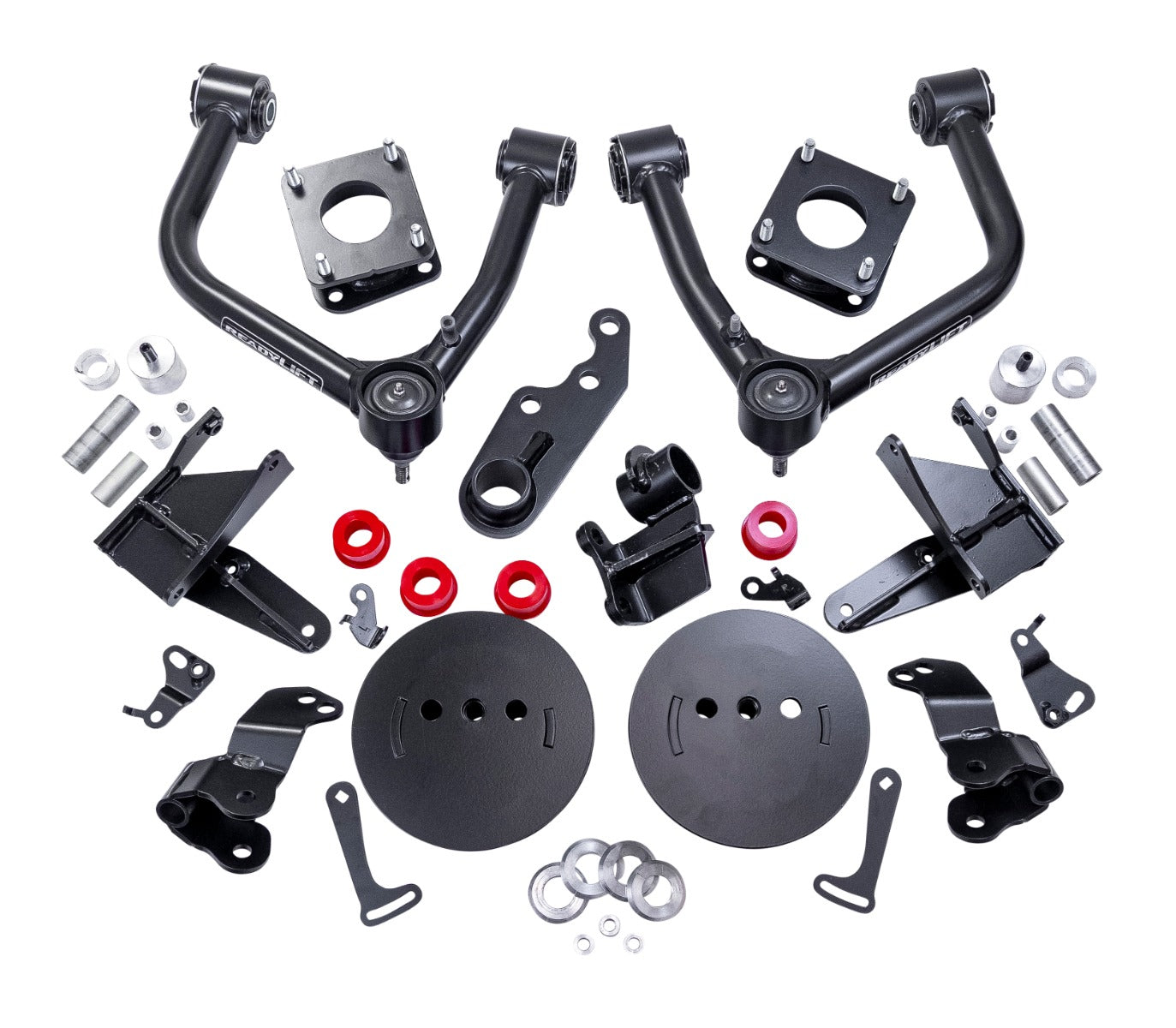

Kit Components

• Front Strut Spacer, Upper Control Arm Left Hand Side, Upper Control Arm Right Hand Side, Front Differential Drop Left Hand Side,
• Front Differential Drop Right Hand Side, Crush Sleeve, Differential Drop Polyurethane Bushing, End Link Spacers,
• Brake Line Relocation Bracket Left Hand Side, Brake Line Relocation Bracket Right Hand Side, Rear Brake Line Relocation Bracket,
• Left hand side Airbag Spacer, Right Hand Side Airbag Spacer, Left Hand Side Bump Stop Extension, Right hand Side Bump Stop Extension,
• Rear Shock Extensions, Rear Brake Line Spacers - Tall, Rear Brake Line Spacers - Short, Airbag Rideheight Sensor Brackets,
• Hardware Pack

Alignment and headlamp aim check recommended after installation.
