Form Lighting Ram 1500 Classic (19-24) Sequential LED Projector Headlights
Warranty Information
Vendor warranty summary
Form Lighting Warranty
At a glance: 2-year limited warranty on every Form Lighting product against manufacturing defects and functional failure, plus free lifetime tech support
This is Form Lighting's policy, not an NVMOS policy. We've summarized Form Lighting's published warranty in plain English. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 15, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| All Form Lighting headlights, tail lights, fog lights and accessories: manufacturing defects or functional failure | 2 years from purchase |
| Product support and troubleshooting, including after the warranty runs out | Free, for life |
| Moisture beyond normal condensation (running droplets or puddling) | Covered at Form's determination |
| Consumable parts such as incandescent bulbs | Not covered |
What's covered
- Manufacturing defects and functional failures for 2 years: Form replaces the product, or a comparable one if it has been discontinued
- Single-component problems: Form may replace just the part needed to restore function
- Coating damage that shows up within the warranty and traces to a manufacturing defect
- Form pays to ship the replacement to US customers, and usually doesn't need the old part back
What's not covered
- Normal condensation on the lens, which clears as the lamp warms up
- Surface finishes worn out by normal use
- Installation labor or time spent swapping a warranty part
- Improper installation or use, abuse beyond normal wear, or any opening, rewiring or modification of the lamp
- Purchases from unauthorized sellers. The warranty is non-transferable
How to make a Form Lighting claim
- Contact Form Lighting before you take the lamp to a shop; they'll diagnose the problem with you first
- If Form confirms a defect, they issue an RMA number. Nothing goes back without one
- For moisture claims, include photos that show how much water is inside the lamp
- If Form does ask for a return, you pay the return shipping
Form Lighting contact: Phone: (636) 748-4444 · Email: contact@formlights.com · Monday to Friday, 10 AM to 5 PM Central · St. Charles, Missouri
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Form Lighting, and help it along either way.
Shop Form Lighting at NVMOS
Form Lighting Toyota Tundra (22-26) Sequential LED Projector Headlights
Form Lighting Ford Bronco (21-26) LED Tail Lights
Form Lighting Toyota Tundra (22-26) LED Tail Lights
See all Form Lighting products, lead times and FAQs →
Disclaimer: The information on this page describes Form Lighting's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Form Lighting warranty information. Last updated on nvmos.com: October 15, 2026. See our return policy for NVMOS's own terms.
About the brand
Form Lighting makes full-LED replacement headlights, tail lights and fog lights for popular trucks and SUVs, with modern touches like sequential turn signals, startup animations and multi-projector optics. NVMOS carries Form for the Toyota Tundra, Tacoma, 4Runner and Sequoia, Ford Bronco and Maverick, Jeep Wrangler JL and Gladiator, Ram, GMC Sierra and Chevy Silverado: plug-and-play, street legal, and priced below most premium housings.
Based in: St. Charles, Missouri · Founded: 2022 · Family: Shares HQ and warranty program with Diode Dynamics · Assembled: IATF 16949-certified facility · Lead time: In-stock lamps usually leave Form the same business day; ask us about any item
Shop all 33 Form LightingWarrantyAll brands
Warranty terms are set by Form Lighting, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

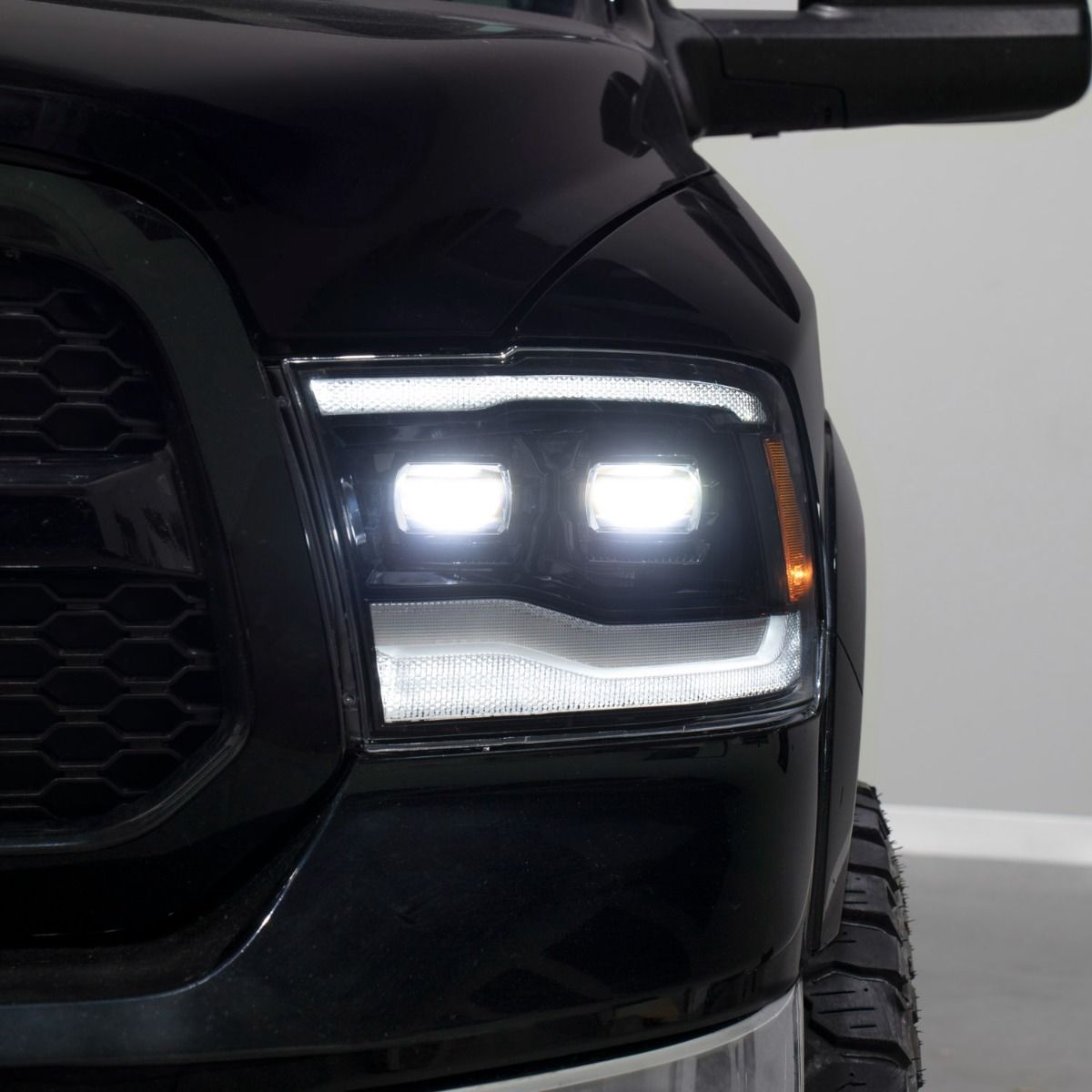

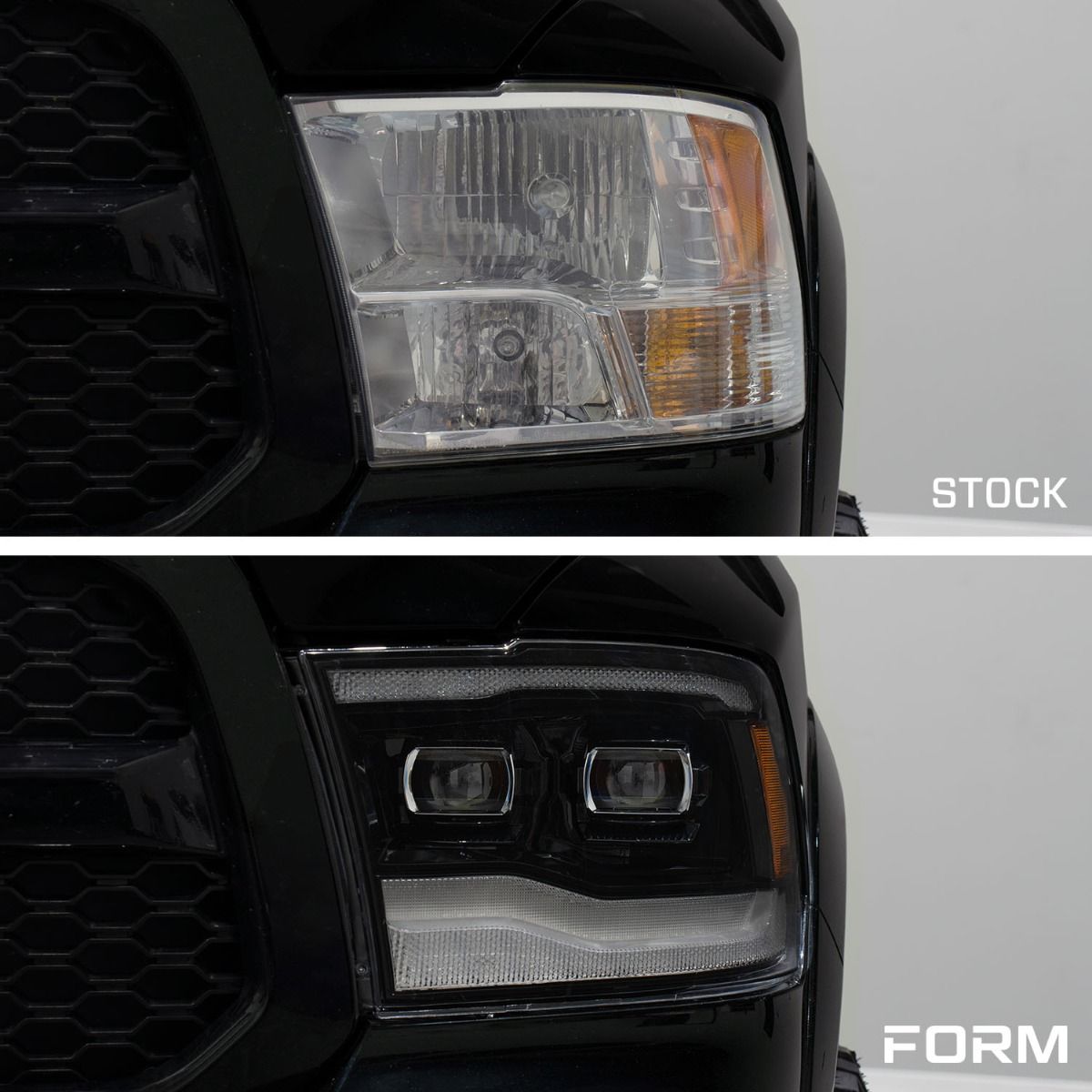

Form Lighting Sequential LED Projector Headlights — Ram 1500 Classic (2019–2024)
For the Ram 1500 Classic, Form uses the same lamp it builds for the 2009–2018 trucks. Two dual-beam projectors per side handle low and high beam with a sharp cutoff and broad width, behind UV-coated polycarbonate lenses in an IP67-rated housing.
At startup the LEDs sweep across the top and bottom before the running light fully comes on, and the turn signal sequences in amber from the inside out. It fits Classics with factory halogen or LED lamps, using the included adapters on halogen trucks, plus a fuse-box DRL harness for trucks without factory DRL. Big Horn trims are not compatible.
| Spec | Detail |
|---|---|
| Optics | Two dual-beam projectors per headlight (low and high beam) |
| Functions | Low beam, high beam, DRL, sequential turn signal, startup sequence |
| DRL | LED running light; fuse-box DRL harness for trucks without factory DRL |
| Turn signal | Sequential amber in the lower section, inside to outside |
| Install | Plug-and-play; halogen adapters plug into the factory connector; 1–2 hours, basic tools, no modification |
| Compliance | Meets SAE, DOT, FMVSS and CMVSS standards for on-road use in the US and Canada when installed and aimed properly |
| Assembly | Assembled in an IATF 16949-certified facility |
| Warranty | 2 years, US-based support, replacement parts ship from a US warehouse |
| Fitment | Ram 1500 Classic, 2019–2024. Not compatible with Big Horn trims |
| Part number | FL0016 |
Is this the same lamp as the 2009–2018 Ram?
Yes. Form sells the same part, FL0016, for both, which is why the part name references 2009–2018.
Will this fit the new-style 2019+ Ram 1500?
No. This is only for the Ram 1500 Classic. Form makes a separate lamp, FL0015, for the 2019–2024 Ram 1500.
Are these street legal?
Form Lighting states they meet SAE, DOT, FMVSS and CMVSS standards for on-road use in the US and Canada, as long as they are installed and aimed properly. Integrated screw-type adjusters handle the aiming.
Which trims are excluded?
Form lists Big Horn trims as not compatible. Classics with factory halogen or LED lamps are otherwise covered.
What does the warranty cover?
Form Lighting backs them for two years, with US-based support and replacement parts shipped from a US warehouse. Form says a return is normally not required to process a claim.
Complete your RAM 1500 build
More parts that fit your RAM 1500 and pair well with this one — matched and ready to install.
$999.00
$999.00
$999.00
$59.99
$69.99
More for your RAM 1500
Picked from the 304 parts we carry for the RAM 1500, matched to 2019–2024 model years. Check the years and trim in each title — or call us and we’ll confirm fit.
Specifications
Form Lighting Ram 1500 Classic (19-24) Sequential LED Projector Headlights FAQs
Is this the same lamp as the 2009–2018 Ram?
Yes. Form sells the same part, FL0016, for both, which is why the part name references 2009–2018.
Will this fit the new-style 2019+ Ram 1500?
No. This is only for the Ram 1500 Classic. Form makes a separate lamp, FL0015, for the 2019–2024 Ram 1500.
Are these street legal?
Form Lighting states they meet SAE, DOT, FMVSS and CMVSS standards for on-road use in the US and Canada, as long as they are installed and aimed properly. Integrated screw-type adjusters handle the aiming.
Which trims are excluded?
Form lists Big Horn trims as not compatible. Classics with factory halogen or LED lamps are otherwise covered.
What does the warranty cover?
Form Lighting backs them for two years, with US-based support and replacement parts shipped from a US warehouse. Form says a return is normally not required to process a claim.
