Diode Dynamics SS3 SAE Type TR Fog Light Kit
Warranty Information
Vendor warranty summary
Diode Dynamics Warranty
At a glance: 3 years on every Diode Dynamics product, 8 years on Stage Series and Elite Series lamps, and lifetime coverage on Stage Series pods, rock lights, SL2 bulbs and off-road brackets (orders from April 15, 2025)
This is Diode Dynamics' policy, not an NVMOS policy. We've summarized Diode Dynamics' published warranty in plain English. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 15, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| All Diode Dynamics products: defects in materials and workmanship | 3 years |
| Stage Series and Elite Series lamp assemblies and lamp mounting brackets (functional failure; wiring, harnesses and lens covers excluded after year 3) | 8 years |
| Stage Series LED pods, Stage Series rock lights, SL2 and SL2 Pro LED bulbs, off-road mounting brackets, ordered on or after April 15, 2025 (functional failure after year 3) | Lifetime |
| Commercial or industrial use (construction, mining, fleet, agriculture and similar) | Capped at 8 years |
| Form Lighting products (a Diode Dynamics brand) | 2 years (details) |
What's covered
- Defective products are replaced with the same item, or a comparable one if it's been discontinued
- Diode Dynamics may replace just the failed component
- Finish defects caused by manufacturing, during the first 3 years
- Moisture beyond normal condensation that points to a seal failure, at Diode Dynamics' discretion
- Free tech support for the life of the product, even after the warranty ends
What's not covered
- Normal condensation, and paint or coating wear from regular use
- Installation or labor costs
- Improper installation or use, abuse, or opening, rewiring or repairing a product
- Swapping lenses on Stage Series lights voids the 3-year coverage (the 8-year coverage stays)
- Purchases from unauthorized sellers; coverage is for the original buyer and isn't transferable
How to make a Diode Dynamics claim
- Keep your proof of purchase; every claim needs it (gift recipients can register within 90 days of the original purchase instead)
- Request an RMA through Diode Dynamics' returns portal and work through diagnosis with their support team
- Nothing goes back without an RMA number; include photos for moisture claims
- For US customers, Diode Dynamics covers shipping on 3-year claims, plus return shipping for inspection on 8-year and lifetime claims
Diode Dynamics contact: Phone: (314) 205-3033 · Contact form · Monday to Friday, 10 AM to 5 PM Central · St. Charles, Missouri
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Diode Dynamics, and help it along either way.
Disclaimer: The information on this page describes Diode Dynamics' own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Diode Dynamics warranty. Last updated on nvmos.com: October 15, 2026. See our return policy for NVMOS's own terms.
About the brand
Diode Dynamics builds LED lighting in St. Charles, Missouri: Stage Series SS3 and SS5 pods, CrossLink light bars, ditch and fog kits, bulbs and accents. It designs, engineers and assembles as much as it can in the USA instead of rebranding imports, which shows in the warranty. NVMOS carries the Diode Dynamics off-road, vehicle lamp, bulb and accent lines for Toyota, Jeep, Ford, GM, Ram and Nissan trucks and SUVs,...
Based in: St. Charles, Missouri · Founded: 2006 · Made in: Designed and assembled in the USA · Quality: ISO 9001:2015 certified · Lead time: In-stock items usually leave Diode Dynamics the same business day; ask us about any item
Shop all 490 Diode DynamicsWarrantyAll brands
Warranty terms are set by Diode Dynamics, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

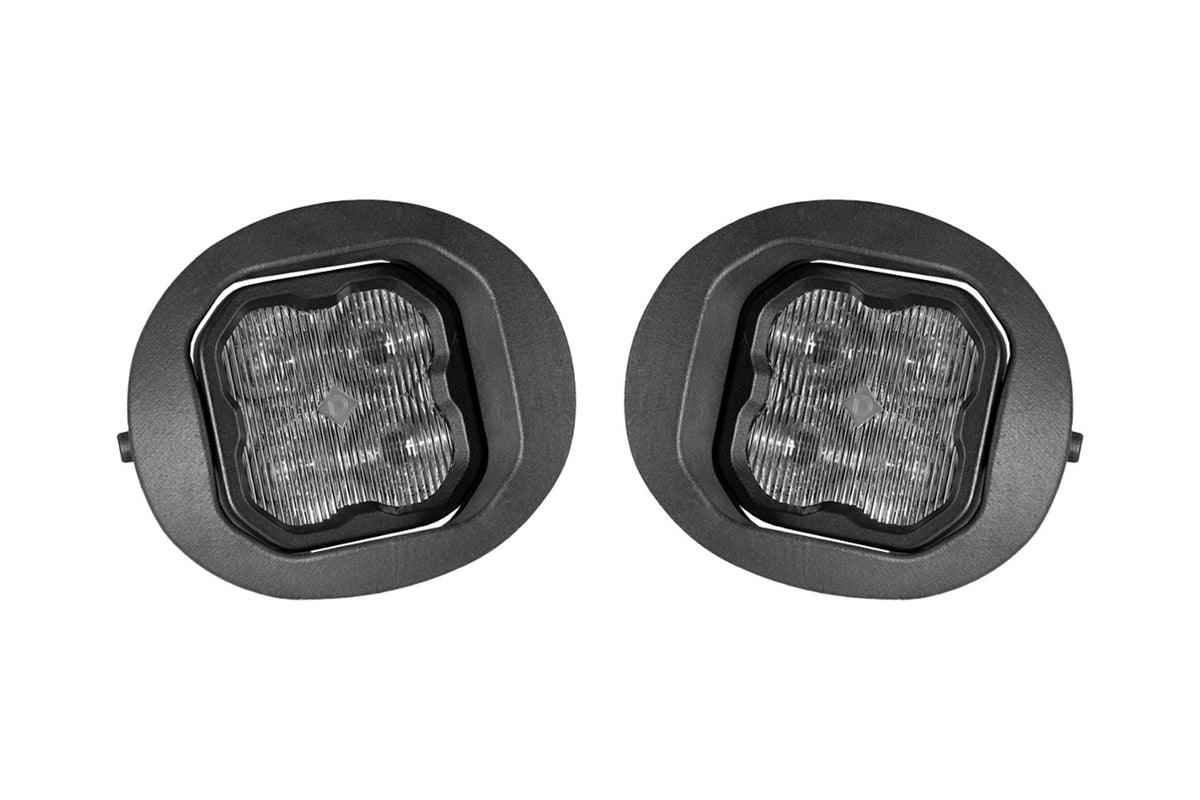

The Diode Dynamics SS3 SAE Type TR Fog Light Kit replaces the factory fog lights on the 2006–2009 Toyota 4Runner with SS3 LED pods set in a one-piece, 3D-printed bezel for a factory-style look. It plugs into the stock fog light connector, needs no modification, and puts out an SAE-compliant fog pattern that is legal for road use.
Why it works

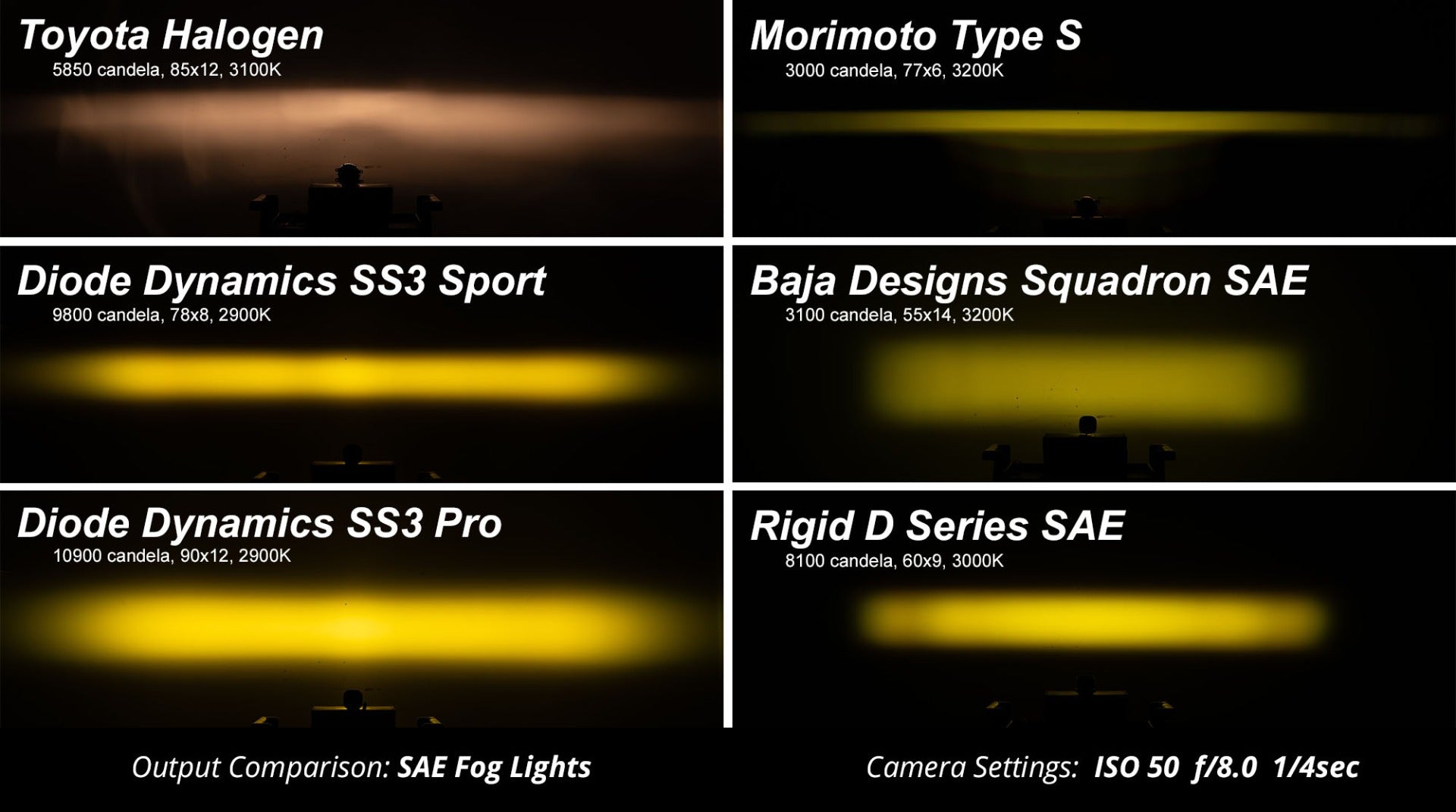

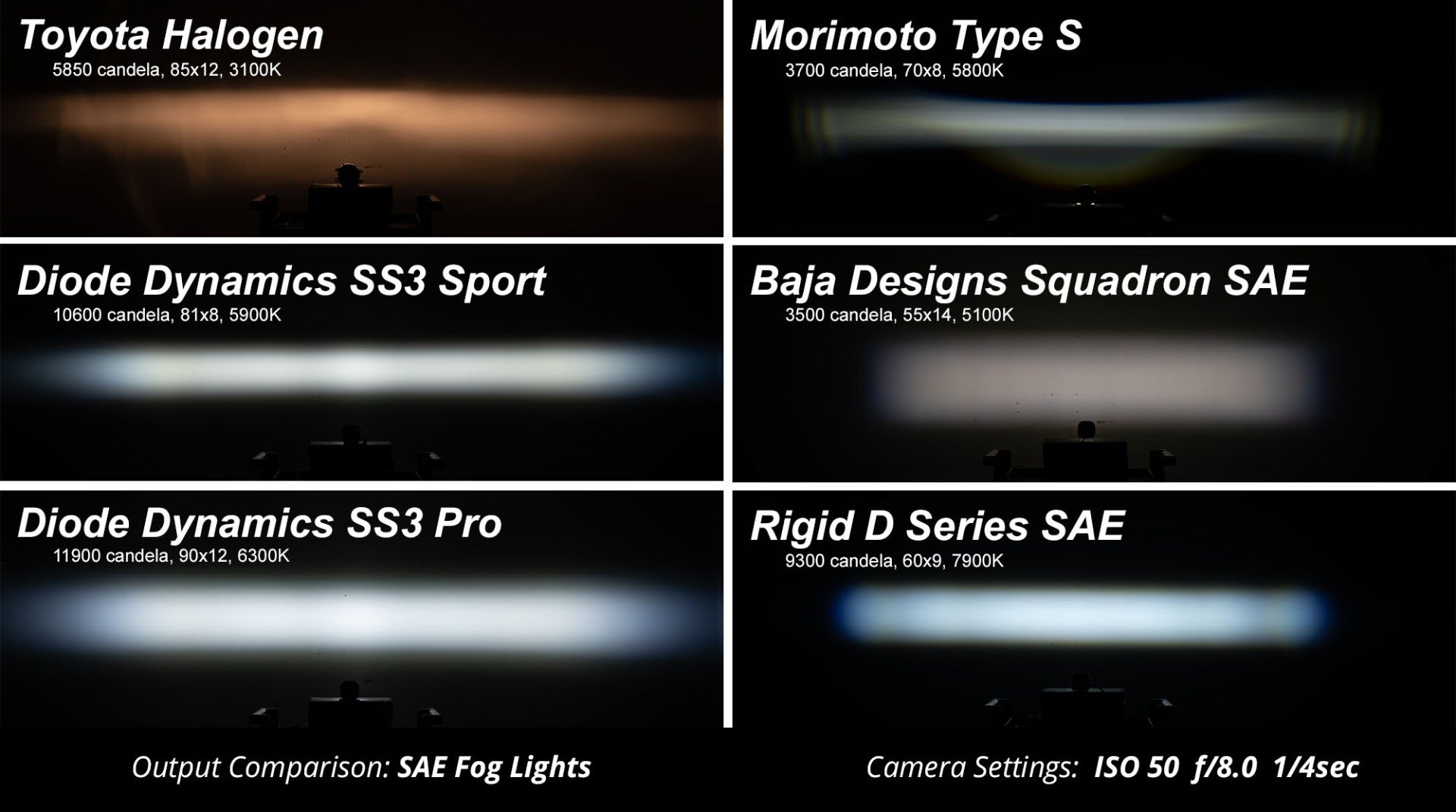

Factory fog lights on a 4Runner this age are tired halogen units. The SS3 pods use advanced TIR optics to build a wide, flat 80°x8° fog beam that stays low under the glare zone, and the pattern is tested to SAE J583 for fog lamps and SAE J575 for durability. The pods have cast aluminum bodies with pin-fin heatsinks, rubber gaskets and polycarbonate lenses, and carry an IP69K rating. Diode Dynamics engineers and assembles the kit in the USA.
Options
- Sport (14.5 W): white or yellow SAE fog — a clean step up from halogen.
- Pro (36 W): white or yellow SAE fog with roughly double the Sport output.
- Max (38.5 W): white or yellow SAE fog, the brightest single-color option.

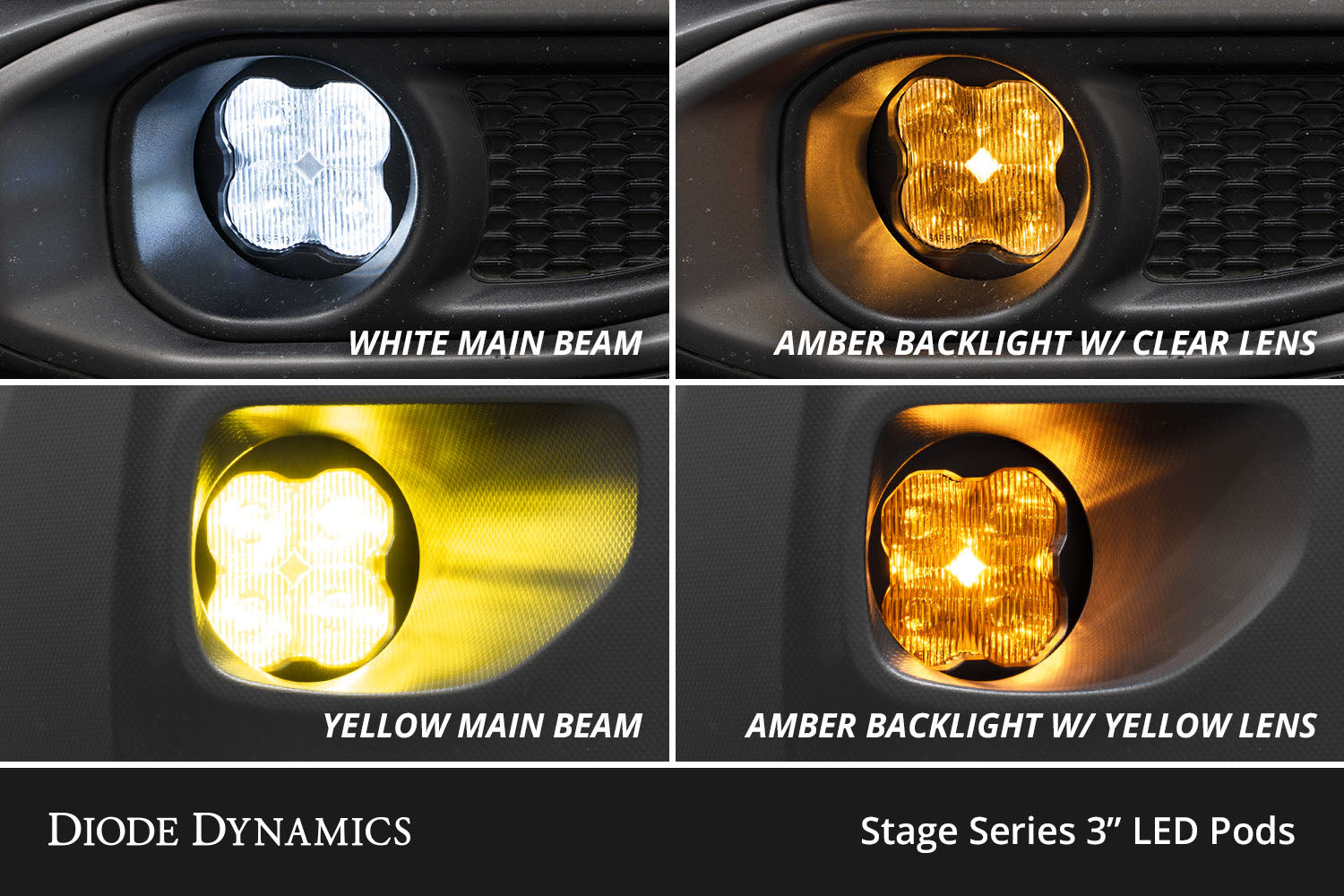

- Dual-Color (20 W): white and yellow in the same pod with an SAE Fog/Wide pattern, for people who want both.
Fitment
Toyota 4Runner, 2006–2009. The kit connects with a Deutsch DT input on the pods and a 9006 plug on the vehicle side, so it uses the factory fog light wiring.
Specs at a glance
- White Sport: 10,600 cd peak, 1,520 measured lumens
- White Pro: 11,900 cd peak, 3,000 measured lumens
- White Max: 18,000 cd peak, 3,500 measured lumens
- Bezel: one-piece SLS nylon (3D printed)
- Operating temperature: -40°F to 185°F
- Kit weight: 2.1 lb
Warranty
Warranty coverage runs through Diode Dynamics. Full terms are on our Diode Dynamics warranty page, and the rest of the lineup is in the Diode Dynamics collection.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Complete your Toyota 4Runner build
More parts that fit your Toyota 4Runner and pair well with this one — matched and ready to install.
$379.95
$1,649.00
$1,299.00
$169.00
$169.00
More for your Toyota 4Runner
Picked from the 1250 parts we carry for the Toyota 4Runner. Check the years and trim in each title — or call us and we’ll confirm fit.
Specifications
Diode Dynamics SS3 SAE Type TR Fog Light Kit FAQs
Will this fit my 4Runner?
It is listed for the 2006–2009 Toyota 4Runner. For other years, call or text the real humans at NVMOS, (920) 249-7744.
Do I have to cut or splice anything?
No. The kit is plug and play — it connects to the factory 9006 fog light plug and needs no modification.
White, yellow or Dual-Color?
White is the brighter, more modern look; yellow is easier on the eyes in snow and rain. Dual-Color gives you both in one pod with an SAE Fog/Wide pattern.
Is it street legal?
The beam pattern is built to SAE J583 for fog lamps, which is what makes it road legal as a fog light.
