Coachbuilder TRD PRO Kit | Complete Lift & Handling System, Zero Added Preload | Fits Toyota Tundra TRD Pro 2015–2017 & 2019–2021 | Ekstrom Design
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
Coachbuilder by Ekstrom Design Warranty
At a glance: No-hassle limited lifetime warranty on Ekstrom-made parts; wear items excluded
This is Coachbuilder by Ekstrom Design's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Products made by Ekstrom Design (e.g., Coachbuilder shackle kits) | Limited lifetime |
| Wear items (leaf spring bushings, heim joints and boots, moving/pivoting parts) | Not covered |
| Third-party brands sold by Ekstrom (e.g., BORA wheel spacers) | Not covered by Ekstrom's warranty |
- Original purchaser only — coverage does not transfer if you sell it.
What's covered
- Defects in materials and workmanship on parts manufactured by Ekstrom Design and Fabrication Corporation
- Coverage lasts for the life of the product for the original buyer
What's not covered
- Leaf spring bushings
- Heim joints and heim joint boots
- Any moving or pivoting parts
- Products Ekstrom resells but does not make, such as BORA wheel spacers
How to make a Coachbuilder by Ekstrom Design warranty claim
- Contact Ekstrom Design by phone or email to describe the issue
- Follow their instructions for returning the part
Coachbuilder by Ekstrom Design contact: Phone: (801) 635-4872 · Email: ekstrom_design@yahoo.com · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Coachbuilder by Ekstrom Design, and help it along either way.
Shop Coachbuilder by Ekstrom Design at NVMOS
Coachbuilder Strut/Coilover Shim | .50" Front Lift | Fits Toyota Tacoma, 4Runner & FJ Cruiser 2005–2023 Including TRD Pro | Ekstrom Design
Coachbuilder Strut/Coilover Shim | .250" Front Lift | Fits Toyota Tacoma, 4Runner & FJ Cruiser 2005–2023 Including TRD Pro | Ekstrom Design
Coachbuilder Coilover Bolt Kit | Metric M10x1.50 for Eibach & Old Man Emu BP51 Coilovers | Fits Toyota Tacoma, 4Runner, FJ Cruiser 2005+ & Tundra 1999–2006 | Ekstrom Design
See all Coachbuilder by Ekstrom Design products, lead times and FAQs →
Disclaimer: The information on this page describes Coachbuilder by Ekstrom Design's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Coachbuilder by Ekstrom Design official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
Coachbuilder by Ekstrom Design
Coachbuilder is Ekstrom Design's Toyota-only line of billet aluminum suspension and driveline parts, built out of Salt Lake City, Utah. NVMOS carries Coachbuilder lift shackles, strut shims, steering kits, carrier bearing and diff drops, and bump stops for Tundra, Tacoma, 4Runner, FJ Cruiser and more. It's for Toyota owners fine-tuning a lift.
Based in: Salt Lake City, Utah · Founded: 1998 (Coachbuilder line since 2009) · Lead time: Brand ships in 1–2 business days
Shop all 43 Coachbuilder by Ekstrom DesignWarrantyAll brands
Warranty terms are set by Coachbuilder by Ekstrom Design, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

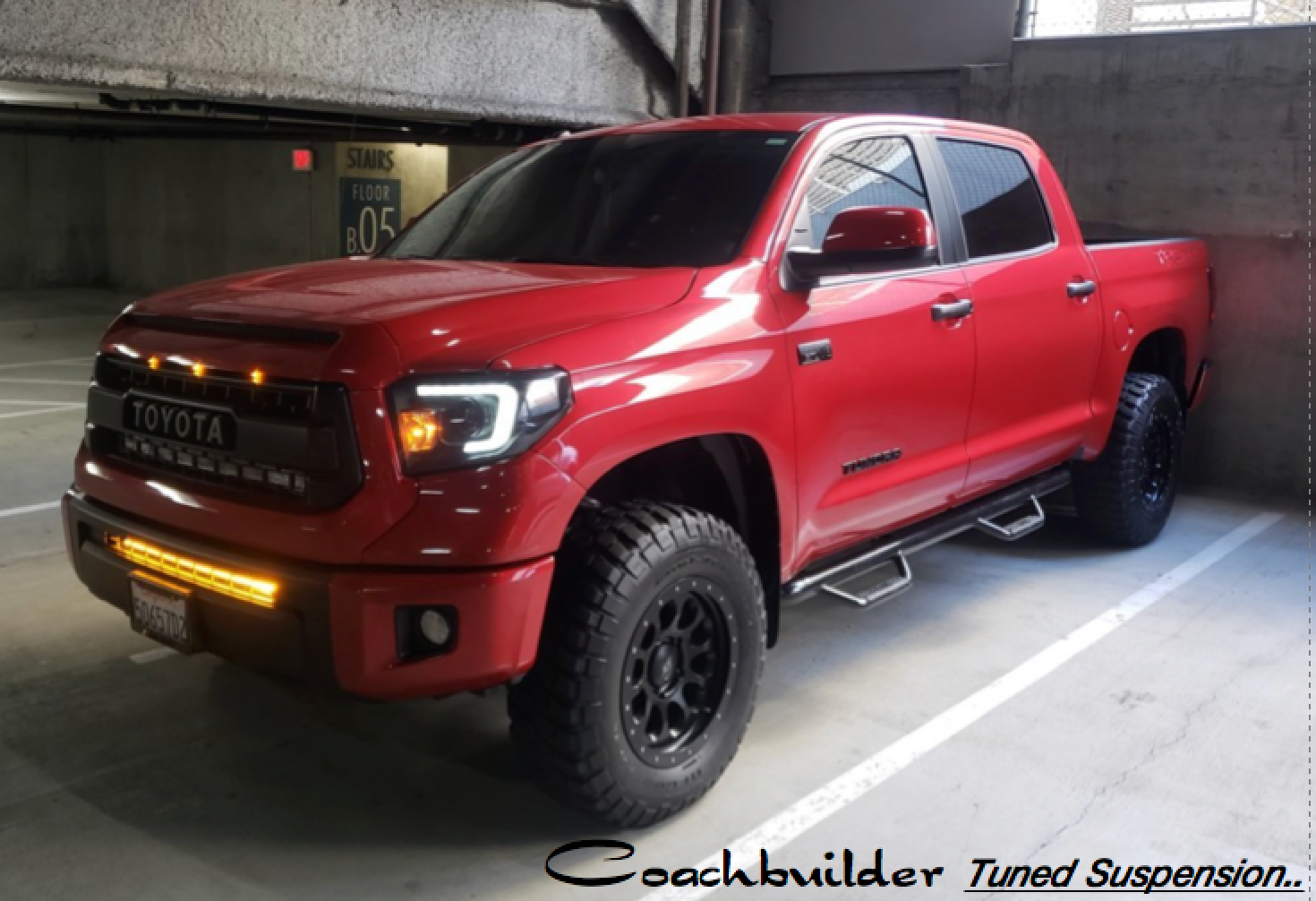

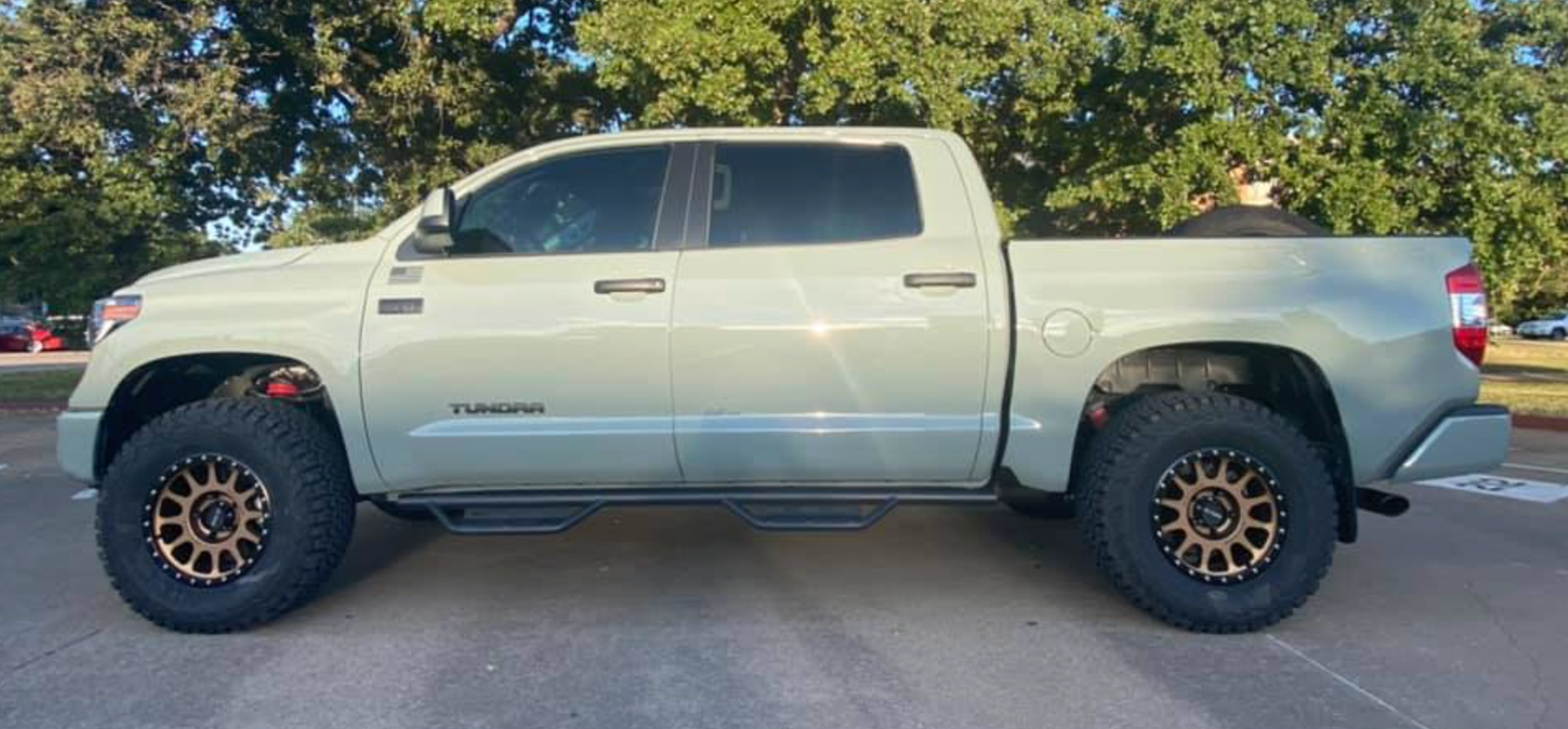

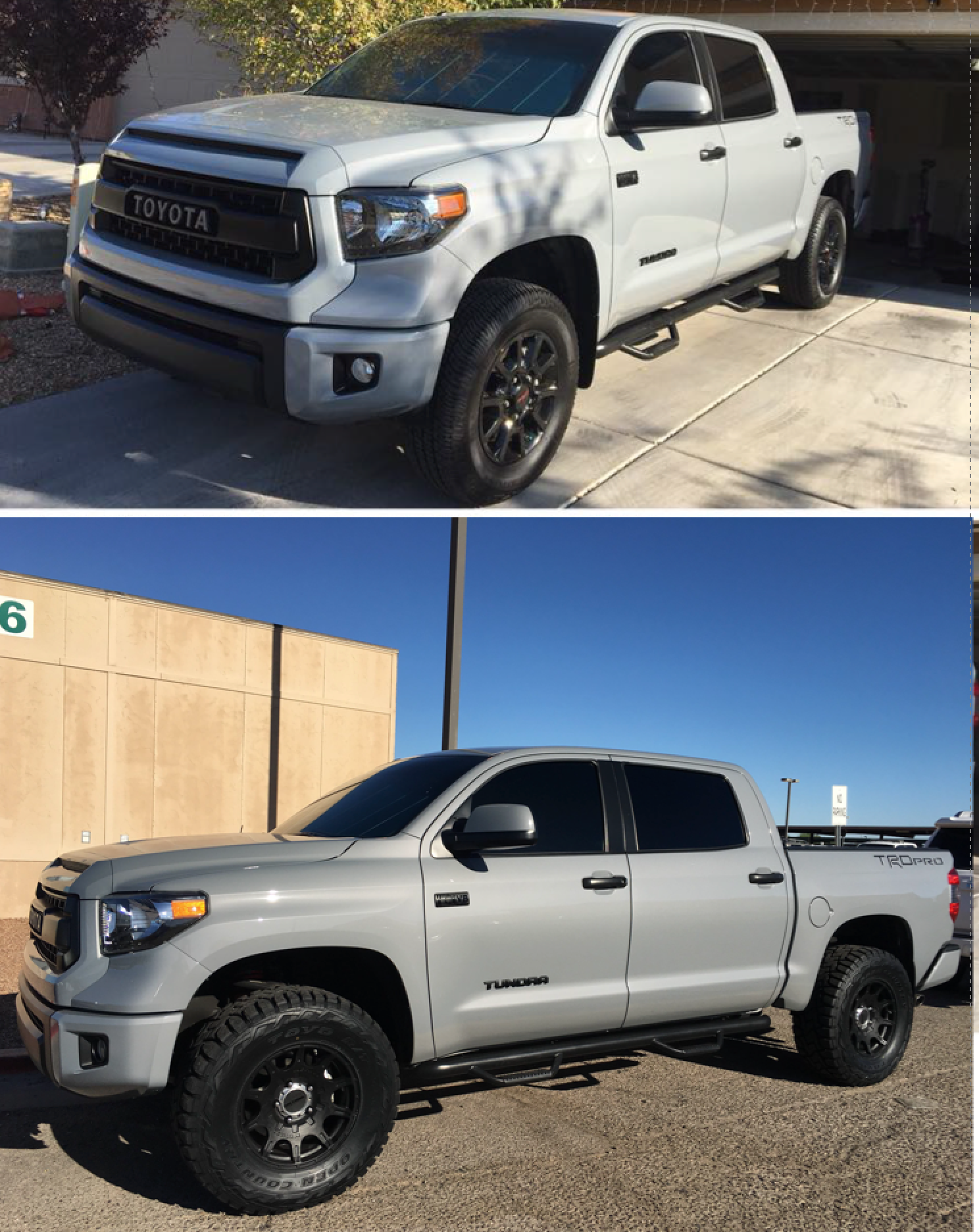

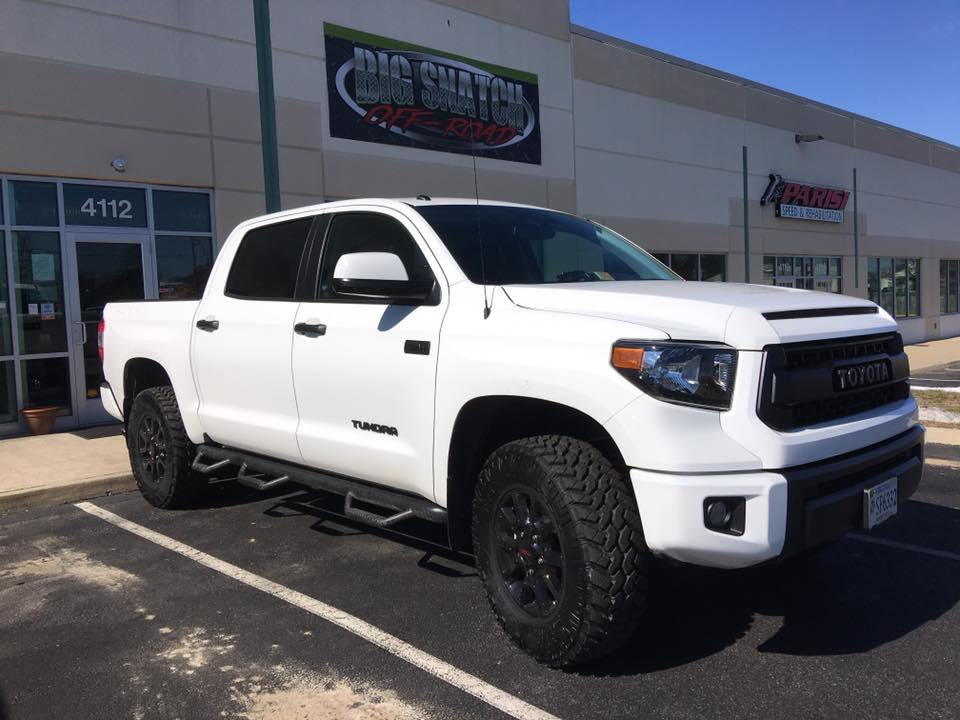

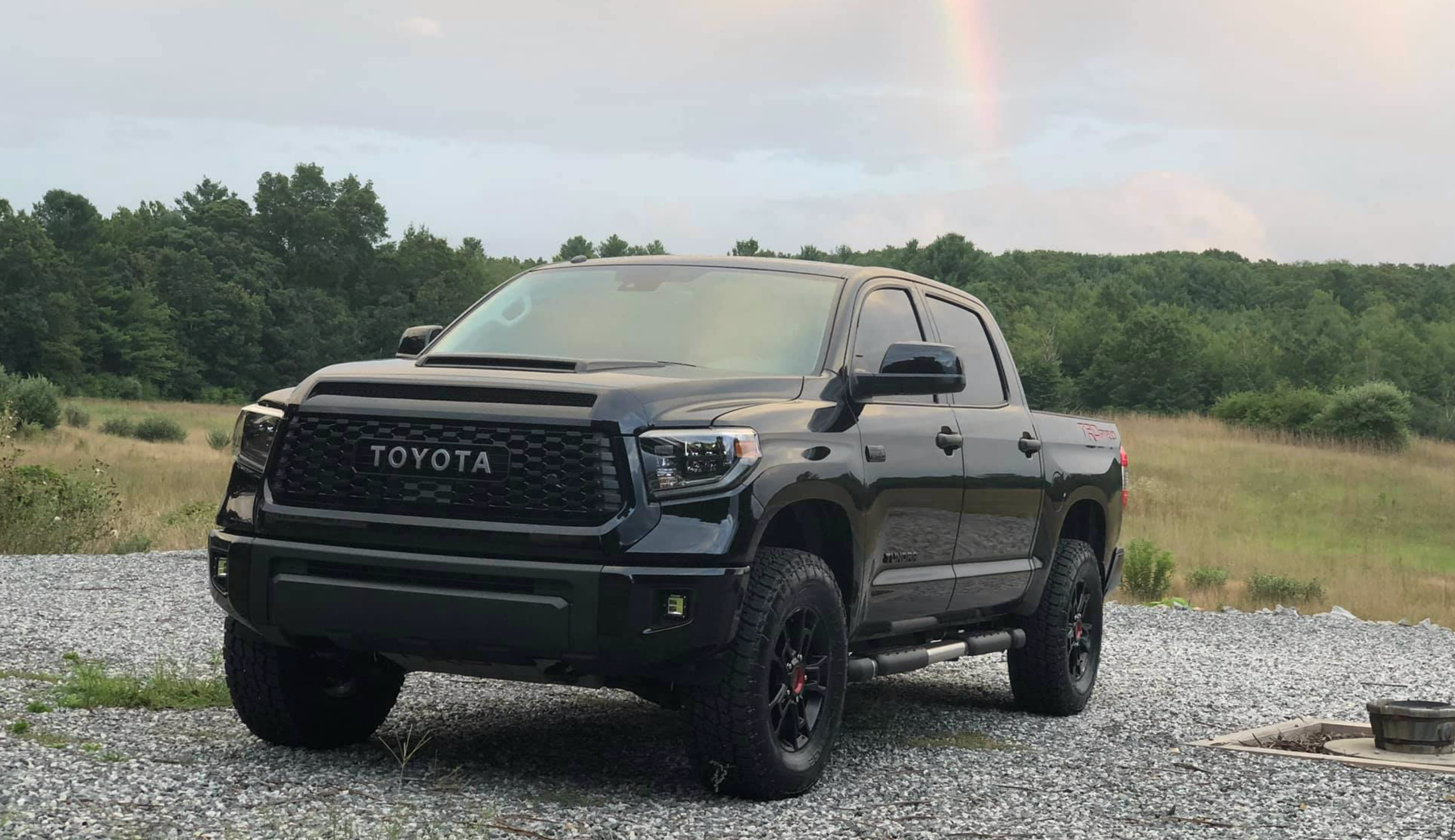

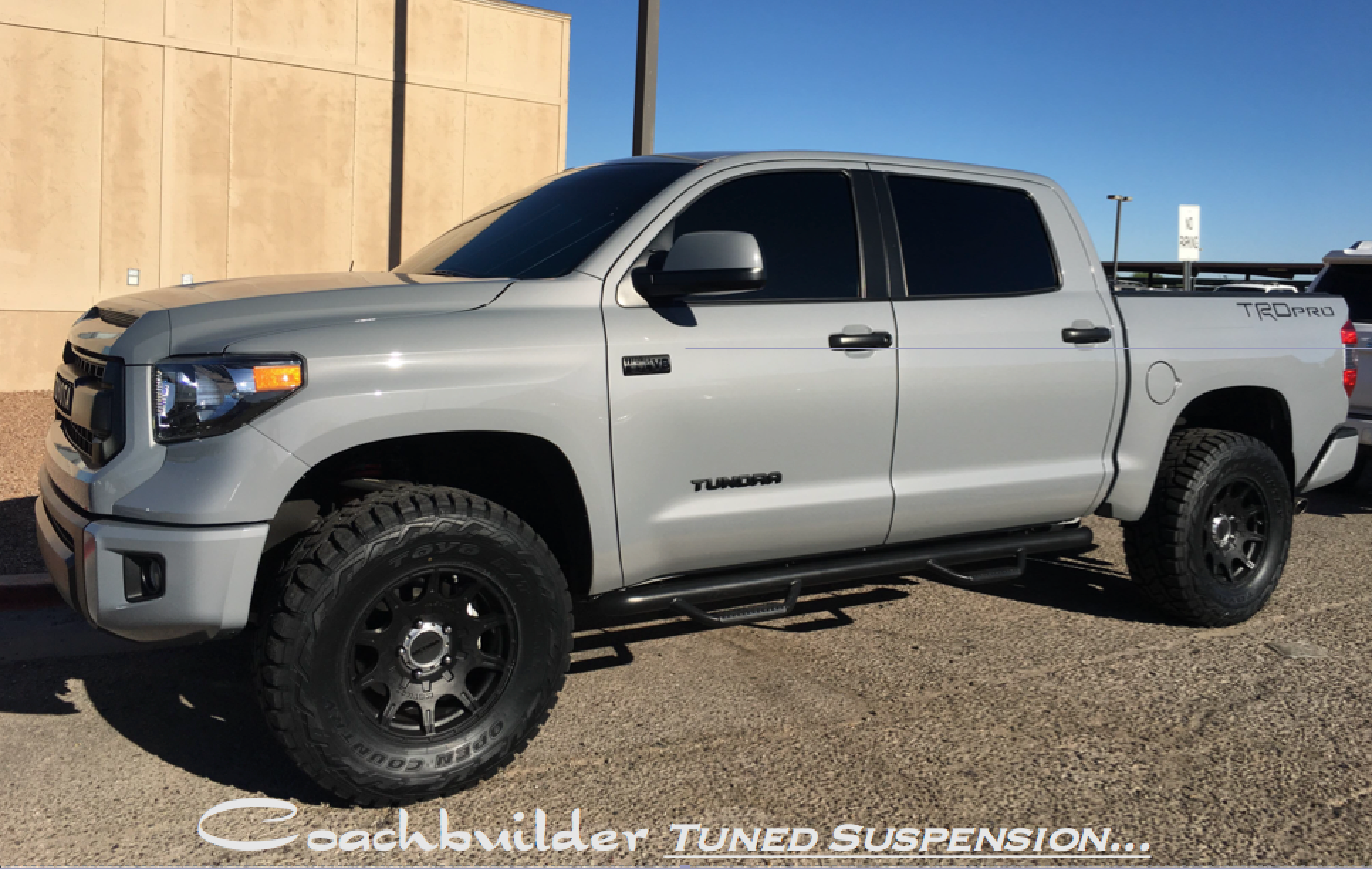

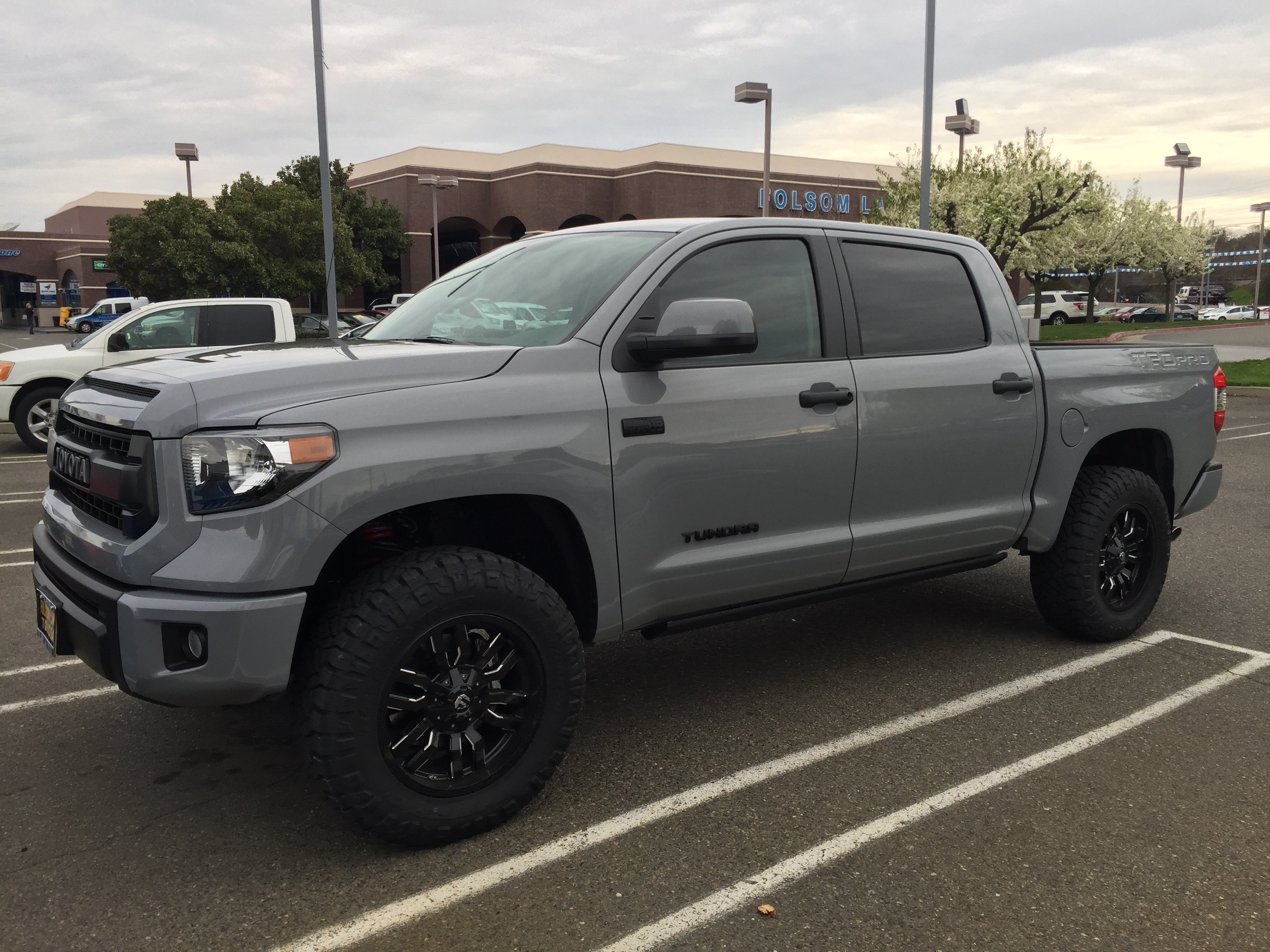

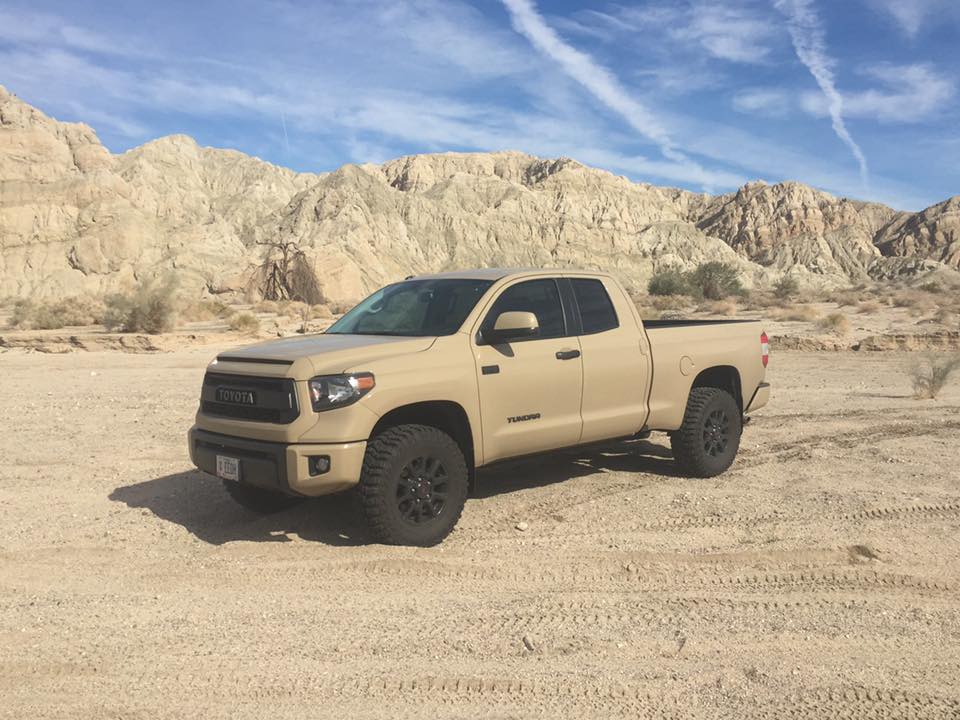

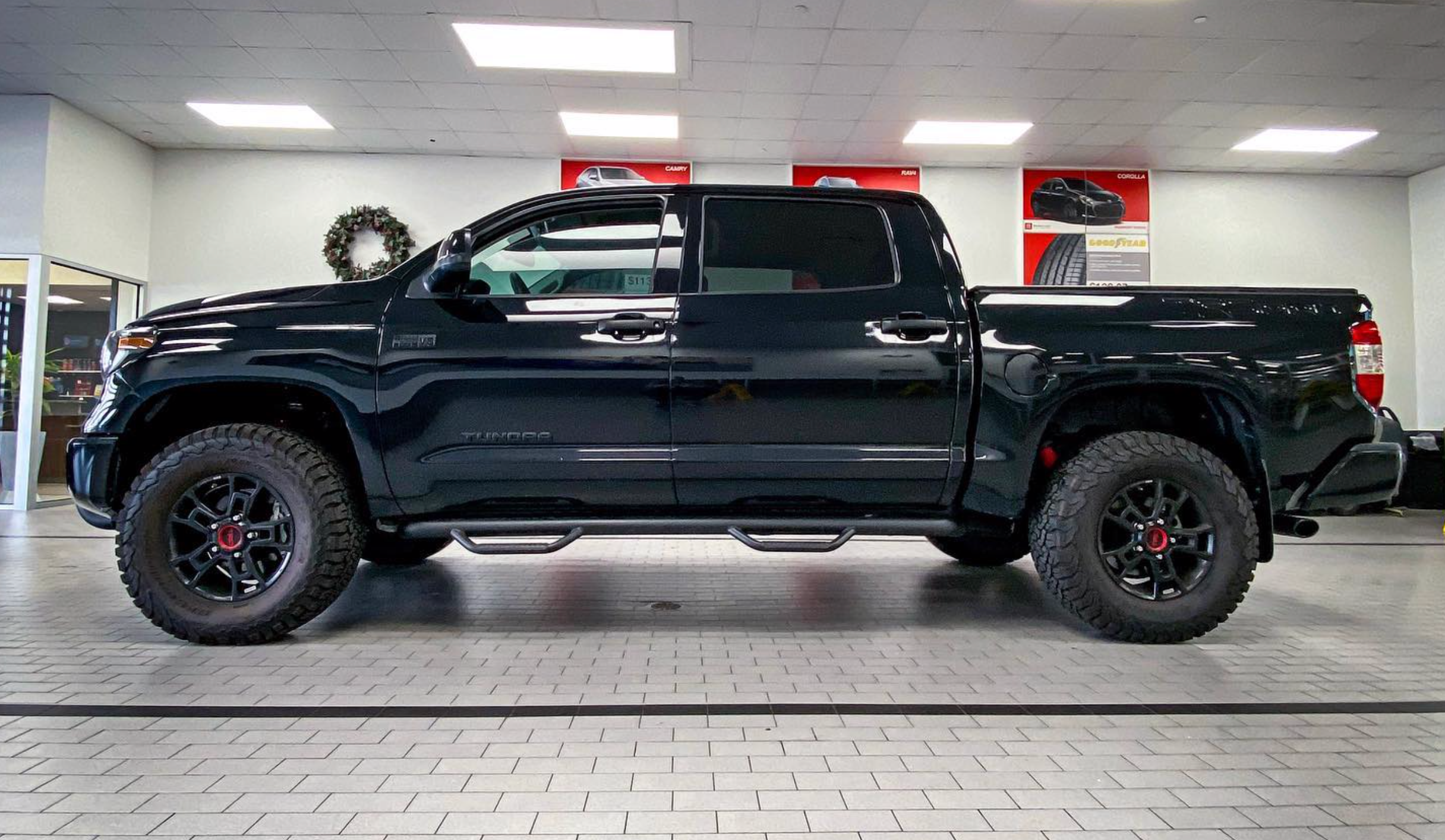

The Coachbuilder TRD PRO Kit is a complete lift, handling, and clearance system engineered around the factory suspension on 2015–2017 and 2019–2021 Toyota Tundra TRD Pros. The tuned Bilstein and Fox coilovers on these trucks are the best part of the package, and most lift methods compromise them by cranking in preload. This kit adds height a smarter way: shims keep the coilover in the center line of its stroke with zero added preload, so you keep full up travel, full down travel, and the ride quality the TRD Pro came with. Out back, +3" shackles add 1.75" of rear lift, while the steering, bump stop, bushing, and carrier bearing components keep geometry correct instead of just taller. Every piece is precisely CNC machined, hard black anodized, and made in the USA.
Features
- Retains all of your original Bilstein/Fox TRD Pro suspension — zero added coil preload, full up and down travel

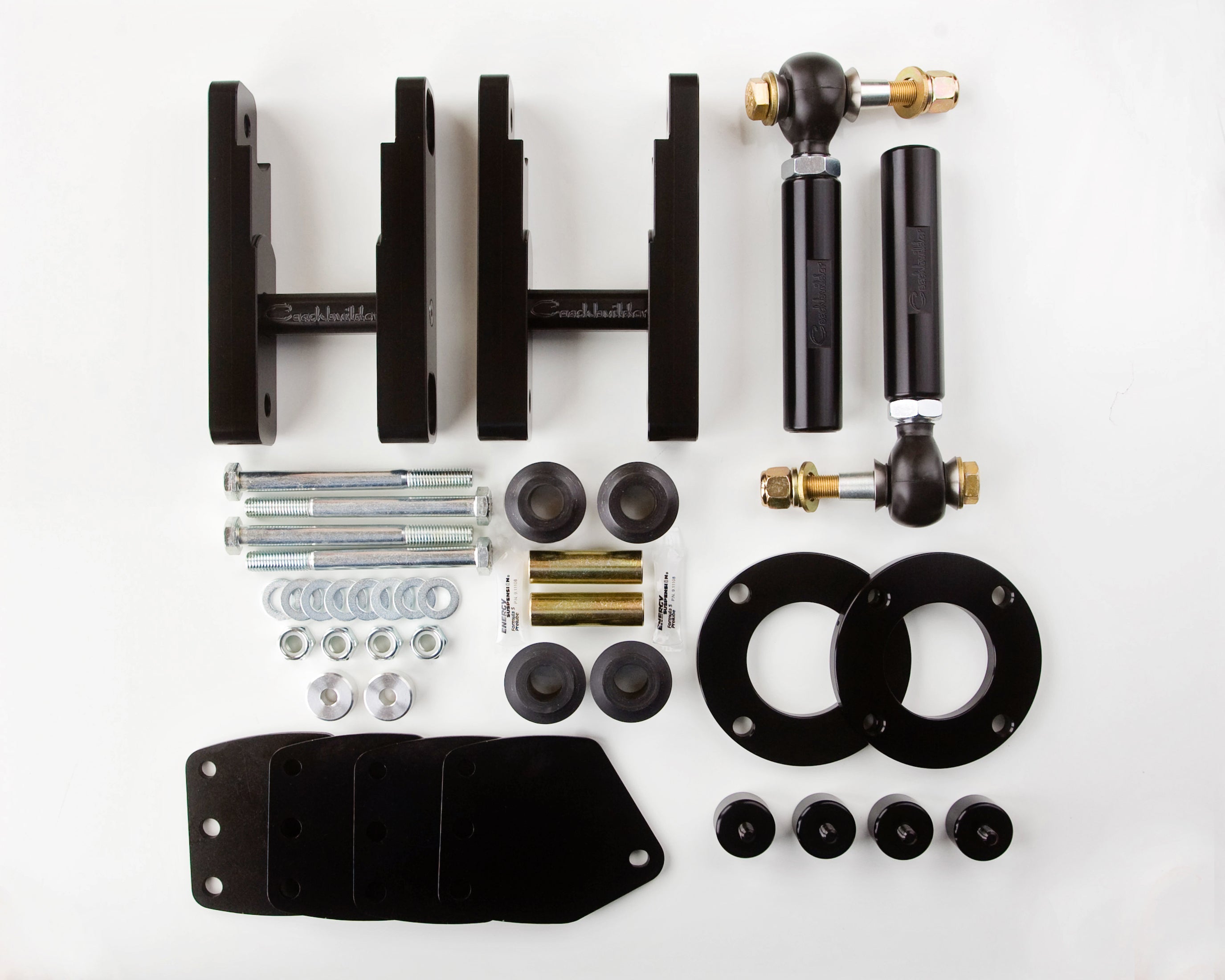

- Seven Coachbuilder components: 1.00" front coilover shim kit, +3" shackles with hardware (1.75" rear lift), sealed steering kit with boots, front bump stop extension kit (4 pieces), polyurethane bushing kit, carrier bearing drop kit, and front bumper shim kit

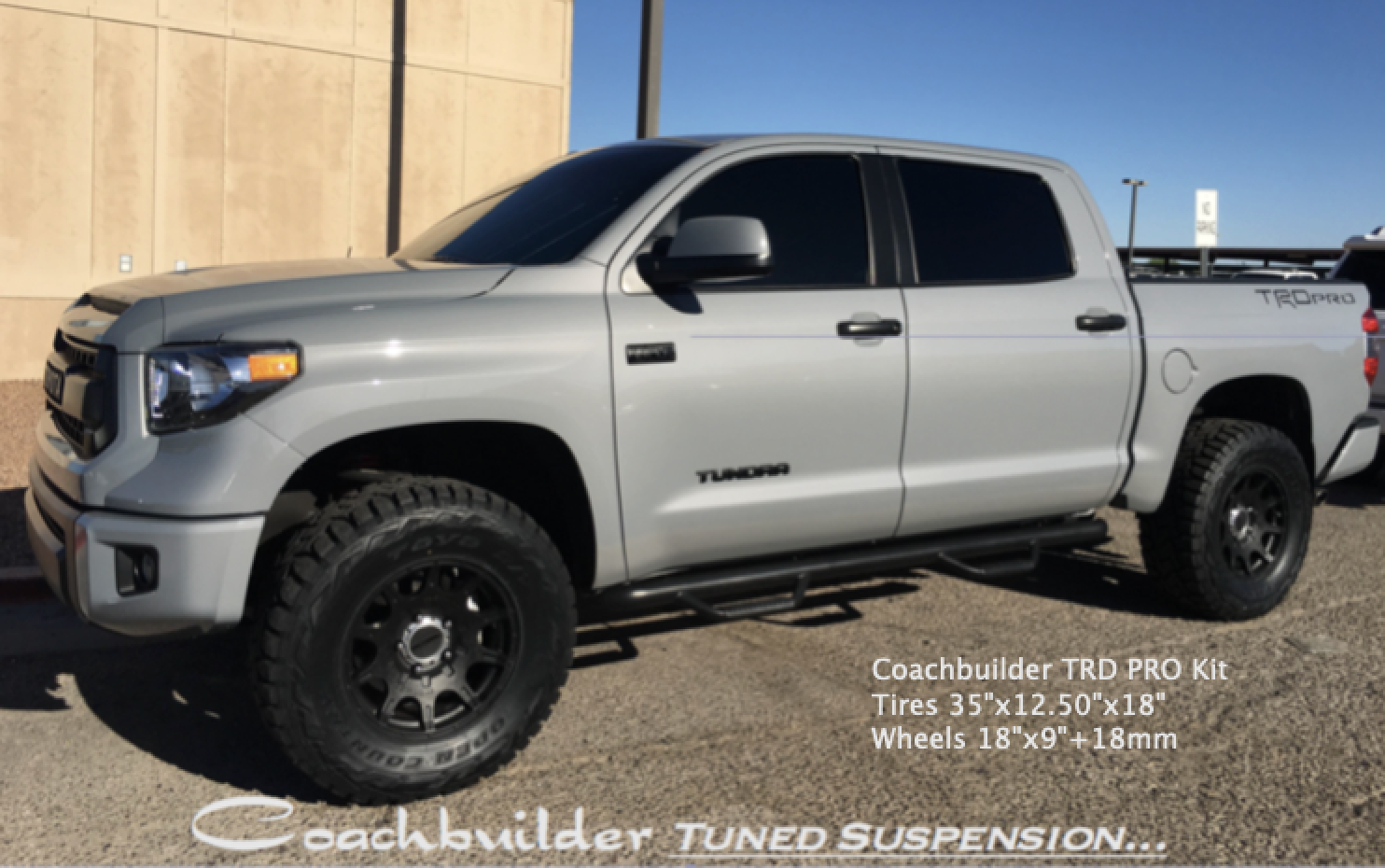

- Room for a 295/70R18 tire (34.6" x 11.7") with the recommended wheel offsets
- No lift blocks, no cutting, no modification of factory parts
- Corrects geometry while improving handling, steering response, and weight distribution
- Installs in 3.5–4 hours, with post-install alignment specs provided (camber +.2°, caster +2.2° to +2.5°, toe +.07° to +.10° per side)
- CNC machined, hard black anodized, and made in the USA by Ekstrom Design
On 18" wheels, plan for +30 mm to +18 mm offsets — or keep the factory wheels and add a 1.25" wheel spacer; 17" wheels work at +25 mm offset or less. Prefer to build the setup piece by piece? Start with the 1.00" strut/coilover shims and the +3" shackle kit, or browse all Coachbuilder upgrades.
Complete your Toyota Tundra build
More parts that fit your Toyota Tundra and pair well with this one — matched and ready to install.
$904.00
$416.90
$82.80
$315.00
$184.00
More for your Toyota Tundra
Picked from the 2208 parts we carry for the Toyota Tundra, matched to 2015–2017 model years. Check the years and trim in each title — or call us and we’ll confirm fit.
Specifications
Coachbuilder TRD PRO Kit | Complete Lift & Handling System, Zero Added Preload | Fits Toyota Tundra TRD Pro 2015–2017 & 2019–2021 | Ekstrom Design FAQs
Will this work with my factory Fox or Bilstein TRD Pro suspension, or do I need new shocks?
You keep everything. The kit is designed around the OE Bilstein/Fox TRD Pro coilovers on 2015–2017 and 2019–2021 Tundras and retains all of the original suspension. Because it adds no additional preload and keeps the coilover in the center line of its stroke, you preserve full up travel, full down travel, and the tuned ride quality the TRD Pro shipped with.
How much lift does the TRD PRO Kit provide and what's in the box?
The front coilover shim kit provides 1.00" of lift and the +3" shackles provide 1.75" of rear lift. The system also includes a sealed steering kit with boots, a front bump stop extension kit (4 pieces), a polyurethane bushing kit, a carrier bearing drop kit, and a front bumper shim kit for extra tire clearance — seven Coachbuilder components, installed in about 3.5–4 hours.
Do I need different wheels or spacers to run bigger tires with this kit?
For the recommended 295/70R18 tire (34.6" x 11.7"), 18" wheels need a +30 mm, +25 mm, +20 mm, or +18 mm offset — or you can keep the factory wheels and run a BORA 1.25" wheel spacer. 17" wheels work with a +25 mm offset or less. Coachbuilder also supplies alignment specs to use after installation.
