Carbon Offroad - RS9 9000lb Winch
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
Carbon Offroad Warranty
At a glance: Limited lifetime mechanical, 5 years electrical and water ingress (7 with registration)
This is Carbon Offroad's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Mechanical: gearbox, clutch, planetary gears, driveshaft, brake, drum | Limited lifetime |
| Electrical: motor, solenoid, wireless receiver | 5 years (7 years if registered) |
| Water ingress: motor and gearbox | 5 years (7 years if registered) |
| Recovery gear: ropes, soft shackles, winch lines, static straps | 1 year (2 years if registered) |
| Remotes | Splash-resistant only; not covered for water damage |
- Original purchaser only — coverage does not transfer if you sell it.
- Keep your NVMOS order confirmation — proof of purchase is required.
What's covered
- Factory defects in materials or workmanship
- Non-commercial, recreational use only
- Free registration within 90 days of purchase extends electrical and water coverage to 7 years
- Remedies range from remote troubleshooting and parts to repair, replacement or refund
- Carbon pays return freight on approved claims
What's not covered
- Misuse, accidents, collisions or overloading
- Wrong installation or wiring; no isolator switch or failsafe fitted
- Weak battery or inadequate power supply
- Commercial, fleet, mining, trade or professional recovery use
- Hoisting or crane use
- Normal wear, cosmetic wear and UV fading
- Wear parts such as rubber, seals, brushes and rope wear
How to make a Carbon Offroad warranty claim
- If not registered, start with the dealer you bought from; registered owners can go straight to Carbon
- Send proof of purchase, order number, model or serial number
- Include clear photos or video of the fault plus photos of the wiring install
- Carbon tries to diagnose remotely first
- Do not ship anything back until you get written return instructions
Carbon Offroad contact: Phone: +61 1300 780 141 · Email: warranty@carbonoffroad.com.au · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Carbon Offroad, and help it along either way.
Shop Carbon Offroad at NVMOS
![Carbon TANK - 20000lb Winch 24V [Clearance]](https://cdn.shopify.com/s/files/1/0861/5113/5535/files/carbon-tank-20000lb-winch-24v-clearance-7188736.jpg?v=1775256506&width=400)
Carbon TANK - 20000lb Winch 24V [Clearance]
Carbon 12K - 12000lb Winch V3
Carbon Scout Pro - 20000lb Extreme Duty Truck Winch
See all Carbon Offroad products, lead times and FAQs →
Disclaimer: The information on this page describes Carbon Offroad's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Carbon Offroad official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
Carbon Offroad is the Australian company behind Carbon Winches, built around IP68 waterproof electric winches and modern recovery gear. NVMOS carries Carbon truck, SUV and ATV/UTV winches from 4,500 to 20,000 lb, plus control boxes, shackles and recovery kits. For drivers who want an IP68 waterproof-rated winch.
Based in: Coomera, Queensland, Australia · Designed in: Australia · Launched: 2016 · Lead time: In-stock items ship in 24–48 hours
Shop all 61 Carbon OffroadWarrantyAll brands
Warranty terms are set by Carbon Offroad, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

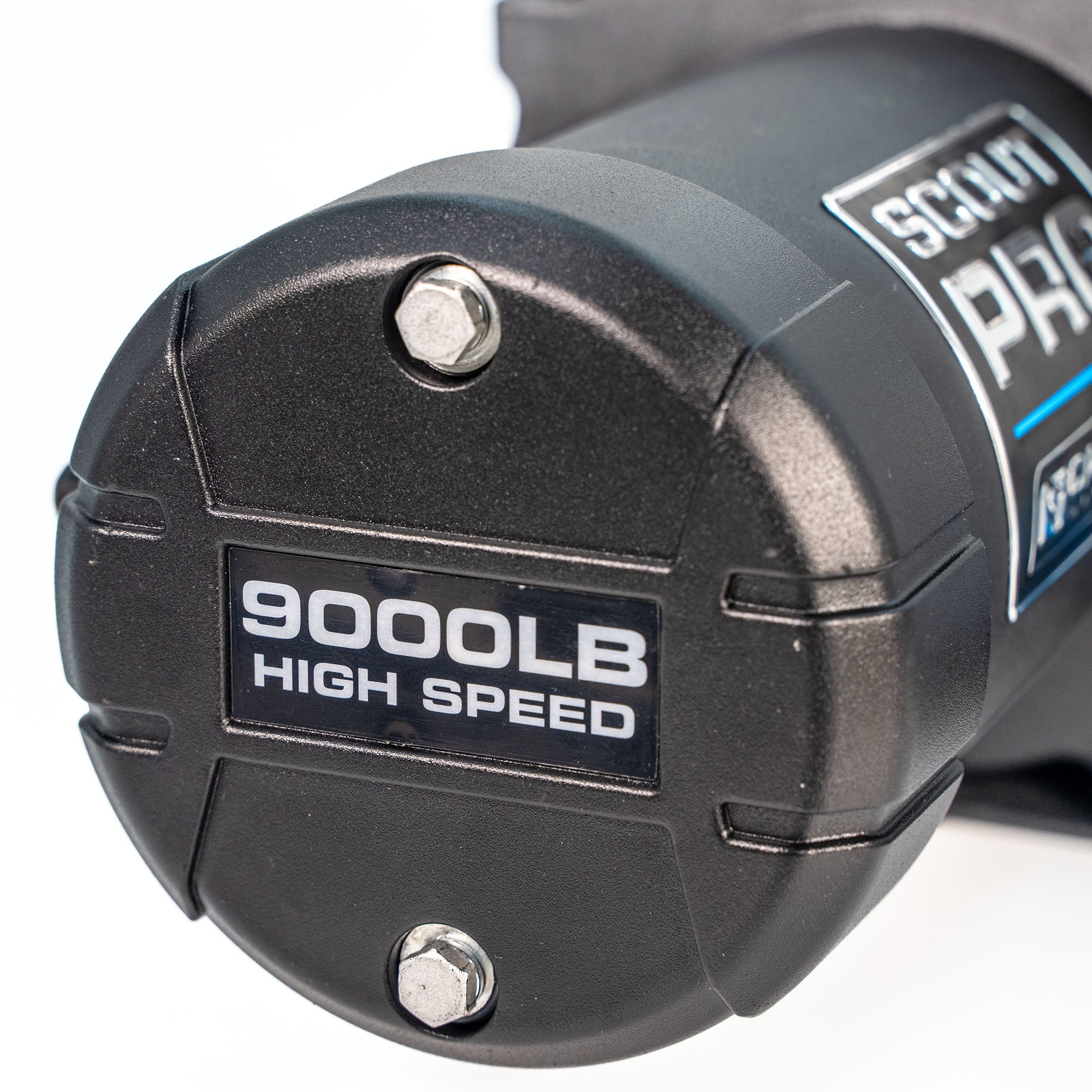

Carbon Offroad - RS9 9000lb Winch Off-Road Recovery Winch
Carbon Offroad Scout Pro RS Series: Built for Speed The Scout Pro RS Series is designed for winch challenges and high-speed recovery.
If you’re looking to minimize recovery time without adding unnecessary weight to your rig, this series provides the highest power-to-weight ratio in its class.
Key Features
- The RS Series Breakdown High-Speed Gearing: Equipped with an 8.0HP series-wound motor and an 80:1 gear ratio
- Line Capacity: Comes standard with 42m (137ft) of 8mm Spectra™ Fiber Synthetic UHMWPE rope
- Competition Hardware: Every unit includes the Carbon Offroad MegaPro Hook as standard equipment
- Feature Specification (Metric / Imperial) Rated Line Pull 4,080kg (9,000lb) Motor 8.0HP 12V Series-Wound Gear Ratio 80:1 Heavy-Duty Performance Gearing Rope Dimensions 8mm x 42m (5/16" x 137ft) Rope Material Spectra™ Fiber Synthetic UHMWPE Water/Dust Sealing IP68 Rated Winch Dimensions (L x W x H) 572mm x 158mm x 187mm (22.52" x 6.22" x 7.36") Drum Diameter x Length 63mm x 224mm (2.5" x 8.8") Mounting Bolt Pattern 254mm x 114.3mm (10" x 4.5") Chassis Carbon Offroad Version 3 (V3) Included Hardware MegaPro Hook, Fairlead, Wiring Accessory Kit Line Pull (lbs / kgs) Line Speed (ft/min / m/min) Motor Current (Amps) 0 79.4 ft (24.2 m) 55 A 4000 lbs (1816 kg) 18.4 ft (5.6 m) 180 A 7000 lbs (3180 kg) 13.8 ft (4.2 m) 310 A 9000 lbs (4090 kg) 8.5 ft (2.6 m) 440 A Layer Rated Line Pull (lbs / kgs) 1 9000 lbs (4090 kg) 2 7760 lbs (3524 kg) 3 6690 lbs (3040 kg) 4 5760 lbs (2615 kg)
Why Choose This Product
Choose Carbon Offroad - RS9 9000lb Winch when you need proven pulling power, dependable recovery performance, and hardware built for off-road, overland, and heavy-duty use.
Perfect For
Trucks, Jeeps, SUVs, overland rigs, trailers, farm vehicles, work vehicles, and off-road recovery setups.
Product Details
- The RS Series Breakdown High-Speed Gearing: Equipped with an 8.0HP series-wound motor and an 80:1 gear ratio
- Line Capacity: Comes standard with 42m (137ft) of 8mm Spectra™ Fiber Synthetic UHMWPE rope
- Competition Hardware: Every unit includes the Carbon Offroad MegaPro Hook as standard equipment
- Feature Specification (Metric / Imperial) Rated Line Pull 4,080kg (9,000lb) Motor 8.0HP 12V Series-Wound Gear Ratio 80:1 Heavy-Duty Performance Gearing Rope Dimensions 8mm x 42m (5/16" x 137ft) Rope Material Spectra™ Fiber Synthetic UHMWPE Water/Dust Sealing IP68 Rated Winch Dimensions (L x W x H) 572mm x 158mm x 187mm (22.52" x 6.22" x 7.36") Drum Diameter x Length 63mm x 224mm (2.5" x 8.8") Mounting Bolt Pattern 254mm x 114.3mm (10" x 4.5") Chassis Carbon Offroad Version 3 (V3) Included Hardware MegaPro Hook, Fairlead, Wiring Accessory Kit Line Pull (lbs / kgs) Line Speed (ft/min / m/min) Motor Current (Amps) 0 79.4 ft (24.2 m) 55 A 4000 lbs (1816 kg) 18.4 ft (5.6 m) 180 A 7000 lbs (3180 kg) 13.8 ft (4.2 m) 310 A 9000 lbs (4090 kg) 8.5 ft (2.6 m) 440 A Layer Rated Line Pull (lbs / kgs) 1 9000 lbs (4090 kg) 2 7760 lbs (3524 kg) 3 6690 lbs (3040 kg) 4 5760 lbs (2615 kg)
Technical specifications
| Rated Line Pull | 4080kg (9000lbs) |
|---|---|
| Motor | 8.0HP 12V Series-Wound |
| Gear Ratio | 80:1 Heavy-Duty Performance Gearing |
| Rope Dimensions | 8mm x 42m (5/16" x 137ft) |
| Rope Material | Spectra™ Fiber Synthetic UHMWPE |
| Water/Dust Sealing | IP68 Rated |
| Winch Dimensions (L x W x H) | 572mm x 158mm x 187mm (22.52" x 6.22" x 7.36") |
| Drum Dimensions (Diameter x Length) | 63mm x 224mm (2.5" x 8.8") |
| Mounting Bolt Pattern | 254mm x 114.3mm (10" x 4.5") |
| Chassis | Carbon Offroad Version 3 (V3) |
| Layer | Rated Line Pull Metric (Imperial) |
| 1 | 4090kg (9000lbs) |
| 2 | 3524kg (7760lbs) |
| 3 | 3040kg (6690lbs) |
| 4 | 2615kg (5760lbs) |
