Coachbuilder Carrier Bearing Drop Kit | 5"–6" Rear Lift | Fits Toyota Tundra 2007–2021 | Ekstrom Design
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
Coachbuilder by Ekstrom Design Warranty
At a glance: No-hassle limited lifetime warranty on Ekstrom-made parts; wear items excluded
This is Coachbuilder by Ekstrom Design's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Products made by Ekstrom Design (e.g., Coachbuilder shackle kits) | Limited lifetime |
| Wear items (leaf spring bushings, heim joints and boots, moving/pivoting parts) | Not covered |
| Third-party brands sold by Ekstrom (e.g., BORA wheel spacers) | Not covered by Ekstrom's warranty |
- Original purchaser only — coverage does not transfer if you sell it.
What's covered
- Defects in materials and workmanship on parts manufactured by Ekstrom Design and Fabrication Corporation
- Coverage lasts for the life of the product for the original buyer
What's not covered
- Leaf spring bushings
- Heim joints and heim joint boots
- Any moving or pivoting parts
- Products Ekstrom resells but does not make, such as BORA wheel spacers
How to make a Coachbuilder by Ekstrom Design warranty claim
- Contact Ekstrom Design by phone or email to describe the issue
- Follow their instructions for returning the part
Coachbuilder by Ekstrom Design contact: Phone: (801) 635-4872 · Email: ekstrom_design@yahoo.com · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Coachbuilder by Ekstrom Design, and help it along either way.
Shop Coachbuilder by Ekstrom Design at NVMOS
Coachbuilder Strut/Coilover Shim | .50" Front Lift | Fits Toyota Tacoma, 4Runner & FJ Cruiser 2005–2023 Including TRD Pro | Ekstrom Design
Coachbuilder Strut/Coilover Shim | .250" Front Lift | Fits Toyota Tacoma, 4Runner & FJ Cruiser 2005–2023 Including TRD Pro | Ekstrom Design
Coachbuilder Coilover Bolt Kit | Metric M10x1.50 for Eibach & Old Man Emu BP51 Coilovers | Fits Toyota Tacoma, 4Runner, FJ Cruiser 2005+ & Tundra 1999–2006 | Ekstrom Design
See all Coachbuilder by Ekstrom Design products, lead times and FAQs →
Disclaimer: The information on this page describes Coachbuilder by Ekstrom Design's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Coachbuilder by Ekstrom Design official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
Coachbuilder by Ekstrom Design
Coachbuilder is Ekstrom Design's Toyota-only line of billet aluminum suspension and driveline parts, built out of Salt Lake City, Utah. NVMOS carries Coachbuilder lift shackles, strut shims, steering kits, carrier bearing and diff drops, and bump stops for Tundra, Tacoma, 4Runner, FJ Cruiser and more. It's for Toyota owners fine-tuning a lift.
Based in: Salt Lake City, Utah · Founded: 1998 (Coachbuilder line since 2009) · Lead time: Brand ships in 1–2 business days
Shop all 43 Coachbuilder by Ekstrom DesignWarrantyAll brands
Warranty terms are set by Coachbuilder by Ekstrom Design, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

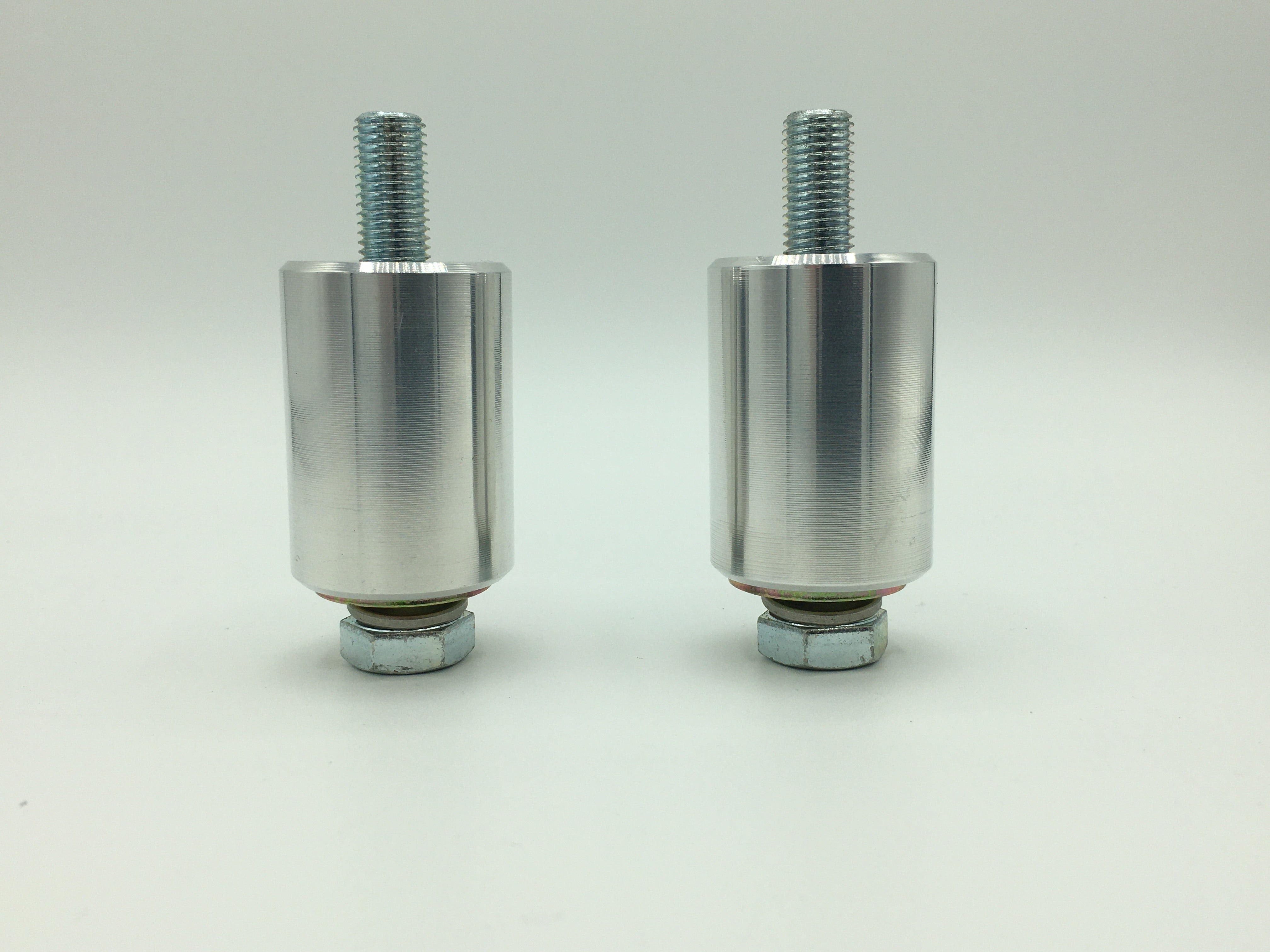

At 5”–6” of rear lift, a 2007–2021 Toyota Tundra's driveline geometry is a long way from stock, and the center carrier bearing is where it shows up first — as driveline vibration every time you pull away. This is the deepest carrier bearing drop kit in the Coachbuilder line, built for full-size lift kits rather than leveling setups: a pair of CNC-machined T6 6061 billet aluminum spacers lowers the carrier bearing enough to bring the two-piece driveshaft's operating angles back under control at that height. Mounting hardware sized for the drop is included. Like the smaller kits, it installs between the frame support and the top of the carrier bearing in 10–15 minutes, torqued to 25 ft-lbs with the truck on the ground.
Features
- Deepest drop in the Coachbuilder carrier bearing lineup — built for 5”–6” rear lifts
- Engineered to eliminate driveline vibration after lifting the rear suspension
- Pair of spacers CNC machined from T6 6061 billet aluminum
- Mounting hardware included
- Installs between the frame support and the top of the carrier bearing
- 10–15 minute install; torque to 25 ft-lbs with the truck on the ground
- Made in the USA by Ekstrom Design & Fabrication
Trucks lifted this far usually need driveline length correction too — the 1.25” Rear Driveline Spacer keeps the driveshaft seated in its slip yoke on 10.5”-axle Tundras. On 4WD trucks, pair it with the 1.00” Front Differential Drop Kit to ease CV angles up front, and find the full range of correction parts in our driveline components and Coachbuilder collections.
Complete your Toyota Tundra build
More parts that fit your Toyota Tundra and pair well with this one — matched and ready to install.
$42.50
$416.90
$82.80
$315.00
$184.00
More for your Toyota Tundra
Picked from the 2208 parts we carry for the Toyota Tundra, matched to 2007–2021 model years. Check the years and trim in each title — or call us and we’ll confirm fit.
Specifications
Coachbuilder Carrier Bearing Drop Kit | 5"–6" Rear Lift | Fits Toyota Tundra 2007–2021 | Ekstrom Design FAQs
My Tundra has a 6" lift kit — is this the right carrier bearing drop?
Yes. This kit is sized for 2007-2021 Tundras carrying 5"-6" of rear lift, which is the deepest range Coachbuilder covers. The 0"-2" and 3"-4" kits will not lower the carrier bearing far enough to correct driveshaft angles at this height, so always match the kit to the measured rear lift on the truck.
What else does a 5"-6" lifted Tundra need for the driveline?
The carrier bearing drop handles driveshaft angle, but tall lifts also pull the driveshaft outward in its slip yoke. Coachbuilder's rear driveline spacers for the 10.5" axle extend the driveshaft back into the spline, and 4WD trucks with matching front lift benefit from a front differential drop to reduce CV angles. Rear brake and ABS line relocation is worth checking at this height too.
How does the install go?
Same as the smaller kits — about 10-15 minutes. The billet spacer pair bolts between the frame support and the top of the carrier bearing at the center of the rear driveline, using the mounting hardware included in the kit. Torque to 25 ft-lbs, and do the final torque with the truck sitting on the ground so the driveline is at ride height.
