ReadyLIFT 3" Leveling Kit-Ford Ranger 2019-2023
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
ReadyLIFT Warranty
At a glance: Defective parts replaced with no stated time limit; wear parts up to 1 year
This is ReadyLIFT's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Lift and leveling kit components | Lifetime replacement for defects (original buyer) |
| Wear parts: shocks, ball joints, heim joints, bushings, steering extensions | Up to 1 year |
| Discontinued, clearance or outlet products | Not covered |
- Original purchaser only — coverage does not transfer if you sell it.
What's covered
- Missing or defective components: if a part breaks, ReadyLIFT sends a new one
- ReadyLIFT may ask for the old part back at its own cost for analysis, without holding up the replacement
- Jeep SST and Terrain Flex kits are covered for recreational off-road use
What's not covered
- Off-road abuse (except Jeep SST and Terrain Flex kits)
- Discontinued, clearance and outlet items
- Labor, installation, surcharges and fees
- Resulting damage to the vehicle
How to make a ReadyLIFT warranty claim
- Call ReadyLIFT customer service to start a claim (7:30am-4pm MST)
- ReadyLIFT ships the replacement part, quickly where possible
ReadyLIFT contact: Phone: 800-549-4620 (toll free); 702-410-2300 · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to ReadyLIFT, and help it along either way.
Shop ReadyLIFT at NVMOS
ReadyLIFT 8" Lift Kit - Toyota Tundra 2007-2021 W/ Bilstein Shocks
ReadyLIFT 1.5" Rear Add-A-Leaf Kit - Ford F-150
ReadyLIFT 7/8" Wheel Spacers W/ Studs - GM 1500
See all ReadyLIFT products, lead times and FAQs →
Disclaimer: The information on this page describes ReadyLIFT's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: ReadyLIFT official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
ReadyLIFT is an Ogden, Utah suspension brand built around more tire clearance with close-to-factory ride. NVMOS carries ReadyLIFT leveling kits, SST mid-lifts, Big Lift kits, rear blocks, control arms and wheel spacers for Ford, GM, Ram, Toyota and Jeep trucks.
Based in: Ogden, Utah · Founded: 2006 · Lead time: In-stock ships in 24–48 hrs
Shop all 556 ReadyLIFTWarrantyAll brands
Warranty terms are set by ReadyLIFT, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

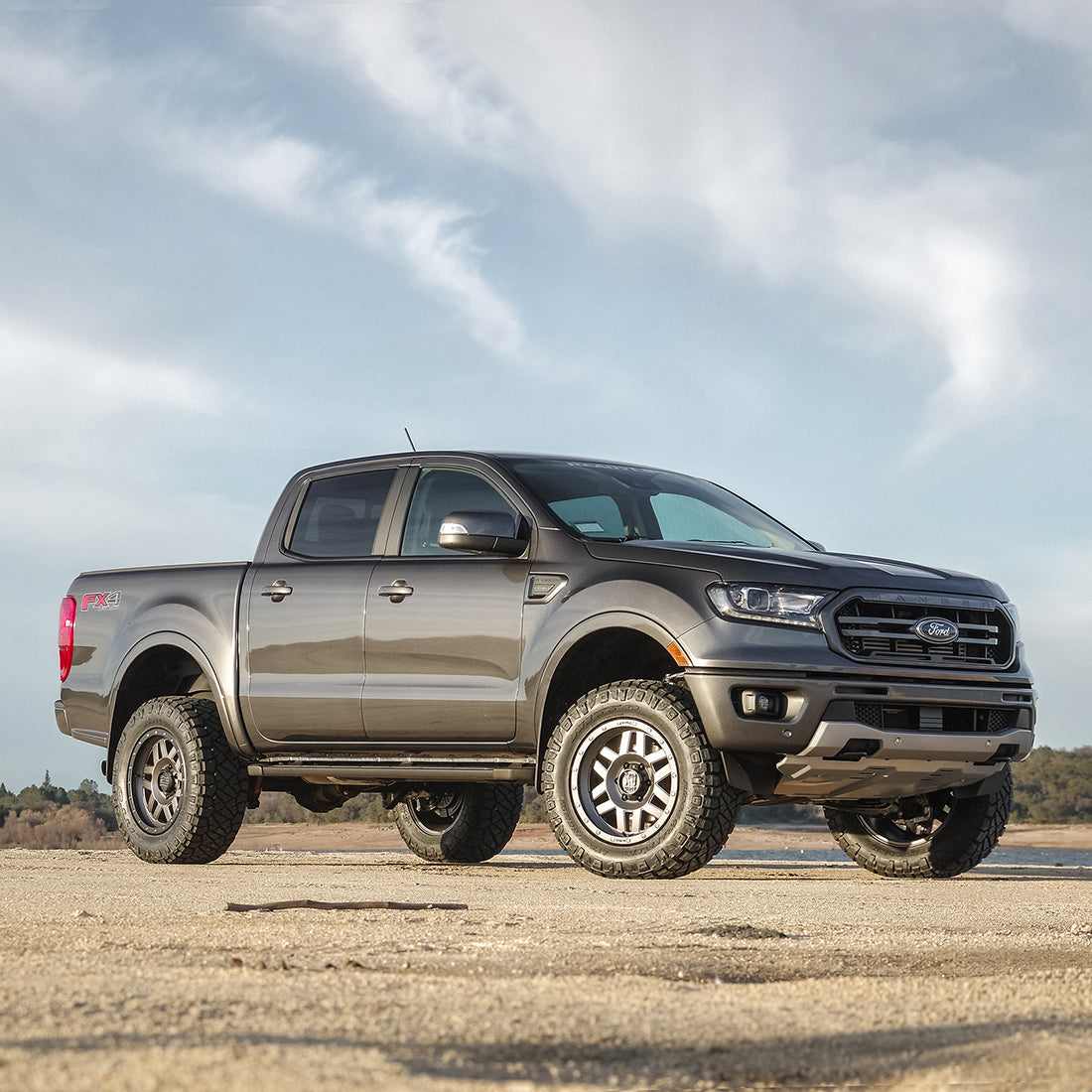

ReadyLIFT 3" Front Leveling Kit for 2019-2023 Ford Ranger
The ReadyLIFT 66-2930 raises the front of a 2019-2023 Ford Ranger by 3.0" to remove the factory rake. It fits XL, XLT, Lariat and FX4 trucks and allows a mild tire size increase. See other Ford Ranger parts.
This kit uses Top Hat Replacement technology, which merges a top mount leveling kit and a spring preload spacer into a single part. It needs no cutting and installs in a few hours, but it does require a spring compressor. The CNC machined billet aluminum is made in the USA. For a smaller lift, see other leveling kits. For front and rear lift ReadyLIFT points to 69-2930.
| Spec | Detail |
|---|---|
| Front lift | 3.0" |
| Material | CNC machined aircraft-grade billet aluminum |
| Wheel and tire examples | 18x9 +18 with 285/60R18, 20x9 +18 with 275/55R20 |
| SKU | 66-2930 |

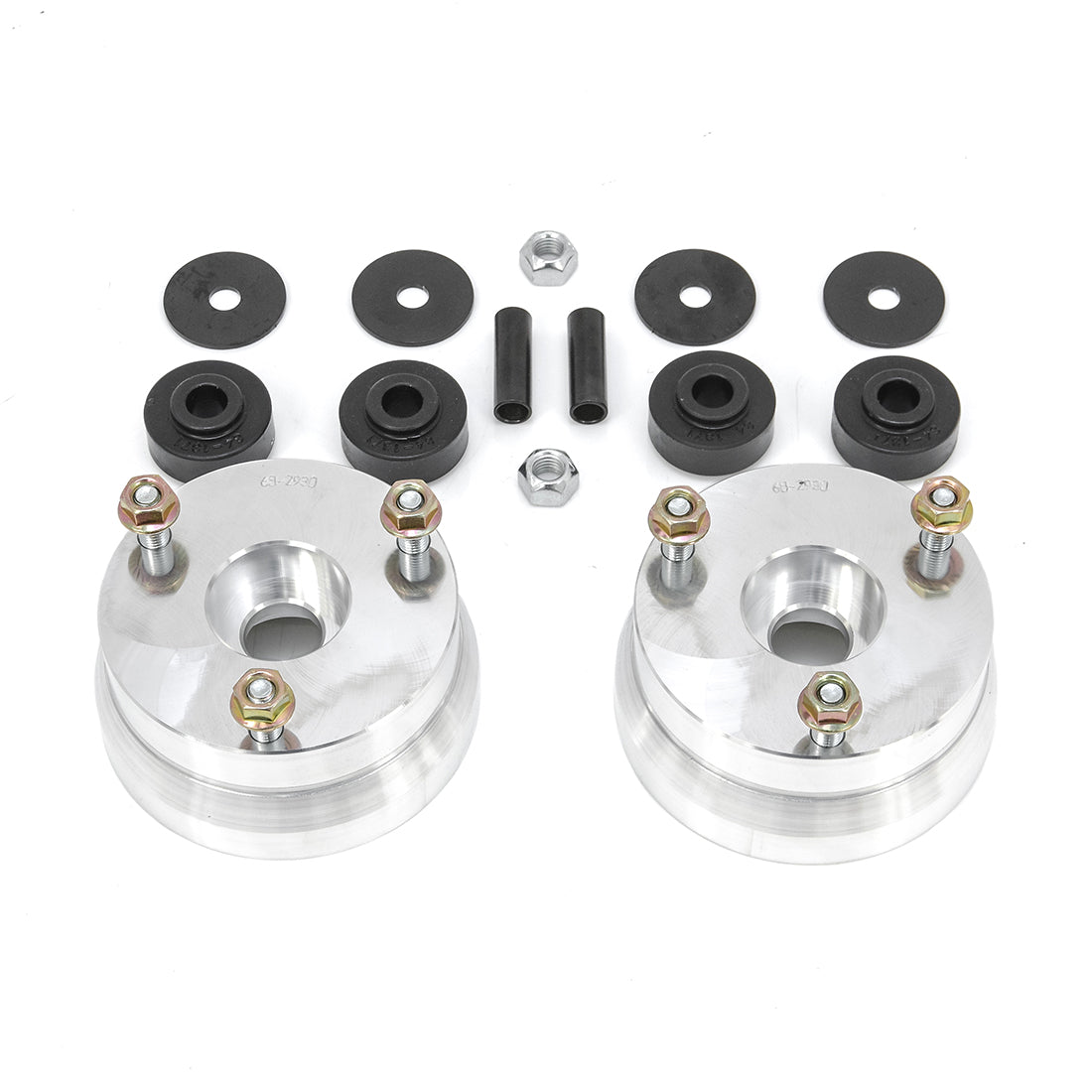

- 2 strut top replacements
- 8 strut top bushings
- 8 strut top laser cut washers
- 4 strut top crush sleeves
- 2 strut top C-lock nuts
- 6 M10 flange nuts
2019-2023 Ford Ranger XL, XLT, Lariat and FX4. Not for the Ranger Tremor or Ford Performance Level 1, 2 or 3 Packages. The front crash bars can be loosened and moved forward for more clearance.
Videos
Install guides & documents
Complete your Ranger build
The pieces owners run with this one — matched to your Ranger and to each other. Do the whole truck in one order instead of three.
$229.95
$239.00
$292.07
$1,504.15
$358.95
More for your Ford Ranger
Picked from the 695 parts we carry for the Ford Ranger, matched to 2019–2023 model years. Check the years and trim in each title — or call us and we’ll confirm fit.
ReadyLIFT 3" Leveling Kit-Ford Ranger 2019-2023 FAQs
Do I need a spring compressor?
Yes. The kit is easy to install but does require a spring compressor.
Does it fit the Ranger Tremor?
No. It is not for use with the Ranger Tremor Edition or the Ford Performance Level 1, 2 or 3 Packages.
What if I want front and rear lift?
ReadyLIFT points to kit 69-2930 for front and rear lift.
What wheel and tire sizes fit?
Examples from the vendor include 18x9 +18 with 285/60R18 and 20x9 +18 with 275/55R20.
