ReadyLIFT 3.5" SST2.1 Suspension System - Ford F-150 2015-2020

ReadyLIFT now offers a new premium 3.5" SST2.1 series lift kit for the 2015-2020 Ford F-150 4WD! The 62-23040 SST2.1 Suspension System provides a great lift solution to achieve a mild yet aggressive lifted stance while maintaining important factory ride and handling characteristics. The new 3.5" lift kit incorporates our all-new Falcon 2.1 series front replacement strut and rear shock system that delivers an incredible ride quality and opens the wheel wells up to increased wheel and tire sizes with the 3.5" front and a 2.5" rear lift over the stock ride height.

The Falcon 2.1 system pairs front monotube struts with rear adjustable piggyback shocks. SST 2.1 allows adjustment to the suspension ?" select a tune for daily, sport, or work duties with Falcon 2.1 Sport Tow/Haul Shocks. The easy-to-use 3-position Fast-Adjust settings include Sport/daily, Moderate Tow/Haul, and Heavy Tow/Haul. Falcon Performance Shocks improve performance and comfort regardless of the terrain. The versatility of these systems makes them ideal for daily driving, off-road excursions, and tow/haul duties. To complement the advanced Falcon strut/shock architecture, our engineers also developed upgraded DOM tube steel upper control arms with corrected ball joint angles for greater strength and articulation, complete with (4) alignment cam plates. The ReadyLIFT 3.5" SST2.1 Kit is exclusively engineered for the new 2015-2020 Ford F-150 4WD pickups. The maximum size tire/wheel fitment for use with this kit (without trimming) is a 295/60R20 on a 9" wide and +18 offset wheel.

Features:

- 3.5" front lift with a 2.5" rear blocks.

- Allows for up to 295/60R20 on a 9" wide and +18 offset.

- Fit up to a 35"x12.5" wheel 20"x9" with +12 offset with minor trimming.

- DOM tubular steel Upper Control Arms with market-best heavy-duty high-angle proprietary ball joint.

- Unmatched curb-appeal and rugged mid-size truck capability delivered in an affordable yet innovative Smart Suspension Technology "no-cut" lift kit.

- "High-Value Performance" is the driving force behind our new vehicle-specific Falcon shocks.

- Falcon shock absorber systems are tuned for comfort with predictive handling, control, and stability on-road and offroad.

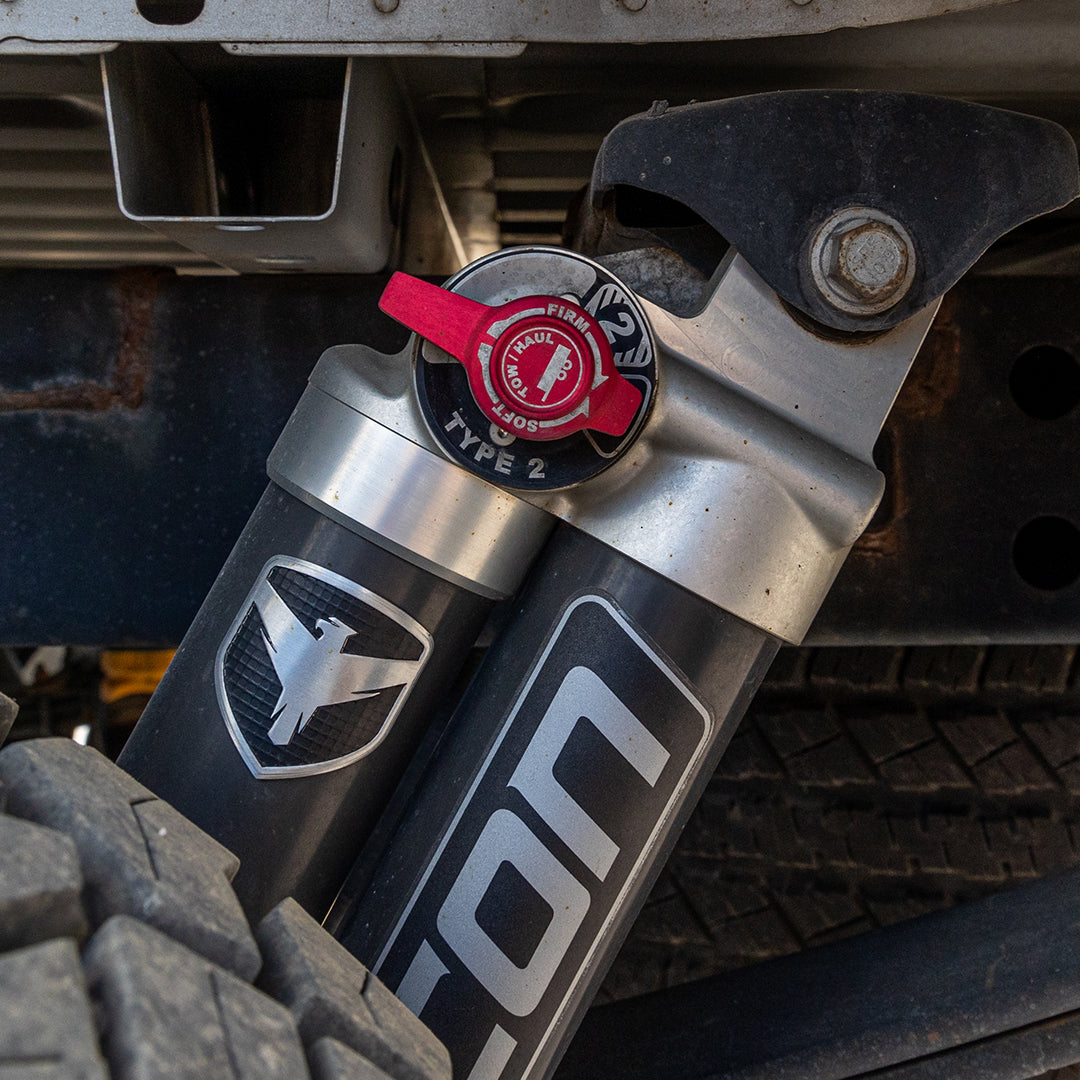

- Rear adjustable 3-position Falcon 2.1 shocks tune for daily, sport, or work duties.

- Vehicle-specific performance-tuned Falcon 2.1 dampers on all four corners.

- Improved dynamic roll control and low-speed damping.

- Dramatic improvement in on-road comfort and off-road performance.

- Optimized fitment for unobstructed suspension travel and articulation.

- 6061-T6 aluminum alloy shock body resists Impact to protect internal components.

- Smooth-honed internal shock body surface for long-term performance.

- 3/4" induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling.

- Large shaft diameter provides a wide range of adjustments on adjustable shocks.

- Hard anodized 6061-T6 aluminum alloy billet piston.

- 1-piece Teflon bronze piston wear band w/ O-ring.

Highlights

• Features:
• - 3.5" front lift with a 2.5" rear blocks.
• - Allows for up to 295/60R20 on a 9" wide and +18 offset.
• - Fit up to a 35"x12.5" wheel 20"x9" with +12 offset with minor trimming.
• - DOM tubular steel Upper Control Arms with market-best heavy-duty high-angle proprietary ball joint.
• - Unmatched curb-appeal and rugged mid-size truck capability delivered in an affordable yet innovative Smart Suspension Technology "no-cut" lift kit.
• - "High-Value Performance" is the driving force behind our new vehicle-specific Falcon shocks.
• - Falcon shock absorber systems are tuned for comfort with predictive handling, control, and stability on-road and offroad.
• - Rear adjustable 3-position Falcon 2.1 shocks tune for daily, sport, or work duties.
• - Vehicle-specific performance-tuned Falcon 2.1 dampers on all four corners.
• * NOTE: Not designed for 2WD.

Tire Fitment

35x12.50 Max on a 9" wide wheel with +12 offset

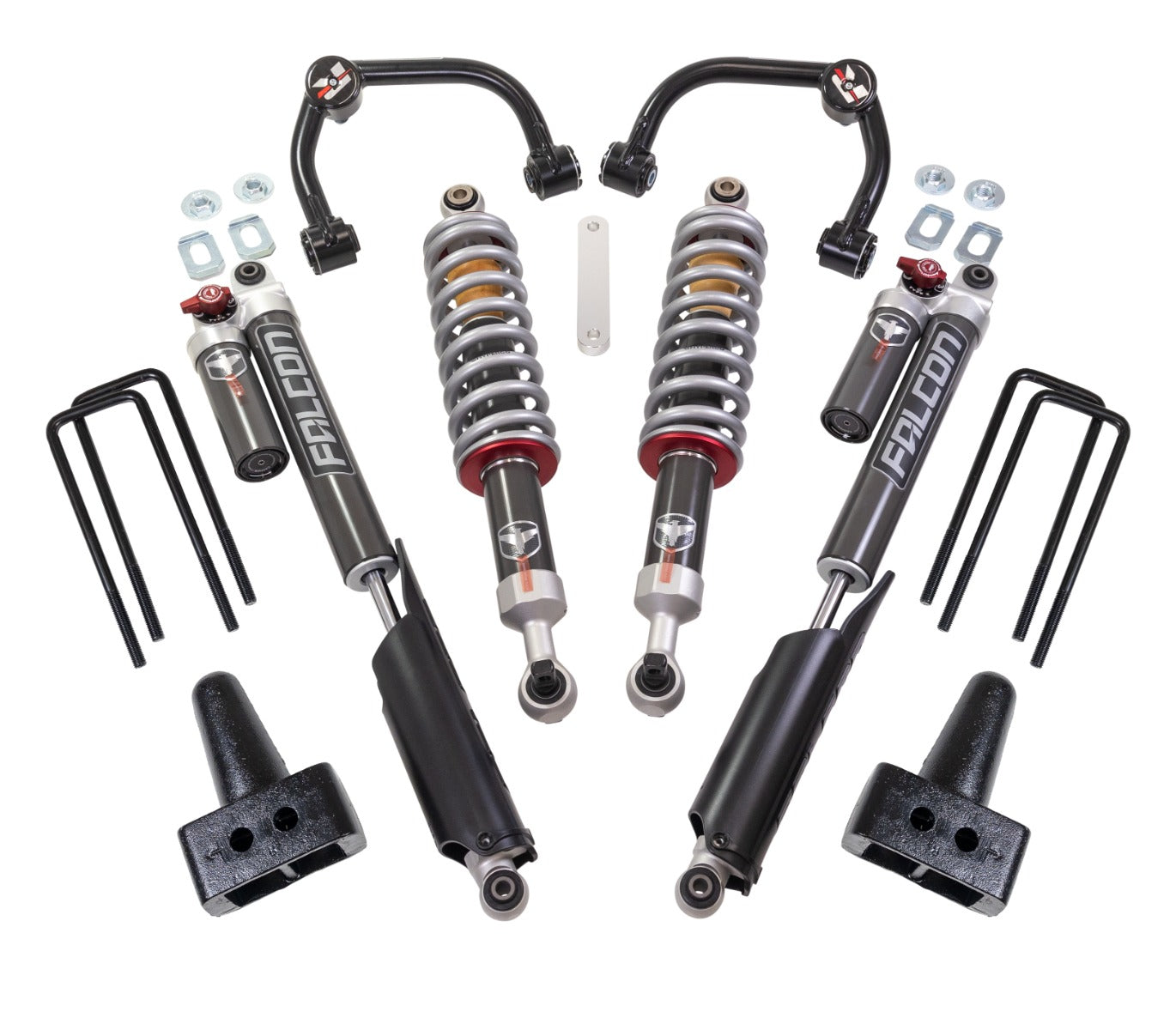

Kit Components

• Falcon 2.1 Monotube Front Schock
• Falcon 2.1 Tow Shock
• UPPER CONTROL ARM
• UPPER CONTROL ARM
• ALIGNMENT CAM
• ALIGNMENT PLATE
• 3" REAR BLOCK KIT
• Carrier Bearing
• HARDWARE PACK

Alignment and headlamp aim check recommended after installation.
