SKU: D83317908445

Fuel Cycle Wheel

By Fuel Off-Road

$410.00

Finish: Platinum

Size

Bolt Pattern

180-Day ReturnsOn uninstalled, unused parts Real humans who wheel(920) 249-7744 Financing available

For qualified buyers at checkout Secure checkoutEncrypted payment

Warranty Information

Vendor warranty summary

Fuel Off-Road Warranty

At a glance: Lifetime structural warranty; finish coverage 90 days to 2 years depending on finish

Shop Fuel Off-Road Official Fuel Off-Road policy All warranty policies

This is Fuel Off-Road's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.

Coverage by product

Product or component	Coverage
Wheel structure	Lifetime (original retail purchaser)
PVD finishes (peeling/lifting)	2 years
Chrome aluminum finish (peeling/lifting; pitting excluded)	1 year
Painted aluminum finish (peeling/lifting)	1 year
Steel wheel paint or plating	90 days (surface rust/corrosion excluded)
Uncoated polished aluminum	Not covered

Original purchaser only — coverage does not transfer if you sell it.
Keep your NVMOS order confirmation — proof of purchase is required.

What's covered

Structural failure under normal, intended use for as long as the original buyer owns the wheels
Finish peeling or lifting within the finish's coverage period
Approved wheels are repaired or replaced

What's not covered

Wheels not installed per Fuel's installation guidelines
Damage from poor maintenance or harsh cleaning chemicals
Structural damage from accidents or road hazards
Racing or improper vehicle use
Use of unapproved accessories or adapters
Removal, mounting, installation and shipping costs

How to make a Fuel Off-Road warranty claim

Return the wheel with the original sales receipt to the retailer you bought it from
The wheel is inspected; approved claims are repaired or replaced
You pay removal, shipping and reinstall costs; rejected wheels are sent back at your expense

Fuel Off-Road contact: Phone: 877-883-0852 · Claim page / support

Bought it from NVMOS? Start with us.

Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Fuel Off-Road, and help it along either way.

Shop Fuel Off-Road at NVMOS

Fuel Catalyst Wheel - 17"

Fuel Rebar Wheel - 22"

Fuel Cleaver Dually Wheel

See all Fuel Off-Road products, lead times and FAQs →

Disclaimer: The information on this page describes Fuel Off-Road's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Fuel Off-Road official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.

About the brand

Fuel Off-Road

Fuel Off-Road is the aggressive-styled wheel brand MHT Luxury Alloys launched in 2008, with sizes and fitments for nearly every truck and SUV. NVMOS carries Fuel off-road wheels from 15 to 24 inches, plus dually and beadlock wheels. For trucks that are lifted, about to be lifted, or doing heavy work.

Founded: 2008 · Lead time: In-stock items ship in 24–48 hours

Fuel Off-Road warranty: Lifetime structural warranty; finish coverage 90 days to 2 years depending on finish. Read the full summary

Shop all 309 Fuel Off-Road Warranty All brands

Warranty terms are set by Fuel Off-Road, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

More details

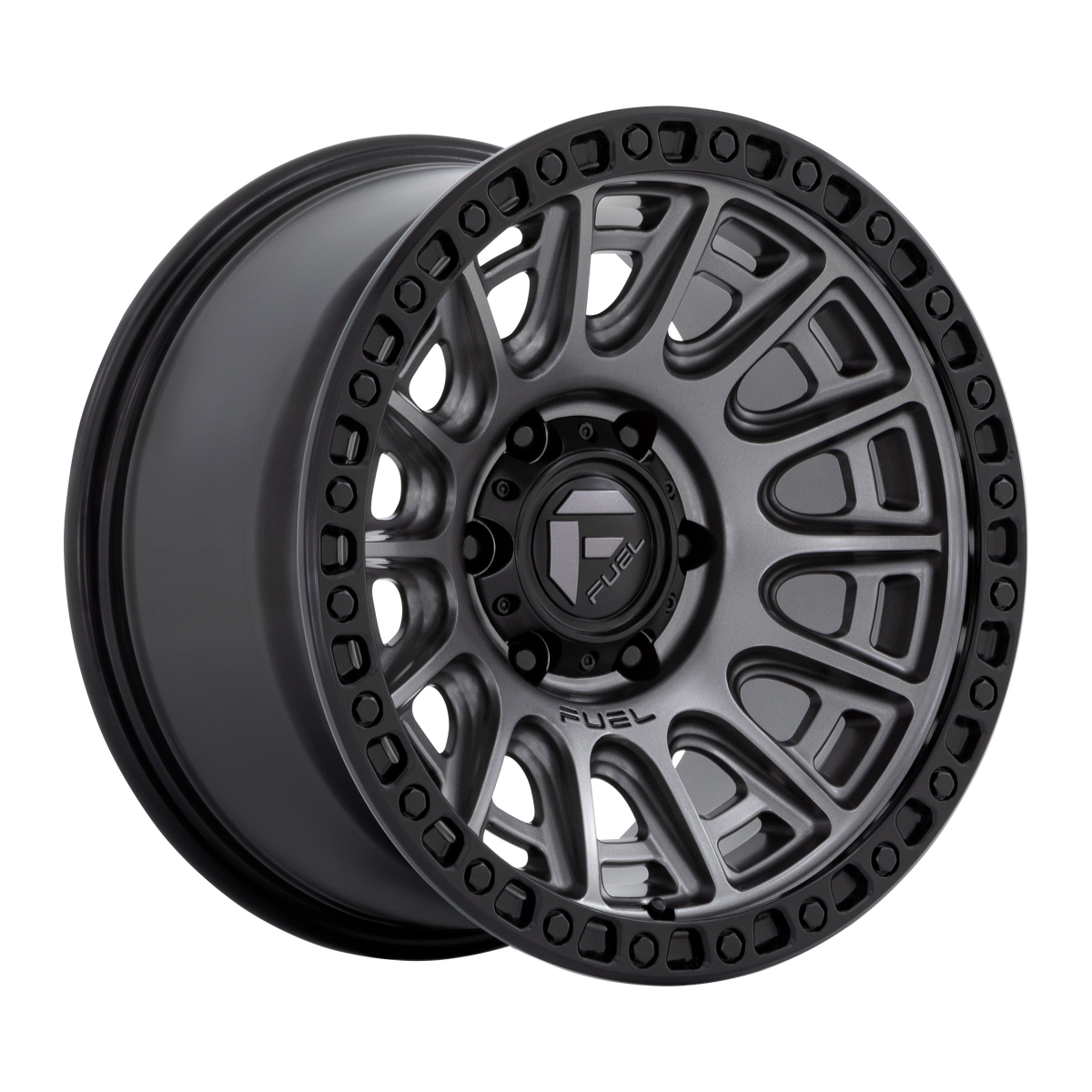

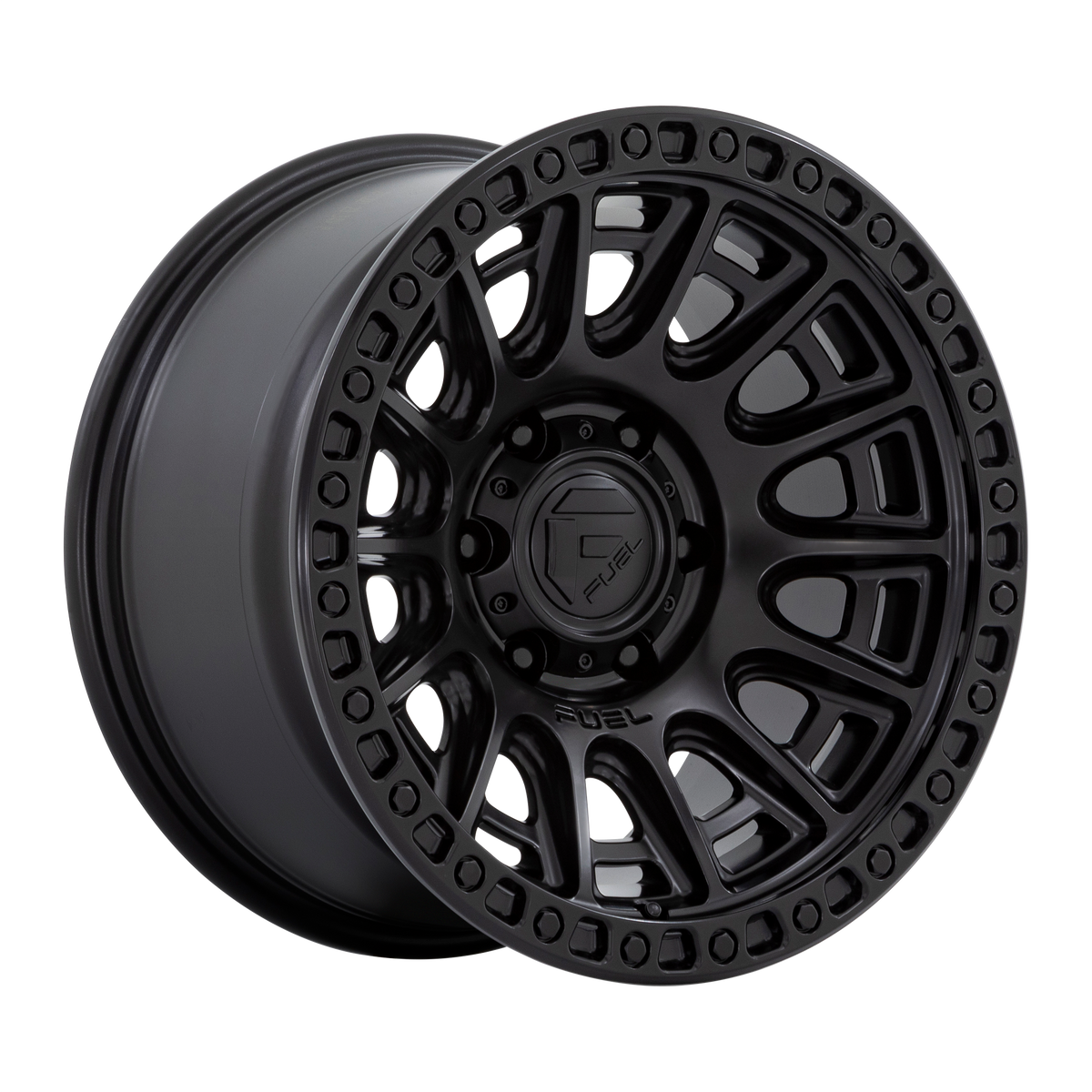

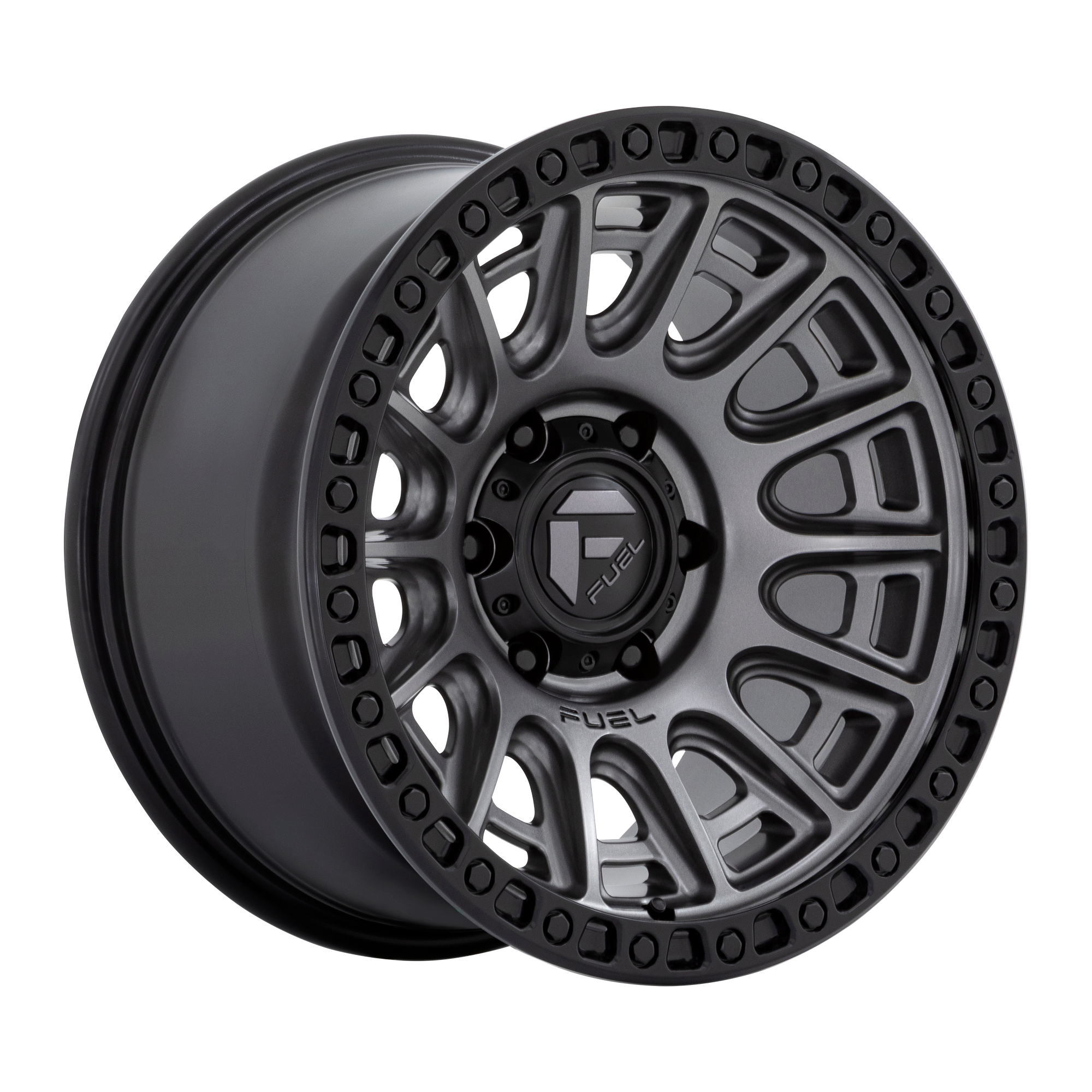

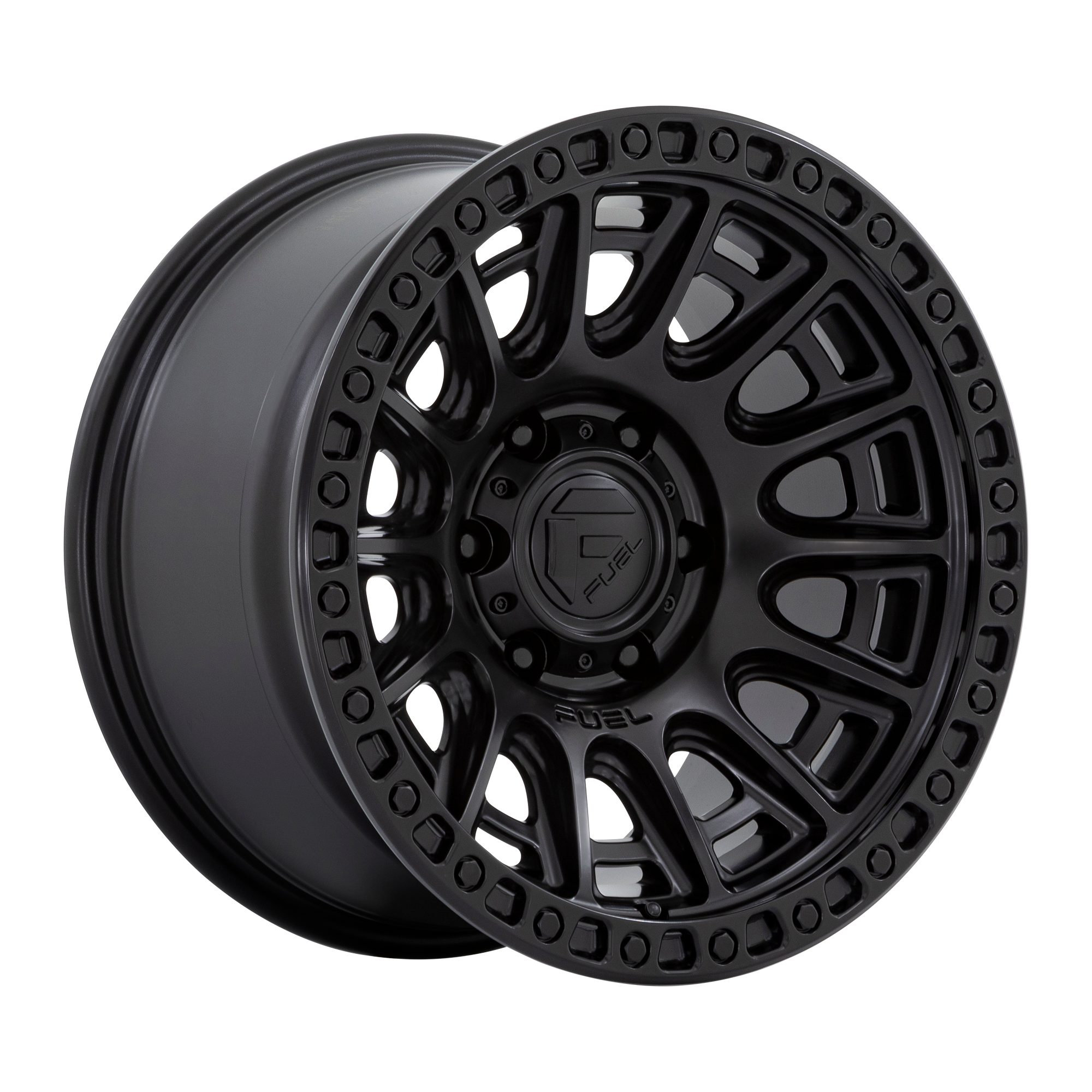

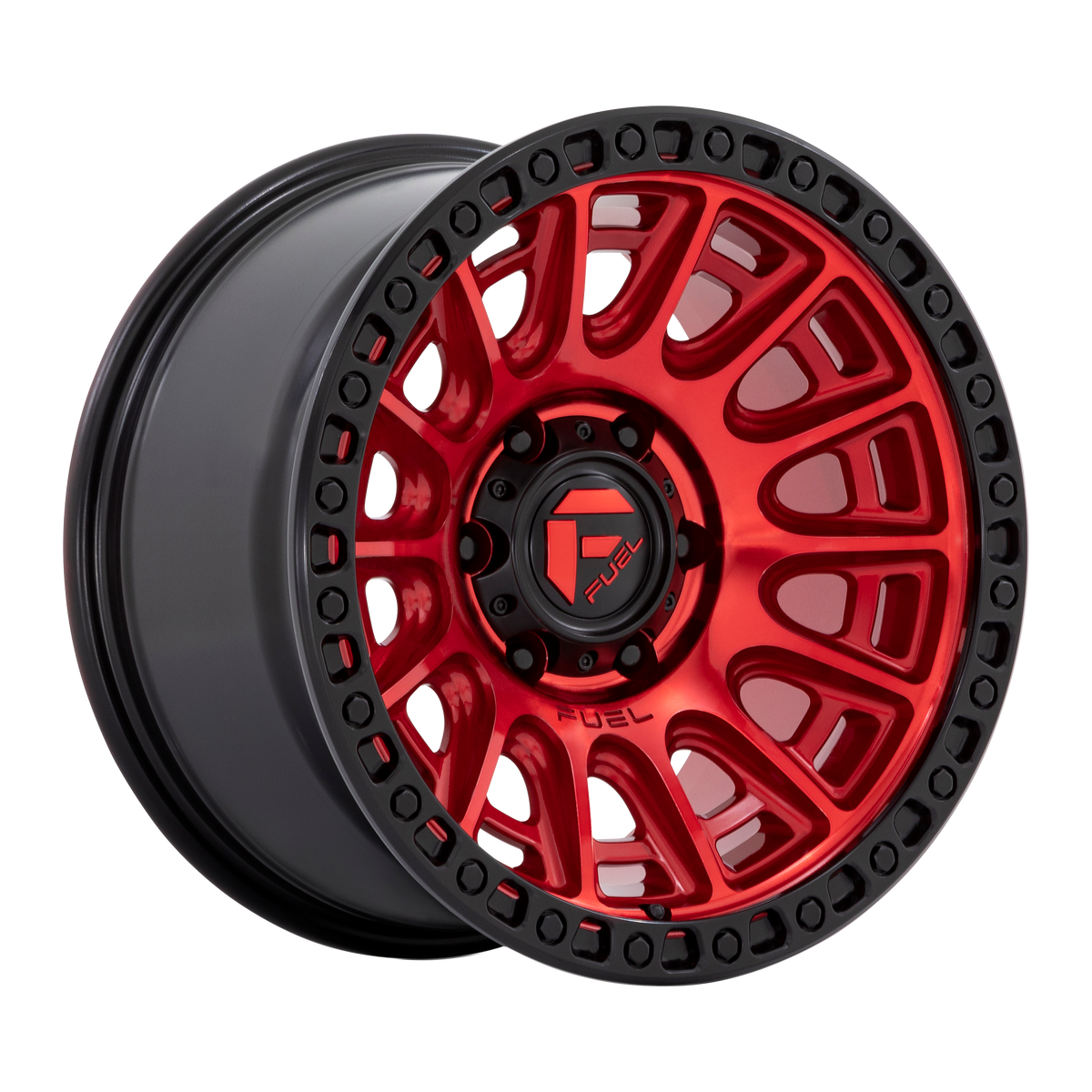

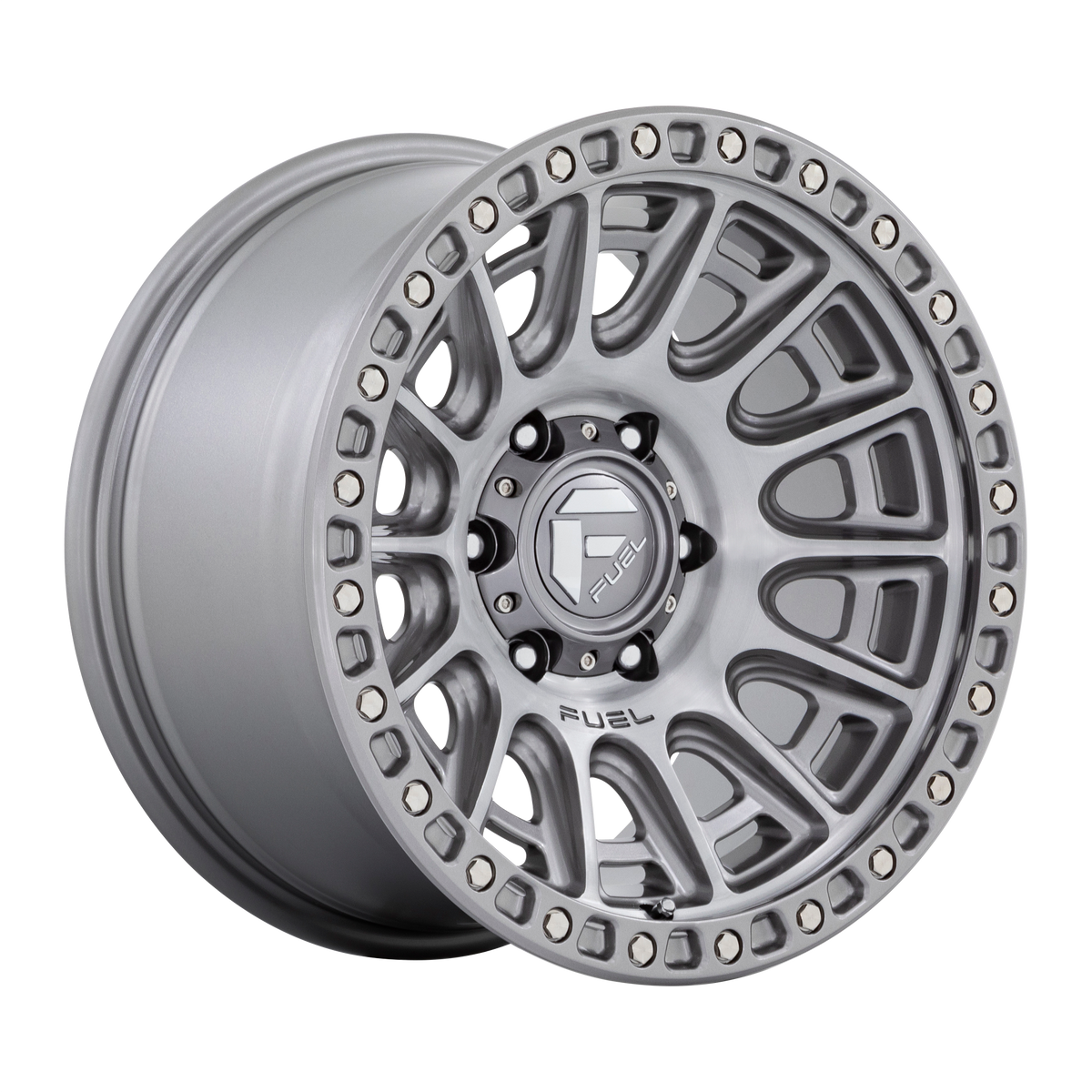

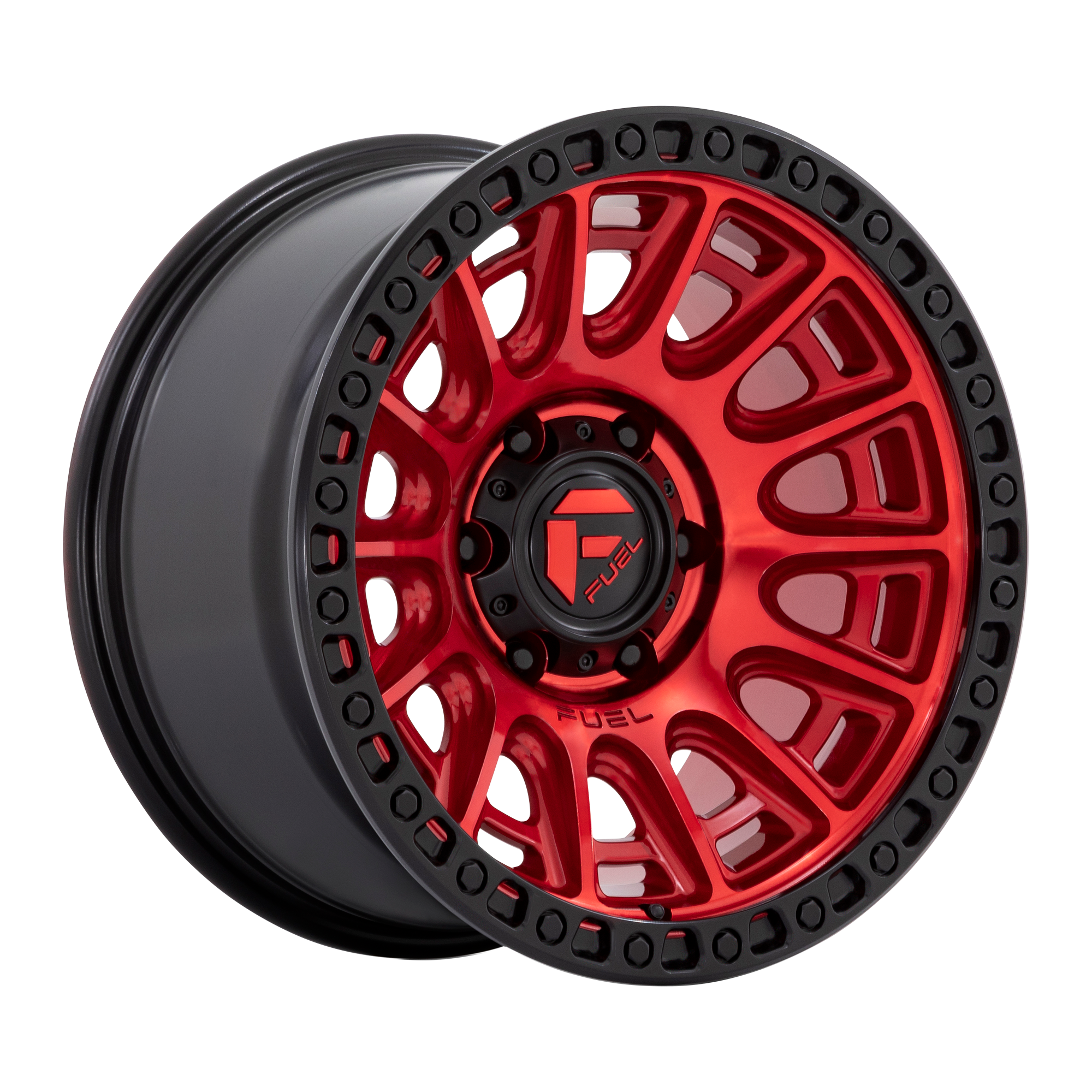

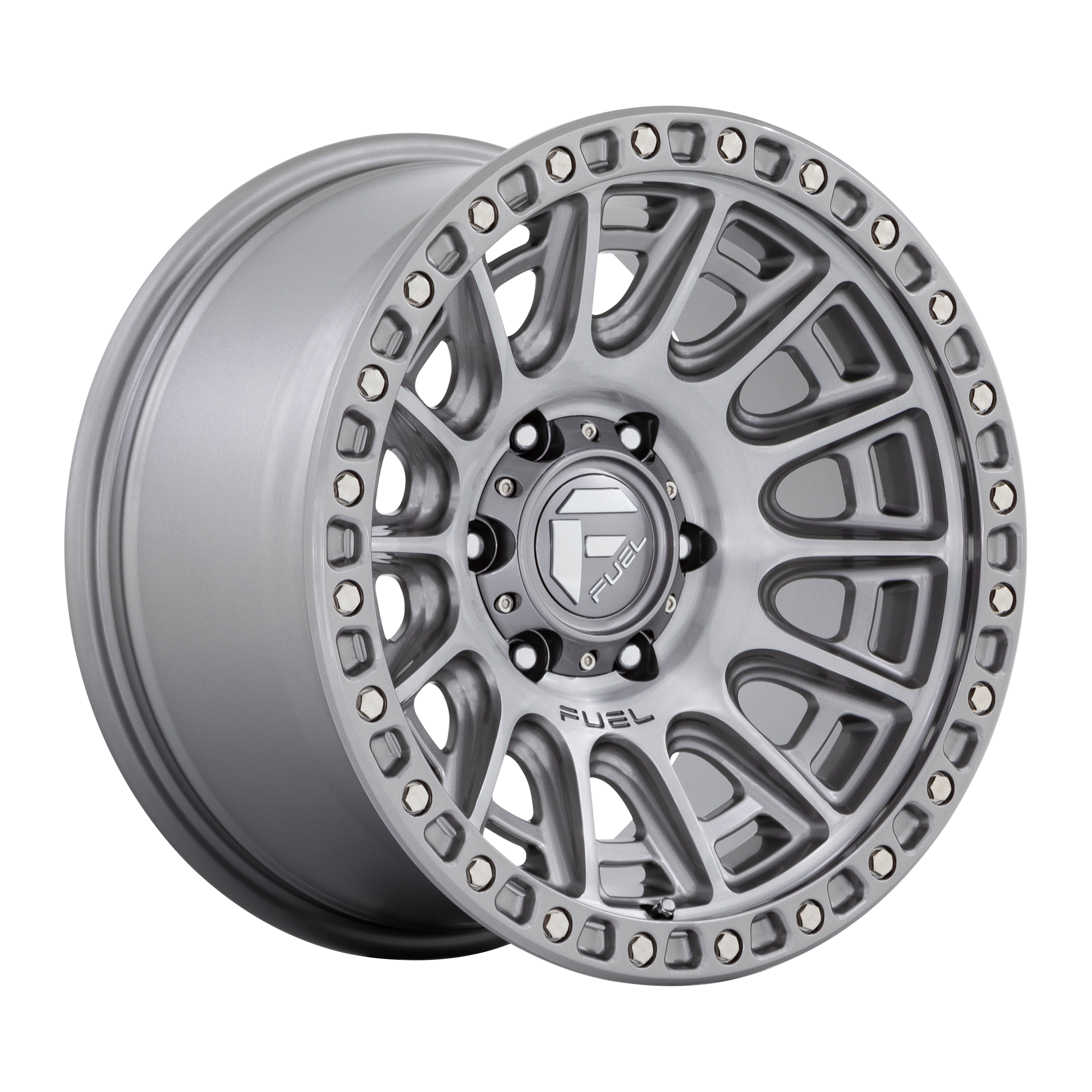

Fuel Cycle Wheel

The Fuel Cycle has a sleek 10-spoke design, a deep concave profile and a gloss polish. It is made from tough cast aluminum and balances street style with trail readiness. See more off-road wheels.

It comes in 5, 6 and 8-lug patterns in 17 and 20-inch sizes. Fuel lists Wranglers, Tacomas, F-150s, RAM 1500s, Silverado and Sierra 1500s, plus three-quarter and one-ton rigs. Offsets span -12mm to +34mm. Compare non-beadlock wheels.

Why it works

Tough cast aluminumStreet style with trail readiness.

Deep concaveA sleek 10-spoke face.

Four finishesPlatinum, Blackout, Matte Gunmetal and Candy Red with black ring.

Fitment

Finishes: Platinum, Blackout, Matte Gunmetal w/ Black Ring, Candy Red w/ Black Ring. Sizes (diameter x width, offset): 17x9 -12mm, 20x9 1mm, 17x9 1mm, 17x8.5 25mm, 17x8.5 34mm, 17x8.5 30mm. Bolt patterns: 6x139.7, 5x127, 6x135, 6x114.3, 5x120, 5x130.

Specifications

Part #	Finish	Size / Offset	Bolt Pattern	Backspace	Center Bore	Load Rating	Weight
D83217858457	Blackout	17x8.5 25mm	6x139.7	5.73"	106.10mm	2500 lbs	33.51 lbs
D83517858457	Matte Gunmetal w/ Black Ring	17x8.5 25mm	6x139.7	5.73"	106.10mm	2500 lbs	33.51 lbs
D83317858457	Platinum	17x8.5 25mm	6x139.7	5.73"	106.10mm	2500 lbs	33.51 lbs
D83217856359	Blackout	17x8.5 30mm	5x130	5.93"	71.60mm	2500 lbs	33.73 lbs
D83517856359	Matte Gunmetal w/ Black Ring	17x8.5 30mm	5x130	5.93"	71.60mm	2500 lbs	33.73 lbs
D83217858760	Blackout	17x8.5 34mm	6x114.3	6.09"	66.06mm	2500 lbs	33.73 lbs
D8321785G460	Blackout	17x8.5 34mm	5x120	6.09"	65.07mm	2500 lbs	33.51 lbs
D83517858760	Matte Gunmetal w/ Black Ring	17x8.5 34mm	6x114.3	6.09"	66.06mm	2500 lbs	33.73 lbs
D8351785G460	Matte Gunmetal w/ Black Ring	17x8.5 34mm	5x120	6.09"	65.07mm	2500 lbs	33.51 lbs
D8331785G460	Platinum	17x8.5 34mm	5x120	6.09"	65.07mm	2500 lbs	33.51 lbs
D83317858760	Platinum	17x8.5 34mm	6x114.3	6.09"	66.06mm	2500 lbs	33.73 lbs
D83217908445	Blackout	17x9 -12mm	6x139.7	4.53"	106.10mm	2500 lbs	34.12 lbs
D83217907545	Blackout	17x9 -12mm	5x127	4.53"	71.50mm	2500 lbs	34.90 lbs
D83417907545	Candy Red w/ Black Ring	17x9 -12mm	5x127	4.53"	71.50mm	2500 lbs	34.90 lbs
D83417908445	Candy Red w/ Black Ring	17x9 -12mm	6x139.7	4.53"	106.10mm	2500 lbs	34.12 lbs
D83517908445	Matte Gunmetal w/ Black Ring	17x9 -12mm	6x139.7	4.53"	106.10mm	2500 lbs	34.12 lbs
D83517907545	Matte Gunmetal w/ Black Ring	17x9 -12mm	5x127	4.53"	71.50mm	2500 lbs	34.90 lbs
D83317908445	Platinum	17x9 -12mm	6x139.7	4.53"	106.10mm	2500 lbs	34.12 lbs
D83317907545	Platinum	17x9 -12mm	5x127	4.53"	71.50mm	2500 lbs	34.90 lbs
D83217907550	Blackout	17x9 1mm	5x127	5.04"	71.50mm	2500 lbs	33.10 lbs
D83217908950	Blackout	17x9 1mm	6x135	5.04"	87.10mm	2500 lbs	32.40 lbs
D83217908450	Blackout	17x9 1mm	6x139.7	5.04"	106.10mm	2500 lbs	32.25 lbs
D83417907550	Candy Red w/ Black Ring	17x9 1mm	5x127	5.04"	71.50mm	2500 lbs	33.10 lbs
D83517907550	Matte Gunmetal w/ Black Ring	17x9 1mm	5x127	5.04"	71.50mm	2500 lbs	33.10 lbs
D83517908450	Matte Gunmetal w/ Black Ring	17x9 1mm	6x139.7	5.04"	106.10mm	2500 lbs	32.25 lbs
D83317908450	Platinum	17x9 1mm	6x139.7	5.04"	106.10mm	2500 lbs	32.25 lbs
D83220908950	Blackout	20x9 1mm	6x135	5.04"	87.10mm	2500 lbs	34.20 lbs
D83220907550	Blackout	20x9 1mm	5x127	5.04"	71.50mm	2500 lbs	34.20 lbs
D83220908450	Blackout	20x9 1mm	6x139.7	5.04"	106.10mm	2500 lbs	34.20 lbs
D83420908950	Candy Red w/ Black Ring	20x9 1mm	6x135	5.04"	87.10mm	2500 lbs	34.20 lbs
D83520908450	Matte Gunmetal w/ Black Ring	20x9 1mm	6x139.7	5.04"	106.10mm	2500 lbs	34.20 lbs
D83520908950	Matte Gunmetal w/ Black Ring	20x9 1mm	6x135	5.04"	87.10mm	2500 lbs	34.20 lbs
D83320908450	Platinum	20x9 1mm	6x139.7	5.04"	106.10mm	2500 lbs	34.20 lbs
D83320908950	Platinum	20x9 1mm	6x135	5.04"	87.10mm	2500 lbs	34.20 lbs

Finish the whole truck in one order

Complete your build

The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.

Fuel Cycle Wheel (this item) What you’re viewing $410.00

✓

ICON 2020-Up Jeep JT Gladiator, 2.5" Lift, Rear, 2.0 VS Shock $200.80

✓

ReadyLIFT 7/8" Wheel Spacers W/ Studs - GM 1500 $249.95

✓

KC HiLiTES Platform One Roof Rack with 360° Lighting for 2007-2021 Toyota Tundra $4,999.98

✓

C4 Fabrication Tacoma Fuel Tank Skid Plate / 3rd Gen / 2016-2023 Finish $474.00

Build total (1 items)

$410.00

The complete look for your build.

Set any options above, then add them all in one click — one checkout, one shipment.

Specifications

Part numbers: one Fuel part number per finish, size and bolt pattern (listed in the size table below)
Construction: Cast aluminum
Design: 10-spoke, deep concave
Finishes: Blackout, Matte Gunmetal w/ Black Ring, Platinum, Candy Red w/ Black Ring
Sizes (diameter x width, offset): 17x8.5 25mm, 17x8.5 30mm, 17x8.5 34mm, 17x9 -12mm, 17x9 1mm, 20x9 1mm
Bolt patterns: 6x139.7, 5x130, 6x114.3, 5x120, 5x127, 6x135
Backspace: 4.53 to 6.09"
Center bore: 65.07 to 106.10 mm
Load rating: 2,500 lbs per wheel
Weight: 32.25 to 34.90 lbs per wheel, depending on size
