ReadyLIFT 3.5" SST Kit 2023-UP Toyota Sequoia

The all-new Toyota Sequoia has quickly earned its place as a top-tier full-size SUV, combining modern styling with powerful capability. Now, ReadyLIFT® is proud to elevate that capability with the release of the 69-53300 3.5" SST® Lift Kit ?" a premium suspension upgrade designed specifically for the latest Sequoia platform.

This new lift system is engineered to deliver increased ground clearance, enhanced tire fitment, and a leveled stance ?" all while maintaining the smooth ride quality Toyota owners expect. Whether you're tackling rugged terrain or cruising the highway, this bolt-on solution adds aggressive style and practical performance in one complete package.

Key Features:

Bolt-On Installation ?" Easy, no-cut, no-weld installation for hassle-free upgrades.

Heavy-Duty Tubular Steel Control Arms ?" Precision-engineered with corrected ball joint geometry for improved alignment and suspension travel.

New Fabricated Steel Front Strut Spacers ?" Provide lift and added strength where it counts.

Fabricated Rear Coil Spring Spacers ?" Maintain a near-level stance with 3" front and 2.5" rear lift.

Rear Shock Extensions ?" Allow use of factory shocks for OEM ride quality and performance.

Factory Ride Integrity ?" Preserve the comfort and handling of the stock Sequoia while gaining an aggressive new stance.

Enhanced Tire Clearance & Bold Presence

The 3.5" SST® Lift Kit allows for up to 285/75R17 tires on a 17x8.5 +25 offset wheel, giving your Sequoia a commanding presence both on and off the pavement. With minor trimming, fitment can be extended up to 295/75R17, offering even more off-road potential.

Note: Not compatible with TRD Pro, AVS-equipped, or factory air suspension models.

Highlights

• 3.5" SST Lift Kit
• Bolt-On Installation ?" Easy, no-cut, no-weld installation for hassle-free upgrades.
• Heavy-Duty Tubular Steel Control Arms ?" Precision-engineered with corrected ball joint geometry for improved alignment and suspension travel.
• New Fabricated Steel Front Strut Spacers ?" Provide lift and added strength where it counts.
• Fabricated Rear Coil Spring Spacers ?" Maintain a near-level stance with 3.5" front and 2.5" rear lift.
• Rear Shock Extensions ?" Allow use of factory shocks for OEM ride quality and performance.
• Factory Ride Integrity ?" Preserve the comfort and handling of the stock Sequoia while gaining an aggressive new stance.
• Allows for up to 285/75R17 tires on a 17x8.5 +25 offset wheel
• Note: Not compatible with TRD Pro, AVS-equipped, or factory air suspension models. The TRD skidplate will not work with this application.

Tire Fitment

285/75R17 tires on a 17x8.5 +25 offset wheel

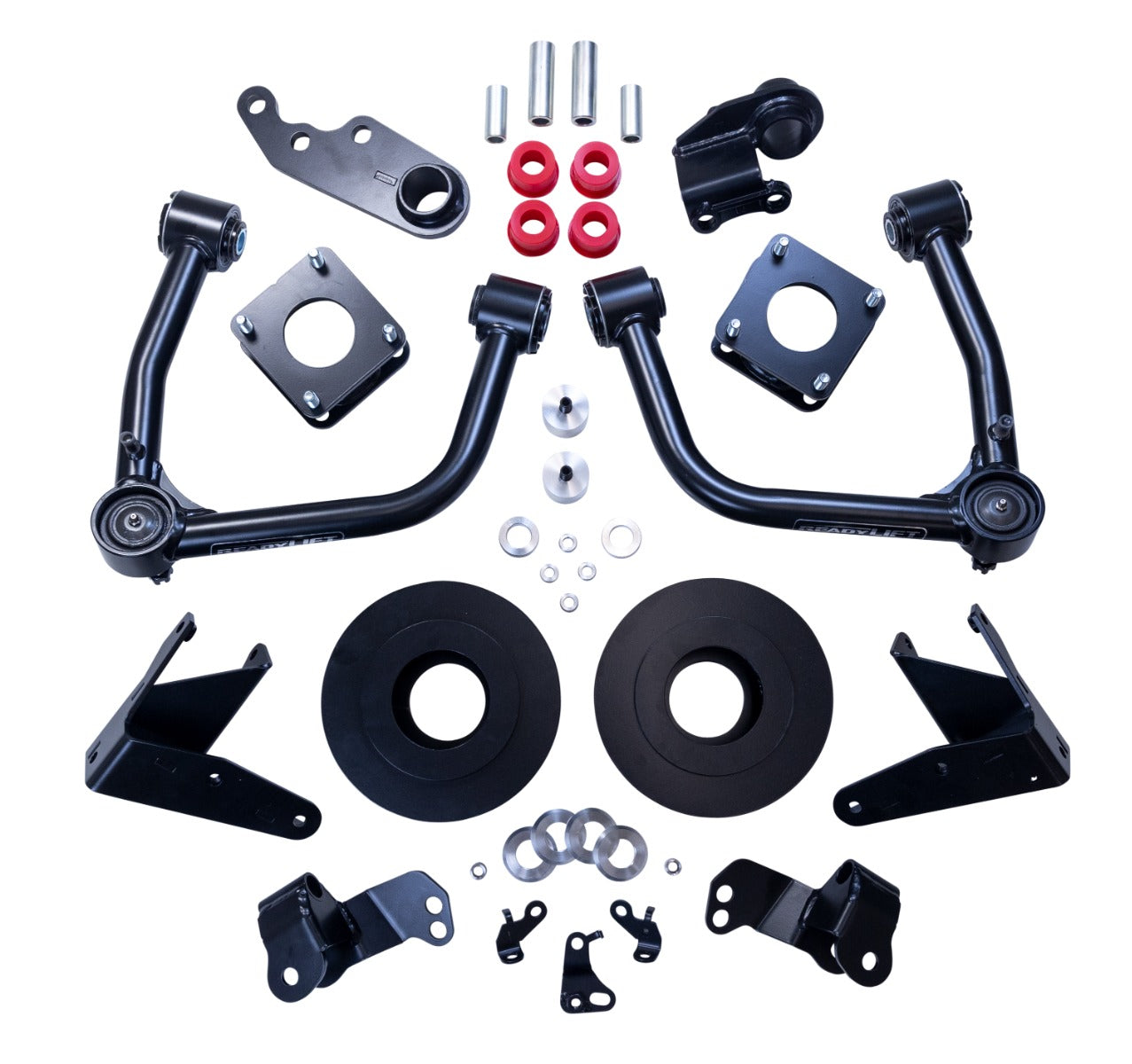

Kit Components

• FRT DIFF DROP, LFT
• 0.87" OD x 0.56" ID x 2.65" Crush Sleeve
• 1.52" OD x 0.85" ID Polyurethane Bushing
• End Link Spacer
• Brake Line Relocation Bracket Left Hand Side (Driver)
• Brake Line Relocation Bracket Right Hand Side (Pass)
• Rear Brake Line Spacer
• Rear Brake Line Relocation Bracket
• REAR BUMP STOP EXTENSION RIGHT
• REAR BUMP STOP EXTENSION LEFT
• BUMP STOP CRUSH SLEEVE
• Hardware Pack

Alignment and headlamp aim check recommended after installation.
