ReadyLIFT 2019-2024 Ram 2500 Diesel 4WD 4.5" Coil Spring Lift Kit

The all-new 4.5" Coil Spring Lift Kits allow for even more ground clearance while going to a 37" tire. Springing up to the new 4.5" lift yields all the bells and whistles of a big 6" kit but at a slightly lower, garage-able stance. These kits come with heavy-duty steel radius arm drop brackets, heavy-duty fabricated steel front, and rear (2500 only) track bar brackets, forged dropped pitman arm, sway bar relocation brackets, and bump stop extensions preventing over-compression of the included Falcon 1.1 Monotube front & rear shocks. Both 4.5" Ram HD kits include our unique CNC-machined 6061-T6 billet Aluminum Driveline Indexing System (DIS) that re-clocks the transfer case to properly align the front output shaft for improved driveline angles. The Ram 2500 HD comes with the standard output diesel engine DIS system.

Kit 49-19420 includes everything in our popular 6 lift kit as well as these new DIS re-positioning components. Heavy duty and great riding 4.5" lift front springs, 3" lift rear coil spring spacers, heavy-duty radius arm drop brackets, heavy-duty fabricated steel front, and rear track bar brackets, dropped cast iron pitman arm, front/rear sway bar relocation brackets and bump stop extensions preventing over-compression of the new Falcon 1.1 Monotube shocks front/rear shocks are all included in this premium kit.

For use on diesel 2500 trucks only.

Highlights

• All-new 2019-2024 Ram 2500 4WD HD 4.5" lift kit
• 4.5-inch front/3-inch rear spring lift kit
• Includes all-new transfer case clocking ring and new heavy-duty transmission crossmember.
• Includes 4 Falcon 1.1 Monotube shocks tuned specifically for the Ram 2500 HD.
• For use on Diesel engine Ram 2500 4WD HD trucks only.
• Allows for up to 37x13.50 tires on 20" x 9" wide wheels with -18 offset.
• Note: Does not work with Factory Air suspension or Auto Level system (factory helper bags). Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.
• Special Note RAM TSB 03-003-23: Symptom/Vehicle Issue: Ratchet Type Click, Clicking Noise Heard In Four Wheel Drive (4WD) While Turning. Download TSB Info. Recommended driveline for the 68RFE Adams Drive Shaft SKU:ASDRAM-1350F-5GEN.

Tire Fitment

Maximum fitment: 37x12.50 tire

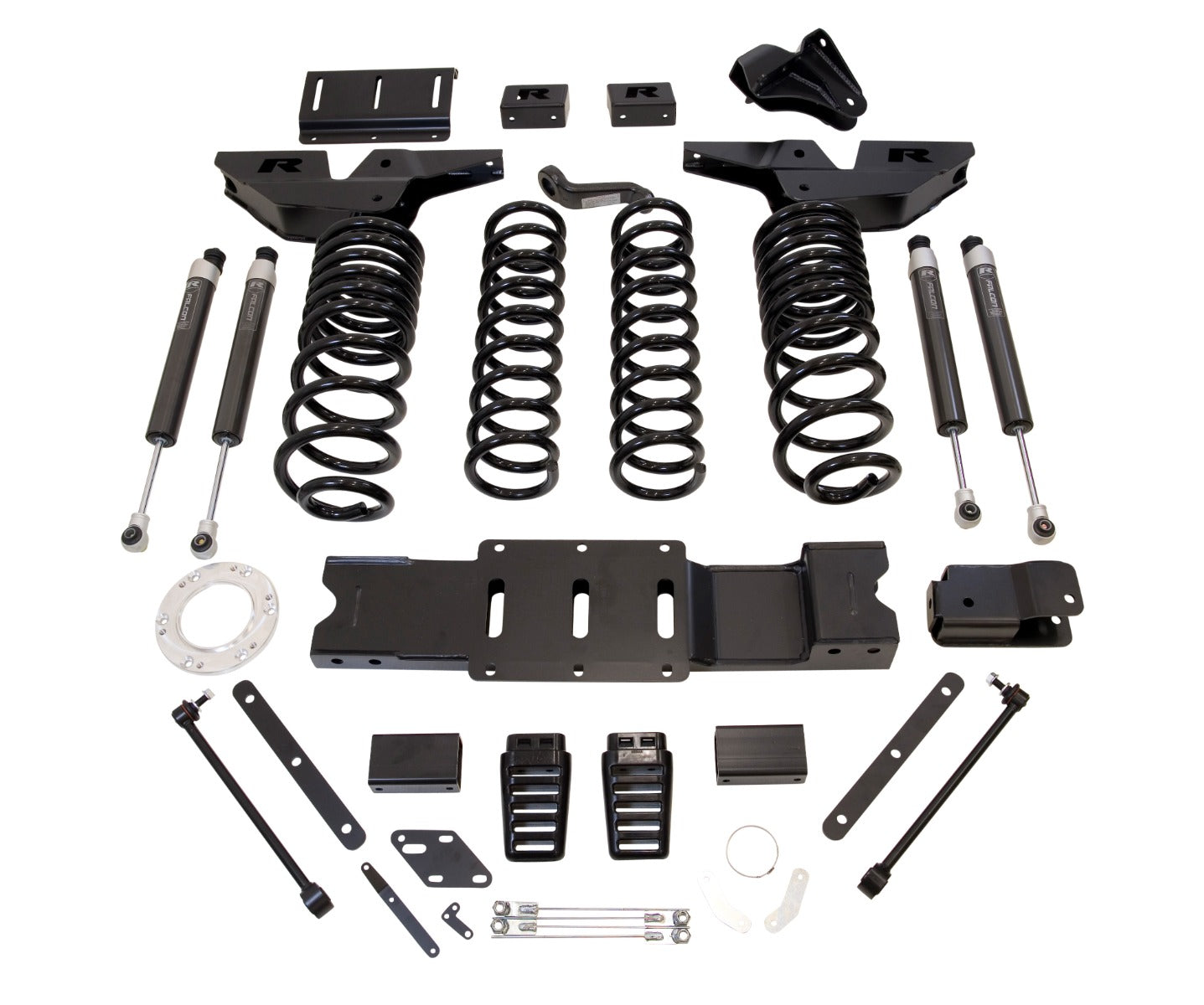

Kit Components

• 4.5" Front Lift Spring
• 3" Rear Lift Spring
• Falcon Shock, Front
• Falcon Shock, Rear
• Radius Arm Drop, Driver
• Radius Arm Drop, Passenger
• Front Track Bar Bracket
• Rear Track Bar Bracket
• Driver, Sway Bar Drop Bracket
• Passenger, Sway Bar Drop Bracket
• 12" Rear Sway Bar Endlink
• Replacement Front Bump Stop
• Rear Bump Stop Extension
• Pitman Arm, Drop, Replacement
• Transmission Connector Bracket
• Transmission Crossmember
• Transmission Harness Bracket
• Transmission Mounting Plate
• Transmission Mount Spacer
• 6 Bolt Clocking Ring
• Front Brakeline Bracket
• Rear Brakeline Bracket
• Pinch Clamp
• Hardware Pack

Alignment and headlamp aim check recommended after installation.
