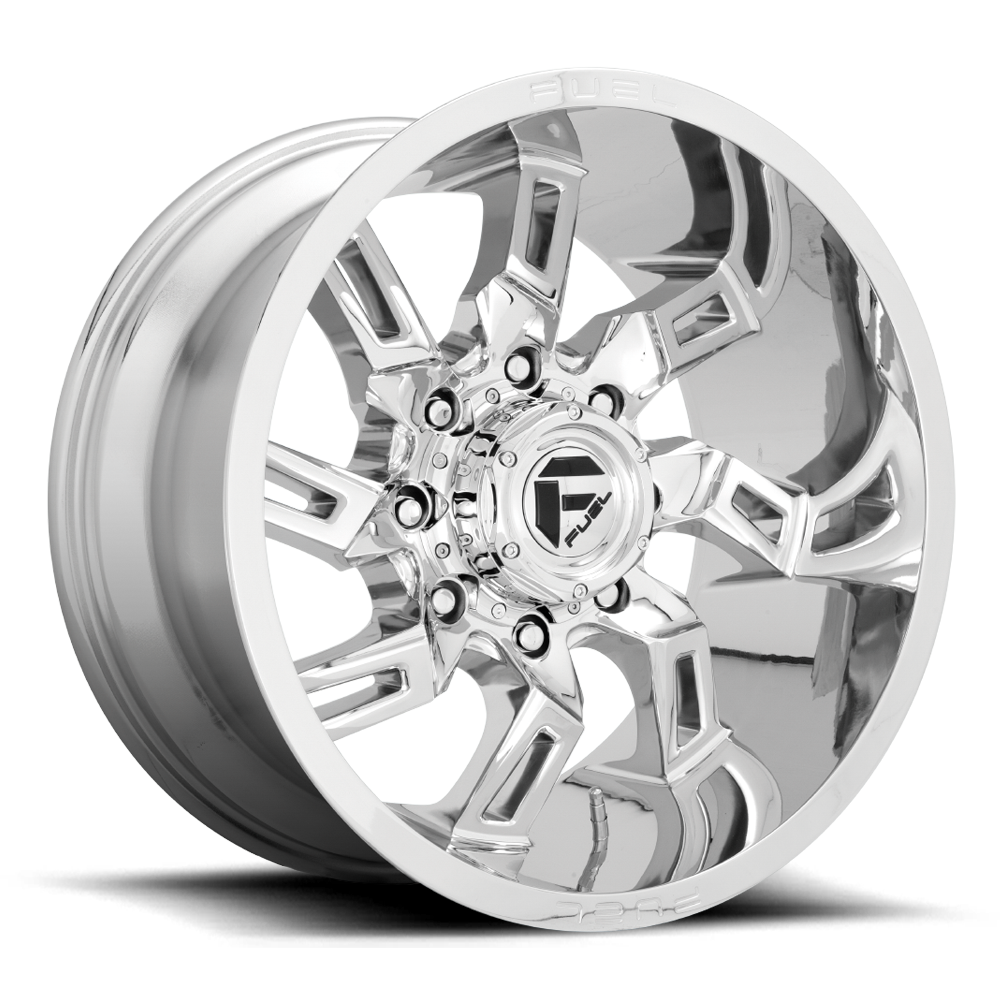

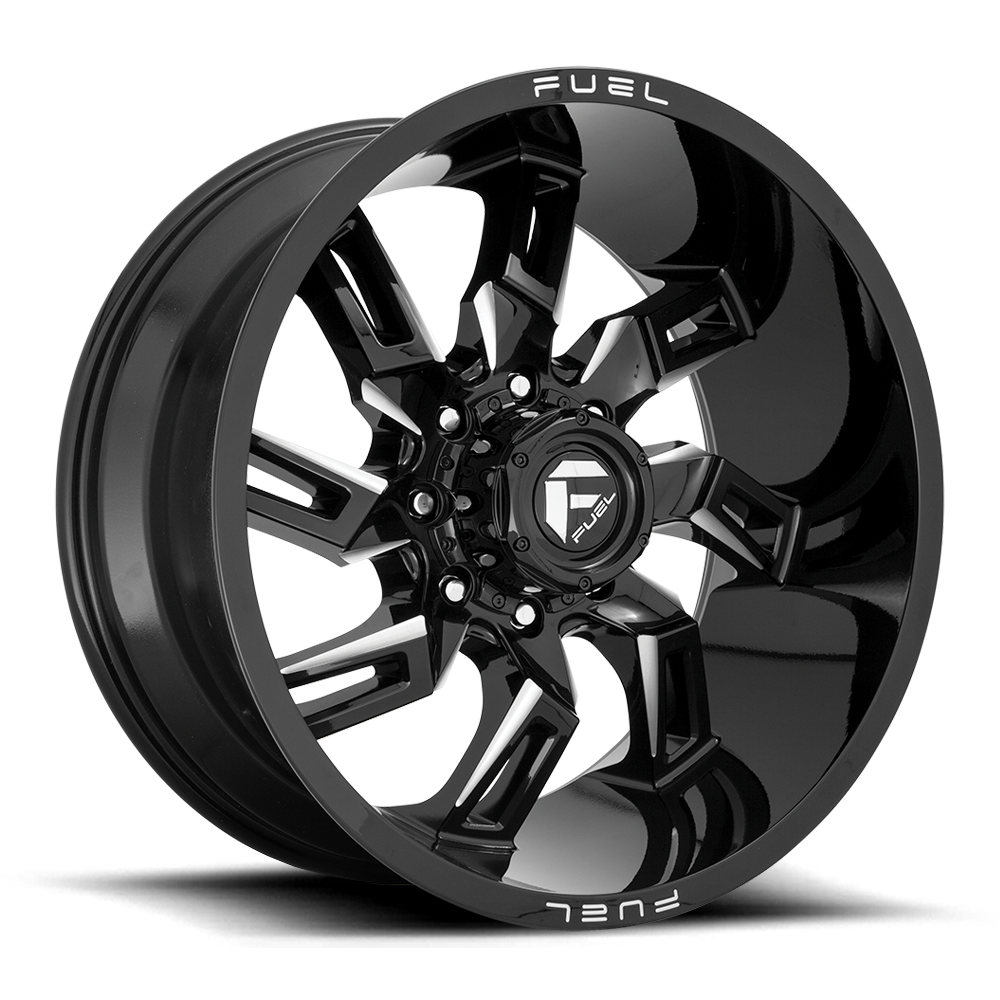

Fuel Lockdown Wheel
The Fuel Off-Road Lockdown is a bold statement piece for lifted trucks and Jeeps with serious presence. Its swept-spoke design, deep lip, and rugged monoblock construction bring aggressive style and trail-ready durability. Available in 5, 6, and 8-lug patterns, it’s a great fit for Jeep Wranglers, Toyota Tacomas, and Ford F-150s, as well as heavy-duty 8-lug rigs like the Ford F-250 and F-350, RAM 2500 and 3500, and Silverado and Sierra 2500 and 3500. Offered in 20" and 22" diameters with offsets from -18mm to +1mm, the Lockdown dominates the scene with uncompromising style and capability.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| D74620908450 | Chrome | 20x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2500 lbs | 39.20 lbs |
| D74620908250 | Chrome | 20x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3700 lbs | 41.20 lbs |
| D74620901750 | Chrome | 20x9 1mm | 8x170 | 5.04" | 125.10mm | 3700 lbs | 41.20 lbs |
| D7462090B450 | Chrome | 20x9 1mm | 5x139.7 | 5.04" | 78.10mm | 2500 lbs | 39.20 lbs |
| D74620901850 | Chrome | 20x9 1mm | 8x180 | 5.04" | 124.20mm | 3700 lbs | 41.20 lbs |
| D74720908250 | Gloss Black Milled | 20x9 1mm | 8x165.1 | 5.04" | 125.10mm | 3700 lbs | 41.20 lbs |
| D74720908950 | Gloss Black Milled | 20x9 1mm | 6x135 | 5.04" | 87.10mm | 2500 lbs | 39.20 lbs |
| D74720901750 | Gloss Black Milled | 20x9 1mm | 8x170 | 5.04" | 125.10mm | 3700 lbs | 41.20 lbs |
| D74720901850 | Gloss Black Milled | 20x9 1mm | 8x180 | 5.04" | 124.20mm | 3700 lbs | 41.20 lbs |
| D74720908450 | Gloss Black Milled | 20x9 1mm | 6x139.7 | 5.04" | 106.10mm | 2500 lbs | 39.20 lbs |
| D74620001847 | Chrome | 20x10 -18mm | 8x180 | 4.79" | 124.20mm | 3700 lbs | 41.90 lbs |
| D74620001747 | Chrome | 20x10 -18mm | 8x170 | 4.79" | 125.10mm | 3700 lbs | 41.90 lbs |
| D74620008447A | Chrome | 20x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2500 lbs | 33.90 lbs |
| D74620008247 | Chrome | 20x10 -18mm | 8x165.1 | 4.79" | 125.10mm | 3700 lbs | 41.90 lbs |
| D74720001847 | Gloss Black Milled | 20x10 -18mm | 8x180 | 4.79" | 124.20mm | 3700 lbs | 41.90 lbs |
| D74720008947 | Gloss Black Milled | 20x10 -18mm | 6x135 | 4.79" | 87.10mm | 2500 lbs | 39.90 lbs |
| D74720001747 | Gloss Black Milled | 20x10 -18mm | 8x170 | 4.79" | 125.10mm | 3700 lbs | 41.90 lbs |
| D74720008447A | Gloss Black Milled | 20x10 -18mm | 6x139.7 | 4.79" | 106.10mm | 2500 lbs | 33.90 lbs |
| D74722001747 | Gloss Black Milled | 22x10 -18mm | 8x170 | 4.79" | 125.10mm | 3700 lbs | 46.50 lbs |
| D74722008247 | Gloss Black Milled | 22x10 -18mm | 8x165.1 | 4.79" | 125.10mm | 3700 lbs | 46.50 lbs |
| D74722007547 | Gloss Black Milled | 22x10 -18mm | 5x127 | 4.79" | 71.50mm | 2500 lbs | 44.80 lbs |
