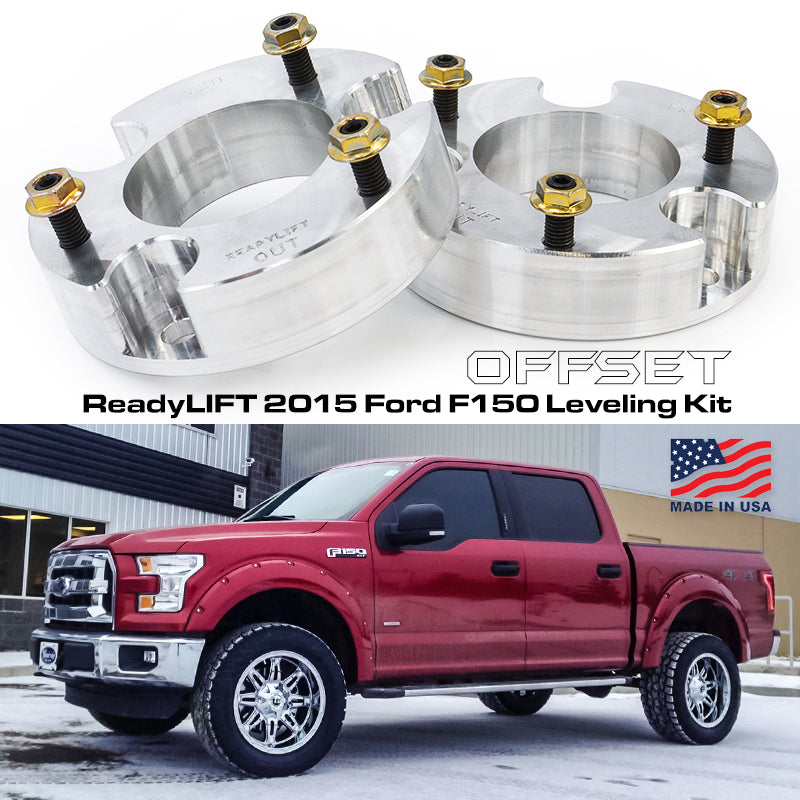

ReadyLIFT 2.25" Leveling Kit - Ford F-150 2015-2020

This ReadyLIFT CNC-machined billet Aluminum Leveling Kit is designed specifically for the new 2015-2020 Ford F-150 trucks. The strut positioning is different on 2015-UP trucks requiring the development of a new front lift system to lift the front of this application. This Leveling Kit Front provides 2.25" of lift via strut extension Smart Suspension Technology For 2015-2020 Ford F-150 trucks. NOTE: Not for use on trucks that are factory pre-lifted/leveled or that have the "off-road package". To ensure proper leveling kit fitment, using a plumb bob line (for a clean vertical) to measure from the center of the wheel hub to the bottom edge of the fender at the 12 oclock position while the wheels are pointing straight forward. If this measurement is greater than 22" then the truck already has some factory front lift compared to a base truck. For distances measuring greater than 22" as described above, #66-2215 IS NOT the correct kit. For distances measuring greater than 22" as described above, #66-2215 IS NOT the correct kit. Use #66-2052 1.5 Leveling Kit to ensure proper front lift height and suspension geometry. Incorrectly using 66-2215 on a truck with 22" distance may result in UCA suspension component interference and/or excessive ball joint wear.

Tire Fitment

35" Maximum tire diameter (with trimming)

Kit Components

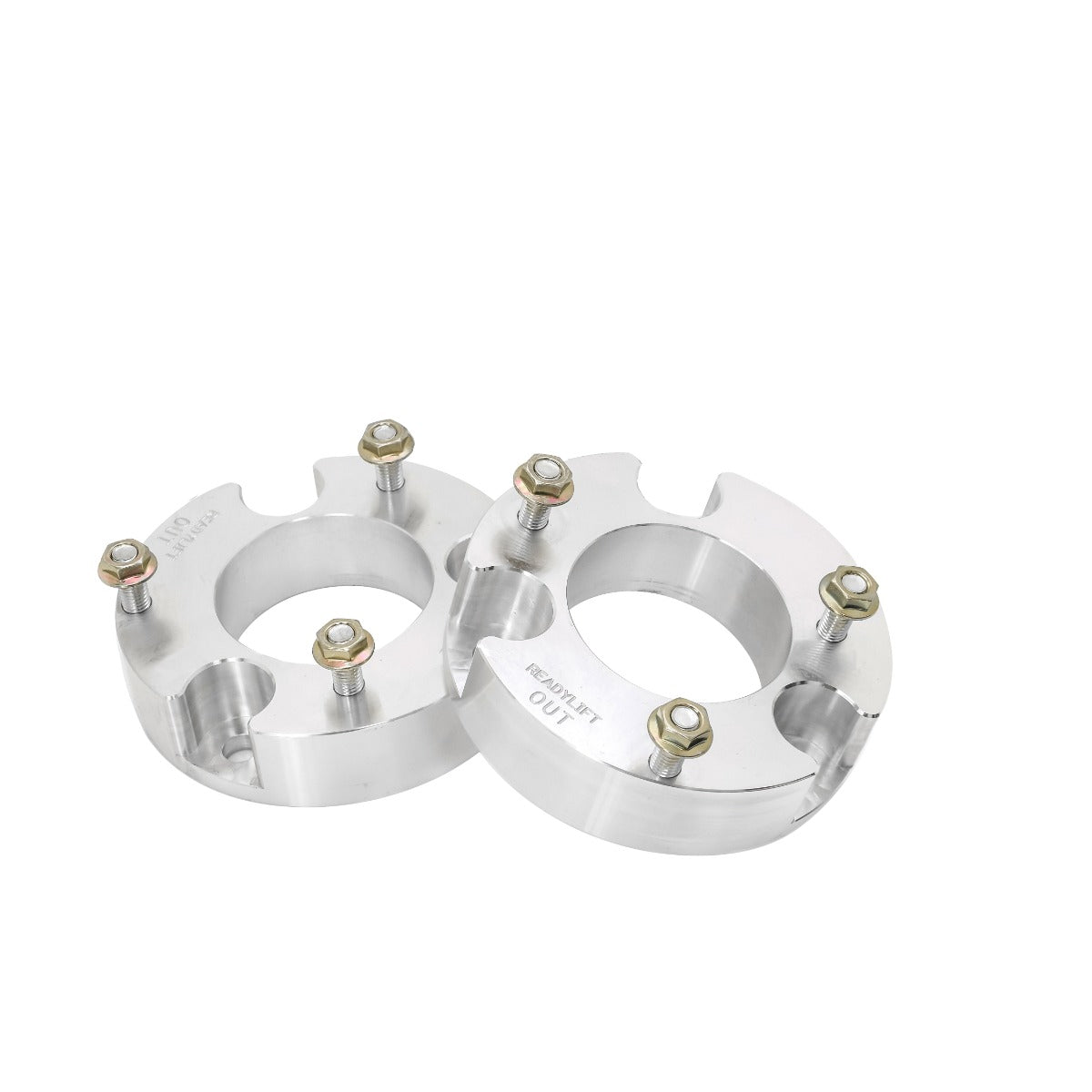

• One pair of CNC machined billet aluminum offset leveling front spacers with hardware.

Alignment and headlamp aim check recommended after installation.
