Diode Dynamics SS3 SAE Type MR Fog Light Kit
Warranty Information
Vendor warranty summary
Diode Dynamics Warranty
At a glance: 3 years on every Diode Dynamics product, 8 years on Stage Series and Elite Series lamps, and lifetime coverage on Stage Series pods, rock lights, SL2 bulbs and off-road brackets (orders from April 15, 2025)
This is Diode Dynamics' policy, not an NVMOS policy. We've summarized Diode Dynamics' published warranty in plain English. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 15, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| All Diode Dynamics products: defects in materials and workmanship | 3 years |
| Stage Series and Elite Series lamp assemblies and lamp mounting brackets (functional failure; wiring, harnesses and lens covers excluded after year 3) | 8 years |
| Stage Series LED pods, Stage Series rock lights, SL2 and SL2 Pro LED bulbs, off-road mounting brackets, ordered on or after April 15, 2025 (functional failure after year 3) | Lifetime |
| Commercial or industrial use (construction, mining, fleet, agriculture and similar) | Capped at 8 years |
| Form Lighting products (a Diode Dynamics brand) | 2 years (details) |
What's covered
- Defective products are replaced with the same item, or a comparable one if it's been discontinued
- Diode Dynamics may replace just the failed component
- Finish defects caused by manufacturing, during the first 3 years
- Moisture beyond normal condensation that points to a seal failure, at Diode Dynamics' discretion
- Free tech support for the life of the product, even after the warranty ends
What's not covered
- Normal condensation, and paint or coating wear from regular use
- Installation or labor costs
- Improper installation or use, abuse, or opening, rewiring or repairing a product
- Swapping lenses on Stage Series lights voids the 3-year coverage (the 8-year coverage stays)
- Purchases from unauthorized sellers; coverage is for the original buyer and isn't transferable
How to make a Diode Dynamics claim
- Keep your proof of purchase; every claim needs it (gift recipients can register within 90 days of the original purchase instead)
- Request an RMA through Diode Dynamics' returns portal and work through diagnosis with their support team
- Nothing goes back without an RMA number; include photos for moisture claims
- For US customers, Diode Dynamics covers shipping on 3-year claims, plus return shipping for inspection on 8-year and lifetime claims
Diode Dynamics contact: Phone: (314) 205-3033 · Contact form · Monday to Friday, 10 AM to 5 PM Central · St. Charles, Missouri
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Diode Dynamics, and help it along either way.
Disclaimer: The information on this page describes Diode Dynamics' own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Diode Dynamics warranty. Last updated on nvmos.com: October 15, 2026. See our return policy for NVMOS's own terms.
About the brand
Diode Dynamics builds LED lighting in St. Charles, Missouri: Stage Series SS3 and SS5 pods, CrossLink light bars, ditch and fog kits, bulbs and accents. It designs, engineers and assembles as much as it can in the USA instead of rebranding imports, which shows in the warranty. NVMOS carries the Diode Dynamics off-road, vehicle lamp, bulb and accent lines for Toyota, Jeep, Ford, GM, Ram and Nissan trucks and SUVs,...
Based in: St. Charles, Missouri · Founded: 2006 · Made in: Designed and assembled in the USA · Quality: ISO 9001:2015 certified · Lead time: In-stock items usually leave Diode Dynamics the same business day; ask us about any item
Shop all 490 Diode DynamicsWarrantyAll brands
Warranty terms are set by Diode Dynamics, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

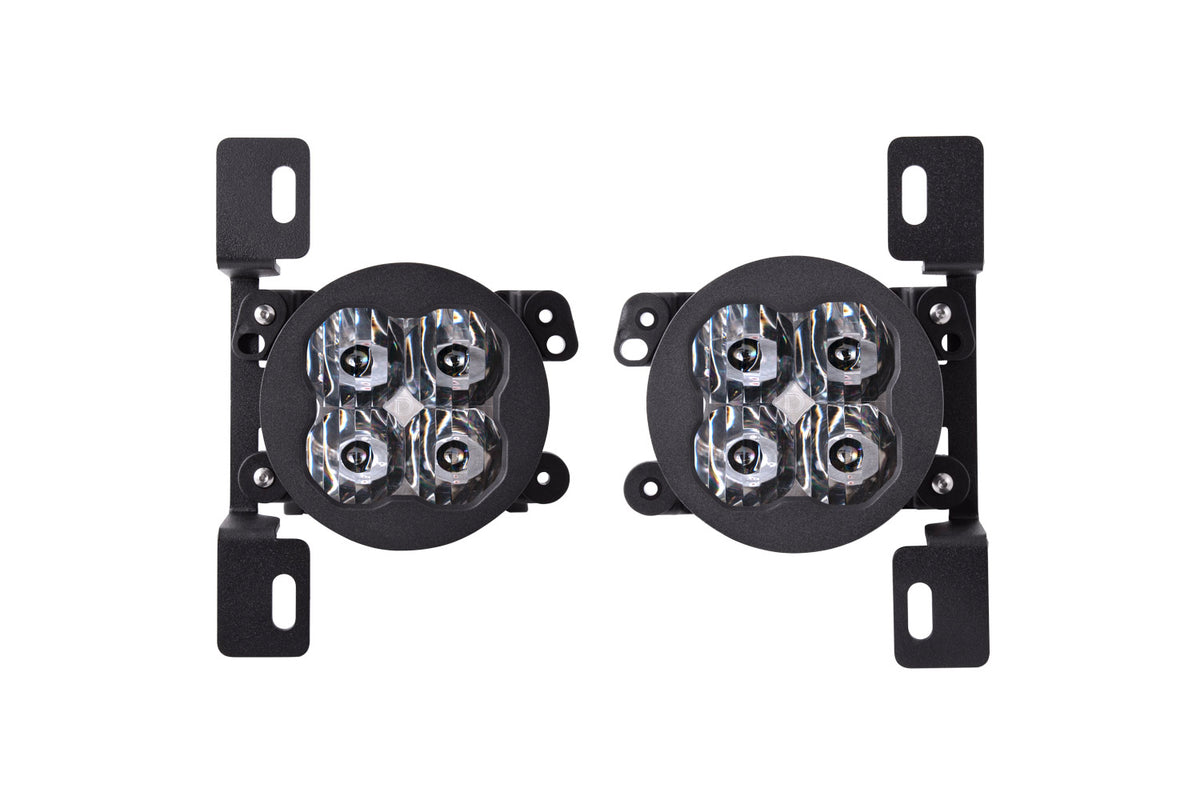

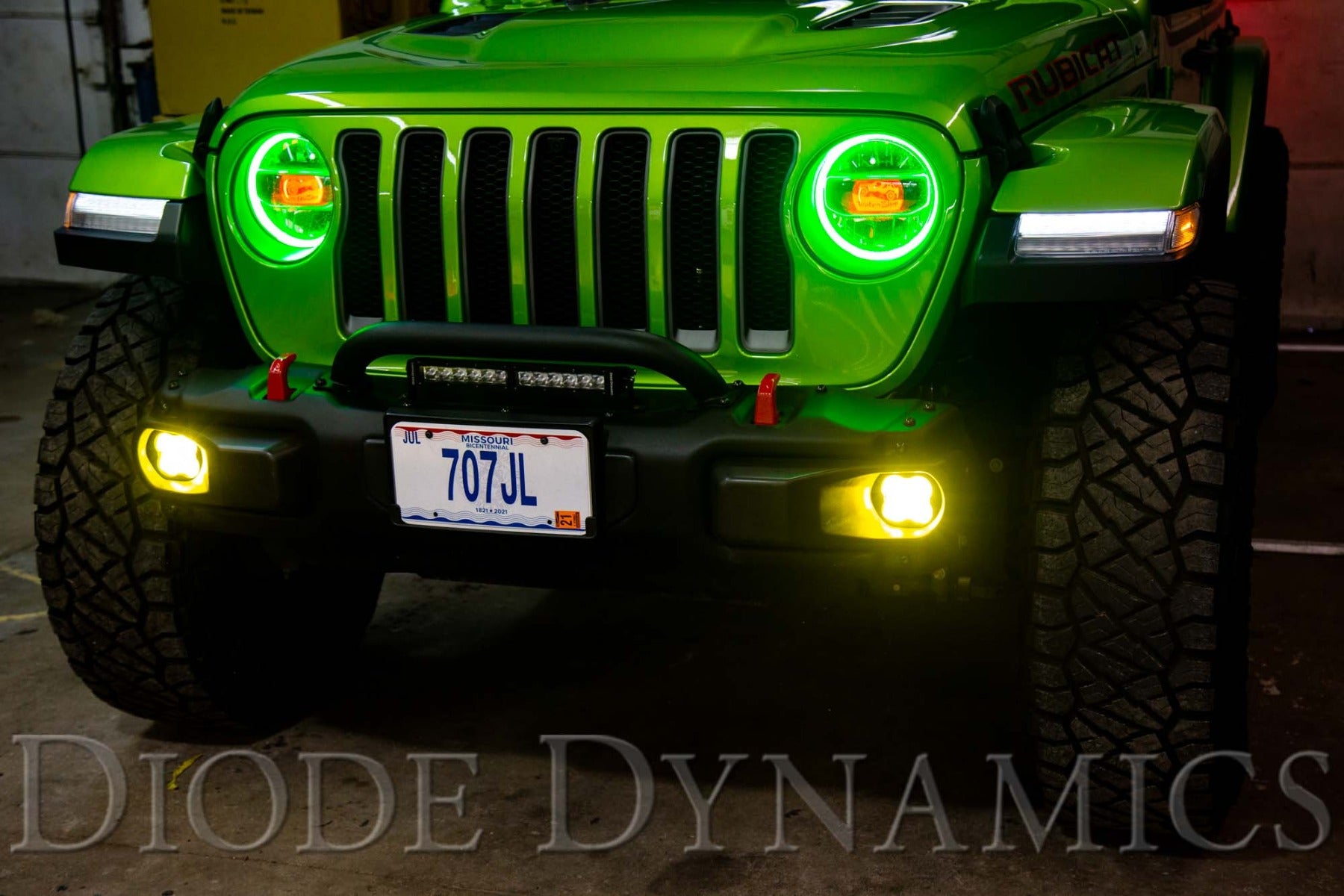

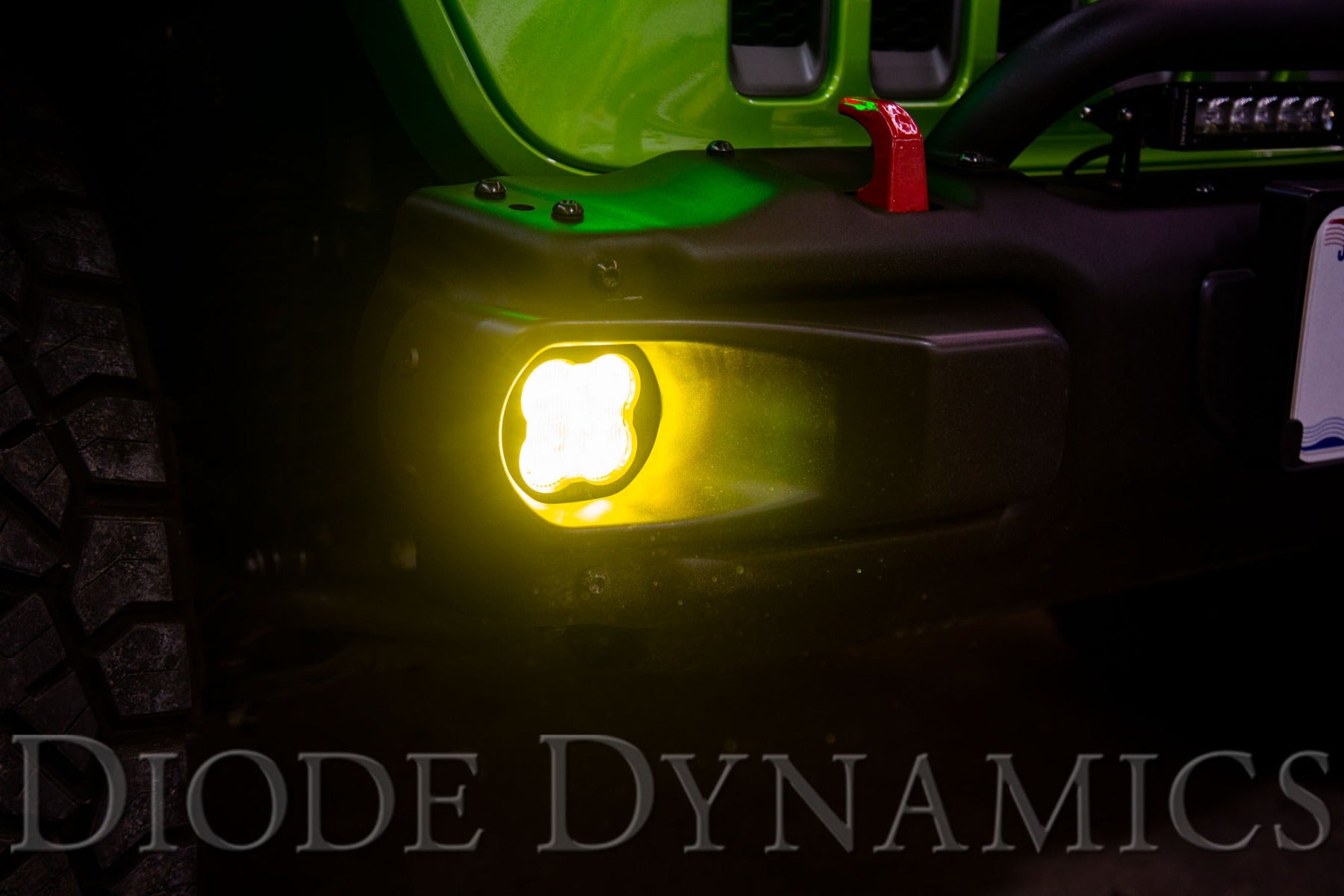

The Diode Dynamics SS3 SAE Type MR Fog Light Kit replaces the factory fog lamps on the Jeep Gladiator, Jeep JK Wrangler and Jeep JL Wrangler with SS3 LED pods built around an SAE-compliant fog beam. It goes in plug and play with a round bezel, so the front end still looks factory while the light hitting the road is a real step up from stock.
Why it works

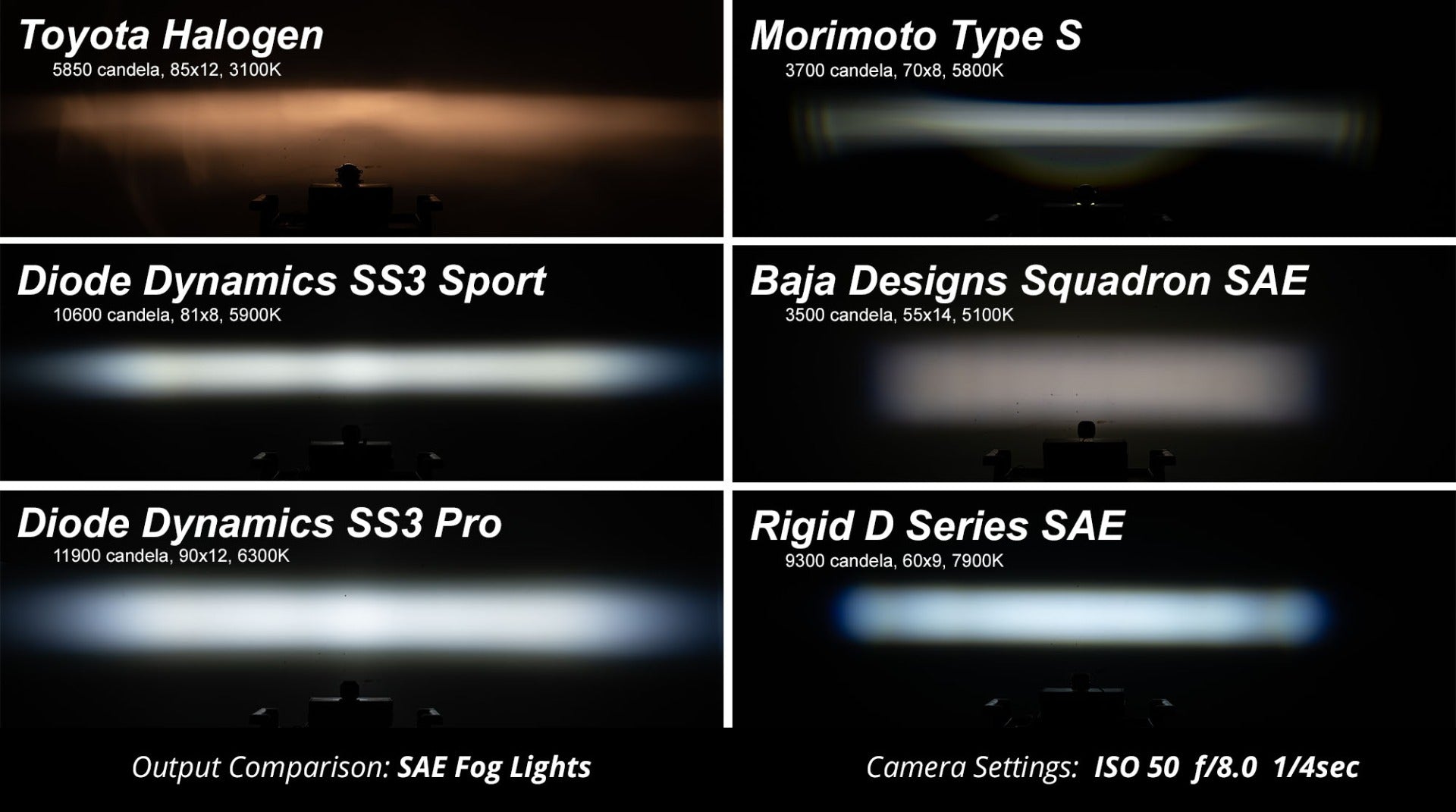

- TIR optics focus the output into a wide, flat fog pattern (80° x 8°) instead of scattering it.
- Built to SAE J583 for the foglamp beam pattern and tested to SAE J575 for durability, so it stays road-legal.
- Powdercoated aluminum housing, polycarbonate lens and rubber gasket, rated IP69K for high-pressure water.
- Passive pin-fin heatsink cooling and a constant-current driver — no fan to fail.
- Plug and play: Diode Dynamics lists no modification needed.
- Engineered and assembled in the USA.
Options

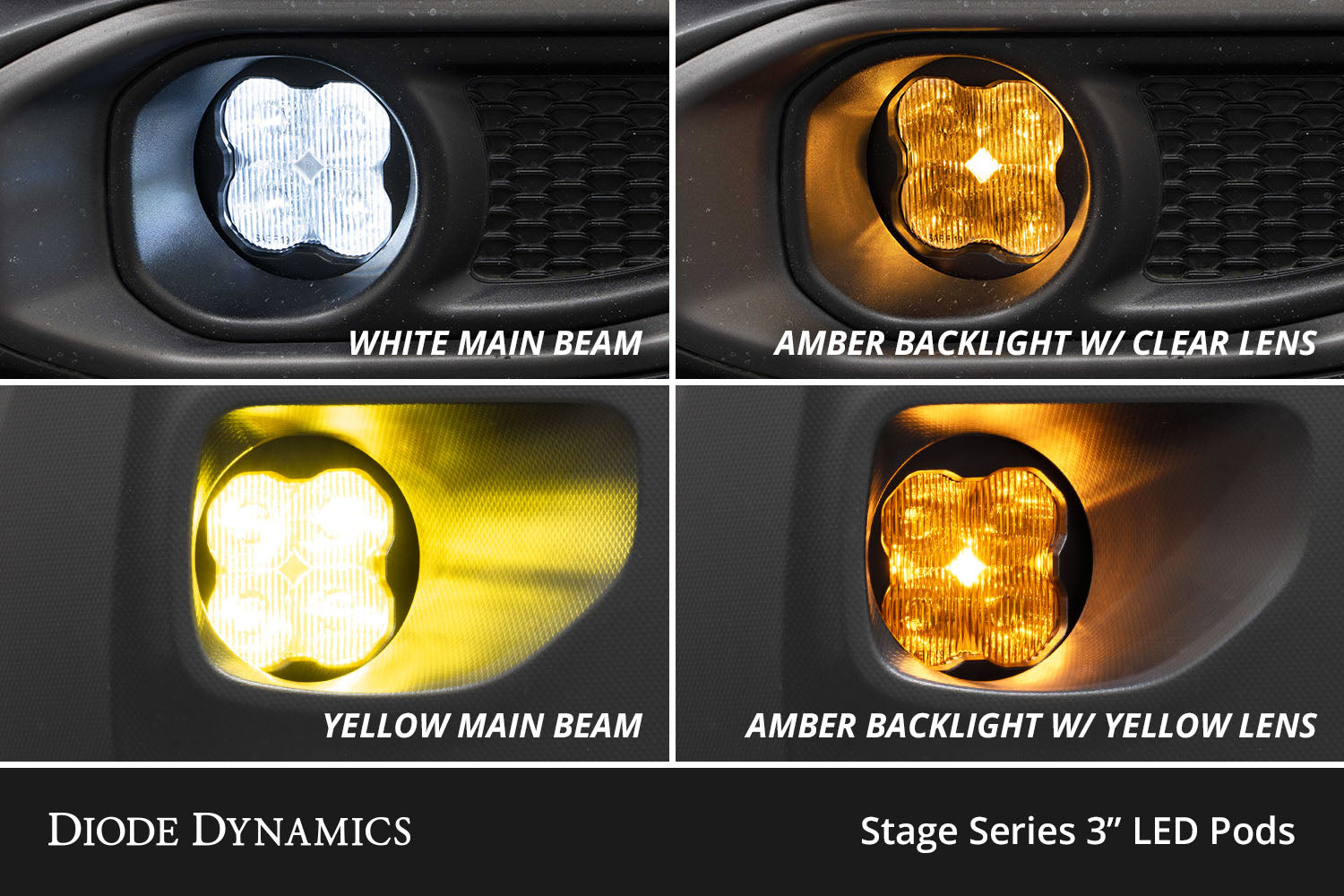

Pick a power level first, then a color. Sport (14.5 watts) puts out about 10,600 candela in white, Pro (36 watts) about 11,900 candela, and Max (38.5 watts) about 18,000 candela. Each comes in white or yellow SAE fog, and those kits carry an amber backlight (the "ABL" in the part name). The Dual-Color option (20 watts) packs white and yellow output into the same pod and is listed as SAE Fog/Wide — handy if you want white for clear nights and yellow when the weather turns.
Fitment
This kit is built for:
- Jeep Gladiator 2020-2026
- Jeep JK Wrangler 2007-2018
- Jeep JL Wrangler 2018-2026
Specs at a glance
- Beam: SAE fog, 80° x 8°
- White output: 6000K
- Input: Deutsch DT input
- Polarity specific
- Operating temperature: -40°F to 185°F
- IP69K waterproof, high pressure
Warranty
Diode Dynamics covers the SS3 pods in this kit with a limited lifetime warranty. If something fails, the defect gets diagnosed with Diode Dynamics and the part is replaced if necessary. Full terms are on our Diode Dynamics warranty page, and the rest of the brand lives in our Diode Dynamics lineup.
Questions before you order?
Fitment questions are easier to settle before the box ships. Call or text Carl & Anton at (920) 249-7744 or use the chat — real humans in Sheboygan, Wisconsin, not a call center.
Complete your Jeep Gladiator build
More parts that fit your Jeep Gladiator and pair well with this one — matched and ready to install.
$429.95
$499.95
$119.95
$299.95
$119.95
More for your Jeep Gladiator
Picked from the 817 parts we carry for the Jeep Gladiator. Check the years and trim in each title — or call us and we’ll confirm fit.
Specifications
Diode Dynamics SS3 SAE Type MR Fog Light Kit FAQs
Which vehicles does the SS3 Type MR kit fit?
Diode Dynamics lists it for the Jeep Gladiator 2020-2026; Jeep JK Wrangler 2007-2018; Jeep JL Wrangler 2018-2026. If your truck is close but not on that list, ask before ordering. Call or text the real humans at NVMOS, (920) 249-7744.
Sport, Pro or Max — what is the difference?
Power and output. Sport runs 14.5 watts at about 10,600 candela (white), Pro runs 36 watts at about 11,900, and Max runs 38.5 watts at about 18,000. All three use the same SAE fog beam pattern.
Do I have to cut or splice anything?
No. Diode Dynamics lists this kit as plug and play with no modification needed and a round bezel to finish the opening.
Is it street legal?
The SS3 fog optic is SAE compliant for road use. Listed compliance: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern.
What does the Dual-Color option do?
It puts white and yellow output in the same pod (listed as SAE Fog/Wide, 20 watts), so you are not locked into one color.
