Carbon Offroad Long Drum 6000lb ATV/Small 4X4 Winch
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
Carbon Offroad Warranty
At a glance: Limited lifetime mechanical, 5 years electrical and water ingress (7 with registration)
This is Carbon Offroad's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Mechanical: gearbox, clutch, planetary gears, driveshaft, brake, drum | Limited lifetime |
| Electrical: motor, solenoid, wireless receiver | 5 years (7 years if registered) |
| Water ingress: motor and gearbox | 5 years (7 years if registered) |
| Recovery gear: ropes, soft shackles, winch lines, static straps | 1 year (2 years if registered) |
| Remotes | Splash-resistant only; not covered for water damage |
- Original purchaser only — coverage does not transfer if you sell it.
- Keep your NVMOS order confirmation — proof of purchase is required.
What's covered
- Factory defects in materials or workmanship
- Non-commercial, recreational use only
- Free registration within 90 days of purchase extends electrical and water coverage to 7 years
- Remedies range from remote troubleshooting and parts to repair, replacement or refund
- Carbon pays return freight on approved claims
What's not covered
- Misuse, accidents, collisions or overloading
- Wrong installation or wiring; no isolator switch or failsafe fitted
- Weak battery or inadequate power supply
- Commercial, fleet, mining, trade or professional recovery use
- Hoisting or crane use
- Normal wear, cosmetic wear and UV fading
- Wear parts such as rubber, seals, brushes and rope wear
How to make a Carbon Offroad warranty claim
- If not registered, start with the dealer you bought from; registered owners can go straight to Carbon
- Send proof of purchase, order number, model or serial number
- Include clear photos or video of the fault plus photos of the wiring install
- Carbon tries to diagnose remotely first
- Do not ship anything back until you get written return instructions
Carbon Offroad contact: Phone: +61 1300 780 141 · Email: warranty@carbonoffroad.com.au · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Carbon Offroad, and help it along either way.
Shop Carbon Offroad at NVMOS
![Carbon TANK - 20000lb Winch 24V [Clearance]](https://cdn.shopify.com/s/files/1/0861/5113/5535/files/carbon-tank-20000lb-winch-24v-clearance-7188736.jpg?v=1775256506&width=400)
Carbon TANK - 20000lb Winch 24V [Clearance]
Carbon 12K - 12000lb Winch V3
Carbon Scout Pro - 20000lb Extreme Duty Truck Winch
See all Carbon Offroad products, lead times and FAQs →
Disclaimer: The information on this page describes Carbon Offroad's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Carbon Offroad official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
Carbon Offroad is the Australian company behind Carbon Winches, built around IP68 waterproof electric winches and modern recovery gear. NVMOS carries Carbon truck, SUV and ATV/UTV winches from 4,500 to 20,000 lb, plus control boxes, shackles and recovery kits. For drivers who want an IP68 waterproof-rated winch.
Based in: Coomera, Queensland, Australia · Designed in: Australia · Launched: 2016 · Lead time: In-stock items ship in 24–48 hours
Shop all 61 Carbon OffroadWarrantyAll brands
Warranty terms are set by Carbon Offroad, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

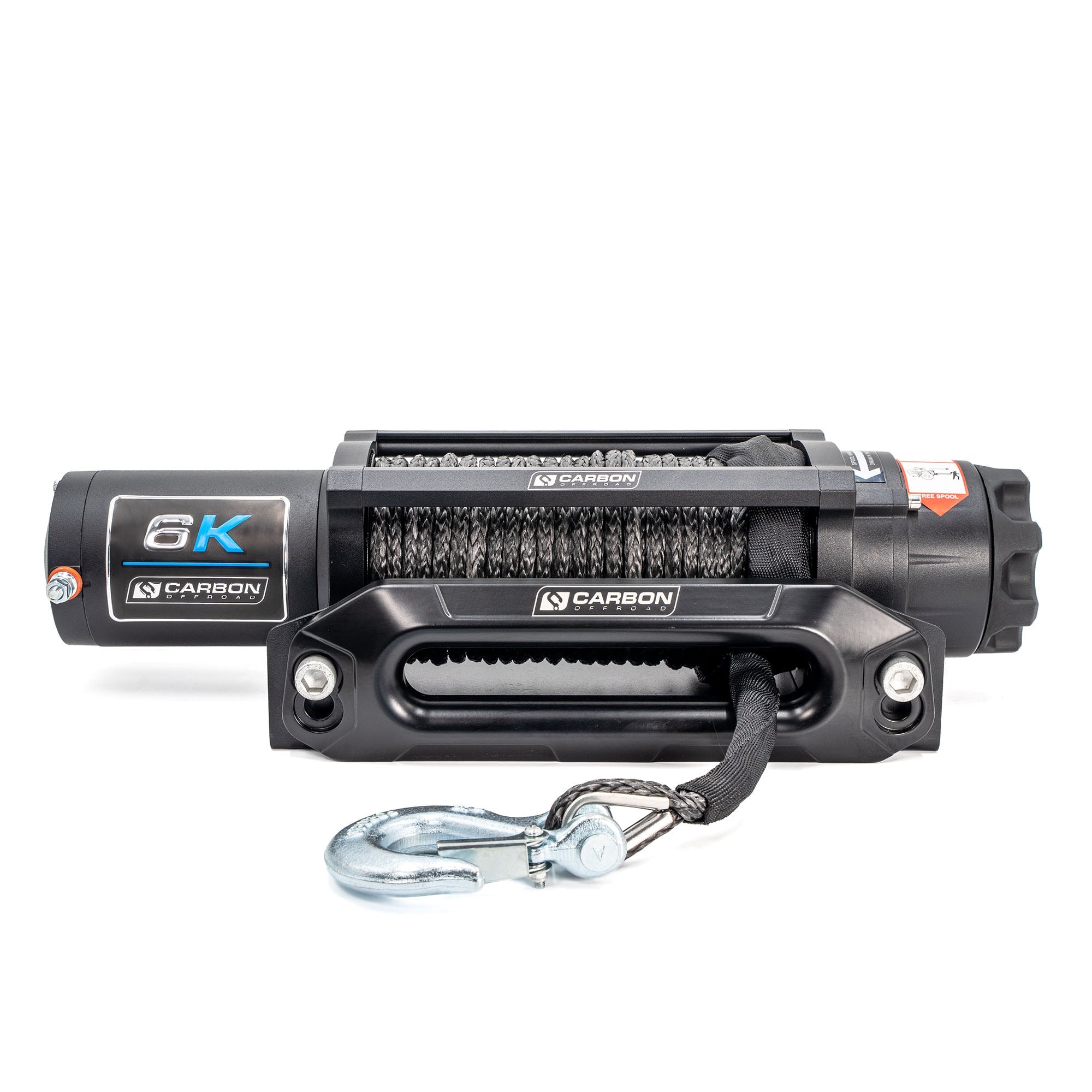

Carbon Offroad Long Drum 6000lb ATV/Small 4X4 Winch Off-Road Recovery Winch
Carbon Offroad Long Drum 6K is a nimble workhorse created to reach where short-drum winches can’t.
With 6,000lbs of pulling capacity and a generous 26m synthetic rope on its extended drum, the Carbon CW-XD6L is engineered for versatile duty on ATVs, compact 4WDs, caravans, trailers and boats.
Key Features
- Carbon Offroad Long Drum 6K is a nimble workhorse created to reach where short-drum winches can’t
- With 6,000lbs of pulling capacity and a generous 26m synthetic rope on its extended drum, the Carbon CW-XD6L is engineered for versatile duty on ATVs, compact 4WDs, caravans, trailers and boats
- Do you need to haul a tinny up a steep, low-tide ramp? Slide heavy machinery into a van from well outside the rear doors? Winch a small 4WD or camper-trailer through deep sand without adding an extension rope? If your jobs demand extra line reach in tight spaces, this is the winch you’ve been waiting for
- With a sealed permanent-magnet motor, near-silent free-spooling clutch, dual wired + wireless remotes and fail-safe braking, the Long Drum 6K delivers reliable power, precise control and the rope length to keep work sites—and weekend getaways—running smoothly
- 6,000lb (2,725kg) Rated Pull – Perfect for marine, trailer, and utility use 2.5HP Motor – Reliable, compact performance 147:1 Gear Ratio – Balanced strength and control 85ft (26m) Synthetic Rope – Extended reach for versatile recovery Mounting Bolt Pattern – 10in x 2.99in (254mm x 76mm) Drum Dimensions – 2.01in x 8.19in (51mm x 208mm) Winch Dimensions – 18.62in x 4.92in x 4.72in (473mm x 125mm x 120mm) IP68 Rated winch and solenoid (excludes remote control and switch) Handlebar Mini-Rocker + Wireless Remote – Multiple control options Please note this kit does not include the winch cradle in the pictures
Why Choose This Product
Choose Carbon Offroad Long Drum 6000lb ATV/Small 4X4 Winch when you need proven pulling power, dependable recovery performance, and hardware built for off-road, overland, and heavy-duty use.
Perfect For
Trucks, Jeeps, SUVs, overland rigs, trailers, farm vehicles, work vehicles, and off-road recovery setups.
Product Details
- Carbon Offroad Long Drum 6K is a nimble workhorse created to reach where short-drum winches can’t
- With 6,000lbs of pulling capacity and a generous 26m synthetic rope on its extended drum, the Carbon CW-XD6L is engineered for versatile duty on ATVs, compact 4WDs, caravans, trailers and boats
- Do you need to haul a tinny up a steep, low-tide ramp? Slide heavy machinery into a van from well outside the rear doors? Winch a small 4WD or camper-trailer through deep sand without adding an extension rope? If your jobs demand extra line reach in tight spaces, this is the winch you’ve been waiting for
- With a sealed permanent-magnet motor, near-silent free-spooling clutch, dual wired + wireless remotes and fail-safe braking, the Long Drum 6K delivers reliable power, precise control and the rope length to keep work sites—and weekend getaways—running smoothly
- 6,000lb (2,725kg) Rated Pull – Perfect for marine, trailer, and utility use 2.5HP Motor – Reliable, compact performance 147:1 Gear Ratio – Balanced strength and control 85ft (26m) Synthetic Rope – Extended reach for versatile recovery Mounting Bolt Pattern – 10in x 2.99in (254mm x 76mm) Drum Dimensions – 2.01in x 8.19in (51mm x 208mm) Winch Dimensions – 18.62in x 4.92in x 4.72in (473mm x 125mm x 120mm) IP68 Rated winch and solenoid (excludes remote control and switch) Handlebar Mini-Rocker + Wireless Remote – Multiple control options Please note this kit does not include the winch cradle in the pictures
Technical specifications
| Part Number | CW-XD6L |
|---|---|
| Rated Line Pull | 6000 lbs (2725 kg) single-line |
| Motor | 12V DC 2.5 HP permanent magnet |
| Geartrain | 3-Stage Planetary |
| Gear Ratio | 147:1 |
| Clutch | Roller disc full load automatic |
| Brake | Automatic brake in the motor bracket |
| IP Rating | IP68 for winch and solenoid (excludes remotes) |
| Synthetic Rope | 26m x 6.5mm (85.3 ft x 1/4") |
| Drum Dimensions | 51mm x 208mm (2.0" x 8.2") |
| Mounting Bolt Pattern | 254mm x 76mm (10.0" x 3.0") |
| Recommended Battery | 650 CCA minimum for winching |
| Winch Dimensions (L x W x H) | 473 x 125 x 120mm (18.6" x 4.9" x 4.7") |
| Packing Dimensions (L x W x H) | 530 x 170 x 230mm (20.9" x 6.7" x 9.1") |
| Winch Weight (Bare) | 8.3kg (18.3 lbs) with synthetic rope attached |
| Total Kit Weight | 11.2kg (24.7 lbs) including control box, cables, bolts & fairlead |
| Warranty | Lifetime Mechanical / 5 Year Electrical |
