Black Rhino Echo Trail Lock Beadlock Wheel
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
Black Rhino Warranty
At a glance: Structural warranty for as long as the original buyer owns the wheels; 1 year on defects and most finishes
This is Black Rhino's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: November 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Wheel structure (structural failure) | For as long as the original retail buyer owns the wheels |
| Defects in materials and workmanship | 1 year from retail purchase |
| Chrome aluminum finish (peeling/lifting; pitting excluded) | 1 year |
| Painted aluminum finish (peeling/lifting) | 1 year |
| PVD finish (peeling/lifting) | 2 years |
| Polished aluminum finish | Not covered |
| Steel wheels | 90 days |
- Original purchaser only — coverage does not transfer if you sell it.
- Keep your NVMOS order confirmation — proof of purchase is required.
What's covered
- Structural failure under normal, intended use
- Factory defects in materials or workmanship for the first year
- Finish peeling or lifting within the periods listed by finish type
- Black Rhino repairs or replaces wheels it finds defective
What's not covered
- Damage from not following the installation guidelines
- Improper care or harsh cleaning chemicals
- Accidents, potholes and bad road conditions
- Racing or other improper vehicle use
- Use with non-approved accessories or adapters
- Pitting on chrome, any polished-aluminum finish issues
- Removal, mounting, installation and shipping costs; incidental or consequential damage
How to make a Black Rhino warranty claim
- Take or ship the wheel back to the retailer you bought it from
- Bring the original sales receipt
- The wheel is inspected and repaired or replaced if the claim is approved
- Claims that are denied are returned at the sender's cost
Black Rhino contact: Phone: 877-852-7720 · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Black Rhino, and help it along either way.
Shop Black Rhino at NVMOS
See all Black Rhino products, lead times and FAQs →
Disclaimer: The information on this page describes Black Rhino's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Black Rhino official warranty information. Last updated on nvmos.com: November 4, 2026. See our return policy for NVMOS's own terms.
About the brand
Black Rhino makes off-road wheels for trucks, SUVs and vans, from budget-friendly cast styles to flow-formed and beadlock designs. NVMOS carries dozens of Black Rhino styles, including dually and Trail Lock beadlock wheels, for Toyota, Jeep, Ford, RAM and Sprinter owners.
Part of: Wheel Pros (Hoonigan Group) · Lead time: In stock: ships in 24–48 hours
Shop all 109 Black RhinoWarrantyAll brands
Warranty terms are set by Black Rhino, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

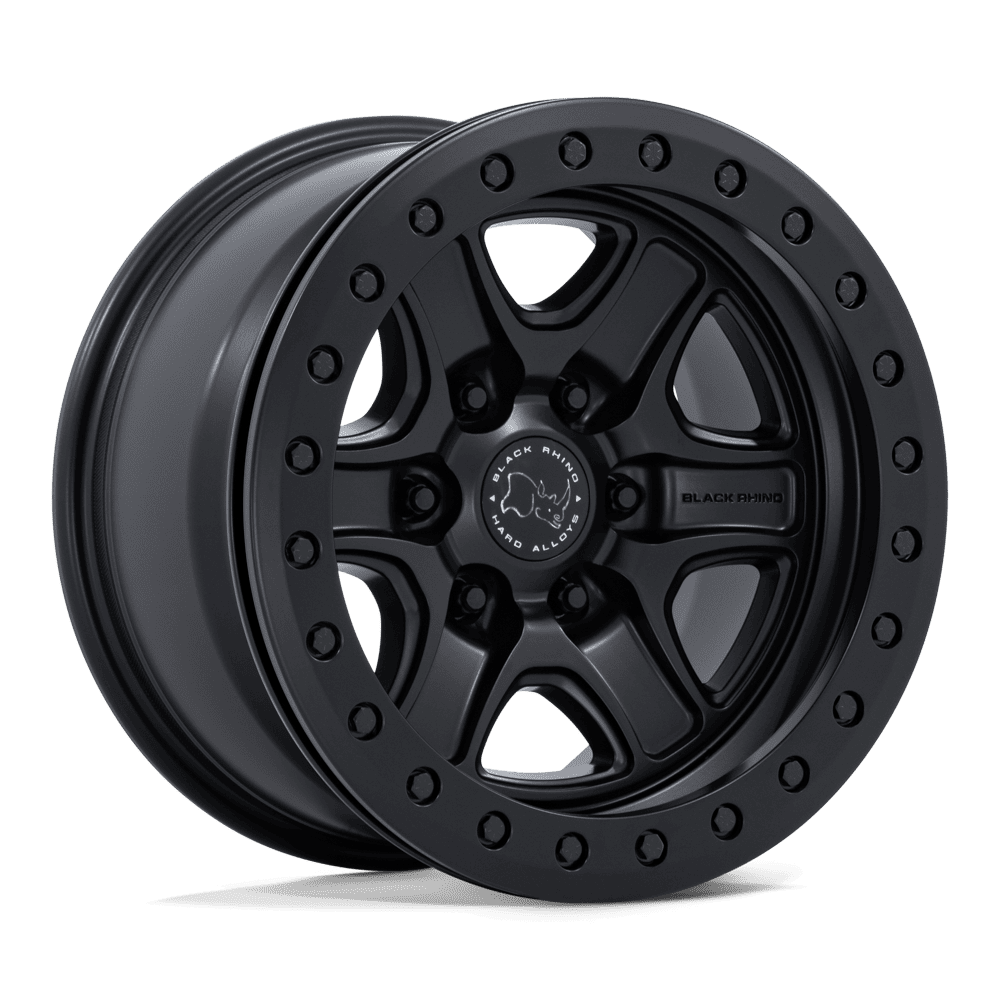

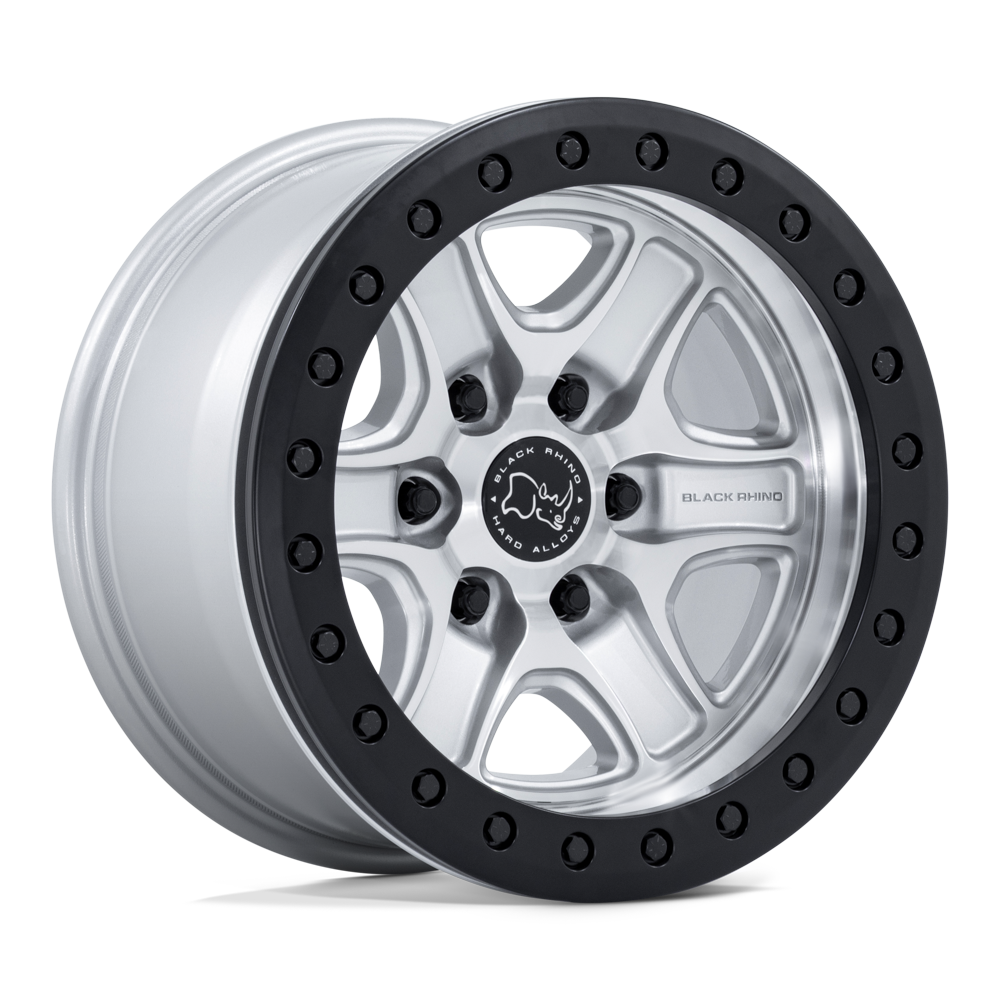

Black Rhino Echo Trail Lock Beadlock Wheel
The BR200 Echo Trail Lock is a 6-lug beadlock wheel built for technical terrain. It is a rugged, stubby 6-spoke design with deep recessed channels, based on the BR Echo.
The hybrid Trail Lock ring gives you a choice. Run a true beadlock setup for off-road use, or mount your tires conventionally and keep the ring on as a rock guard for daily driving. The heavy-duty 6-lug platform is made for overlanding loads and trail abuse, and it suits midsize and full-size trucks and SUVs like the Ford F-150, Toyota Tacoma, 4Runner and Chevy Silverado. Browse the full set of wheels too.
Sizes: 17x8.5 25mm, 18x9 12mm, 17x8.5 0mm. Bolt patterns: 6x135 and 6x139.7. Finishes: Matte Black, Hyper Silver w/ Machined Face. Not every size is offered in every bolt pattern, so confirm fitment on the page or email support@nvmos.com.
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| BR200SD17856800 | Hyper Silver w/ Machined Face | 17x8.5 0mm | 6x139.7 | 4.75" | 106.10mm | 2750 lbs | 35.49 lbs |
| BR200SD17856300 | Hyper Silver w/ Machined Face | 17x8.5 0mm | 6x135 | 4.75" | 87.10mm | 2750 lbs | 35.93 lbs |
| BR200MX17856800 | Matte Black | 17x8.5 0mm | 6x139.7 | 4.75" | 106.10mm | 2750 lbs | 35.49 lbs |
| BR200MX17856300 | Matte Black | 17x8.5 0mm | 6x135 | 4.75" | 87.10mm | 2750 lbs | 35.93 lbs |
| BR200SD17856325 | Hyper Silver w/ Machined Face | 17x8.5 25mm | 6x135 | 5.73" | 87.10mm | 2750 lbs | 41.01 lbs |
| BR200SD17856825 | Hyper Silver w/ Machined Face | 17x8.5 25mm | 6x139.7 | 5.73" | 106.10mm | 2750 lbs | 40.12 lbs |
| BR200MX17856325 | Matte Black | 17x8.5 25mm | 6x135 | 5.73" | 87.10mm | 2750 lbs | 41.01 lbs |
| BR200MX17856825 | Matte Black | 17x8.5 25mm | 6x139.7 | 5.73" | 106.10mm | 2750 lbs | 40.12 lbs |
| BR200SD18906812 | Hyper Silver w/ Machined Face | 18x9 12mm | 6x139.7 | 5.47" | 106.10mm | 2750 lbs | 42.11 lbs |
| BR200SD18906312 | Hyper Silver w/ Machined Face | 18x9 12mm | 6x135 | 5.47" | 87.10mm | 2750 lbs | 42.77 lbs |
| BR200MX18906812 | Matte Black | 18x9 12mm | 6x139.7 | 5.47" | 106.10mm | 2750 lbs | 42.11 lbs |
| BR200MX18906312 | Matte Black | 18x9 12mm | 6x135 | 5.47" | 87.10mm | 2750 lbs | 42.77 lbs |
Complete your build
The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.
$644.00
$839.95
$249.95
$4,999.98
$320.00
Black Rhino Echo Trail Lock Beadlock Wheel FAQs
Can I run it without a beadlock setup?
Yes. You can mount your tires conventionally and keep the Trail Lock ring on as a rock guard for daily driving.
Which trucks is it for?
Midsize and full-size 6-lug trucks and SUVs such as the Ford F-150, Toyota Tacoma, 4Runner and Chevy Silverado.
What sizes and bolt patterns are offered?
17x8.5 with 25mm or 0mm offset, and 18x9 with 12mm offset, in 6x135 and 6x139.7.
What finishes are there?
Matte Black, and Hyper Silver with Machined Face.
