ReadyLIFT 3.5" SST Lift Kit- Colorado/Canyon 2015-2022

ReadyLIFT now offers a 3.5" SST lift kit for the 2015-2022 Chevy Colorado and GMC Canyon 2WD/4WD trucks! The 69-3535 SST Lift Kit provides a great lift solution to achieve a mild yet aggressive lifted stance while still maintaining important factory ride and handling. (This kit is not compatible with ZR2 edition or diesel engine applications.) This new lift kit provides 3.5" of front lift and 1" of rear lift for a nice level but lifted stance. This kit can easily allow for up to a 285/70-17 tire as shown here with XD Series Wheels Addict II 17x9 +18 offset wheels. This all-new no-cut kit includes new tubular steel upper control arms with adjusted ball joint pivot angles and establishes a true 3.5 inches of lift without compromising suspension or drive train geometry. Front lift includes our proprietary top hat replacement technology along with differential drop brackets, sway bar drop brackets and OE style 1" tall cast iron rear lift blocks.

Features & Benefits

Made in USA.

The perfect mild lift solution for Gen 2 Colorado/Canyons that provides a great looking aggressive stance with a slight rake

Includes CNC-machined aircraft-grade billet

Aluminum front top hat replacement lift spacers and heavy-duty OEM style cast iron rear blocks.

Includes tubular steel upper control arms with adjusted ball joint pivot angles housing a heavy-duty ball joint

Allows for up to a 32.5x11.50" tire on up to +18 offset wheels. (285/70-17)

Maintains the factory ride, handling and suspension geometry

Unmatched curb-appeal and rugged mid-size truck capability delivered in an affordable yet innovative Smart Suspension Technology "no-cut" lift kit.

NOTE: For gasoline engine applications only. Excludes ZR2 Edition, AT4 and DIESEL applications. Only works with stock struts not for aftermarket struts.

Highlights

• 2015-2022 Chevy Colorado / GMC Canyon 3.5" SST Lift Kit
• 3.5" Front/1" Rear
• Increase ground clearance
• Maintains factory ride and handling
• Includes heavy-duty DOM tube steel upper control arms with heavy-duty 1-ton ball joints and TCT maintenance free pivot bushings
• No cutting
• No mods required
• NOTE: For gasoline engine applications only. Excludes ZR2 Edition, AT4 and DIESEL applications. Only works with stock struts not for aftermarket struts.

Tire Fitment

Allows for up to 17x9 +18 wheel - 285/70R17 tire

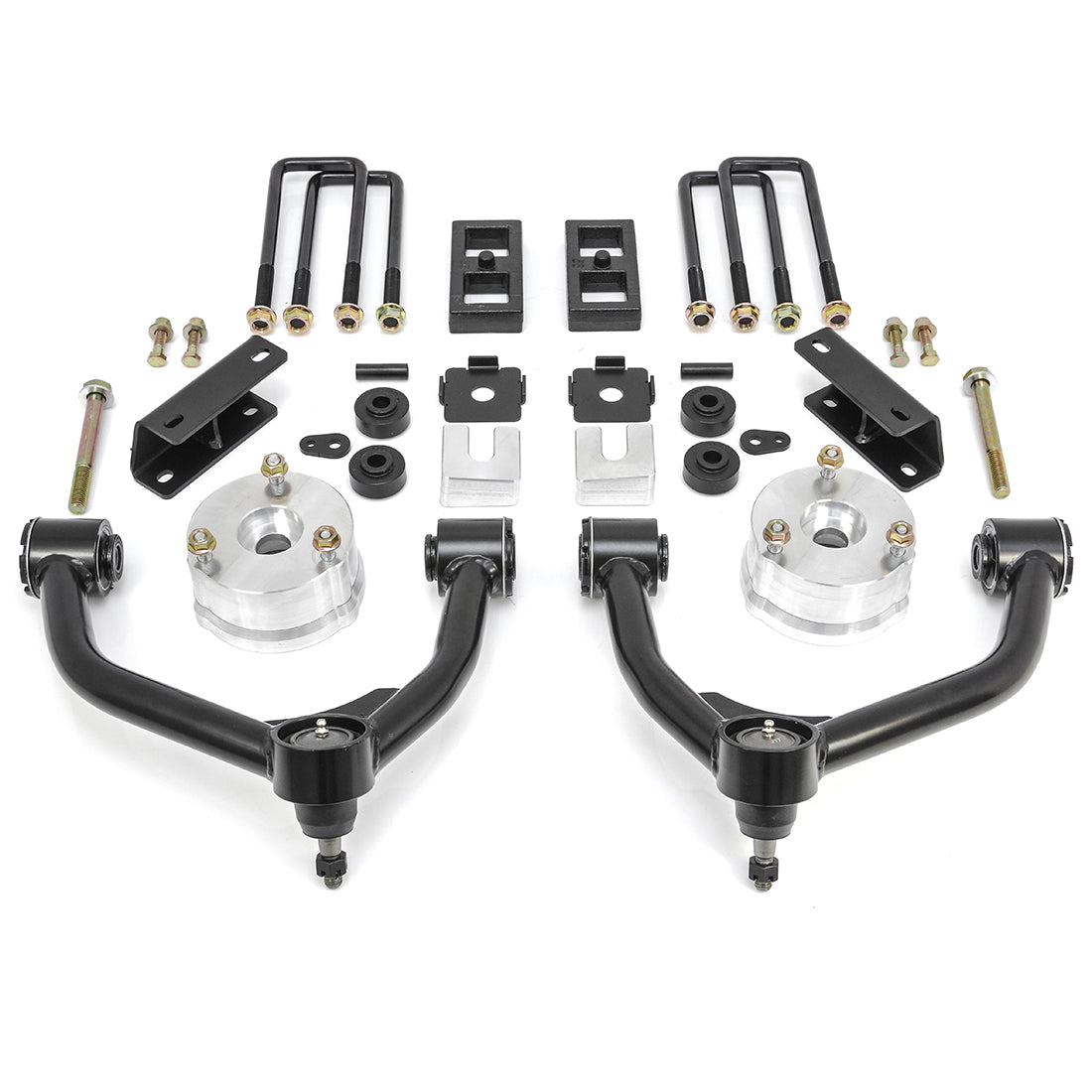

Kit Components

• 2- UCA with TCT maintenance free pivot bushings and HD ball joints
• 2- Replacement Strut Top Hat
• 2- Front Diff Spacers
• 2- Diff Spacer retainer plates
• 1- Driver Sway Bar Drop
• 1- Passenger Sway Bar Drop
• 2- Laser Cut Washers
• 1" Cast Block w/ U-Bolts

Alignment and headlamp aim check recommended after installation.
