ReadyLIFT 6" Lift Kit - Dodge Ram 2500 4WD W/ Falcon Shocks 2014-2018

ReadyLIFT proudly introduces the Ram 2500 HD 6" Lift Kit available with Falcon 1.1 Monotube shocks engineered specifically for 2014-2018 MY Dodge Ram 2500 HD 4WD diesel short bed trucks. This exciting lift system provides 6" of lift and features the best engineering technology you will find on the market today. The 6" system utilizes performance front coil springs providing a true 6" of front lift. In the rear, we use our proven spring spacer design technology featuring heavy-duty 3.5" lift rear spacers mating perfectly with the factory rear coil springs and frame.

Along with performance springs and spacers, our team developed rugged frame-mounted radius arm drop brackets that reposition the factory radius arms back to the factory geometry. This is critical for retaining OEM alignment specifications. The kit also includes heavy-duty fabricated steel front and rear track bar brackets, dropped cast-iron front pitman arm, and front sway bar relocation brackets. We even include front/rear bump stop extensions to prevent over-compression during off-road use. Kit includes four (4) Falcon 1.1 Monotube Shocks optimized for on-road driving with increased comfort and stability for driven vehicles on and off-road. High-value performance is the driving force behind these vehicle-specific dampers for the Ram 2500 HD.

This new 6-inch performance suspension lift system is designed exclusively for the 2014-2018 MY Ram 2500 HD 4WD trucks with diesel engines and allows for increased tire packages up to 37x13.50 and 9.5" wide wheel sizes from 17-20" diameters.

Tire Fitment

37" Maximum tire diameter

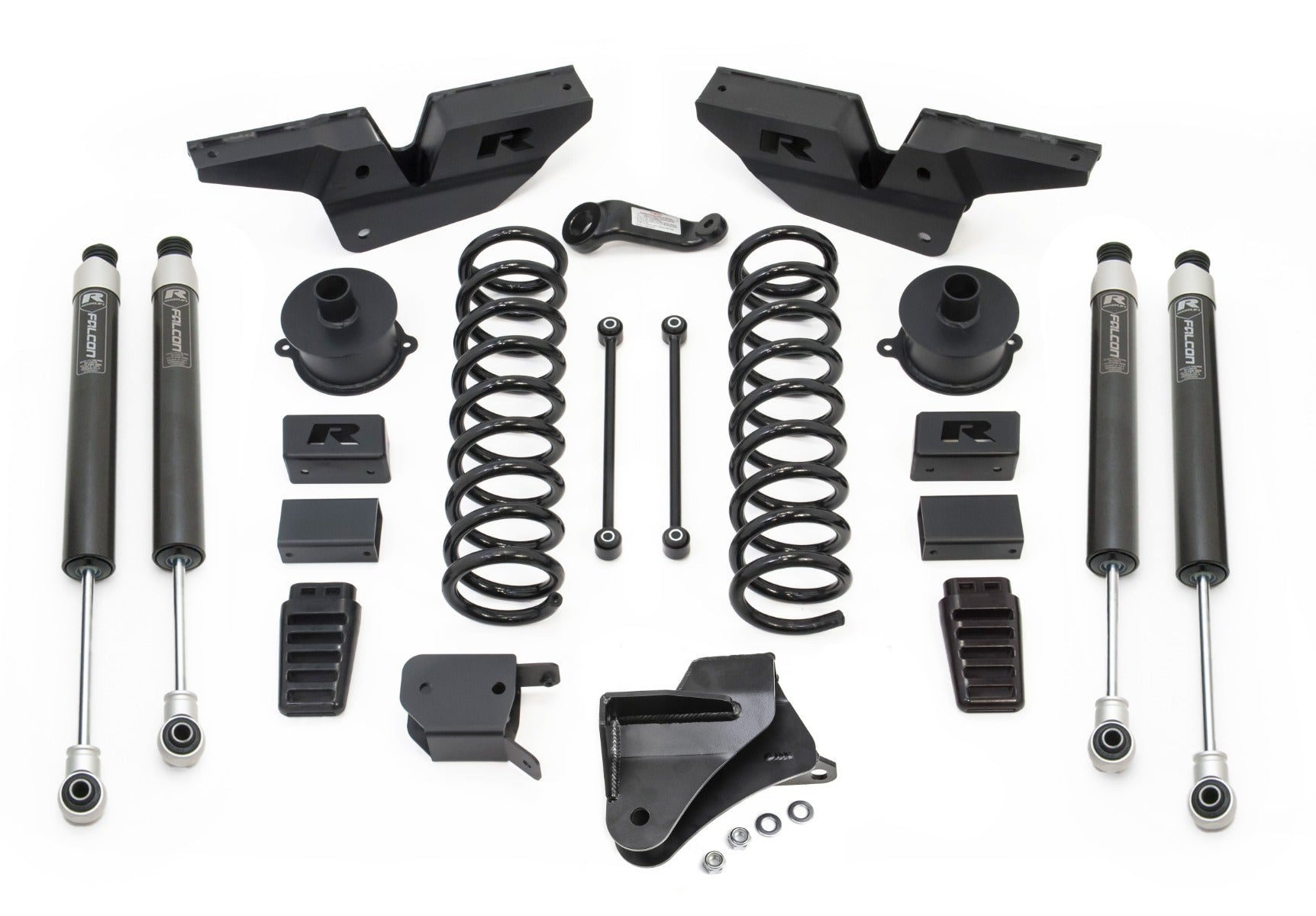

Kit Components

• 6" lift front coil springs.
• Fabricated steel radius arm drop brackets.
• Dropped pitman arm.
• Heavy Duty steel rear coil spring spacers.
• Front/Rear sway bar mount drop spacers.
• Fabricated steel front track bar drop bracket.
• Extended length front bump stops.
• Extended length sway bar end links.
• Falcon 1.1 Monotube shocks.

Alignment and headlamp aim check recommended after installation.
