ReadyLIFT 2019-2024 Ram 3500 HD High Output Diesel 4WD 4.5" Coil Spring Falcon 2.1 Lift Kit
ReadyLIFT 4.5" Coil Spring Lift Kit with Falcon 2.1 Shocks for 2019-2024 Ram 3500 HD High Output Diesel 4WD
The ReadyLIFT 49-19431 is built for the 2019-2024 Ram 3500 HD High Output diesel 4WD. It provides 4.5 inches of front lift with 3-inch rear tapered blocks and clears 37x13.50 tires on 20x9 wheels with a -18 offset. See more Ram 2500/3500 parts.

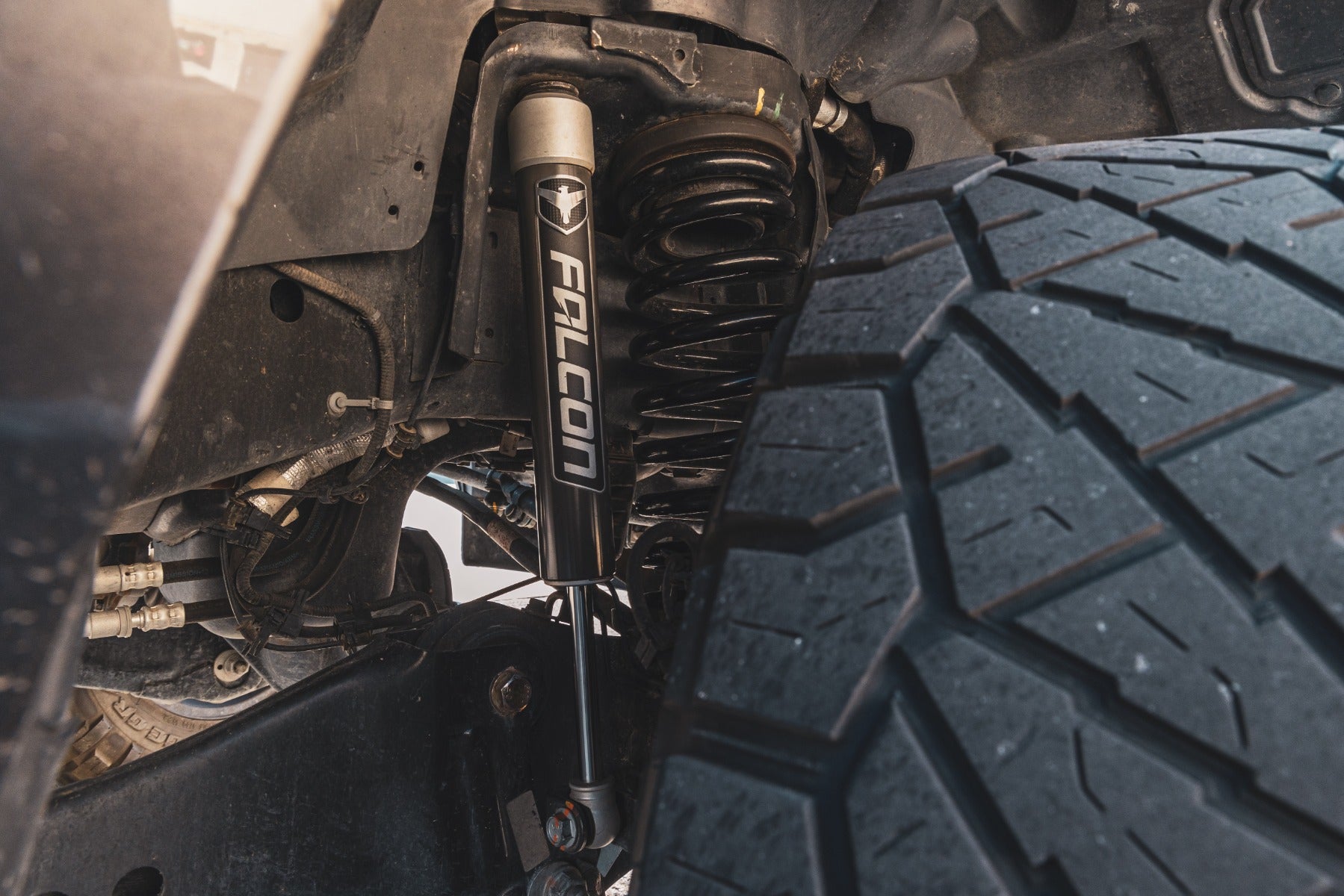

Four Ram-specific Falcon 2.1 monotube shocks use a 2.3-inch body for oil capacity and heat dissipation, and a 3/4-inch induction-hardened chrome-plated shaft. A billet Driveline Indexing System re-clocks the transfer case and a heavy-duty crossmember is included. Browse lift kits.
| Spec | Detail |
|---|---|
| Part number | 49-19431 |
| Front lift | 4.5 inches |
| Rear | 3 inch tapered blocks |
| Shocks | Four Falcon 2.1 monotube |
| Max tire | 37x13.50 on 20x9, -18 offset |

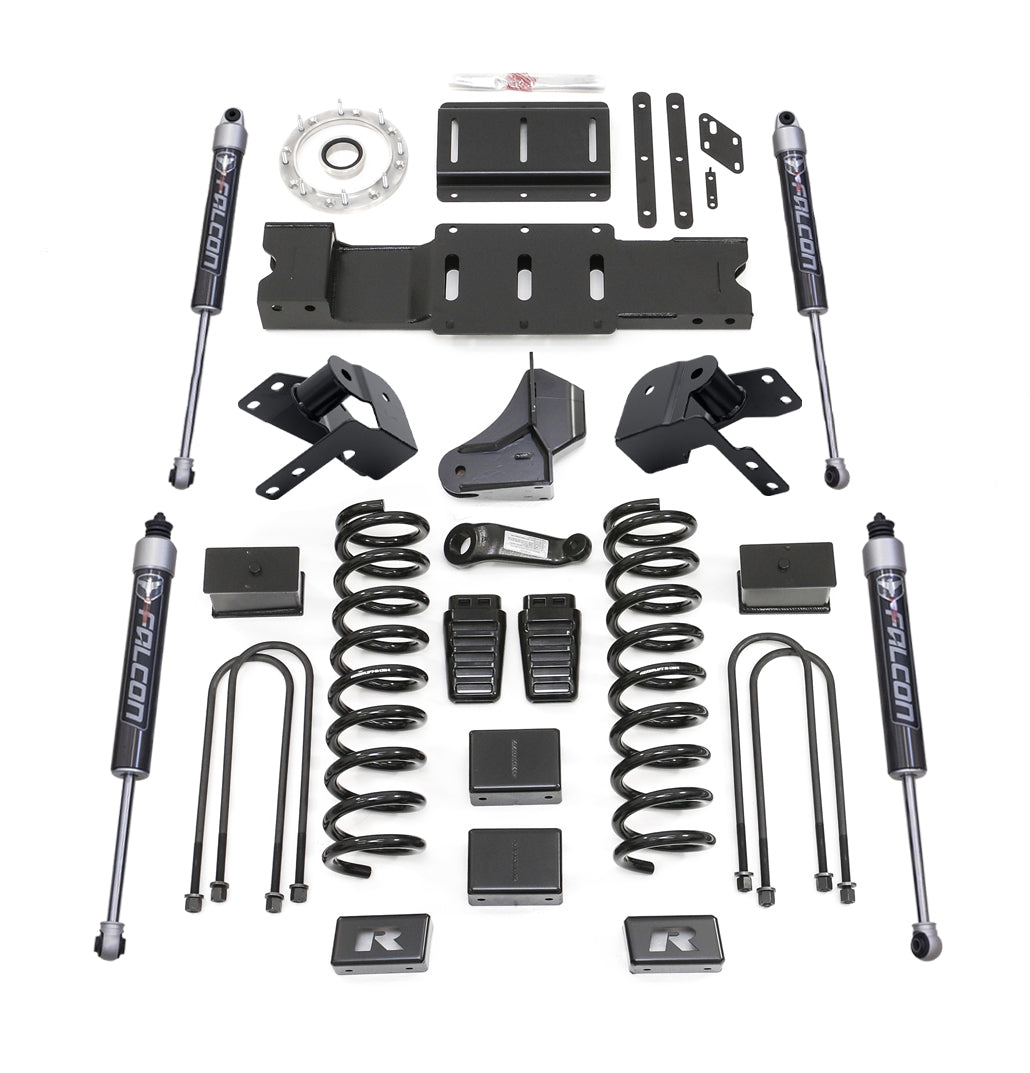

- 4.5" front lift springs
- 3-inch fabricated rear blocks with U-bolts
- Falcon 2.1 shocks front and rear
- Radius arm drops and track bar brackets
- Dropped pitman arm
- Transmission crossmember and clocking components
- Brake line brackets and hardware
2019-2024 Ram 3500 HD with the 6.7L High Output diesel and Aisin AS69RC transmission, 4WD. Not compatible with standard-output diesels, HEMI gas engines, dually or Classic models, factory rear-air suspension or Auto Level systems. Single cab has not been validated.
Complete your build
The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.
$2,799.95
$345.00
$899.95
$789.95
$539.00
ReadyLIFT 2019-2024 Ram 3500 HD High Output Diesel 4WD 4.5" Coil Spring Falcon 2.1 Lift Kit FAQs
Does it fit a dually or a standard-output 3500?
No. It does not fit dually, Classic, standard-output diesel or HEMI gas models.
Which transmission is needed?
It is only available for the 3500 HD High Output motor and the Aisin AS69RC transmission.
How does it differ from the 49-19430?
This kit uses Falcon 2.1 shocks. The 49-19430 uses Falcon 1.1 shocks.
