ReadyLIFT 2.5" Coil Spring Front Lift Kit W/Falcon 2.1 Monotube Shocks Front/Rear - Ford Super Duty Diesel 4WD 2020-2026

ReadyLIFT Suspension offers a 2.5" Lift Coil Spring Front Leveling Kit engineered exclusively to fit 2020-2026 Ford Super Duty F250/F350/F450 4WD diesel trucks. Our premium kit 46-20256 includes front and rear Falcon 2.1 Monotube series shocks with our popular front track bar relocation bracket. A front coil spring leveling kit is a superior alternative for lifting the front of your truck. The coil spring system allows for increased tire sizes and widths along with providing improved ground clearance and a more commanding view of the road.

The coil spring leveling kit delivers a great ride and handling performance and allows for 35" tall tires! The key ingredients to improving your ride are the new, specially engineered coil springs teamed with Falcon 2.1 Monotube series shocks and a track bar relocation bracket with the 46-20256! This combination is more than just a leveling kit. This is a performance and ride-enhancing kit.

ReadyLIFT is confident you will be amazed at how well it rides and performs both on and off-road. The ReadyLIFT 2.5" Coil Spring Front leveling kit system for 2020-2026 Ford Super Duty F250/F350/F450 trucks also included model-specific brake line extension brackets, our time-tested bump stop extension brackets, and new front sway bar frame mount extension brackets to keep the factory sway bar where is supposed to be. If you want a rugged, leveled stance and a smooth but controlled ride, then you want the new Coil Spring Leveling Kit System. Your truck will thank you!

NOTE: Tremor versions will gain 1.125 inches over stock ride height.

NOTE: 2024-2026 Super Duties with the fake hub recommendations.

*Add the factory hub & vacuum line.

*We recommend not using the caster eccentrics if your truck only has the single hub

*Use ReadyLIFT's radius arm drops or radius arms instead

Highlights

• Key Features
• Provides up to 2.5 inches of front lift
• Includes front and rear Falcon 2.1 Monotube shocks
• Levels the factory nose-down stance
• Improves ride quality, control, and ground clearance
• Accommodates tires up to 35 inches tall
• Up to 37-inch tires may fit with minor trimming
• Designed specifically for diesel-powered 4WD trucks
• Complete bolt-on suspension system
• ***2023-2026 Trucks equipped with the "Onboard Scale" option will require the Auto-Leveling Headlight Bracket.***
• PN: 67-23210 - Ford Super Duty Auto-Leveling Headlight 2.5" Lift Bracket Kit
• Note: Some 2020-2026 Super Duty trucks will require retaining use of the factory track bar bracket. If axle is shifted off center with our track bar bracket. Remove the relocation bracket and use the factory bracket. Caster bushings will not work on 10-lug trucks. Dually trucks may not reach full front height. Recommend using the 66-2111 for full 2.5" front leveling. Tire size will vary based on front height measurements.

Tire Fitment

35x12.50 for no rub on a 9 or 10 wide +25 to 0 offset wheel

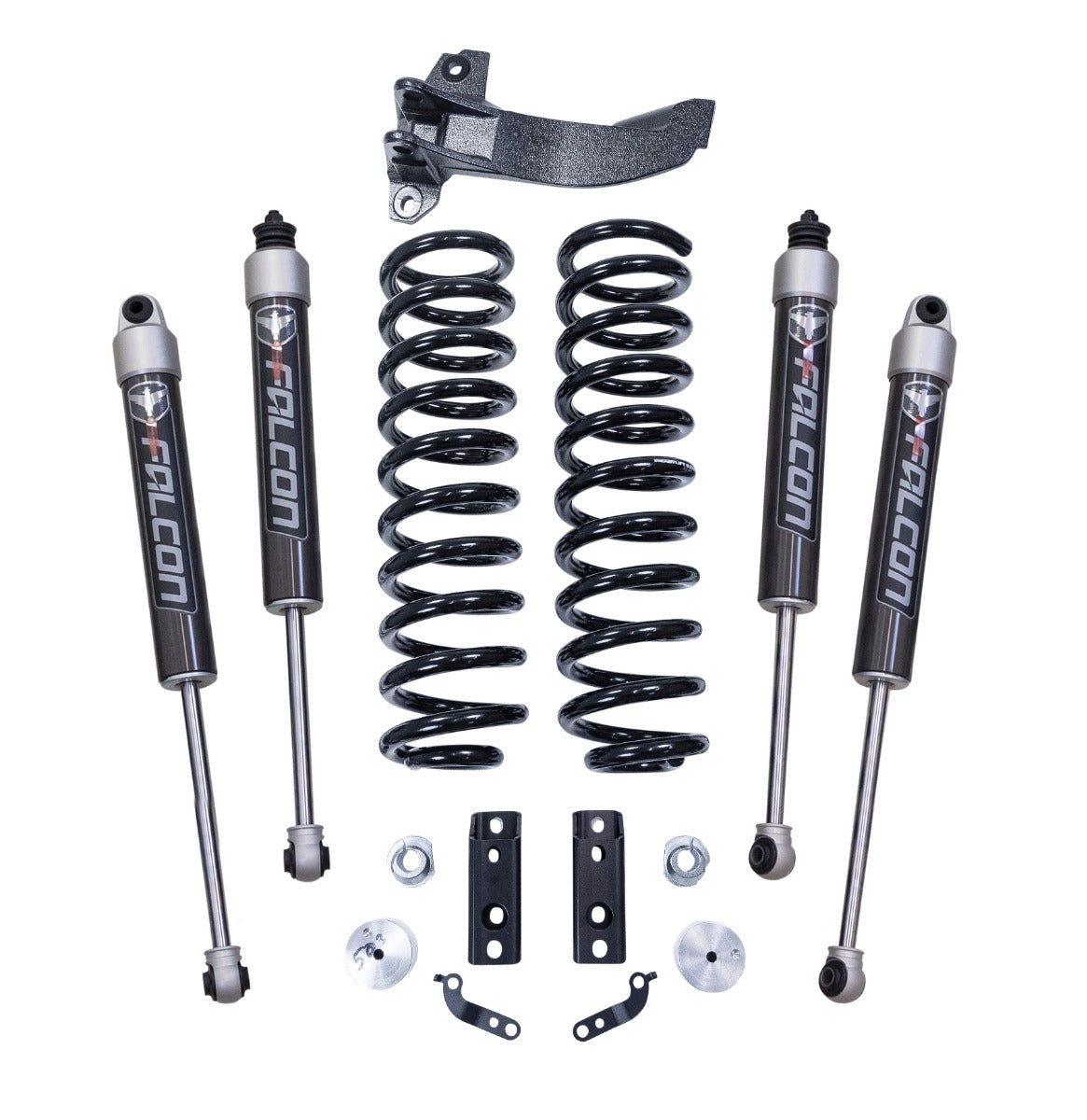

Kit Components

• 2.5" lift front coil springs
• Sway bar spacers
• Brake line extensions
• Front track bar relocation bracket
• 4-Falcon 2.1 Monotube shocks

Alignment and headlamp aim check recommended after installation.
