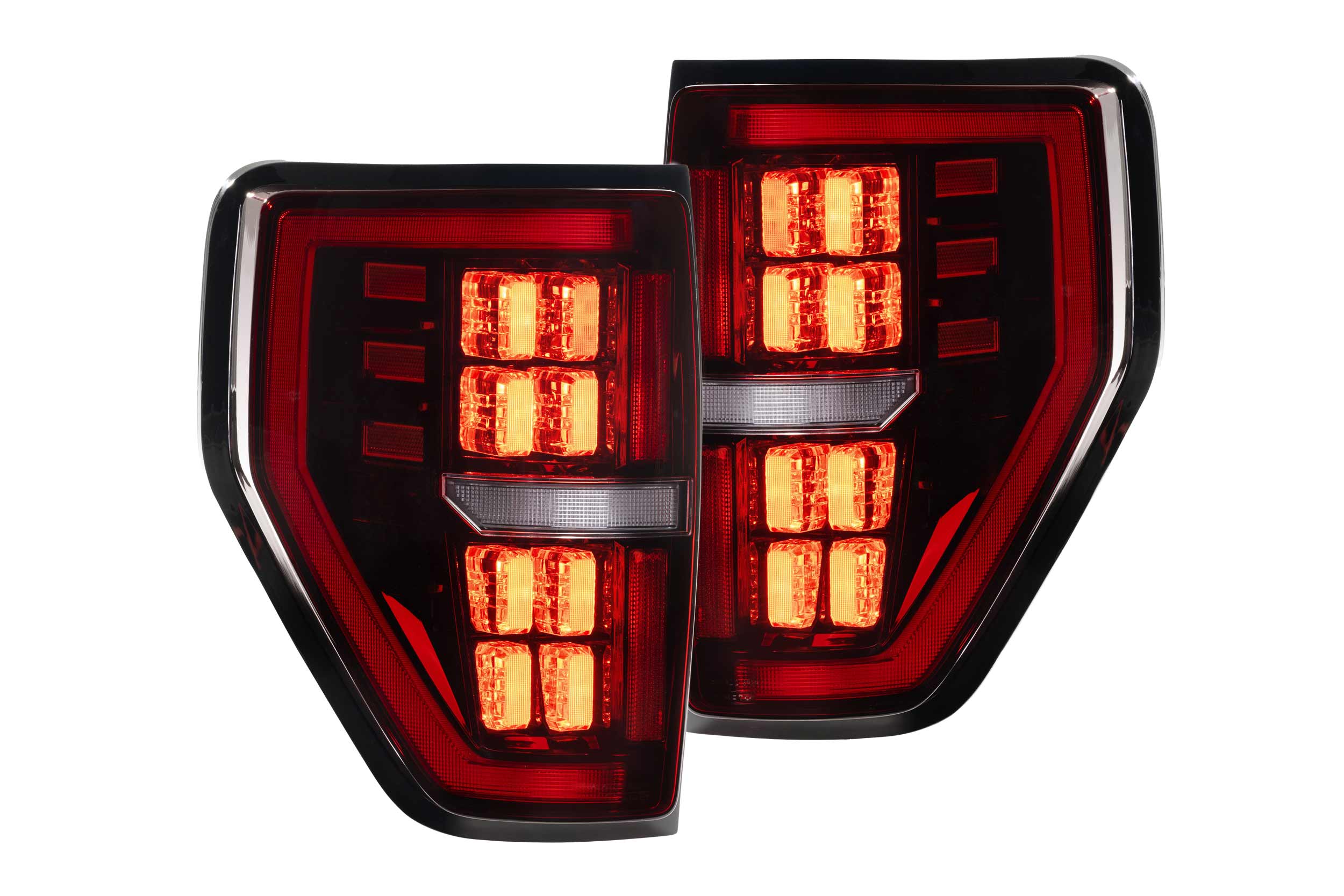

Pair of Morimoto XB LED tail lights in red for the 2009-2014 Ford F-150, front view of the lit segment design

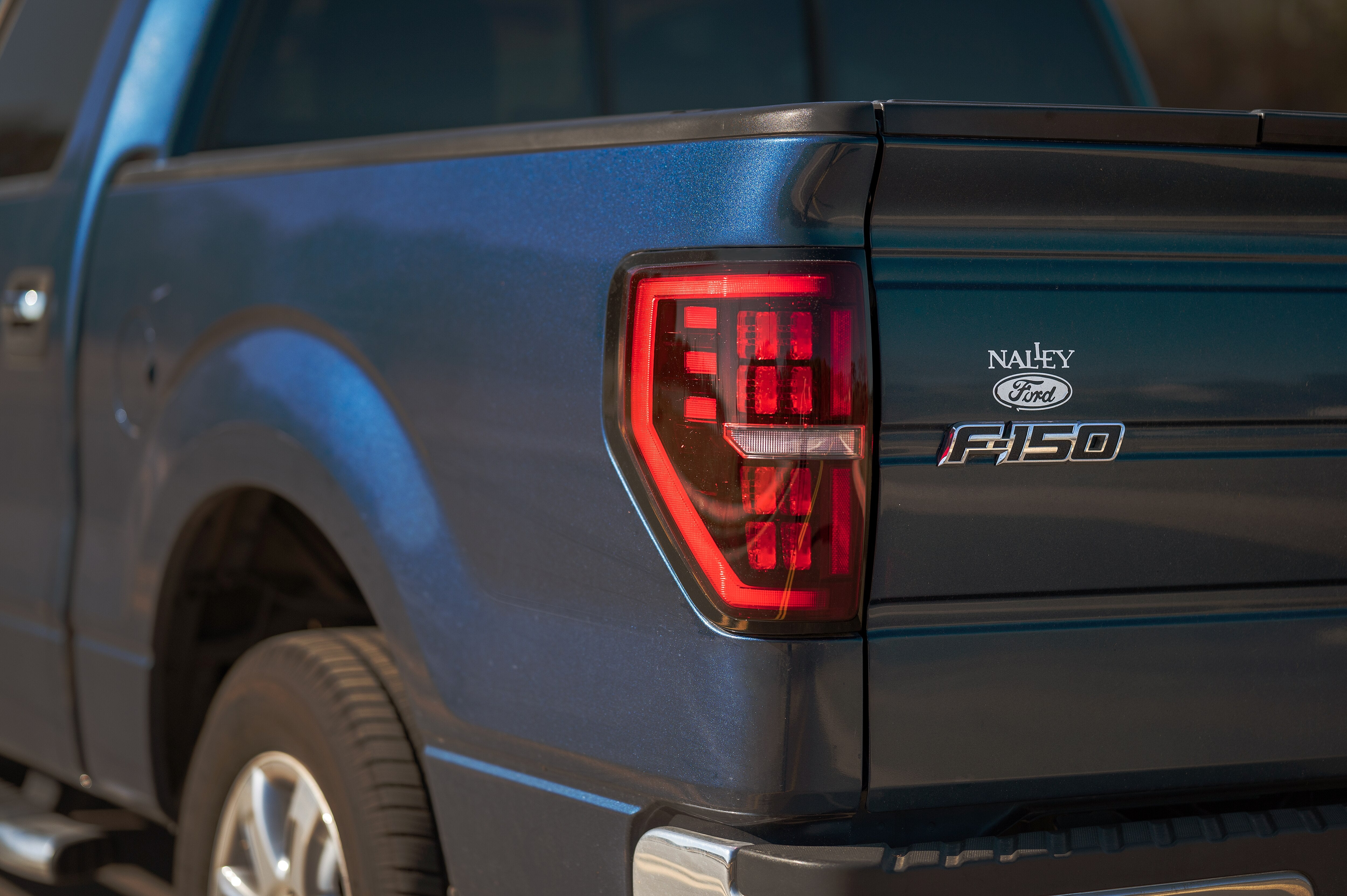

Morimoto XB red LED tail light installed on a blue Ford F-150, rear quarter view next to the tailgate badge

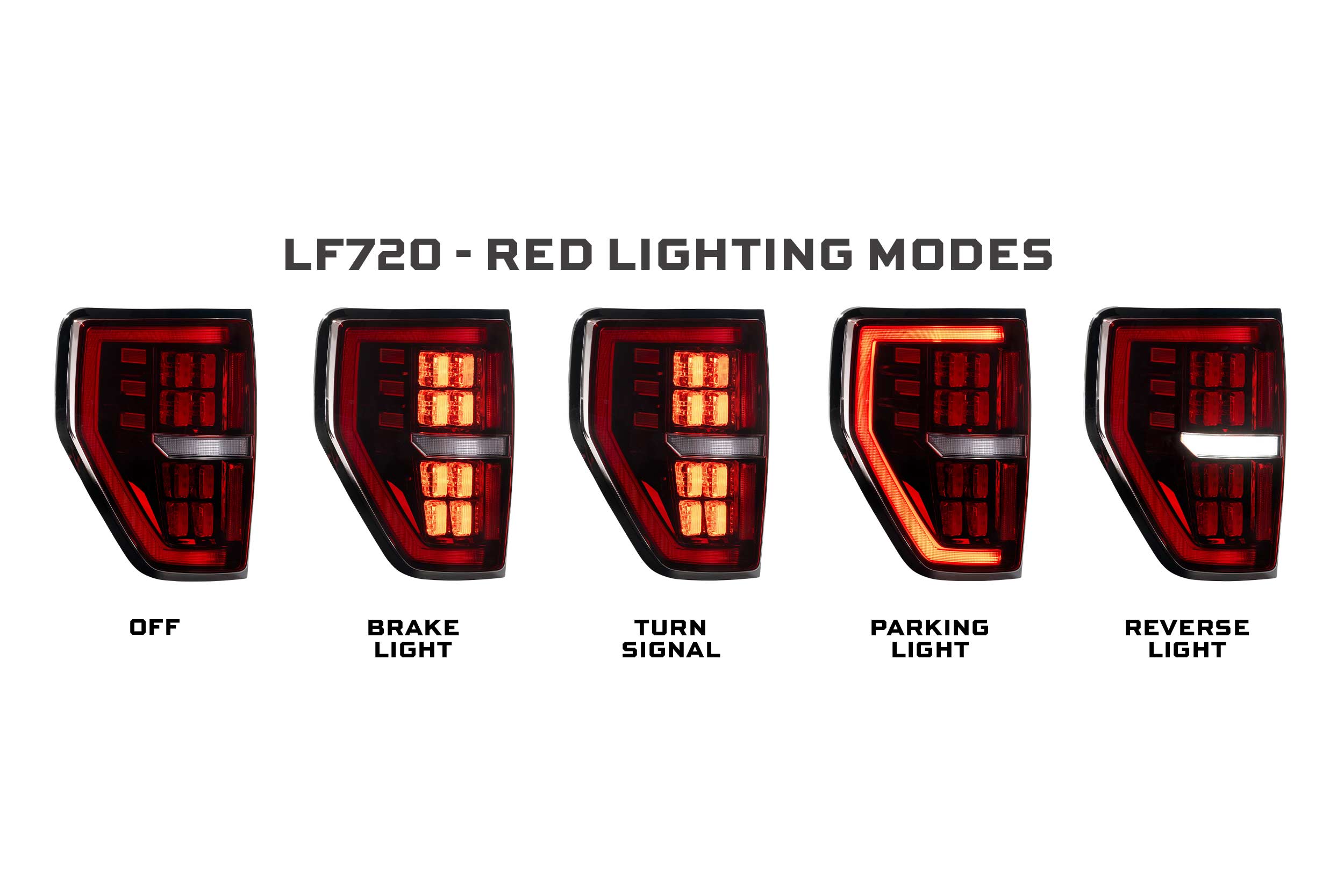

Morimoto F-150 XB red tail light lighting modes: off, brake, turn signal, parking and reverse

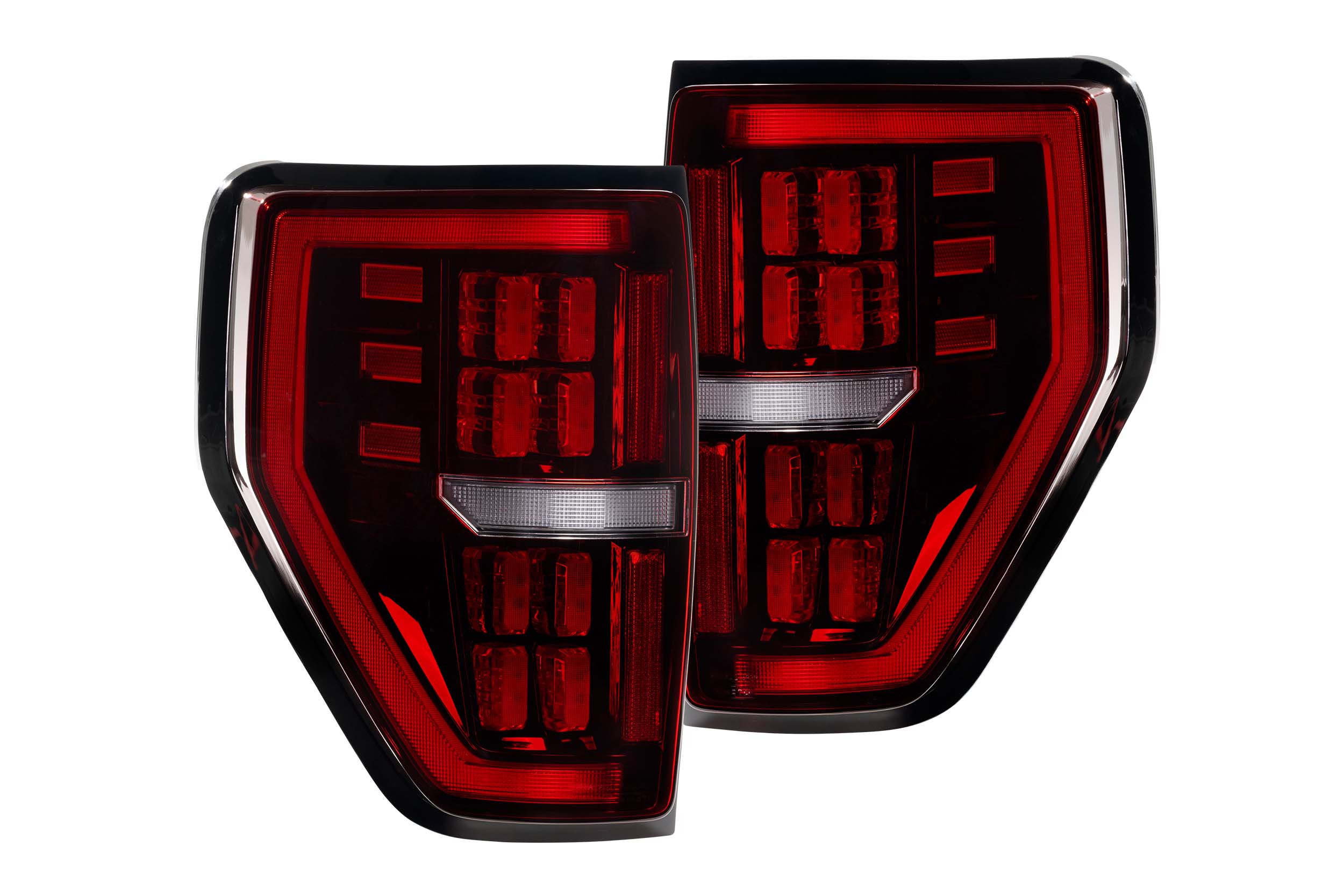

Pair of Morimoto XB red LED tail lights for the 2009-2014 F-150, unlit, showing the red lens and segment pattern

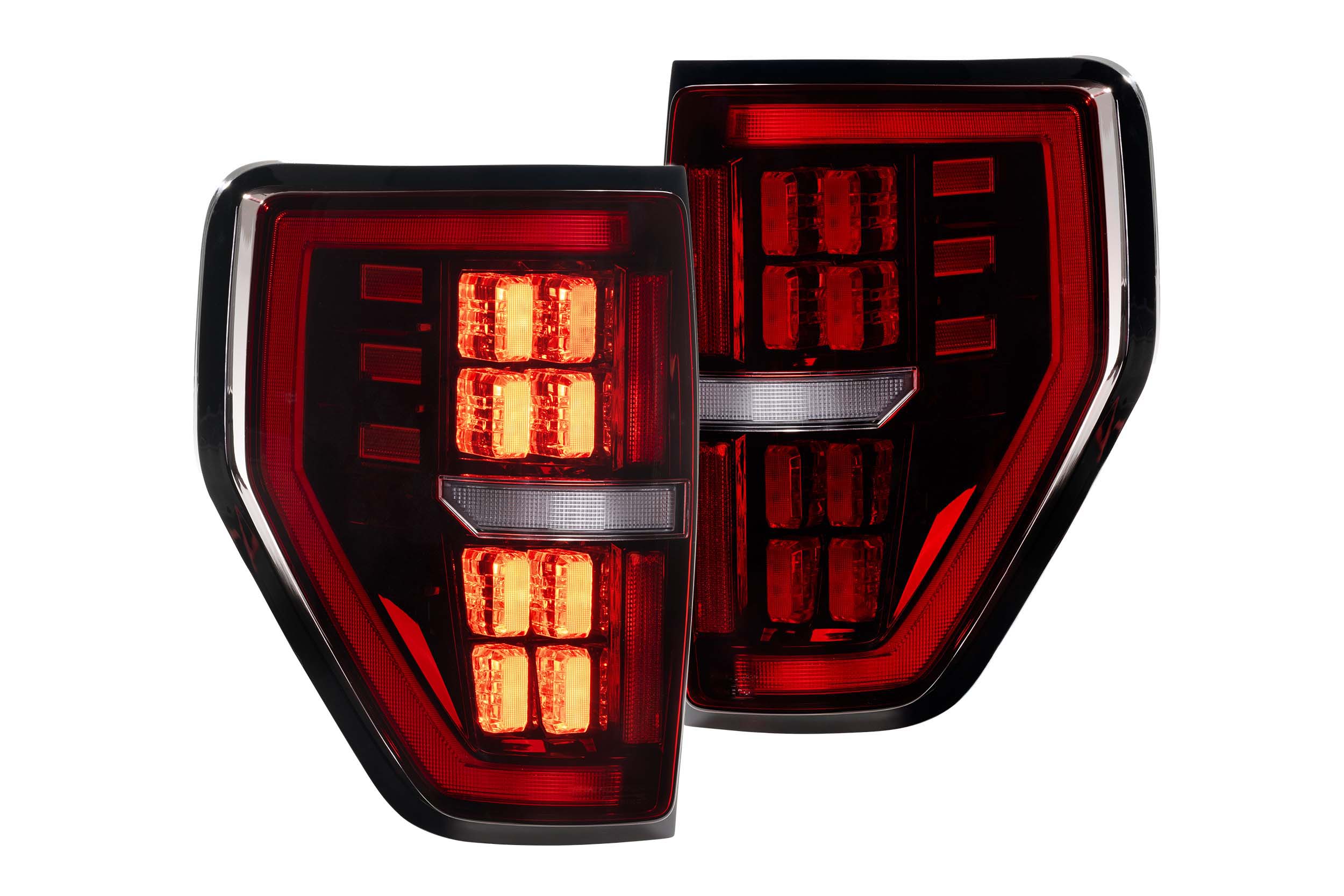

Morimoto XB red tail lights for the 2009-2014 F-150 with the amber segments lit as turn signals

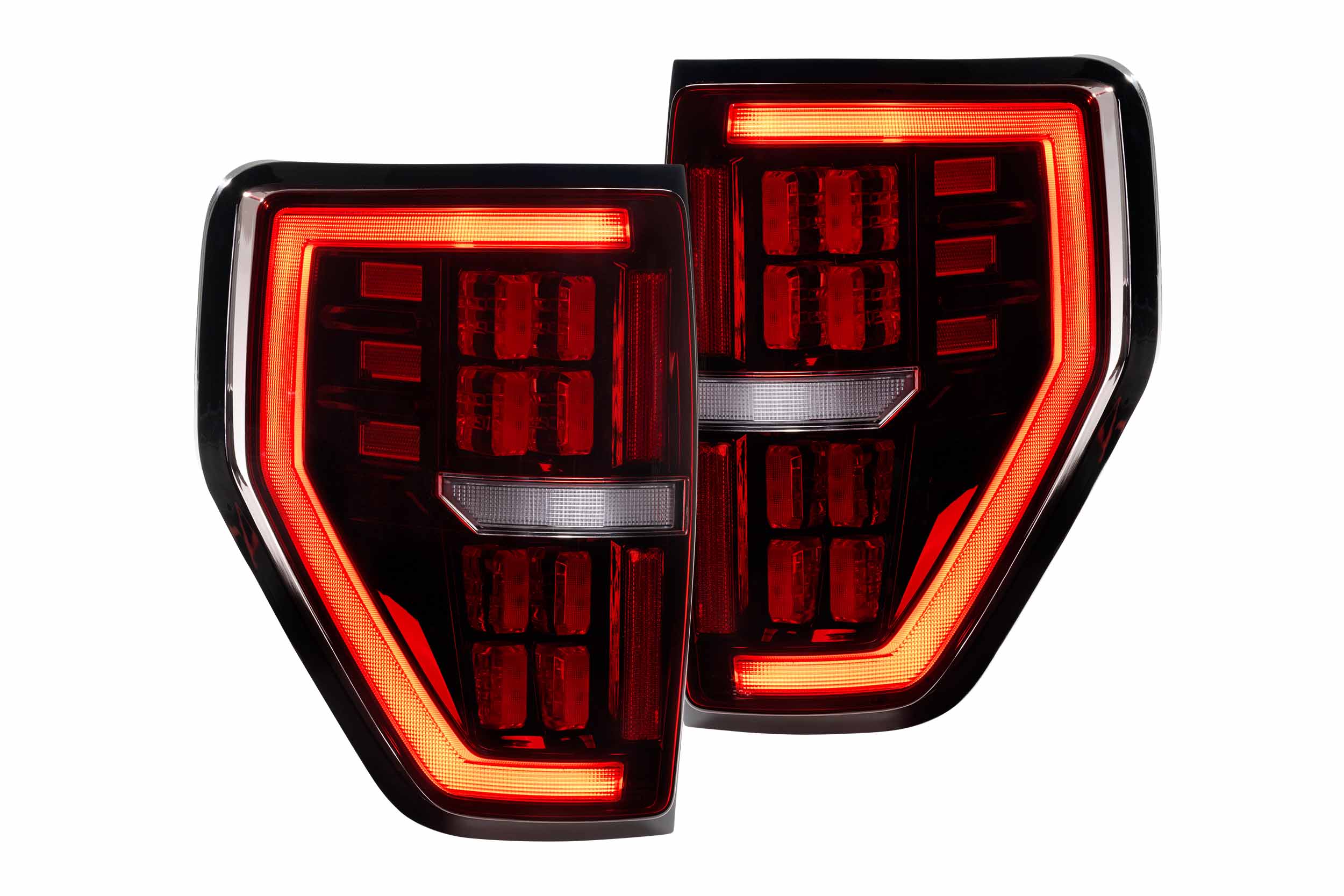

Morimoto XB red tail lights for the F-150 with the glowing light-pipe outline lit as parking lights

SKU: LF720

Morimoto Ford F-150 (09-14) XB LED Tail Lights (Red)

By Morimoto

$619.00

180-Day ReturnsOn uninstalled, unused parts Real humans who wheel(920) 249-7744 Financing available

For qualified buyers at checkout Secure checkoutEncrypted payment

Confirmed fit: 2009–2014 Ford F-150

Verified to fit the 2009–2014 Ford F-150.

Warranty Information

Vendor warranty summary

Morimoto Warranty

At a glance: 5 years on headlight and tail light assemblies; limited lifetime on off-road lighting

Shop Morimoto Official Morimoto policy All warranty policies

This is Morimoto's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.

Coverage by product

Product or component	Coverage
Headlight and tail light assemblies (e.g. XB)	5 years
Off-road lighting	Limited lifetime
2Stroke LED bulbs (per product page)	Limited lifetime

What's covered

Product failures and defects on headlights and tail lights for 5 years
Off-road lights for a limited lifetime
Products must be bought from an authorized Morimoto dealer

What's not covered

Modifications, alterations, or misuse
Products bought from unauthorized sellers
Damage or problems caused by improper installation (document issues before removing lights)

How to make a Morimoto warranty claim

If something isn't right, take photos or video of the problem before removing the lights
Contact Morimoto support by phone or email before doing anything else
Follow their instructions (some items may be field-destroyed with photos; housings usually need to be returned)

Morimoto contact: Phone: 424-239-5142 · Email: morimotohid@morimotohid.com · Claim page / support

Bought it from NVMOS? Start with us.

Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Morimoto, and help it along either way.

Shop Morimoto at NVMOS

Morimoto Ford Super Duty (17-22) XB Evo+ LED Fog Lights

Morimoto Ford F-150 (18-20) XB Evo+ LED Fog Lights

Morimoto Ford F-150 (15-17) XB Evo+ LED Fog Lights

See all Morimoto products, lead times and FAQs →

Disclaimer: The information on this page describes Morimoto's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Morimoto official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.

About the brand

Morimoto

Morimoto is an Atlanta lighting company that designs, engineers and tests its lights in-house. NVMOS carries Morimoto XB LED headlights and tail lights, fog lights, ditch light kits, Banger pods and more for Ford, Ram, Chevy/GMC, Toyota, Jeep and Nissan trucks. For owners tired of dim factory halogens.

Based in: Atlanta, Georgia · Founded: 2008 · Lead time: In-stock items ship in 24–48 hours

Morimoto warranty: 5 years on headlight and tail light assemblies; limited lifetime on off-road lighting. Read the full summary

Shop all 621 Morimoto Warranty All brands

Warranty terms are set by Morimoto, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

More details

Morimoto XB LED Tail Lights (Red) — Ford F-150 / Raptor (2009–2014)

These assemblies bring the styling of later-generation OEM LED tail lights to a 09-14 F-150. Each side runs dual clusters of four 3D Optics with integrated TIR optics and a dedicated parking light optic, so brake, turn signal, and parking functions all read clearly from a distance.

Reverse is where they really earn their keep — powerful LED backup lights, with the optional LED Backup Boost Bar adding another 2,700 lumens of controlled output. Everything is DOT and SAE compliant, verified by third-party lab testing, and backed by a five-year warranty.

Why it works

3D Optics with integrated TIRDual clusters of four 3D Optics per side, plus specialized parking light optics, deliver robust illumination for brake, turn, and parking functions.

Real reverse light outputPowerful LED reverse lights, with an optional LED Backup Boost Bar adding 2,700 lumens of controlled output for backing into camp after dark.

Direct plug-and-play swapUses Ford Multi-Pin OEM connectors with a plug-and-play harness configuration, replacing OE part numbers including AL3Z-13404-AE and BL3Z-13405-B.

Verified compliance and warrantyDOT and SAE compliant with third-party lab verification, backed by an industry-leading five-year warranty.

✓ DOT / SAE compliant — street legal

Specifications

Spec	Detail
Main optics	Dual clusters of four 3D Optics per side with integrated TIR optics
Functions	Brake, turn signal, parking, and LED reverse
Reverse boost option	Optional LED Backup Boost Bar adds 2,700 lumens
Lens	Red outer lens (smoked also available); UV-resistant polycarbonate
Housing	ABS plastic
LED source	SSC LEDs
Compliance	DOT and SAE compliant, third-party lab verified
Wiring / install	Ford Multi-Pin OEM connectors, plug-and-play harness
Replaces OE part numbers	AL3Z-13404-AE, BL3Z-13405-B, BL3Z-13404-BCP, 44ZH-1982-C, BL3Z13405AB, BL3Z13404AB
Part number	LF720
Warranty	Industry-leading five-year warranty
Fitment	2009–2014 Ford F-150 and Ford F-150 Raptor; tested on US-specification vehicles

Frequently asked questions

Are these street legal?

Yes. All components comply with DOT and SAE safety regulations, and quality assurance includes third-party lab verification.

Will they fit my truck?

Compatibility extends to 09-14 Ford F-150 models, including the Ford F-150 Raptor. They replace original equipment part numbers AL3Z-13404-AE, BL3Z-13405-B, BL3Z-13404-BCP, 44ZH-1982-C, BL3Z13405AB, and BL3Z13404AB. These designs are tested on US-specification vehicles, so compatibility varies for other markets.

How do they install?

Installation uses Ford Multi-Pin OEM connectors with a plug-and-play harness configuration.

Can I get brighter reverse lights?

Yes. The assemblies include powerful LED reverse lights, and an optional LED Backup Boost Bar delivers an additional 2,700 lumens of controlled reverse output.

Videos

Technical specifications

Input	Ford Multi-Pin OEM
Material	ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens)
Light Source	SSC LED
Brake Light	Red
Parking Light	Red
Turn Signal	Red

Compatibility

Ford F-150 Trucks	09-14 (all)
Replaces Ford Part #	AL3Z-13404-AE, BL3Z-13405-B, BL3Z-13404-BCP, 44ZH-1982-C, BL3Z13405AB, BL3Z13404AB
NOTE	These housings have been designed for, and tested on, US-Spec vehicles. Other countries' compatibility may vary and is not guaranteed nor always known.

In the box

Tail Lights	2x (One Pair) 09-14 Ford F-150 XB LED Tail Lights
Wiring	Plug and Play Harness
