Morimoto Bigbanger LED Pods: HXB Spot Beam
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
Morimoto Warranty
At a glance: 5 years on headlight and tail light assemblies; limited lifetime on off-road lighting
This is Morimoto's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Headlight and tail light assemblies (e.g. XB) | 5 years |
| Off-road lighting | Limited lifetime |
| 2Stroke LED bulbs (per product page) | Limited lifetime |
What's covered
- Product failures and defects on headlights and tail lights for 5 years
- Off-road lights for a limited lifetime
- Products must be bought from an authorized Morimoto dealer
What's not covered
- Modifications, alterations, or misuse
- Products bought from unauthorized sellers
- Damage or problems caused by improper installation (document issues before removing lights)
How to make a Morimoto warranty claim
- If something isn't right, take photos or video of the problem before removing the lights
- Contact Morimoto support by phone or email before doing anything else
- Follow their instructions (some items may be field-destroyed with photos; housings usually need to be returned)
Morimoto contact: Phone: 424-239-5142 · Email: morimotohid@morimotohid.com · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Morimoto, and help it along either way.
Shop Morimoto at NVMOS
Morimoto BigBanger LED Pods: HXB Spot Beam
Morimoto 4Banger LED Pods: HXB Combo Beam
Morimoto 2Banger LED Pods: NCS Combo Beam
See all Morimoto products, lead times and FAQs →
Disclaimer: The information on this page describes Morimoto's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Morimoto official warranty information. Last updated on nvmos.com: October 28, 2026. See our return policy for NVMOS's own terms.
About the brand
Morimoto headlights are why most people land here: plug-and-play XB LED headlight assemblies that replace dim factory halogens on Ford, Ram, Chevy/GMC, Toyota, Jeep and Nissan trucks. Morimoto designs, engineers and tests its lights in-house in Atlanta, and NVMOS also carries its LED headlights, tail lights, fog lights, ditch light kits and Banger pods.
Based in: Atlanta, Georgia · Founded: 2008 · Lead time: In-stock items ship in 24–48 hours
Shop all 879 MorimotoWarrantyAll brands
Warranty terms are set by Morimoto, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

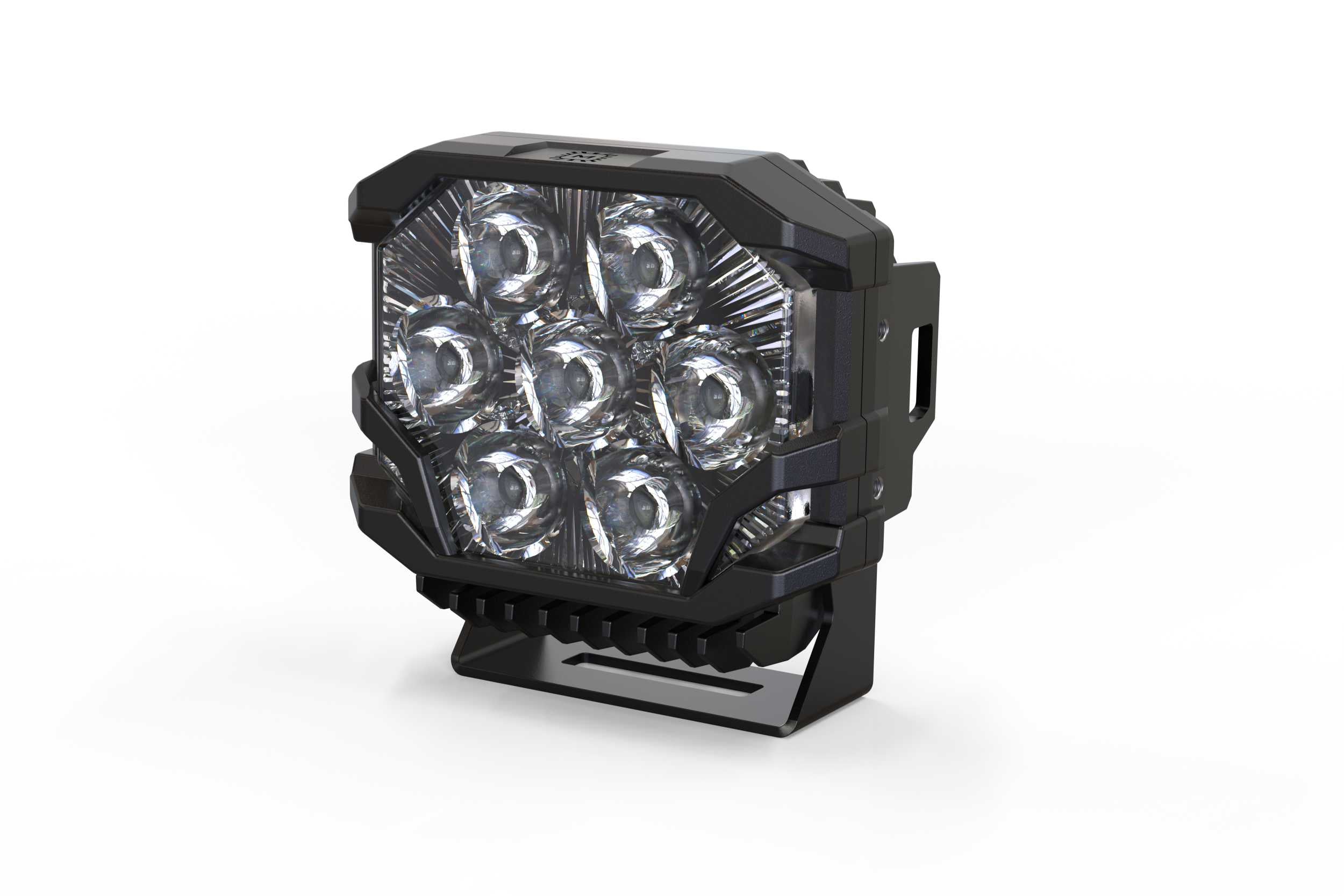

Morimoto Bigbanger LED Pods — HXB Spot Beam
This is the longest-reaching pod Morimoto builds in the Banger line. Seven Osram HX Boost chips make 7,000 raw lumens, and the spot optic pushes that to 580,000 Cd on white output — enough to light usable detail out to 800 metres.
The housing is designed in the USA and torture-tested, and the amber back light ring cuts glare on night drives. All figures below are per pod.
| Spec | Detail |
|---|---|
| Light source | 7x Osram HX Boost (output), plus 12x CREE XP-E2 PC Amber (backlight) |
| Peak luminosity (raw) | 7,000 lm |
| Intensity (white) | 580,000 Cd (5,800 lux @ 10m) |
| Intensity (yellow) | 400,000 Cd (4,000 lux @ 10m) |
| Beam pattern | HXB Spot — reaches up to 800m |
| Input voltage | 9-18V DC |
| Current | 5.55A @ 13.5V DC stabilized, 8.15A @ 13.5V DC at startup |
| Input | Integrated Deutsch DT 4-pin |
| Dimensions | 154mm W, 136.7mm H (153.5mm with bracket), 76.1mm D |
| Materials | Makrolon LED PC lens, powdercoated die-cast aluminum housing |
| Fitment | Universal — versatile mounting with universal brackets. All specifications listed are per pod. |
How far will these actually light?
Morimoto rates the HXB Spot pattern at up to 800 metres. White output measures 580,000 Cd (5,800 lux at 10m) and yellow measures 400,000 Cd (4,000 lux at 10m).
What is the current draw?
5.55A at 13.5V DC once stabilized and 8.15A at startup, on a 9-18V DC input. Size your harness and fusing for the startup figure, especially if you are running a pair.
Spot or combo?
Spot is the choice for outright distance on open ground. Combo trades some of that reach for wider coverage, which suits tighter trails and lower speeds.
How do they mount?
Universal brackets give versatile mounting options across bumpers, bars and racks. Each pod measures 154mm wide, 136.7mm tall (153.5mm with the bracket) and 76.1mm deep.
Videos
Technical specifications
| Intensity | 564,000 Cd (Post Warm-Up) (5,640 lux @ 10m) |
|---|---|
| Input Voltage | 9-18V DC |
| Input | Integrated Deutsch DT 4-Pin |
| Power (Stabilized) | 77.0w, 30w (Backlight), 8w (Dim Backlight) |
| Current (@ 13.5V DC) | 5.55A (Stabilized), 8.15A (Startup), 2.2A (Backlight), 600mA (Dim Backlight) |
| Peak Luminosity (lm)(raw) | 7,000lm |
| Dimensions | 154mm W, 136.7mm H (153.5mm w/ Bracket), 76.1mm D |
| Light Source | 7x Osram HX Boost (5700K), 12x CREE XP-E2 PC Amber (Backlight) |
| Material | Makrolon LED PC (Lens), Powdercoated Die Cast Aluminum (Housing) |
| IP RATING | IP69K (Dust / High Pressure Water Resistant) |
Compatibility
| Universal | With Included U Brackets |
|---|
In the box
| LED Pod | 1x Morimoto BigBanger HXB Spot (White) (Sold Each) |
|---|---|
| Bracket | 1x Universal Bottom Mount U Bracket |
| Hardware | Complete pack (stainless steel) |
