Morimoto Ford F-150 (09-14) XB Evo LED Headlights
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
Morimoto Warranty
At a glance: 5 years on headlight and tail light assemblies; limited lifetime on off-road lighting
This is Morimoto's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Headlight and tail light assemblies (e.g. XB) | 5 years |
| Off-road lighting | Limited lifetime |
| 2Stroke LED bulbs (per product page) | Limited lifetime |
What's covered
- Product failures and defects on headlights and tail lights for 5 years
- Off-road lights for a limited lifetime
- Products must be bought from an authorized Morimoto dealer
What's not covered
- Modifications, alterations, or misuse
- Products bought from unauthorized sellers
- Damage or problems caused by improper installation (document issues before removing lights)
How to make a Morimoto warranty claim
- If something isn't right, take photos or video of the problem before removing the lights
- Contact Morimoto support by phone or email before doing anything else
- Follow their instructions (some items may be field-destroyed with photos; housings usually need to be returned)
Morimoto contact: Phone: 424-239-5142 · Email: morimotohid@morimotohid.com · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Morimoto, and help it along either way.
Shop Morimoto at NVMOS
Morimoto Ford Super Duty (17-22) XB Evo+ LED Fog Lights
Morimoto Ford F-150 (18-20) XB Evo+ LED Fog Lights
Morimoto Ford F-150 (15-17) XB Evo+ LED Fog Lights
See all Morimoto products, lead times and FAQs →
Disclaimer: The information on this page describes Morimoto's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Morimoto official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
Morimoto is an Atlanta lighting company that designs, engineers and tests its lights in-house. NVMOS carries Morimoto XB LED headlights and tail lights, fog lights, ditch light kits, Banger pods and more for Ford, Ram, Chevy/GMC, Toyota, Jeep and Nissan trucks. For owners tired of dim factory halogens.
Based in: Atlanta, Georgia · Founded: 2008 · Lead time: In-stock items ship in 24–48 hours
Shop all 621 MorimotoWarrantyAll brands
Warranty terms are set by Morimoto, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

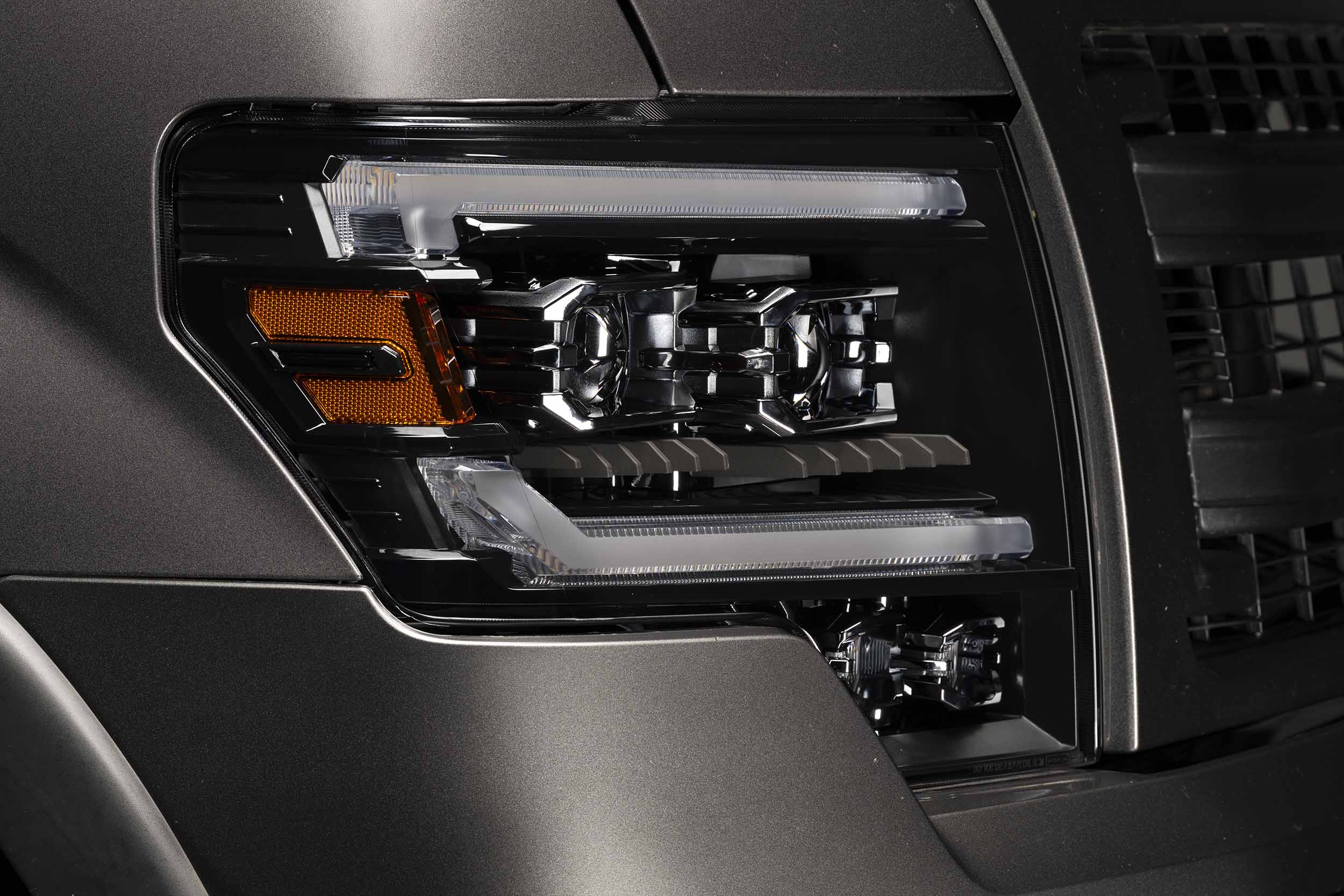

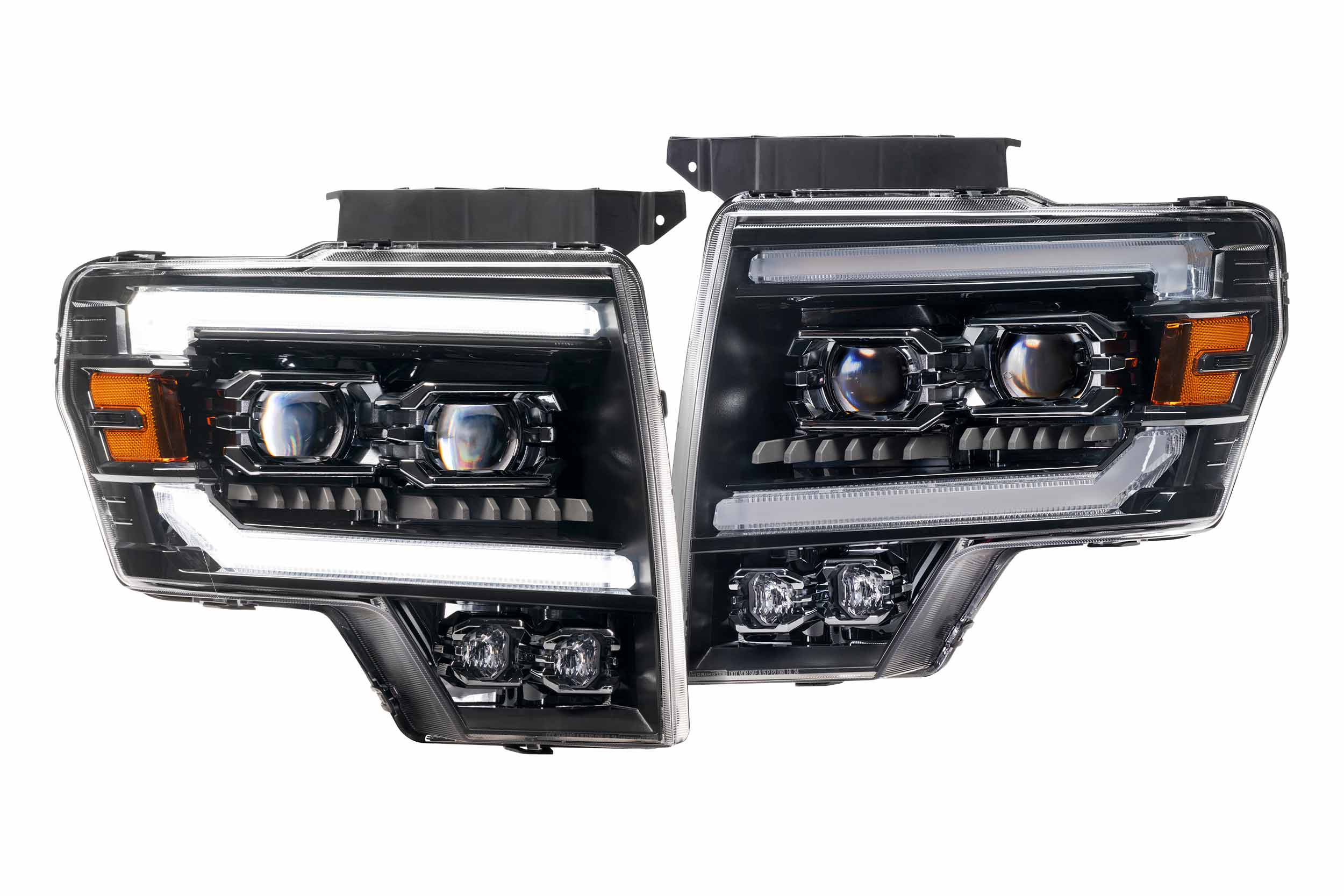

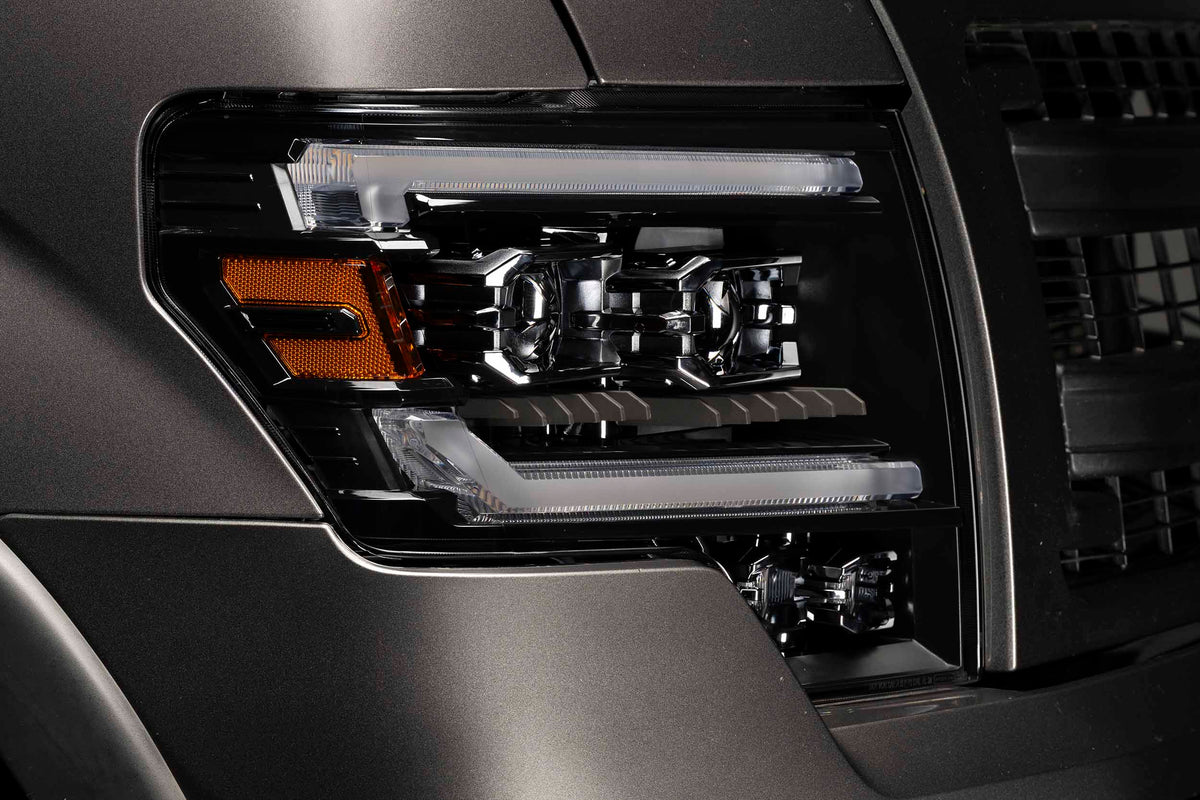

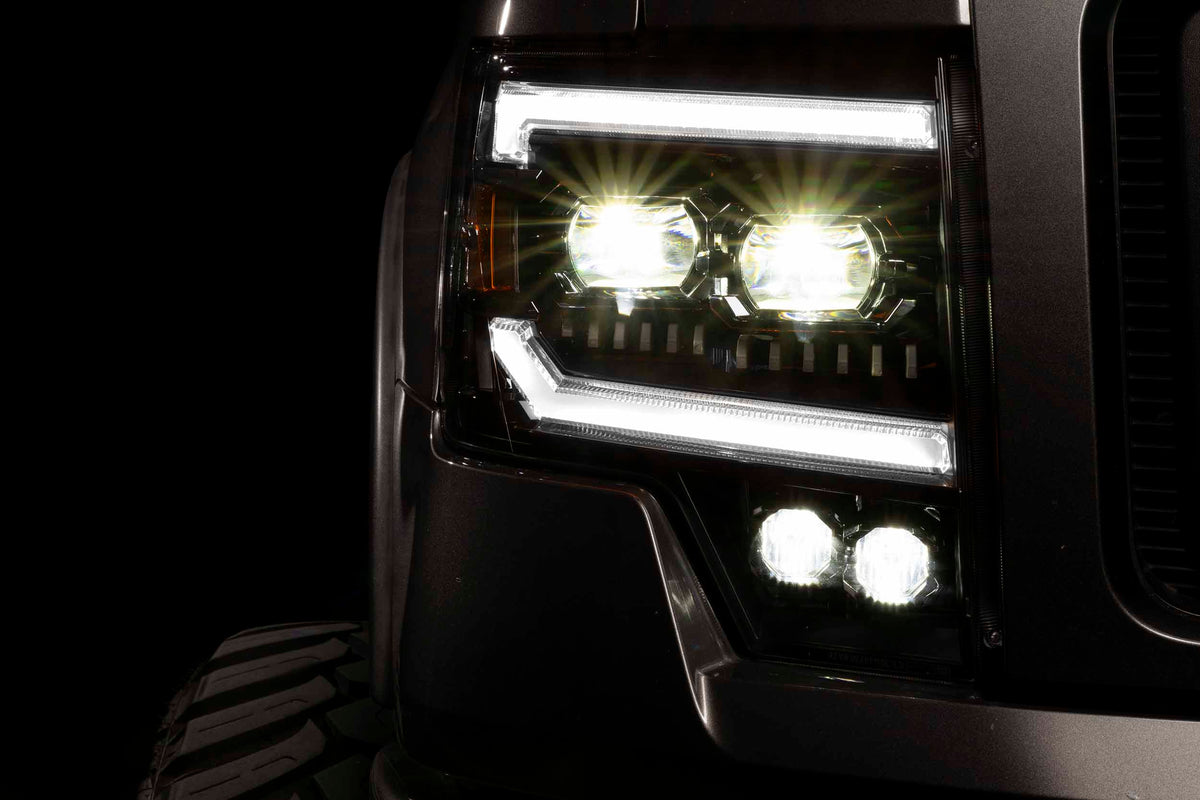

Morimoto XB Evo LED Headlights — Ford F-150 (2009–2014)

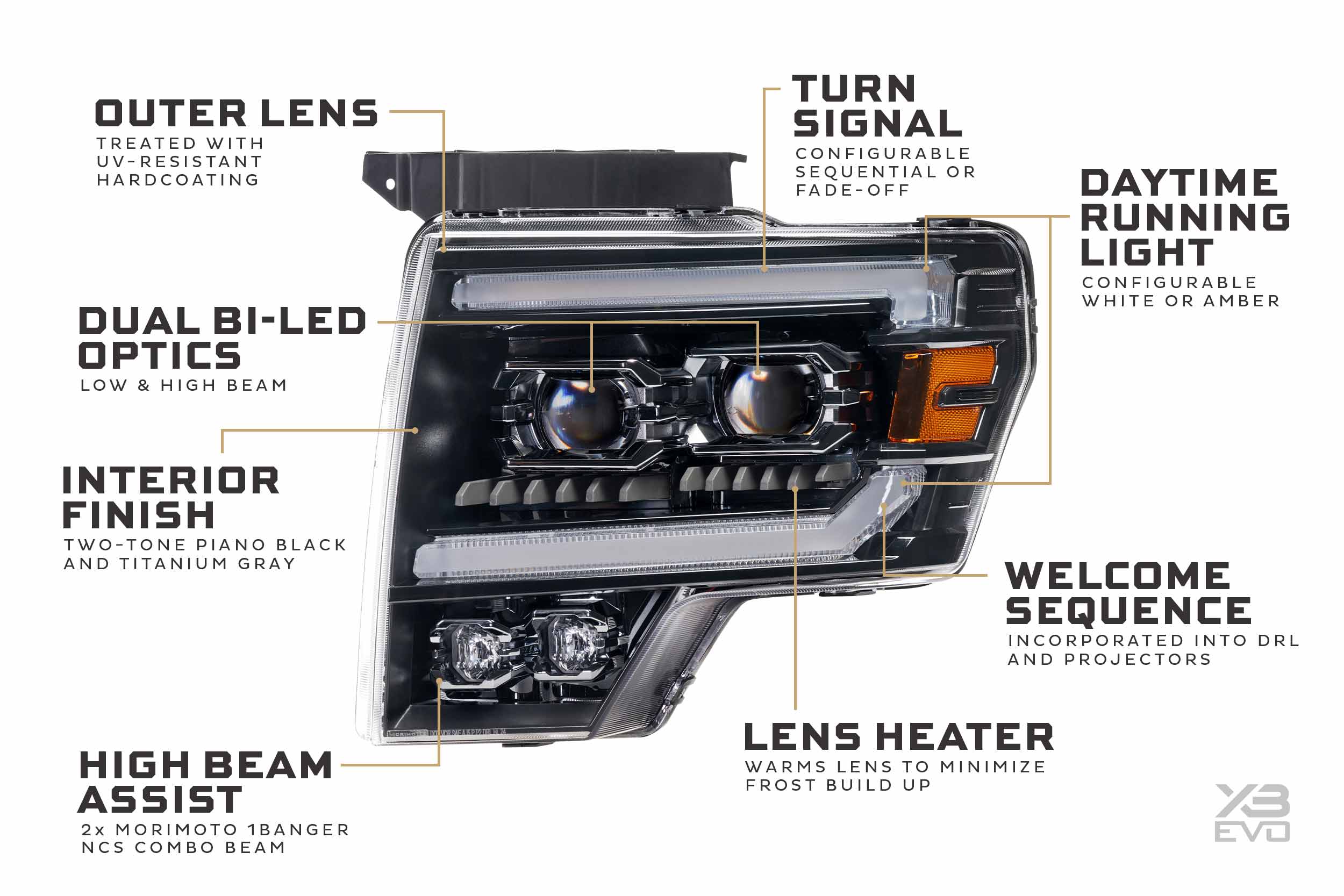

The XB Evo is Morimoto's flagship housing for the 09-14 F-150: dual Bi-LED projectors running Nichia automotive LEDs, DOT-compliant output, and a patent-pending lens heater that keeps frost off the surface in winter. Below 5°C, four flashes of the high beams turns the heating system on.
A plug-and-play signal swap key lets you set the DRL to white or amber and the turn signal to sequential or fade-off. Everything bolts to the original mounting points and plugs into the factory harness — no dash errors, no interference.
| Spec | Detail |
|---|---|
| Main optics | Dual Bi-LED projectors with Nichia automotive LEDs |
| Output (standard drivers) | DOT compliant |

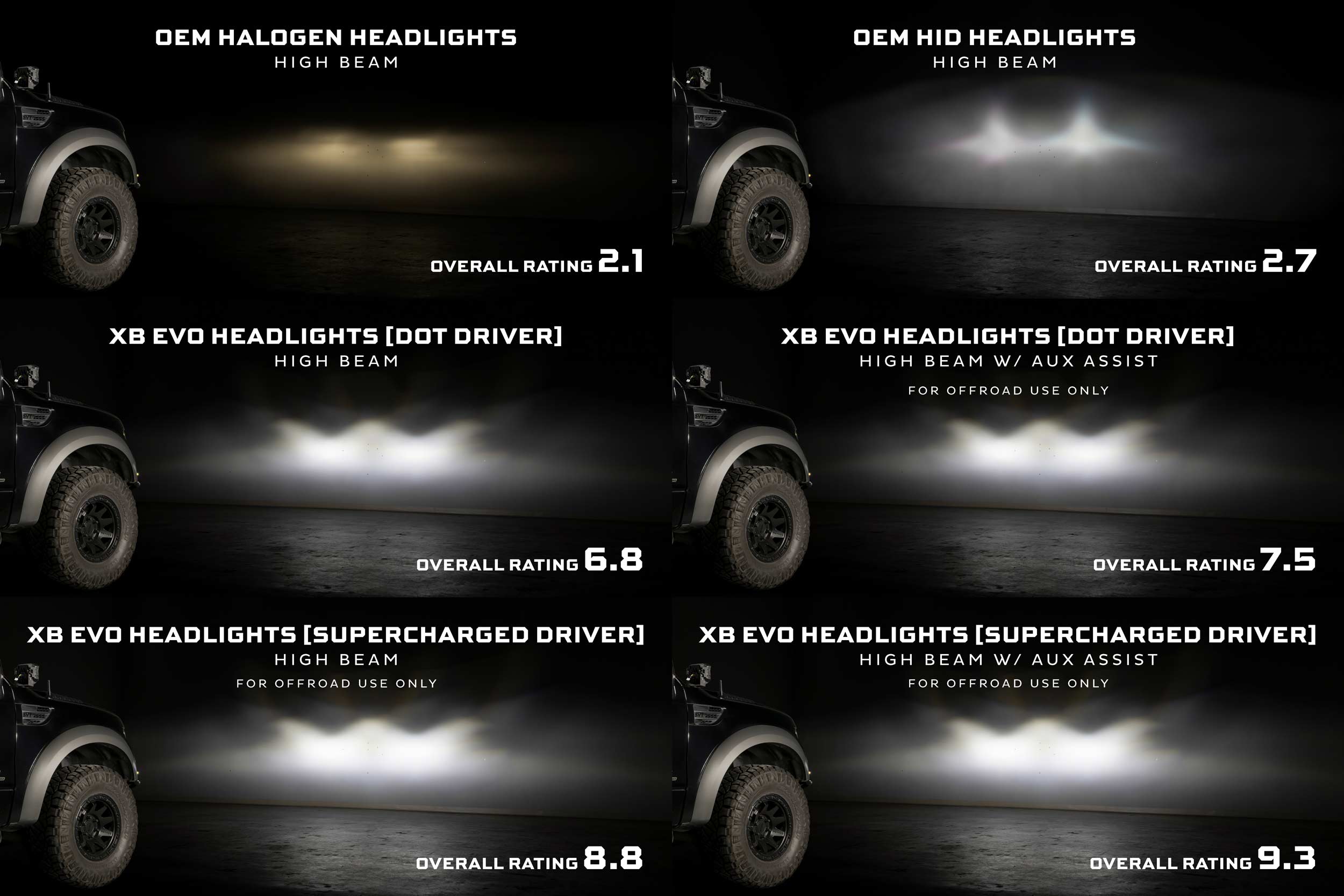

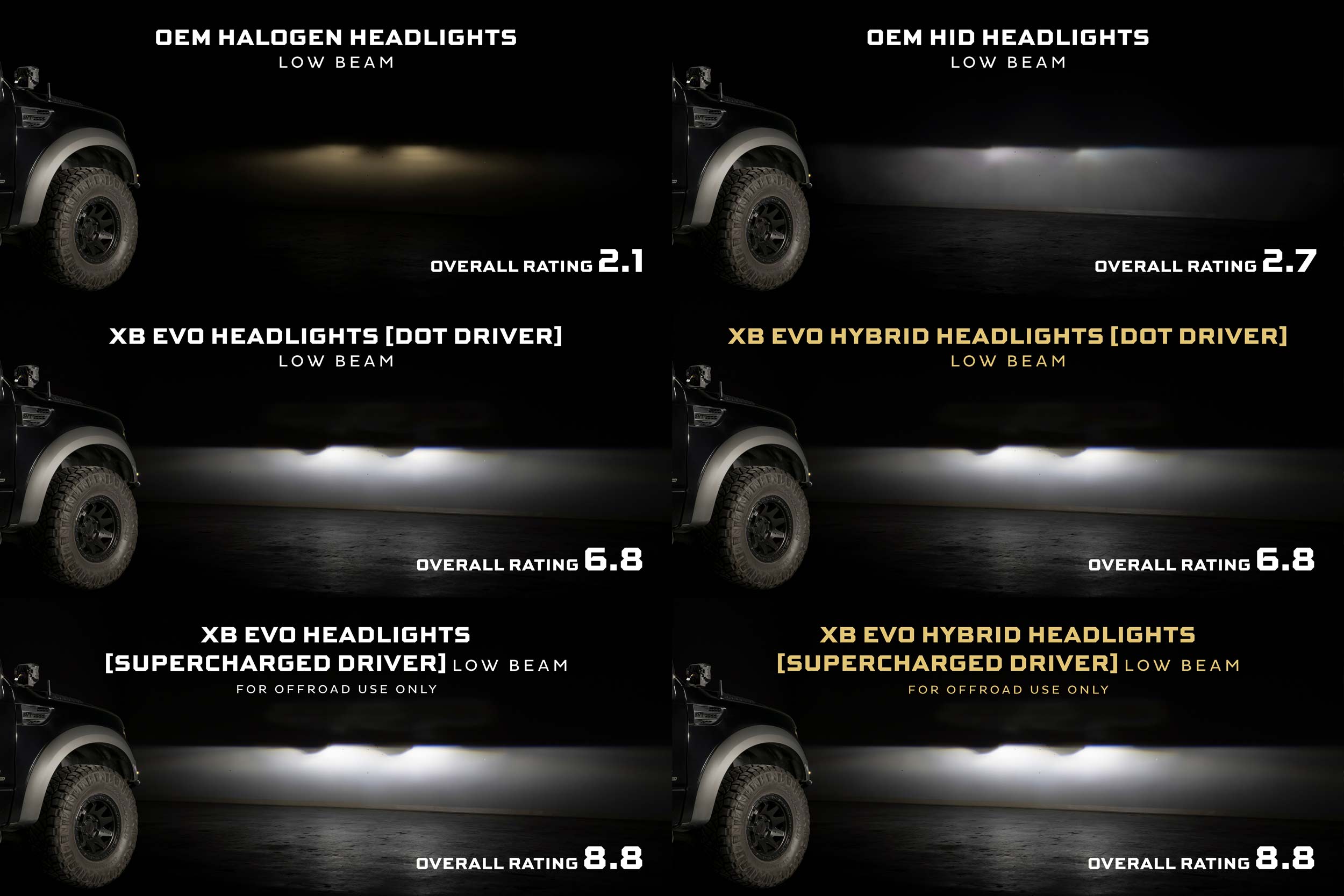

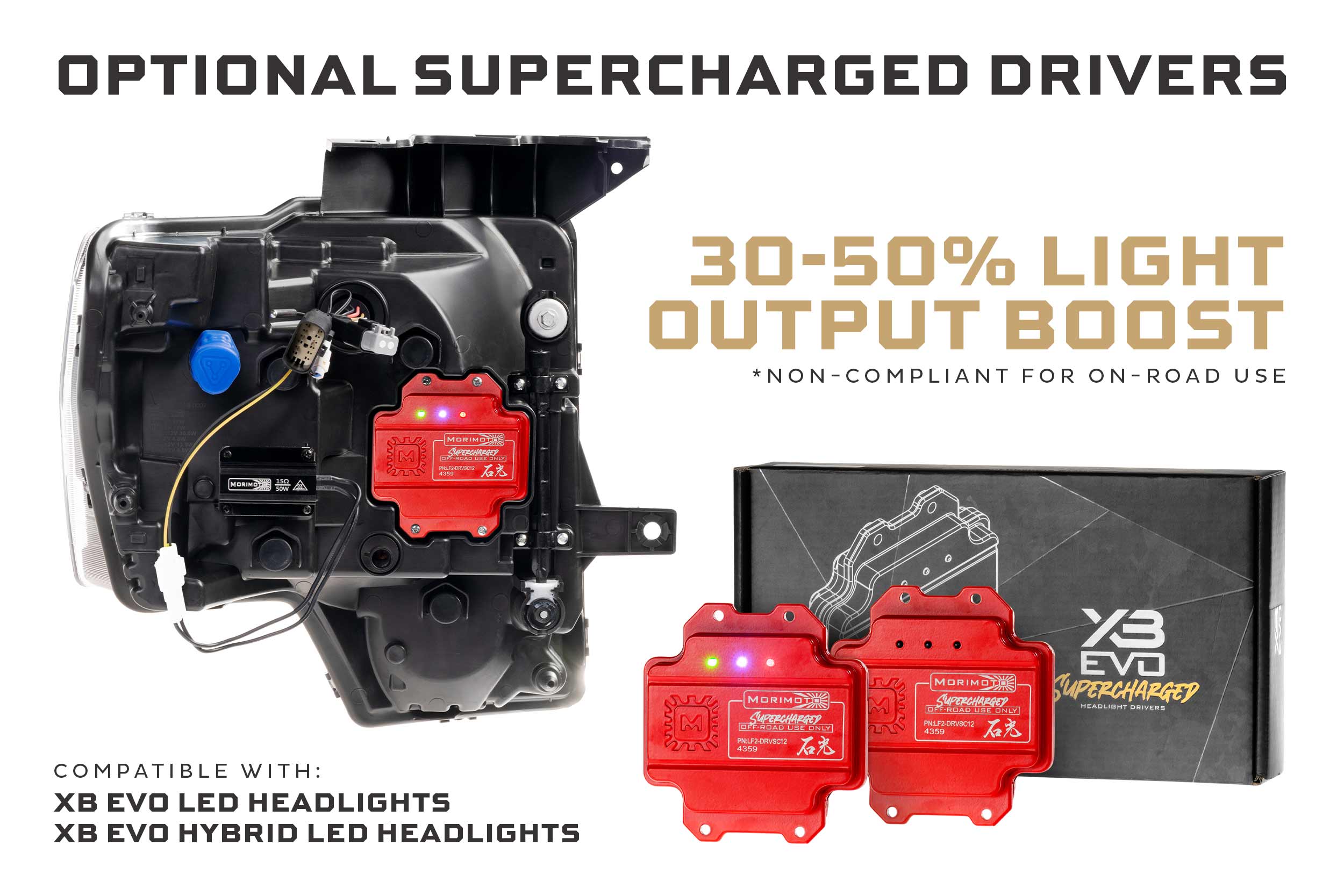

| Output (optional Supercharged drivers) | 30–50% higher intensity — off-road use only, non-compliant |

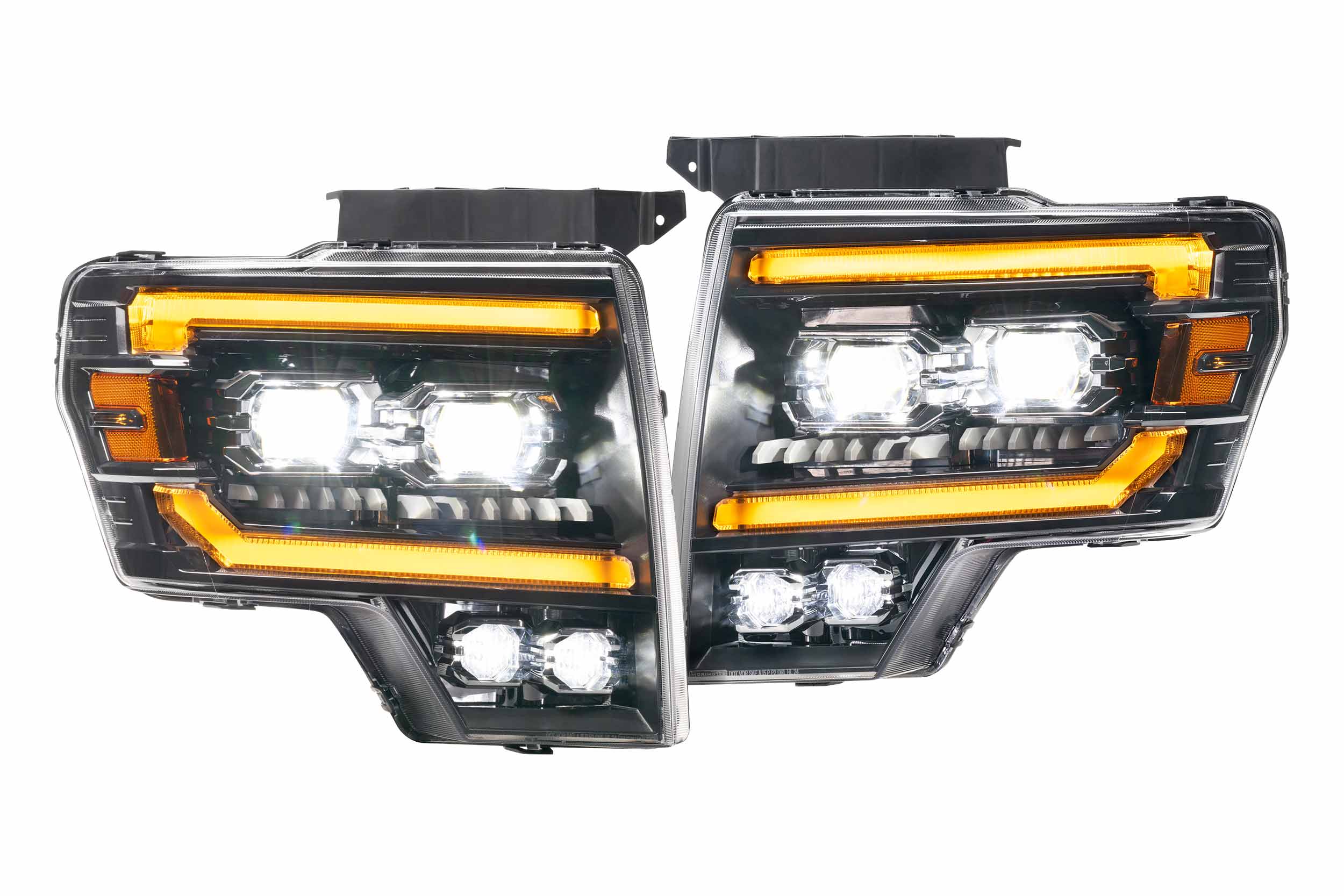

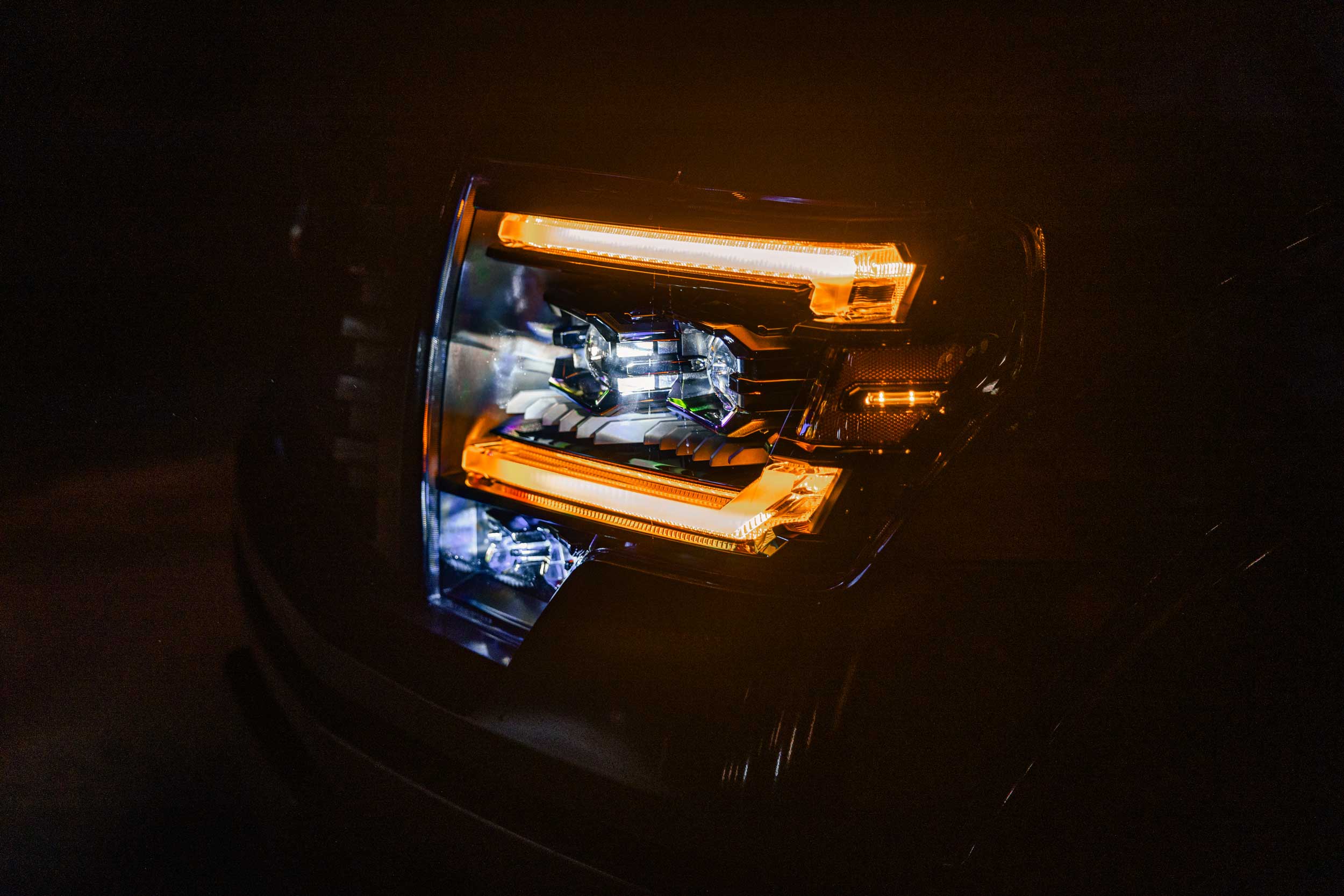

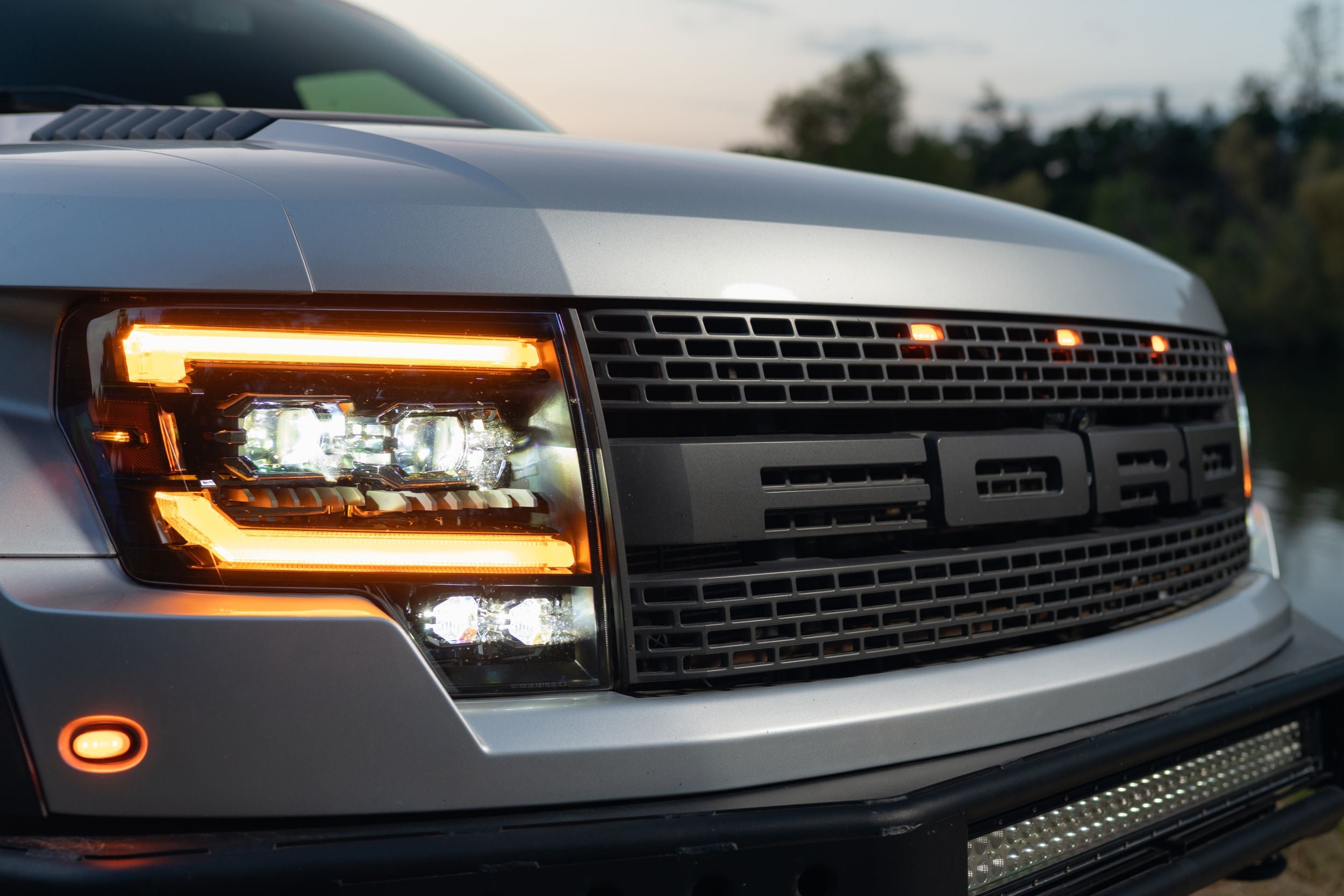

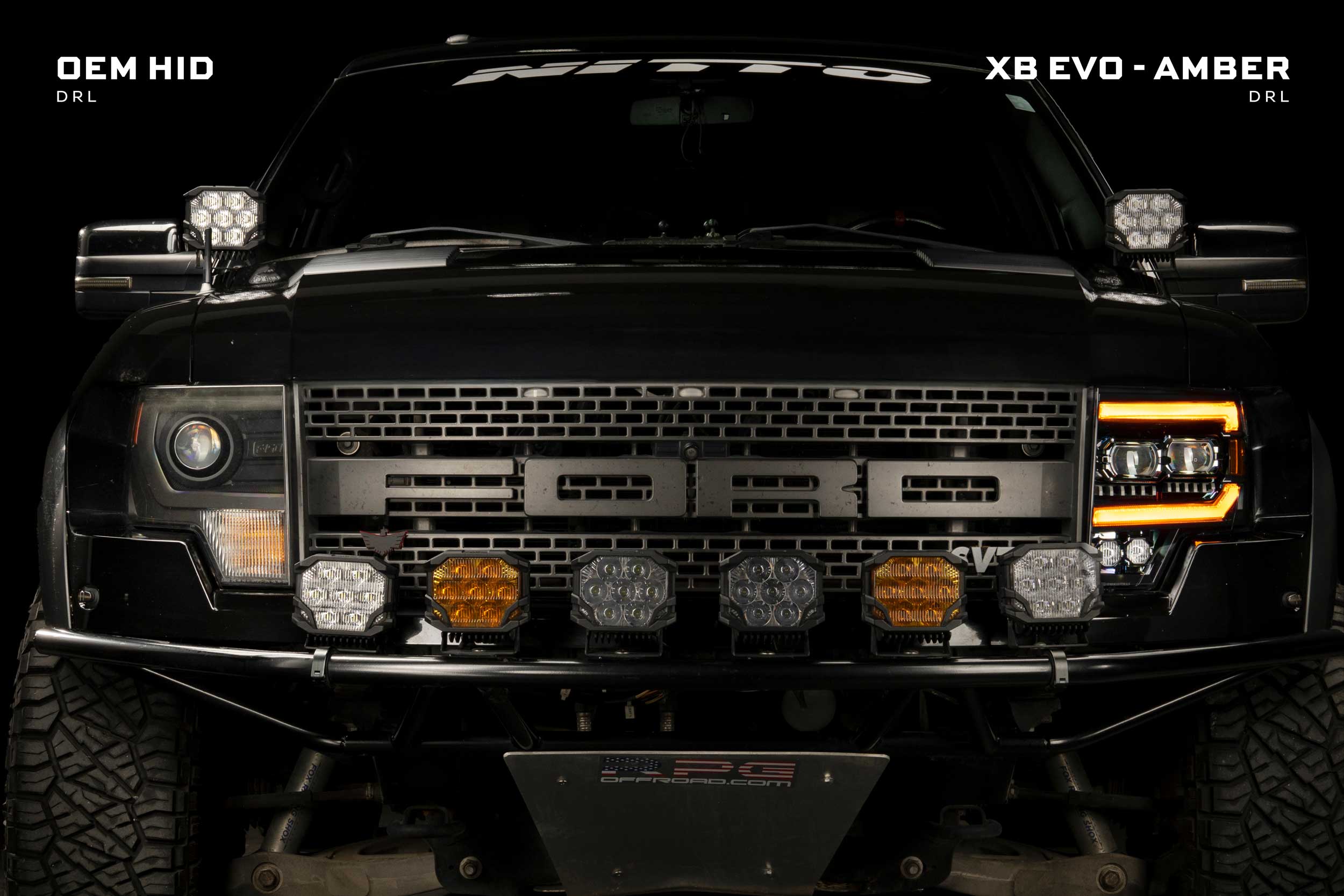

| DRL colors | White or amber, full intensity (signal swap key) |
| Turn signal modes | Sequential or fade-off |
| Lens heating | Patent-pending; activated by four high-beam flashes below 5°C |
| Lens | Polycarbonate with UV-protective hard coating exceeding OE benchmarks |
| Wiring / install | Bolts to original mounting points, plugs into factory wiring, no dash errors |
| Construction | Built in the USA by Morimoto |
| Part number | LF2-506 |
| Warranty | Industry-leading five-year warranty |
| Fitment | 2009–2014 Ford F-150 |
Are these street legal?
Yes. With the standard drivers the XB Evo headlights meet DOT compliance standards. The optional Supercharged drivers boost intensity 30-50% but result in non-compliant levels and are for off-road use only.
Do I need to modify anything to install them?
No. The headlights bolt to the original mounting points and connect to factory wiring without dashboard errors or interference.
Can I change the DRL color and turn signal style?
Yes. The signal swap system uses a plug-and-play key. Daytime running lights operate in white or amber at full intensity, and turn signals can be configured for sequential or fade-off operation.
How does the lens heating work?
A patent-pending heating system warms the lens surface to minimize frost during winter conditions. When temperatures drop below 5°C, activating the system with four high-beam flashes automatically maintains internal temperatures.
Videos
Technical specifications
| Traffic Pattern | LHD / Right Hand Traffic Only |
|---|---|
| Output (Standard Drivers) | DOT / FVMSS108 Compliant (LB2V and UB2) |
| Output (Supercharged Drivers) | +30-50% (Non-Compliant) |
| Main Optics | 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA) |
| High Beam Assist | 2x Morimoto 1Banger NCS Combo Beam* |

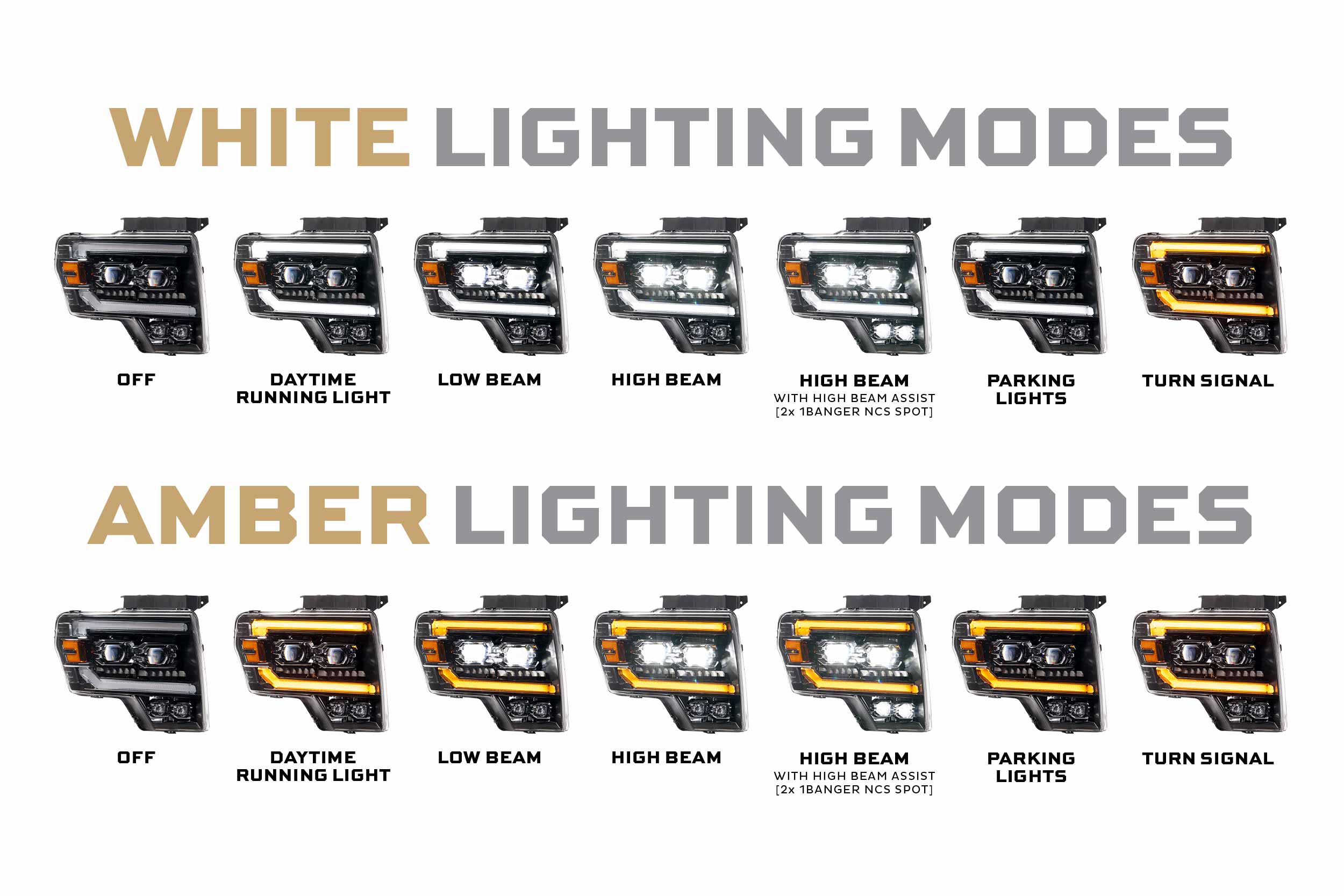

| Functions | Low, High, Park, Turn, DRL, Welcome, and Lens Heating |
| Turn Signal Modes | Sequential or Fade Off (Configurable) |
| DRL Colors | White or Amber (Configurable) |
| DRL/Signal Optics | Glass-like 3D Optics |
| Frost-Free System | Logic Controlled 50W Ceramic w/ circulation fans |
| Internal Finish | Two-Tone Piano Black and Titanium w/ contrasting textures |
| Side marker | Amber side reflex reflector (DOT compliant) |
| Wiring | Adapters Included for OEM Halogen and OEM HID inputs |
| Lens Details | Polycarbonate with UV shield hard coating (Exceeds OE Toyota benchmark) |
Compatibility
| Ford F-150 | 2009-2014 (all trim levels, factory halogen & factory HID/xenon equipped models) |
|---|---|
| Ford SVT Raptor | 2010-2014 |
| Trim Levels | XL, STX, XLT, FX2, FX4, Lariat, King Ranch, Platinum, SVT Raptor, Limited |
| Supercharged Drivers | LF2-DRVSC12 (Optional, sold separately) |
| Replaces Ford Part # | FO2503289, FO2502289, FO2503287, FO2502287, DL3Z13008A, DL3Z13008B, DL3Z13008EB, DL3Z13008EC, FR560B1A12SD6V, DL3Z13008DB, DL3Z13008FB, DL3Z13008BB, DL3Z13008CB |
| Note | These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America. |

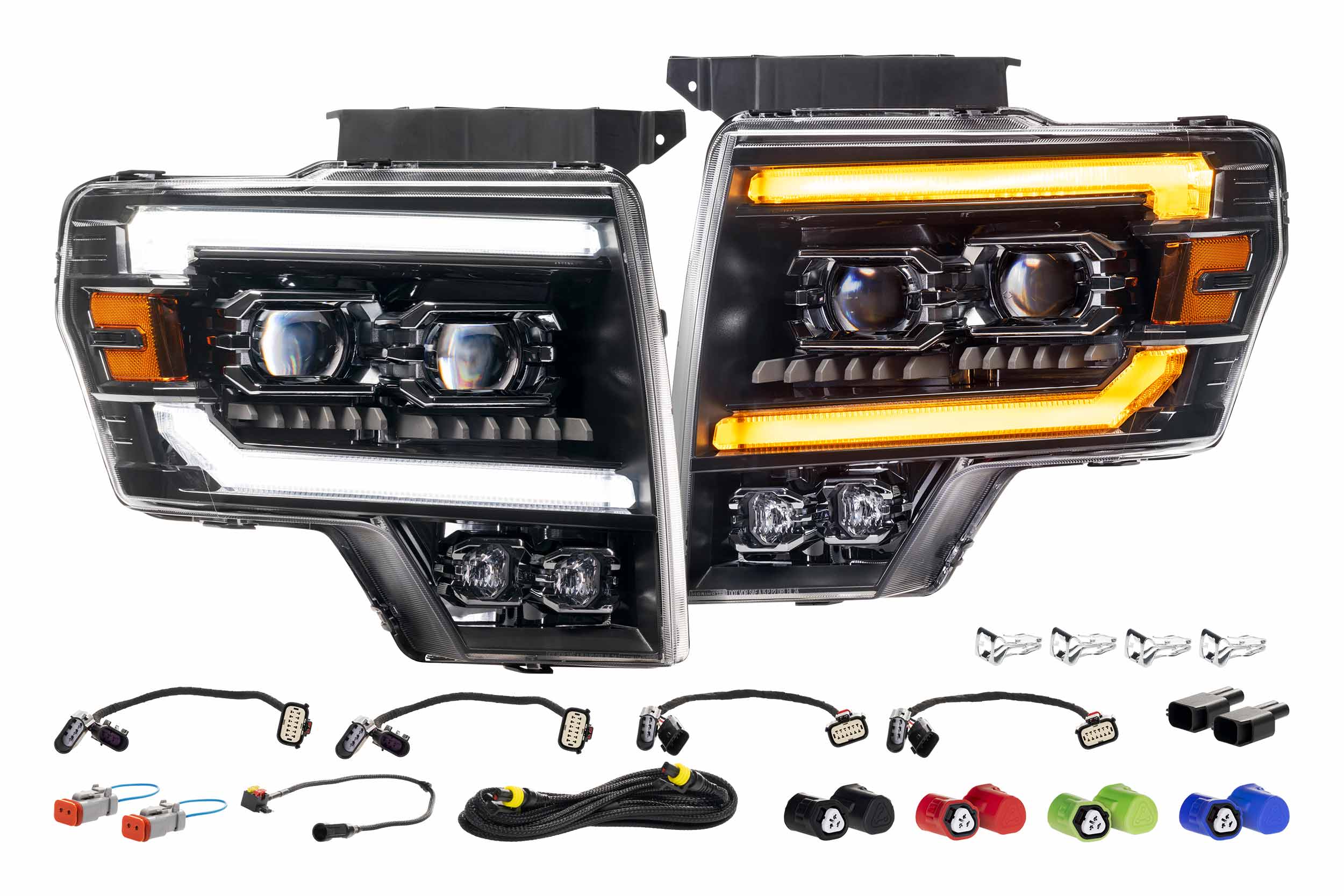

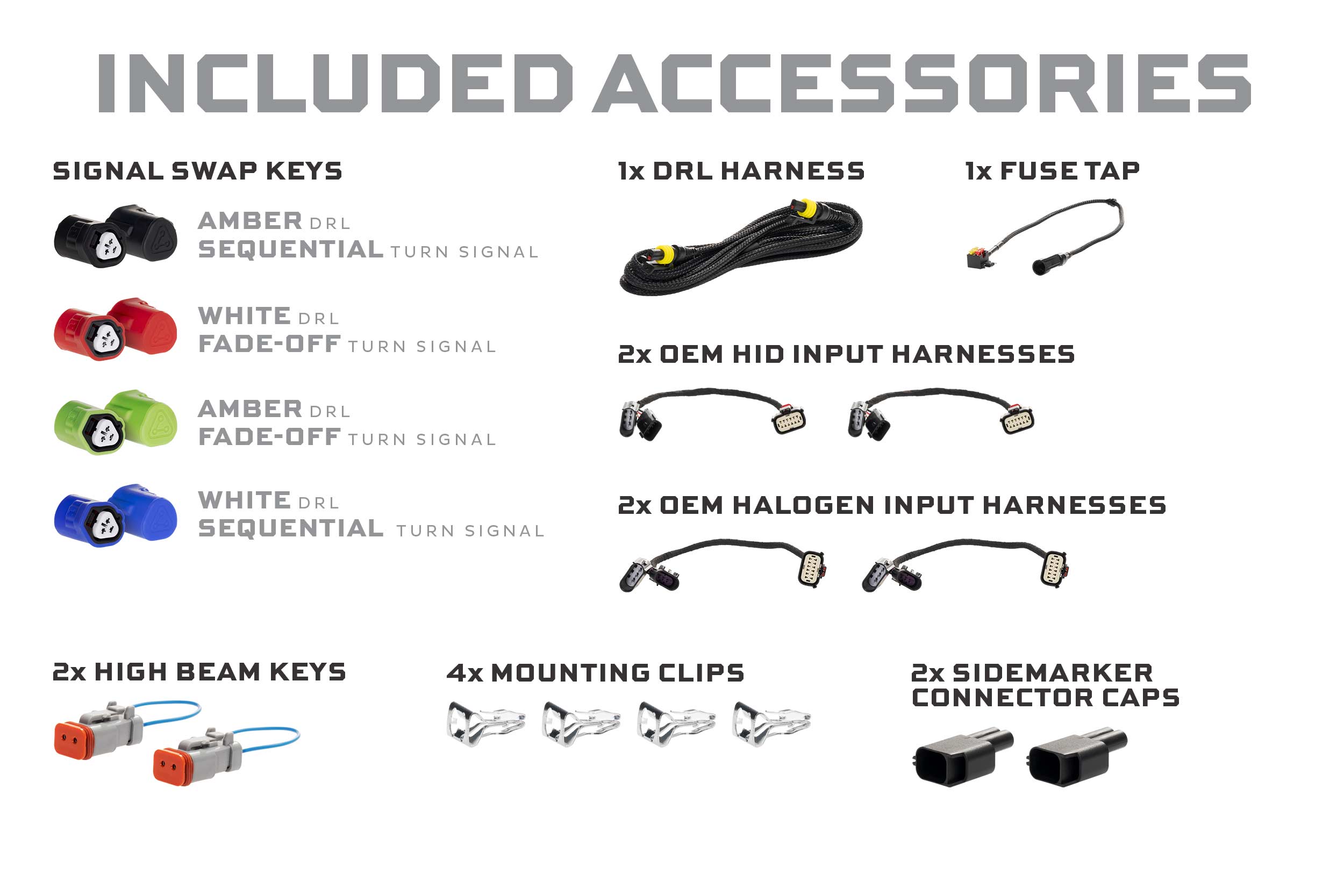

In the box

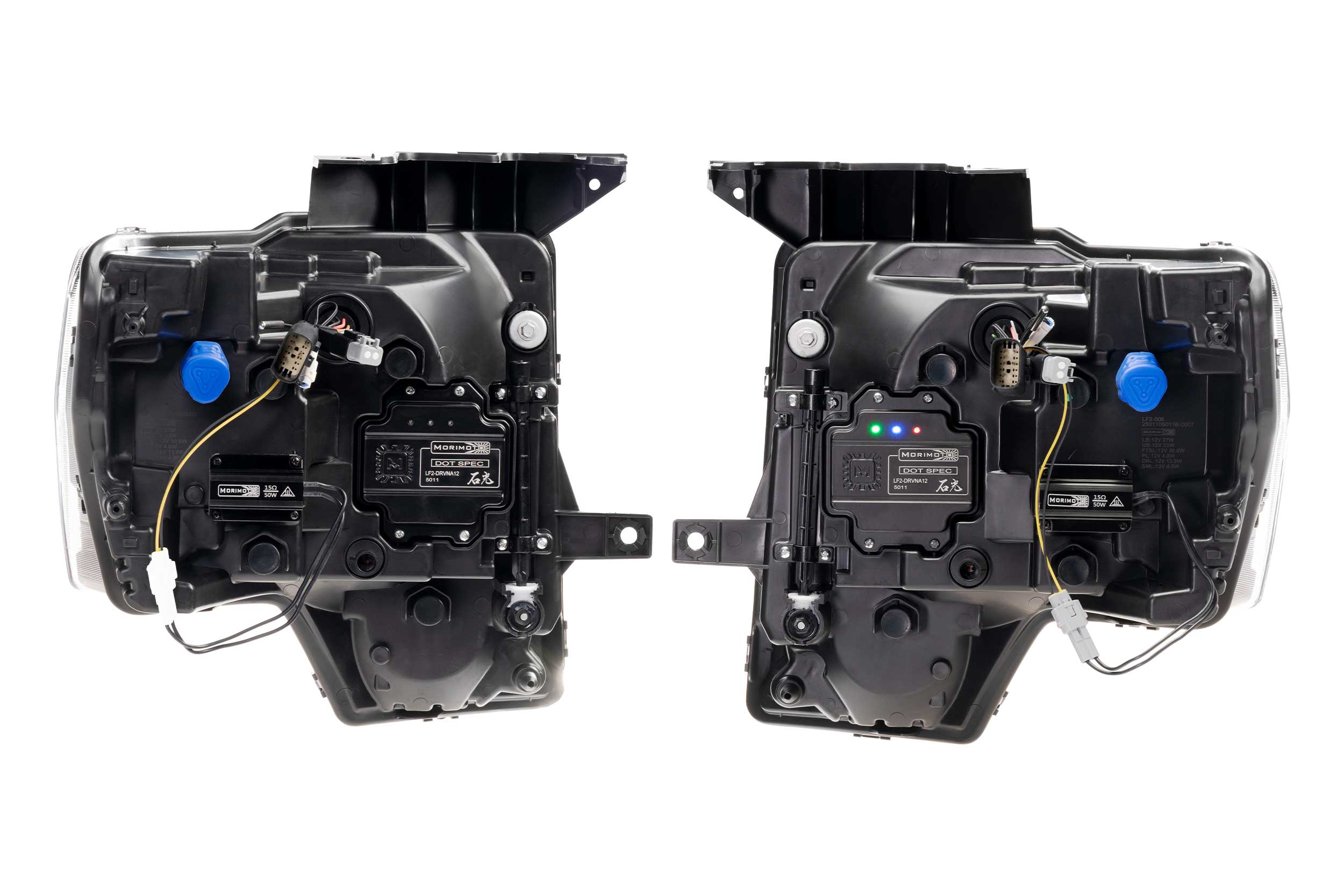

| Headlights | One Pair 09-14 Ford F-150 XB Evo (1x Right Hand / Passenger Side Headlight, 1x Left Hand / Driver Side Headlight) |
|---|---|
| Accessories | 2x Halogen Input Harnesses, 2x OEM HID Input Harnesses, 1x DRL Harness, 2x High Beam Keys, 2x Side Marker Connector Caps, Fuse Tap Hardware, 4x Mounting Clips |
| Function Selectors | 8x (Four Pairs) For DRL and Turn Signal Settings |
Installation
Bolt-on with hand tools. Grab the manufacturer’s step-by-step instructions, or watch the install first. Stuck partway? Call real humans at (920) 249-7744.
