Morimoto Ford F-150 (09-14) Headlight & Tail Light Combo
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
Morimoto Warranty
At a glance: 5 years on headlight and tail light assemblies; limited lifetime on off-road lighting
This is Morimoto's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Headlight and tail light assemblies (e.g. XB) | 5 years |
| Off-road lighting | Limited lifetime |
| 2Stroke LED bulbs (per product page) | Limited lifetime |
What's covered
- Product failures and defects on headlights and tail lights for 5 years
- Off-road lights for a limited lifetime
- Products must be bought from an authorized Morimoto dealer
What's not covered
- Modifications, alterations, or misuse
- Products bought from unauthorized sellers
- Damage or problems caused by improper installation (document issues before removing lights)
How to make a Morimoto warranty claim
- If something isn't right, take photos or video of the problem before removing the lights
- Contact Morimoto support by phone or email before doing anything else
- Follow their instructions (some items may be field-destroyed with photos; housings usually need to be returned)
Morimoto contact: Phone: 424-239-5142 · Email: morimotohid@morimotohid.com · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to Morimoto, and help it along either way.
Shop Morimoto at NVMOS
Morimoto Ford Super Duty (17-22) XB Evo+ LED Fog Lights
Morimoto Ford F-150 (18-20) XB Evo+ LED Fog Lights
Morimoto Ford F-150 (15-17) XB Evo+ LED Fog Lights
See all Morimoto products, lead times and FAQs →
Disclaimer: The information on this page describes Morimoto's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: Morimoto official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
Morimoto is an Atlanta lighting company that designs, engineers and tests its lights in-house. NVMOS carries Morimoto XB LED headlights and tail lights, fog lights, ditch light kits, Banger pods and more for Ford, Ram, Chevy/GMC, Toyota, Jeep and Nissan trucks. For owners tired of dim factory halogens.
Based in: Atlanta, Georgia · Founded: 2008 · Lead time: In-stock items ship in 24–48 hours
Shop all 621 MorimotoWarrantyAll brands
Warranty terms are set by Morimoto, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

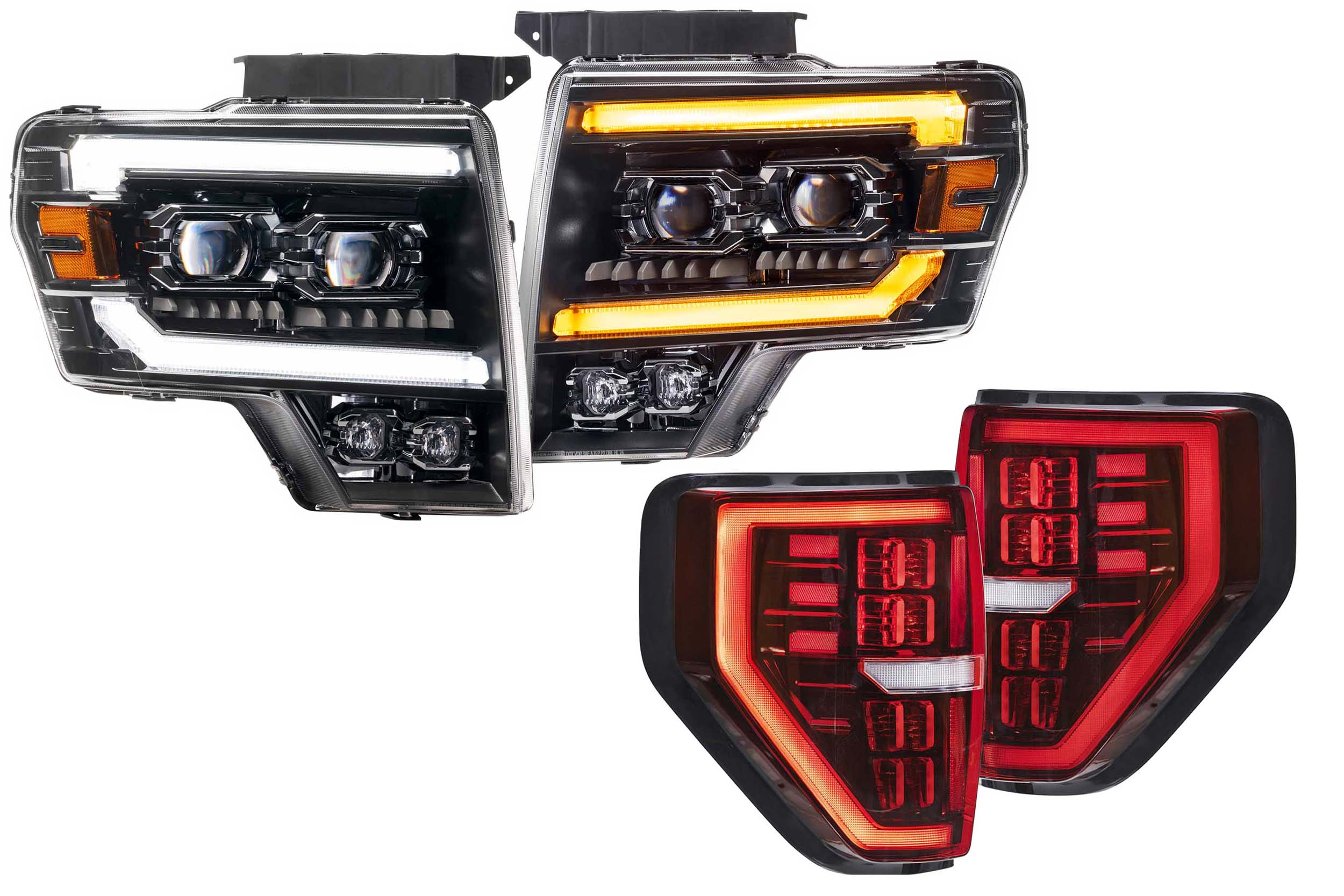

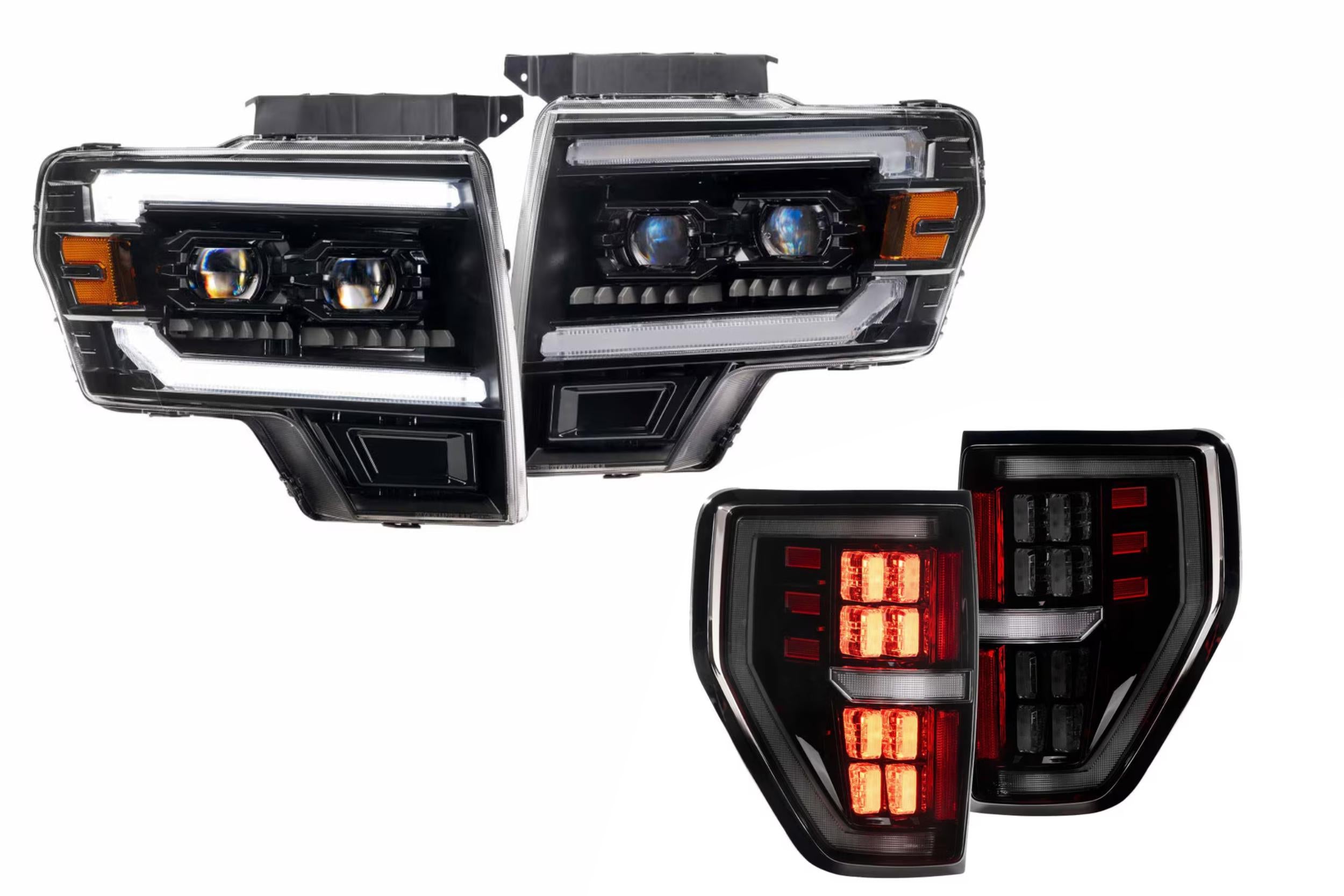

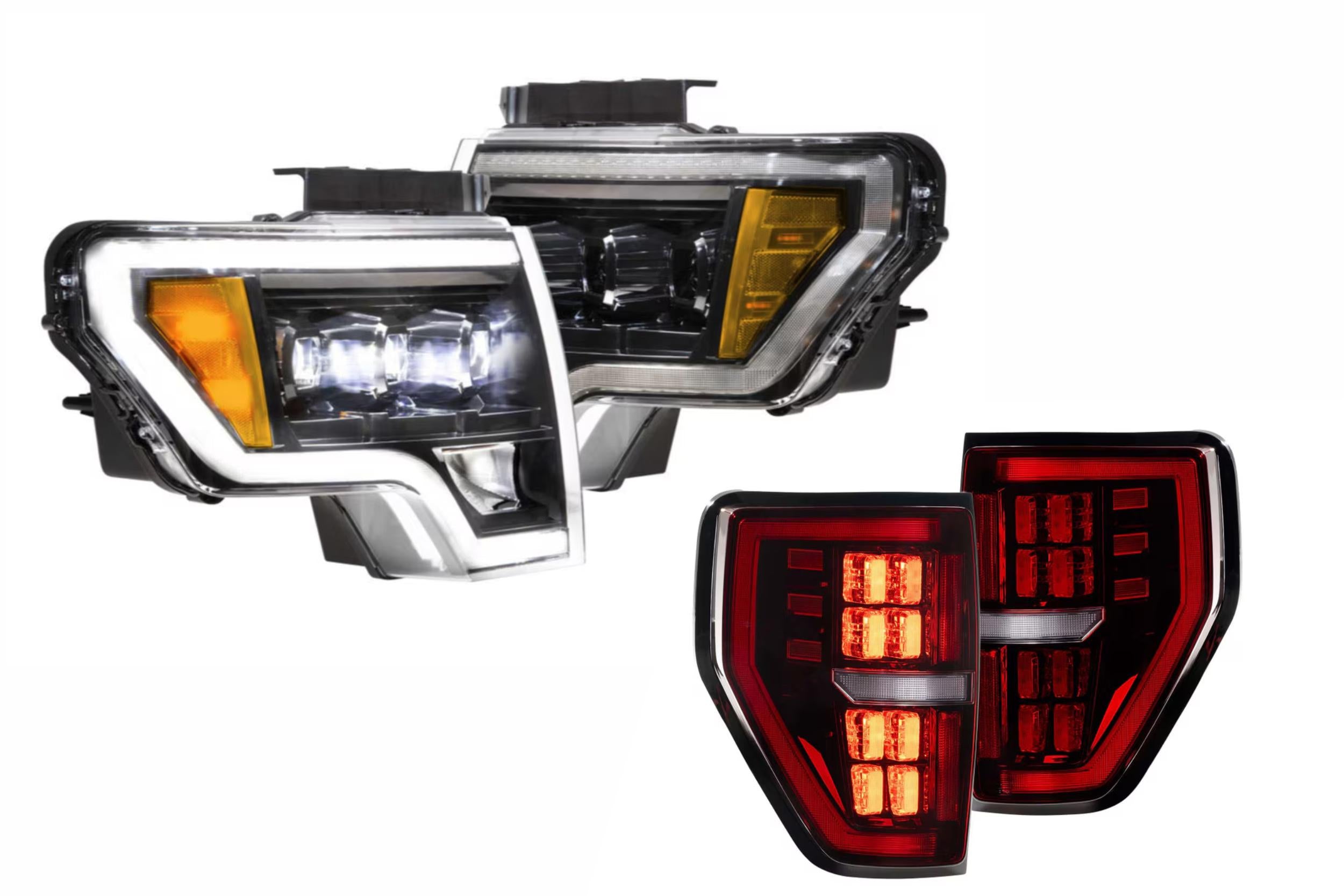

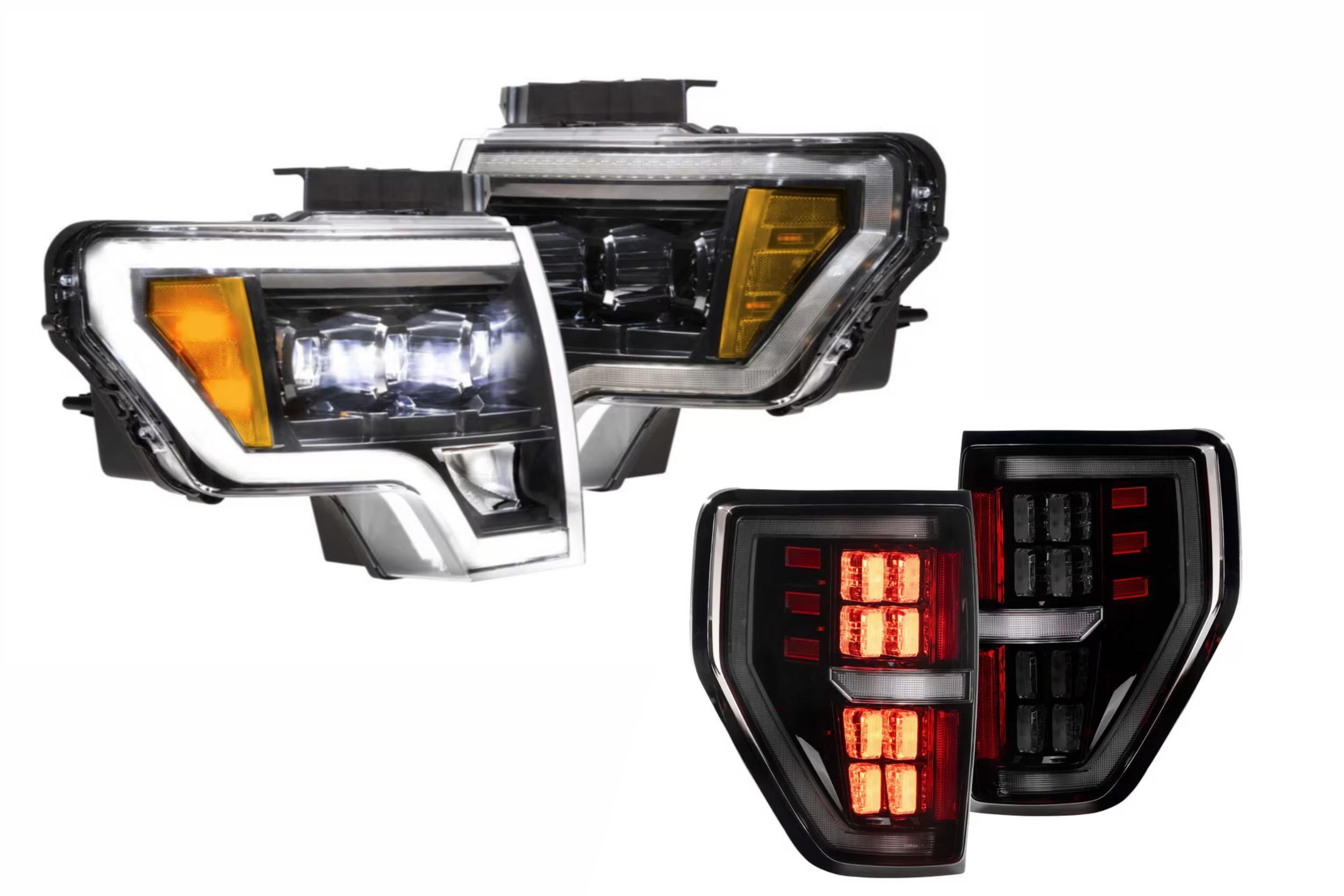

Morimoto XB LED Headlight & Tail Light Combo — Ford F-150 (2009–2014)

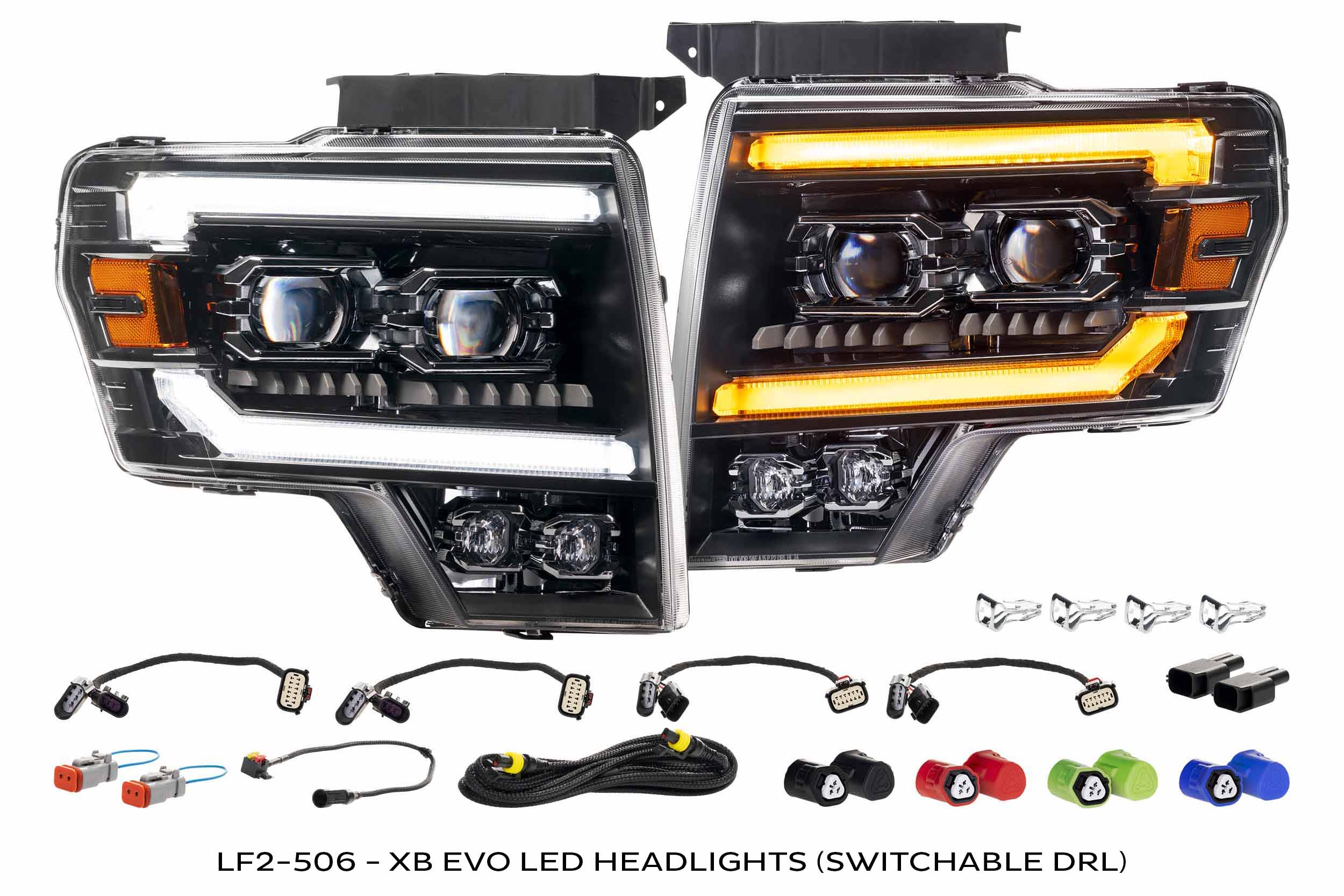

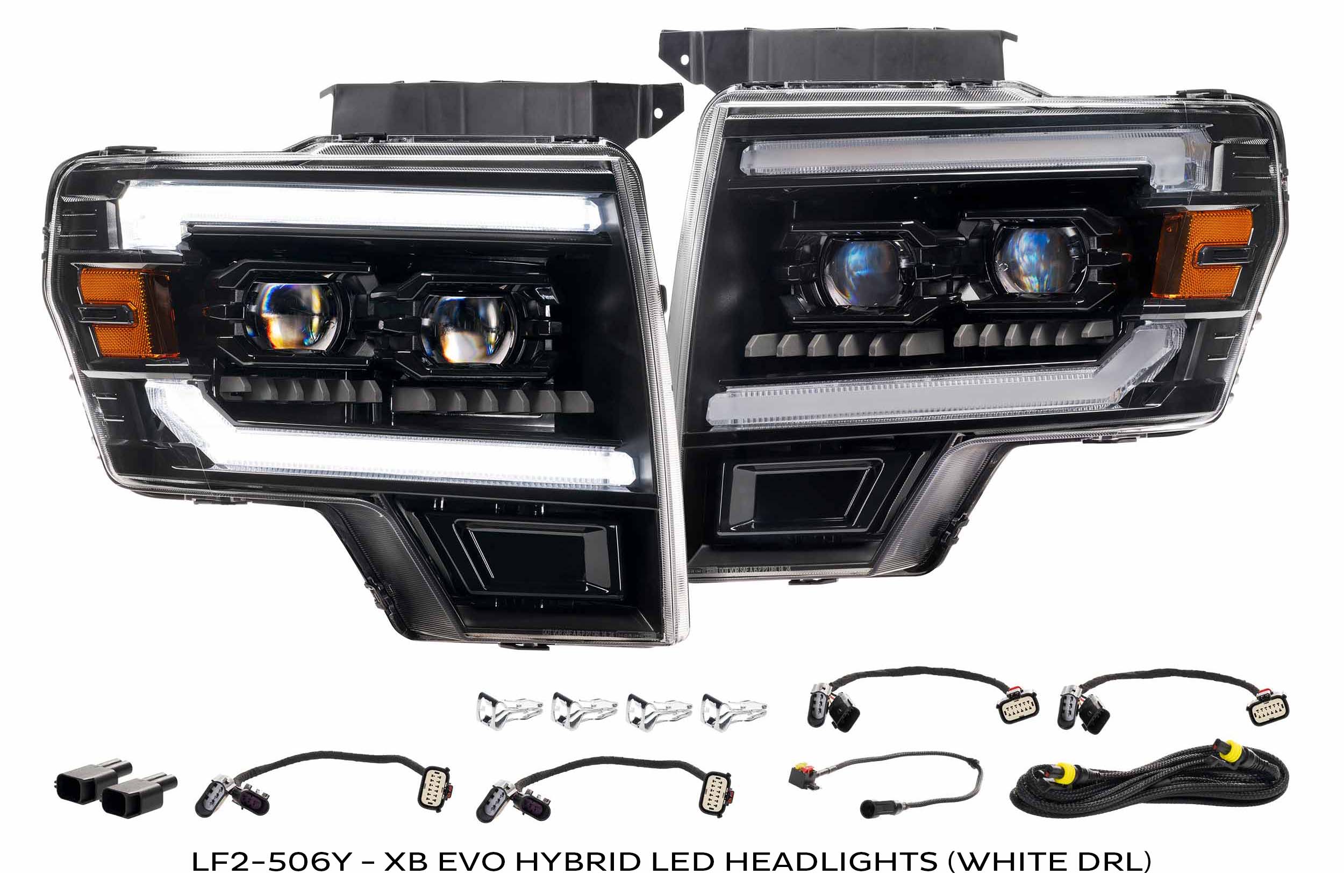

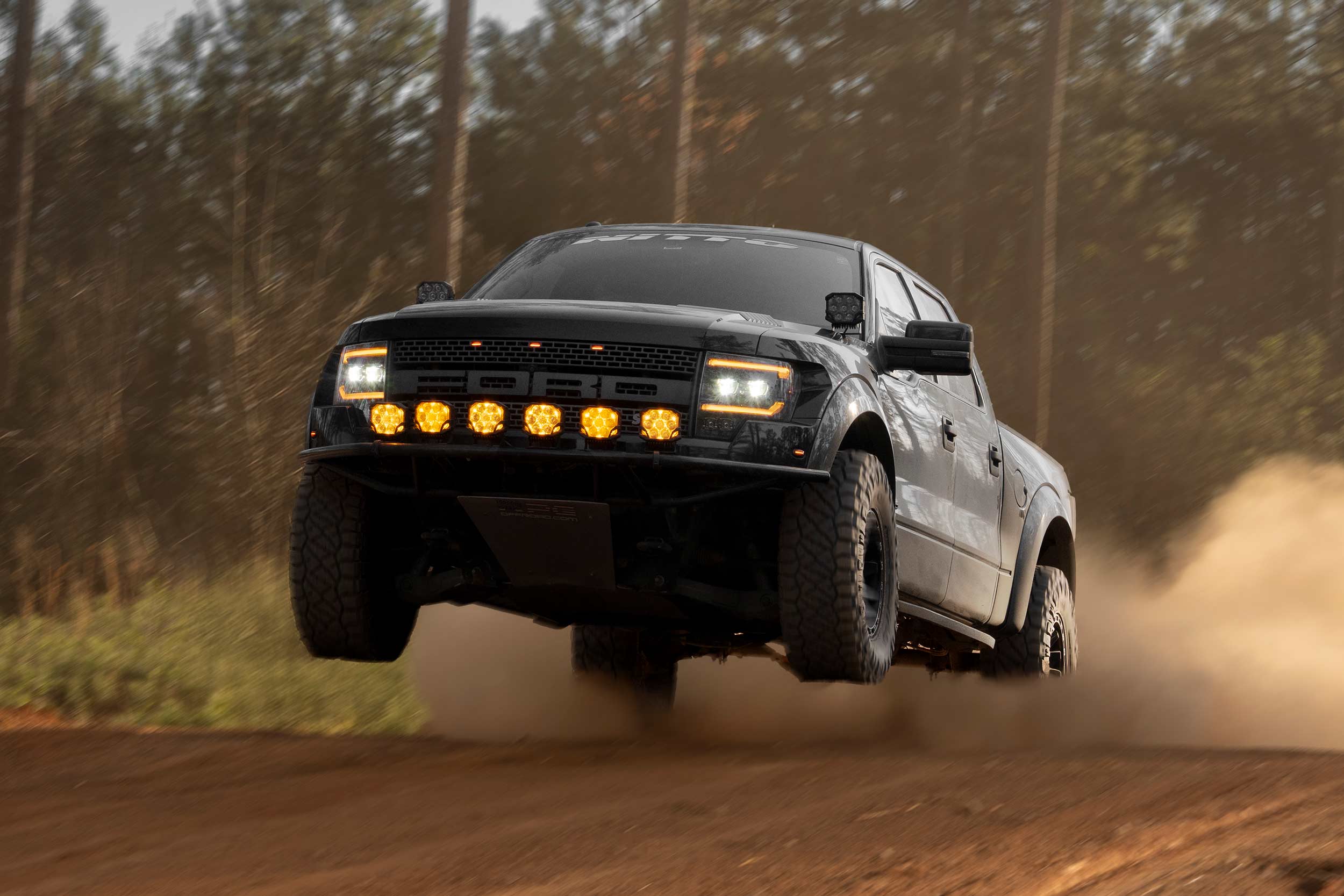

The LF2-506 bundle covers both ends of the 09-14 F-150. Up front, XB LED headlights with a well-defined beam pattern, real width, and even distribution — the things that actually make night driving less tiring. Sequential LED DRLs and Osram LEDs do the styling work.

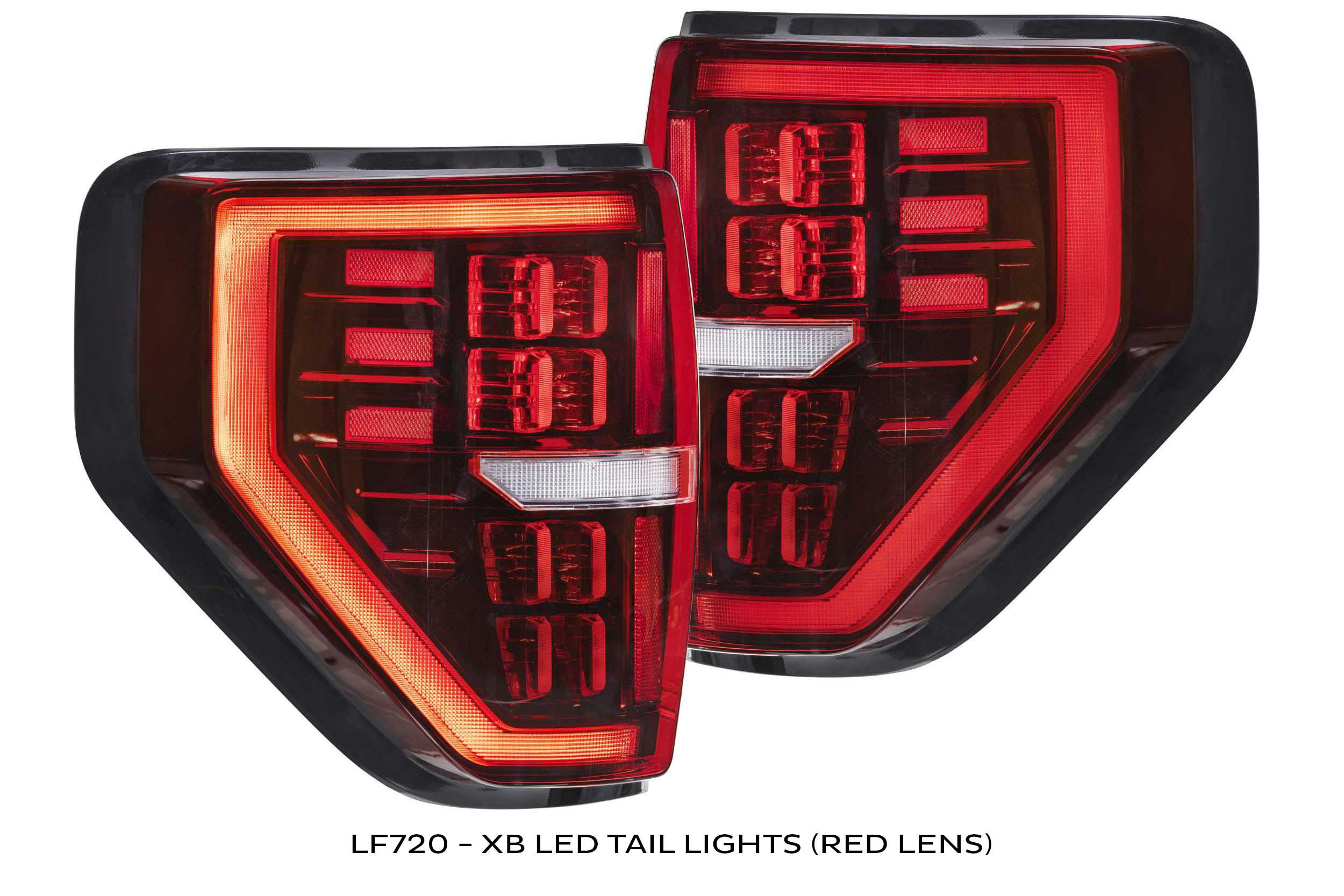

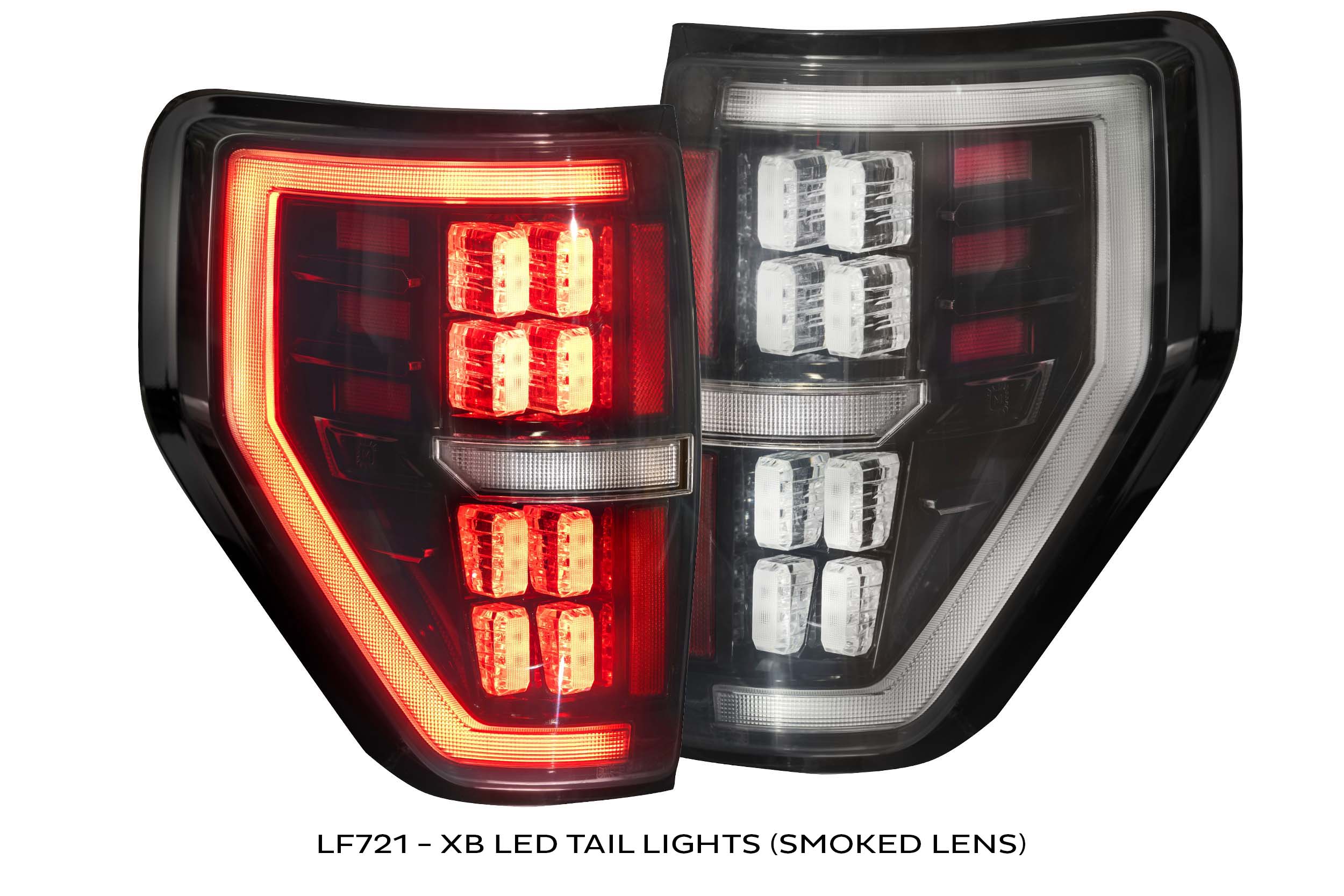

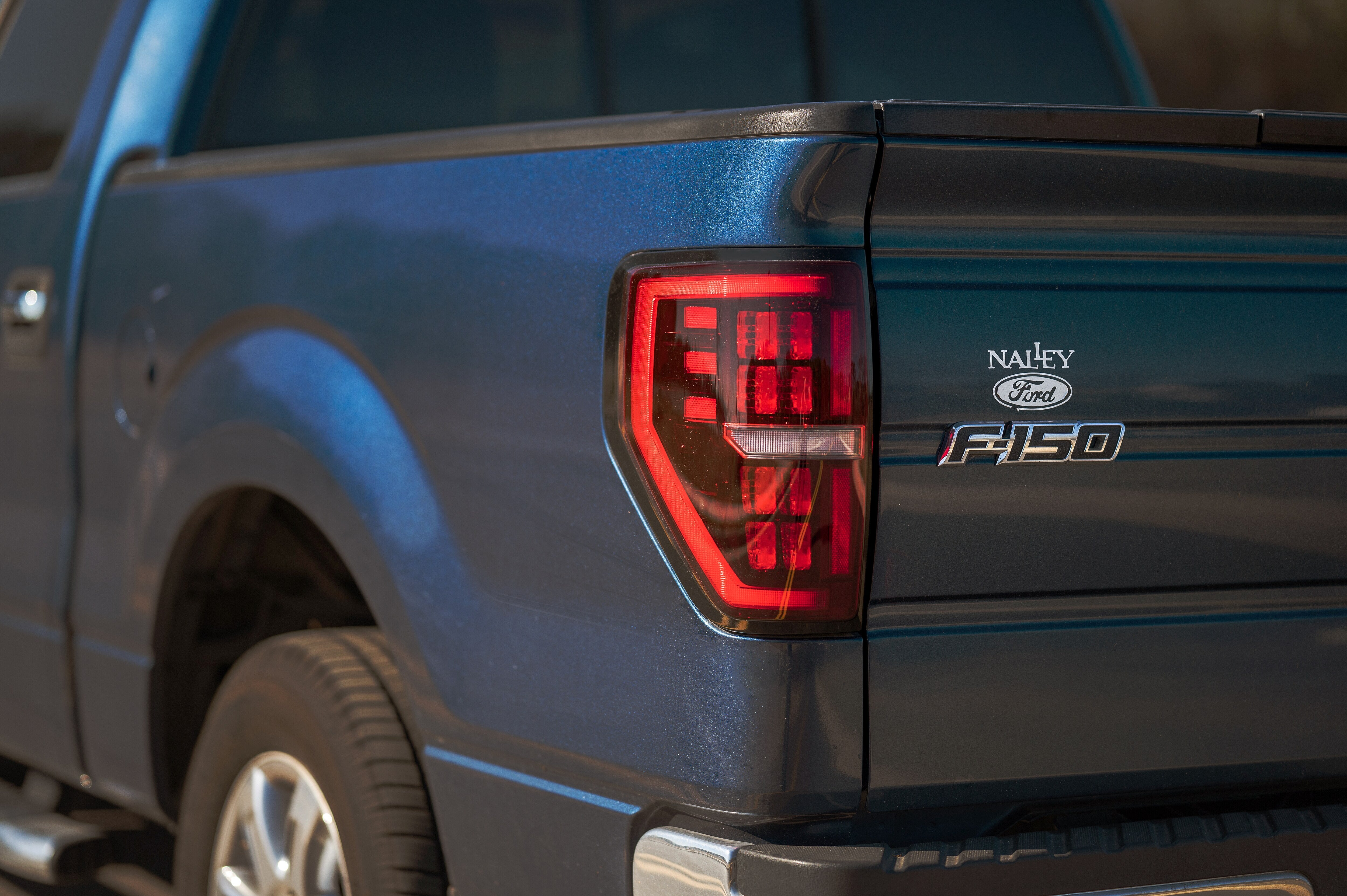

Out back, XB LED tail lights use dual clusters of 3D Optics for brake and turn, an outer parking optic, and powerful LED reverse lights. Both ends are plug-and-play and covered by a five-year warranty.
| Spec | Detail |
|---|---|
| Part number | LF2-506 (headlight and tail light bundle) |
| Headlight beam | Well-defined pattern with impressive width and uniform distribution |
| Headlight LEDs | Osram LEDs with sequential LED DRLs |
| Headlight construction | UV-coated polycarbonate lens, PPS plastic housing, die-cast aluminum heat sinks |
| Tail light optics | Dual clusters of 3D Optics for brake and turn signals, plus an outer parking light optic |

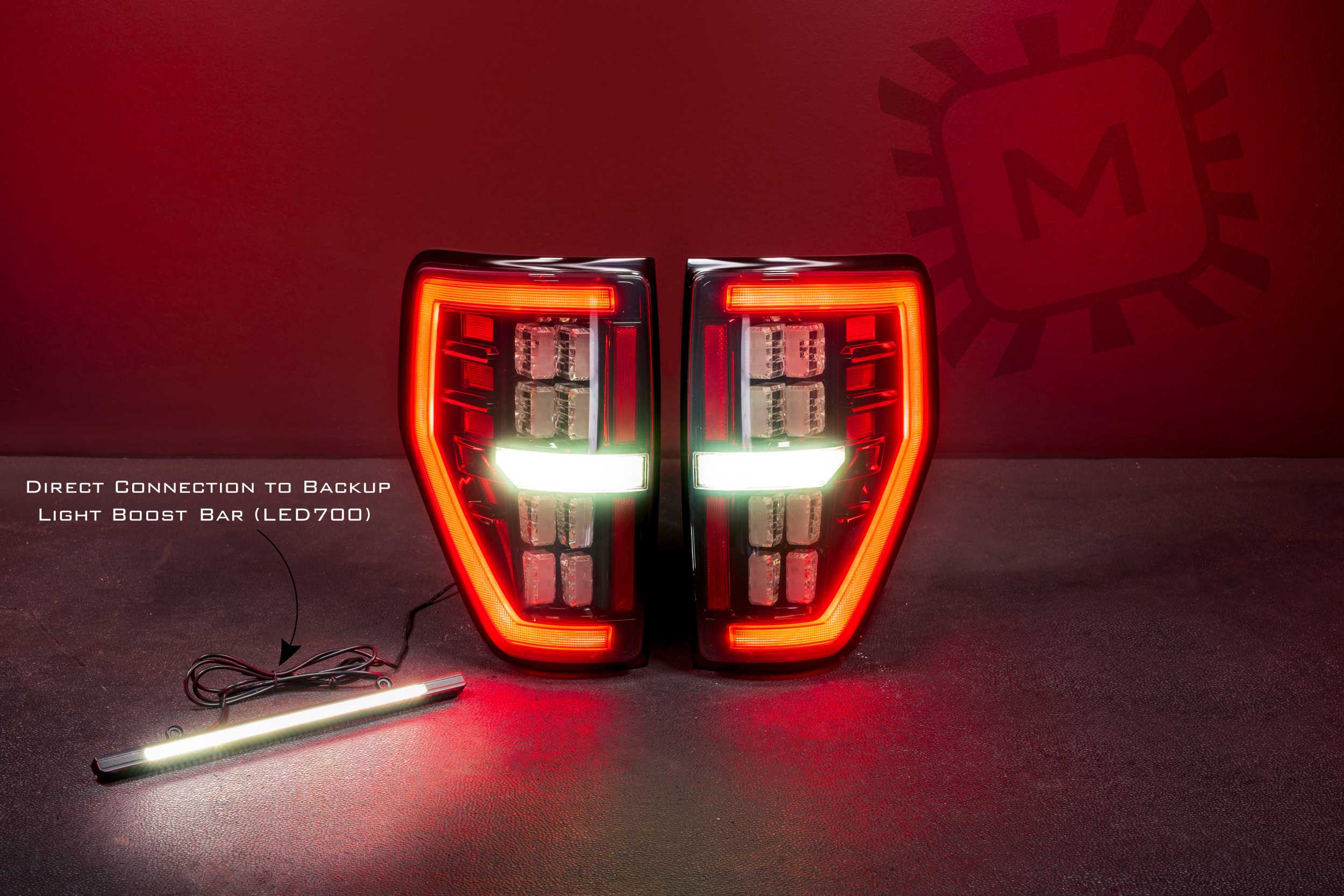

| Reverse lighting | Powerful LED reverse lights; optional BLBB Backup Boost Bar adds 2,700 lumens |
| Tail light compliance | DOT and SAE compliant |
| Wiring | Plug-and-play design for hassle-free, error-free installation |
| Warranty | Five years |
| Fitment | Ford F-150 2009–2014; sold as a headlight and tail light bundle |
Will this fit my F-150?
Yes. The LF2-506 bundle is made for the 2009-2014 Ford F-150.
Are the tail lights street legal?
Yes. The XB LED tail lights are DOT and SAE compliant.
How hard is the install?
Both the headlights and tail lights use a plug-and-play design for hassle-free installation and error-free operation.
What is the BLBB Backup Boost Bar?
It is an optional backup light boost that adds 2,700 lumens of extra reverse visibility alongside the tail lights' own LED reverse lights.
Technical specifications
| Headlights | Traffic Pattern: LHD / Right Hand Traffic Only |
|---|---|
| Output (Standard Drivers) | DOT / FVMSS108 Compliant (LB2V and UB2) |
| Output (Supercharged Drivers) | +30-50% (Non-Compliant) |
| Main Optics | 2x Type 1 Ishida Optic Bi-LED (1x Nichia NC4W193F @ 750mA) |
| High Beam Assist | 2x Morimoto 1Banger NCS Combo Beam* |
| Functions | Low, High, Park, Turn, DRL, Welcome, and Lens Heating |
| Turn Signal Modes | Sequential or Fade Off (Configurable) |
| DRL Colors | White or Amber (Configurable) |
| DRL/Signal Optics | Glass-like 3D Optics |
| Frost-Free System | Logic Controlled 50W Ceramic w/ circulation fans |
| Internal Finish | Two-Tone Piano Black and Titanium w/ contrasting textures |
| Side marker | Amber side reflex reflector (DOT compliant) |
| Wiring | Adapters Included for OEM Halogen and OEM HID inputs |
| Lens Details | Polycarbonate with UV shield hard coating (Exceeds OE Toyota benchmark) |
| Tail Lights | Input: Ford Multi-Pin OEM |
| Material | ABS Plastic (Housing), UV-Resistant Polycarbonate (Lens) |
| Light Source | SSC LED |
| Brake Light | Red |
| Parking Light | Red |
| Turn Signal | Red |
Compatibility
| Ford F-150 | 2009-2014 (all trim levels, factory halogen & factory HID/xenon equipped models) |
|---|---|
| Ford SVT Raptor | 2010-2014 |
| Trim Levels | XL, STX, XLT, FX2, FX4, Lariat, King Ranch, Platinum, SVT Raptor, Limited |
| Supercharged Drivers | LF2-DRVSC12 (Optional, sold separately) |
| Replaces Ford Part # | FO2503289, FO2502289, FO2503287, FO2502287, DL3Z13008A, DL3Z13008B, DL3Z13008EB, DL3Z13008EC, FR560B1A12SD6V, DL3Z13008DB, DL3Z13008FB, DL3Z13008BB, DL3Z13008CB |
| Note | These headlights were developed for compatibility with North American vehicles. Morimoto does not guarantee compatibility on trucks outside of North America. |
In the box
| Headlights | XB Evo Headlights: Ford F-150 (09-14 / Set) |
|---|---|
| Tail Lights | XB LED Tail Lights: Ford F-150 (09-14 / Red Lens / Set) |
