KMC IMS Wheel - 20"
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
KMC Wheels Warranty
At a glance: Structural warranty for as long as the original buyer owns the wheels; 1–2 years on finish
This is KMC Wheels's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Structure (aluminum wheels) | As long as the original retail purchaser owns them |
| Materials and workmanship | 1 year |
| Chrome finish (peeling/lifting only) | 1 year |
| Painted finish (peeling/lifting) | 1 year |
| PVD finish (peeling/lifting) | 2 years |
| Polished aluminum finish | Not covered |
| Steel wheels | 90 days |
- Original purchaser only — coverage does not transfer if you sell it.
- Keep your NVMOS order confirmation — proof of purchase is required.
What's covered
- Structural failure under normal, intended use while the original buyer owns the wheel
- Defects in materials and workmanship for one year
- Chrome and painted finishes against peeling or lifting for one year
- PVD finishes against peeling or lifting for two years
- Approved claims are repaired or replaced
What's not covered
- Pitting on chrome
- Polished aluminum finishes
- Not following installation guidelines
- Improper care or harsh/caustic cleaners
- Accidents or road hazards
- Racing or off-road abuse
- Removal, shipping and reinstallation costs
- Second owners — warranty ends when the wheels change hands
How to make a KMC Wheels warranty claim
- Take or return the wheel to the dealer you bought it from
- Bring the original sales receipt
- KMC inspects and, if approved, repairs or replaces the wheel
KMC Wheels contact: Phone: 877-757-9222 · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to KMC Wheels, and help it along either way.
Shop KMC Wheels at NVMOS
See all KMC Wheels products, lead times and FAQs →
Disclaimer: The information on this page describes KMC Wheels's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: KMC Wheels official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
KMC has been making wheels since 1982, with a range built around off-road trucks, Jeeps and SUVs. NVMOS carries KMC cast, flow-formed and forged wheels plus true beadlocks, in 15- to 20-inch diameters and 5- to 8-lug patterns, for Jeep, truck and SUV owners.
Based in: Greenwood Village, Colorado · Since: 1982 · Lead time: In stock: ships in 24–48 hours
Shop all 69 KMC WheelsWarrantyAll brands
Warranty terms are set by KMC Wheels, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

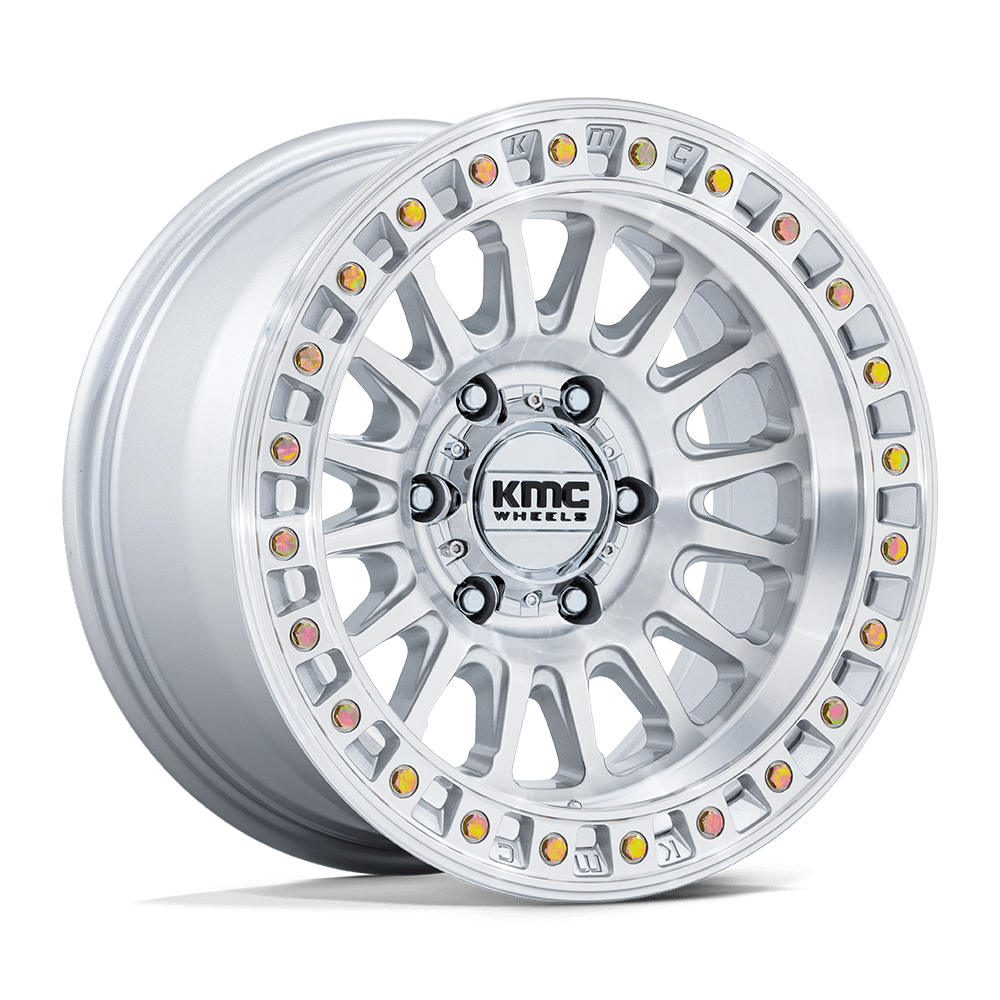

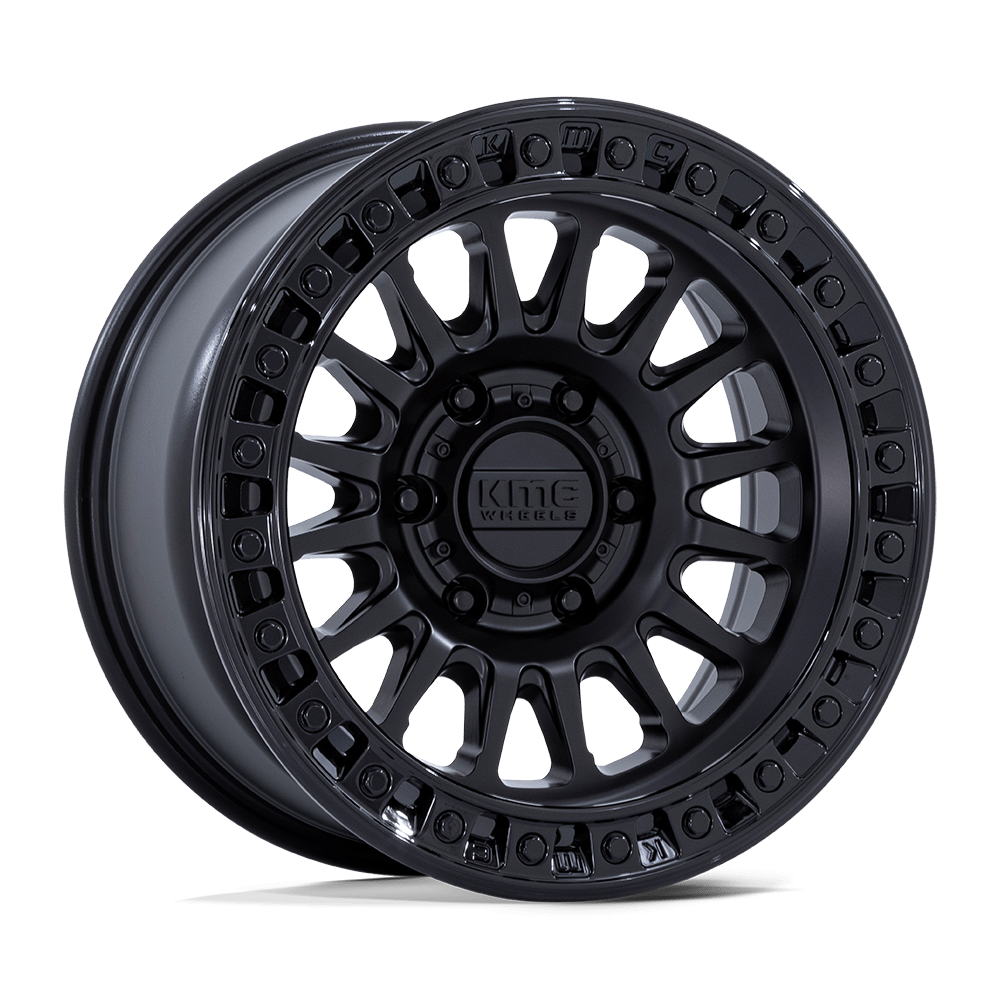

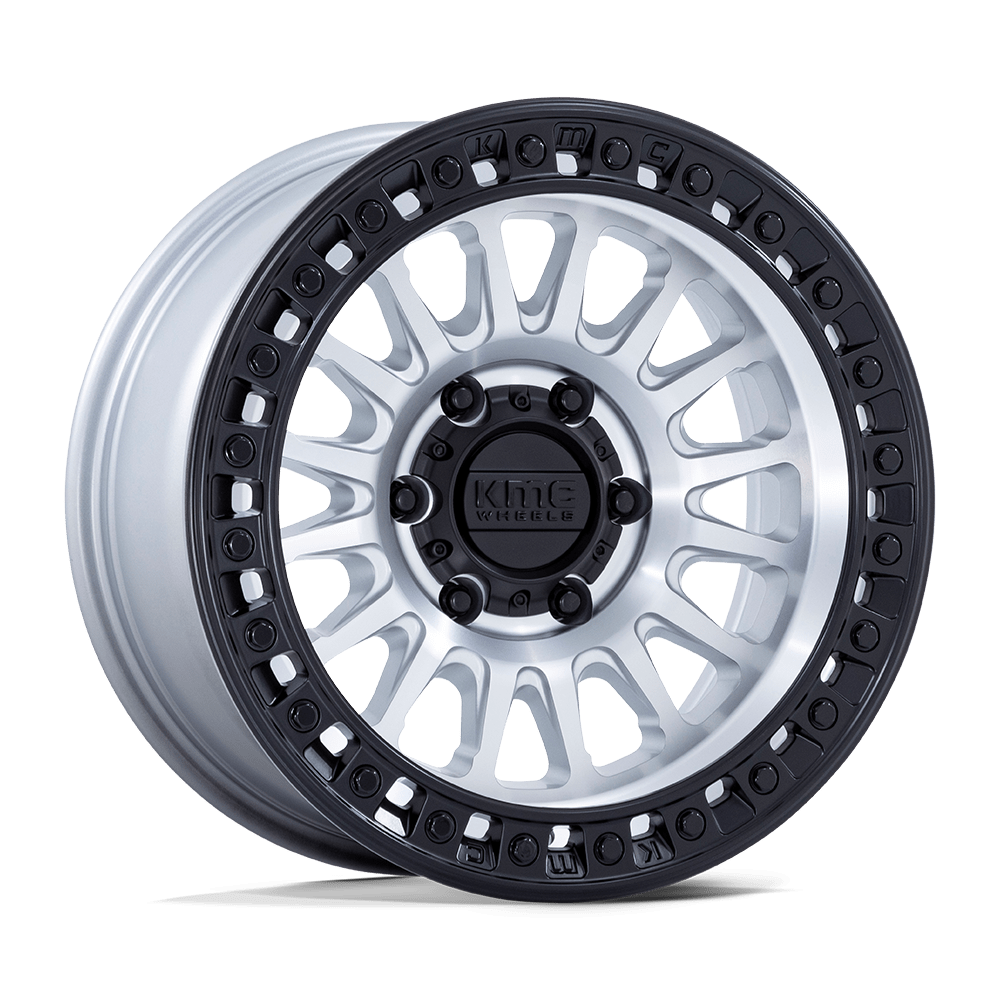

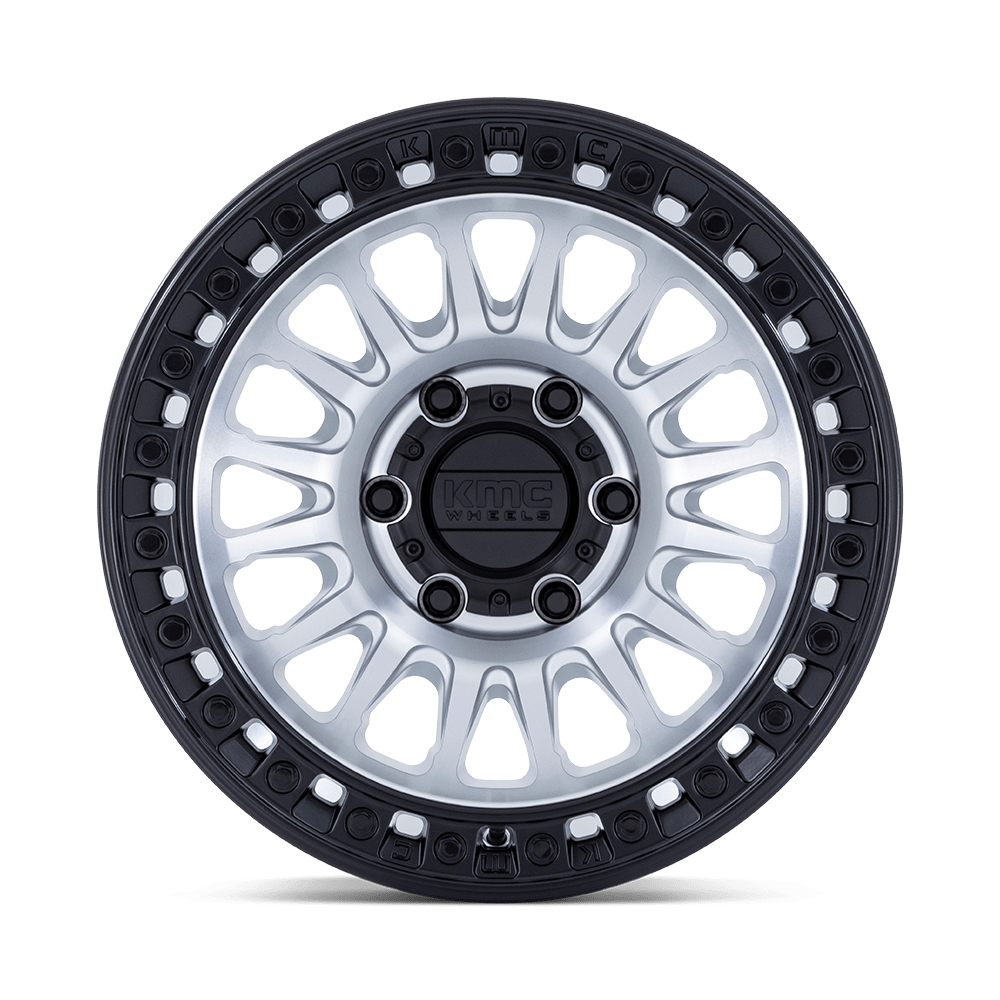

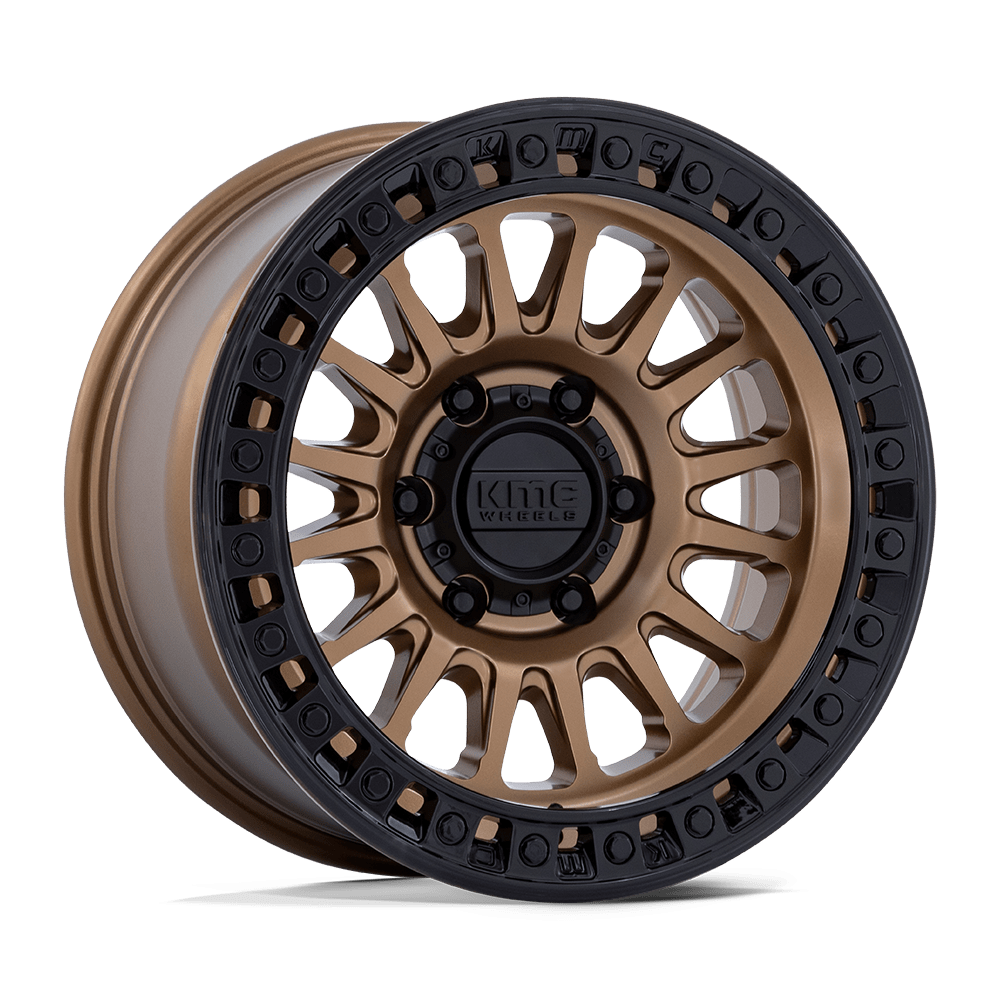

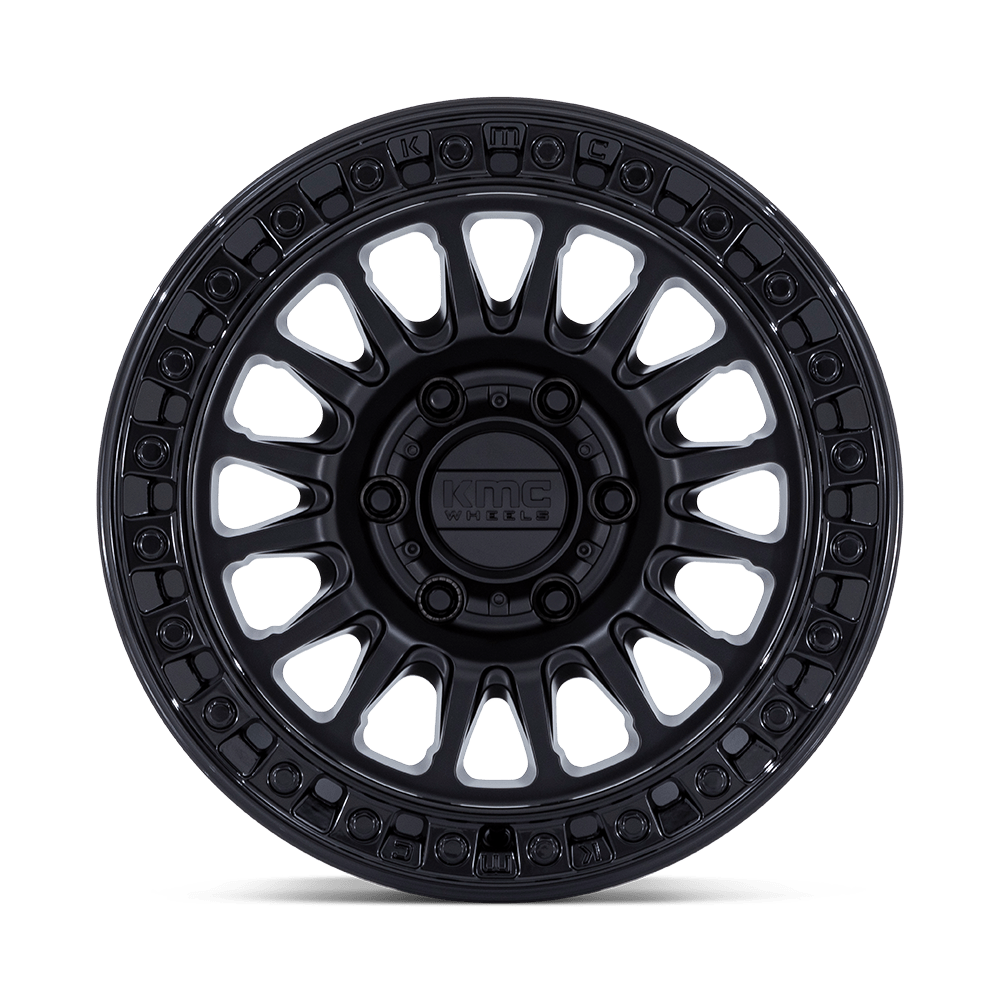

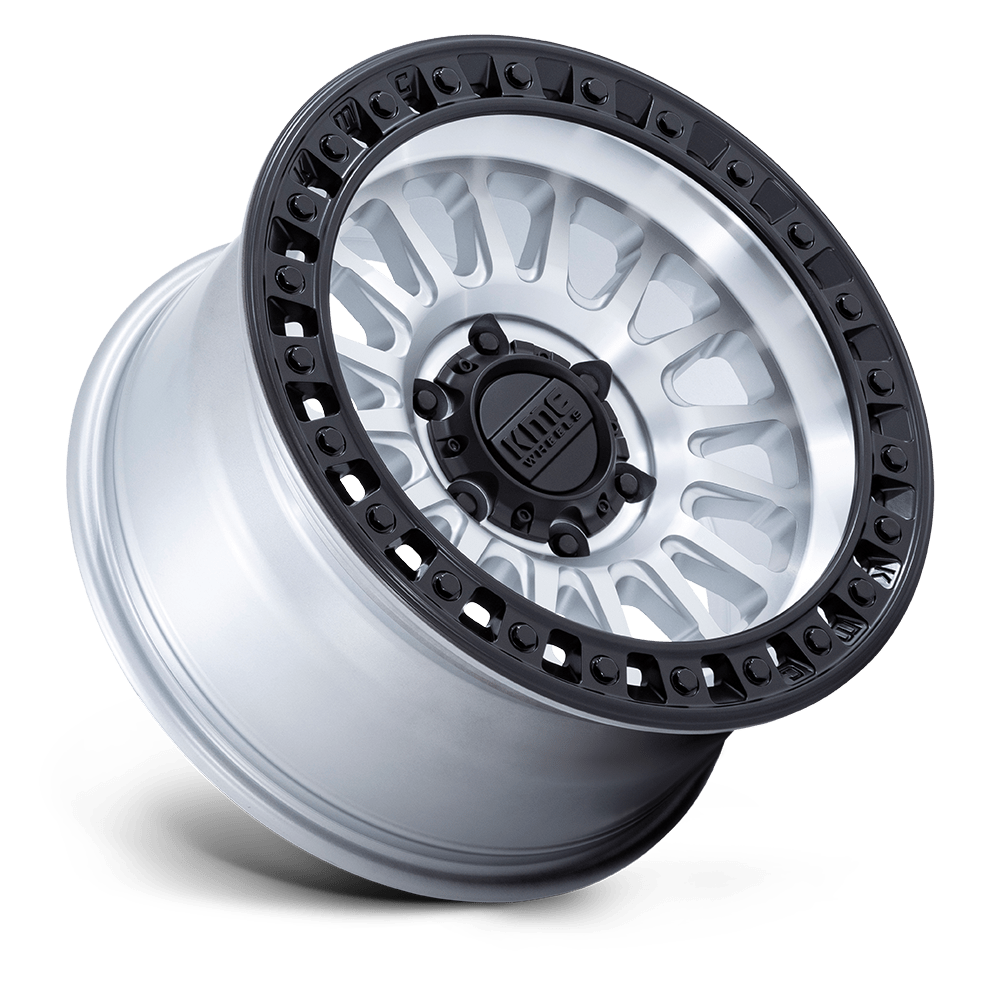

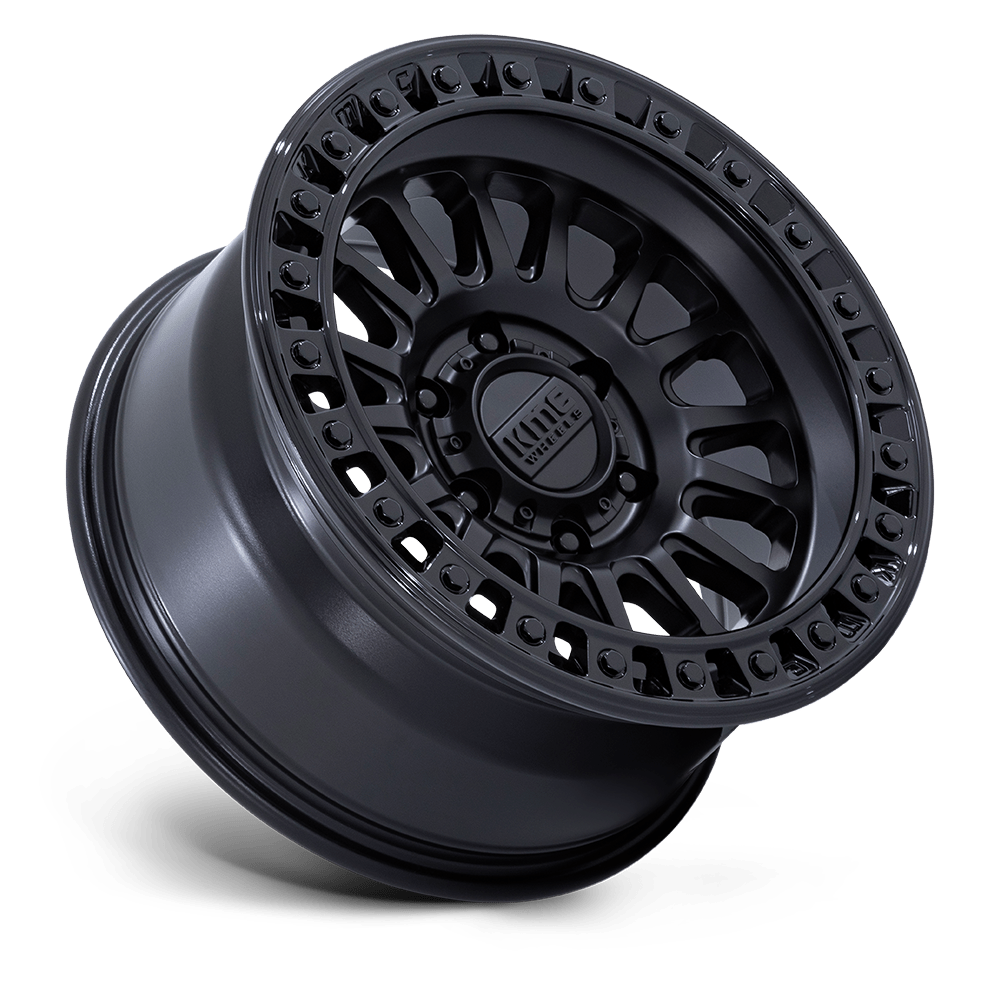

KMC IMS Wheel (KM552), 20 Inch
The 20 inch KMC KM552 IMS is a larger take on KMC's Impact race wheel, tailored for street and trail vehicles. It has a monoblock build and a simulated beadlock design. Shop it with our off-road wheels.
At 20 inches it comes as 20x9 with an 18mm or 0mm offset. Bolt patterns cover 5-lug, 6-lug and 8-lug applications. More non-beadlock wheels are available if you want to compare looks.
Universal fitment, chosen by bolt pattern. Sizes: 20x9 18mm, 20x9 0mm. Bolt patterns: 6x135, 6x139.7, 5x127, 8x180, 8x170, 8x165.1. Finishes: Machined w/ Matte Black Lip, Matte Black w/ Gloss Black Lip, Matte Bronze w/ Gloss Black Lip, Gloss Silver w/ Machined Face. Check bolt pattern, offset and brake clearance against your vehicle before ordering.
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| KM552SD20908000 | Gloss Silver w/ Machined Face | 20x9 0mm | 8x165.1 | 5.00" | 125.10mm | 3700 lbs | 41.89 lbs |
| KM552SD20908700 | Gloss Silver w/ Machined Face | 20x9 0mm | 8x170 | 5.00" | 125.10mm | 3700 lbs | 41.89 lbs |
| KM552SD20906800 | Gloss Silver w/ Machined Face | 20x9 0mm | 6x139.7 | 5.00" | 106.10mm | 3700 lbs | 41.45 lbs |
| KM552SD20908800 | Gloss Silver w/ Machined Face | 20x9 0mm | 8x180 | 5.00" | 124.20mm | 3700 lbs | 42.33 lbs |
| KM552SD20906300 | Gloss Silver w/ Machined Face | 20x9 0mm | 6x135 | 5.00" | 87.10mm | 3700 lbs | 41.89 lbs |
| KM552DB20908800 | Machined w/ Matte Black Lip | 20x9 0mm | 8x180 | 5.00" | 124.20mm | 3700 lbs | 42.33 lbs |
| KM552DB20908700 | Machined w/ Matte Black Lip | 20x9 0mm | 8x170 | 5.00" | 125.10mm | 3700 lbs | 41.89 lbs |
| KM552DB20906800 | Machined w/ Matte Black Lip | 20x9 0mm | 6x139.7 | 5.00" | 106.10mm | 3700 lbs | 41.45 lbs |
| KM552DB20905000 | Machined w/ Matte Black Lip | 20x9 0mm | 5x127 | 5.00" | 71.50mm | 3700 lbs | 41.89 lbs |
| KM552DB20908000 | Machined w/ Matte Black Lip | 20x9 0mm | 8x165.1 | 5.00" | 125.10mm | 3700 lbs | 41.89 lbs |
| KM552MB20906800 | Matte Black w/ Gloss Black Lip | 20x9 0mm | 6x139.7 | 5.00" | 106.10mm | 3700 lbs | 41.45 lbs |
| KM552MB20905000 | Matte Black w/ Gloss Black Lip | 20x9 0mm | 5x127 | 5.00" | 71.50mm | 3700 lbs | 41.89 lbs |
| KM552MB20908800 | Matte Black w/ Gloss Black Lip | 20x9 0mm | 8x180 | 5.00" | 124.20mm | 3700 lbs | 42.33 lbs |
| KM552MB20906300 | Matte Black w/ Gloss Black Lip | 20x9 0mm | 6x135 | 5.00" | 87.10mm | 3700 lbs | 41.89 lbs |
| KM552MB20908700 | Matte Black w/ Gloss Black Lip | 20x9 0mm | 8x170 | 5.00" | 125.10mm | 3700 lbs | 41.89 lbs |
| KM552MB20908000 | Matte Black w/ Gloss Black Lip | 20x9 0mm | 8x165.1 | 5.00" | 125.10mm | 3700 lbs | 41.89 lbs |
| KM552ZB20906800 | Matte Bronze w/ Gloss Black Lip | 20x9 0mm | 6x139.7 | 5.00" | 106.10mm | 3700 lbs | 41.45 lbs |
| KM552ZB20908000 | Matte Bronze w/ Gloss Black Lip | 20x9 0mm | 8x165.1 | 5.00" | 125.10mm | 3700 lbs | 41.89 lbs |
| KM552ZB20905000 | Matte Bronze w/ Gloss Black Lip | 20x9 0mm | 5x127 | 5.00" | 71.50mm | 3700 lbs | 41.89 lbs |
| KM552ZB20906300 | Matte Bronze w/ Gloss Black Lip | 20x9 0mm | 6x135 | 5.00" | 87.10mm | 3700 lbs | 41.89 lbs |
| KM552ZB20908700 | Matte Bronze w/ Gloss Black Lip | 20x9 0mm | 8x170 | 5.00" | 125.10mm | 3700 lbs | 41.89 lbs |
| KM552SD20906318 | Gloss Silver w/ Machined Face | 20x9 18mm | 6x135 | 5.71" | 87.10mm | 3700 lbs | 41.67 lbs |
| KM552SD20906818 | Gloss Silver w/ Machined Face | 20x9 18mm | 6x139.7 | 5.71" | 106.10mm | 3700 lbs | 41.23 lbs |
| KM552SD20908818 | Gloss Silver w/ Machined Face | 20x9 18mm | 8x180 | 5.71" | 124.20mm | 3700 lbs | 42.77 lbs |
| KM552SD20908718 | Gloss Silver w/ Machined Face | 20x9 18mm | 8x170 | 5.71" | 125.10mm | 3700 lbs | 42.33 lbs |
| KM552DB20906318 | Machined w/ Matte Black Lip | 20x9 18mm | 6x135 | 5.71" | 87.10mm | 3700 lbs | 41.67 lbs |
| KM552DB20908018 | Machined w/ Matte Black Lip | 20x9 18mm | 8x165.1 | 5.71" | 125.10mm | 3700 lbs | 42.33 lbs |
| KM552DB20905018 | Machined w/ Matte Black Lip | 20x9 18mm | 5x127 | 5.71" | 71.50mm | 3700 lbs | 41.67 lbs |
| KM552DB20908718 | Machined w/ Matte Black Lip | 20x9 18mm | 8x170 | 5.71" | 125.10mm | 3700 lbs | 42.33 lbs |
| KM552DB20906818 | Machined w/ Matte Black Lip | 20x9 18mm | 6x139.7 | 5.71" | 106.10mm | 3700 lbs | 41.23 lbs |
| KM552DB20908818 | Machined w/ Matte Black Lip | 20x9 18mm | 8x180 | 5.71" | 124.20mm | 3700 lbs | 42.77 lbs |
| KM552MB20906318 | Matte Black w/ Gloss Black Lip | 20x9 18mm | 6x135 | 5.71" | 87.10mm | 3700 lbs | 41.67 lbs |
| KM552MB20908018 | Matte Black w/ Gloss Black Lip | 20x9 18mm | 8x165.1 | 5.71" | 125.10mm | 3700 lbs | 42.33 lbs |
| KM552MB20908718 | Matte Black w/ Gloss Black Lip | 20x9 18mm | 8x170 | 5.71" | 125.10mm | 3700 lbs | 42.33 lbs |
| KM552MB20908818 | Matte Black w/ Gloss Black Lip | 20x9 18mm | 8x180 | 5.71" | 124.20mm | 3700 lbs | 42.77 lbs |
| KM552MB20906818 | Matte Black w/ Gloss Black Lip | 20x9 18mm | 6x139.7 | 5.71" | 106.10mm | 3700 lbs | 41.23 lbs |
| KM552MB20905018 | Matte Black w/ Gloss Black Lip | 20x9 18mm | 5x127 | 5.71" | 71.50mm | 3700 lbs | 41.67 lbs |
| KM552ZB20908718 | Matte Bronze w/ Gloss Black Lip | 20x9 18mm | 8x170 | 5.71" | 125.10mm | 3700 lbs | 42.33 lbs |
| KM552ZB20906818 | Matte Bronze w/ Gloss Black Lip | 20x9 18mm | 6x139.7 | 5.71" | 106.10mm | 3700 lbs | 41.23 lbs |
| KM552ZB20906318 | Matte Bronze w/ Gloss Black Lip | 20x9 18mm | 6x135 | 5.71" | 87.10mm | 3700 lbs | 41.67 lbs |
| KM552ZB20908018 | Matte Bronze w/ Gloss Black Lip | 20x9 18mm | 8x165.1 | 5.71" | 125.10mm | 3700 lbs | 42.33 lbs |
| KM552ZB20908818 | Matte Bronze w/ Gloss Black Lip | 20x9 18mm | 8x180 | 5.71" | 124.20mm | 3700 lbs | 42.77 lbs |
Complete your build
The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.
$470.00
$8,712.42
$229.96
$1,300.00
$925.95
KMC IMS Wheel FAQs
What size is the 20 inch IMS?
20x9, offered with 18mm or 0mm offset.
Which finishes are available?
Machined with Matte Black Lip, Matte Black with Gloss Black Lip, Matte Bronze with Gloss Black Lip and Gloss Silver with Machined Face.
Is it a beadlock wheel?
It has a simulated beadlock design.
How can I check fitment?
Use the vehicle selector on the page or email support@nvmos.com with your year, trim and current setup and we'll confirm fitment.
