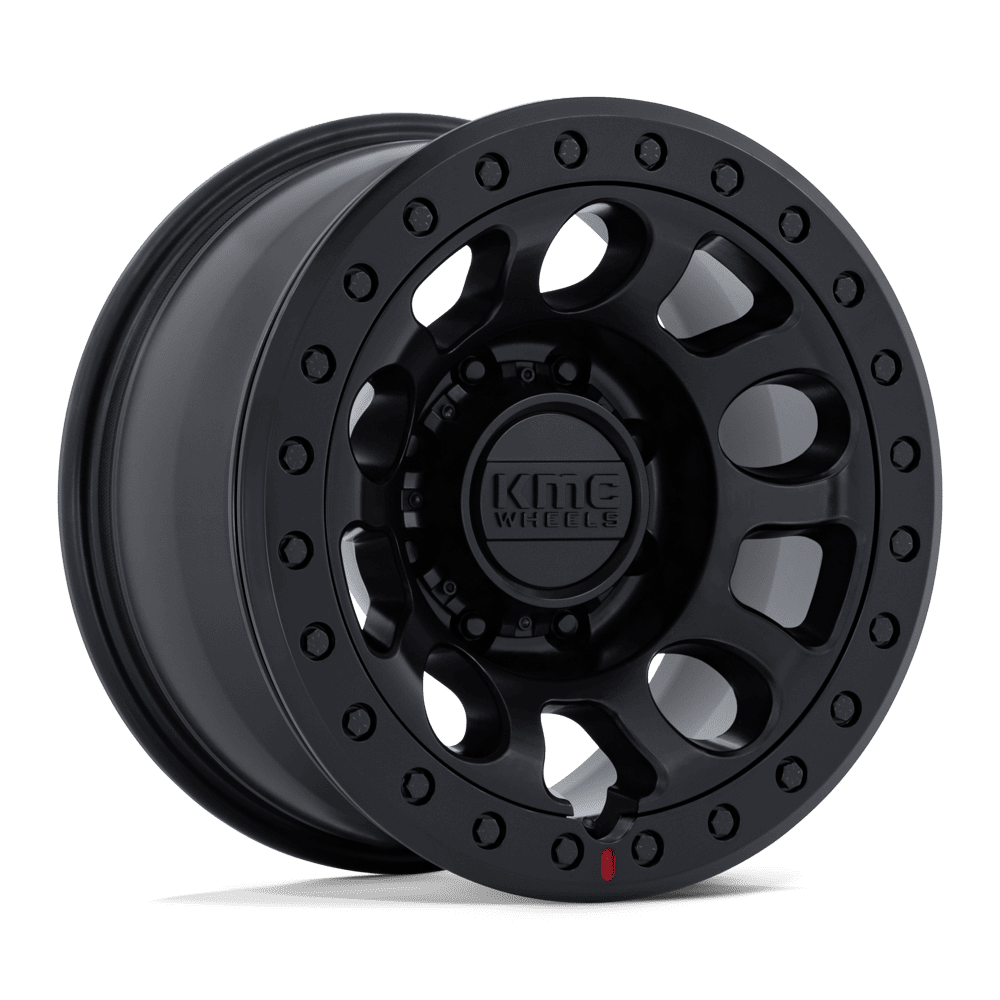

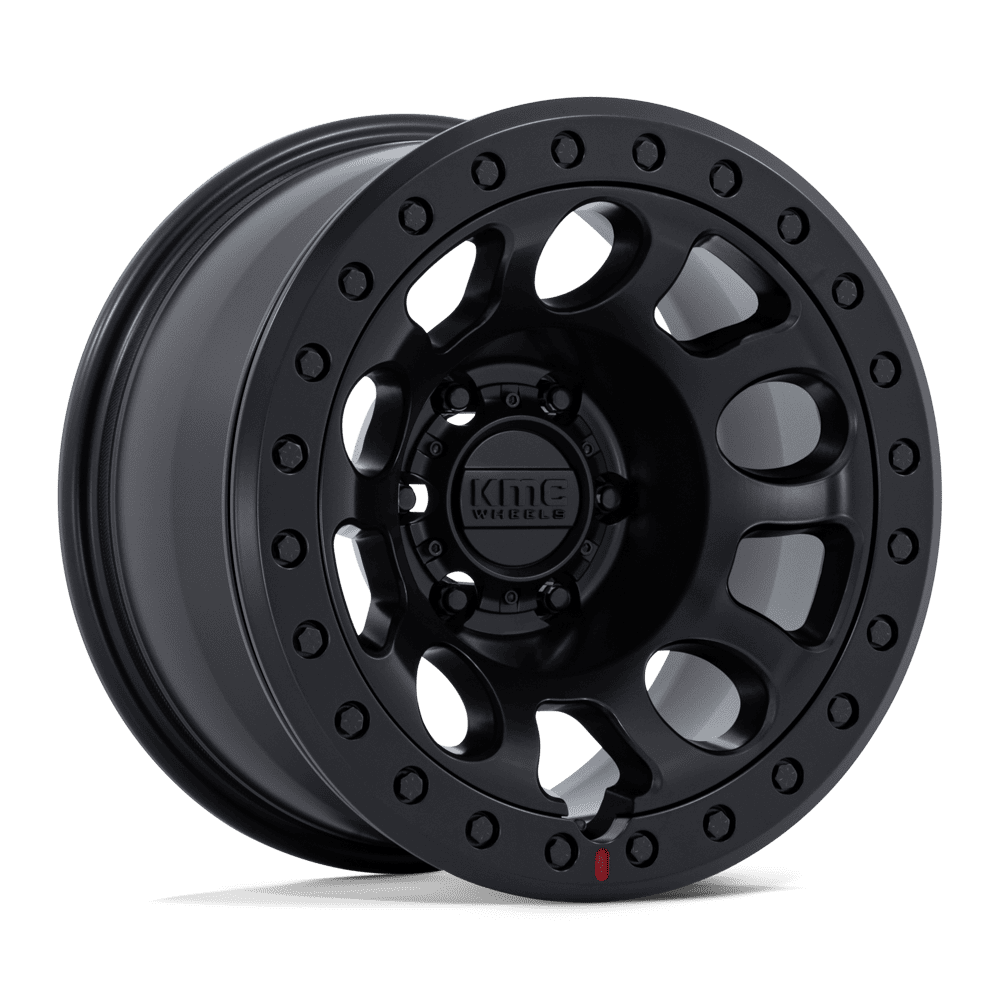

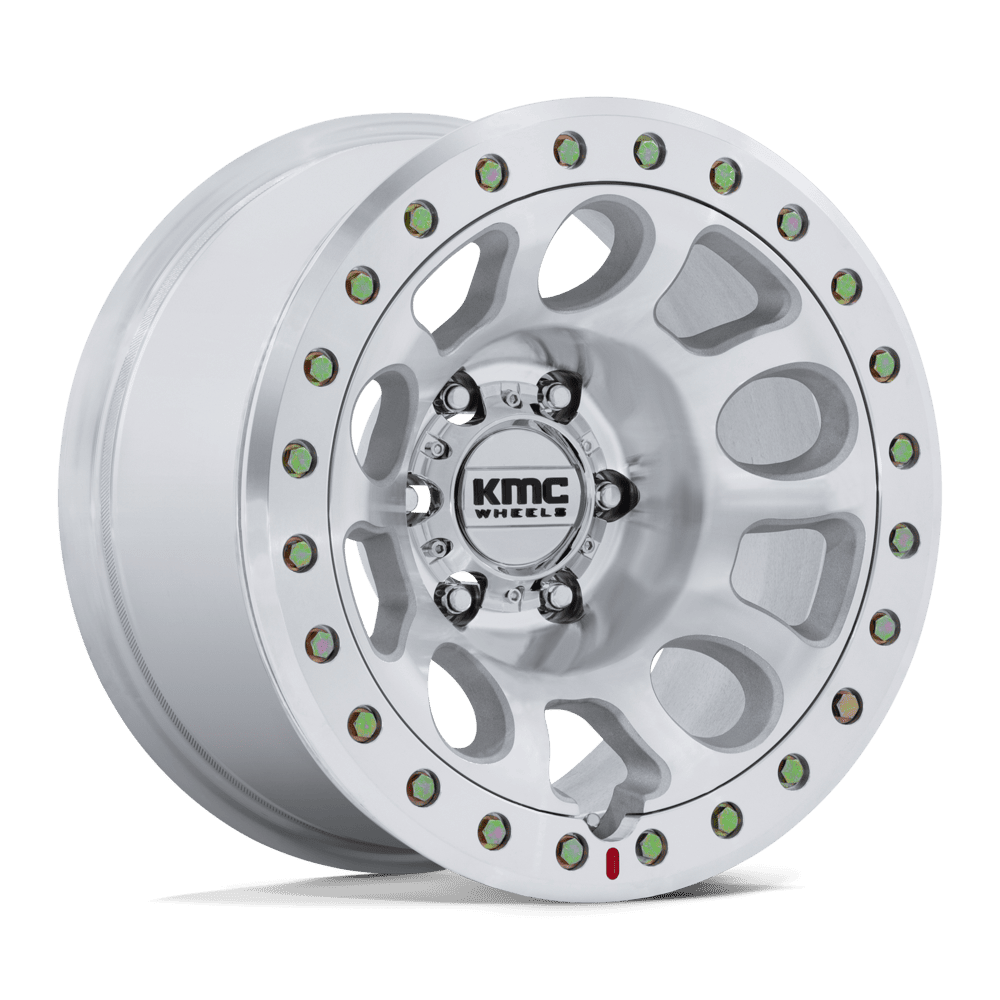

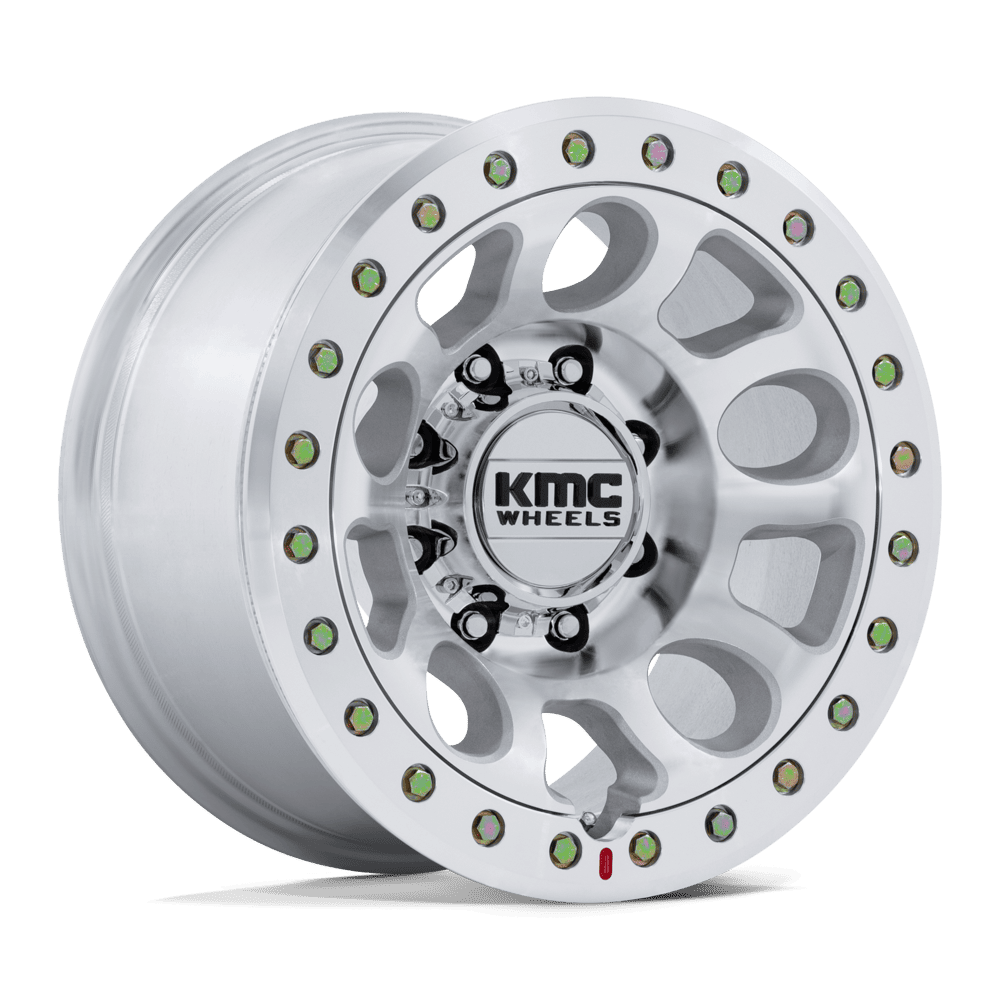

KMC E25 Beadlock Wheel
The KMC E25 takes the classic round-hole off-road wheel and gives it a fresh five-spoke twist built for hardcore off-roaders. Alternating window shapes and a deep concave face bring a modern edge to a proven design. The E25 features a true beadlock construction, allowing off-roaders to air down and tackle the roughest terrain while keeping their tire secure with a unique flush-mount beadlock ring. Getting down to business quickly on the trails is a priority, so we created a unique valve stem cutout and painted indicator to provide easy, quick access. Built strictly for off-road use, this wheel is made to handle serious trail abuse. Available in 5-lug, 6-lug, and 8-lug bolt patterns for a variety of builds from Jeeps and ½-ton trucks, all the way up to heavy-duty rigs.
Specifications
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| KM241MX17906012N | Blackout | 17x9 -12mm | 6x139.7 | 4.53" | 108.00mm | 2650 lbs | 36.96 lbs |
| KM241MX17905012N | Blackout | 17x9 -12mm | 5x127 | 4.53" | 71.50mm | 2650 lbs | 37.84 lbs |
| KM241DX17906012N | Machined | 17x9 -12mm | 6x139.7 | 4.53" | 108.00mm | 2650 lbs | 36.96 lbs |
| KM241DX17906312N | Machined | 17x9 -12mm | 6x135 | 4.53" | 87.10mm | 2650 lbs | 37.62 lbs |
| KM241DX17905012N | Machined | 17x9 -12mm | 5x127 | 4.53" | 71.50mm | 2650 lbs | 37.84 lbs |
| KM241MX17908038N | Blackout | 17x9 -38mm | 8x165.1 | 3.50" | 125.10mm | 4000 lbs | 41.58 lbs |
| KM241MX17905038N | Blackout | 17x9 -38mm | 5x127 | 3.50" | 71.50mm | 2650 lbs | 39.60 lbs |
| KM241DX17908038N | Machined | 17x9 -38mm | 8x165.1 | 3.50" | 125.10mm | 4000 lbs | 41.58 lbs |
| KM241DX17905038N | Machined | 17x9 -38mm | 5x127 | 3.50" | 71.50mm | 2650 lbs | 39.60 lbs |
| KM241MX17906001 | Blackout | 17x9 1mm | 6x139.7 | 5.04" | 108.00mm | 2650 lbs | 36.52 lbs |
| KM241MX17906301 | Blackout | 17x9 1mm | 6x135 | 5.04" | 87.10mm | 2650 lbs | 37.18 lbs |
| KM241DX17906001 | Machined | 17x9 1mm | 6x139.7 | 5.04" | 108.00mm | 2650 lbs | 36.52 lbs |
| KM241DX17906301 | Machined | 17x9 1mm | 6x135 | 5.04" | 87.10mm | 2650 lbs | 37.18 lbs |
