KMC Archer Wheel
For qualified buyers at checkout
Secure checkoutEncrypted payment
Warranty Information
Vendor warranty summary
KMC Wheels Warranty
At a glance: Structural warranty for as long as the original buyer owns the wheels; 1–2 years on finish
This is KMC Wheels's warranty, not an NVMOS policy. We've summarized it in plain English to save you a search. The manufacturer's official terms always govern and can change without notice. Last reviewed on nvmos.com: October 4, 2026.
Coverage by product
| Product or component | Coverage |
|---|---|
| Structure (aluminum wheels) | As long as the original retail purchaser owns them |
| Materials and workmanship | 1 year |
| Chrome finish (peeling/lifting only) | 1 year |
| Painted finish (peeling/lifting) | 1 year |
| PVD finish (peeling/lifting) | 2 years |
| Polished aluminum finish | Not covered |
| Steel wheels | 90 days |
- Original purchaser only — coverage does not transfer if you sell it.
- Keep your NVMOS order confirmation — proof of purchase is required.
What's covered
- Structural failure under normal, intended use while the original buyer owns the wheel
- Defects in materials and workmanship for one year
- Chrome and painted finishes against peeling or lifting for one year
- PVD finishes against peeling or lifting for two years
- Approved claims are repaired or replaced
What's not covered
- Pitting on chrome
- Polished aluminum finishes
- Not following installation guidelines
- Improper care or harsh/caustic cleaners
- Accidents or road hazards
- Racing or off-road abuse
- Removal, shipping and reinstallation costs
- Second owners — warranty ends when the wheels change hands
How to make a KMC Wheels warranty claim
- Take or return the wheel to the dealer you bought it from
- Bring the original sales receipt
- KMC inspects and, if approved, repairs or replaces the wheel
KMC Wheels contact: Phone: 877-757-9222 · Claim page / support
Bought it from NVMOS? Start with us.
Have your order number and a few photos of the issue ready, then call real humans at (920) 249-7744 or send us a message. We'll tell you whether the claim goes through us or straight to KMC Wheels, and help it along either way.
Shop KMC Wheels at NVMOS
See all KMC Wheels products, lead times and FAQs →
Disclaimer: The information on this page describes KMC Wheels's own warranty policy. It is not a warranty offered by NVMOS (No Visible Means of Support LLC). Manufacturers update their terms at any time; we review these pages periodically, but the manufacturer's current official policy is the one that applies to your claim. Source: KMC Wheels official warranty information. Last updated on nvmos.com: October 4, 2026. See our return policy for NVMOS's own terms.
About the brand
KMC has been making wheels since 1982, with a range built around off-road trucks, Jeeps and SUVs. NVMOS carries KMC cast, flow-formed and forged wheels plus true beadlocks, in 15- to 20-inch diameters and 5- to 8-lug patterns, for Jeep, truck and SUV owners.
Based in: Greenwood Village, Colorado · Since: 1982 · Lead time: In stock: ships in 24–48 hours
Shop all 74 KMC WheelsWarrantyAll brands
Warranty terms are set by KMC Wheels, not NVMOS, and can change. Bought from us? Call (920) 249-7744 and we'll handle the claim with the brand.

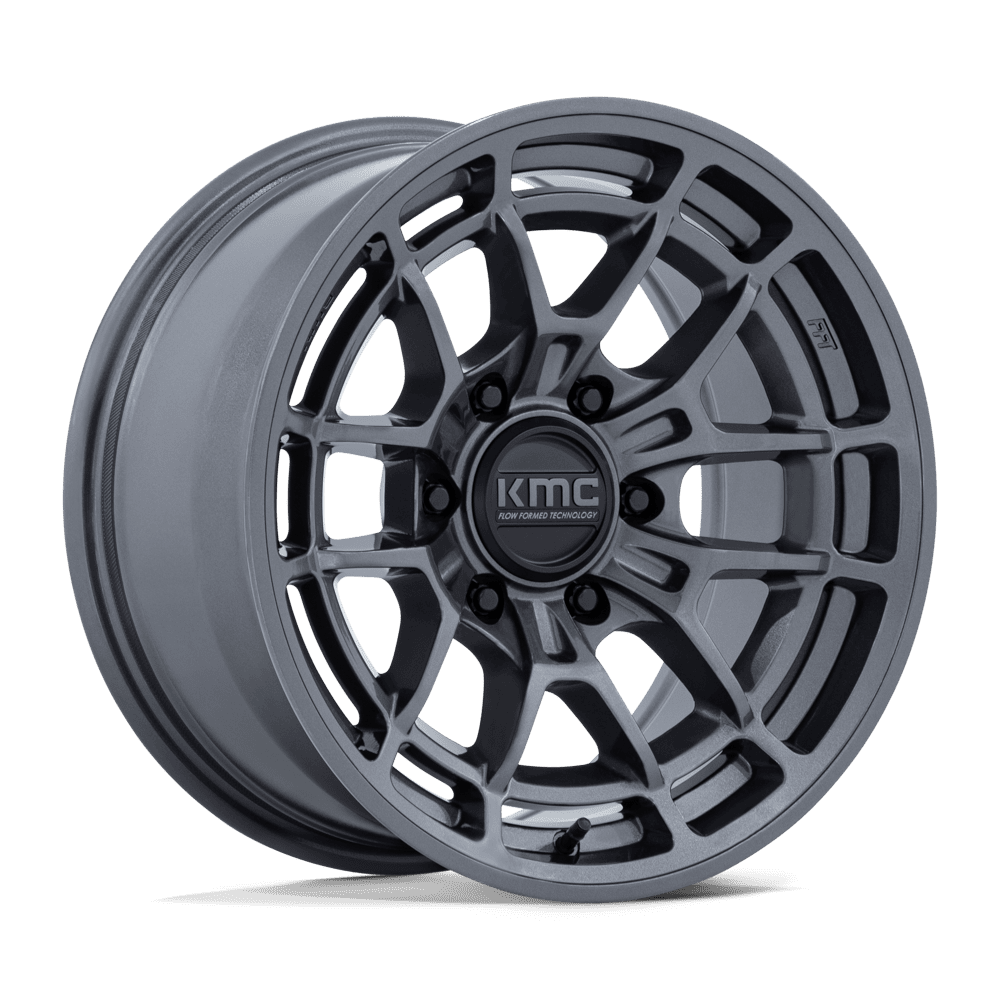

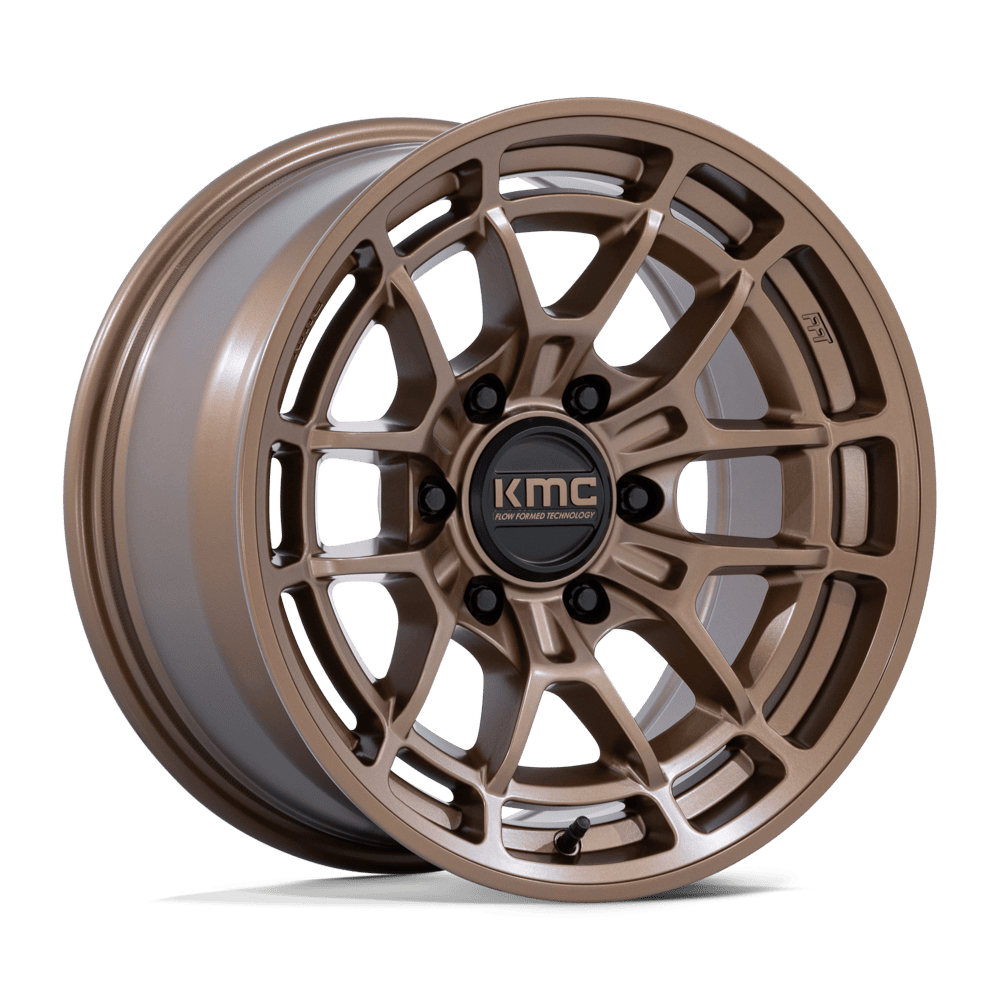

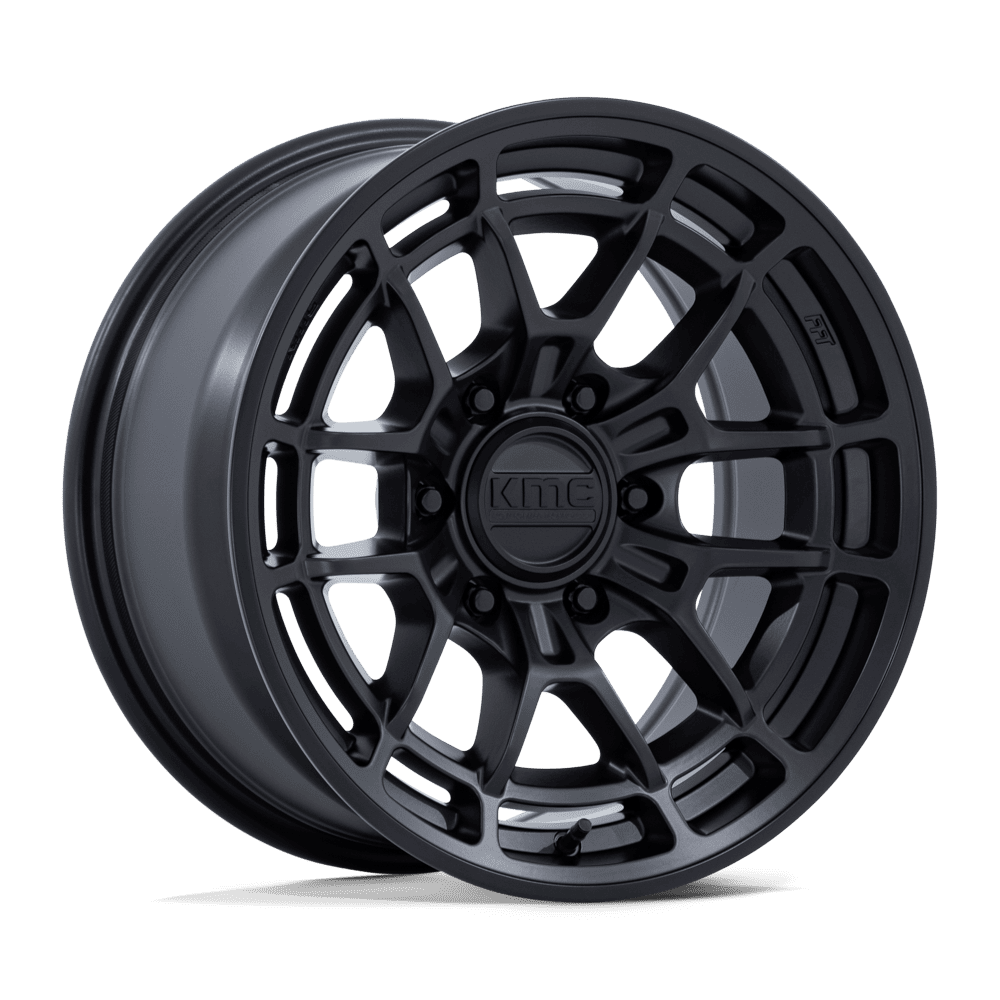

KMC Archer Wheel
The KMC KM732 Archer is for drivers who would rather be off-grid than on pavement. A split six-spoke design pushes into the lip for a deep, layered look. It is a solid upgrade for the Toyota Tacoma, Chevy Colorado and Ford Ranger.
Flow Formed construction keeps weight down and strength up. KMC says that means quicker acceleration, better mileage and less strain on your drivetrain. Choose from three finishes in 17x8.5, 6-lug. Browse more non-beadlock wheels or other wheels. There are 8 variants in this wheel from three finishes, two offsets and two bolt patterns. Check that 6x139.7 or 6x135 matches your hubs, then choose the offset. The +25mm offset keeps the wheel tucked in more than the 0mm option.
17x8.5 with 0mm or +25mm offset. Bolt patterns 6x139.7 and 6x135. Suited to Toyota Tacoma, Chevy Colorado and Ford Ranger.
| Part # | Finish | Size / Offset | Bolt Pattern | Backspace | Center Bore | Load Rating | Weight |
|---|---|---|---|---|---|---|---|
| KM732AX17856800 | Gloss Anthracite | 17x8.5 0mm | 6x139.7 | 4.75" | 106.10mm | 2650 lbs | 24.64 lbs |
| KM732MX17856800 | Matte Black | 17x8.5 0mm | 6x139.7 | 4.75" | 106.10mm | 2650 lbs | 24.64 lbs |
| KM732MX17856300 | Matte Black | 17x8.5 0mm | 6x135 | 4.75" | 87.10mm | 2650 lbs | 24.86 lbs |
| KM732ZX17856800 | Matte Bronze | 17x8.5 0mm | 6x139.7 | 4.75" | 106.10mm | 2650 lbs | 24.64 lbs |
| KM732AX17856825 | Gloss Anthracite | 17x8.5 25mm | 6x139.7 | 5.73" | 106.10mm | 2650 lbs | 24.20 lbs |
| KM732MX17856825 | Matte Black | 17x8.5 25mm | 6x139.7 | 5.73" | 106.10mm | 2650 lbs | 24.20 lbs |
| KM732MX17856325 | Matte Black | 17x8.5 25mm | 6x135 | 5.73" | 87.10mm | 2650 lbs | 24.42 lbs |
| KM732ZX17856825 | Matte Bronze | 17x8.5 25mm | 6x139.7 | 5.73" | 106.10mm | 2650 lbs | 24.20 lbs |
Complete your build
The pieces owners run with this one — matched to your build and to each other. Do the whole truck in one order instead of three.
$424.00
$2,495.95
$249.95
$1,035.00
$109.99
KMC Archer Wheel FAQs
Which trucks is it for?
KMC points to the Toyota Tacoma, Chevy Colorado and Ford Ranger.
What sizes and offsets are available?
17x8.5 with 0mm or +25mm offset.
What bolt patterns are offered?
6x139.7 and 6x135.
What finishes can I choose?
Matte Bronze, Gloss Anthracite and Matte Black.
